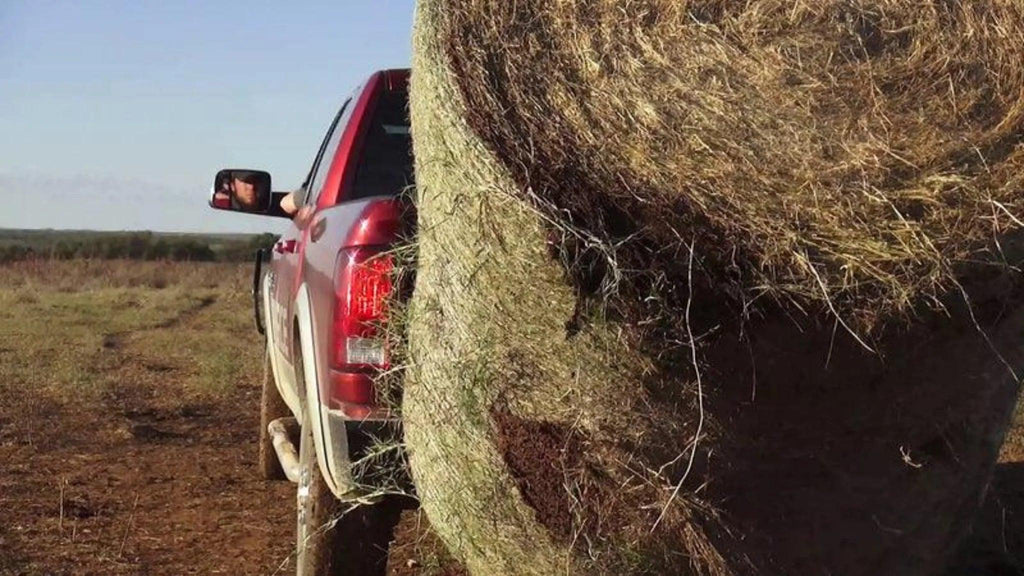

  • A red pickup with a PIERCE Truck Bed Gooseneck Hay Bale Mover hauls a large round hay bale in a rural field as someone’s arm hangs out the window.
  • A PIERCE Truck Bed Gooseneck Hay Bale Mover lifts a hay bale in the bed of a red pickup truck, which is parked on dry grass in a field.
  • A red pickup equipped with the PIERCE Truck Bed Gooseneck Hay Bale Mover hauls a large hay bale on a white background.

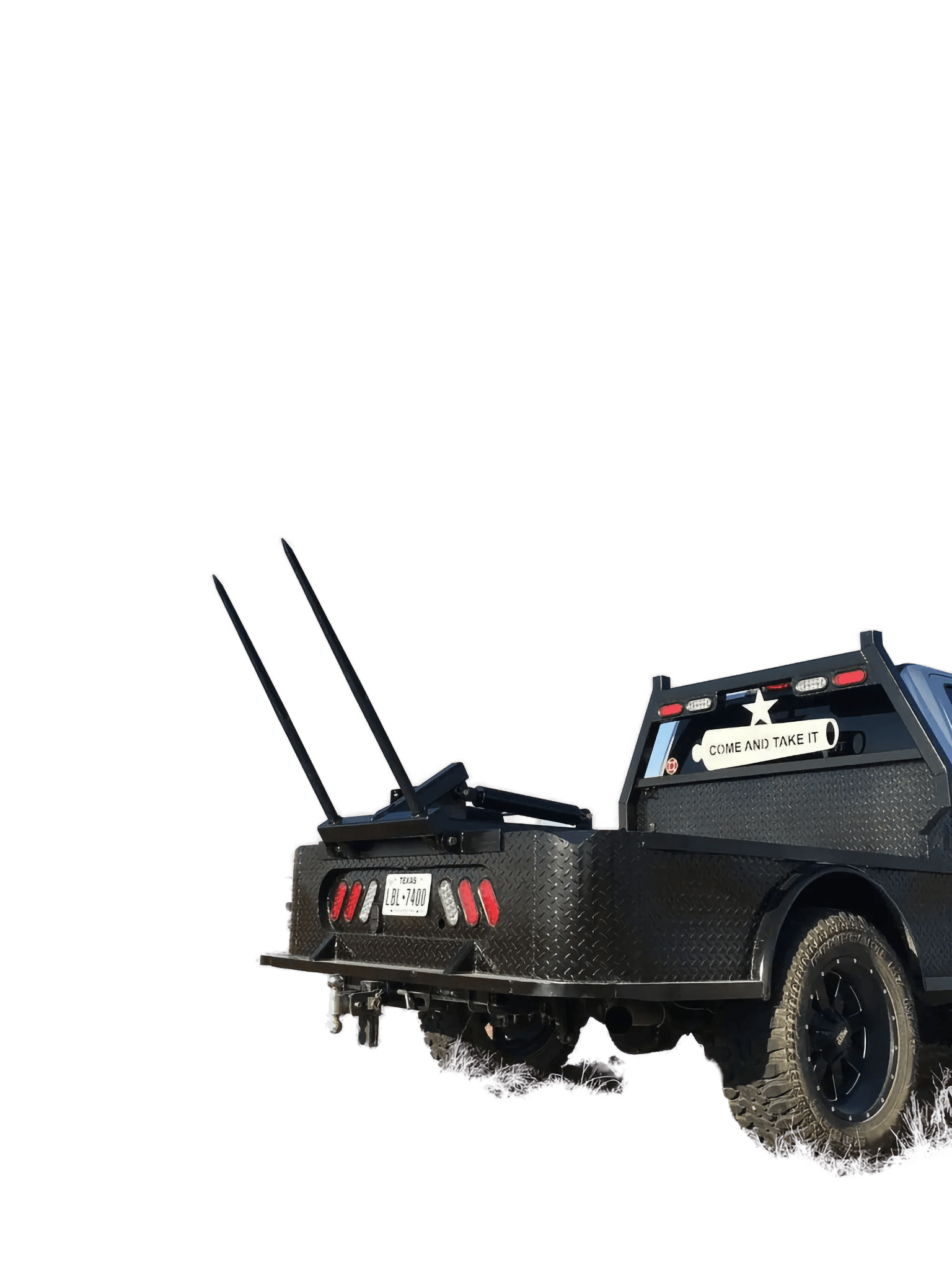

  • A black pickup with a PIERCE Truck Bed Gooseneck Hay Bale Mover, metal pipes, and a "Come and Take It" sign on the flatbed.

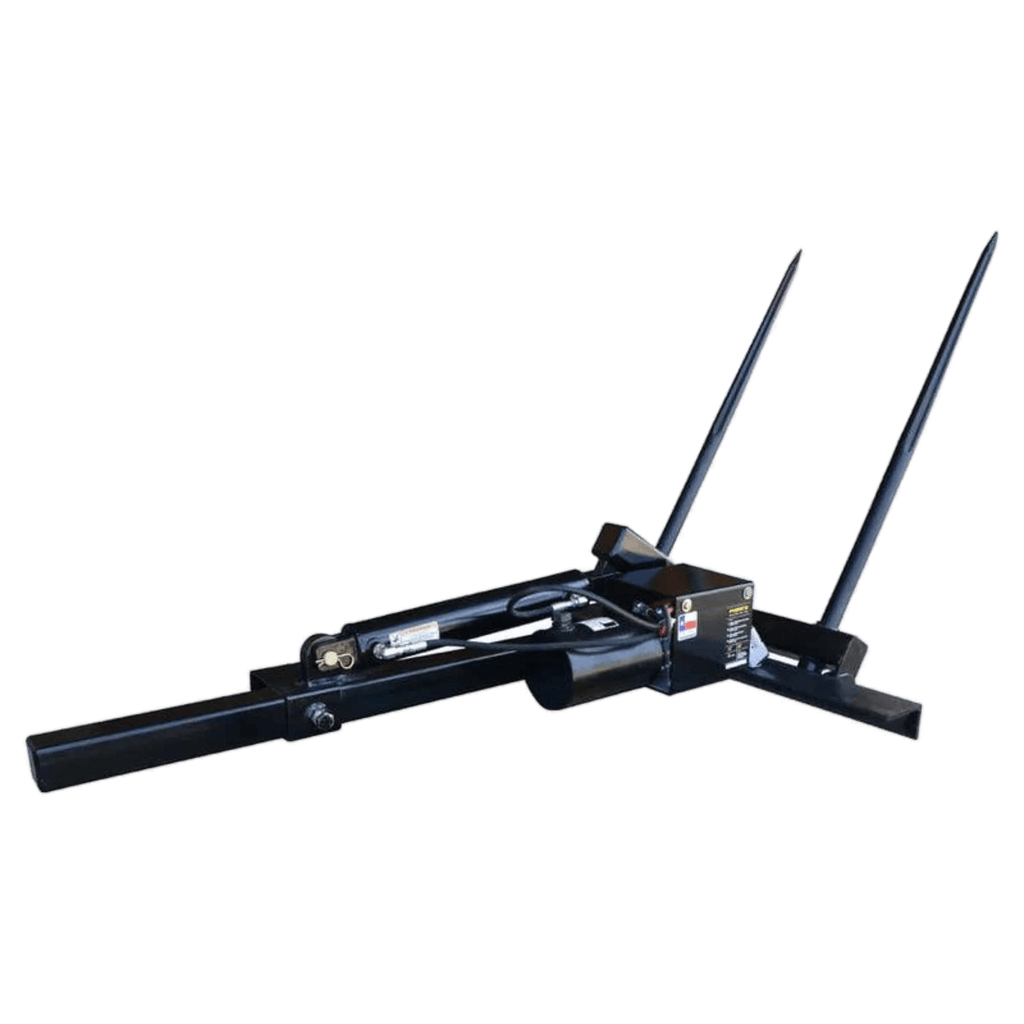

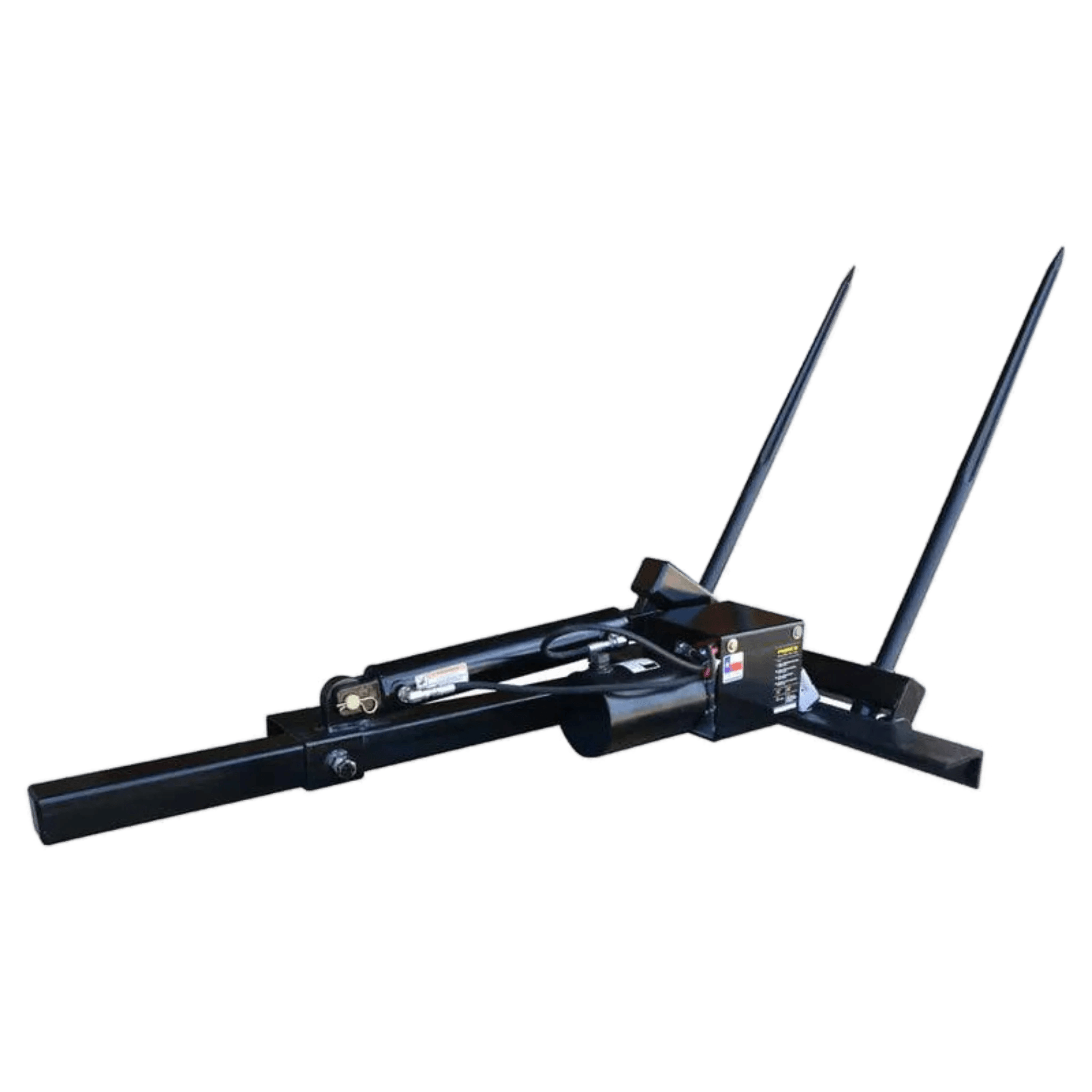

  • The PIERCE Truck Bed Gooseneck Hay Bale Mover features two long, pointed spikes and a rectangular mounting frame for efficient hay transport.
  • The PIERCE Truck Bed Gooseneck Hay Bale Mover features two long metal spikes, perfect for handling hay on tractors, loaders, or as a truck bed attachment.

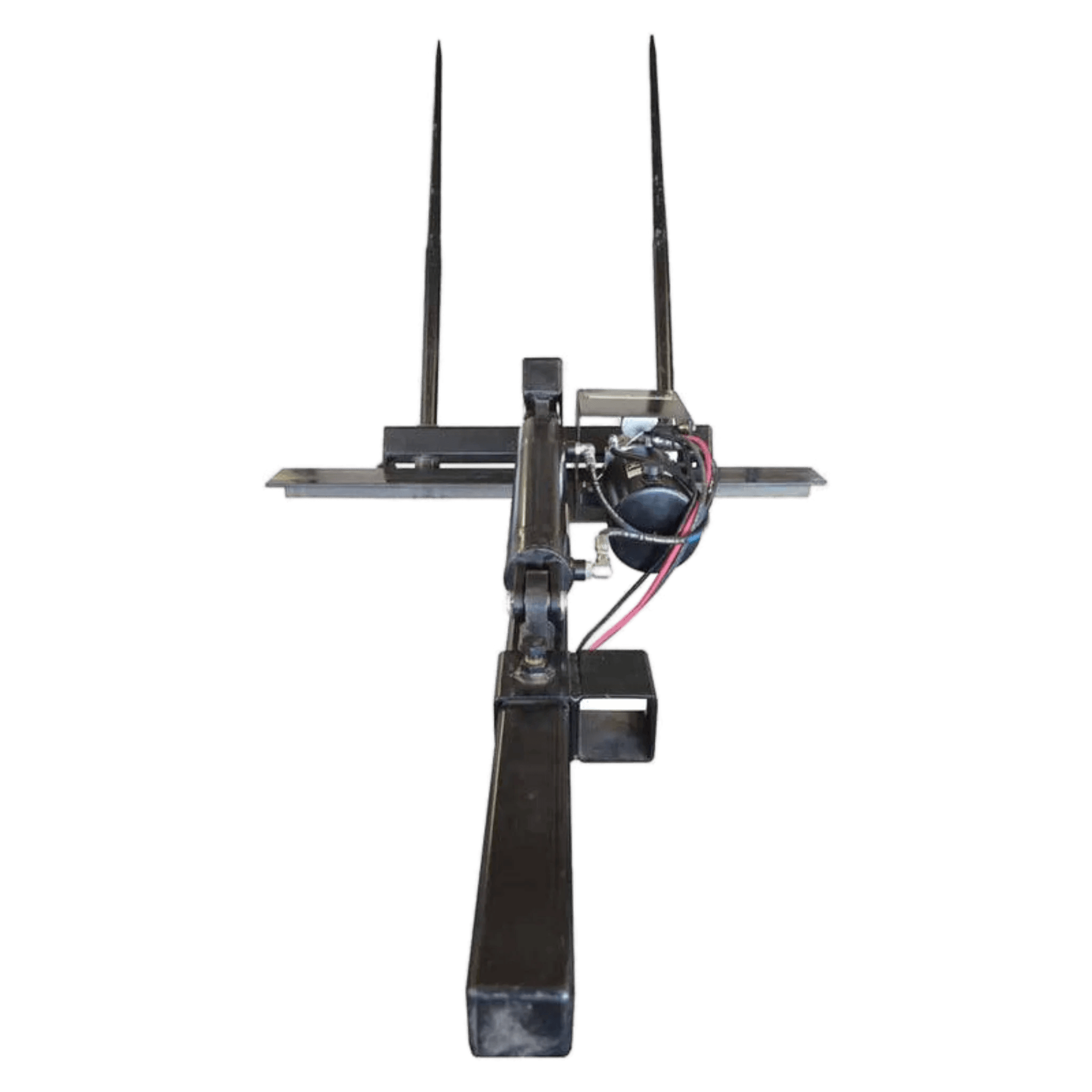

  • Front view of the PIERCE Truck Bed Gooseneck Hay Bale Mover, a metal attachment with hydraulic mechanism for efficient hay bale handling.

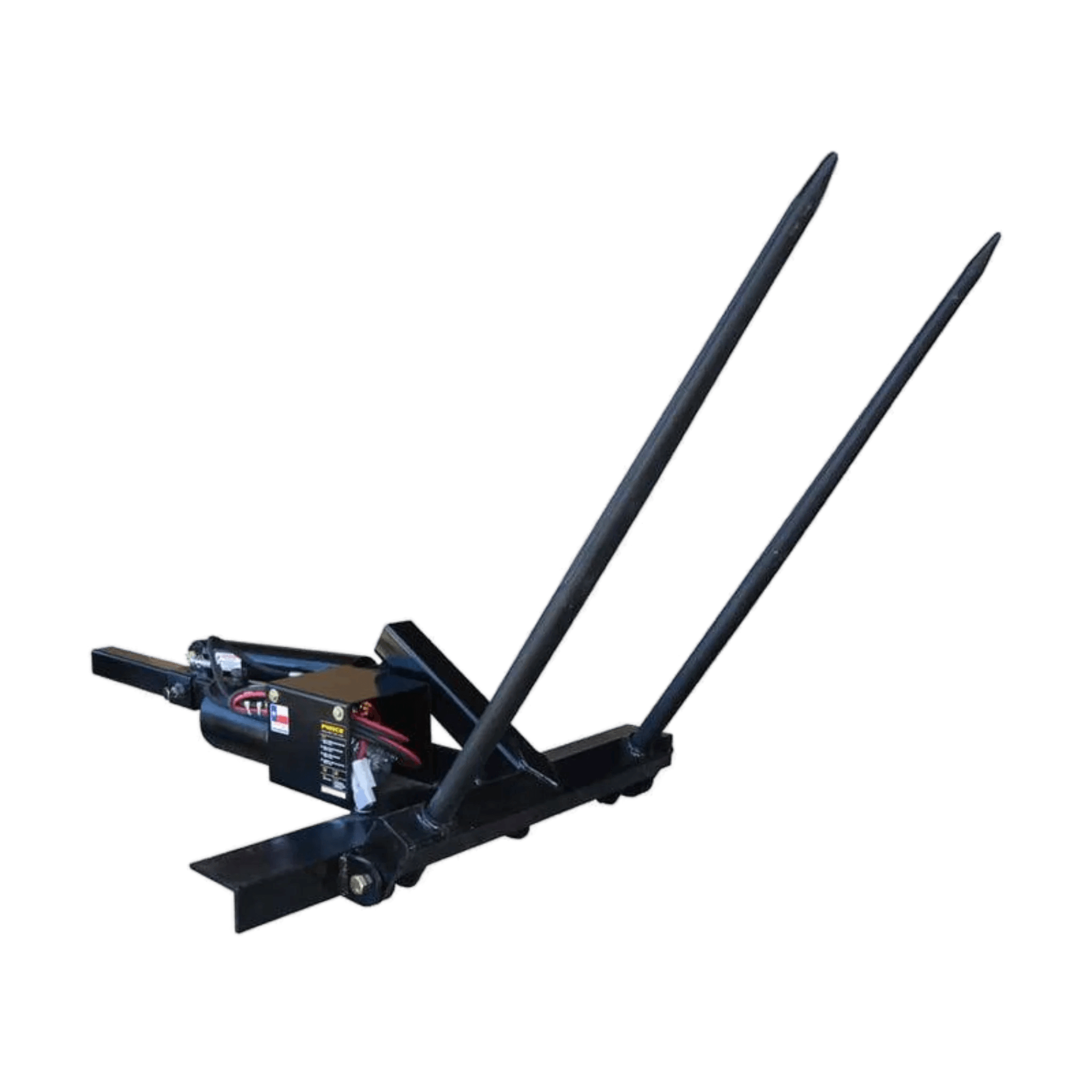

  • The PIERCE Truck Bed Gooseneck Hay Bale Mover is a black attachment with two long spikes, designed for transporting hay bales using tractors or loaders.
  • Aerial view of PIERCE Truck Bed Gooseneck Hay Bale Mover mounted on a platform in a dry grassy field, with a "Come and Take It" sticker visible.
  • A black pickup truck with a mounted cannon in a field, "Come and Take It" on the back window, and a PIERCE Truck Bed Gooseneck Hay Bale Mover ready for heavy-duty work.

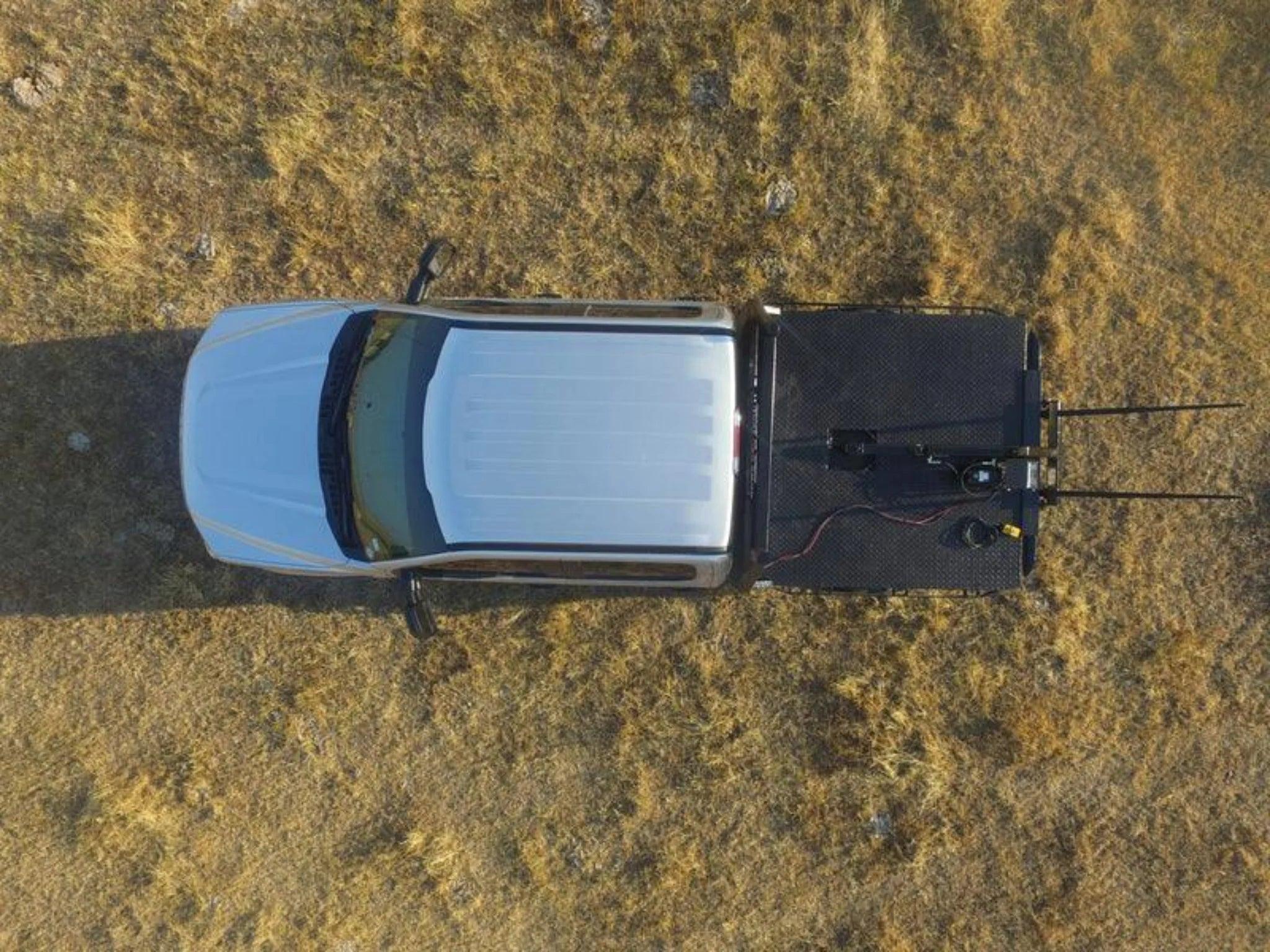

  • Aerial view of a white pickup truck equipped with a PIERCE Truck Bed Gooseneck Hay Bale Mover parked on dry grass.
  • A PIERCE Truck Bed Gooseneck Hay Bale Mover is transporting large round hay bales in a field.
  • Large round hay bales rest beside a flatbed trailer with trees behind, ready to be loaded using the PIERCE Truck Bed Gooseneck Hay Bale Mover.
  • Truck Bed Gooseneck Hay Bale Mover
  • What's the difference between the PIERCE Bale Spikes?
  • PIERCE Bolt-in Bale Spike Installation Process (ABS2K)
  • PIERCE Gooseneck Bale Spike Installation Process (ABS1K)
  • A red pickup with a PIERCE Truck Bed Gooseneck Hay Bale Mover hauls a large round hay bale in a rural field as someone’s arm hangs out the window.

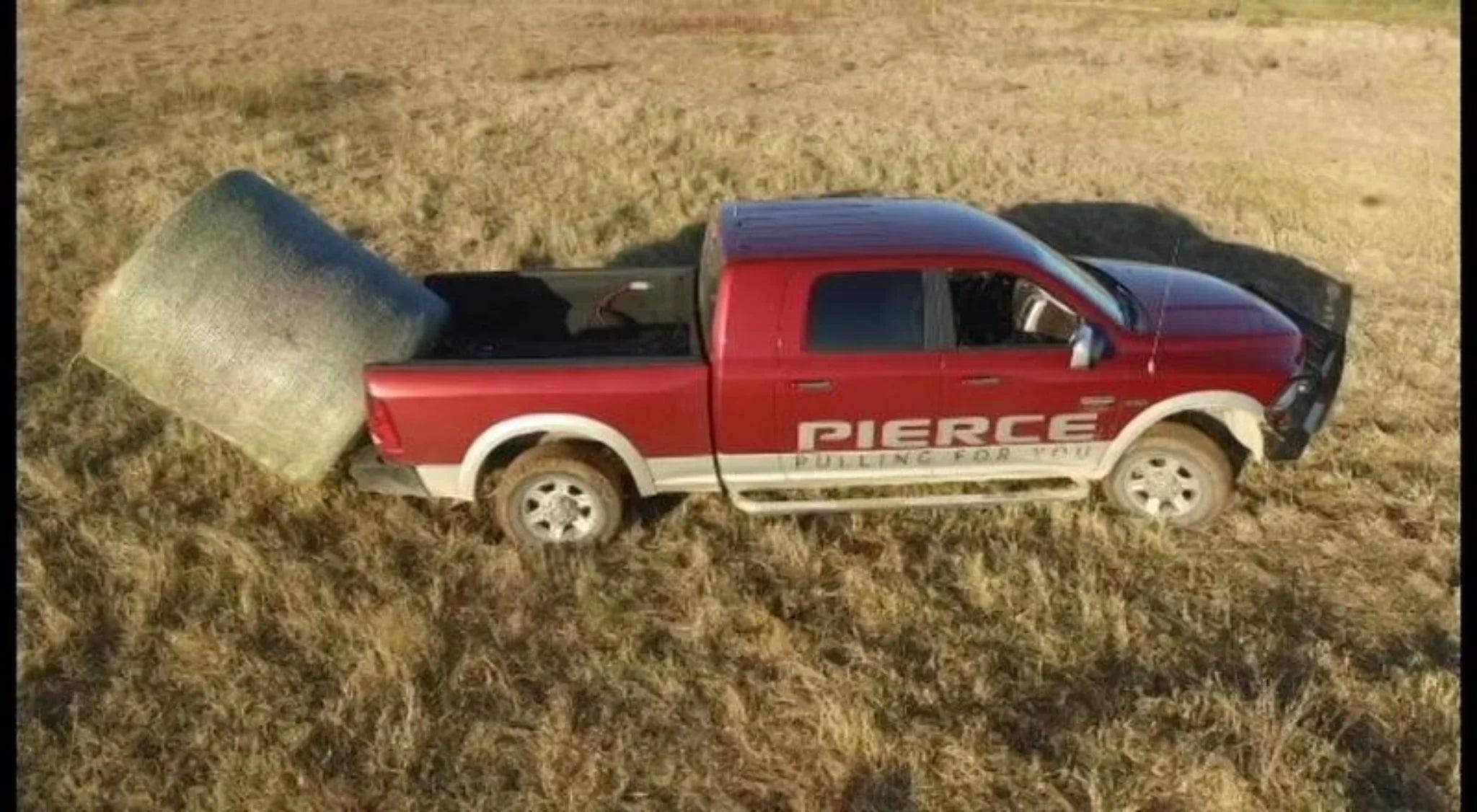

  • A PIERCE Truck Bed Gooseneck Hay Bale Mover lifts a hay bale in the bed of a red pickup truck, which is parked on dry grass in a field.

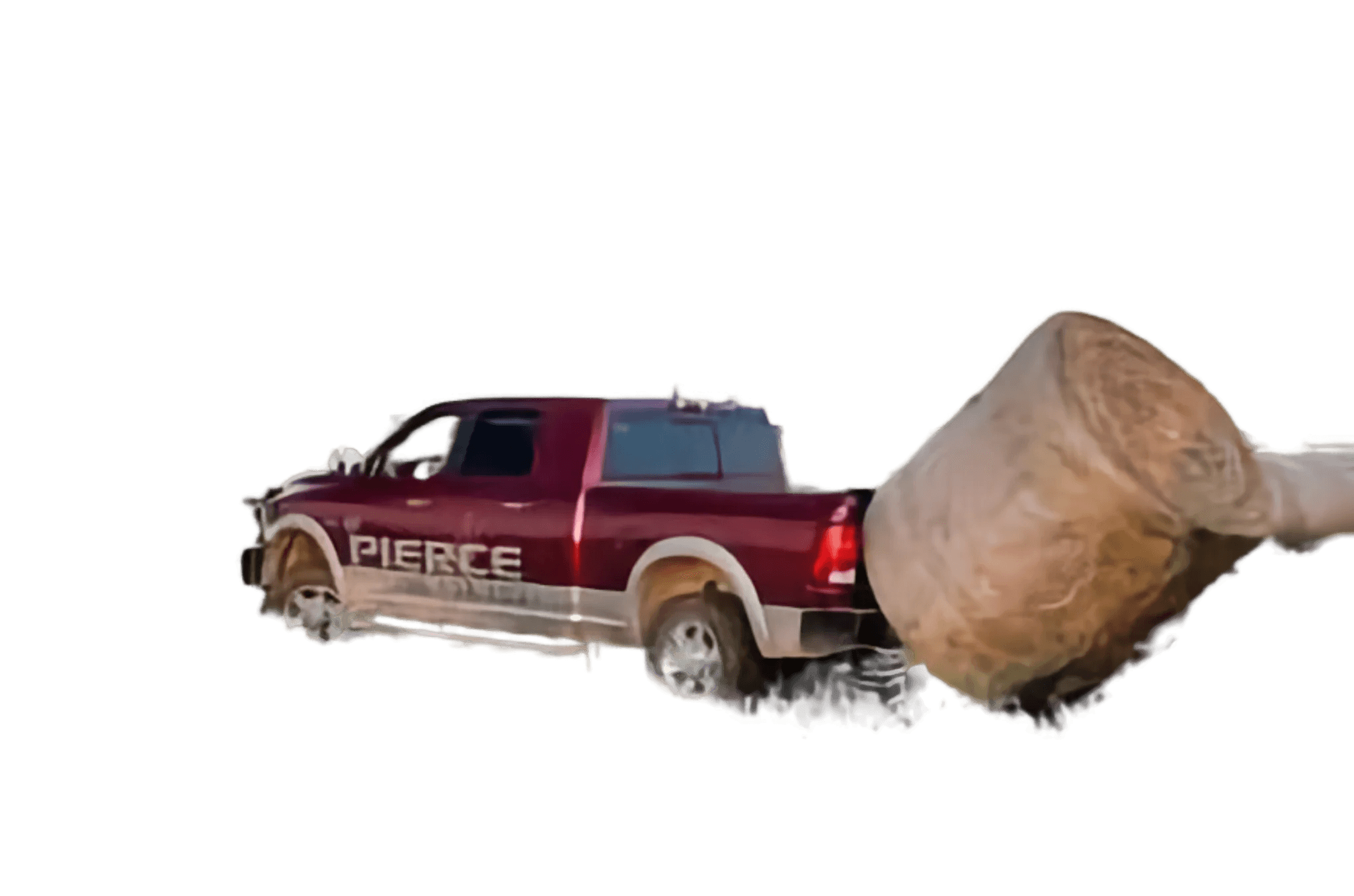

  • A red pickup equipped with the PIERCE Truck Bed Gooseneck Hay Bale Mover hauls a large hay bale on a white background.
  • A black pickup with a PIERCE Truck Bed Gooseneck Hay Bale Mover, metal pipes, and a "Come and Take It" sign on the flatbed.
  • The PIERCE Truck Bed Gooseneck Hay Bale Mover features two long, pointed spikes and a rectangular mounting frame for efficient hay transport.

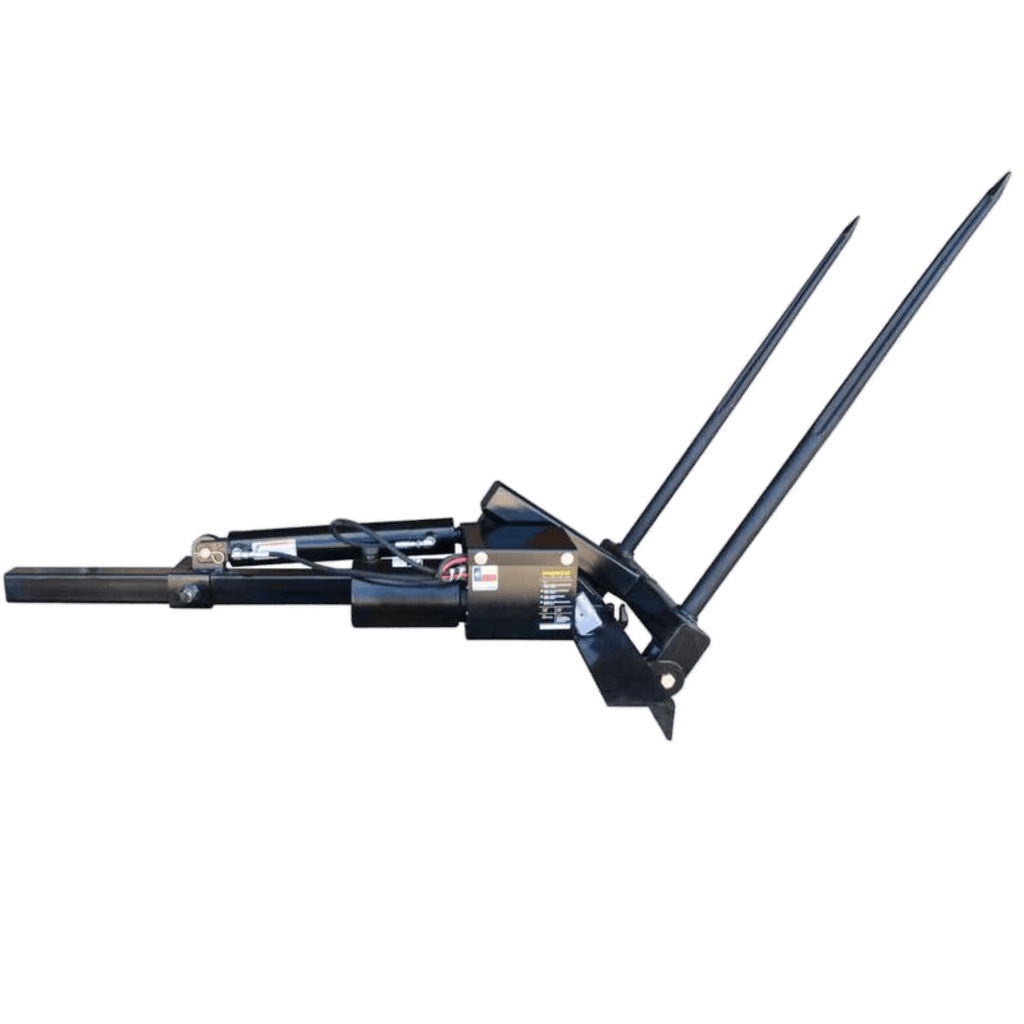

  • The PIERCE Truck Bed Gooseneck Hay Bale Mover features two long metal spikes, perfect for handling hay on tractors, loaders, or as a truck bed attachment.
  • Front view of the PIERCE Truck Bed Gooseneck Hay Bale Mover, a metal attachment with hydraulic mechanism for efficient hay bale handling.
  • The PIERCE Truck Bed Gooseneck Hay Bale Mover is a black attachment with two long spikes, designed for transporting hay bales using tractors or loaders.

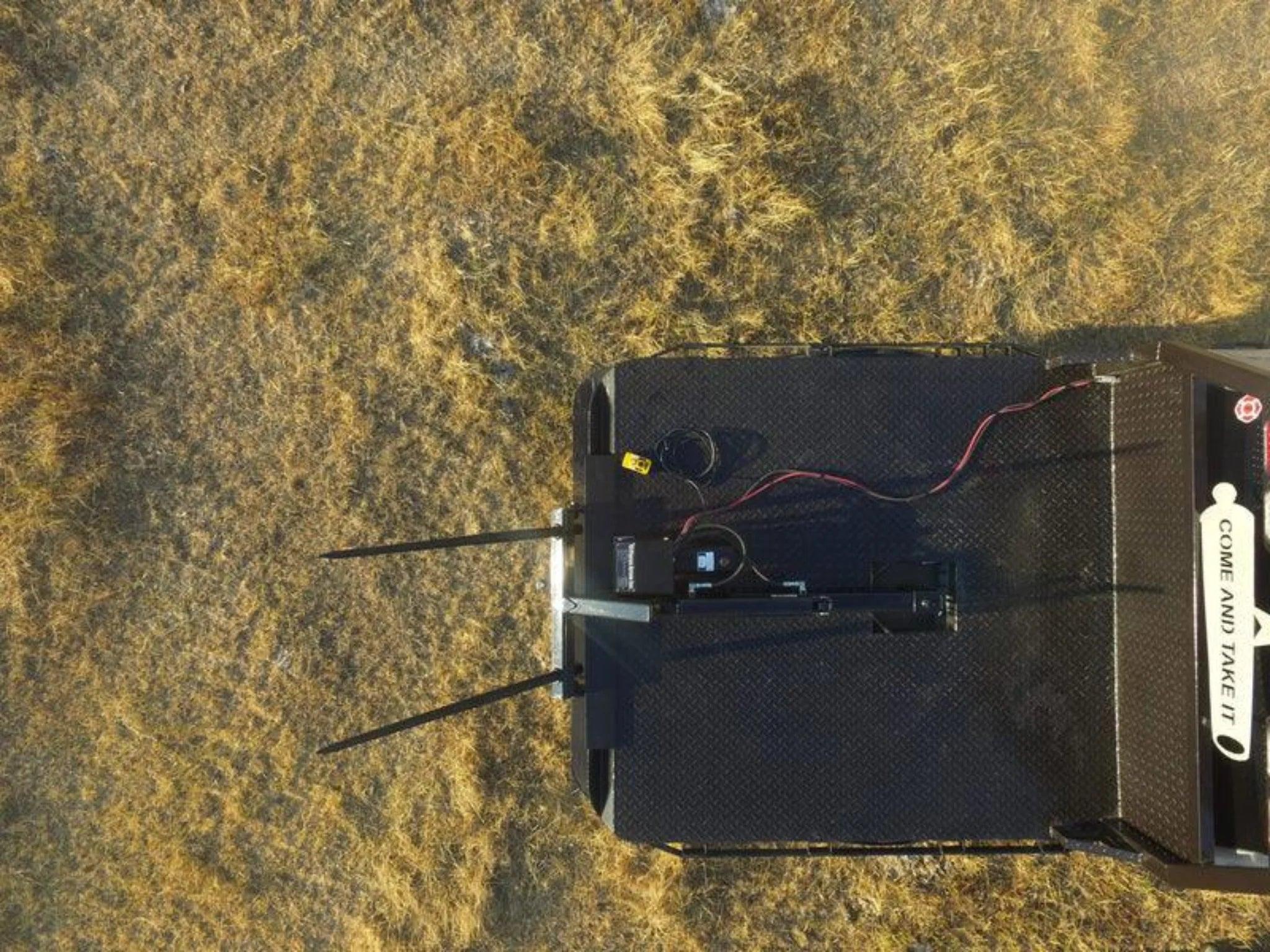

  • Aerial view of PIERCE Truck Bed Gooseneck Hay Bale Mover mounted on a platform in a dry grassy field, with a "Come and Take It" sticker visible.

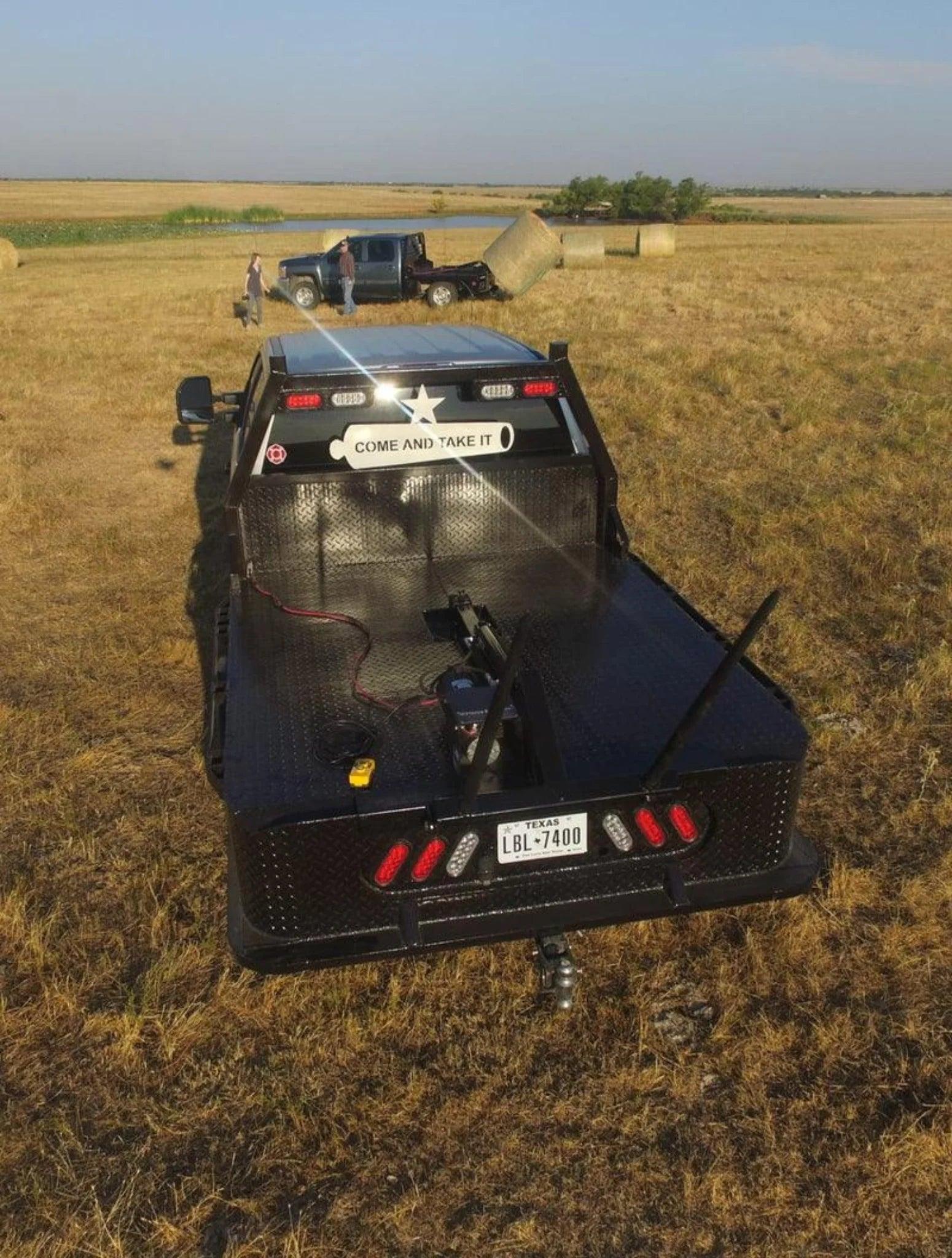

  • A black pickup truck with a mounted cannon in a field, "Come and Take It" on the back window, and a PIERCE Truck Bed Gooseneck Hay Bale Mover ready for heavy-duty work.
  • Aerial view of a white pickup truck equipped with a PIERCE Truck Bed Gooseneck Hay Bale Mover parked on dry grass.

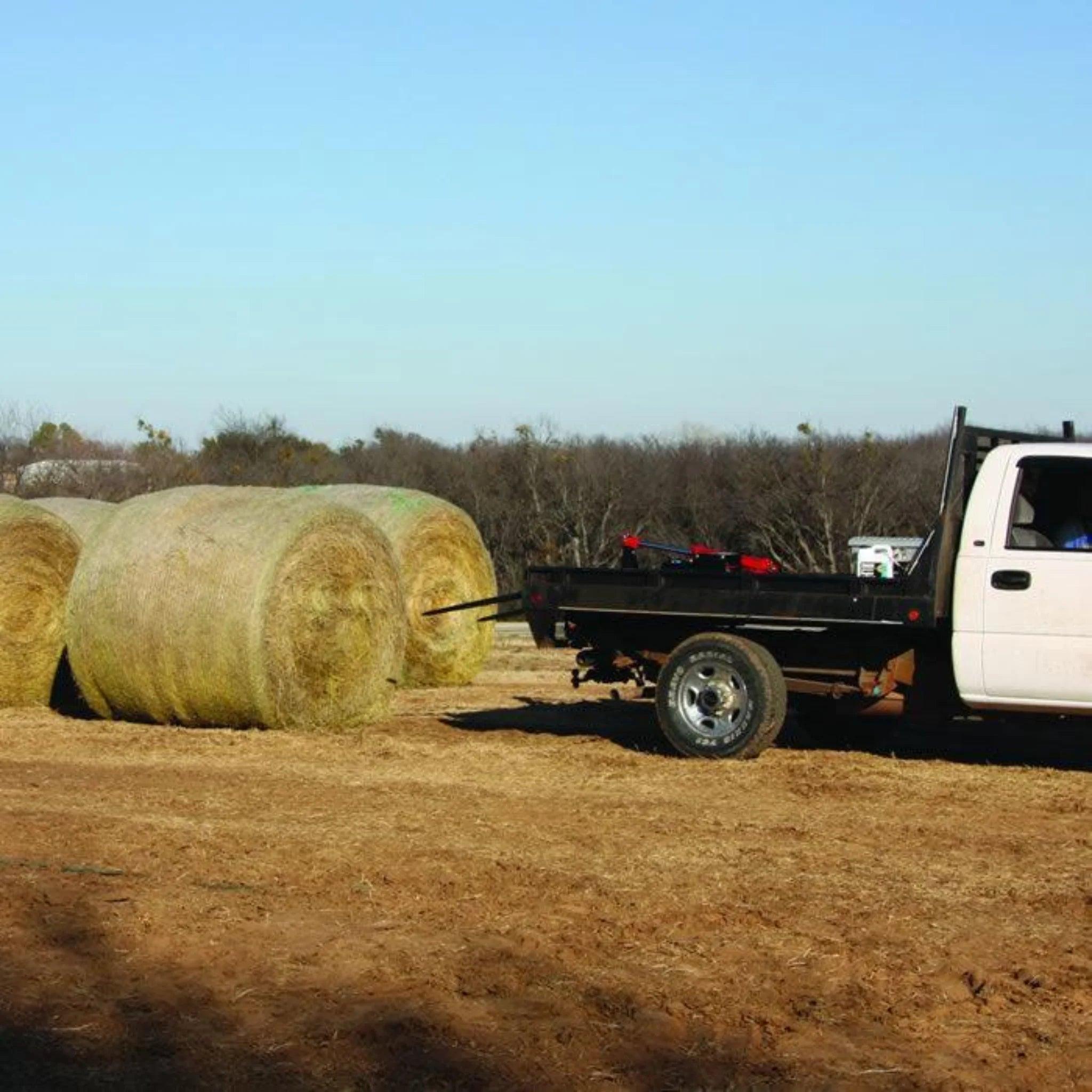

  • A PIERCE Truck Bed Gooseneck Hay Bale Mover is transporting large round hay bales in a field.
Truck Bed Gooseneck Hay Bale Mover

Truck Bed Gooseneck Hay Bale Mover

ABS1K
$2,158.00
In Stock

The PIERCE Truck Bed Gooseneck Hay Bale Spear is a durable, efficient tool for ranchers and farmers who need to move hay bales without a tractor. Designed for easy mounting on a 2-5/16" gooseneck ball, this hydraulic bale mover offers a 2,500 lb. capacity, making it perfect for handling large hay bales with your pickup truck. It’s a reliable, cost-effective alternative to built-in bale beds.

Why Choose the PIERCE Truck Bed Gooseneck Hay Bale Spear?

This hydraulic bale spear is built with a sturdy metal frame and two robust tines, ensuring secure lifting and transport of large hay bales. The self-contained 12V hydraulic pump (power up/power down) provides smooth, dependable operation, while the 20-foot water-resistant remote with magnetic mounting allows easy control from your truck’s cab. Unlike a tractor, this spear lets you feed cattle from inside your truck, keeping you comfortable in cold or wet conditions. The gooseneck mount design allows quick removal, preserving your truck’s versatility for other tasks.

Key Features

  • High Capacity: Lifts large hay bales with a 3,000 PSI hydraulic cylinder and 2,500 lb. capacity.
  • Flexible Mounting: Easily mounts over a 2-5/16" gooseneck ball and can be removed when not in use.
  • User-Friendly Operation: Comes with a self-contained hydraulic pump that connects to your vehicle’s battery, plus electrical quick disconnects and a 200-amp breaker for safety.
  • Convenient Design: Removable spears allow you to switch tasks quickly, and the remote simplifies bale handling from inside the cab.
  • Durable Construction: Backed by a two-year warranty covering mechanical, electrical, and hydraulic components.

How It Saves Time

The PIERCE Truck Bed Gooseneck Hay Bale Spear streamlines hay bale transport and feeding. Its hydraulic system ensures fast, precise handling, whether you’re loading bales onto a trailer or distributing them in a field. The removable design makes it easy to switch between bale handling and other truck tasks, while the durable build minimizes maintenance. By eliminating the need for a tractor or expensive bale bed, it saves time and keeps you productive in tough weather. Enhance efficiency further with the optional PIERCE Wireless Controller to eliminate cab wiring. Furthermore, if you think you will need to pull a gooseneck trailer often, you can opt for the Bolt-in Hydraulic Bale Spear that allows you to simply remove the spears in order to hook up to your goosneck hitch.

Add the T-post Puller Attachment to make quick work of fence projects. The attachment mounts right onto your Gooseneck Hay Bale Mover utilizing the hydraulic cylinder to pull t-posts effortlessly out of the ground.

Perfect for Your Needs

Ideal for small farms or large ranches across the U.S., this truck bed bale spear is built for daily use. Measuring 64" x 62" x 30.5" and weighing 270 lbs., it’s a practical addition to any pickup truck. The gooseneck mount ensures easy installation and removal, making it a flexible solution compared to permanent bale beds. Handcrafted in Henrietta, Texas, by PIERCE, a family-owned business since 1976, this hay bale spear delivers trusted performance for working men and women.
PIERCE 2 Year Warranty icon

PIERCE 2 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

Hydraulic Truck Bale Spikes Options:

Both truck bale spikes come with a self-contained hydraulic pump that will connect to your vehicle's battery. The question is how you would like to mount your setup. If you would like to be able to remove your bale spike system completely, the gooseneck is the best option. However, if you want to leave the system mounted and still use your gooseneck ball, the bolt-in option may be best. Both allow you to remove the spears when not in use.
Large round hay bales rest beside a flatbed trailer with trees behind, ready to be loaded using the PIERCE Truck Bed Gooseneck Hay Bale Mover.
Truck Bed Gooseneck Mounting (Removeable) ABS1K
A white pickup truck with a PIERCE Bolt-in Hydraulic Truck Bed Hay Bale Spear is parked on dirt, framed by trees in the background.
Truck Bed Bolt-In Mounting (More Permanent) ABS2K
+$309.00
What's Included
Specifications
Max Capacity (lbs.)
2500
Operating Voltage
12 Volts DC
Weight (lbs.)
270
Operational Pressure (psi)
2500
Reservoir Capacity
3 qt.
Hose Connections
#6 SAE
Overall Dimensions
64" x 62" x 30.5"
Cylinder Measurements
3" x 16"
Mounting
2-5/16" Gooseneck Ball
Cylinder Rod
1.5"
Cylinder Type
Welded
Warranty
PIERCE 2 Year Warranty
Replacement Parts (10)
Bucher Dual Action (Power Up / Power Down) Hydraulic Pump
Bucher Dual Action (Power Up / Power Down) Hydraulic PumpSKU: PM-3554-0131
$691.00
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft CordSKU: CP077K
$63.00
Bale Spike | Hose | 26 in | Goose Neck Attachment
Bale Spike | Hose | 26 in | Goose Neck AttachmentSKU: ABS1H
$16.00
Connector | Wire | 2 Gauge
Connector | Wire | 2 GaugeSKU: ASTC9032
$27.00
Forged Bale Spear
Forged Bale SpearSKU: ABS1SPEAR
$160.00
Pin for Bale Spear
Pin for Bale SpearSKU: ABS1PIN
$6.00
Bale Spear Collar
Bale Spear CollarSKU: ABS1COLLAR
$17.95
Drop Hinge for Gooseneck Bale Spear
Drop Hinge for Gooseneck Bale SpearSKU: ABS1DH
$205.00
4 Gauge Wiring Harness
4 Gauge Wiring HarnessSKU: ABSHNB4
$47.00
Universal Momentary Pendant Control - 2 Button
Universal Momentary Pendant Control - 2 ButtonSKU: CP077
$17.00
Videos (3)
What's the difference between the PIERCE Bale Spikes? video

What's the difference between the PIERCE Bale Spikes?

PIERCE Bolt-in Bale Spike Installation Process (ABS2K) video

PIERCE Bolt-in Bale Spike Installation Process (ABS2K)

PIERCE Gooseneck Bale Spike Installation Process (ABS1K) video

PIERCE Gooseneck Bale Spike Installation Process (ABS1K)

Resources
ABSK - Bale Spike Manual Manual Pump Troubleshooting Guide Guide ABS1K Spec Sheet Spec Sheet
ABSK - Bale Spike Manual
Manual
Pump Troubleshooting Guide
Guide
ABS1K Spec Sheet
Spec Sheet
3D Model

Drag to rotate • Scroll to zoom

FAQs (5)
Where are PIERCE bale spikes made?
Our shop is located in Henrietta, Texas, United States, where we fabricate, weld, assemble, and service our bale spikes.
How long does the Hydraulic Bale Spear take to lift a bale typically?
With normal pressure and a standard bale you are looking at 15 to 20 seconds.
How long can I expect my PIERCE Hydraulic Bale Spear to last?
With proper maintenance, a 20-year life can reasonably be expected. We routinely see PIERCE bale spikes manufactured in the early 90s still working on ranches locally.
What is the difference between the Gooseneck Bale Spear (ABS1K) and the Bolt-in Bale Spear (ABS2K)?
The ABS1K hay spear installs directly over a gooseneck ball; in comparison, the ABS2K bolts into the truck bed so you can haul trailers while the spear is mounted. Both units come equipped with removable bale spears.
What is the weight limit of Pierce Hydarulic Hay Bale Spears?
PIERCE bale spears have a lifting capacity of 2,500 lbs. NOTE: Picking up bales wider than the rear opening of your truck bed may result in truck damage. Also, Lifting anything other than hay bales will void the warranty and most likely damage your system.
Warranty
2 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
2 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
