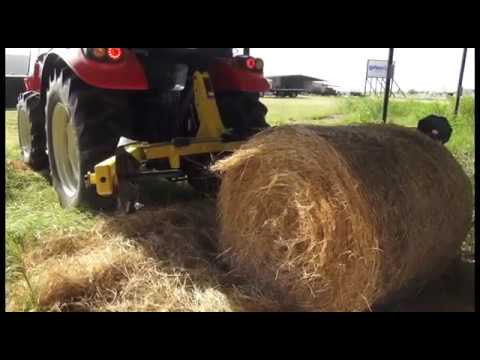

A red tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller moves a large round hay bale across the field.
A tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller is used for rolling and laying irrigation pipes across a dry field.

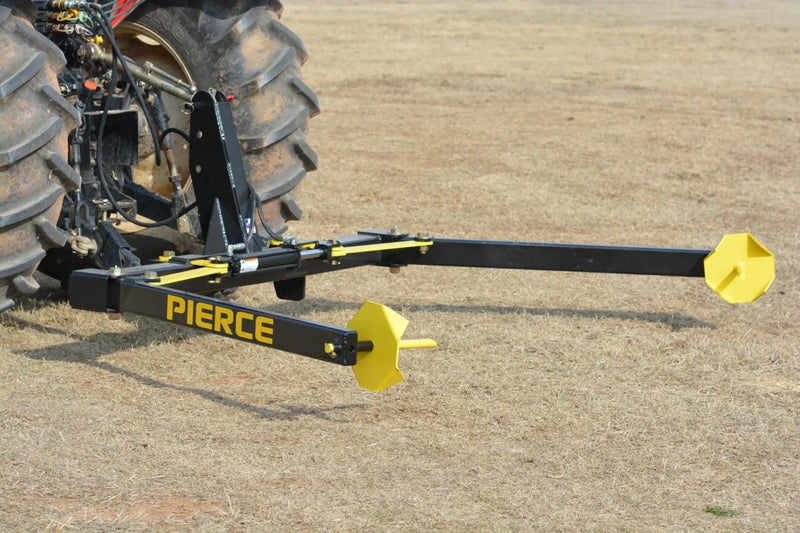

A black and yellow 3-Point Hay Bale Unroller by Internal - Pierce Assembly Team sits on dry grass, designed for efficient round bale handling.

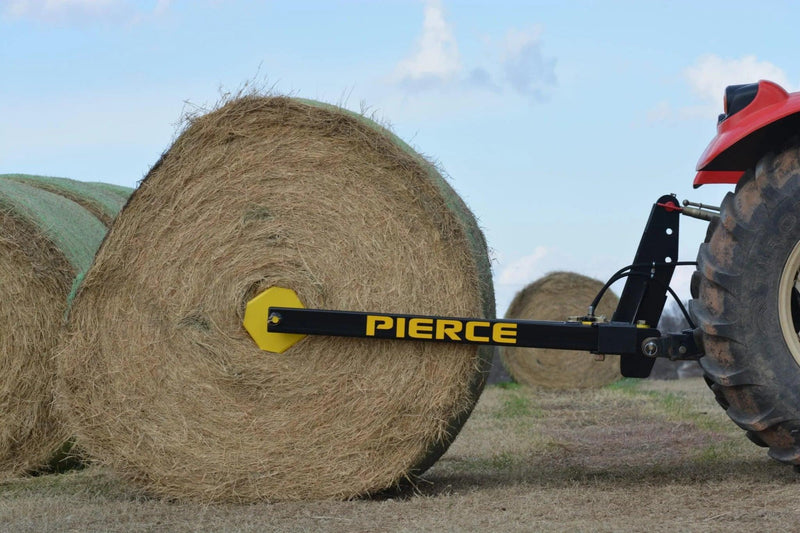

A tractor lifts a large hay bale in a field using an Internal - Pierce Assembly Team 3-Point Hay Bale Unroller attachment.

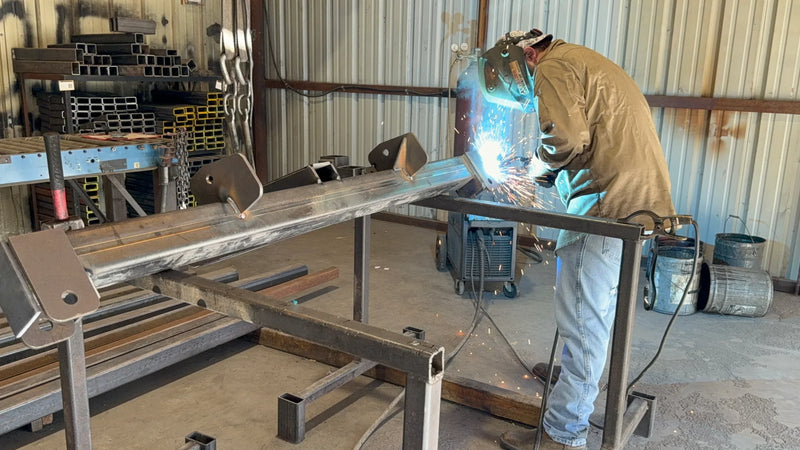

Wearing protective gear, a person welds metal beams in a workshop as sparks fly, fabricating parts for the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, an agricultural tractor attachment.
3-Point Hay Bale Unroller

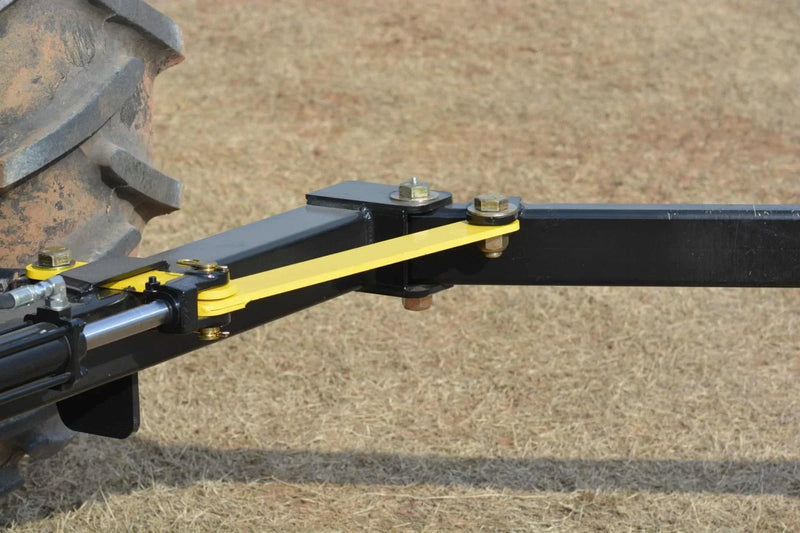

Close-up of a tractor hitch with a yellow stabilizer bar on dry grass, ideal for attaching the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller.

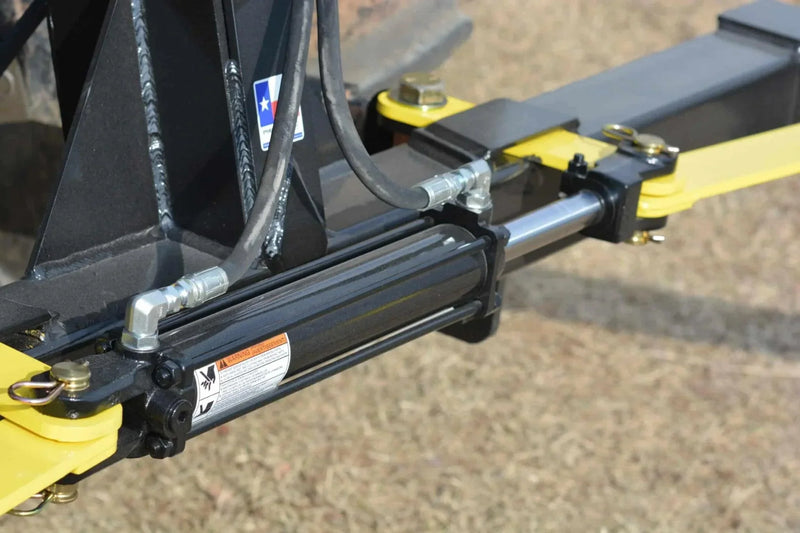

Close-up of a hydraulic cylinder on the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, a durable tractor attachment, shown outdoors on dry grass.

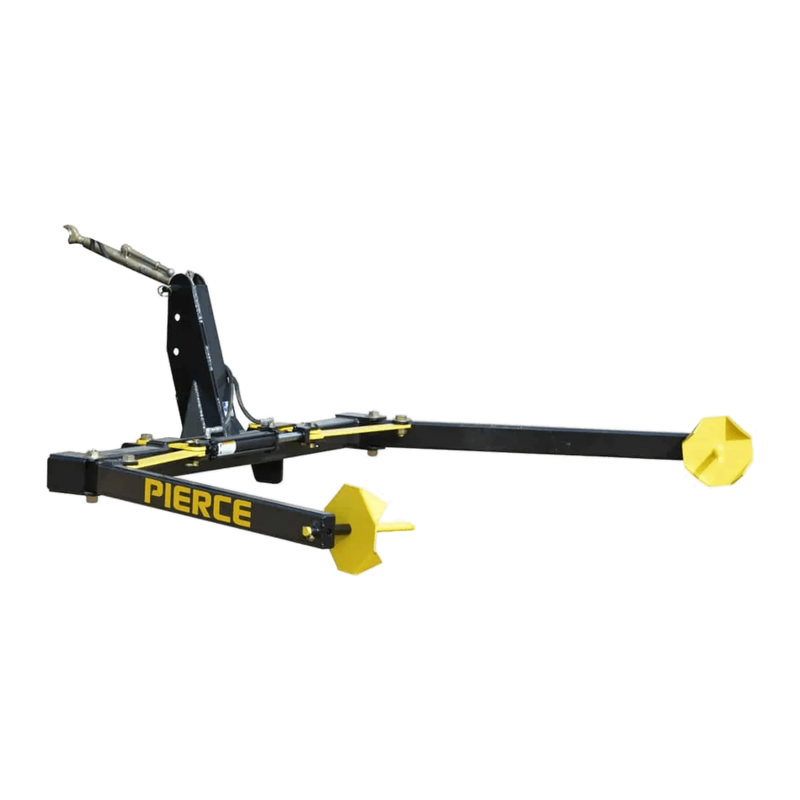

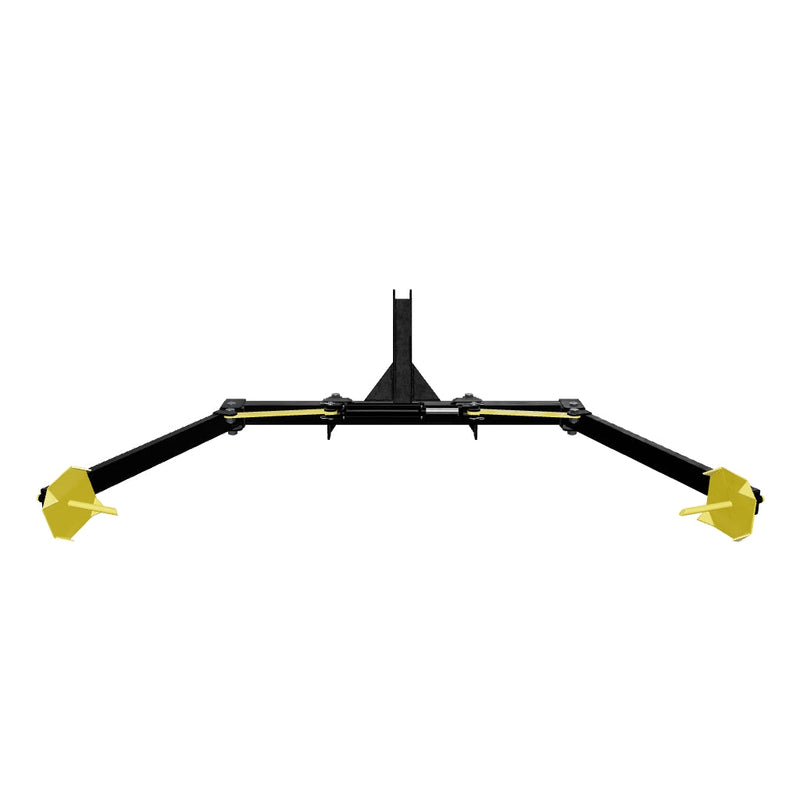

Black and yellow Internal - Pierce Assembly Team 3-Point Hay Bale Unroller hay spear attachment for tractors, shown on a white background.
3-Point Hay Bale Unroller
3-Point Hay Bale Unroller

3-Point Hay Bale Unroller

AHBR1

(18)
$1,266.00 $1,416.00

In Stock

Streamline your hay handling with the PIERCE 3-Point Hay Bale Unroller, a robust tractor attachment designed for working men and women across the U.S. Built in Henrietta, Texas, by our family-owned business since 1976, this unroller simplifies the task of managing large round bales, saving you time and effort in the field.

Why Choose the PIERCE 3-Point Hay Bale Unroller?

  • Efficient Bale Handling: Unroll 5’ to 6’ large round bales in just 15 minutes. Add optional extensions to handle 4’ bales with ease.
  • Heavy-Duty Design: With a maximum lift capacity of 2,500 lbs (1,000 lbs with 4’ extension), this hydraulic bale unroller is built to tackle tough jobs.
  • Easy Tractor Attachment: Securely bolts to Category 1 or 2 hitches, ensuring quick setup and reliable performance.
  • Low Maintenance: Features a durable 2” x 12” tie-rod hydraulic cylinder and sturdy arm guides for long-lasting use.
  • Versatile Application: Perfect for farmers and ranchers feeding livestock or managing erosion control by unrolling bales efficiently.

Key Features

  • Hydraulic Precision: The 3-point bale unroller uses a powerful hydraulic cylinder for grasping and then smooth, controlled bale unrolling.
  • Compact and Sturdy: Measures 72.75” x 52” x 30” and weighs 270 lbs, balancing portability with rugged construction.
  • Complete Kit: Includes base, arm guides, squeeze plates, driver and passenger side arms, hardware, and clear instructions for easy assembly.
  • 2-Year Warranty: All mechanical, electrical, and hydraulic parts are guaranteed free of defects, ensuring peace of mind.

How It Saves Time

The tractor bale unroller eliminates the hassle of manual bale handling. Attach it to your tractor, lift and unroll bales with precision, and cover more ground in less time. Whether you’re feeding cattle or preparing fields, this tool boosts productivity without unnecessary effort.

PIERCE 2 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
What's Included
Specifications
Max Capacity (lbs.)
2500
Weight (lbs.)
270
Operational Pressure (psi)
3000
Overall Dimensions
72.75" x 52" x 30"
Cylinder Measurements
2" x 12"
Cylinder Type
Tie Rod
Max Capacity (lbs.) with 4 ft. Extension
1000
Hitch Type
Category 1 or 2
Bale Handling
5' - 6' Large Round Single Bale
Warranty

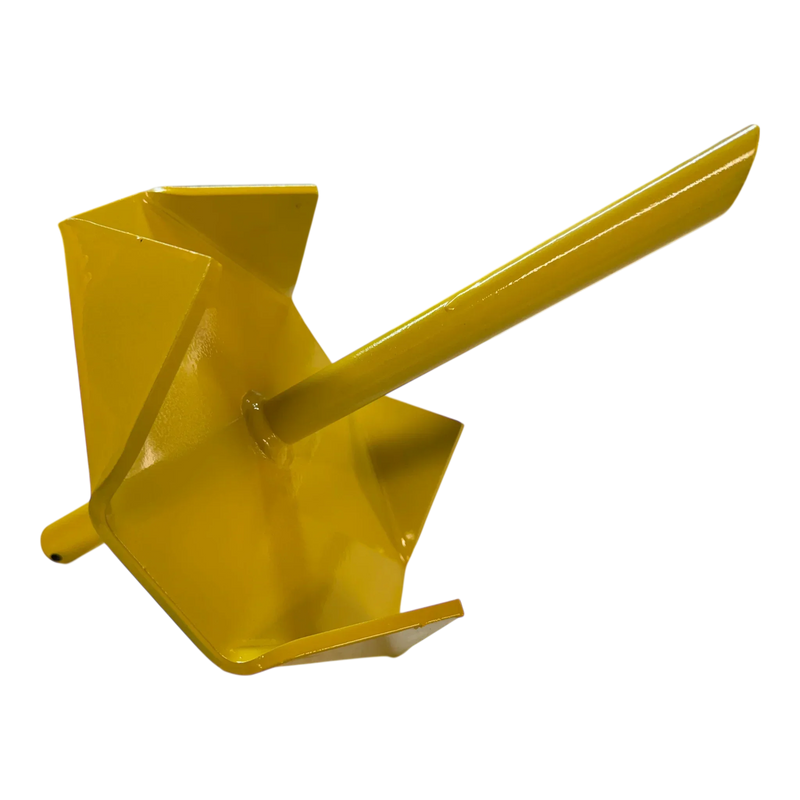

Replacement Parts (1)

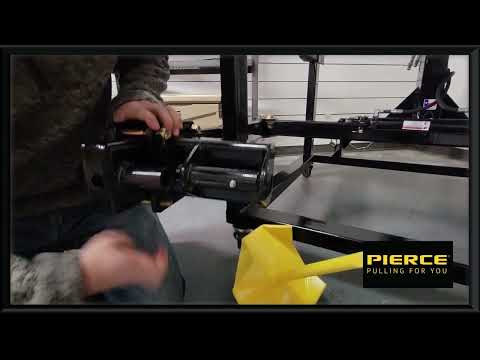

Videos (2)

3-Point Hay Bale Unroller

3-Point Hay Bale Unroller

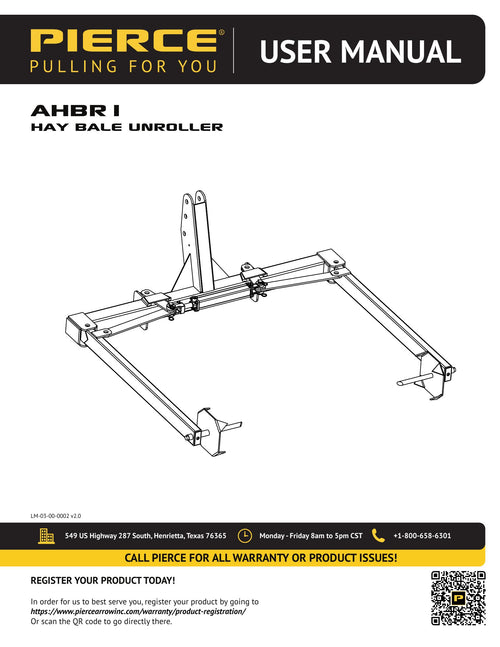

Resources
3D Model

Drag to rotate • Scroll to zoom

FAQs (7)
Does the PIERCE Bale Unroller have greased bolts and or grease fitting at all moving points?
Yes. Grease-zerks are found at all moving points.
Does the PIERCE Bale Unroller easily hookup to the quick tractor connects that are popular?
We are looking at utilizing the quick connect option on future revisions of this piece of equipment.
Will the Bale Unroller hook up to both Cat 1 / Cat 2?
Yes
What size bales can the PIERCE Bale Unroller pick up?
The unroller will pick up 5 and 6 foot bales, and will also pick up 4 ft. bales using the extensions.
Will the PIERCE Bale Unroller roll the whole bale out without waste?
The solid “core” will be left (most farmers/ranchers will find a way to feed this as well).
How often should I grease my PIERCE Bale Unroller and what type of grease should I use?
We recommend multipurpose grease (RED). Grease your PIERCE unroller before seasonal use, inspect it every three months, and grease as needed.
How do I hook up the hydraulic connections?
Plug the male into the ½” female breakaway coupler.
Warranty
2 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
Reviews (18)

4.8 out of 5 based on 18 reviews

  • 5 16
  • 4 1
  • 3 0
  • 2 1
  • 1 0
  1. Wayne Scharber

    Hay Unroller. Fast shipping and everything needed included!

    Irecieved the shipment from Texas to Tennessee in three days.it was properly packages and all parts included. My brother and I immediately assembled it and put it to work. The quality of construction is excellent!

    • Photo from Wayne Scharber
  2. Lance Wells

    Works great

    Works as advertised

    • Photo from Lance Wells
  3. David Nicholls

    It looks like it will do the job just fine

    It looks like it will do the job just fine Luckily I haven’t had to start feeding the hay bales yet Pastures still holding on

  4. Jim McKinney

    So far really good.

    Have unrolled 5 bales so far and it worked well, even on uneven bales. Takes some practice hitting the center of the bale but that’s on us. Leaving noticeably less wasted hay in the field than we got using hay rings over the years plus the calves get to eat without being knocked around. Sturdily made and has everything you need to use it (hitch pins, clips, etc.,). Took about 30 minutes to assemble it by myself not being in any hurry (I’m in my 70’s). Two hints if you’re doing this by yourself:

  5. Brandon Mortenson

    I’m glad I stumbled across this product

    The equipment showed up well packaged. Everything appears super robust. It took 5 entire minutes to assemble. 1 1/2 1 1/16 if I remember correctly is all you will need

  6. Christy Brown

    Great unroller

    We are very happy with the hay bale unroller. It works great have used it a couple times already since we purchased it. Fast shipping and great customer service. Would love to see more farm equipment. Would definitely recommend! Nice to order from a family business!

  7. mark ward

    3 point bale unrolled

    works great. Have been feeding 1600 lb bales with no problems.

  8. Brady Allen

    Excellent Product! Well Built! Great Customer Service! Fast Delivery!

    Excellent product, well built. Quick delivery and great customer service. I was very pleased with the implement that was delivered. It is more beefy than it appears in the photo. Well-built product I am certain I will have years of good service from it.

  9. charles Netterville

    Great product

    Love the hay roller, I use it for erosion control, and it works great, it was well built, heavy duty.

  10. Daniel Lamb

    Excellent quality and value

    We have bought several pieces of equipment from Pierce and all have been very good quality and price. Shipping was fast and they worked to get me the cheapest shipping possible which was appreciated.

  11. Royce Heine

    works well

  12. Randy Cope

    Hay unroller

    I like your unit works great like all the grease points. Cut my hay output by 1/3 at this time.
