11,000 lb 110V Worm Gear Winch | 8 in Drum
PS654-8EMK
$2,039.00
Item Already in Cart
This item is already in your cart with a different configuration. Would you like to replace it or add a new one?
Built to Order
Allow 2 business days for processing before shipment.
The PS654-8EMK is the higher-capacity version of the 7,500 lb 110V worm gear winch — 11,000 lb pulling capacity from the same 1.5 HP motor by way of a deeper 728.5:1 gear reduction. Compact 8 in drum. Same mechanically self-locking worm-gear architecture as the rest of the PS654-E line.
How does the higher gear ratio give 47% more pulling capacity?
Mechanical advantage. The 728.5:1 reduction (vs. 460:1 in the standard PS654-EK) trades a turn of the drum for more turns of the motor — each pound of motor torque multiplies into more pounds of pulling force at the rope. Same motor, same wiring, same brake architecture, just a different gear ratio inside the housing.
- 11,000 lb rated pulling capacity
- 110V AC, 1.5 HP motor — 17.4 amp draw
- Worm gear drive, 728.5:1 extended reduction
- 4 fpm max line speed — safe, controlled pulling
- Worm gear brake — mechanically self-locking, no clutch slip
- Dog clutch — manual engagement at the winch for free-spool
- Cast metal construction
- 8 in drum (3.5 in × 8 in), holds 100 ft of ⅜ in wire rope
- Includes PBM1 cradle mount and wired control pendant
- Pierce SKU PS654-8EMK — built to order in 1–2 business days
For lighter pulling on the same 8 in drum, see the 7,500 lb 110V Worm Gear Winch (8 in Drum). For more rope capacity at the same 11,000 lb rating, see the 11,000 lb 110V Worm Gear Winch (11 in Drum). For 12V battery-powered industrial pulling at this capacity tier, see the 12,500 lb 12V Worm Gear Winch (8 in Drum).
⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
PIERCE Limited Lifetime Warranty
Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
110V Industrial Winch Options:
The PS654 Industrial 11,000 AC Series with recommended cable capacities.
⅜" x 100'PS654-8EMK
⅜" x 125'PS654-11EMK+$113.00
(2) ⅜" x 75' | Split DrumPS654-11EMKSD+$268.00
What's Included

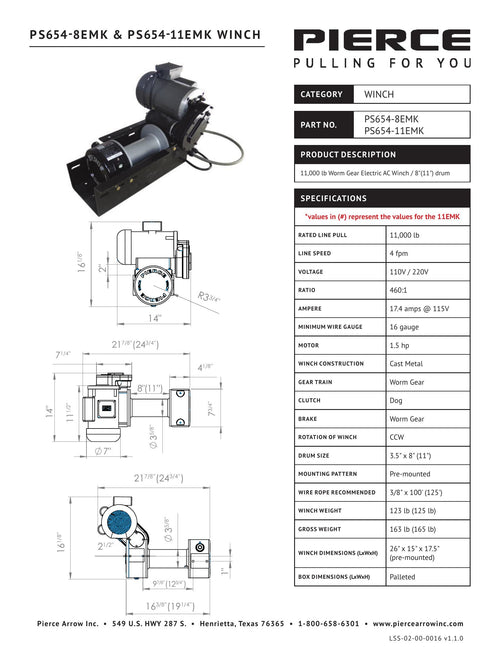

Specifications
Max Capacity (lbs.)
11000
Operating Voltage
110 Volts AC
Power Source
Electric, AC
Series
Industrial
Max Line Speed
4 fpm
Gear Type
Worm Gear
Gear Ratio
728.5:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅜ in. x 100 ft.
Clutch Type
Dog
Brake Type
Worm Gear Brake
Recommended Wire
12-14 gauge
Motor (hp)
1.50
Drum Size
3 ½ in. x 8 in.
Amp Draw
17.4
Warranty
Replacement Parts (4)
Standard Winch Mount | 654 Series Worm Gear Winches
PBM1
$103.00
3/8 in Winch Cable | 50–150 ft | Safety Swivel or Self-Locking Hook
PS0361SS
From $109.00
Wired Control for 110V PIERCE 654 Series Single Phase Winch
P003NSK
$233.00
Videos (2)
11,000 lb 110V Worm Gear Winch | 8 in Drum
11,000 lb 110V Worm Gear Winch | 8 in Drum
FAQs (10)
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
