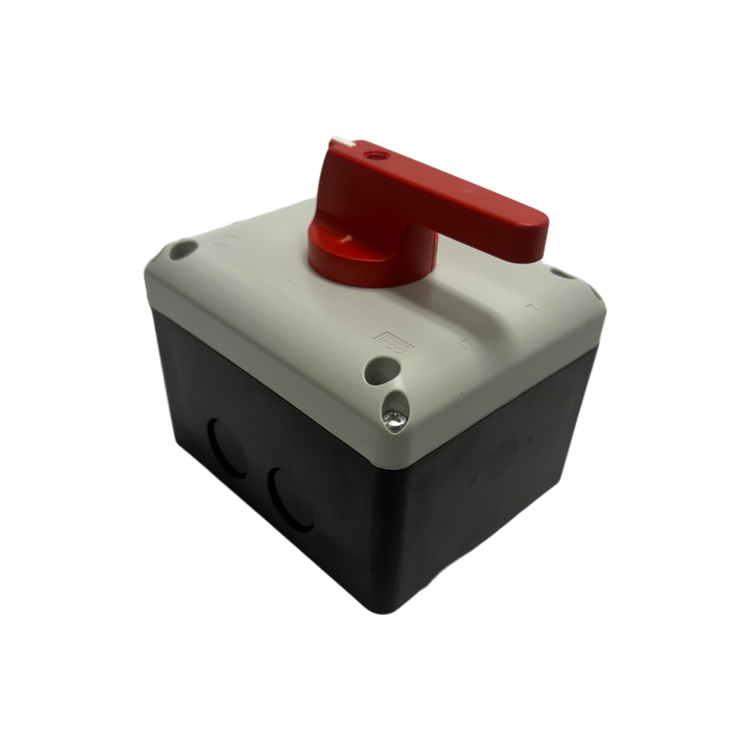

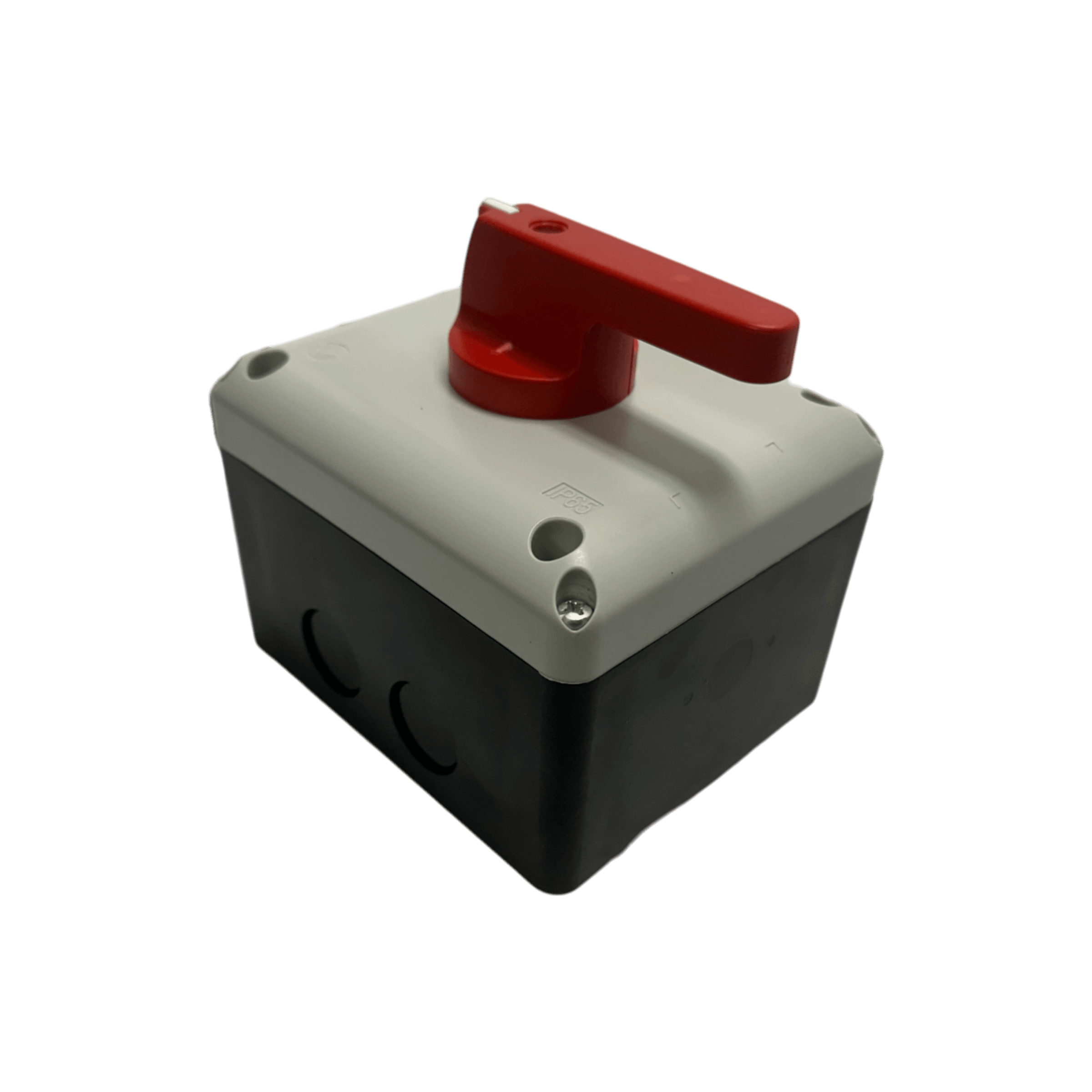

Red handle on a gray and black enclosure with mounting holes, designed for industrial applications, for the Control Box of the PIERCE 654 Series 110V Single Phase Winch.

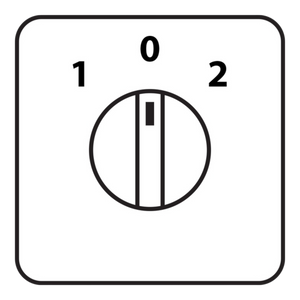

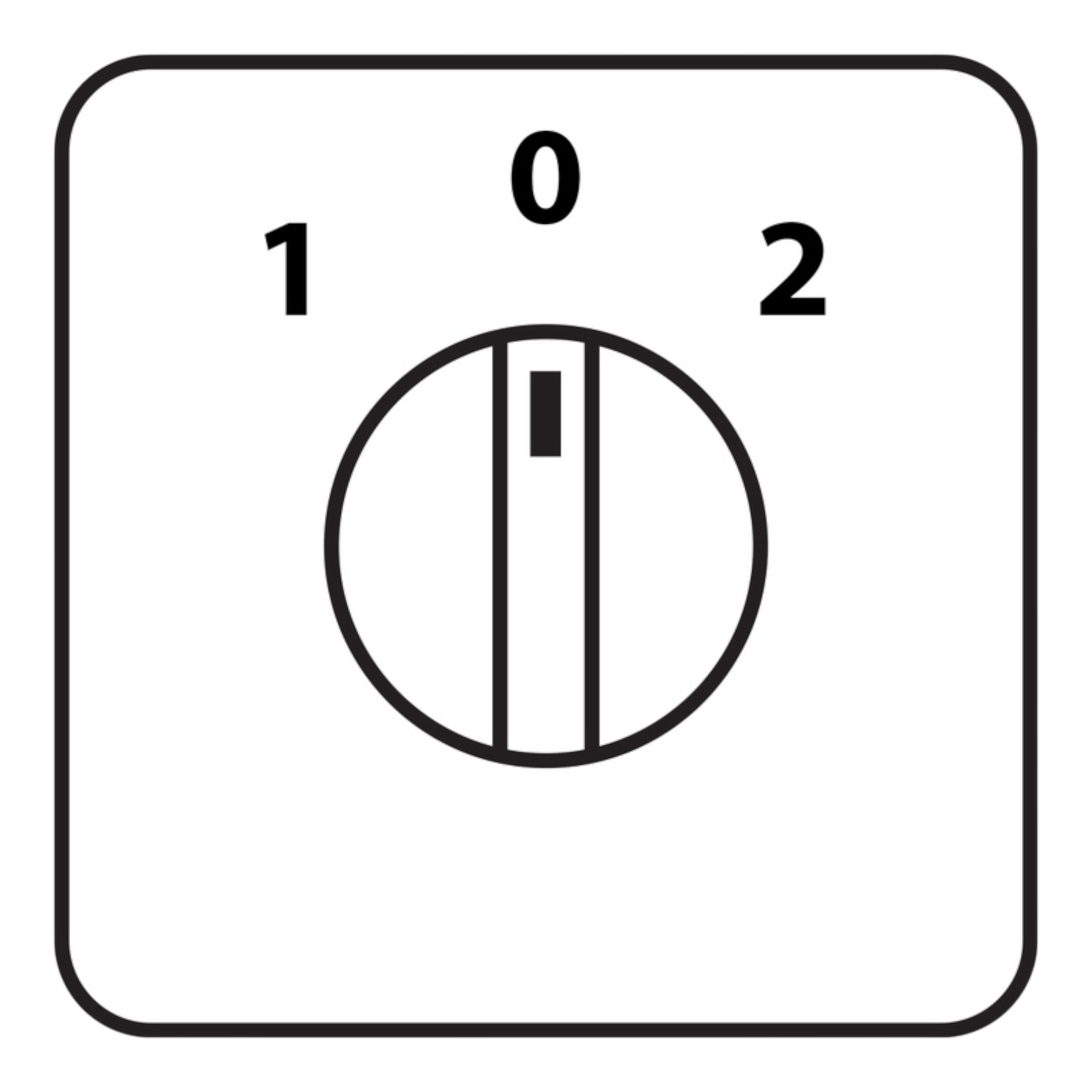

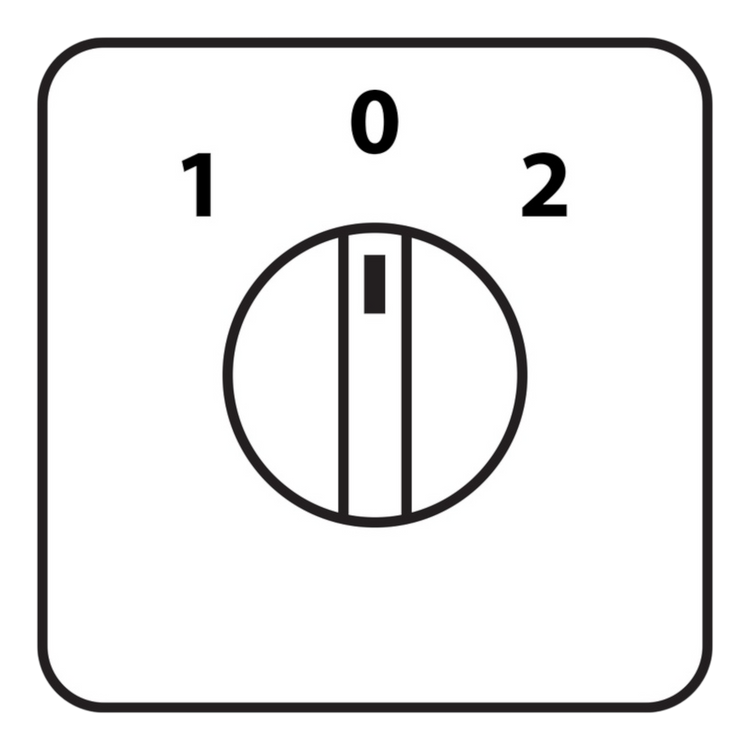

The PIERCE Control Box for 110V PIERCE 654 Series Single Phase Winch features a durable switch enclosure with a three-position rotary switch labeled 0, 1, and 2, perfect for industrial applications like single-phase motors.

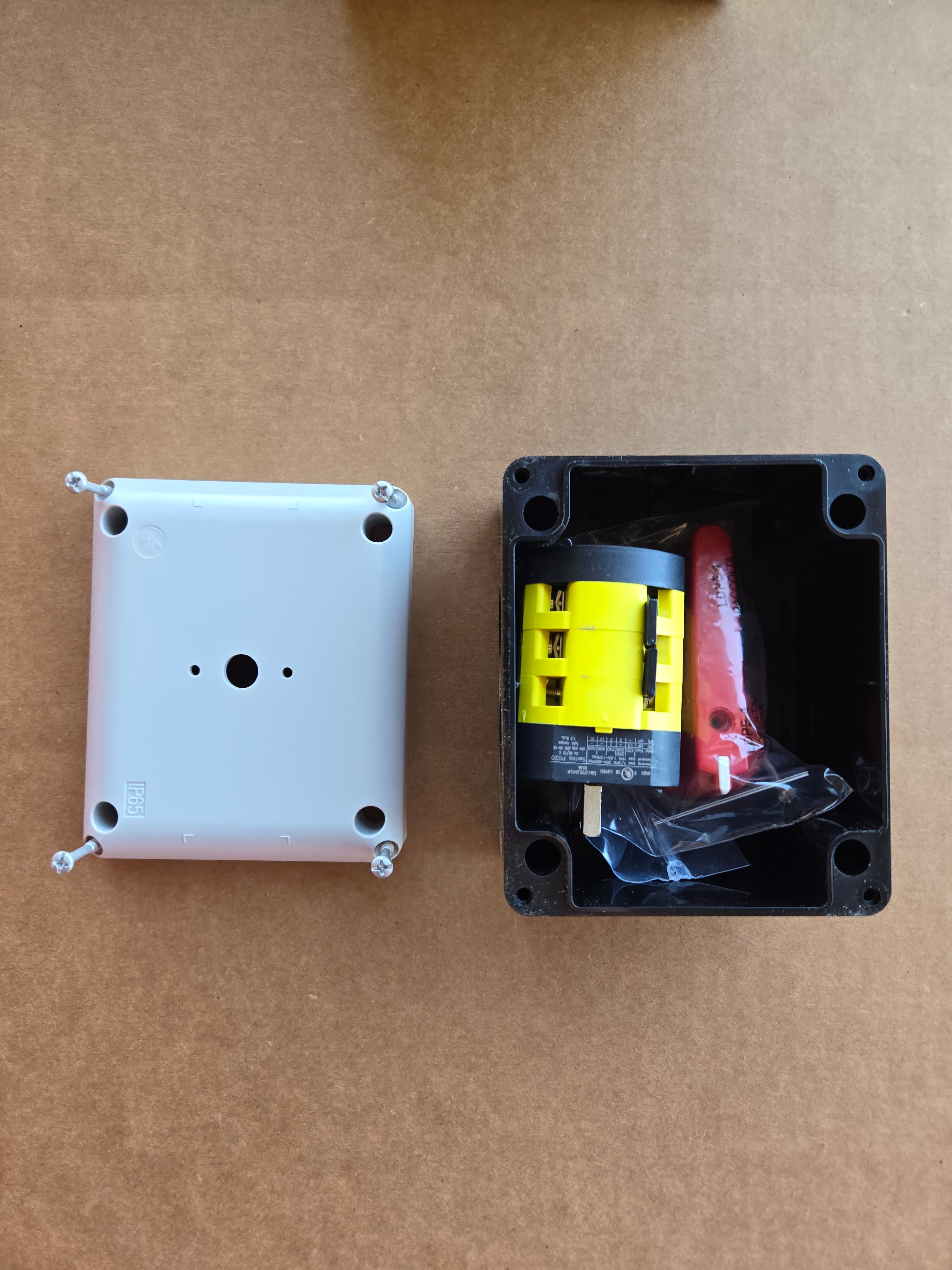

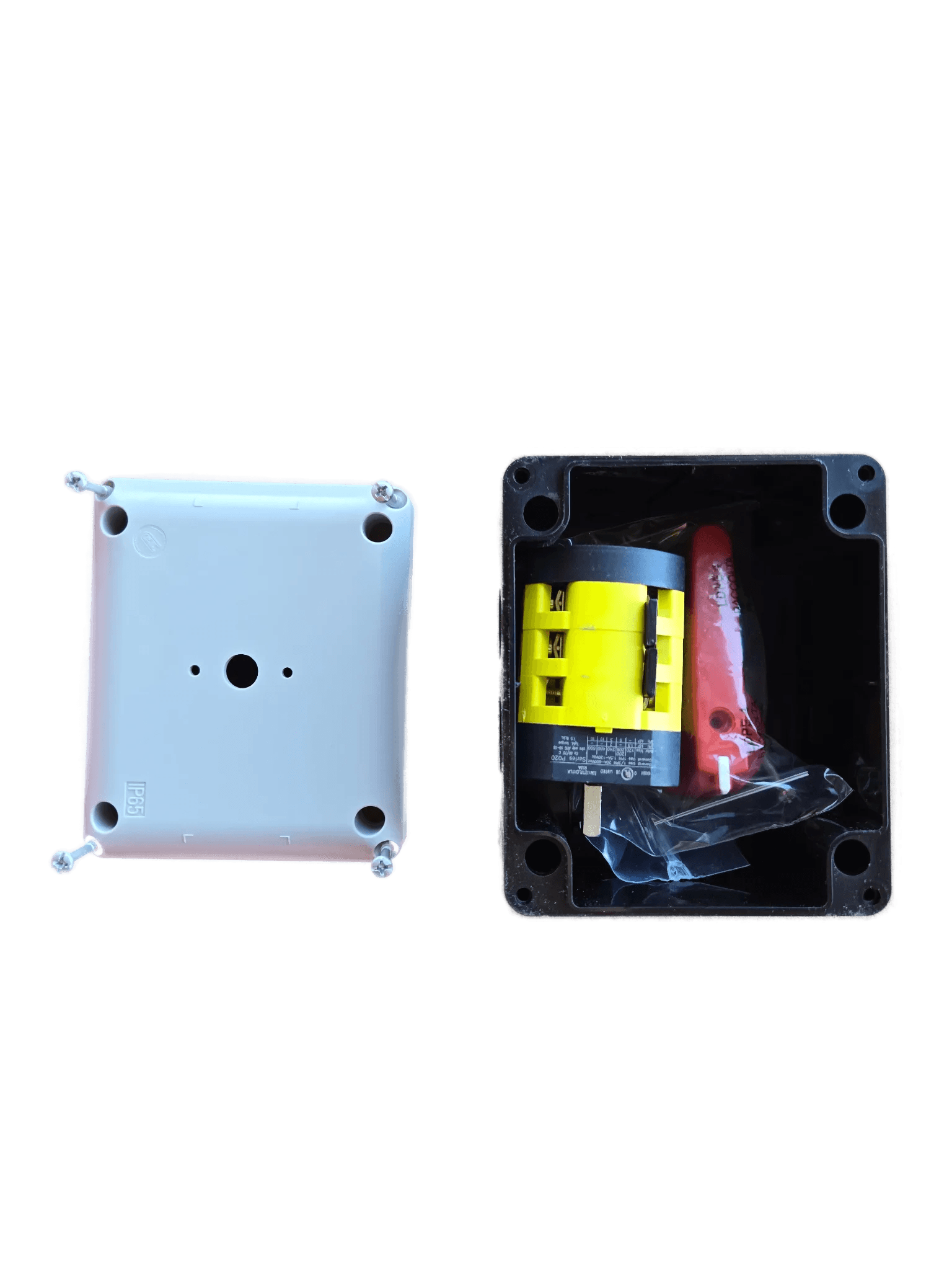

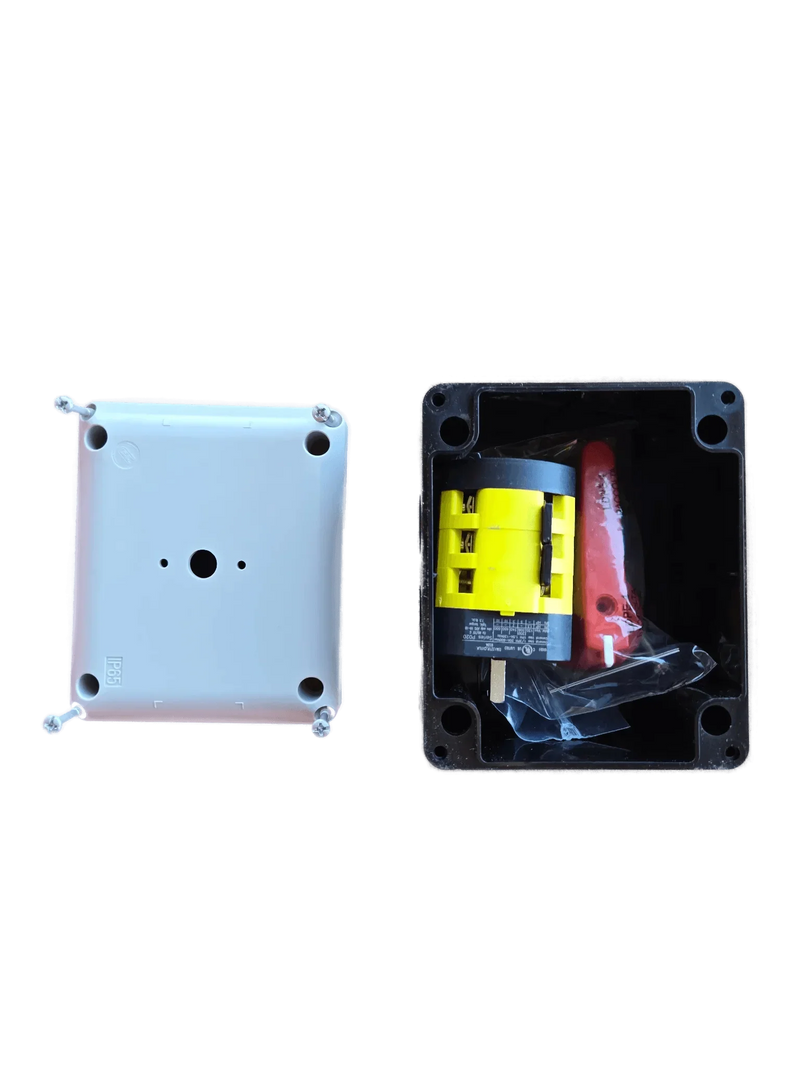

The ASI.Easy.com Control Box for 110V PIERCE 654 Series Single Phase Winch features a black IP65 enclosure, included components, and a separate white cover—perfect as a winch replacement or motor switch, shown on a white background.

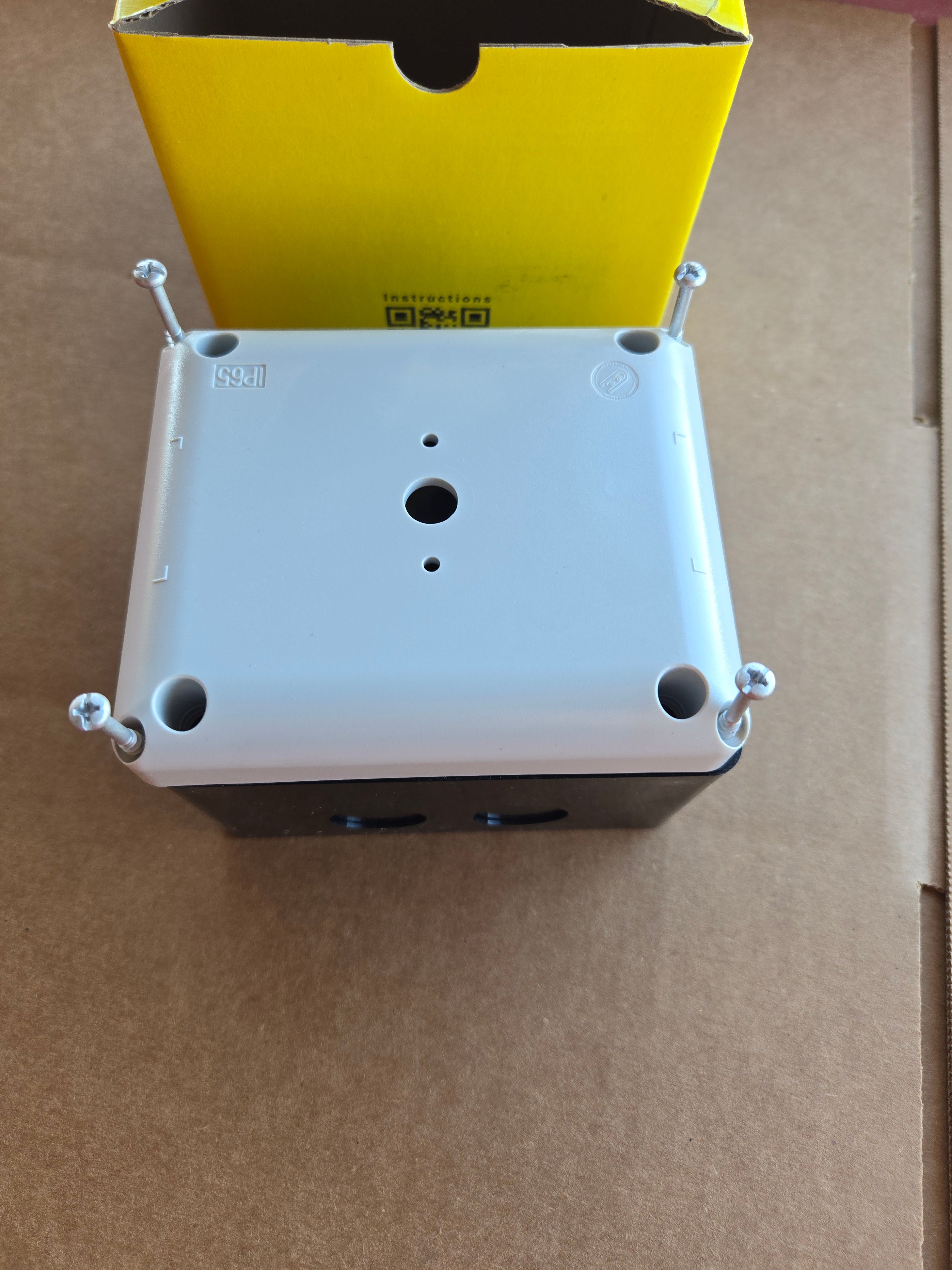

An ASI.Easy.com Control Box for 110V PIERCE 654 Series Single Phase Winch, housed in a gray IP65 enclosure with four screws, is placed in front of an open yellow box on a cardboard surface.

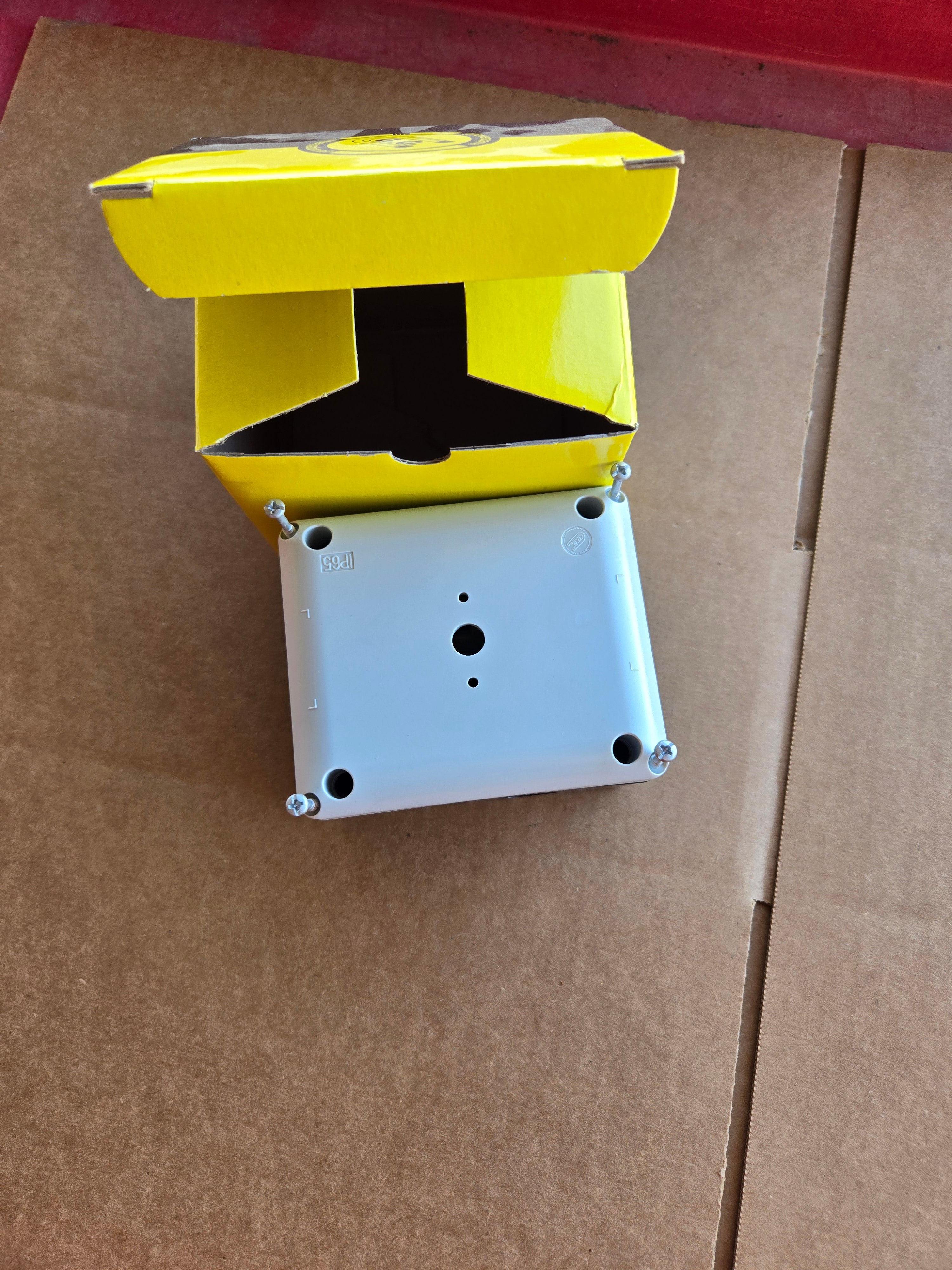

A gray ASI.Easy.com Control Box for 110V PIERCE 654 Series Single Phase Winch and an open yellow box are placed on a brown cardboard surface.

1 6

Control Box for 110V PIERCE 654 Series Single Phase Winch

Name: Control Box for 110V PIERCE 654 Series Single Phase Winch
Price: 202.0 USD
Rating: 5 (1 reviews)

P003NS

$202.00

Quantity

In stock

Compatible Products

*Check compatibility before purchasing.

PS654-11EMK - PIERCE 110V Electric Winch – 11,000 lb, 11" Drum (Planetary Drive)

PS654-8EMK - PIERCE 110V Electric Winch – 11,000 lb, 8" Drum (Planetary Drive)

PS654-8EK - PIERCE 110V Electric Winch – 7,500 lb, 8" Drum

PS654-8EKSD - PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum

PS654-11EK - PIERCE 110V Electric Winch – 7,500 lb, 11" Drum

PS654-11EKSD - PIERCE 110V Electric Winch – 7,500 lb, 11" Split Drum

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

Control Box for 110V PIERCE 654 Series Single Phase Winch

'

Description

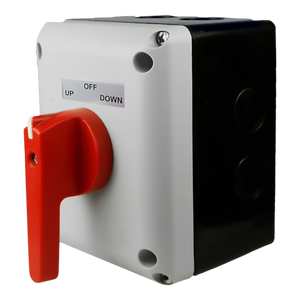

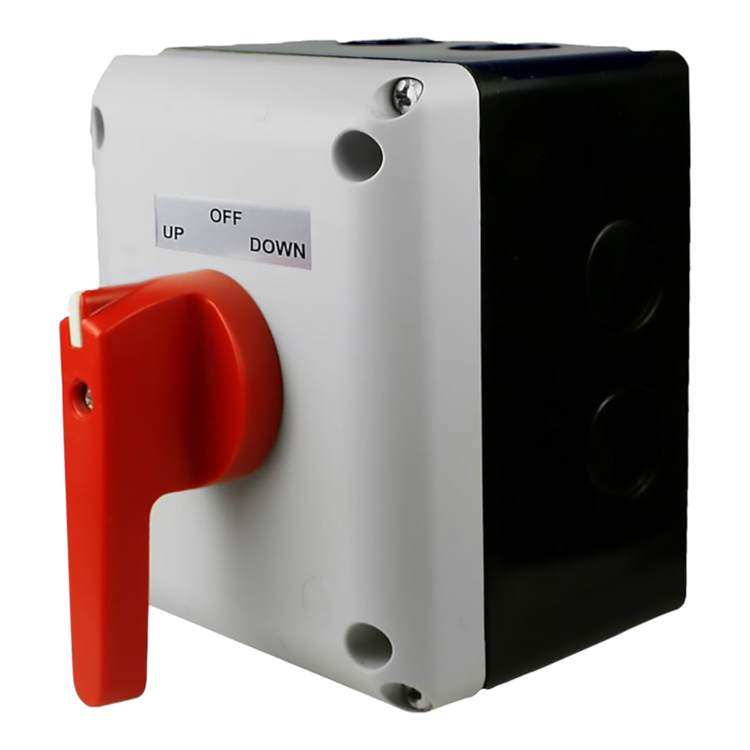

The enclosed IP65 high impact thermoplastic enclosure for this switch includes a red front mounted handle and labels for FWD/REV and UP/DOWN. Designed for single phase motors, it features self-cleaning contacts, silver alloy plating, and a UL94V0 thermoplastic housing, with shock-hazard proof wire connections. Suitable for up to 5 horsepower and listed by cULus, it is an ideal replacement for standard PIERCE 110VAC winches, making it suitable for various industrial applications.

Included

1 x [P003NS] - Control Box for 110V PIERCE 654 Series Single Phase Winch

Specifications

Specification	Details
CONTACTS	Double Breaking
ELECTRICAL LIFE @ 120 OPERATIONS PER HOUR	750,000 Cycles
MECHANICAL LIFE @ 120 OPERATIONS PER HOUR	1,000,000 Cycles
OPERATING ANGLE (º)	45º
OPERATING TEMPERATURE RANGE	-40ºC to +85ºC
STORAGE TEMPERATURE RANGE	-40ºC to +70ºC
TERMINAL SCREW (M)	M3.5
TORQUE (LB-IN)	7.5 lb-in
WIRE RANGE (AWG)	18-10 AWG sol/str

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
