The PIERCE 9,000 lb Recovery Winch boasts a robust motor, zinc alloy gearbox, coiled steel cable, and a side-mounted control switch.

A coiled black cable with red and black connectors labeled SALES FORCE is part of the PIERCE 12,000 lb Recovery Winch, which features a powerful motor for reliable performance.

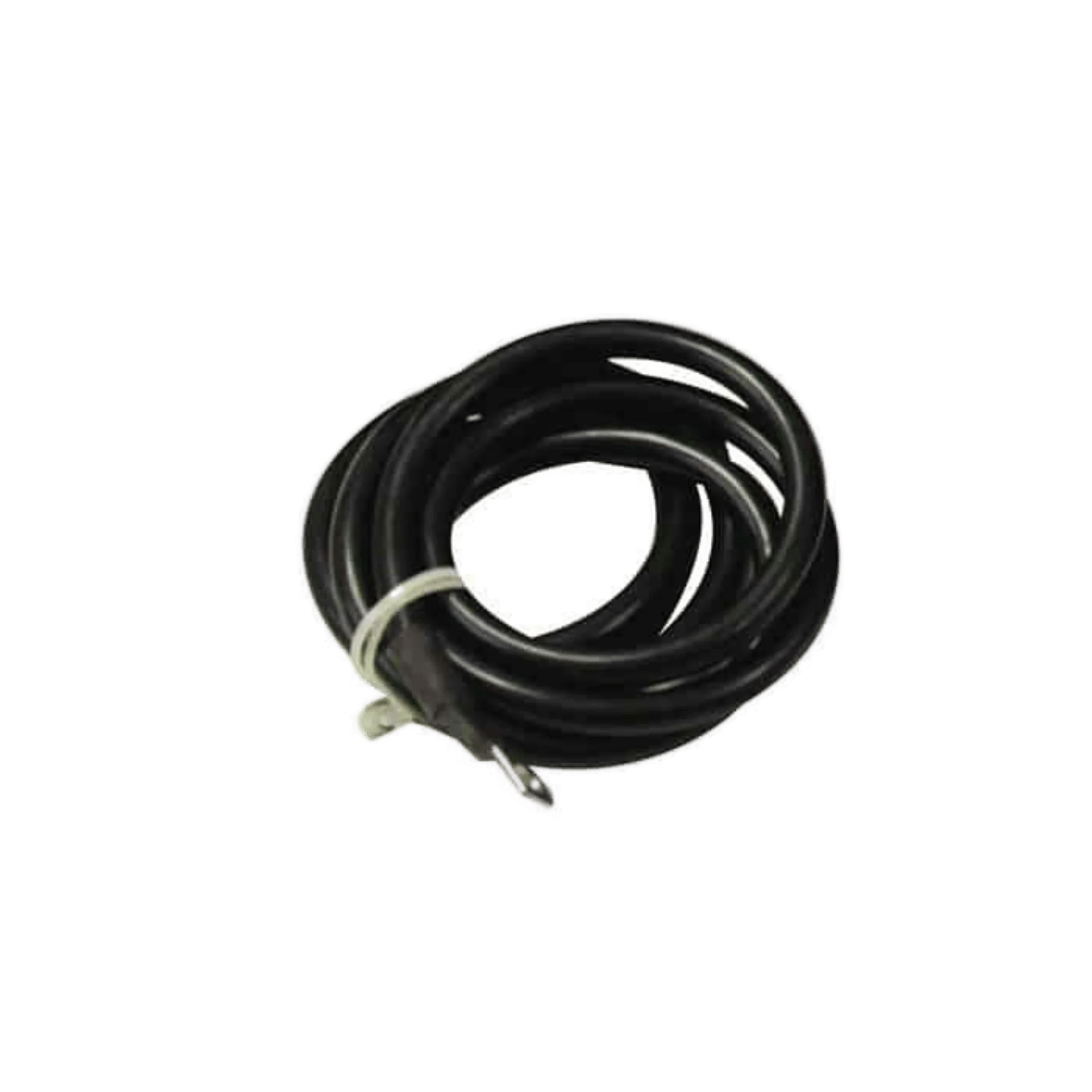

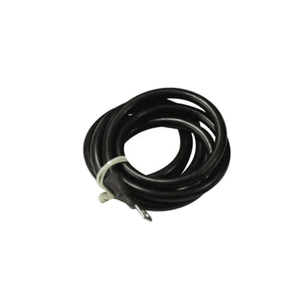

The 12,000 lb Recovery Winch by PIERCE uses a coiled black electrical cable, secured with a white plastic tie, as an essential component for its powerful motor that drives the zinc alloy gear box.

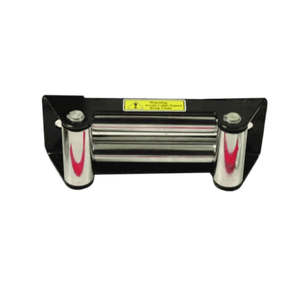

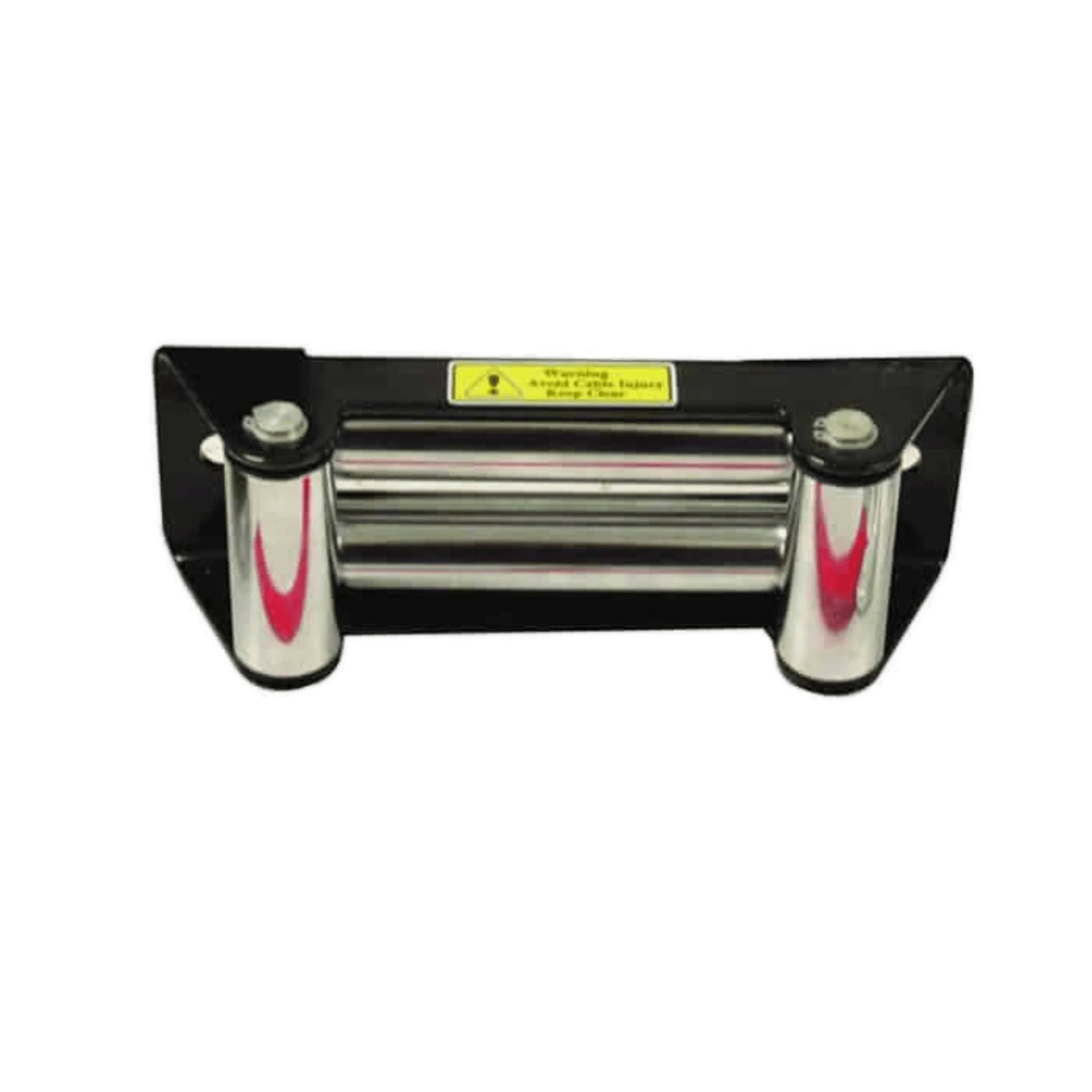

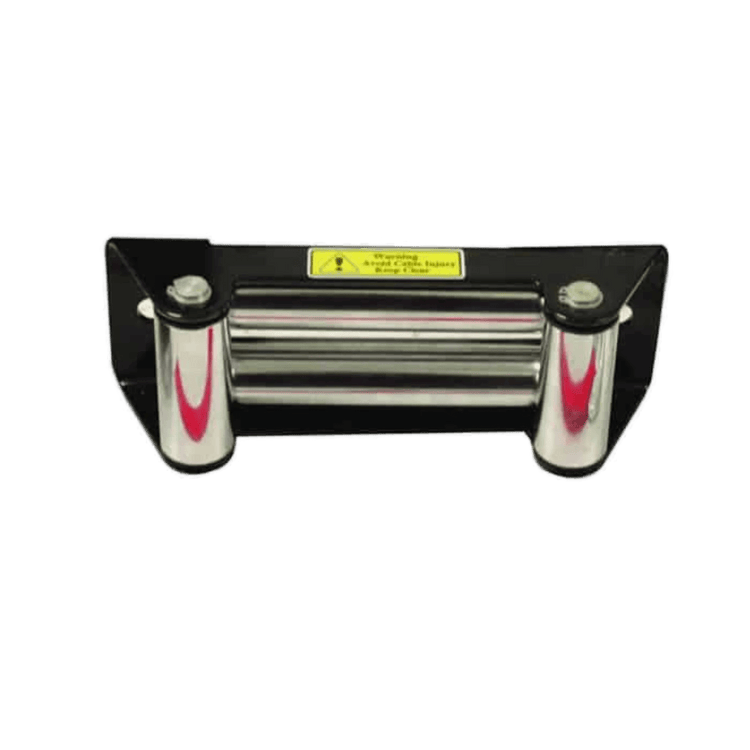

A black 12,000 lb PIERCE Recovery Winch roller fairlead features silver rollers, a yellow warning label on top, and a durable zinc alloy gear box.

1 6

12,000 lb Recovery Winch

PS12000

$720.00

Save 20% by bundling together!

Control Options

2 Function Wireless Remote Control System
PS002 $ 275.00
$220.00
4 Function Wireless Remote Control System
PS004 $ 412.00
$329.60
4 Function Wireless Remote Control System | Rol...
PS004B $ 412.00
$329.60

Mounting Options

Winch Mount Receiver Hitch for up to 20K
PBM20 $ 150.00
$120.00

Quantity

Pre-order

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

12,000 lb Recovery Winch

Description

Utilize this 12,000 lb. recovery winch for a wide range of applications, whether for off-roading excursions or for loading equipment onto your utility trailer. This winch boasts a powerful motor with high ampere resistance and output strength, as well as a zinc alloy gear box and a three-stage planetary gear speed reduction system. With its superior torque strength and mechanical safety brake system, it is equipped to handle heavy loads. The user-friendly design of the PS series winches makes operation and maintenance a breeze. Additionally, the four-way steel wire guide wheel allows for easy input of the wire rope in various directions.

Included

1 x [PS12000] - 12,000 lb Recovery Winch↗

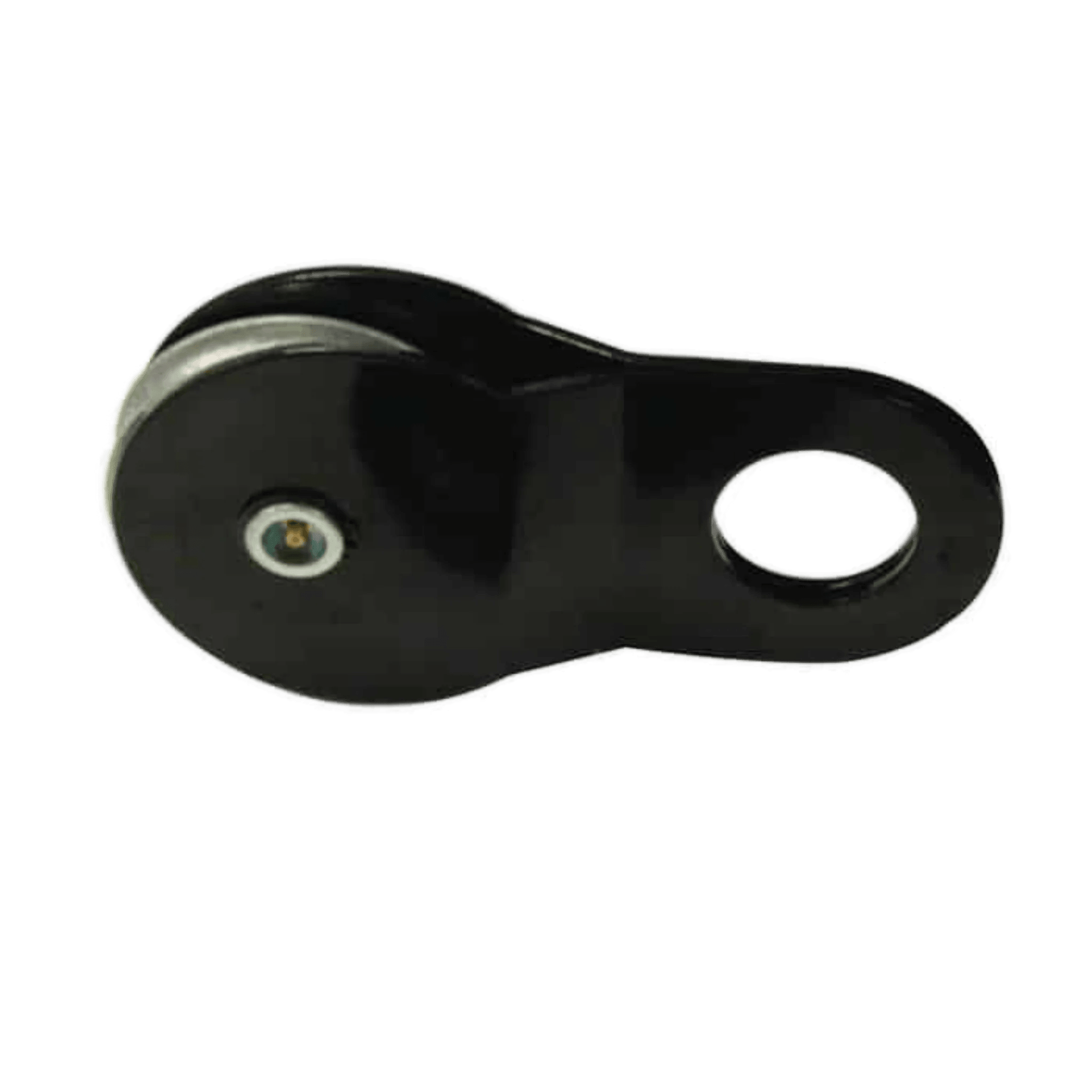

1 x [PLB1030B] - Snatch Block | WLL 10,000 lbs↗

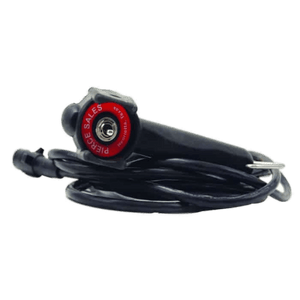

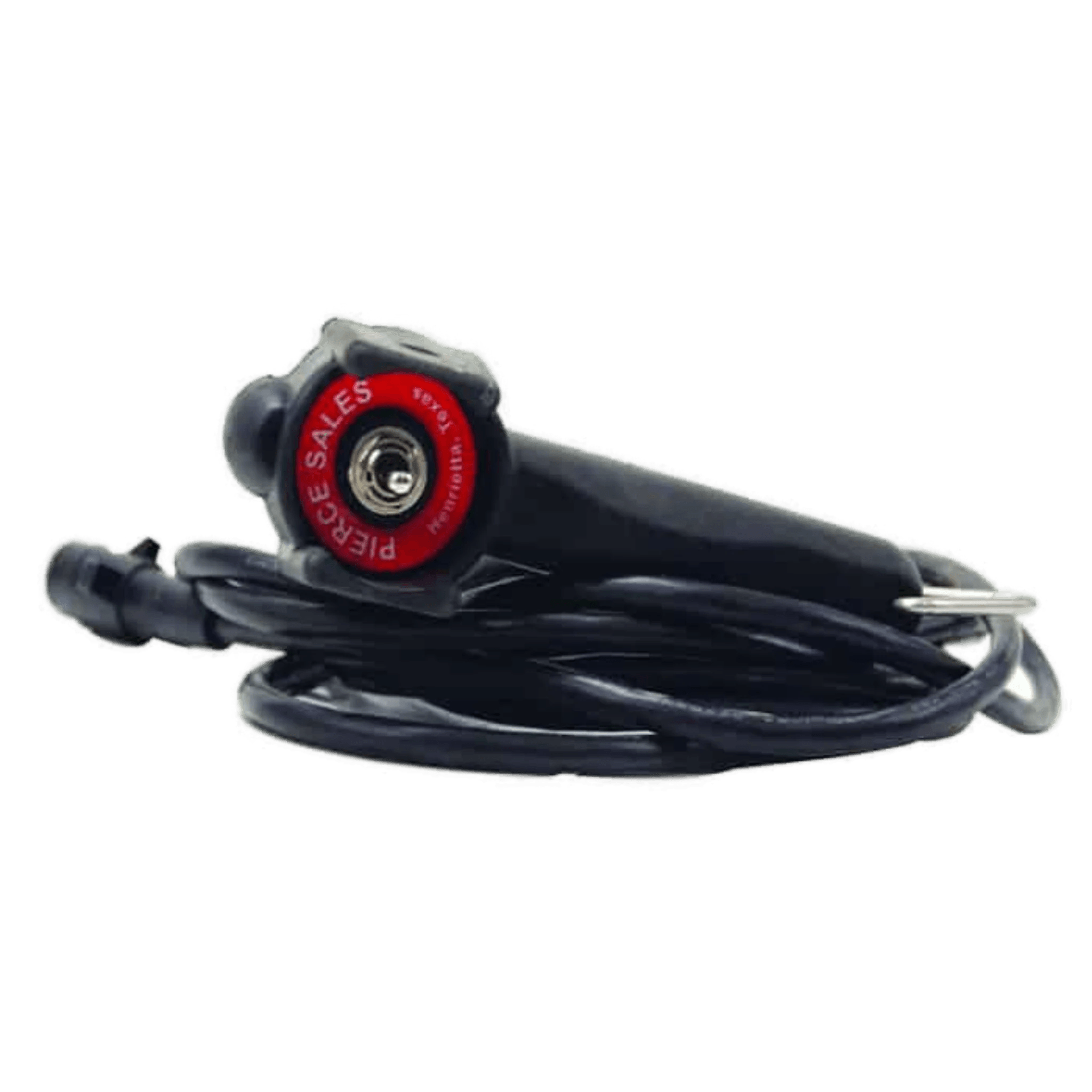

1 x [P040N] - PIERCE PS Series Planetary Winch Control↗

1 x [RF10000] - Roller Guide | Electric Planetary Winches | 9,000 lbs | 20,000 lbs↗

1 x ⅜" by 94' of Winch Cable

1 x Cable Tensioner

1 x Instructions

Specifications

Specification	Details
BRAKE TYPE	Automatic Built-in Drum Brake
CLUTCH TYPE	Sliding Ring Gear
CONSTRUCTION	Cast Metal
DRUM ROTATION	Counter-Clockwise (Underwound)
GEAR RATIO	265:1
GEAR TYPE	3-Stage Planetary Gear
INCLUDED WIRE ROPE	⅜" x 94'
MAX CAPACITY (LBS.)	12000
MAX LINE SPEED	21.3 fpm
MOTOR (HP)	5.5
OPERATING VOLTAGE	12 Volts DC
POWER SOURCE	Electric, DC
RECOMMENDED BATTERY	650 CCA
RECOMMENDED WIRE	2 gauge

FAQs

Can I use a fuse to protect my winch and vehicle?

Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.

What precautions should I take when pulling heavy loads?

Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.

How can I provide a safe anchor point while winching?

Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.

How can I double my winch pulling capacity?

You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.

How much pulling power do I need from my winch?

Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.

How do I secure a load with my winch?

Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.

What maintenance is required on my winch?

Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.

How do I re-spool the wire rope onto my winch?

Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.

What should I do about my vehicles wheels while winching?

Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.

Resources

PS Series Winch Manual

Manual

PS528N - Compact Solenoid Assembly Wiring

Wiring Diagram

PS002 - PS528N - Wiring Diagram

Spec Sheet

3 Post Motor Test

Guide

PSP - Plug for Recovery Winch Solenoid

Wiring Diagram

P040N - Wiring Diagram

Wiring Diagram

PS12000 Spec Sheet

Spec Sheet

PSCTPS - Cable Tensioner Installation

Guide

Warranty

Limited Lifetime Warranty

Mechanical Parts guaranteed free of Defects.

Mechanical parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.

Electrical Components have a 2 Year Warranty

Warranty ensures that electrical components are free from defects.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.

Replacement Parts

Electric Planetary Winches Plug | Style 1

It's crucial to have a reliable plug for operating your winch. The 3 prong plug for our PS series winch works perfectly with our PS528N solenoid assembly. Plus, the metal reinforcement plate will ensure that your plug won't break.

SKU: PSP $16.00

Compact Solenoid Assembly

With its reliable components and impressive 450 amp rating, the Compact Solenoid Assembly kit is the perfect replacement for your PIERCE PS series winch. You'll have peace of mind knowing that this kit comes complete with a cover, plug, solenoid, ...

SKU: PS528N $141.00

Safety Cutoff Switch

Use this lever operated safety cutoff switch for any electric winch or pump installation in order to protect your equipment from damage caused by solenoid sticking or shorting. This product is highly recommended for use with your PS series winch....

SKU: PS025 $36.00

PIERCE PS Series Planetary Winch Control

The PIERCE Toggle Switch Remote is an essential component for PIERCE winches. It offers two functions, with a three-prong vulcanized plug and a 20-foot cord. This remote is specifically designed to work with the PIERCE PS Series Recovery winches. ...

SKU: P040N $48.00
