Light Duty Flat Bed Dump Kit
- Regular price
- $2,261.00
- Sale price
- $2,261.00
- Regular price
-
$0.00
Save 20% by bundling together!
Wireless Controller Upgrade












Light Duty Flat Bed Dump Kit Information

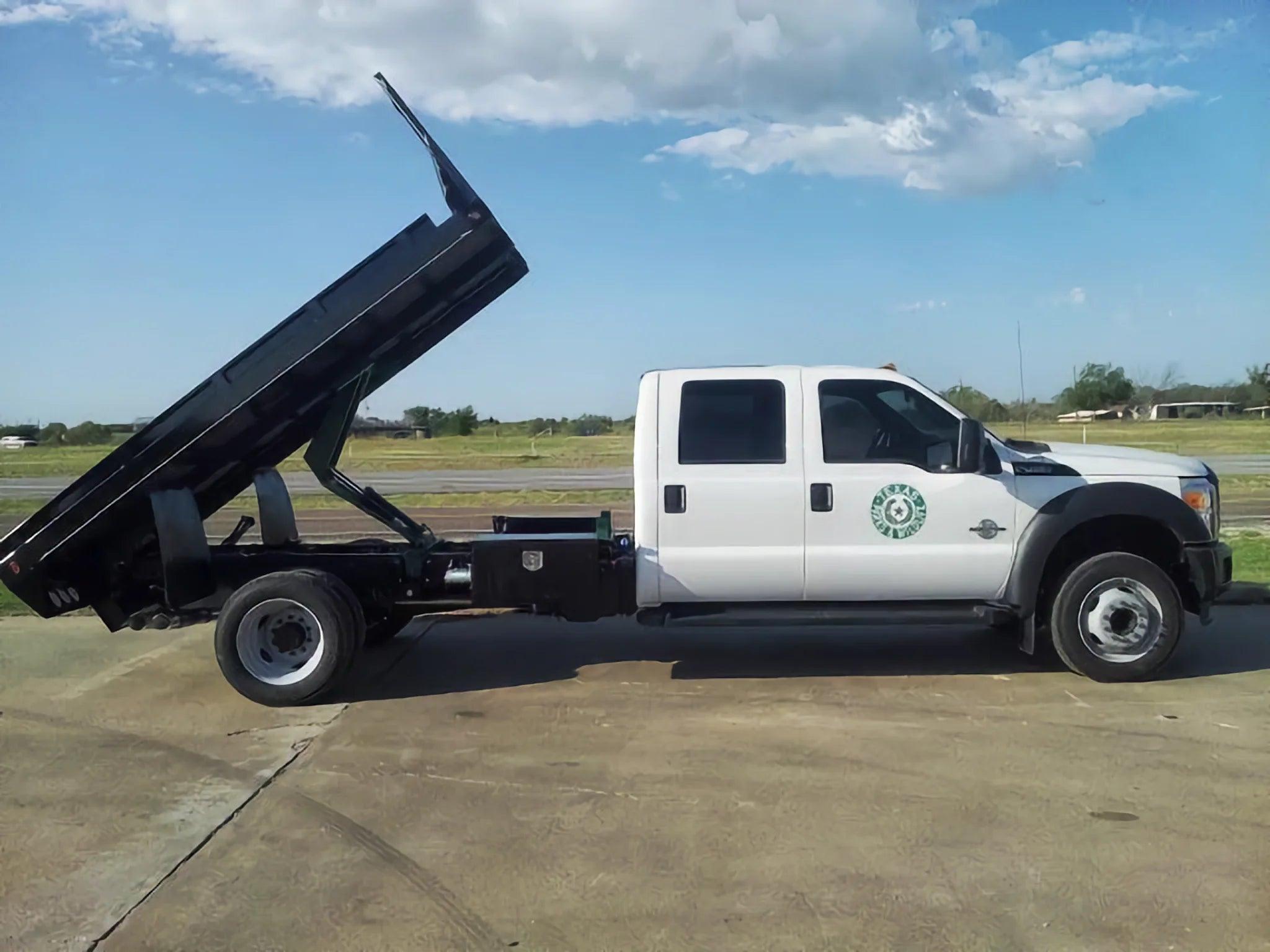

Get your work truck or trailer ready for action with the PIERCE Light Duty Flat Bed Dump Kit, designed for working folks across the US who need solid, practical equipment. Built for after-market flatbeds or dump bodies, this universal kit lifts up to 10,000 lbs., making it a great fit for tasks like farming, property maintenance, or snow removal.

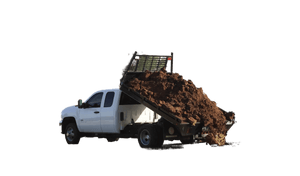

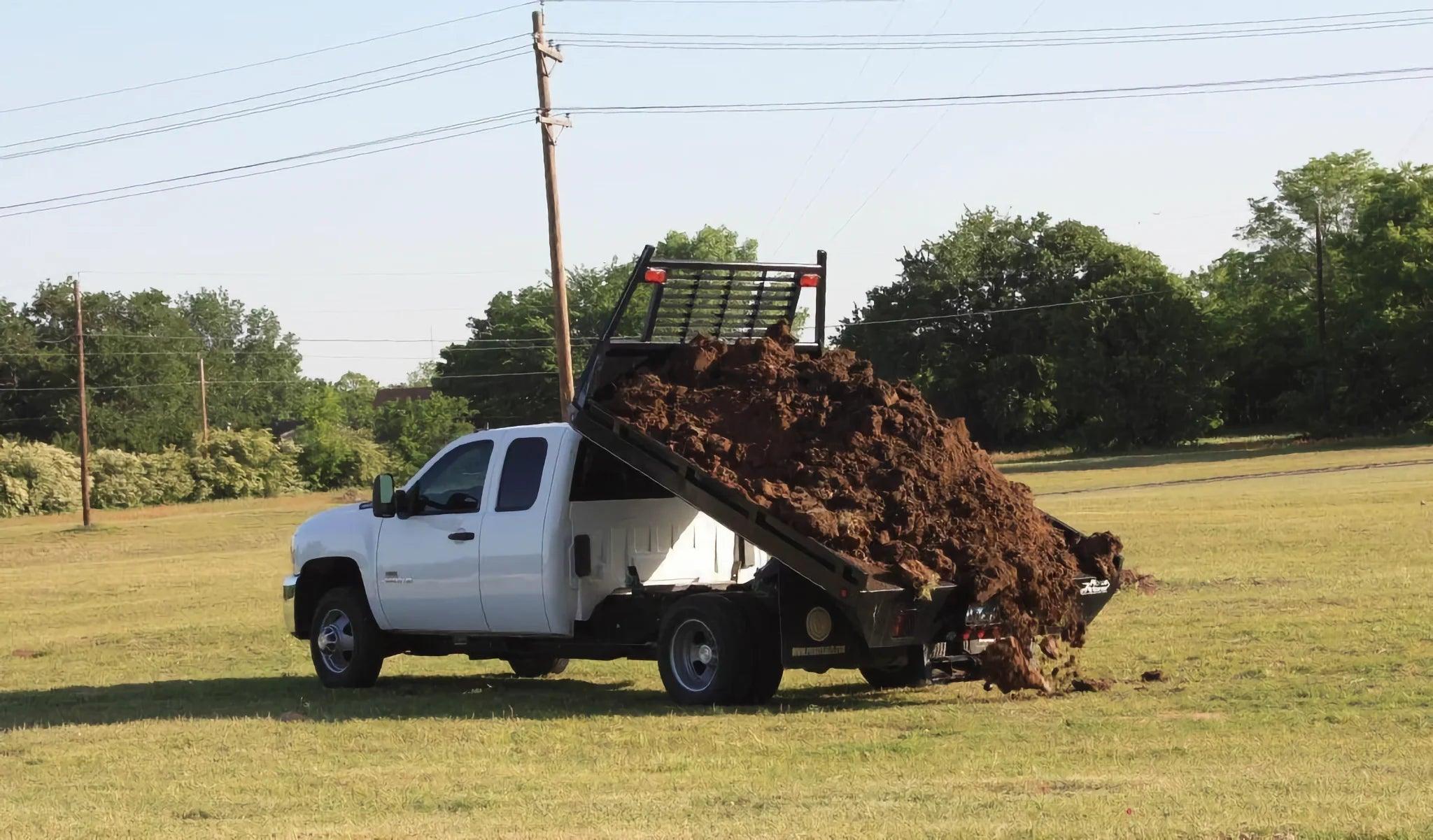

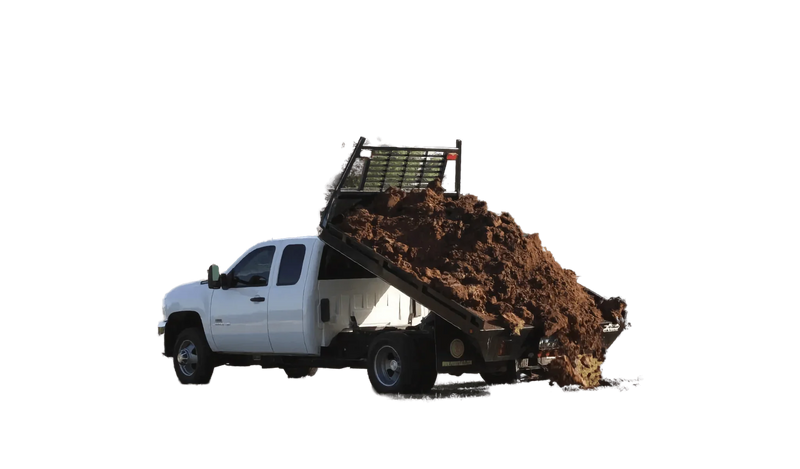

Dependable Power: Using a 12 Volt hydraulic pump (standard), this kit tilts your truck bed to a 45º angle in 30-90 seconds, letting you quickly offload materials like manure, firewood, or snow. Whether you’re clearing a driveway or spreading mulch on a farm, it saves time and keeps the job simple. If you are needing more power, checkout the Medium Duty or Heavy Duty Kit.

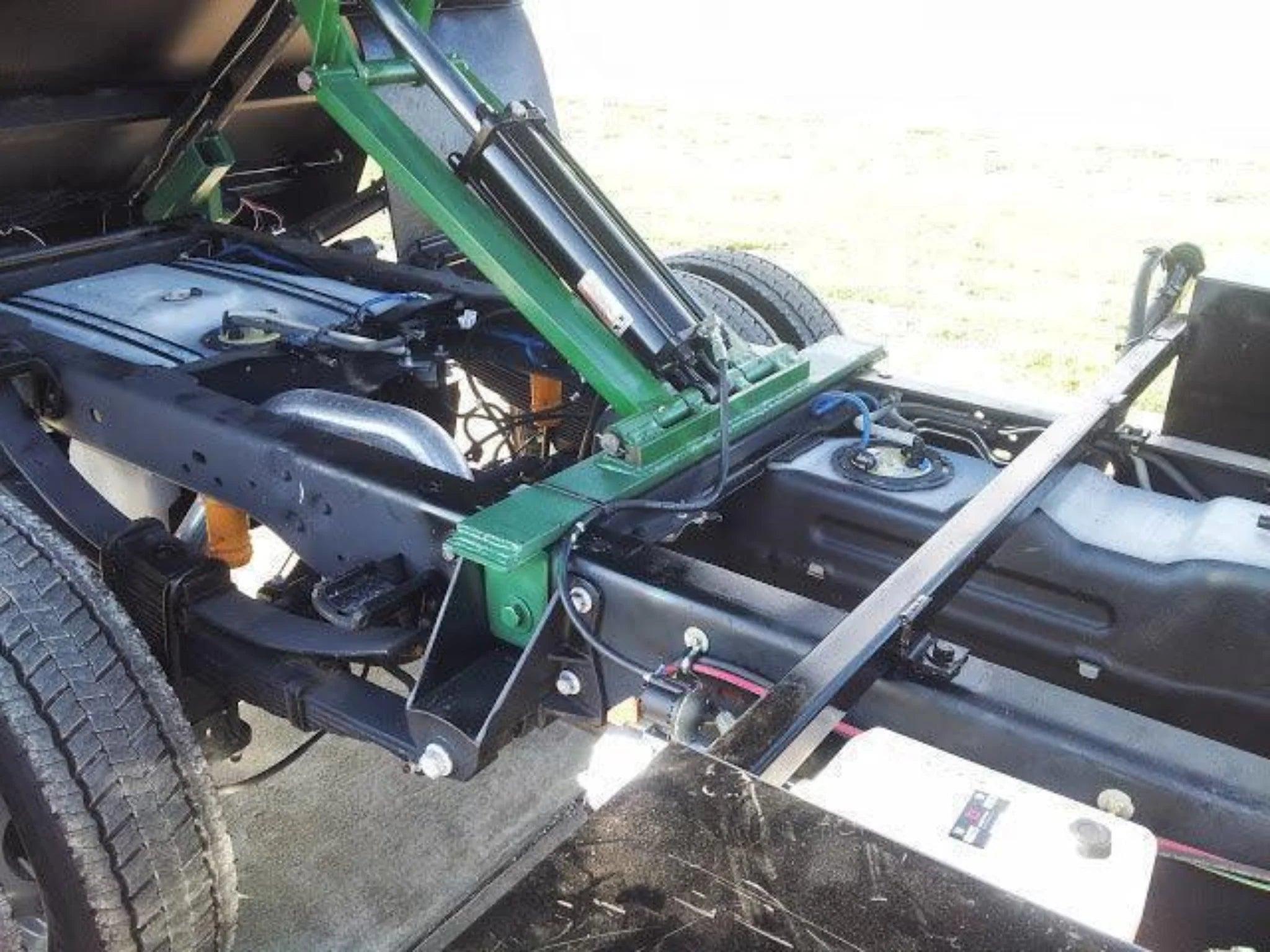

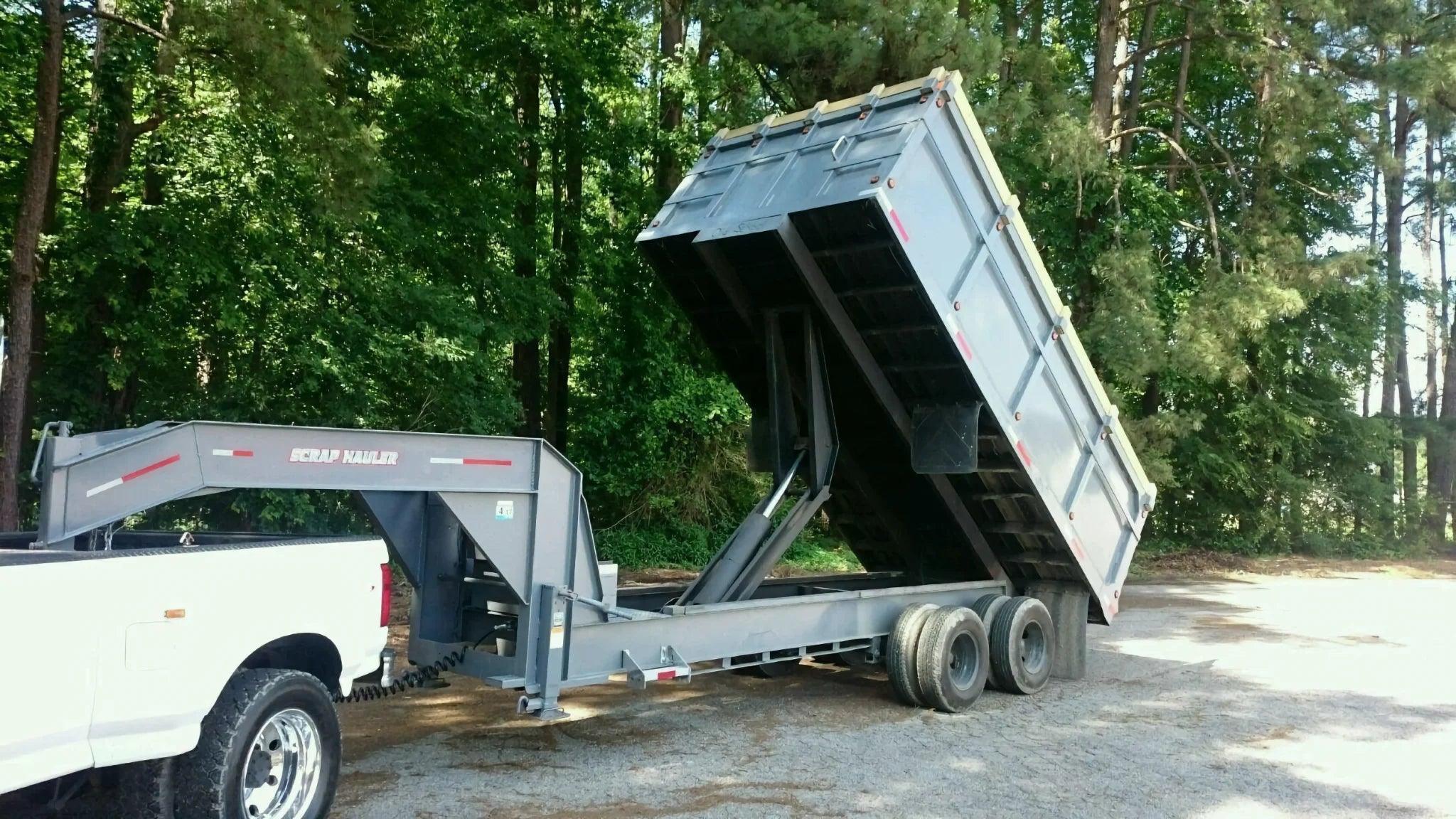

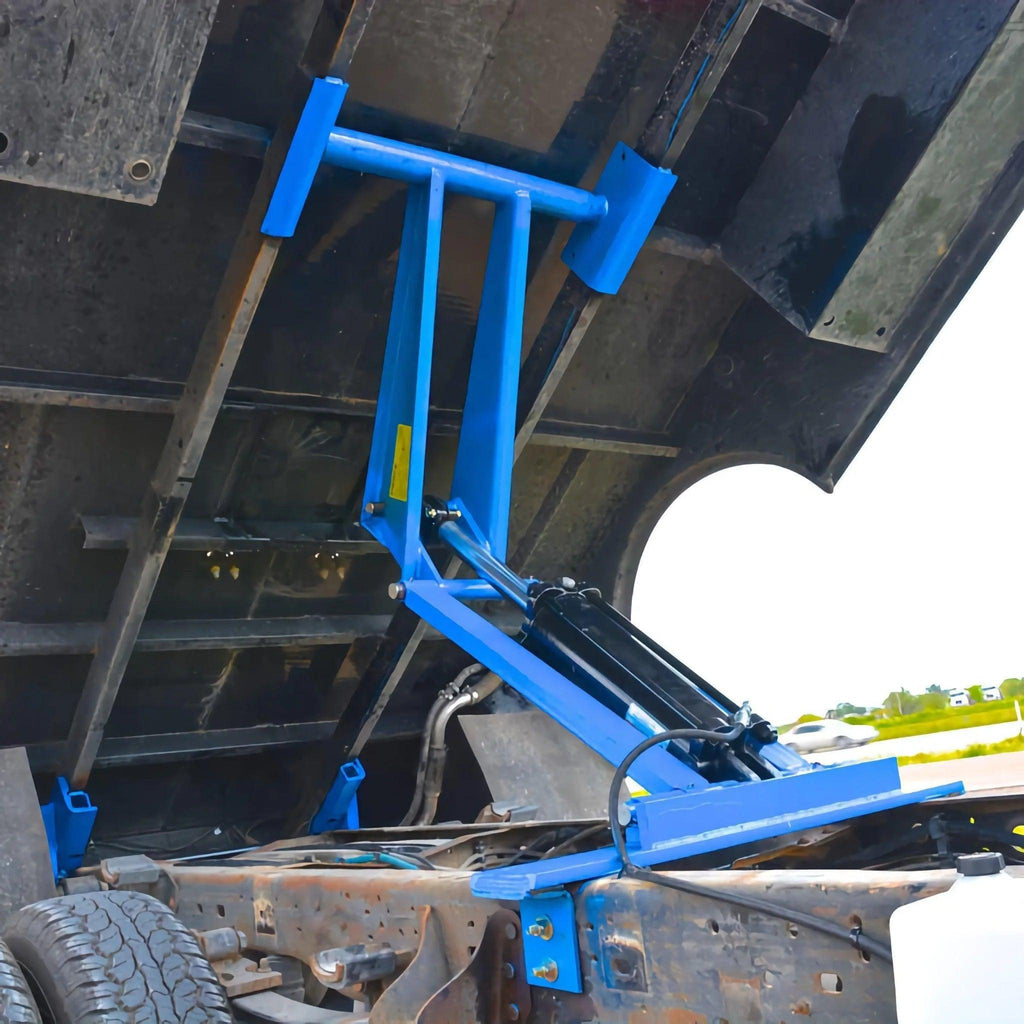

Fits Many Setups: Made for bed lengths from 8’ to 12’, this kit works well for turning trailers into dump trailers or adding capability to flatbeds. Its strong scissor assembly and hydraulic system deliver steady lifting for everyday tasks.

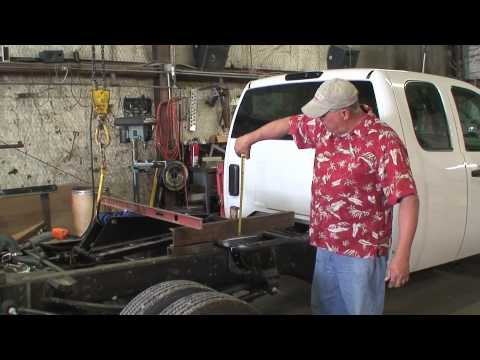

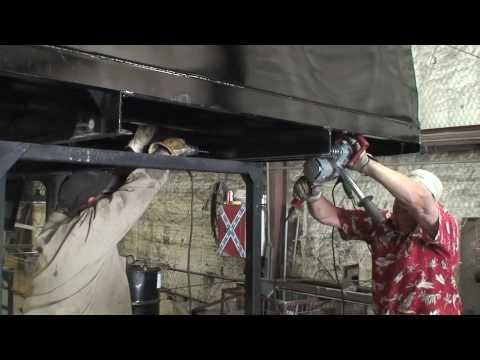

Expert Installation Required: This kit calls for expert-level skills, including welding, mechanical, and electrical work. It includes a pre-assembled scissor assembly, hydraulic pump, and hardware, with our manual to walk you through. Reinforcing your truck bed is advised, and a professional’s help can make it smoother. Contact us at 940-538-5643 for support.
Tough and Trusted: Since 1976, PIERCE, a family-owned North Texas outfit, has made gear that stands up to hard work. Customers say the kit’s well-built and easy to use, cutting down effort with a quick button press.
Why PIERCE? Add the Light Duty Dump Kit to your rig to make light work of tough jobs.
Note: Stay under your truck or trailer’s max load rating. Tools and some hardware not included. Expert installation strongly recommended.
What is Included
-
Scissor Assembly (Pre-Assembled)
- Scissor Top
- 1
- Scissor s
- 2
- Crossmember
- 1
- Shaft A 7.5 in.
- 1
- Shaft B 13.5 in.
- 1
- Shaft C 19.5 in.
- 1
- Hydraulic Cylinder
- 1
- 7/32 in. x 2 in. Roll Pin
- 6
-
Chassis/Bed Parts
- Driver Side Frame Hinge
- 1
- Passenger Side Frame Hinge
- 1
- Frame L Bracket
- 2
- Guides
- 2
- Shaft D 9.5 in.
- 2
- Pump Bracket
- 1
- Scissor Support Bar
- 1
- Driver Side Sill Hinge
- 1
- Passenger Side Sill Hinge
- 1
- Sill Supports
- 2
-
Hardware
- 3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt
- 2
- 1/2 in. - 16 x 3 in. G8 Hex Head Bolt
- 8
- 1/2 in. Flat Washer
- 10
- 1/2 in. - 13 Locknut
- 12
- 3/8 in. Lock Washer
- 2
- 7/32 in. x 2 in. Roll Pin
- 4
- 1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt
- 2
- 1/2 in. - 13 x 1.25 in. G8 Hex Head Bolt
- 2
- 1/2 in. - 13 x 8 in. G8 Hex Head Bolt
- 2
- 3/8 in. x 1 in. G8 Hex Head Bolt
- 2
- 3/8 in. Locknut
- 2
- 3/8 in. Flat Washer
- 2
- 3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt
- 1
- 3/4 in. G8 Locknut
- 1
- 3/4 in. Flat Washer
- 2
- Safety Prop Leg
- 1
- Safety Prop Cup
- 1
- 8 in. Black UV Zip Ties
- 1
- Instruction Manual
- 1
-
Electrical & Hydraulic Parts
- 200 Amp Breaker
- 1
- 20 ft. #4 Welding Cable - Black
- 1
- 20 ft. #4 Welding Cable - Red
- 1
- 5/16 in. Battery Eye
- 6
- 2 Button Universal Remote with 20 ft. Cord
- 1
- 3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting
- 1
- 3/8 in. Male x 1/4 in. Female 90º Swivel Fitting
- 1
- #8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting
- 1
- 5 ft. Hydraulic Hose
- 1
- 7 ft. Hydraulic Hose
- 1
- Bucher 12V Power Up/Power Down Hydraulic Pump
- 1
Specifications
- CYLINDER MEASUREMENTS
- 4" x 14" x 2"
- DUMPING TIME
- 30-90 seconds
- HOSE CONNECTIONS
- #6 SAE
- MAX CAPACITY (LBS.)
- 10000
- MAX OIL FLOW (GPM)
- 1.5
- MAXIMUM ANGLE (º)
- 45º
- OPERATING TEMPERATURE RANGE
- -20ºF to 130ºF (-30ºC to 55ºC)
- OPERATING VOLTAGE
- 12 Volts DC
- OPERATIONAL PRESSURE (PSI)
- 3250
- PUMP DIRECTIONS
- 2-Way (Power Up / Power Down)
- RECOMMENDED FLUID
- ATF (Automatic Transmission Fluid)
- RESERVOIR CAPACITY
- 2.5 Gallons
- RESERVOIR MATERIAL
- High Density Polyethylene
DKLKPD Capacity vs. Bed Overhang
Overhang | 8' Bed | 10' Bed | 12' Bed |
---|---|---|---|
None | 4.75 T | 3.75 T | 3 T |
12" | 5 T | 4.75 T | 3T |
24" | 5 T | 4.75 T | |
36" | 5T |
