Heavy Duty Flat Bed Dump Kit
- Regular price
- $3,600.00
- Sale price
- $3,600.00
- Regular price
-
$0.00
Save 20% by bundling together!
Wireless Controller Upgrade













Heavy Duty Flat Bed Dump Kit Information
Elevate your work truck or trailer with the PIERCE Heavy Duty Flat Bed Dump Kit, engineered for working professionals across the US who demand strong, time-saving equipment. Designed for after-market flatbeds or dump bodies, this universal kit boasts a maximum 20,000-lb. lifting capacity, ideal for demanding tasks in landscaping, construction, or cemetery maintenance.

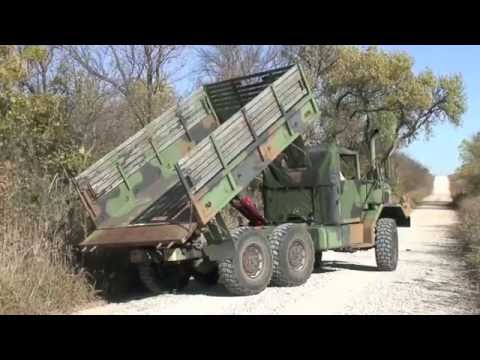

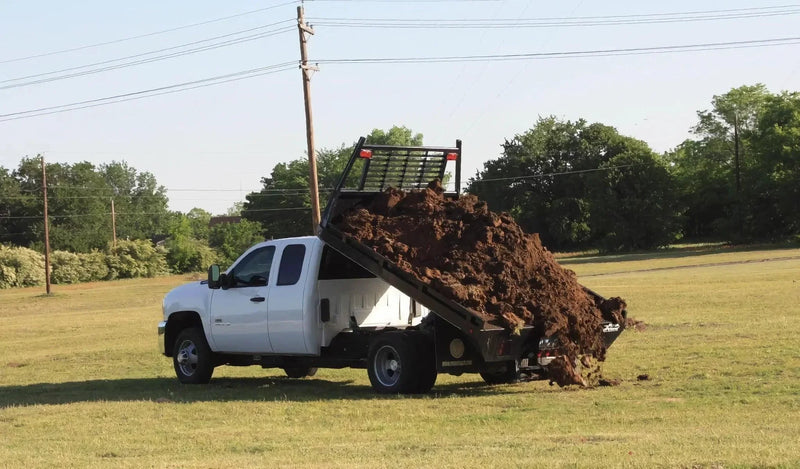

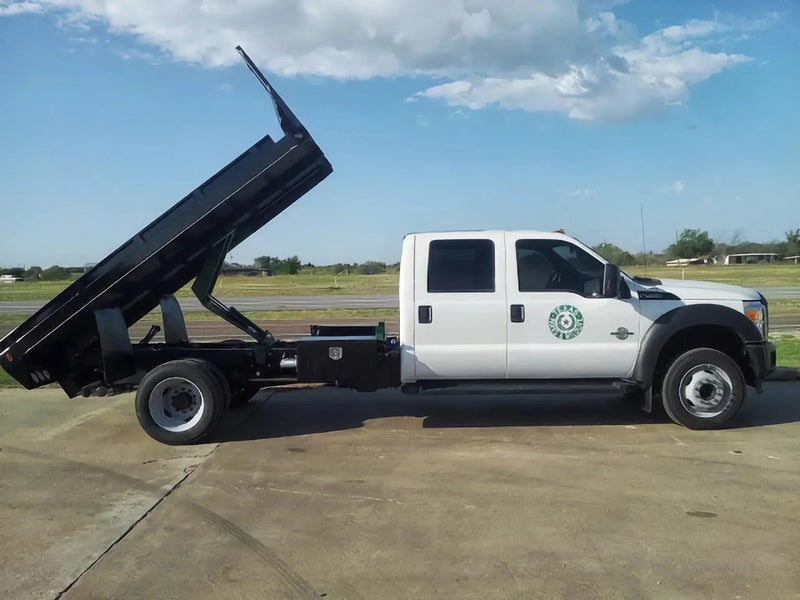

Powerful Performance: Equipped standard with a 12 Volt hydraulic pump, this kit lifts your truck bed to a 45º angle in 30-90 seconds, enabling fast, efficient unloading of soil, gravel, or other materials. From dumping dirt in open fields to handling loads in serene cemetery settings, it streamlines operations while minimizing physical effort. If you find the Heavy Duty Kit to be more power than you need, checkout both the Medium Duty and Light Duty Kits for suitable options.

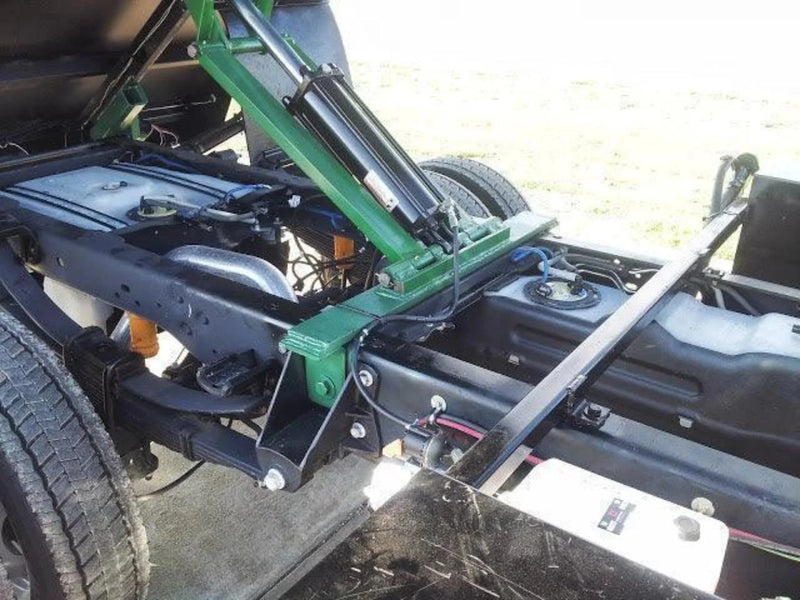

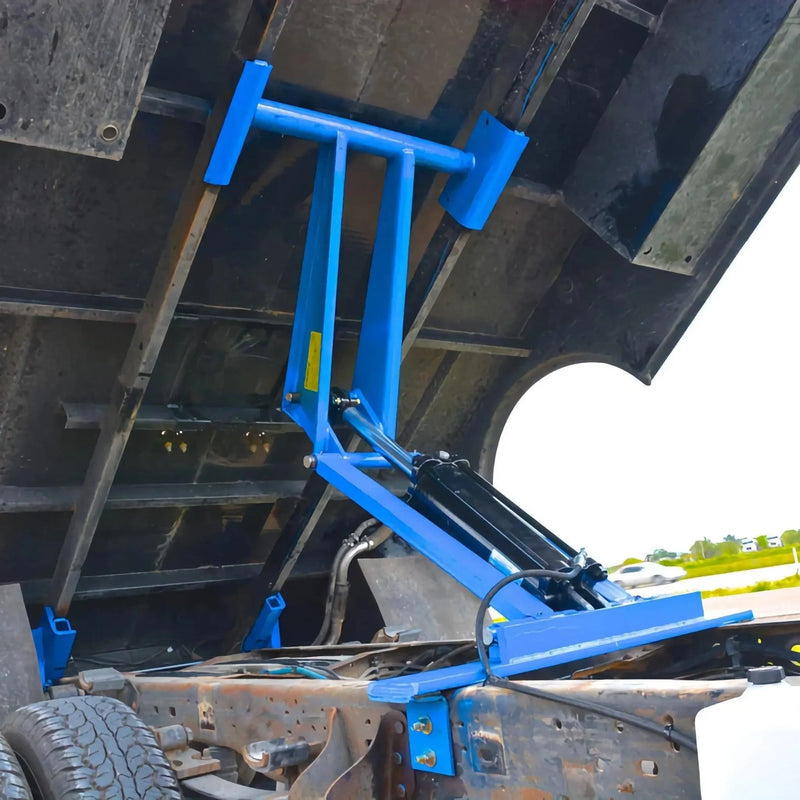

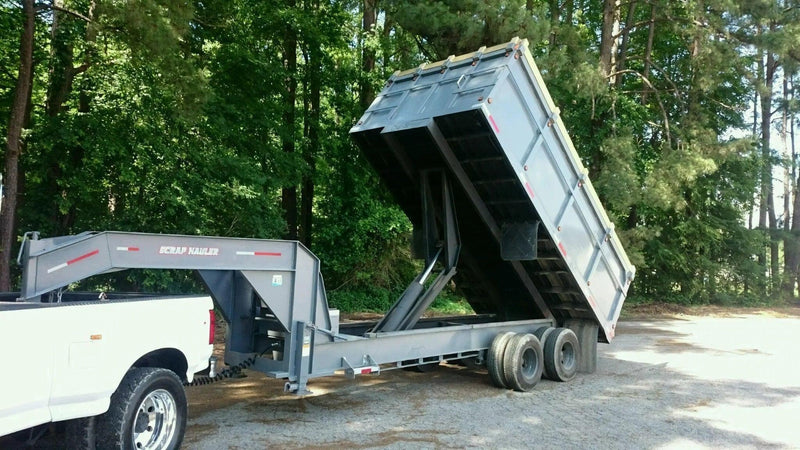

Universal Versatility: Compatible with bed lengths from 10’ to 16’, this kit excels in converting trailers into dump trailers or upgrading existing flatbeds. Its durable scissor assembly ensures reliable strength for heavy-duty applications.
Expert-Level Installation: Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. The comprehensive package includes a pre-assembled scissor assembly, hydraulic pump, and all necessary hardware, supported by our instruction manual. For optimal performance, reinforce your truck bed and consider professional assistance. Contact our team at 940-538-5643 for guidance.
Trusted Durability: As a family-owned North Texas business since 1976, PIERCE delivers equipment built to endure. Customers commend the kit’s high-quality construction and seamless functionality, making tough jobs more manageable with the push of a button.
Why PIERCE? Join thousands of professionals who rely on our Heavy Duty Dump Kit to save time and boost productivity. Order today at piercearrowinc.com and equip your vehicle for the toughest challenges.
Note: Do not exceed your truck or trailer’s maximum load rating. Tools and some hardware not included. Expert installation recommended.
What is Included
-
Scissor Assembly (Pre-Assembled)
- Scissor Top
- 1
- Scissor s
- 2
- Crossmember
- 1
- Shaft A 22.25 in.
- 1
- Shaft B 14 in.
- 1
- Hydraulic Cylinder
- 1
- 7/32 in. x 2 in. Roll Pin
- 6
-
Chassis/Bed Parts
- Driver Side Frame Hinge
- 1
- Passenger Side Frame Hinge
- 1
- Frame L Bracket
- 2
- Guides
- 2
- Shaft D 13.75 in.
- 2
- Pump Bracket
- 1
- Scissor Support Bar
- 1
- Driver Side Sill Hinge
- 1
- Passenger Side Sill Hinge
- 1
- Sill Supports
- 2
-
Hardware
- 5/8 in. - 3 in. G8 Hex Head Bolt
- 16
- 5/8 in. - 11 G8 Locknut
- 16
- 3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt
- 2
- 1/2 in. - 13 Locknut
- 4
- 3/8 in. Lock Washer
- 2
- 7/32 in. x 2.5 in. Roll Pin
- 4
- 1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt
- 4
- 3/8 in. x 1 in. G8 Hex Head Bolt
- 2
- 3/8 in. Locknut
- 2
- 3/8 in. Flat Washer
- 2
- 3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt
- 1
- 3/4 in. G8 Locknut
- 1
- 3/4 in. Flat Washer
- 1
- Safety Prop Leg
- 1
- Safety Prop Cup
- 1
- 8 in. Black UV Zip Ties
- 1
- Instruction Manual
- 1
-
Electrical & Hydraulic Parts
- 200 Amp Breaker
- 1
- 20 ft. #4 Welding Cable - Black
- 1
- 20 ft. #4 Welding Cable - Red
- 1
- 5/16 in. Battery Eye
- 6
- 2 Button Universal Remote with 20 ft. Cord
- 1
- 3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting
- 1
- 3/8 in. Male x 1/4 in. Female 90º Swivel Fitting
- 1
- #8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting
- 1
- 5 ft. Hydraulic Hose
- 1
- 7 ft. Hydraulic Hose
- 1
- Bucher 12V Power Up/Power Down Hydraulic Pump
- 1
Specifications
- CYLINDER MEASUREMENTS
- 5" x 16" x 2"
- DUMPING TIME
- 30-90 seconds
- HOSE CONNECTIONS
- #6 SAE
- MAX CAPACITY (LBS.)
- 20000
- MAX OIL FLOW (GPM)
- 1.5
- MAXIMUM ANGLE (º)
- 45º
- OPERATING TEMPERATURE RANGE
- -20ºF to 130ºF (-30ºC to 55ºC)
- OPERATING VOLTAGE
- 12 Volts DC
- OPERATIONAL PRESSURE (PSI)
- 3250
- PUMP DIRECTIONS
- 2-Way (Power Up / Power Down)
- RECOMMENDED FLUID
- ATF (Automatic Transmission Fluid)
- RESERVOIR CAPACITY
- 2.5 Gallons
- RESERVOIR MATERIAL
- High Density Polyethylene

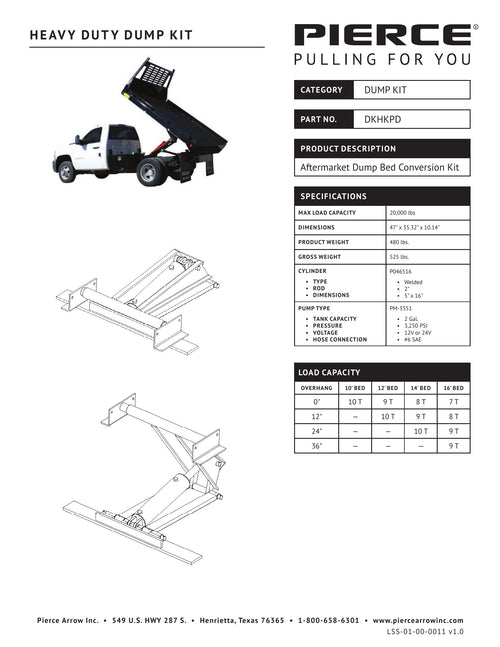

DKHKPD Capacity vs. Bed Overhang
Overhang | 10' Bed | 12' Bed | 14' Bed | 16' Bed |
---|---|---|---|---|
None | 10T | 9T | 8T | 7T |
12" | 10T | 9T | 8T | |
24" | 10T | 9T | ||
36" | 10T |
