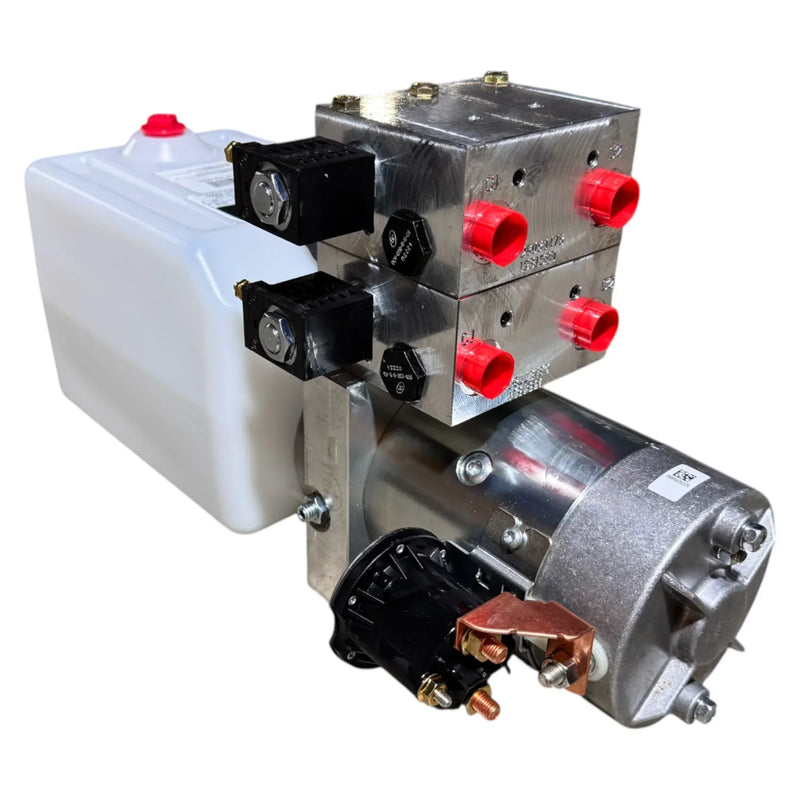

  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white reservoir tank, metal valves, an adjustable relief valve, and red capped ports on a white background.

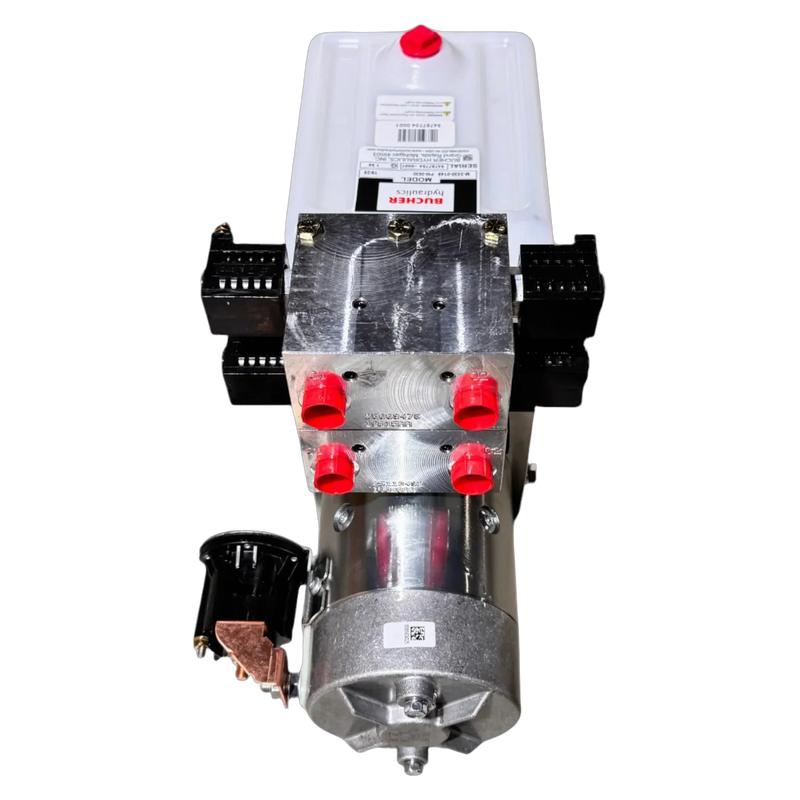

  • The Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white fluid reservoir, adjustable relief valve, and red-capped ports, shown from above.

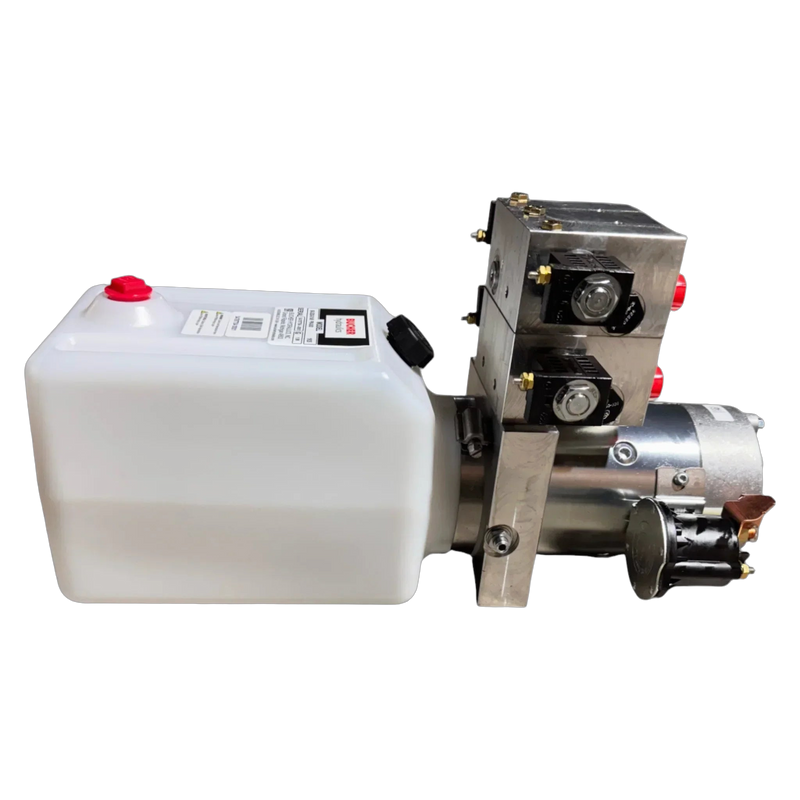

  • The Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white reservoir tank, metal components, and an adjustable relief valve, shown in a side view.

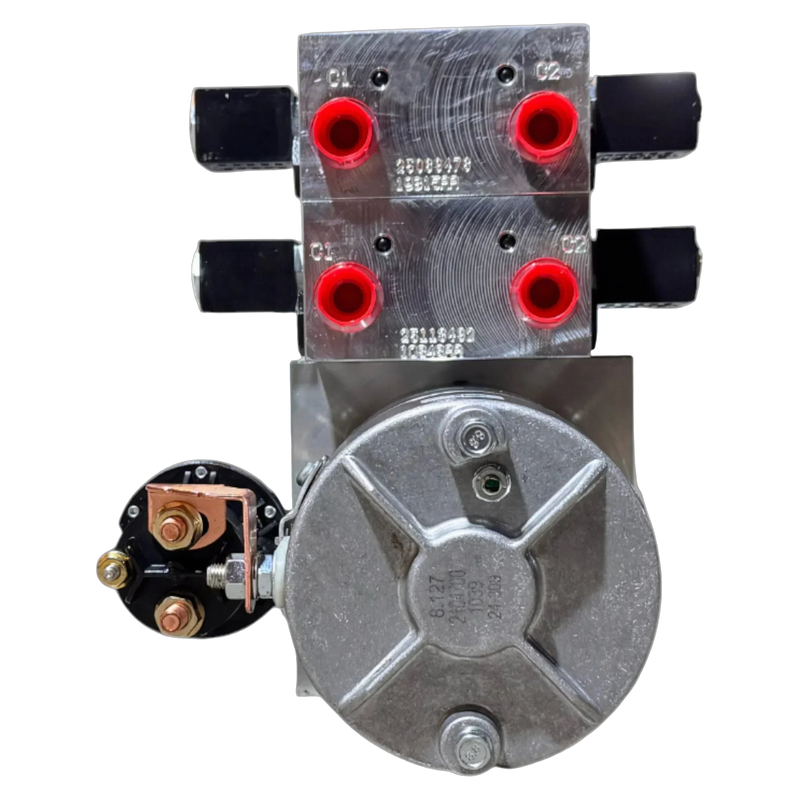

  • Top view of a Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic power unit with metal valves, red ports, electrical components, and an adjustable relief valve for precise pressure control in a dual power circuit system.

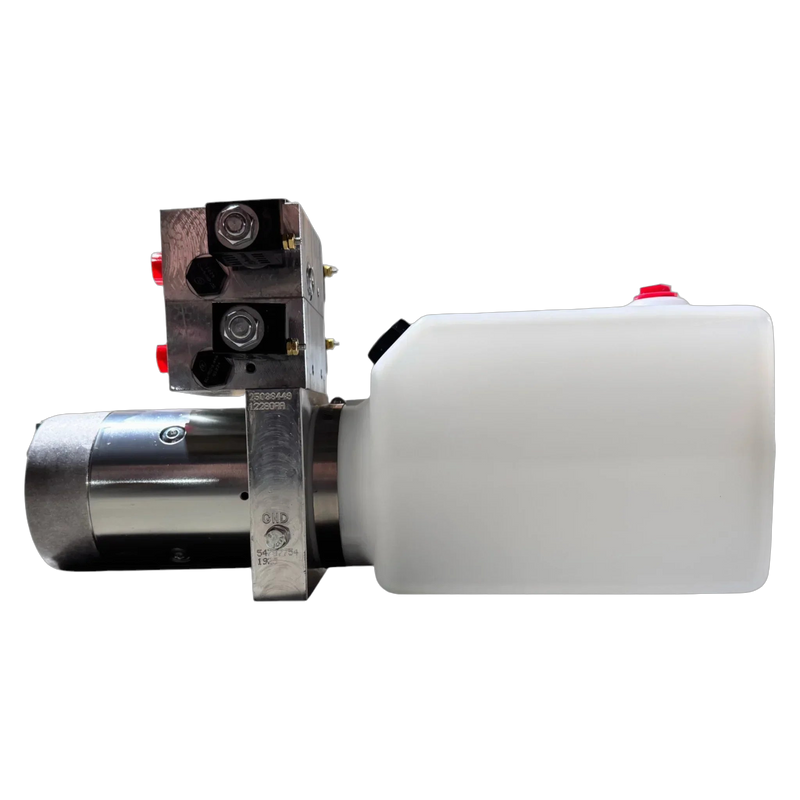

  • Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic power unit with rectangular plastic reservoir and metal pump assembly, featuring an adjustable relief valve—ideal for dual power circuit use, shown on a white background.

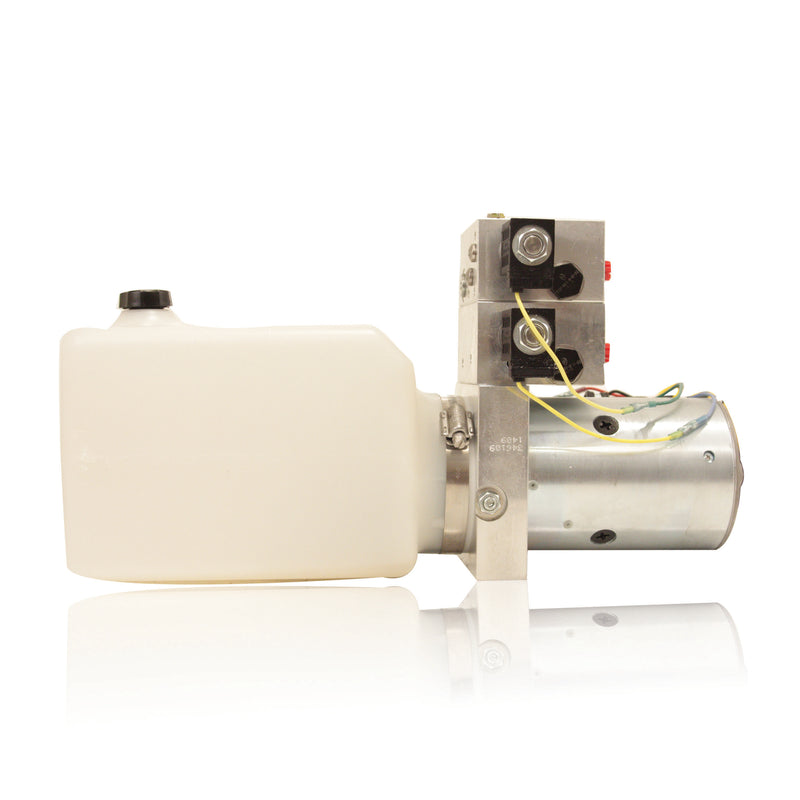

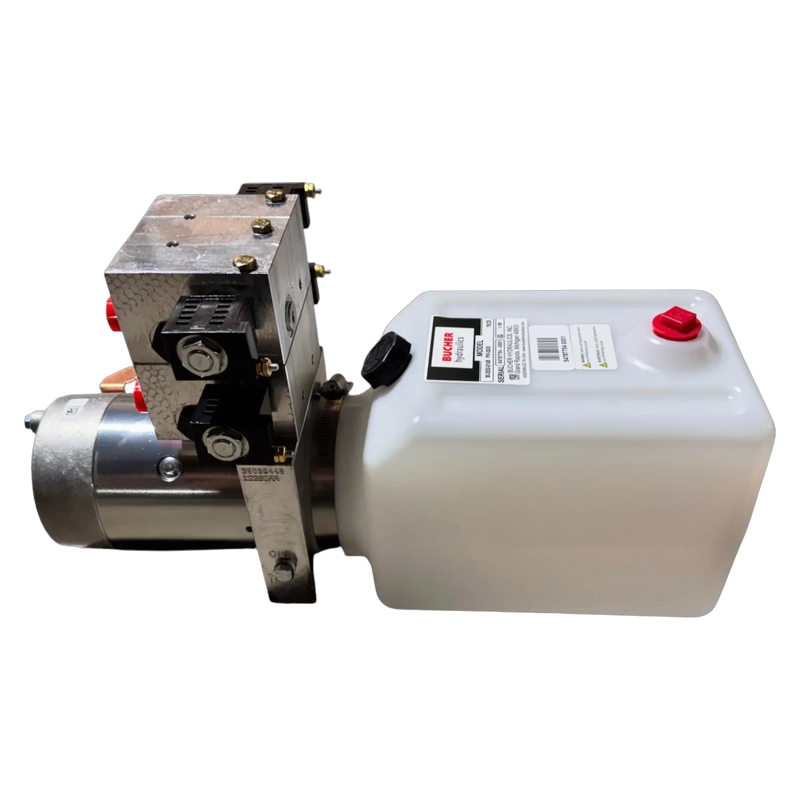

  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white plastic reservoir, metal motor assembly, and adjustable relief valve, shown isolated on a white background.

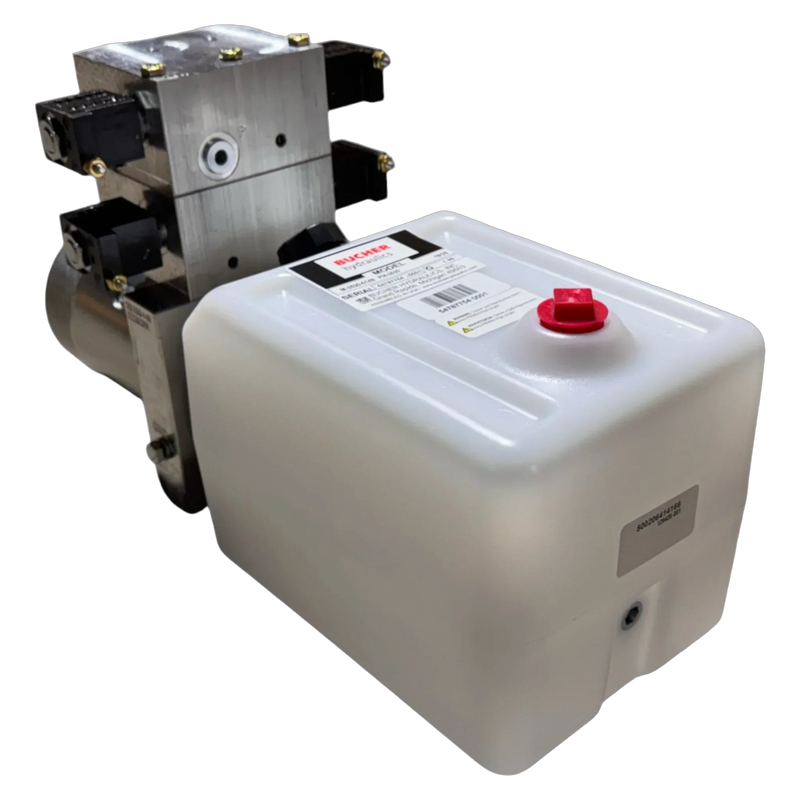

  • A white plastic fluid reservoir with a red cap is mounted to a Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic assembly, which features an adjustable relief valve.

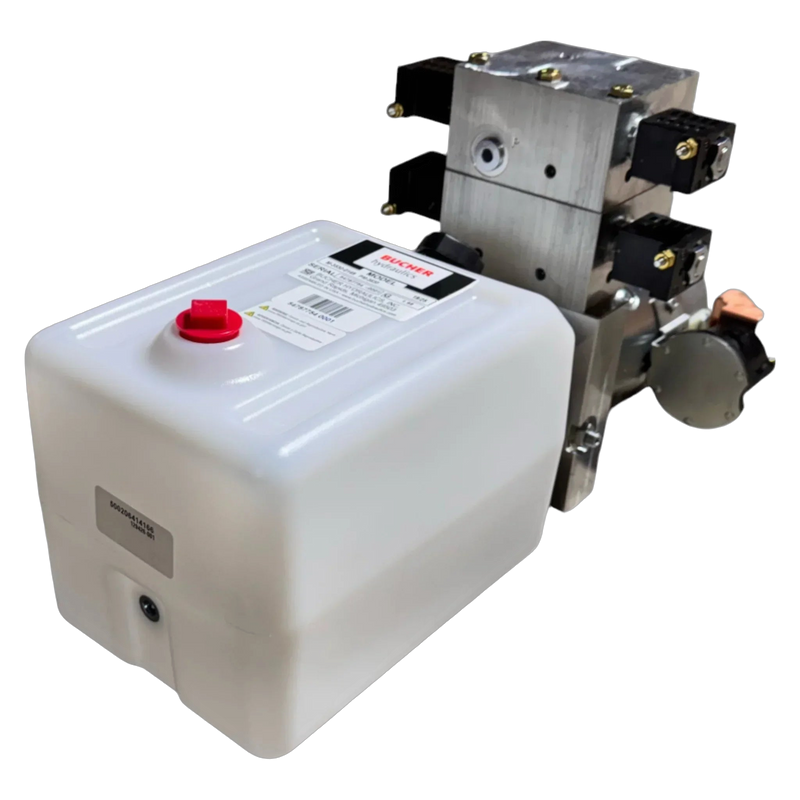

  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white plastic reservoir, metal components, and an adjustable relief valve for precise pressure control.

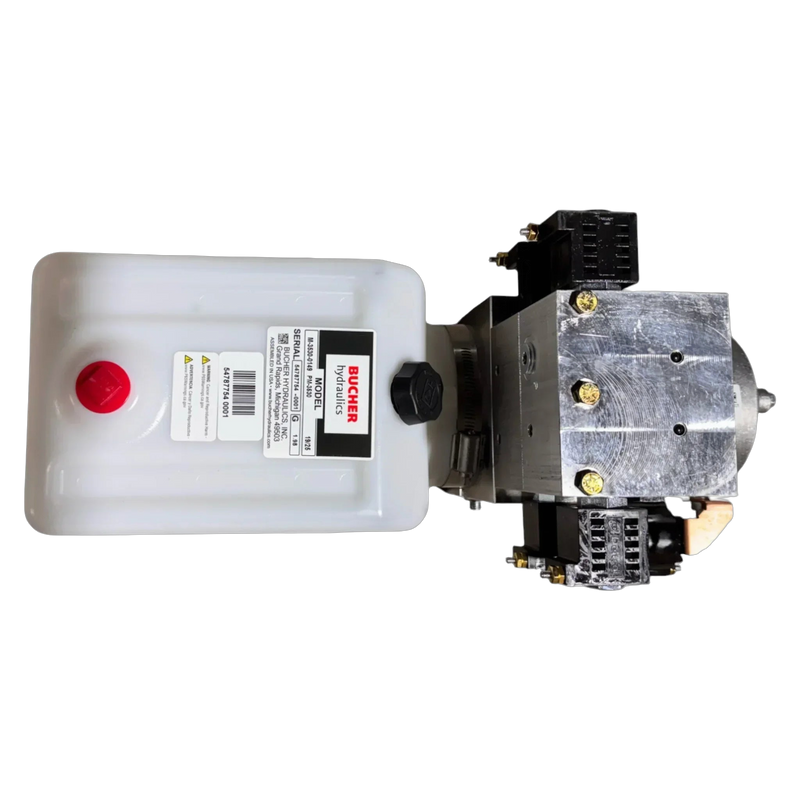

  • Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white plastic reservoir, metal pump body, black mounts, an adjustable relief valve, and supports dual power circuit operation for versatile industrial use.

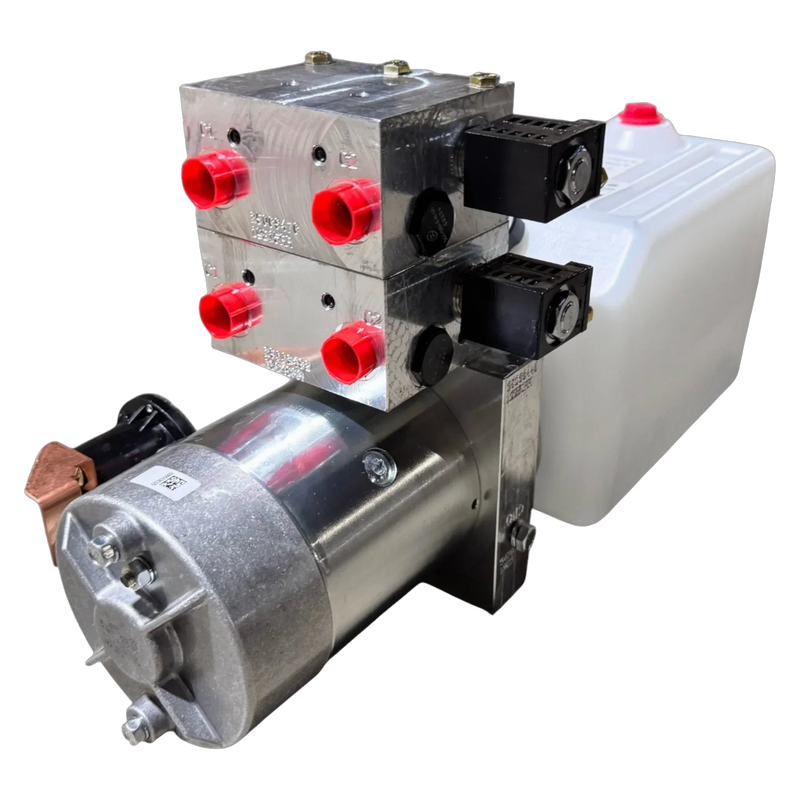

  • Hydraulic power unit featuring a Bucher Hydraulics, Inc. 4 Way Pump, reservoir, pump, motor, mounted valve block with red port covers, and an adjustable relief valve for optimal performance.
  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white reservoir tank, metal valves, an adjustable relief valve, and red capped ports on a white background.
  • The Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white fluid reservoir, adjustable relief valve, and red-capped ports, shown from above.
  • The Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white reservoir tank, metal components, and an adjustable relief valve, shown in a side view.
  • Top view of a Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic power unit with metal valves, red ports, electrical components, and an adjustable relief valve for precise pressure control in a dual power circuit system.
  • Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic power unit with rectangular plastic reservoir and metal pump assembly, featuring an adjustable relief valve—ideal for dual power circuit use, shown on a white background.
  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white plastic reservoir, metal motor assembly, and adjustable relief valve, shown isolated on a white background.
  • A white plastic fluid reservoir with a red cap is mounted to a Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic assembly, which features an adjustable relief valve.
  • The Bucher 4 Way Pump by Bucher Hydraulics, Inc. features a white plastic reservoir, metal components, and an adjustable relief valve for precise pressure control.
  • Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white plastic reservoir, metal pump body, black mounts, an adjustable relief valve, and supports dual power circuit operation for versatile industrial use.
  • Hydraulic power unit featuring a Bucher Hydraulics, Inc. 4 Way Pump, reservoir, pump, motor, mounted valve block with red port covers, and an adjustable relief valve for optimal performance.
Bucher 4-Way Hydraulic Power Unit | 6 qt Poly

Bucher 4-Way Hydraulic Power Unit | 6 qt Poly

PM-3530
4 reviews
$1,028.00
In Stock

The Bucher PM-3530 4-Way Hydraulic Power Unit is a 12V HPU with two double-acting circuits in a single pump — built for wrecker bodies and other multi-cylinder jobs. The 6-quart polyethylene reservoir feeds two power-up / power-down sections, so one HPU runs both the boom and the wheel-lift cylinders independently.

Why use a 4-way HPU instead of two separate 2-way pumps?

One reservoir, one motor, one set of wiring — half the install footprint and half the failure points. The 4-way's two circuits run from the same fluid supply, so you don't have to maintain two separate reservoirs or worry about one circuit running dry while the other still has oil.

  • 12V DC, 4-Way (Power All) — two double-acting circuits
  • 6-quart high-density polyethylene reservoir
  • 2,500 PSI operational pressure
  • 1.5 GPM max oil flow
  • #6 SAE hose connections, 9/16 in SAE o-ring valve ports
  • Operating temp: -20°F to 130°F
  • Recommended fluid: ATF (Automatic Transmission Fluid)
  • Adjustable relief valve set at 2,500 PSI
  • Bucher PM-3530 — made in USA, 100% tested

For 6-circuit wrecker jobs that add open/close to up/down/in/out, see the Bucher 6-Way HPU (PM-3530-3ST). For single-circuit applications, see the Bucher 2-Way HPU (PM-3551).
What's Included
Specifications
Operating Voltage
12 Volts DC
Max Oil Flow (gpm)
1.50
Operational Pressure (psi)
2500
Reservoir Capacity
6 Quarts
Reservoir Material
High Density Polyethylene
Hose Connections
#6 SAE
Recommended Fluid
ATF (Automatic Transmission Fluid)
Pump Directions
4-Way (Power All)
Operating Temperature Range
-20ºF to 130ºF (-30ºC to 55ºC)
Replacement Parts (4)
Bucher 10V Coil | Hydraulic Pump Valve
Bucher 10V Coil | Hydraulic Pump ValveSKU: 1019660
$68.00
Bucher 12V Pump Solenoid | Style 2
Bucher 12V Pump Solenoid | Style 2SKU: P050T
$42.00
Bucher Hydraulic Pump Valve | Fits PM-319
Bucher Hydraulic Pump Valve | Fits PM-319SKU: P07193
$176.00

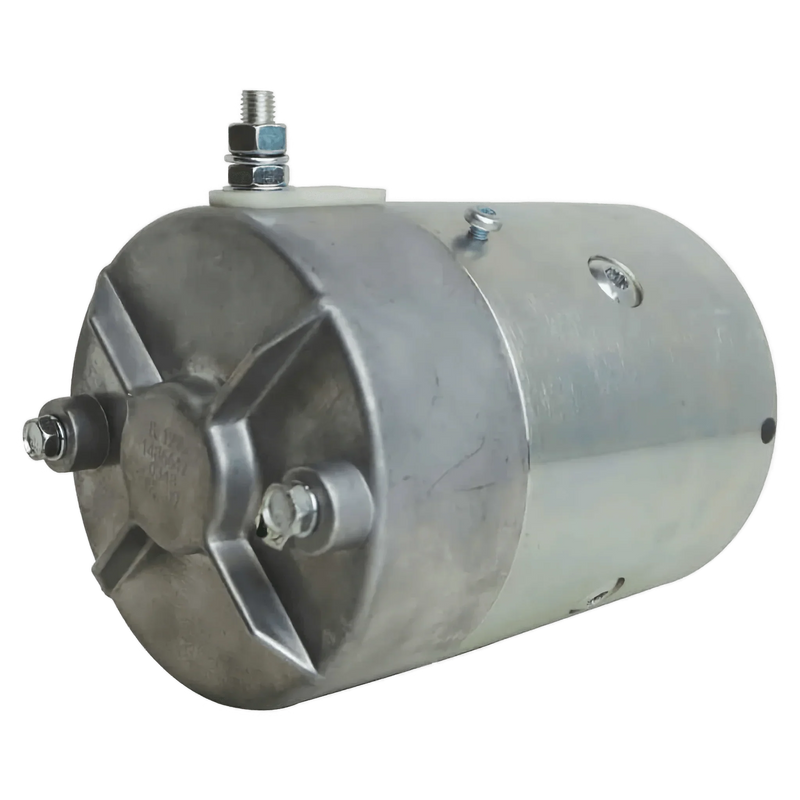

Bucher Pump Motor | Standard Duty | 2.1 HP
Bucher Pump Motor | Standard Duty | 2.1 HPSKU: 08111
$232.00
