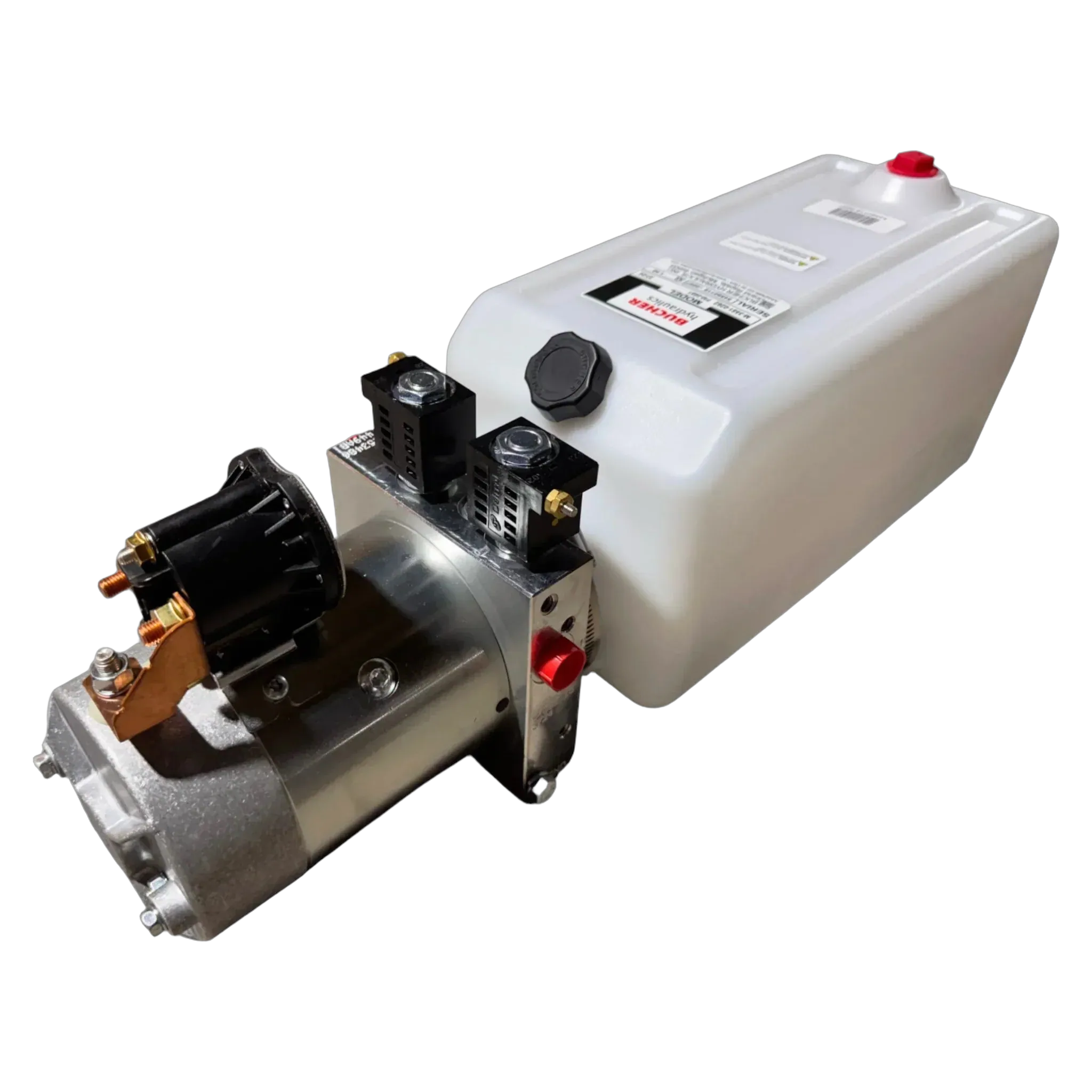

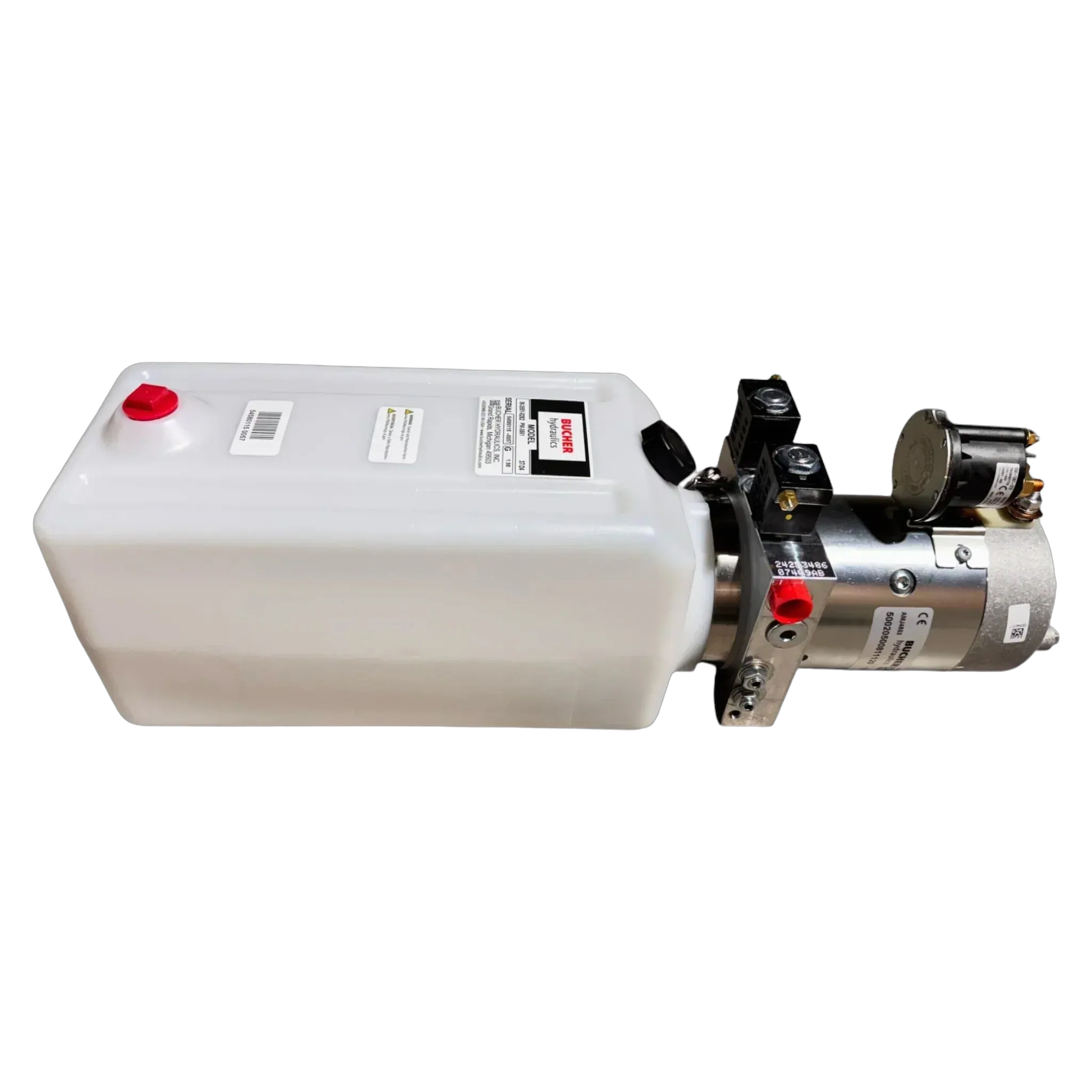

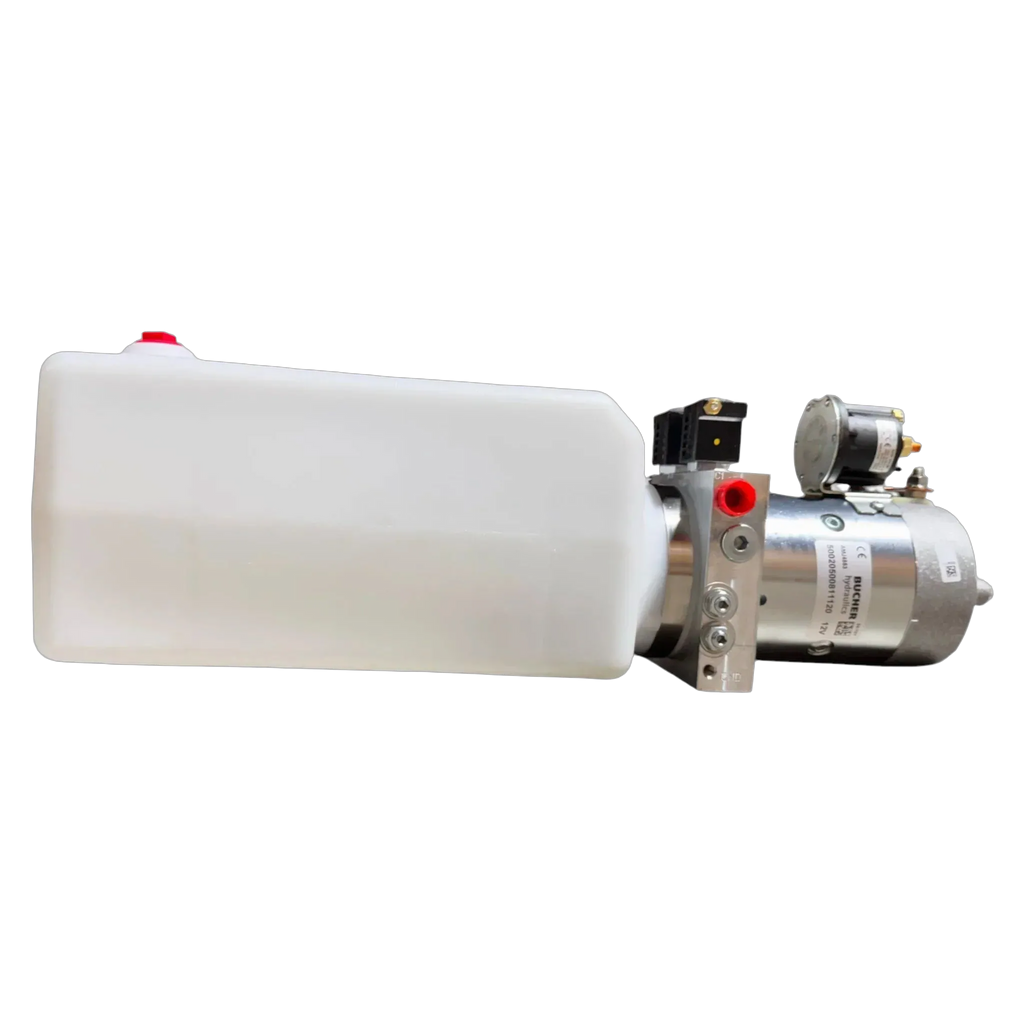

Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly Reservoir
Compatible Products

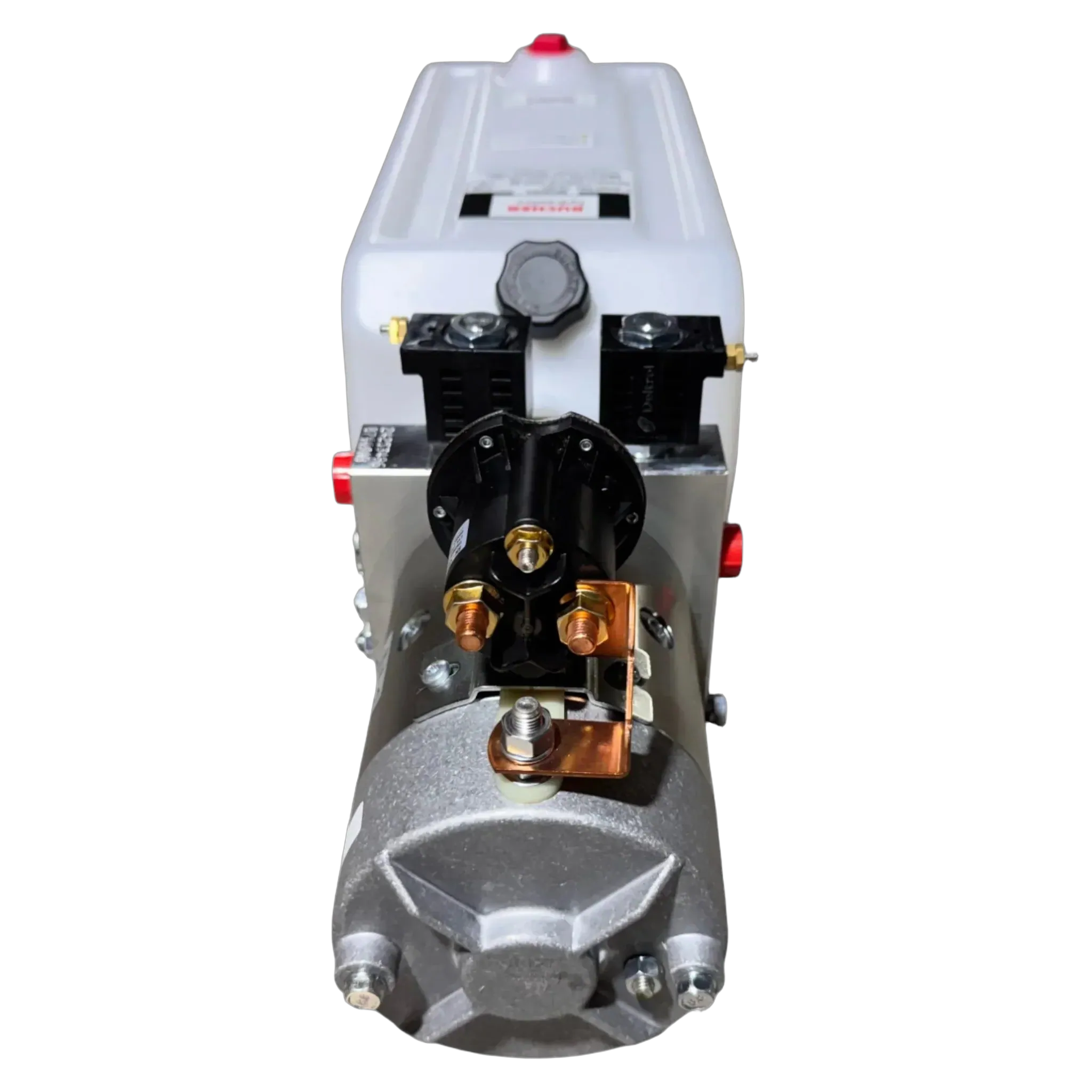

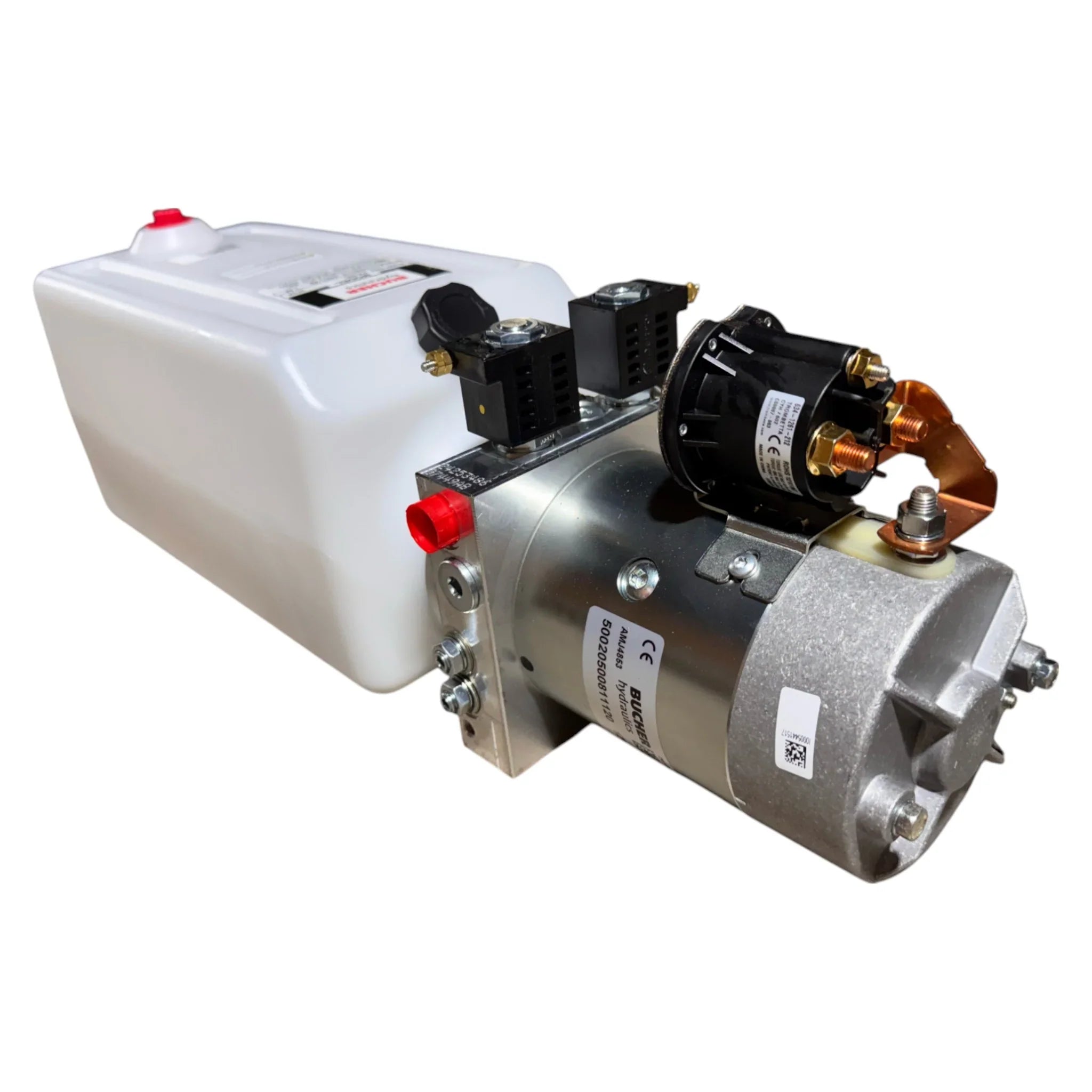

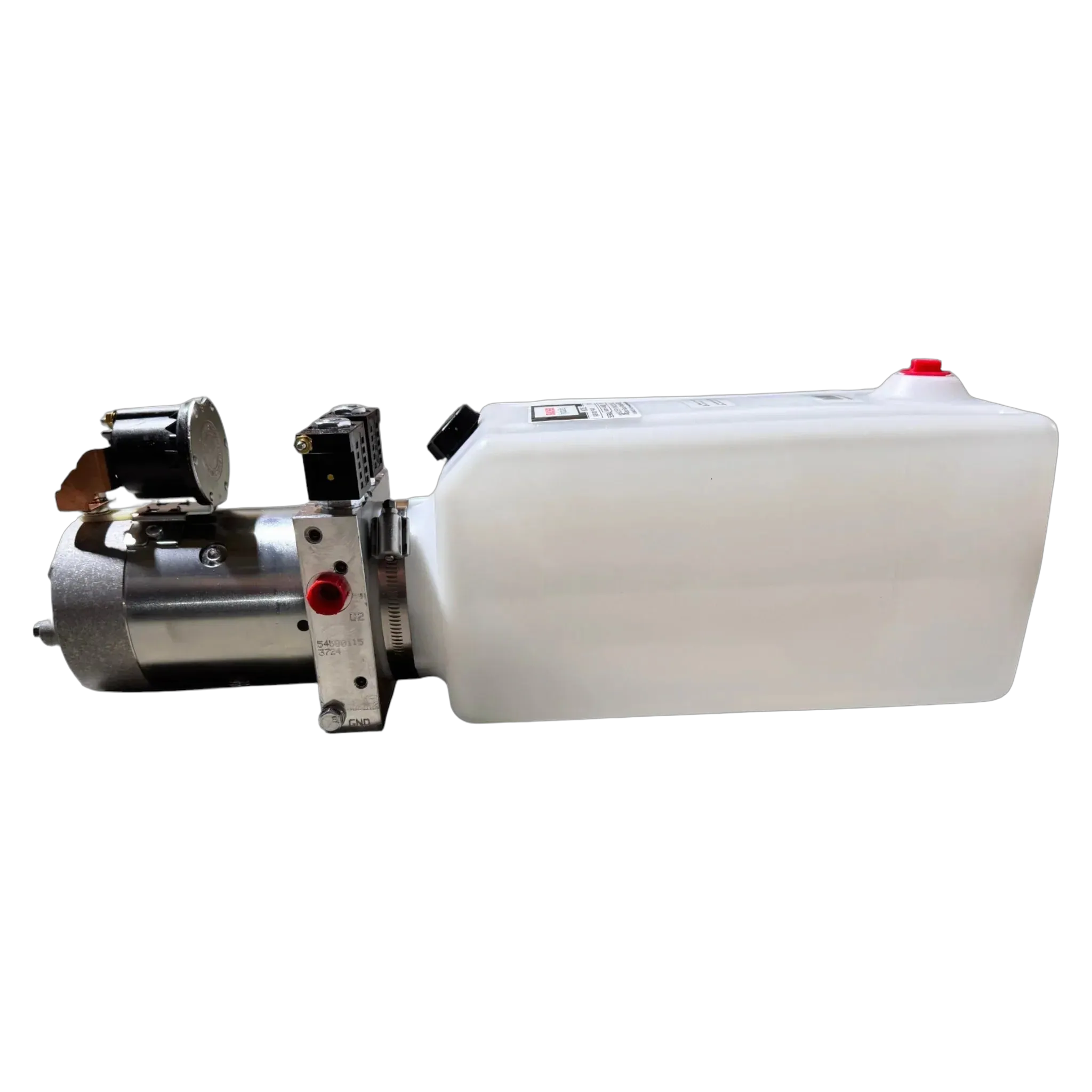

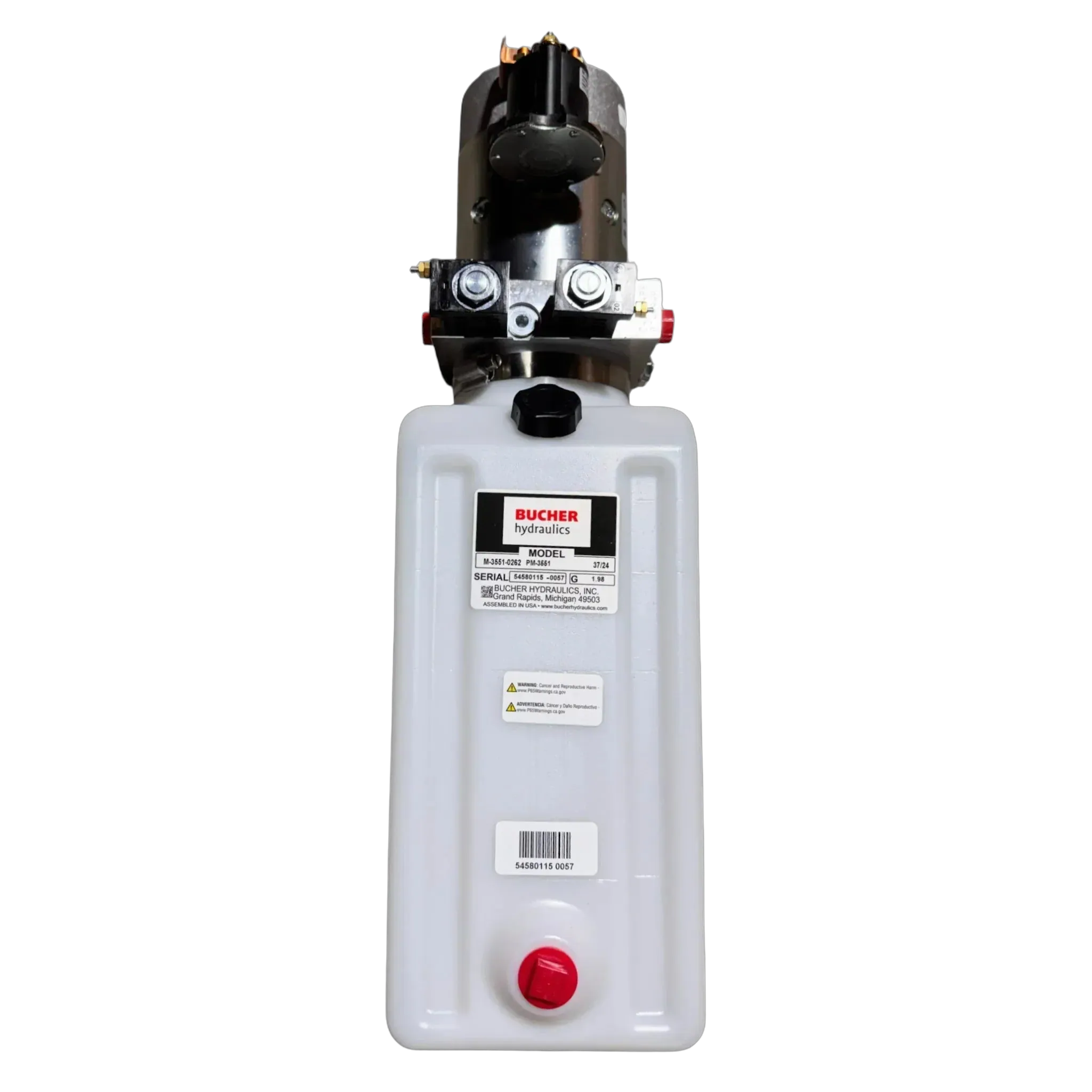

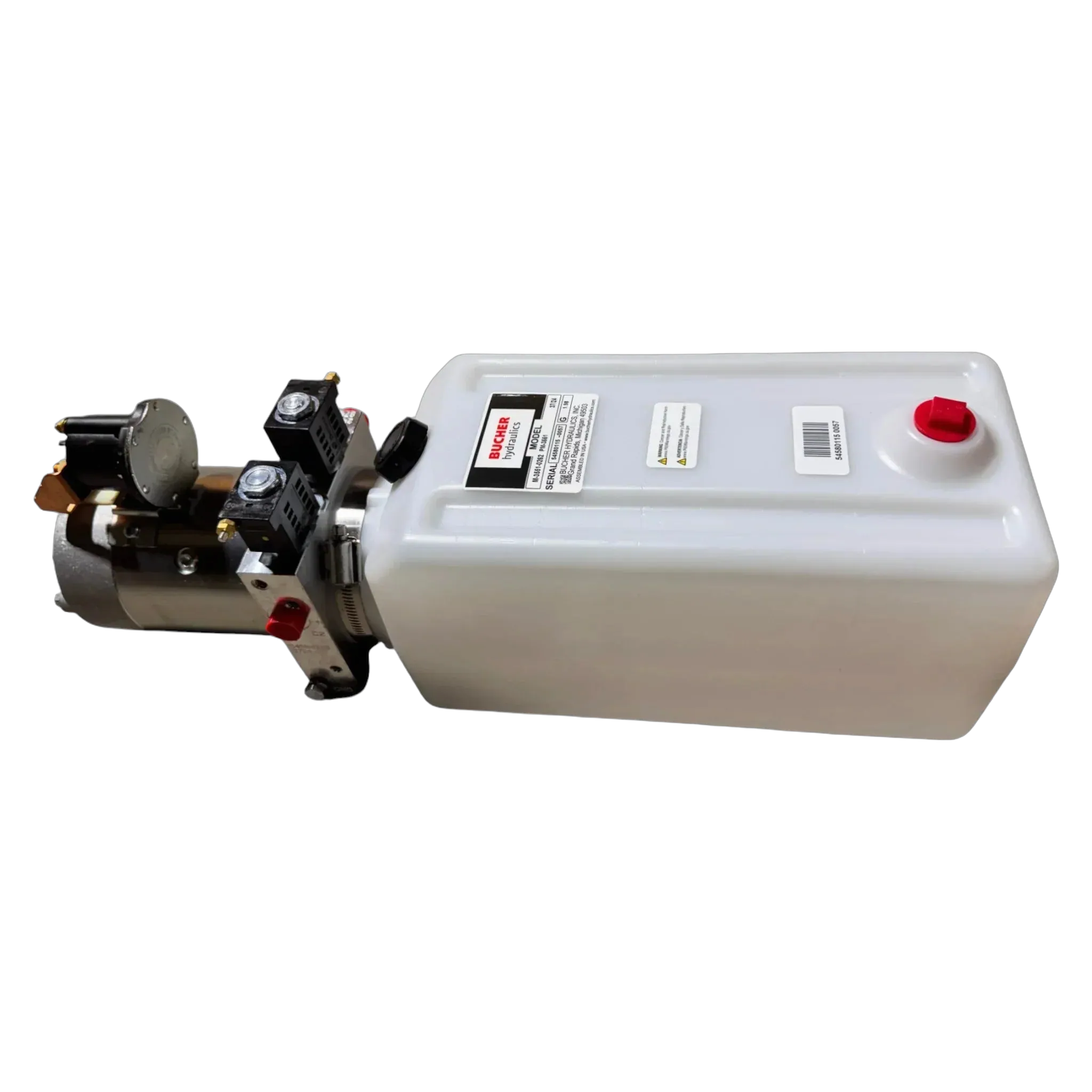

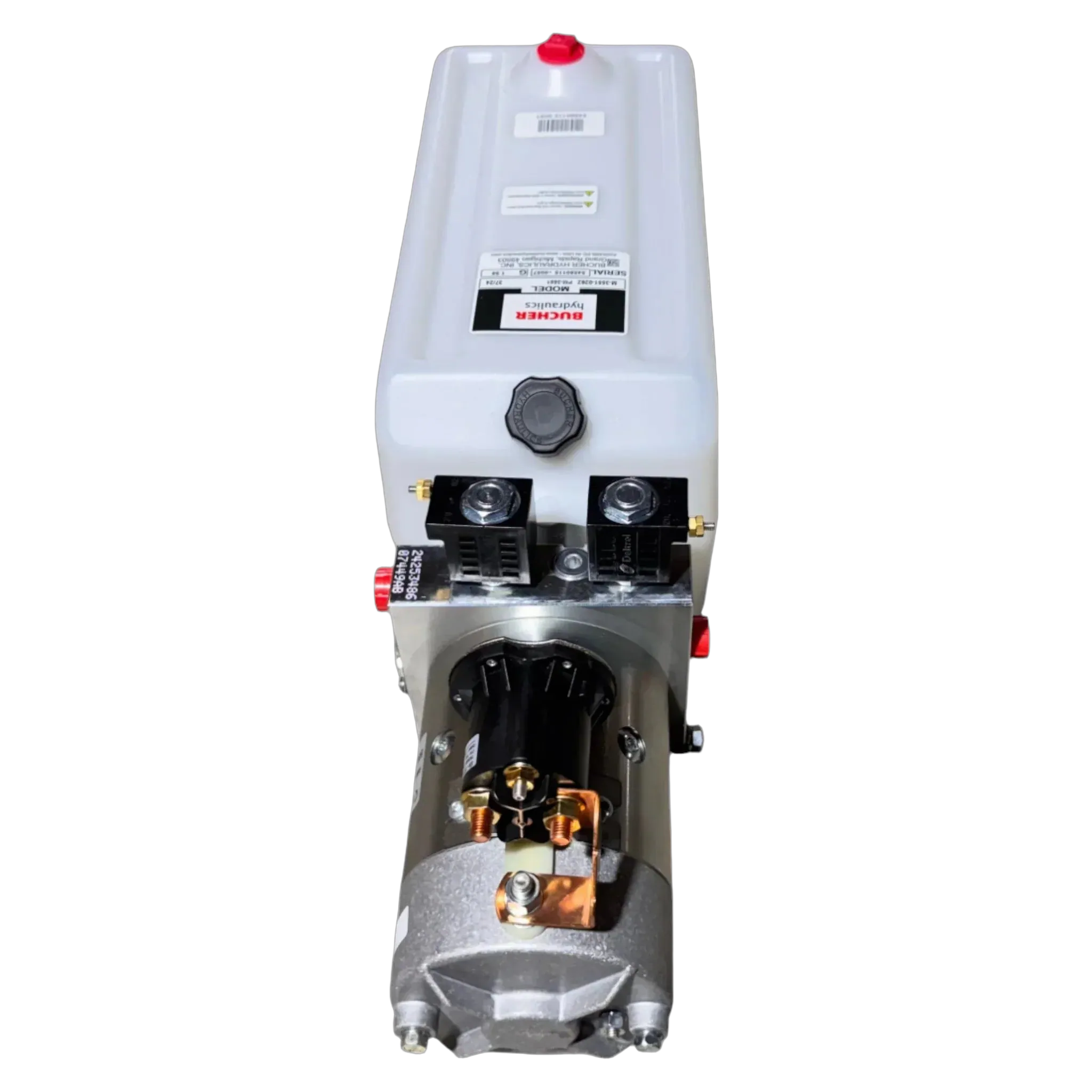

Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly Reservoir
Description

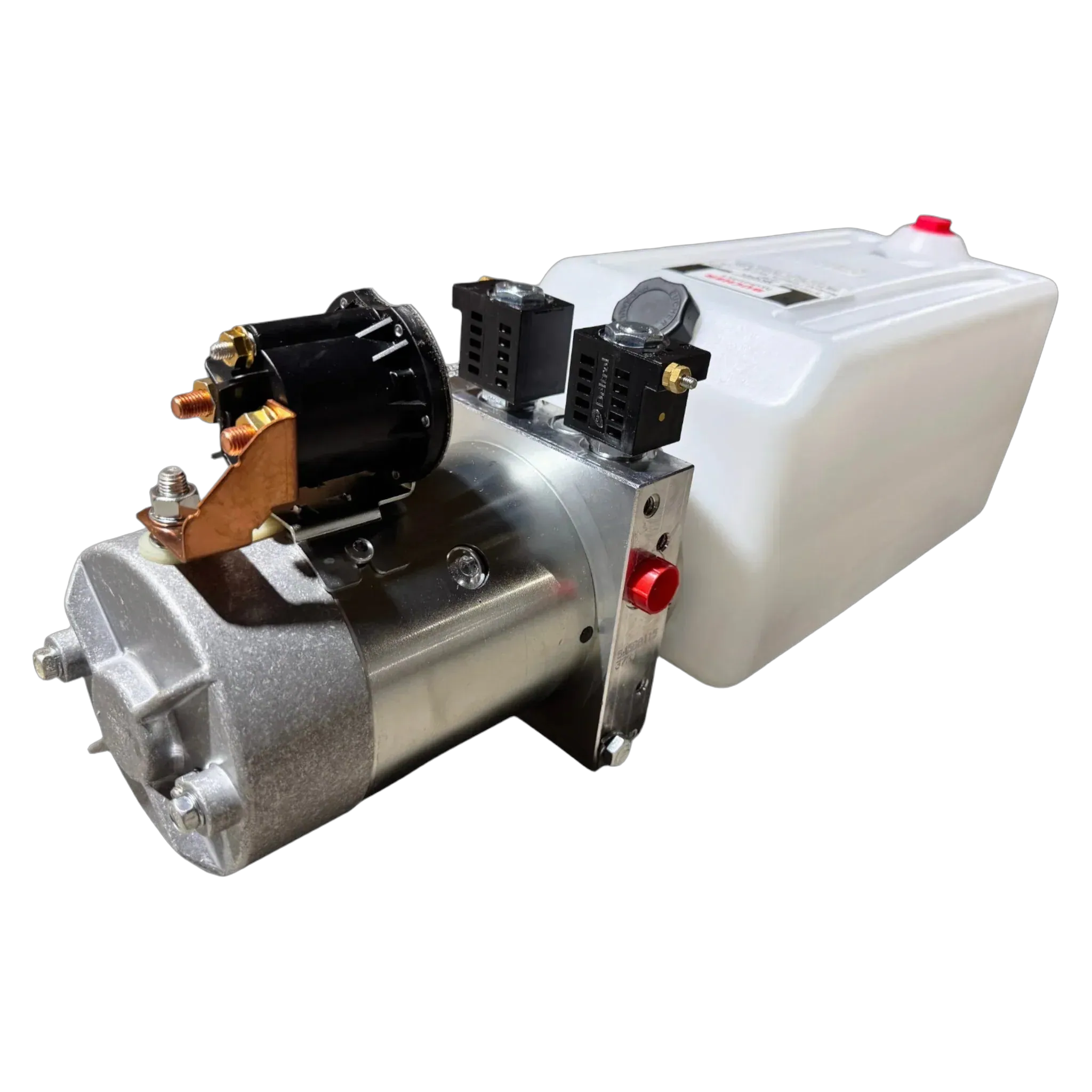

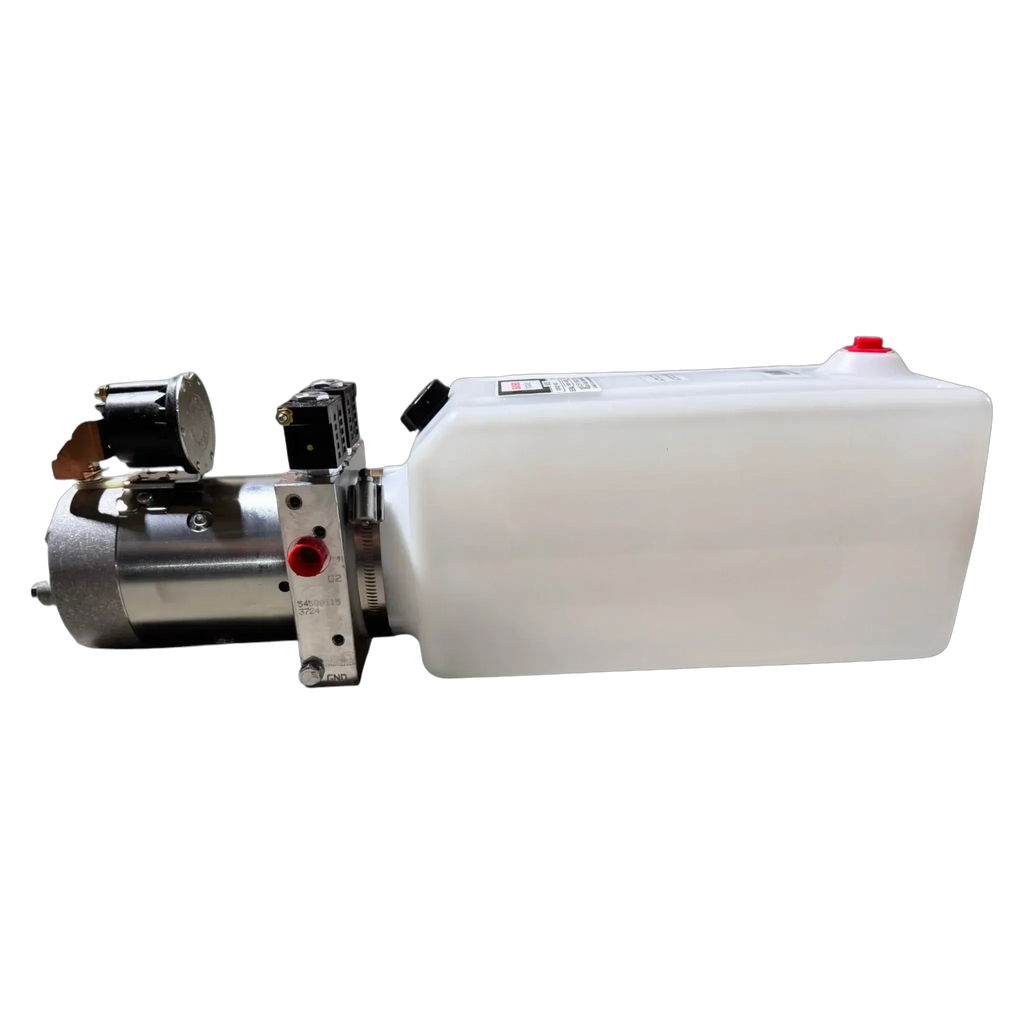

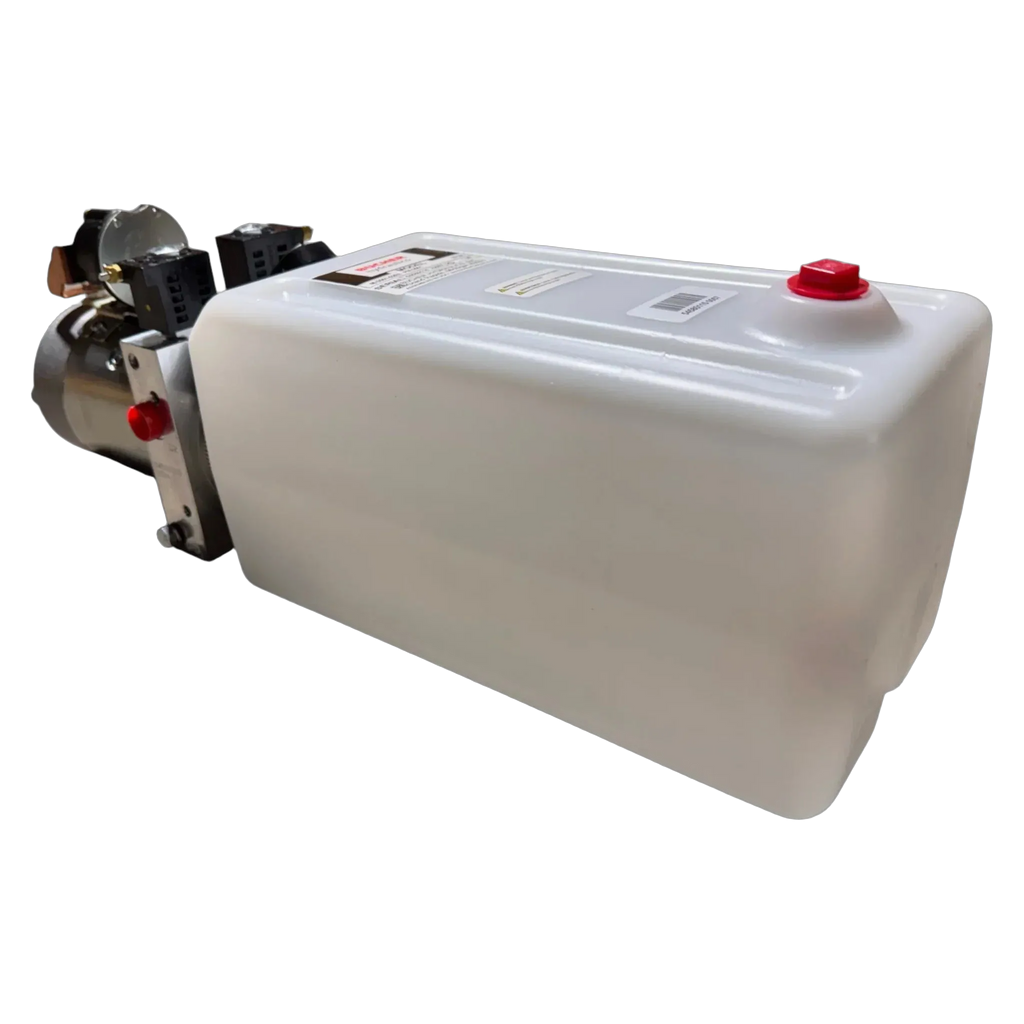

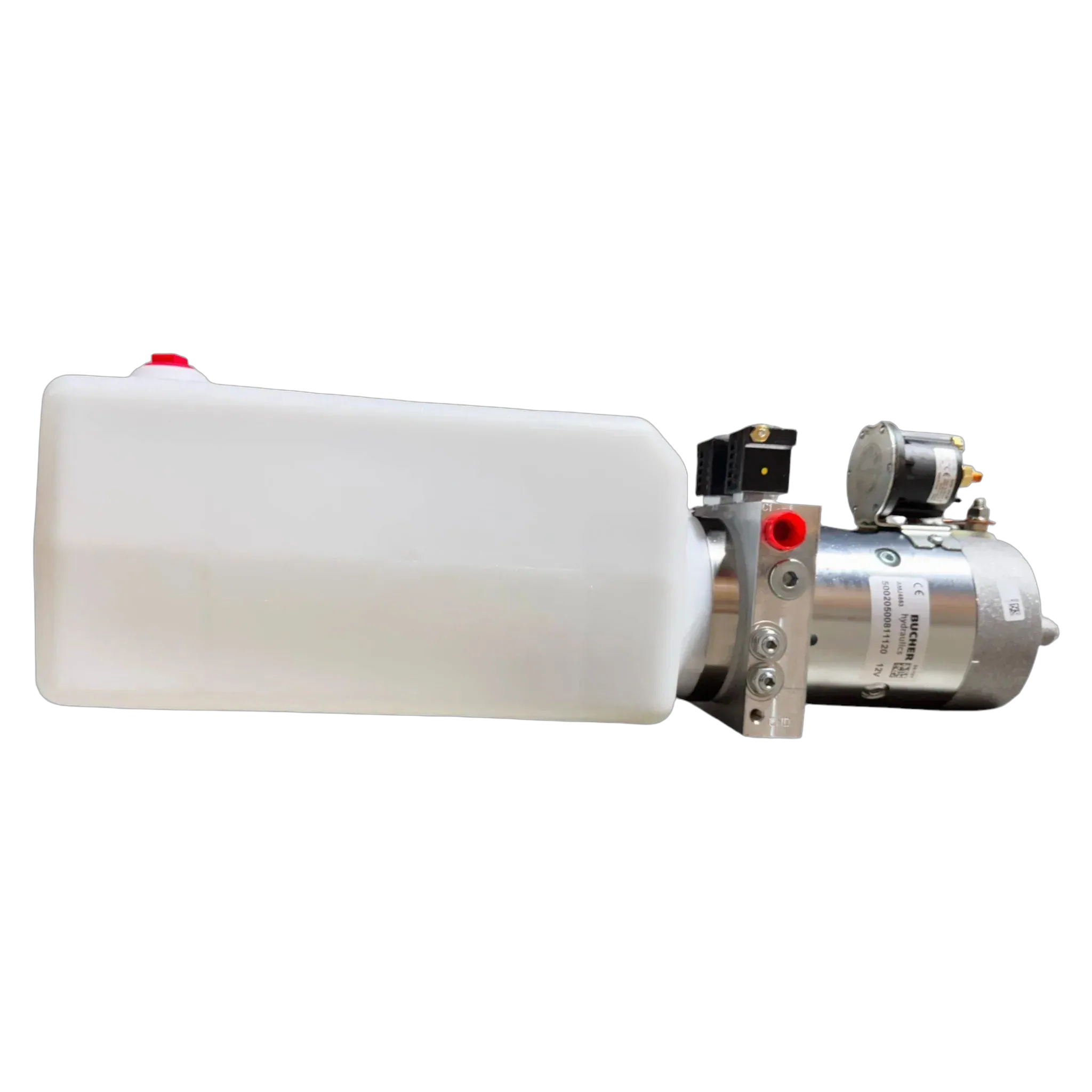

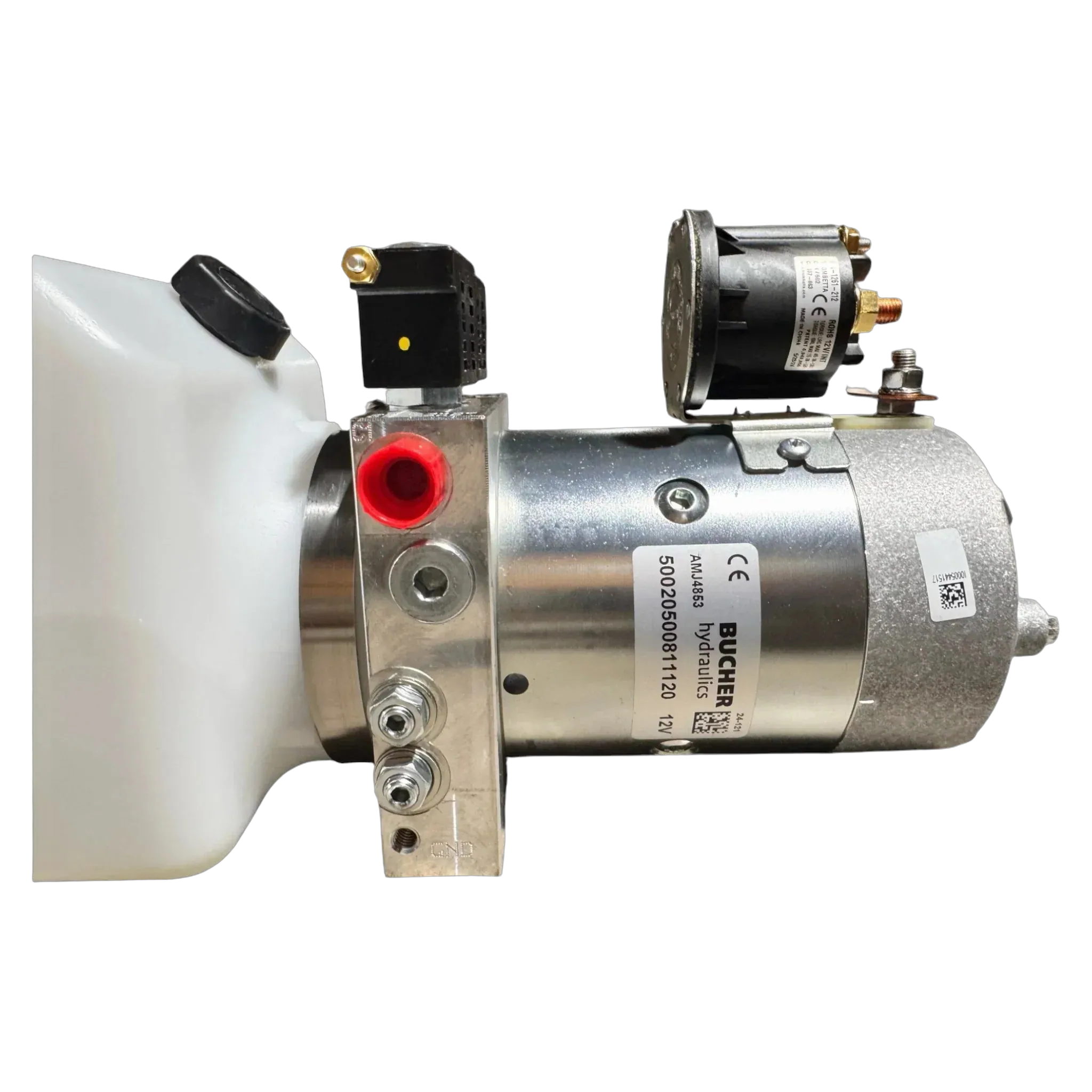

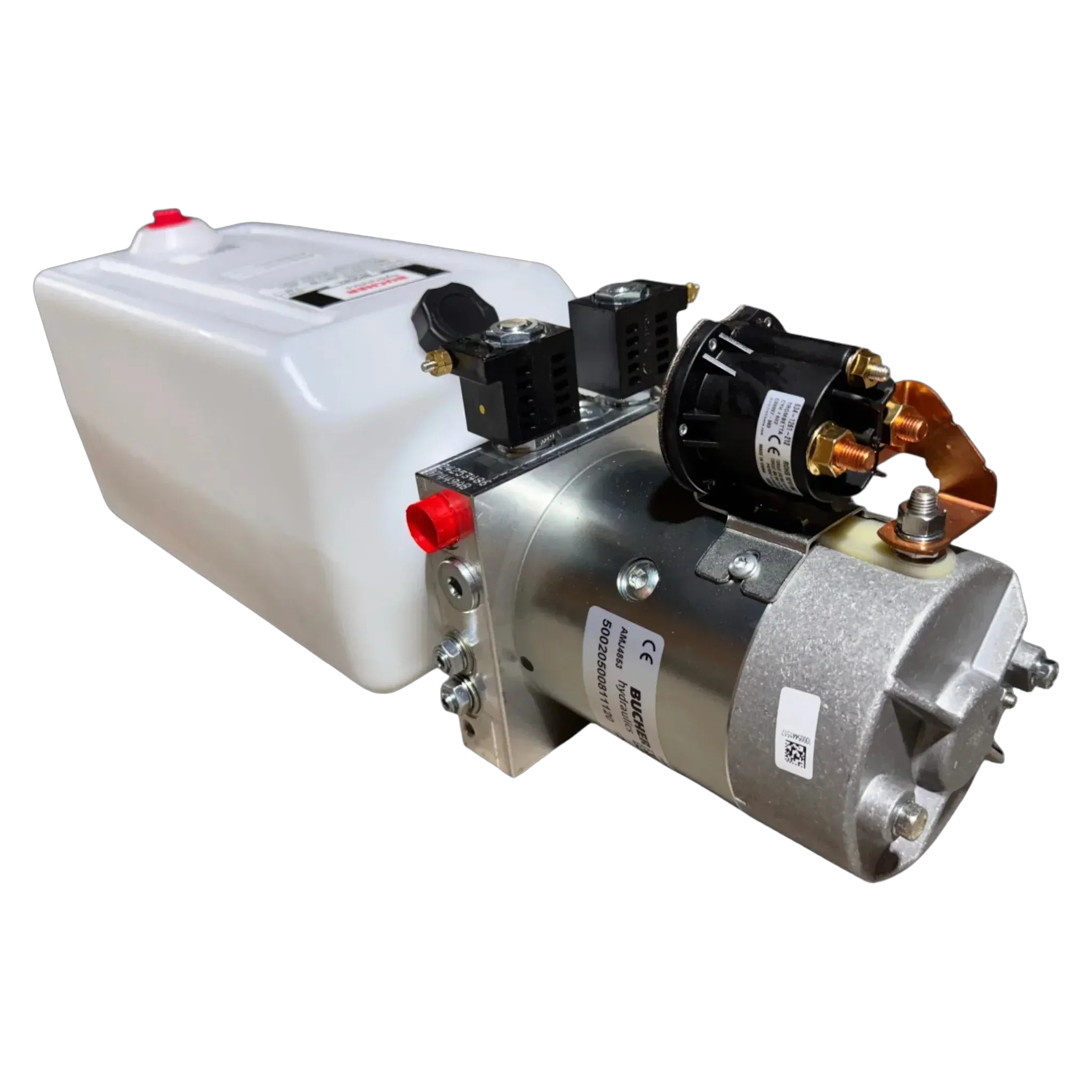

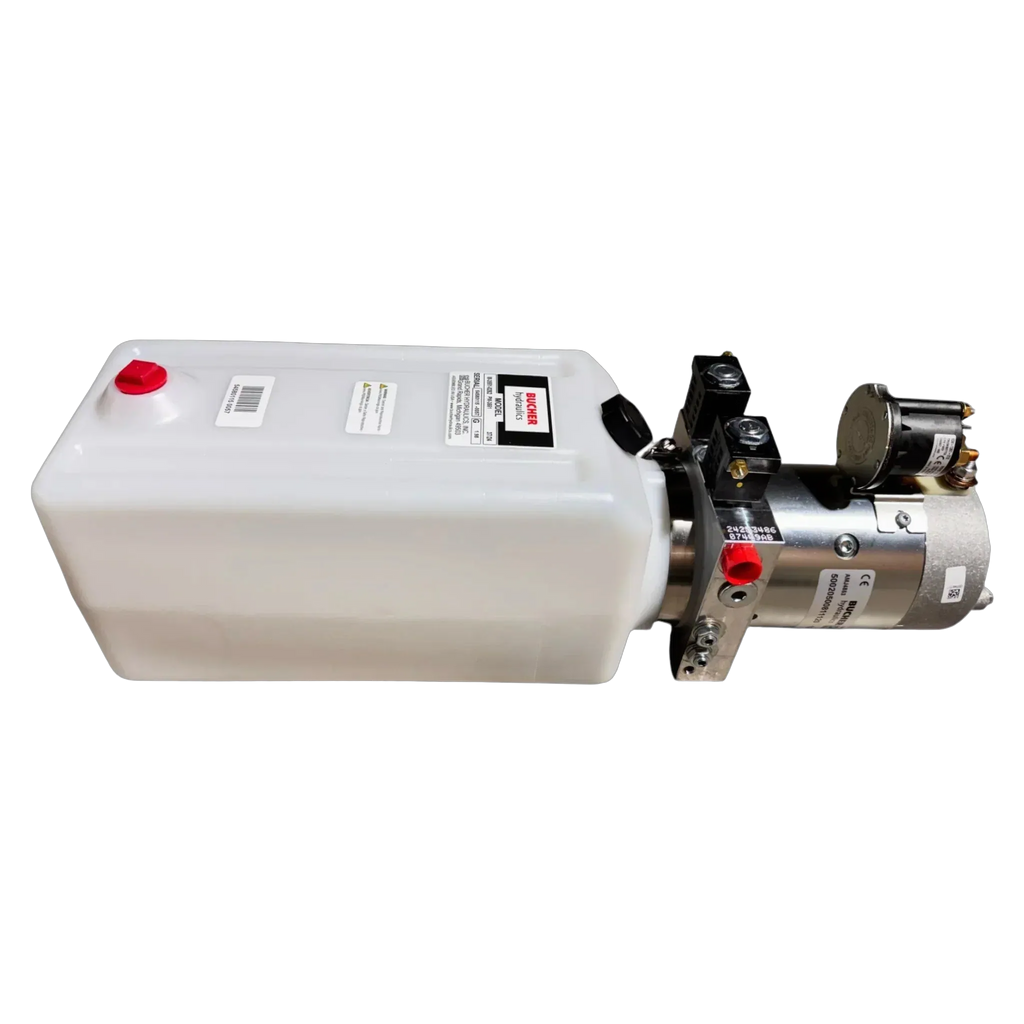

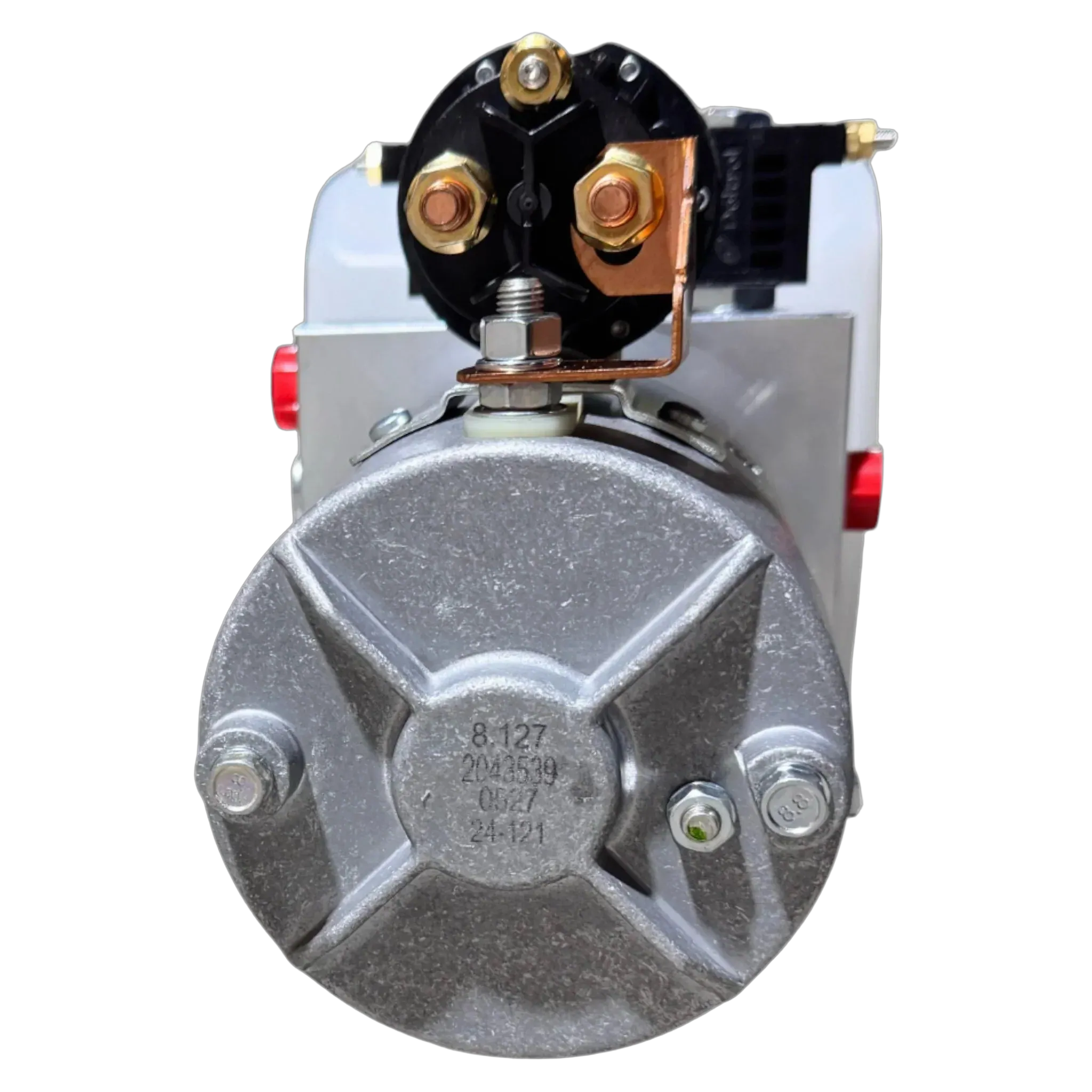

Utilize fast and efficient hydraulic performance with the Bucher Hydraulics, Inc. Bucher Pump 2 Way (Power Up / Power Down), model PM-3551, a high-efficiency hydraulic power unit designed for demanding mobile and industrial applications. Featuring a larger 2.5-gallon high-density polyethylene reservoir, this double-acting pump delivers consistent power for both extension and retraction cycles, making it ideal for applications requiring extended operation and greater fluid capacity.
Key Features
- Double-Acting Hydraulic Pump: Provides power up and power down functionality for precise control of double-acting cylinders.

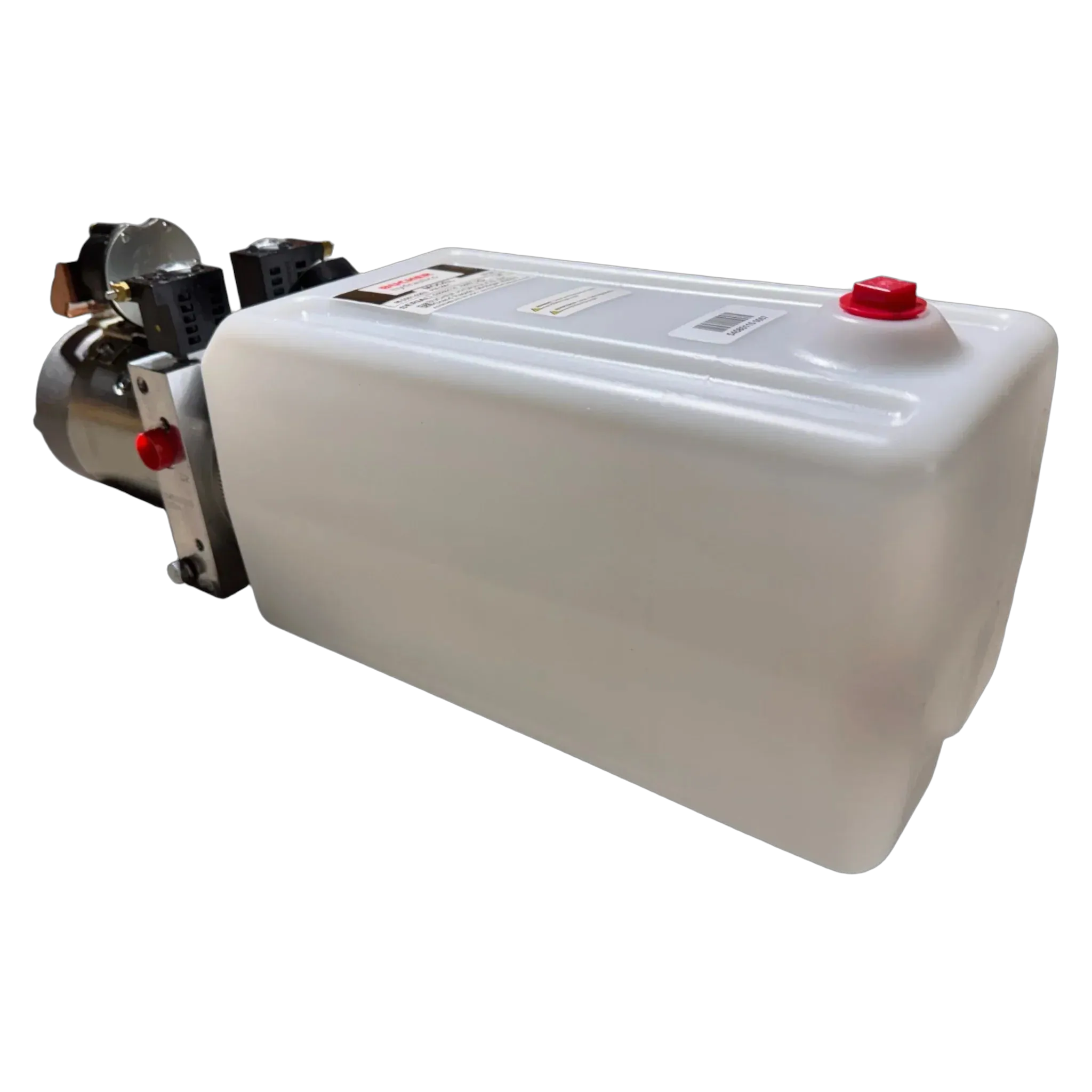

- 2.5-Gallon Poly Reservoir: Constructed from durable, corrosion-resistant high-density polyethylene, offering a 2-gallon usable capacity for extended hydraulic fluid storage.
- 12V DC Electric Motor: Ensures reliable operation in mobile environments, compatible with vehicle-based systems.
- High Operational Pressure: Achieves up to 3250 PSI, delivering exceptional force for heavy-duty hydraulic tasks.
- Optimized Flow Rate: Provides a maximum oil flow of 1.5 GPM for efficient fluid delivery and system performance.
- Standard Hose Connections: Features #6 SAE ports for secure and industry-standard fluid connections.

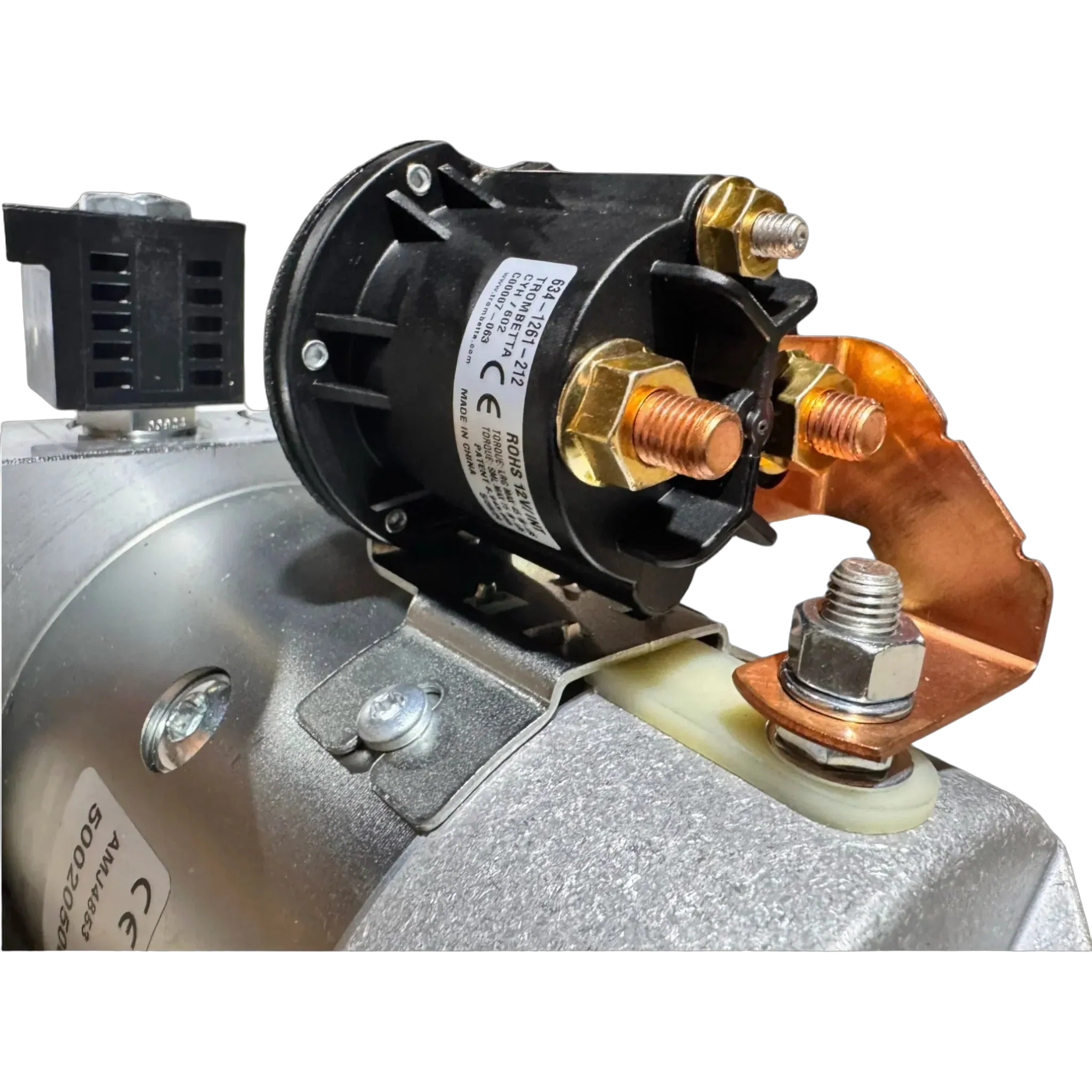

- Durable Design: Includes a cylindrical pump with copper terminals, red accents, and robust components for long-lasting performance.
- Wide Operating Temperature Range: Operates reliably from -20°F to 130°F (-30°C to 55°C), suitable for diverse environments.
- Recommended Fluid: Utilizes ATF (Automatic Transmission Fluid) for optimal lubrication and system longevity.
- Bucher Quality: Manufactured by Bucher Hydraulics, Inc., ISO9001 certified, with 100% unit testing and less than 1% warranty returns.
Applications
This hydraulic power unit is engineered for versatility, making it an excellent choice for:
- Dump Trailers: Supports efficient lifting and lowering for medium to large trailers.
- Lift Gates: Ensures smooth and reliable operation for loading and unloading.
- Hay Bale Spikes: Provides precise control for agricultural hydraulic tasks.
- Mobile Hydraulics: Ideal for trucks, trailers, and other vehicle-based systems requiring extended fluid capacity.
- Industrial Equipment: Powers machinery needing compact, high-pressure hydraulic units.
Specifications
| Specification | Details |
|---|---|
| HOSE CONNECTIONS | #6 SAE |
| MAX OIL FLOW (GPM) | 1.5 |
| OPERATING TEMPERATURE RANGE | -20ºF to 130ºF (-30ºC to 55ºC) |
| OPERATING VOLTAGE | 12 Volts DC |
| OPERATIONAL PRESSURE (PSI) | 3250 |
| RECOMMENDED FLUID | ATF (Automatic Transmission Fluid) |
| RESERVOIR CAPACITY | 2 Gallons |
| RESERVOIR MATERIAL | High Density Polyethylene |
