The PIERCE 20,000 lb Recovery Winch is a heavy-duty 12V winch featuring a coiled steel cable and lever, with the brand name displayed on the motor housing.

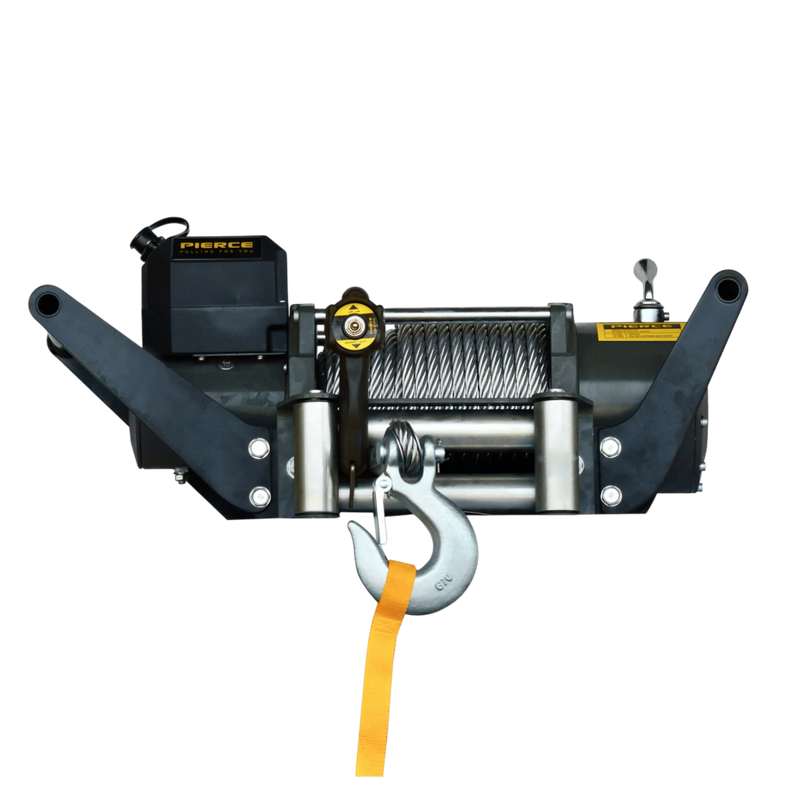

The PIERCE 20,000 lb Recovery Winch features a steel cable, large hook, and two mounting arms—perfect for vehicle recovery jobs. Shown here against a white background.

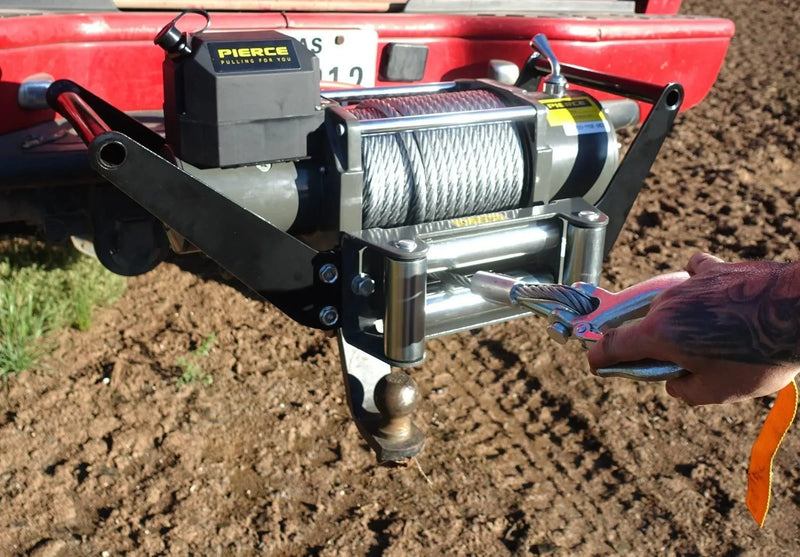

A hand attaches a PIERCE 20,000 lb Recovery Winch cable to the rear of a red truck parked on dirt.

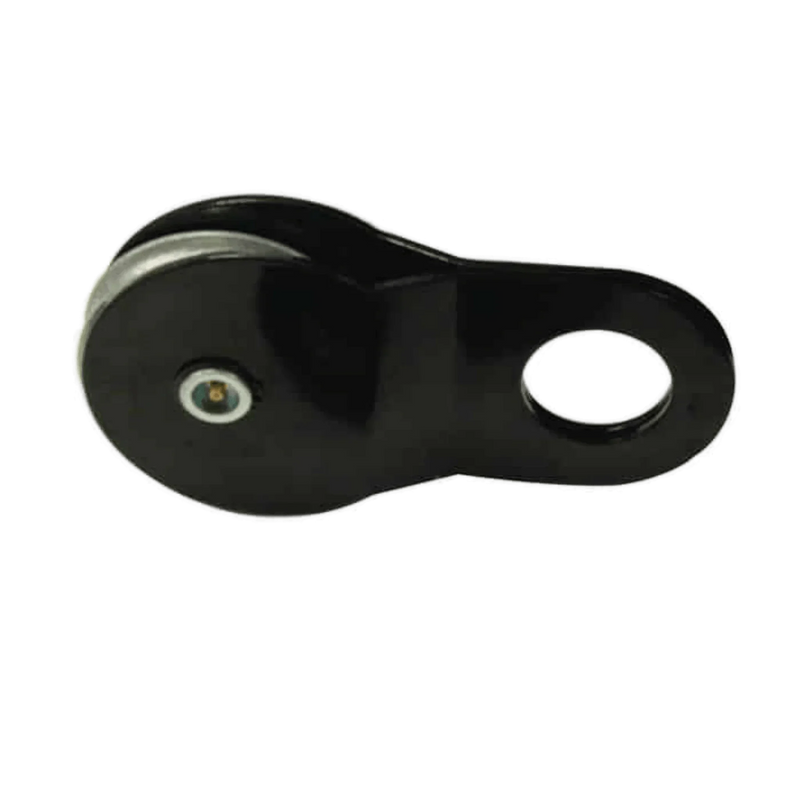

The PIERCE 20,000 lb Recovery Winch black metal snatch block features a circular handle hole, perfect for vehicle recovery tasks; shown isolated on a white background.

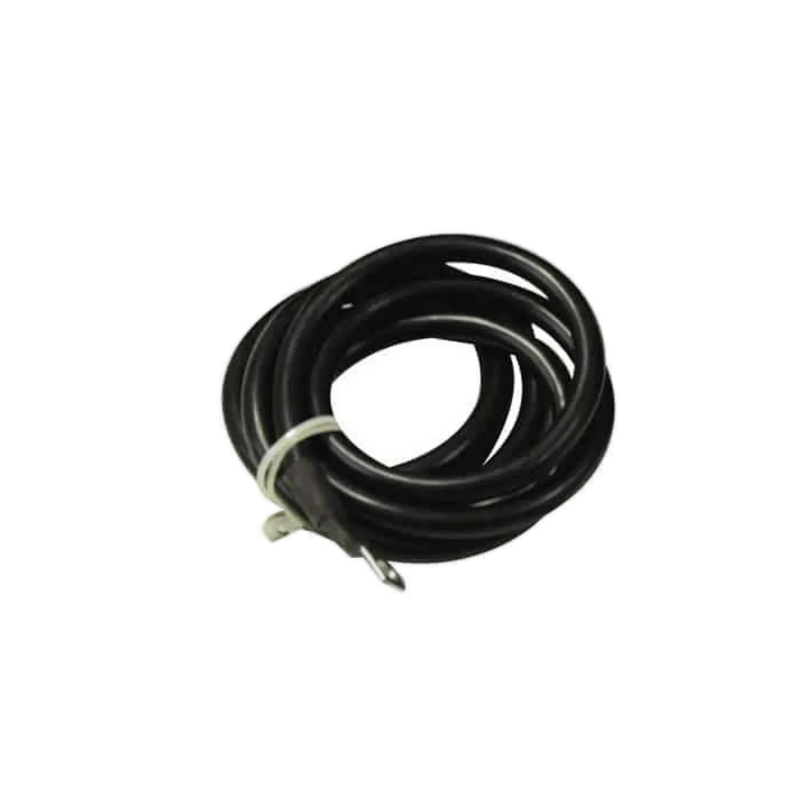

A coiled black cable with a metal connector, secured by a white twist tie, is perfect for use with the PIERCE 20,000 lb Recovery Winch.

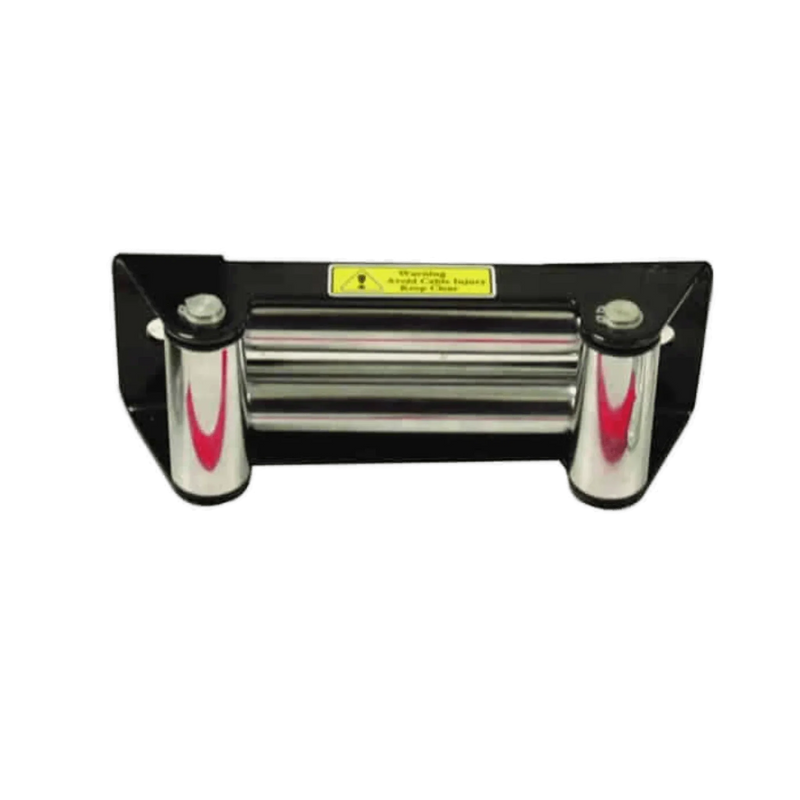

The PIERCE 20,000 lb Recovery Winch roller fairlead, in black and silver with a yellow warning label, is shown isolated on a white background.

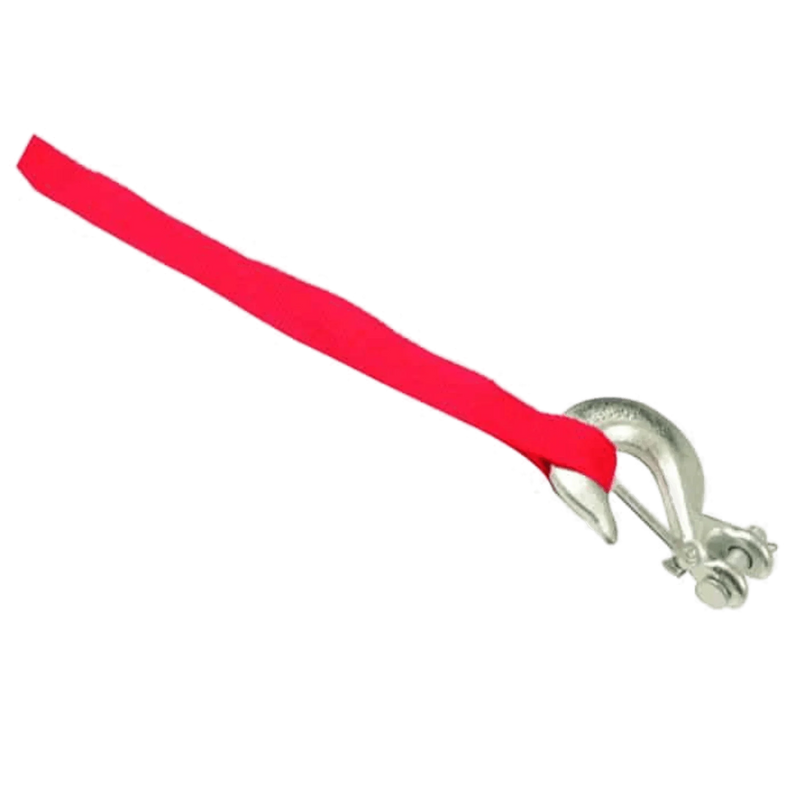

A PIERCE 20,000 lb Recovery Winch metal shackle with a bright red fabric tag attached, typically used for vehicle recovery, isolated on a white background.

20,000 lb Electric Recovery Winch | 12V Planetary

PS20000

(6)
$1,590.00

In Stock

The PS20000 is the maximum 12V planetary recovery winch in the Pierce line — 20,000 lb pulling capacity from a 6.8 HP motor (the only motor in the family above 5.5 HP), peak 520-amp draw, and ½ in × 72 ft of heavier wire rope. Built for heavy vehicle recovery, oversized equipment trailers, and any 12V job where 12K runs short.

What electrical system do I need to run the PS20000?

The 520-amp peak draw is more than a stock automotive electrical system can sustain under load. At minimum: a 100-amp+ alternator, dual deep-cycle batteries (or a single high-CCA AGM), 2-gauge wire on the run from battery to winch, and a properly fused power feed. Have a certified installer verify the electrical capacity before mounting the winch — undersizing the system causes voltage sag, slow line speed, and contactor damage on every pull.

  • 20,000 lb rated pulling capacity — maximum 12V in the Pierce line
  • 12V DC, 6.8 HP motor — 520 amp peak draw
  • 3-stage planetary gear, 420:1 ratio
  • 20.4 fpm max line speed
  • Automatic built-in drum brake — holds load on release, no rollback
  • Sliding ring-gear clutch — manual engagement at the winch for free-spool
  • Cast metal construction
  • Includes ½ in × 72 ft wire rope
  • Recommended battery: 650 CCA | Wire: 2 gauge
  • Pierce SKU PS20000 — typically in stock, fast turnaround

For lower amp draw at smaller capacity, see the 12,000 lb 12V Planetary Recovery Winch. For the receiver-hitch mount that fits this winch, see the Receiver Hitch Winch Mount. For hydraulic-driven recovery at this capacity tier (no electrical-system upgrades needed), see the 20,000 lb Hydraulic Recovery Winch (Long Drum, Manual).

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE Limited Lifetime Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
What's Included
Specifications
Max Capacity (lbs.)
20000
Operating Voltage
12 Volts DC
Power Source
Electric, DC
Max Amps
520
Series
Utility
Max Line Speed
20.4 fpm
Gear Type
3-Stage Planetary Gear
Gear Ratio
420:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Clutch Type
Sliding Ring Gear
Brake Type
Automatic Built-in Drum Brake
Recommended Battery
650 CCA
Recommended Wire
2 gauge
Motor (hp)
6.80
Included Wire Rope
½" x 72'
Warranty
Replacement Parts (3)
Resources
FAQs (9)
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Warranty
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
