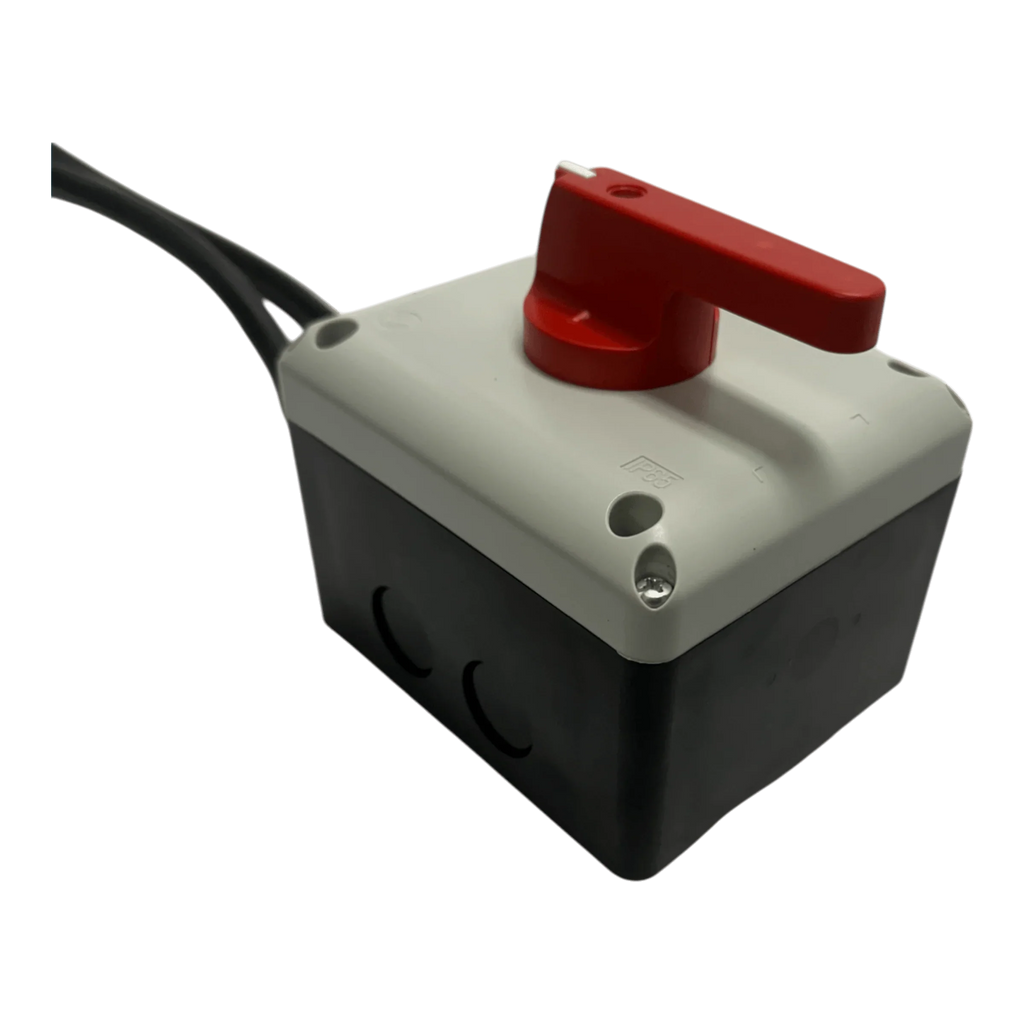

The PIERCE Wired Control for 110V 654 Series Single Phase Winch features a red rotary switch on a black and white IP65 thermoplastic enclosure with two cables, perfect for controlling single-phase motors.

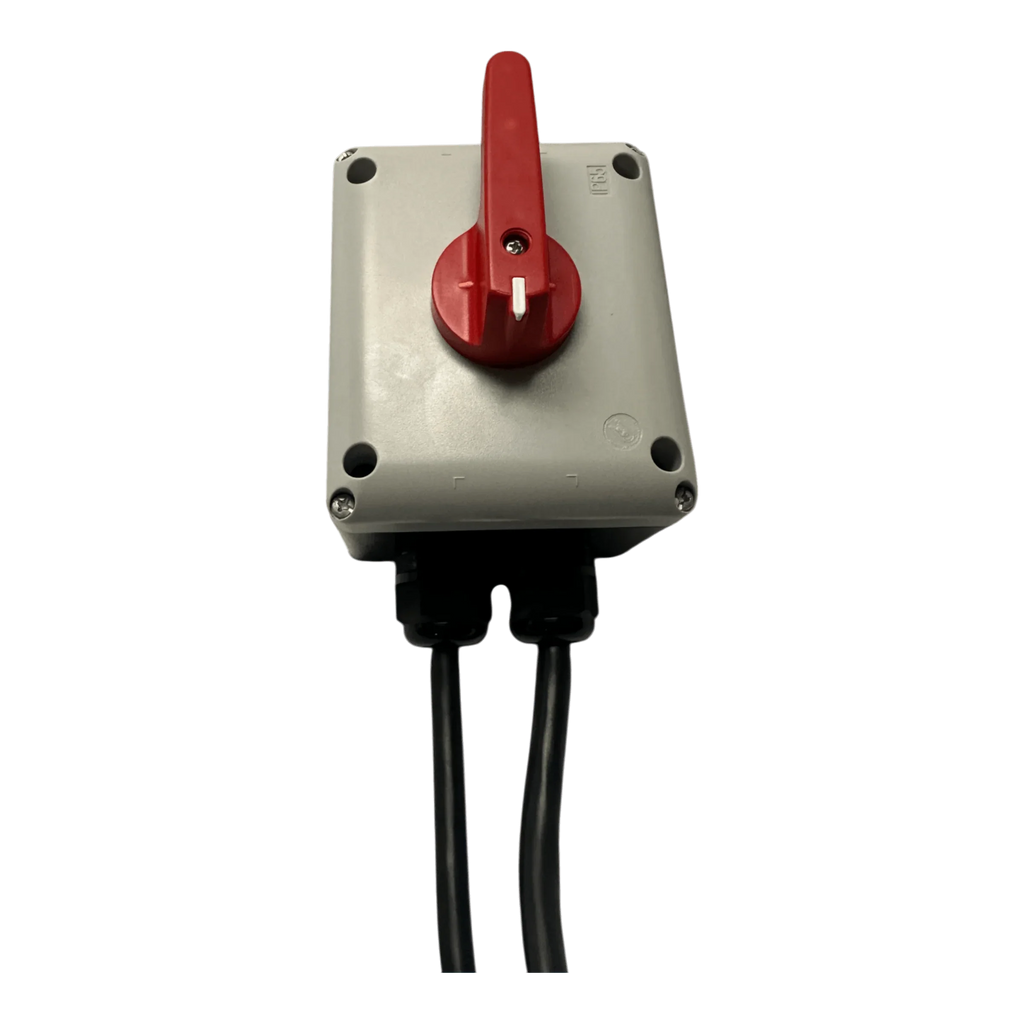

The PIERCE Wired Control for 110V 654 Series Single Phase Winch features a gray IP65 thermoplastic enclosure with a red rotary handle and two black cables attached at the bottom.

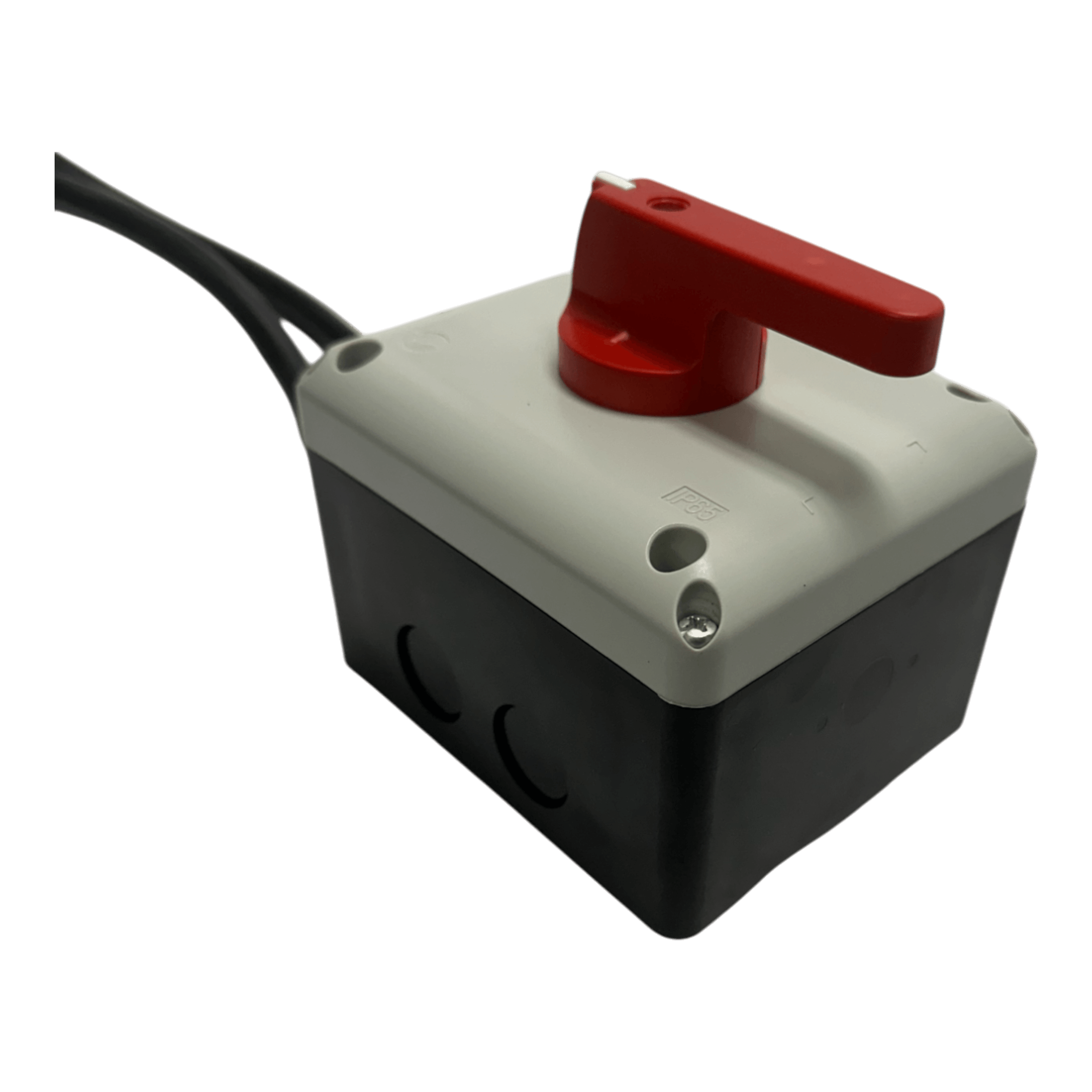

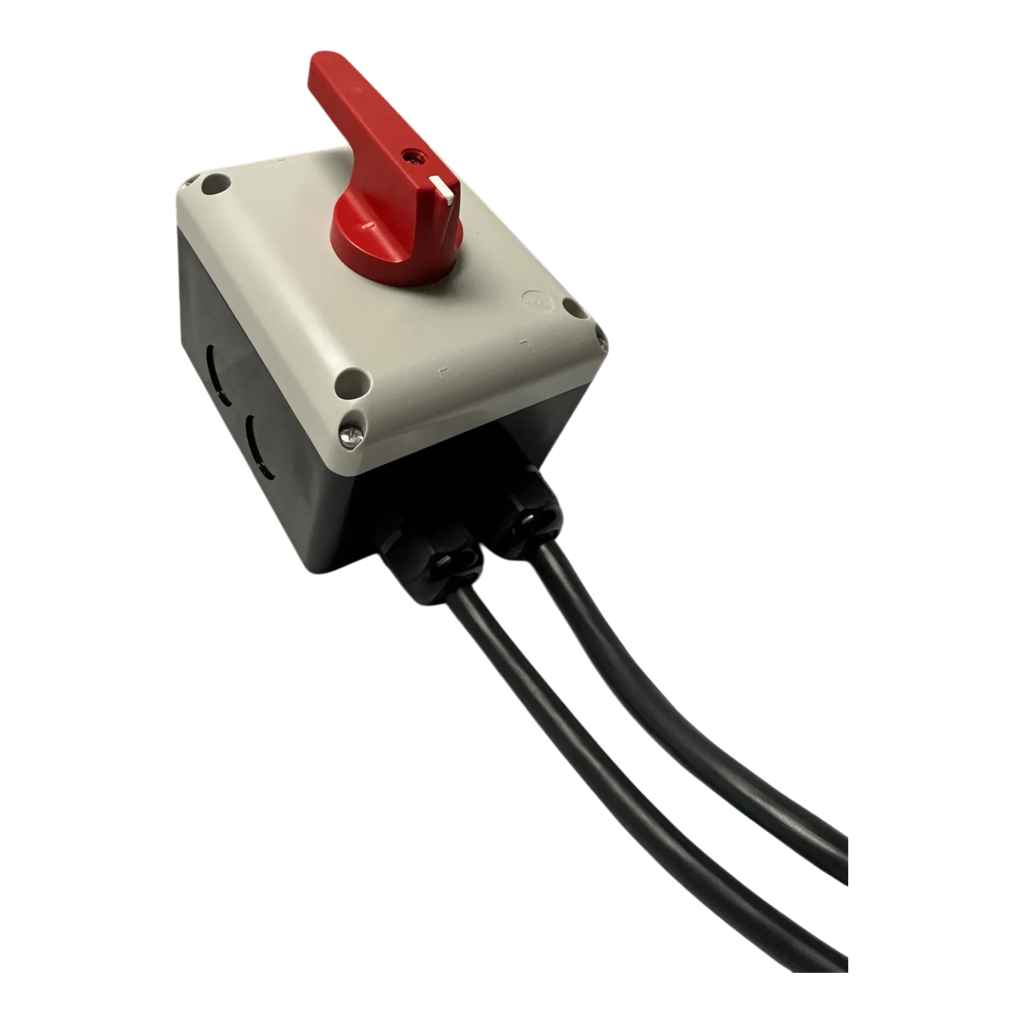

The PIERCE Wired Control for 110V 654 Series Single Phase Winch is an IP65 gray and black thermoplastic switch box with a red rotary handle and dual black cables, ideal for winch or single-phase motor control.

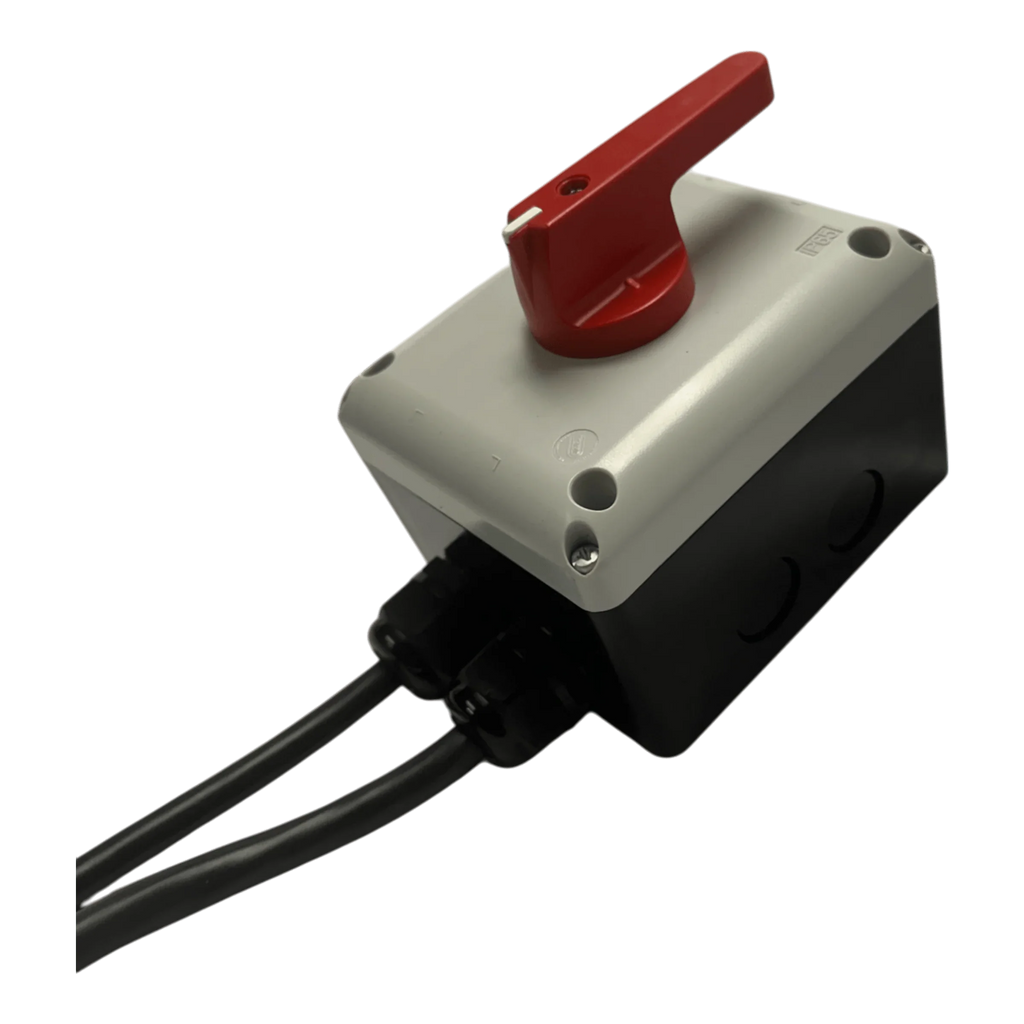

The PIERCE Wired Control for 110V 654 Series Single Phase Winch features a gray and black switch box with red rotary handle, two black cables, and an IP65 thermoplastic enclosure—ideal for single-phase motor control or winch operation.

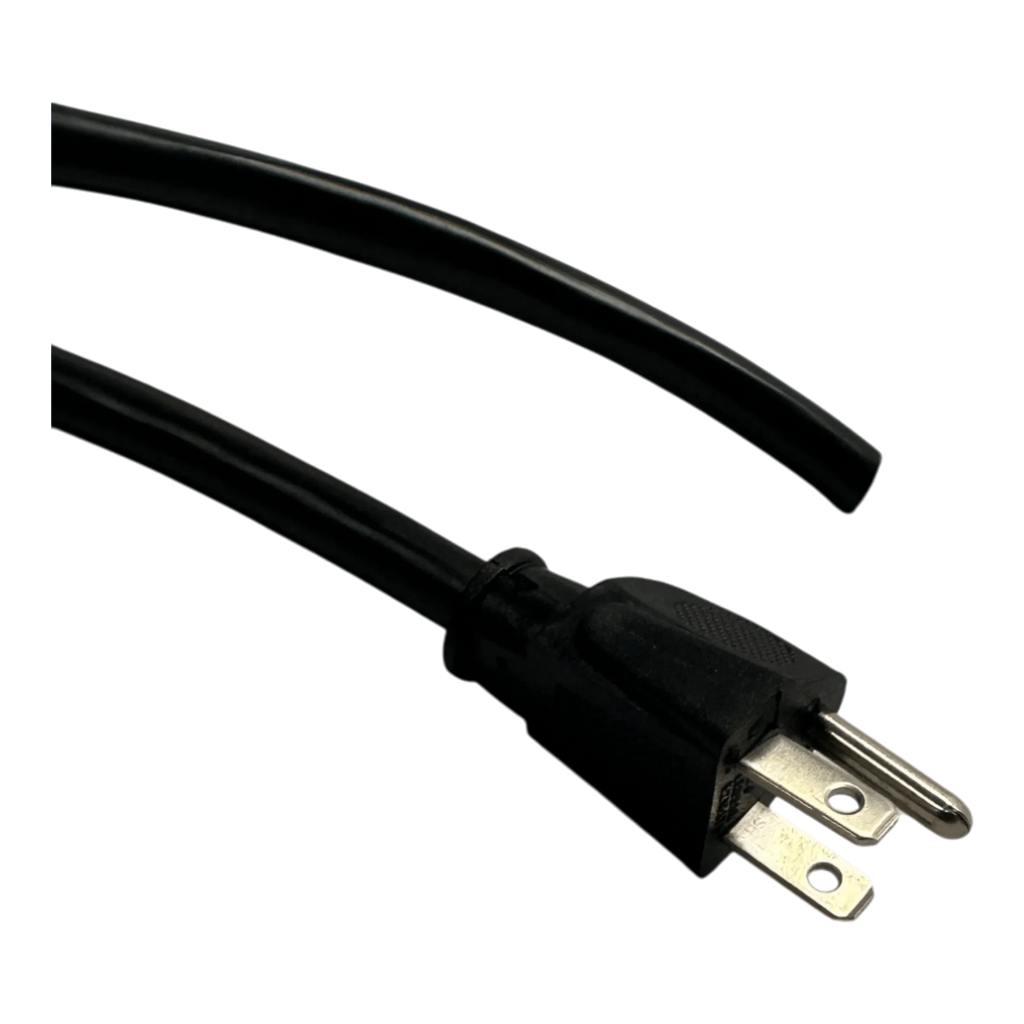

The PIERCE Wired Control for 110V 654 Series Single Phase Winch, featuring a black power cord and three-prong plug, is displayed against a plain white background.

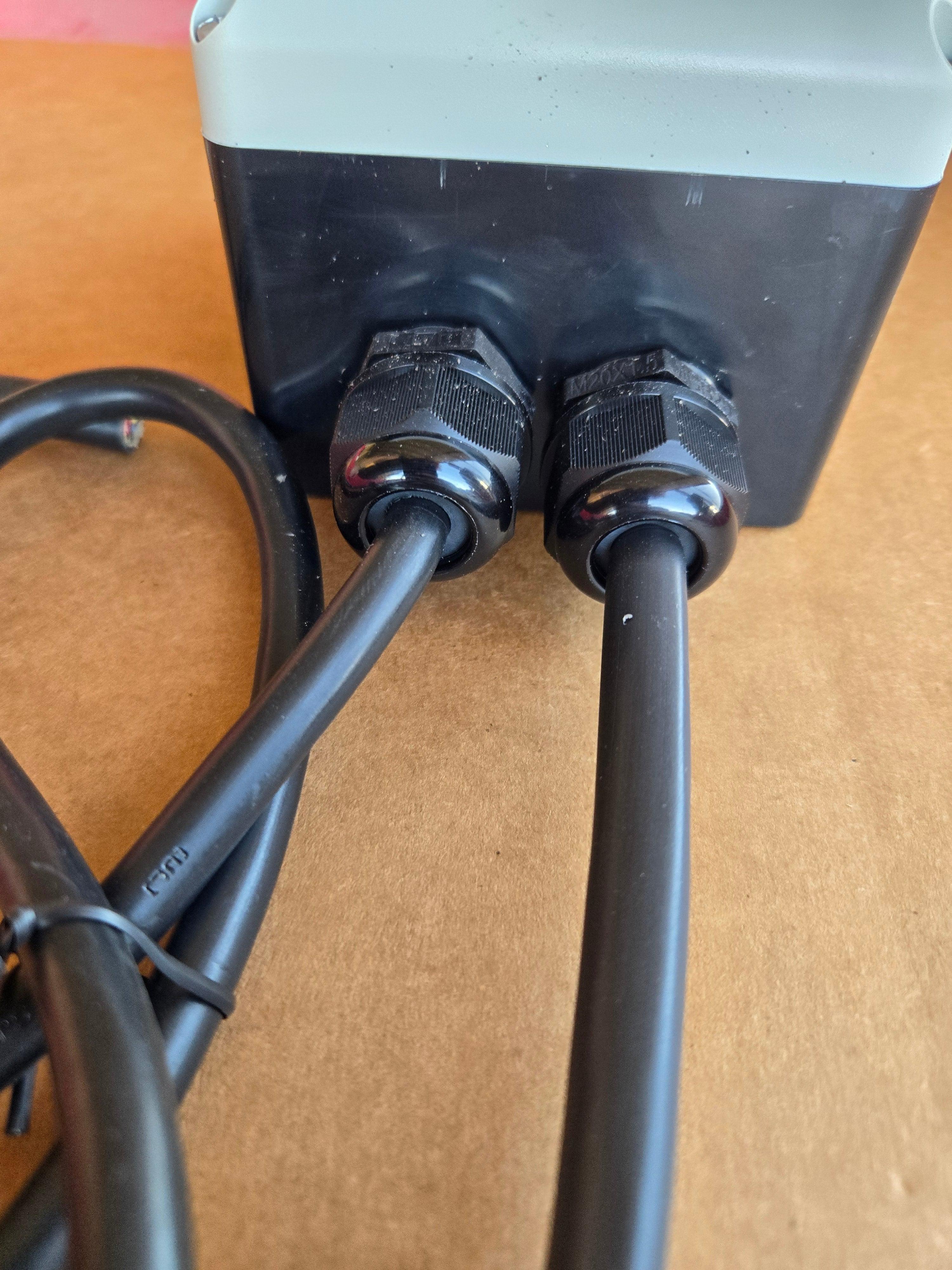

Two black cables connect to a black and gray IP65 thermoplastic PIERCE 654 Series Wired Control for 110V single-phase winch, resting on a brown surface.

A PIERCE Wired Control for 110V 654 Series Single Phase Winch—a red rotary switch on a white IP65 enclosure with black cable, ideal for single-phase motor control.

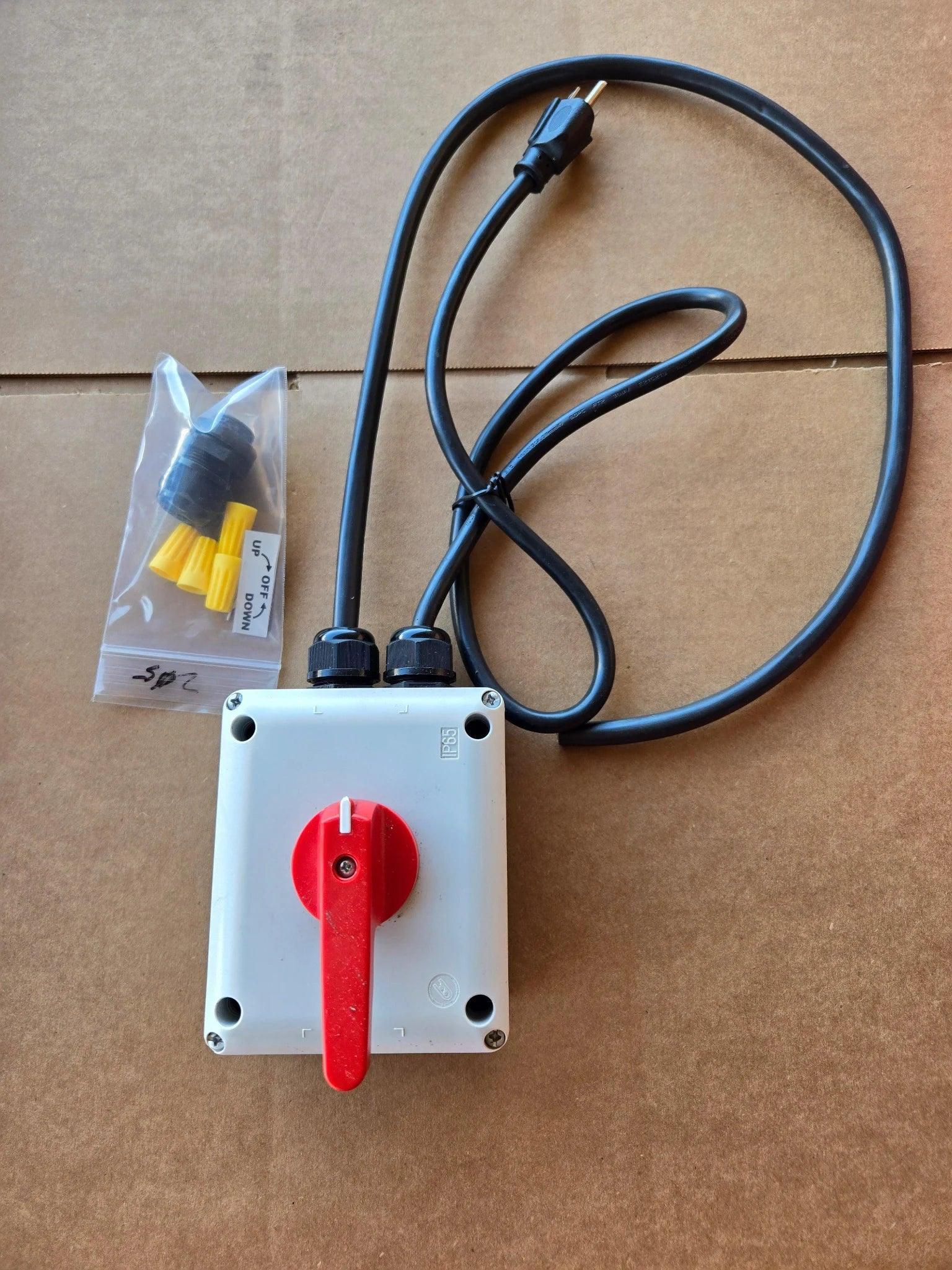

The PIERCE Wired Control for 110V 654 Series Single Phase Winch features a red handle, black power cord, yellow wire connectors, and an IP65 thermoplastic enclosure for reliable motor control.

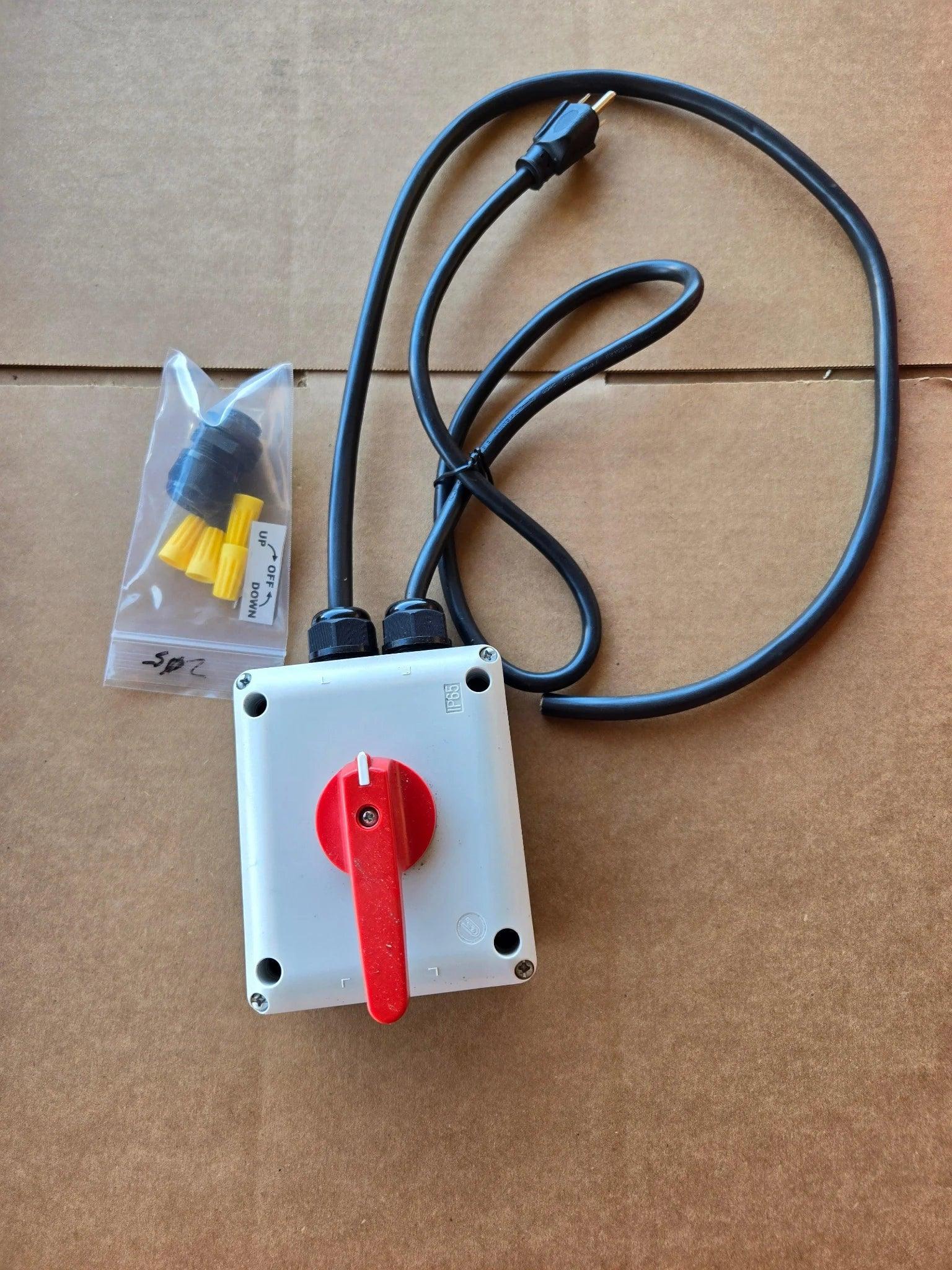

The PIERCE Wired Control for 110V 654 Series Single Phase Winch features a red handle, black cable, and sealed wire connectors in an IP65 thermoplastic enclosure for reliable motor control.

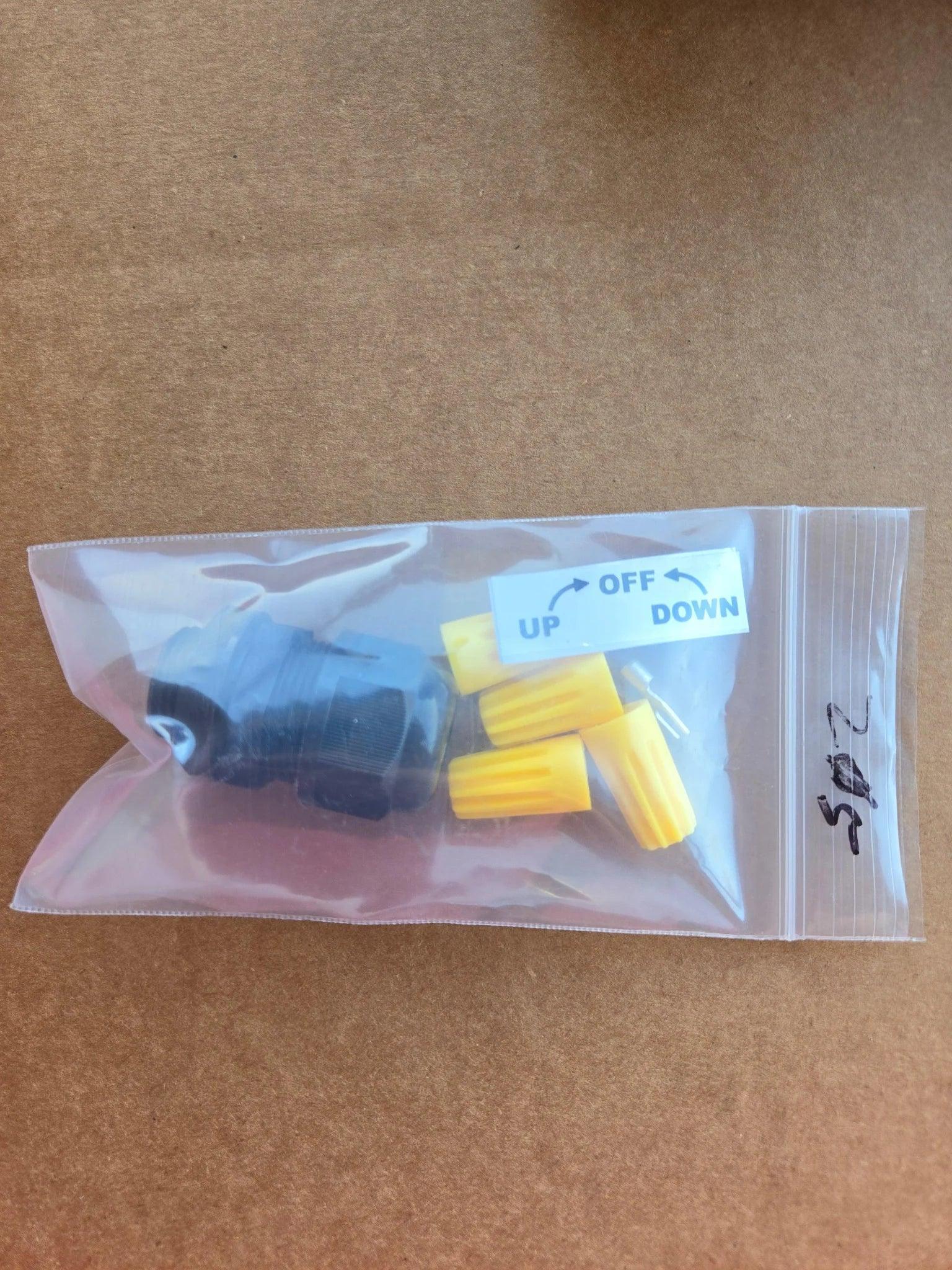

A clear bag holds black and yellow plastic parts for the PIERCE Wired Control, 110V 654 Series Single Phase Winch, plus a UP OFF DOWN label for easy motor operation.

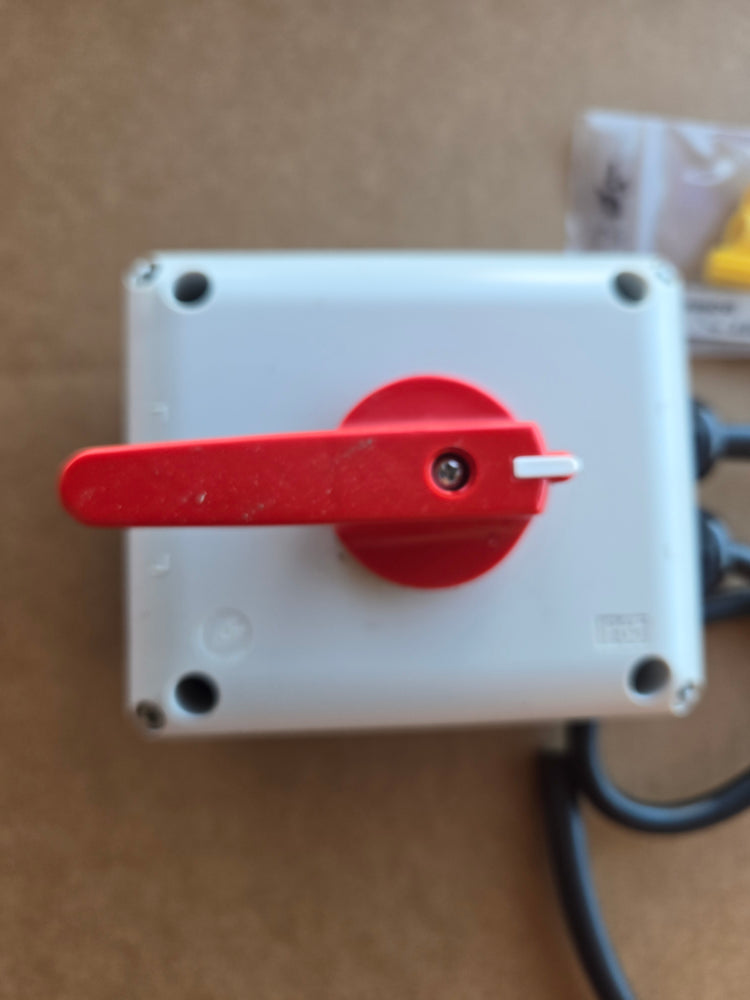

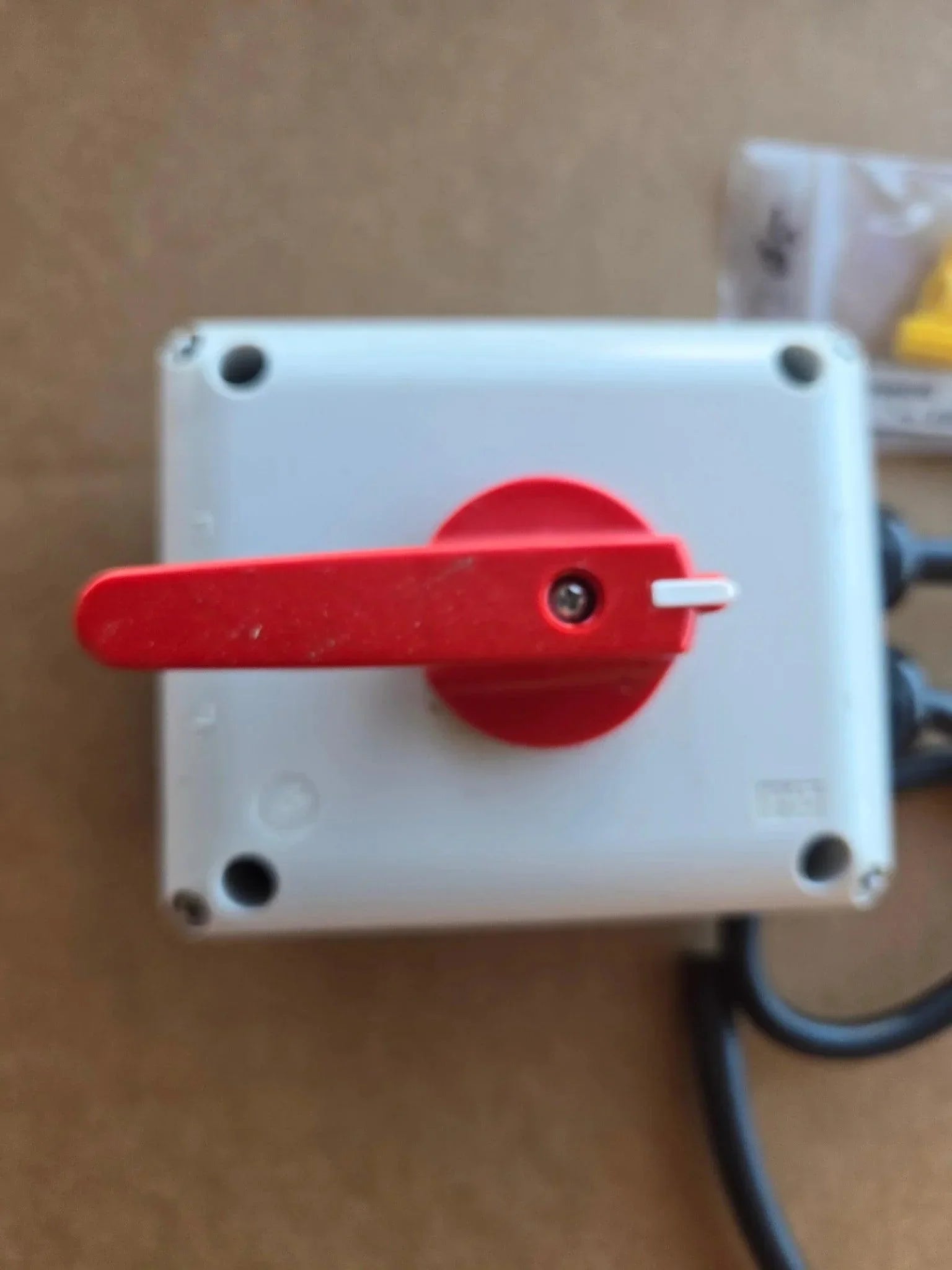

A PIERCE Wired Control for 110V 654 Series Single Phase Winch in a white IP65 thermoplastic enclosure with a red rotary switch is shown mounted on a brown surface—ideal for reliable winch operation.

1 11

Wired Control for 110V PIERCE 654 Series Single Phase Winch

Name: Wired Control for 110V PIERCE 654 Series Single Phase Winch
Price: 233.0 USD
Rating: 5 (1 reviews)

P003NSK

$233.00

Quantity

Low stock

Compatible Products

*Check compatibility before purchasing.

PS654-11EMK - PIERCE 110V Electric Winch – 11,000 lb, 11" Drum (Planetary Drive)

PS654-8EMK - PIERCE 110V Electric Winch – 11,000 lb, 8" Drum (Planetary Drive)

PS654-11EK - PIERCE 110V Electric Winch – 7,500 lb, 11" Drum

PS654-11EKSD - PIERCE 110V Electric Winch – 7,500 lb, 11" Split Drum

PS654-8EKSD - PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum

PS654-8EK - PIERCE 110V Electric Winch – 7,500 lb, 8" Drum

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

Wired Control for 110V PIERCE 654 Series Single Phase Winch

'

Description

This switch is accompanied by a durable thermoplastic enclosure rated at IP65 and equipped with a red front handle and labeled FWD/REV and UP/DOWN buttons. It is compatible with single-phase motors and boasts self-cleaning contacts, silver alloy plating, and a UL94V0-rated housing with shock-resistant wire connections. With a capacity of up to 5 horsepower and approved by cULus, it is a perfect replacement for standard 110VAC PIERCE winches, making it suitable for a variety of industrial applications. The package also includes a 3-foot motor lead wire and a 3-foot ABS plastic type B (American standard NEMA 5-15) electrical plug.

Included

1 x [P003NS] - Control Box for 110V PIERCE 654 Series Single Phase Winch

1 x 3-foot ABS plastic type B (American standard NEMA 5-15) electrical plug

1 x 3-foot motor lead wire

Specifications

Specification	Details
CONTACTS	Double Breaking
ELECTRICAL LIFE @ 120 OPERATIONS PER HOUR	750,000 Cycles
FUNCTIONS	2
MECHANICAL LIFE @ 120 OPERATIONS PER HOUR	1,000,000 Cycles
OPERATING ANGLE (º)	45º
OPERATING TEMPERATURE RANGE	-40ºC to +85ºC
POWER SOURCE	Electric, AC
STORAGE TEMPERATURE RANGE	-40ºC to +70ºC
SWITCH TYPE	Momentary - Toggle
TERMINAL SCREW (M)	M3.5
TORQUE (LB-IN)	7.5 lb-in
WIRE RANGE (AWG)	18-10 AWG sol/str
WIRING INCLUDED	3 ft. 6 core cable with spade terminals

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
