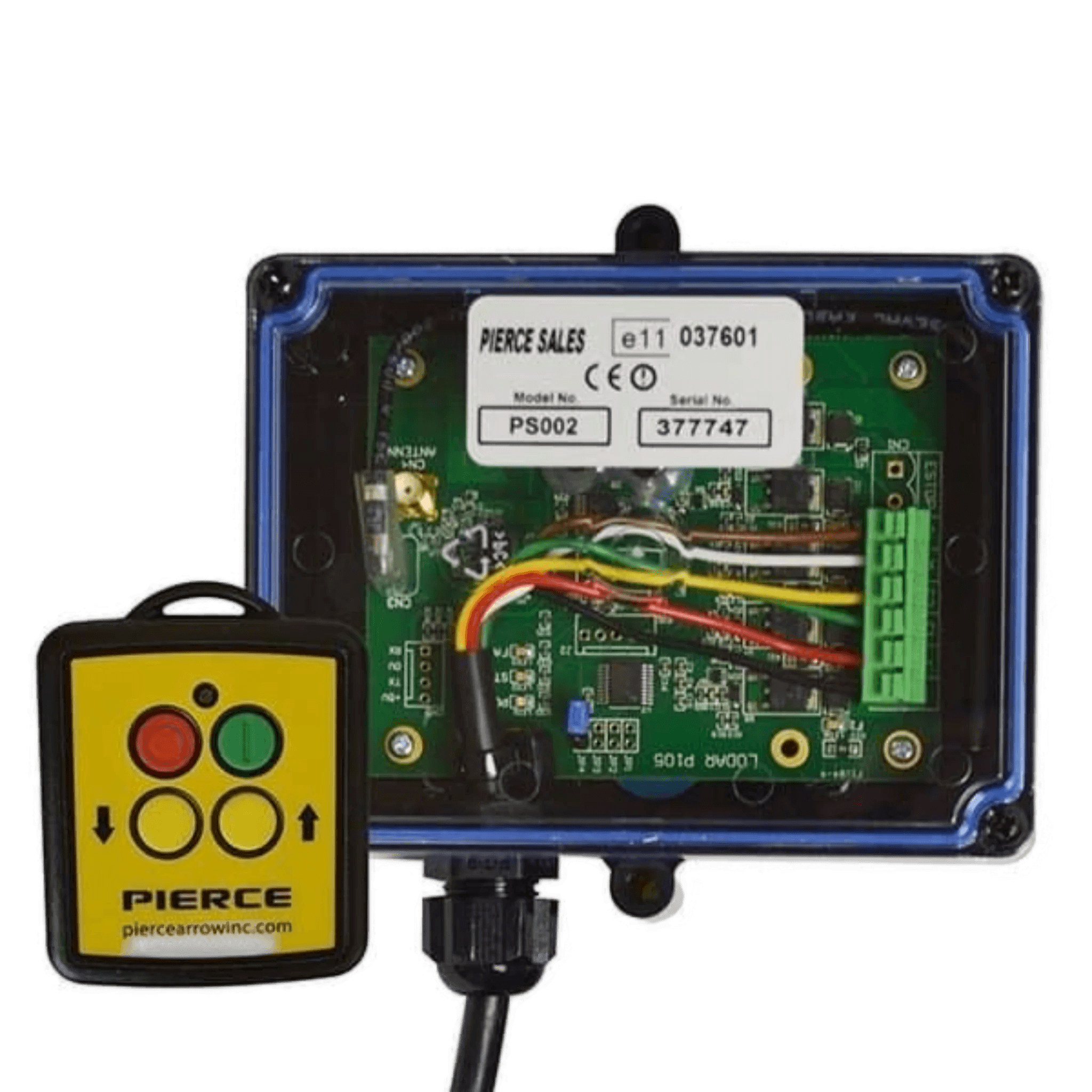

Lodar LTD 2 Function Wireless Remote Control System: yellow, operates at 433 MHz with two buttons and a clear case, features a cable and visible circuit board—perfect for 12/24V solenoid-operated equipment.

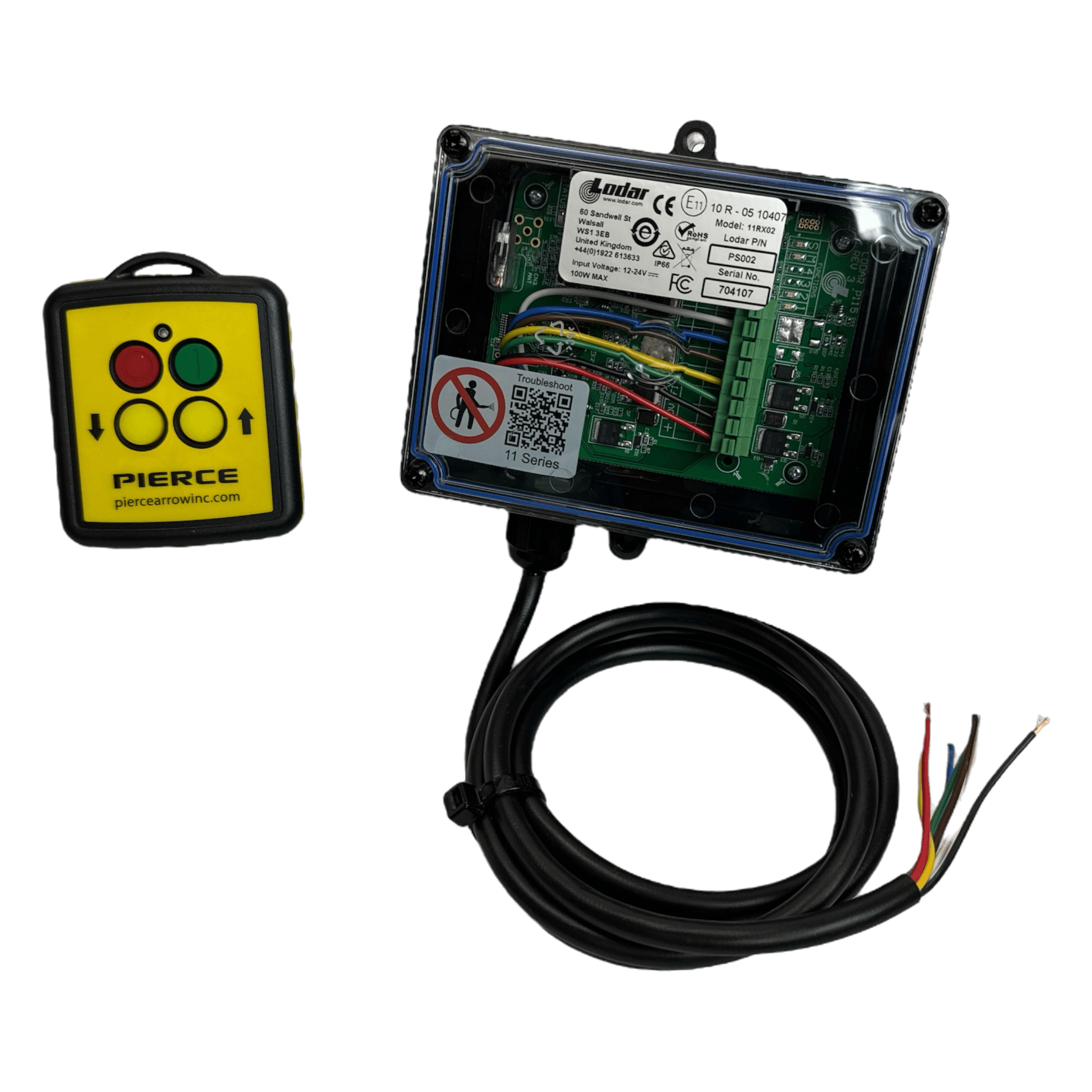

Lodar LTD 2 Function Wireless Remote Control System features an electronic control box with exposed wiring, a 12/24V solenoid interface, and a yellow remote with colored buttons, compatible with 433 MHz wireless remotes.

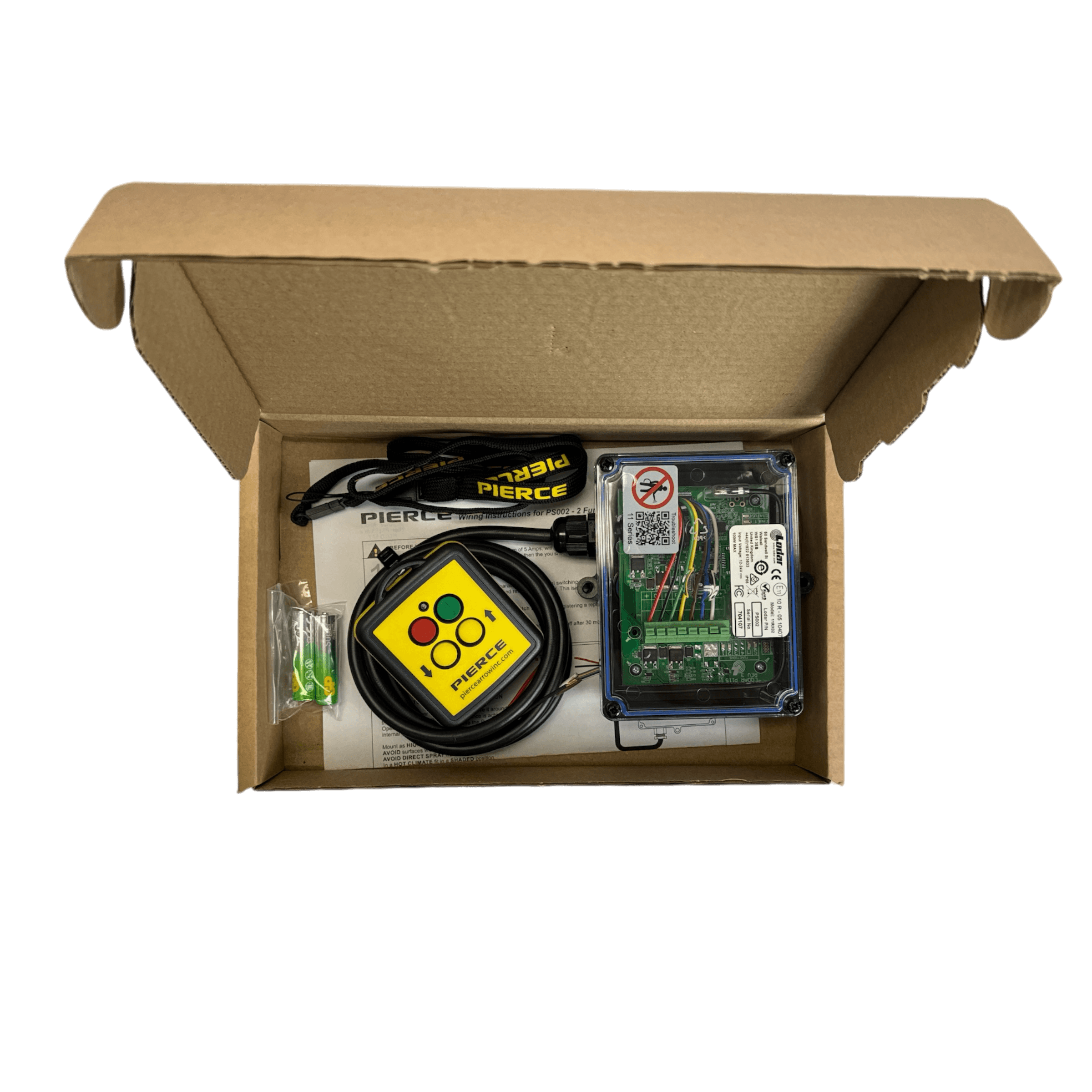

Open box with Lodar LTD 2 Function Wireless Remote Control System, electronic control unit, wiring, yellow remote, and mounting accessories for 12/24V solenoid-operated equipment.

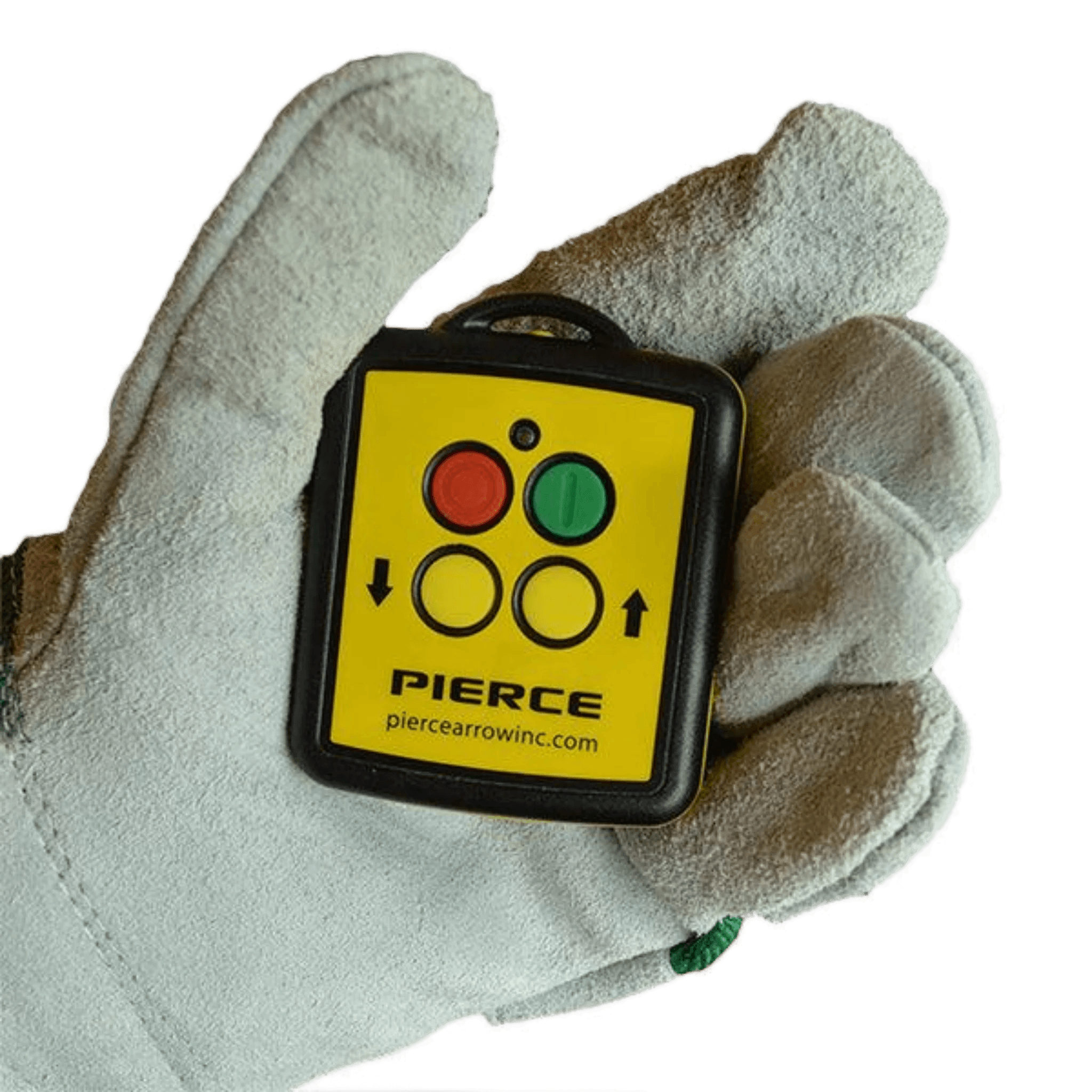

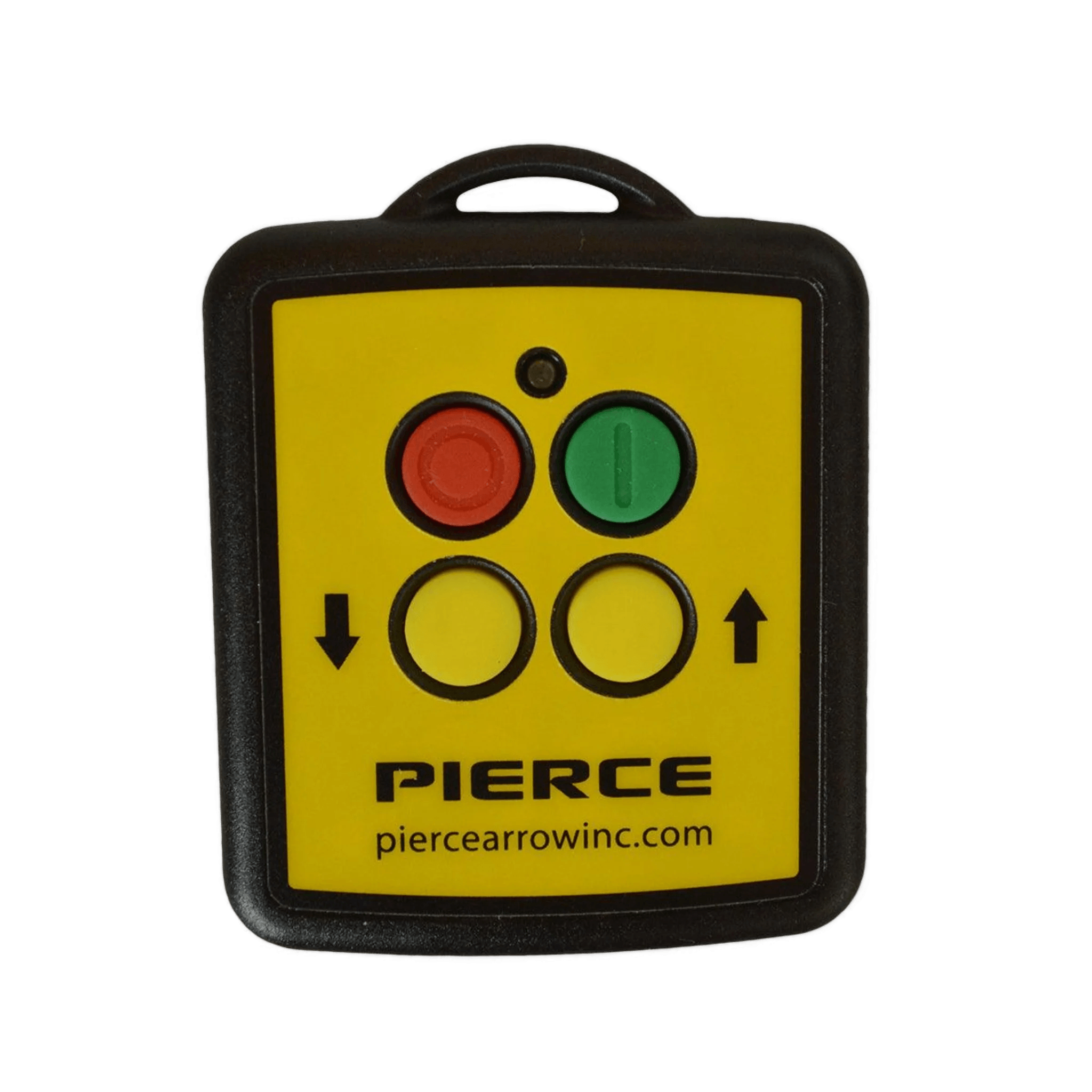

The Lodar LTD 2F Wireless Remote Transmitter is a yellow and black 2-function remote with green/red buttons, labeled Pierce with up/down arrows; it serves as a replacement wireless transmitter for PIERCE control systems.

The PIERCE 2 Function 12/24V Replacement Receiver | PS Series is shown in a clear plastic junction box with exposed wires, QR code, and IP67 rating, displayed on a black background.

The PIERCE 2 Function 12/24V Replacement Receiver (PS Series) features a clear case, black cable with exposed colored wires, and an IP67 rating for lasting durability.

The PIERCE 2 Function 12/24V Replacement Receiver (PS Series) features a sleek black design with clear top, attached cables, and durable IP67 rating. Compatible with 12/24V systems; shown on a black background.

A black rectangular case with a yellow zipper, made for the Lodar LTD 2F Wireless Remote Transmitter, is shown from the side against a white background.

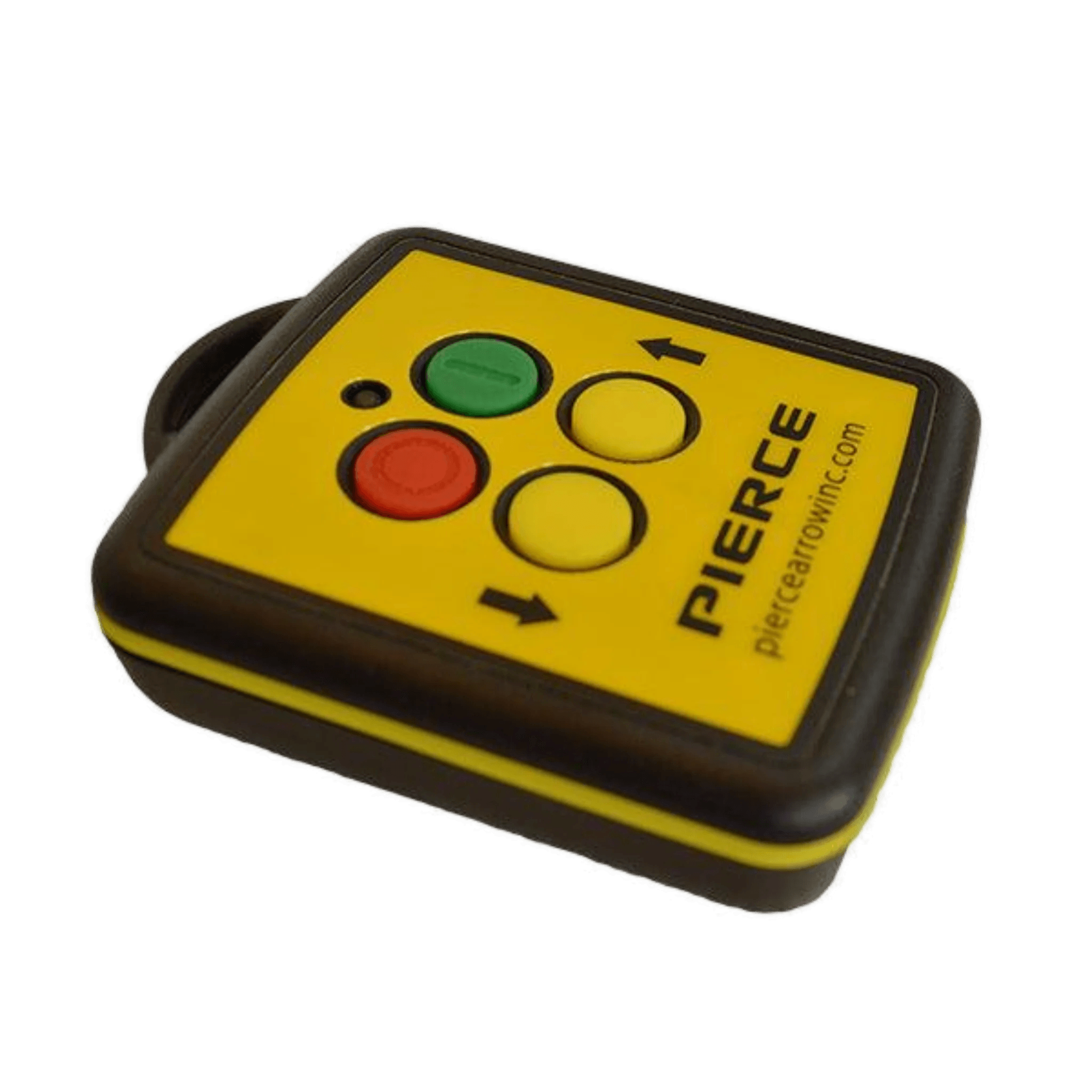

The Lodar LTD 2 Function Wireless Remote Control System operates at 433 MHz and is designed for 12/24V solenoid-equipped devices. Features yellow and black housing with four round buttons: red, green, and two yellow.

Lodar LTD 2 Function Wireless Remote Control System with visible wiring and circuit board, shown beside a yellow remote operating at 433 MHz. Perfect for 12/24V solenoid-driven equipment.

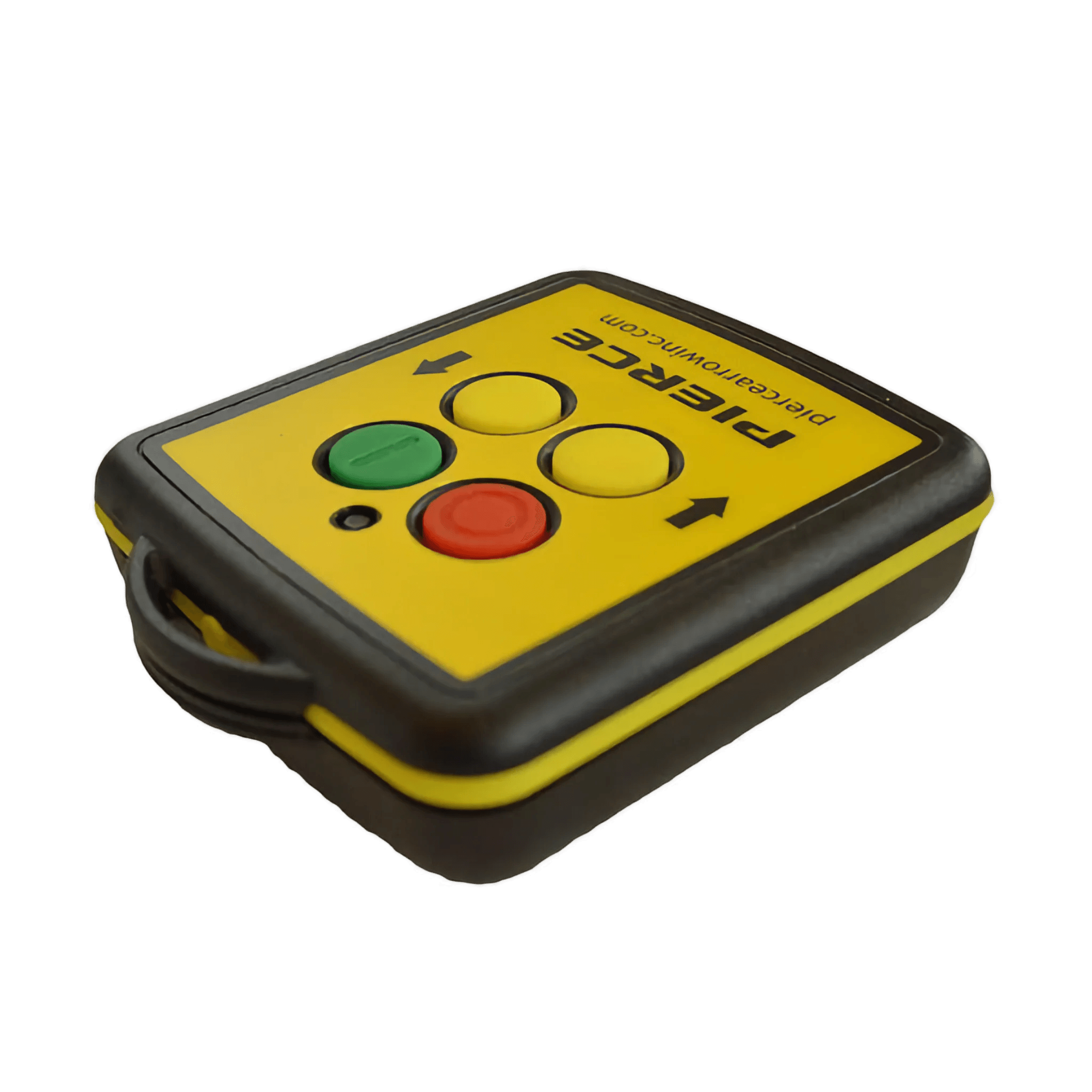

The Lodar LTD 2 Function Wireless Remote Control System features red and green buttons, two black arrows, and is designed for 12/24V solenoid equipment at 433 MHz.

The Lodar LTD 2 Function Wireless Remote Control System features a yellow and black design, two buttons labeled “PIERCE,” operates at 12/24V for solenoid equipment, and uses 433 MHz frequency for reliable wireless control.

1 13

2 Function Wireless Remote Control System

Name: 2 Function Wireless Remote Control System
Price: 275.0 USD
Rating: 4.95 (38 reviews)

PS002

$275.00

Quantity

In stock

Alternatives: 2 Function Wireless Remote Control System

2 Function Wireless Remote Control System 2 Function Wireless Control System for Dump Trailer

2 Function Wireless Remote Control System

'

Description

The PIERCE wireless remote control system, with 2 functions and an operating distance of 150 ft (45 m), is perfect for managing any 12/24V solenoid-operated equipment. The system features a Mini transmitter with an IP 65 rating and a receiver with an IP 67 rating. The wide band, fixed channel operates at 433 MHz and has a maximum output of 3 amps. The transmitter requires 2 AAA batteries, and the receiver runs on 12/24 volts DC. This full system is designed for efficiency, control, and reliability.

Included

1 x [PS002R] - 2 Function 12/24V PIERCE Receiver | PS Series

1 x [PS002T] - 2F Wireless Remote Transmitter

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	433 MHz
FUNCTIONS	2
MASTER OUTPUT	Yes
MAX AMPS	3
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING TEMPERATURE RANGE	-22ºF to 149ºF (-30ºC to 65ºC)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 67
SWITCH TYPE	Silicone Rubber Keypad with Carbon Pill
TRANSMITTER	Mini
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 67
TYPE	Full System

Resources

PS002 - PS528N - Wiring Diagram

Spec Sheet

PS002 - PS528CN - Wiring Diagram

Spec Sheet

PS002 Spec Sheet

Spec Sheet

PS002 - Wiring Diagram

Wiring Diagram

PS002 - PM-3554 - Wireless Remote to Bucher Pump Wiring Diagram

Wiring Diagram

PS002 - PM-3551 - Wiring Diagram

Wiring Diagram

PS002 - PM-319 - Wiring Diagram

Wiring Diagram

Replacement Parts

2F Wireless Remote Transmitter

Replacement 2-function wireless remote transmitter for PIERCE wireless control systems. Compact and reliable, this unit restores full remote operation when a transmitter is lost or damaged. 2-function replacement wireless transmitter Designed f...

SKU: PS002T $103.00

Reviews

Great device. Easy to pair great customer service also. Thanks

Thank you for letting us know! We will share with the team. :)

Nothing but QUALITY parts. It works great every time

Great to hear! 😃

Kit Complete and fast shipping

I purchased as a replacement remote and worked as good as the first one. However, the old and new have a good range of about 35'. When I stand at the end of the trailer 40' away, it has a problem staying connected while going up or down. The connection gets interrupted and it skips until I walk closer to the receiver.

Thank you for your review! The 35' range limit you are experiencing indicates something isn't working as it should. There are several things that can cause this and I'll list out here the most common causes in descending order.

- The biggest factor can be the mounting placement of the receiver itself. If it is in a very thick toolbox or behind a bunch of power cables, etc, it is possible it is experiencing interference.
- The transmitter having low batteries can also be a common issue, but it sounds like you can rule that one out since this is the second transmitter.
- Cold weather can cause issues but it would need to be very cold to cut the range more than half like you are experiencing? Unless you are in Antartica this is probably not the case either.
- It could be that there is another device on the truck itself operating on the 418Mhz band? Rarely some other products will operate on the same licensed band but that is not common.

Hopefully these can help resolve what is happening, but if they don't, reach out to us. We can work on evaluating the complete system for any repair/replacement under warranty that might be needed.
