The Lodar LTD 2 Function Wireless Control System for Dump Trailer includes an electronic control box, cables, and a yellow remote with colored buttons for use with KTI hydraulic pumps in dump trailer wireless applications.

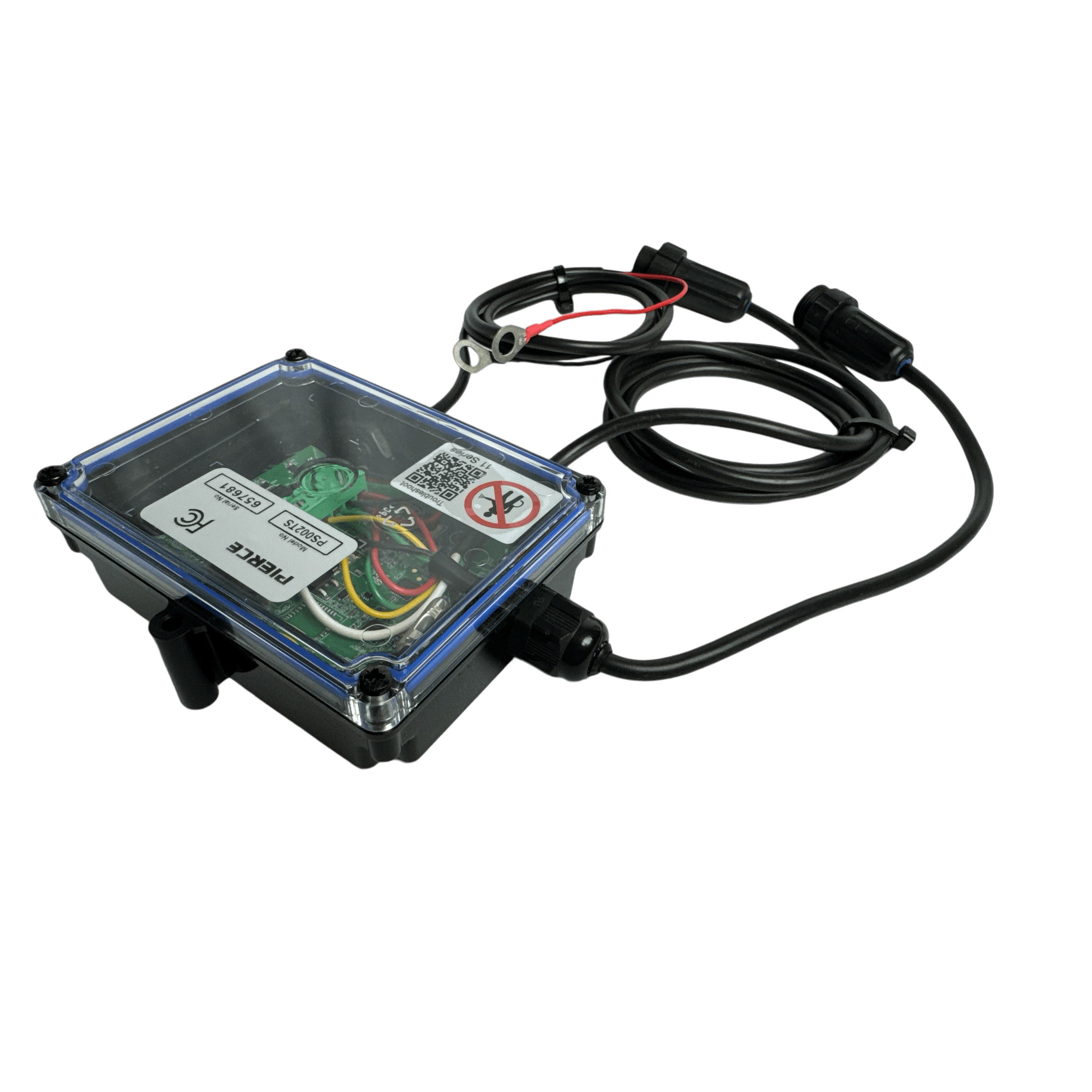

The Lodar LTD 2 Function Wireless Control System for Dump Trailer features a clear plastic electronic control box with visible wiring and black cables, ideal for pairing with a KTI hydraulic pump or wireless setup.

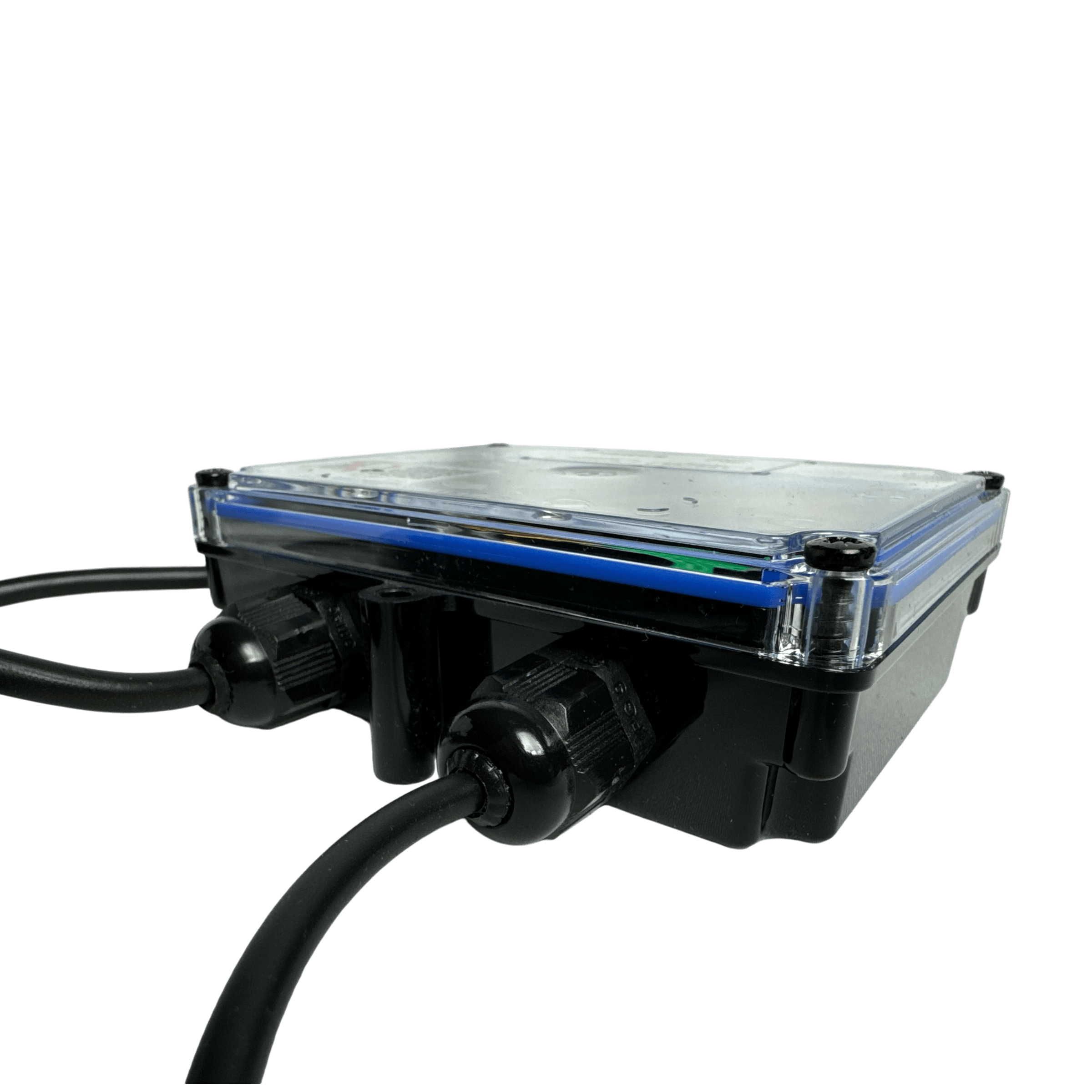

The Lodar LTD 2 Function Wireless Control System for Dump Trailer features a black electronic junction box with a clear lid and two cables, perfect for use with dump trailers or KTI hydraulic pumps, shown on a white background.

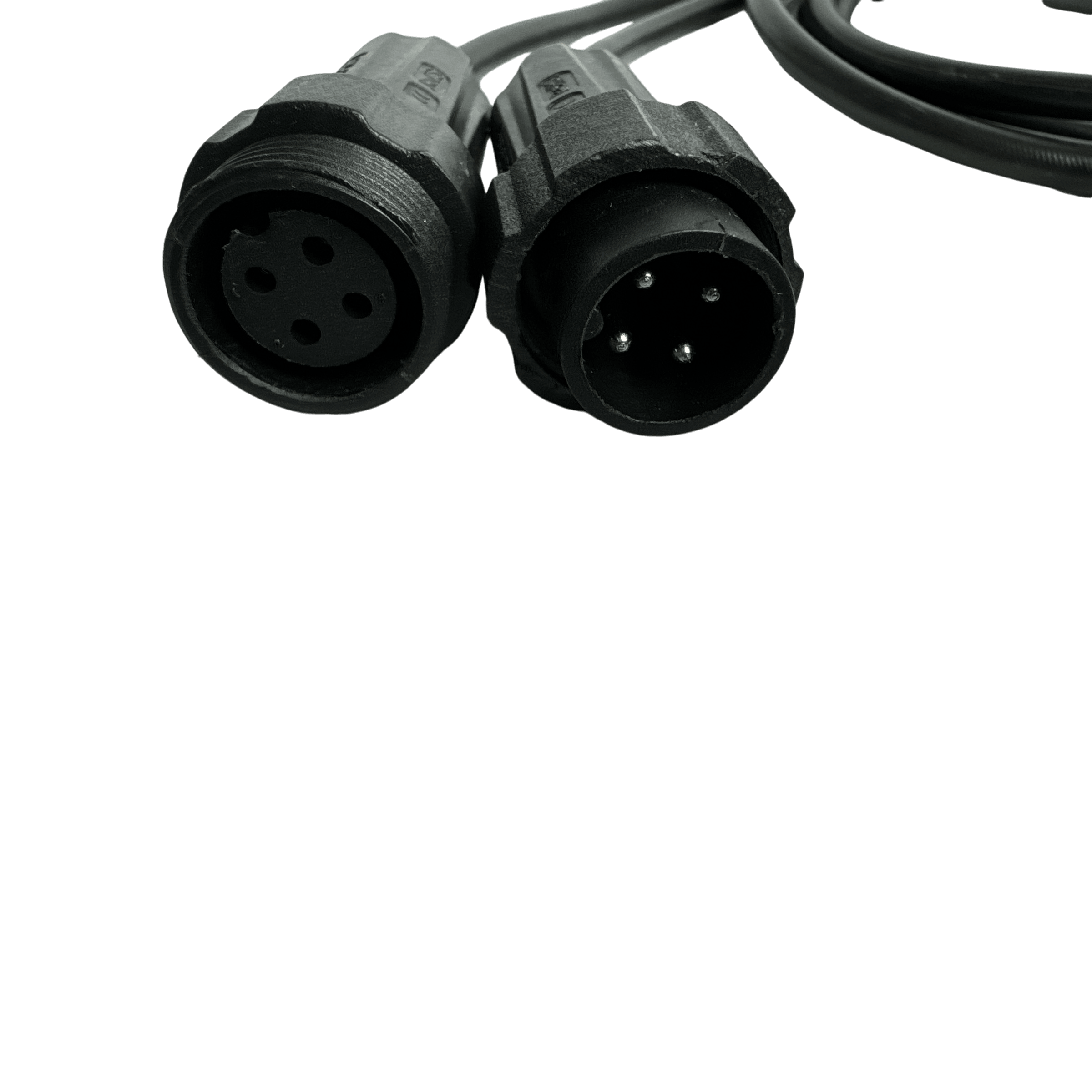

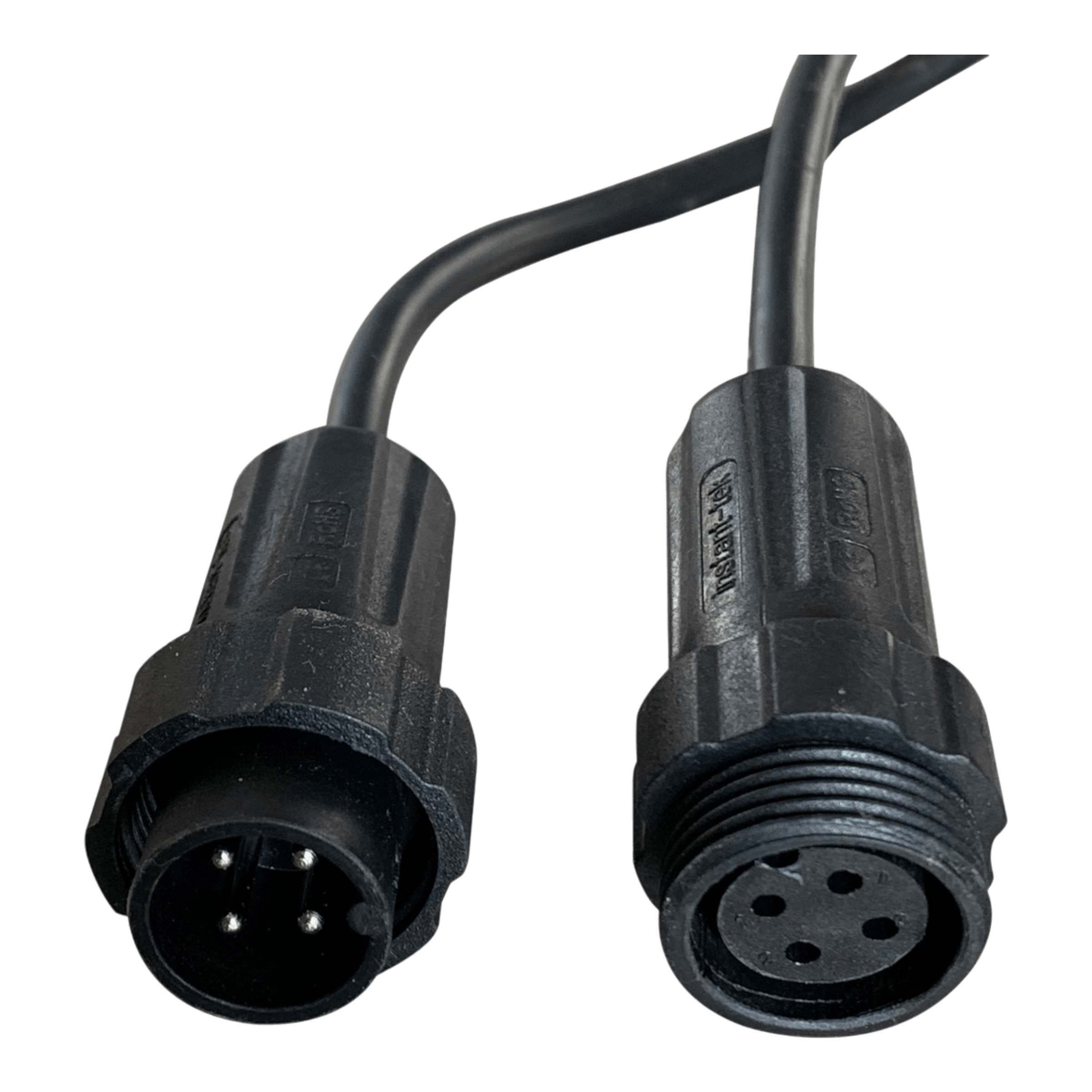

Two black connectors—one with metal pins, one with matching holes—attached to black cables for the Lodar LTD 2 Function Wireless Control System for a dump trailer hydraulic pump.

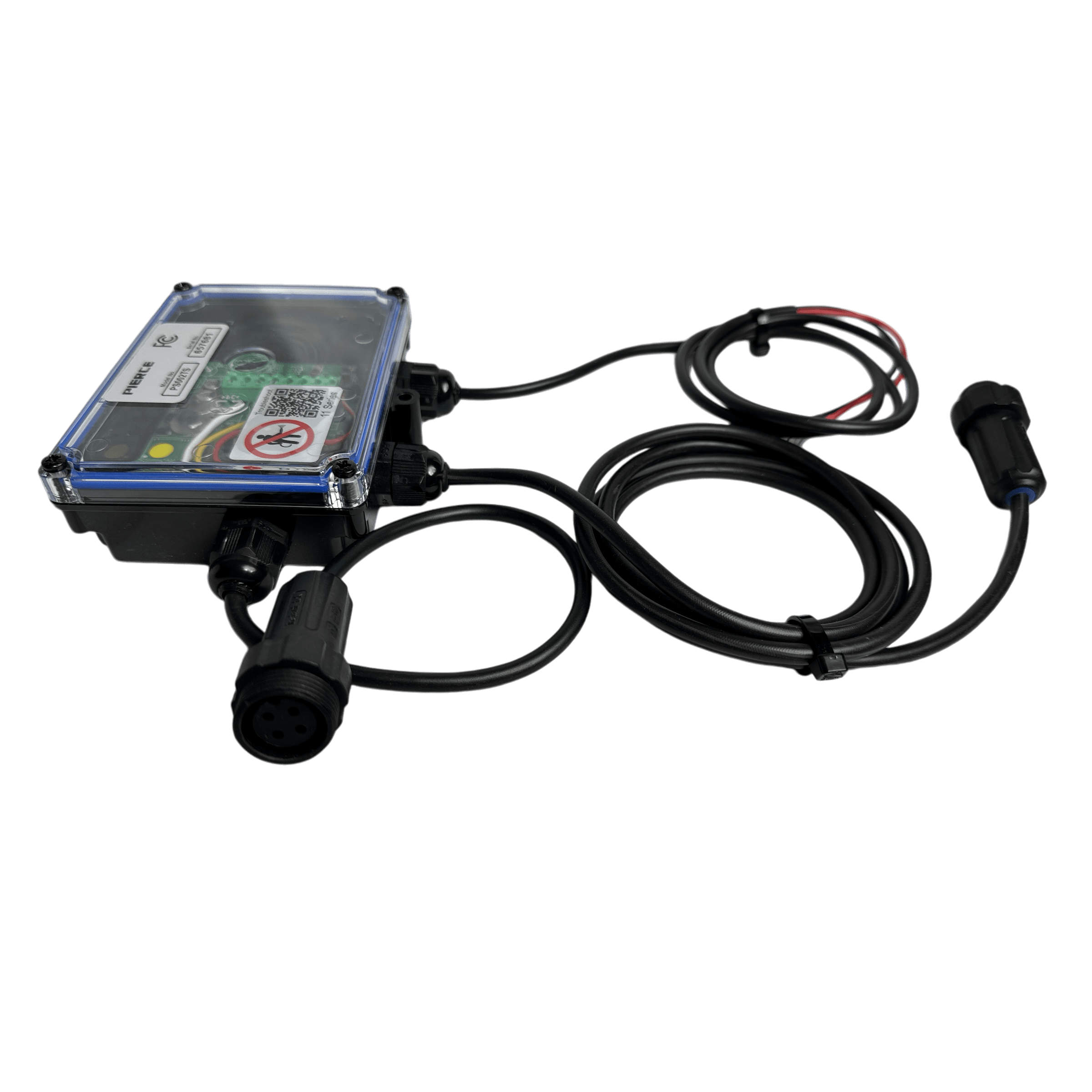

The Lodar LTD 2 Function Wireless Control System for Dump Trailer is a black electronic device with a clear cover, long cables, and connectors, designed for wireless dump trailer systems, shown on a white background.

A black rectangular case with a yellow zipper, made for the Lodar LTD 2F Wireless Remote Transmitter, is shown from the side against a white background.

The Lodar LTD 2F Wireless Remote Transmitter is a yellow and black 2-function remote with green/red buttons, labeled Pierce with up/down arrows; it serves as a replacement wireless transmitter for PIERCE control systems.

1 8

2 Function Wireless Control System for Dump Trailer

Name: 2 Function Wireless Control System for Dump Trailer
Price: 308.0 USD
Rating: 4.95 (38 reviews)

PS002TS

$308.00

Quantity

In stock

Alternatives: 2 Function Wireless Control System for Dump Trailer

2 Function Wireless Remote Control System 2 Function Wireless Control System for Dump Trailer

2 Function Wireless Control System for Dump Trailer

'

Description

The PIERCE 2 function wireless system is designed for easy plug and play installation for dump trailers with KTI® hydraulic pumps. It operates on 12/24 Volts DC and has a range of 150 ft. (45 m.). The transmitter has an IP rating of 65 and the receiver has an IP rating of 67.

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	433 MHz
FUNCTIONS	2
MASTER OUTPUT	Yes
MAX AMPS	3
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING TEMPERATURE RANGE	-22ºF to 149ºF (-30ºC to 65ºC)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 67
SPECIAL FEATURES	Dump Trailer Wiring Harness (Compatible with KTI® pumps.)
SWITCH TYPE	Silicone Rubber Keypad with Carbon Pill
TRANSMITTER	Mini
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 67
TYPE	Full System
WIRING INCLUDED	12 in. Wired Control Lead / 42 in. Battery Lead / 60 in. Pump Lead

Resources

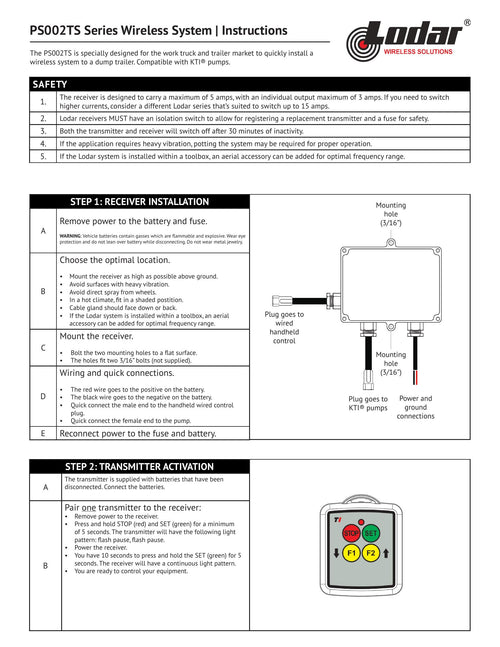

PS002TS - Wiring Instructions

Instructions

Reviews

Great device. Easy to pair great customer service also. Thanks

Thank you for letting us know! We will share with the team. :)

Nothing but QUALITY parts. It works great every time

Great to hear! 😃

Kit Complete and fast shipping

I purchased as a replacement remote and worked as good as the first one. However, the old and new have a good range of about 35'. When I stand at the end of the trailer 40' away, it has a problem staying connected while going up or down. The connection gets interrupted and it skips until I walk closer to the receiver.

Thank you for your review! The 35' range limit you are experiencing indicates something isn't working as it should. There are several things that can cause this and I'll list out here the most common causes in descending order.

- The biggest factor can be the mounting placement of the receiver itself. If it is in a very thick toolbox or behind a bunch of power cables, etc, it is possible it is experiencing interference.
- The transmitter having low batteries can also be a common issue, but it sounds like you can rule that one out since this is the second transmitter.
- Cold weather can cause issues but it would need to be very cold to cut the range more than half like you are experiencing? Unless you are in Antartica this is probably not the case either.
- It could be that there is another device on the truck itself operating on the 418Mhz band? Rarely some other products will operate on the same licensed band but that is not common.

Hopefully these can help resolve what is happening, but if they don't, reach out to us. We can work on evaluating the complete system for any repair/replacement under warranty that might be needed.
