4 Function Roll-Off Wireless Control System | PS Series

$412.00

1/4

4 Function Roll-Off Wireless Control System | PS Series

PS004B

2 reviews

$412.00

In Stock

Complete plug-and-play wireless control system - includes the handheld transmitter and the receiver, coded together at the factory and ready to wire to your equipment. Operates 4 functions.

The 4 Function Roll-Off Wireless Control System (PS004B) gives you 4-function wireless control with a 150 ft (45 m) range on the 433 MHz band. Dc fet output switching, 3 A per output, 12/24V DC. This system ships with roll-off trailer firmware for a winch and hydraulic pump option. Its master output is active only on the hydraulic pump functions (F3 and F4), not on every function.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 4 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 3 A per output, with 5 A overload auto-shutdown to protect the circuit. The transmitter and receiver ship coded to each other, so the system works out of the box.

4 functions of wireless control

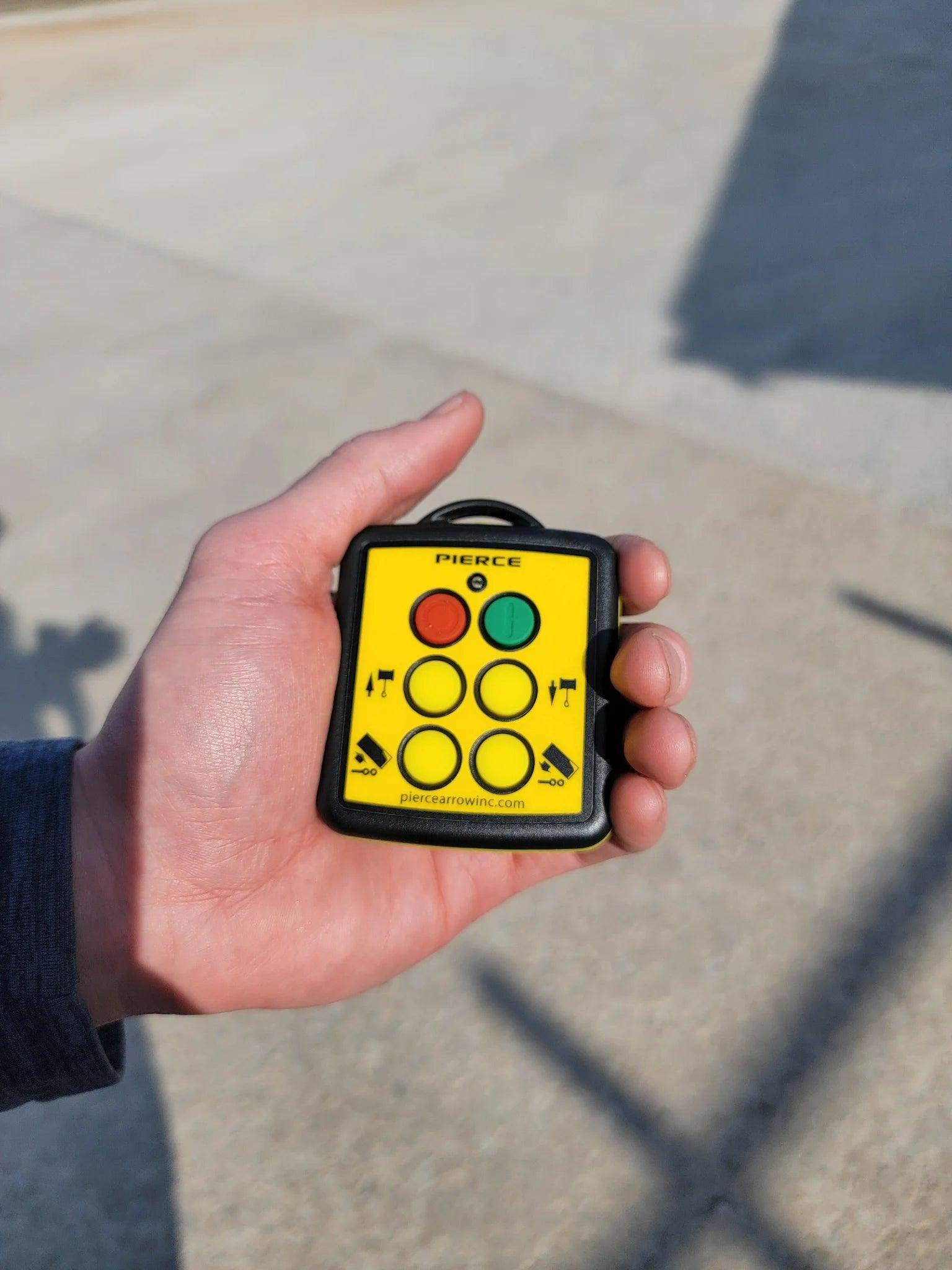

Handheld transmitter - IP 67 rated

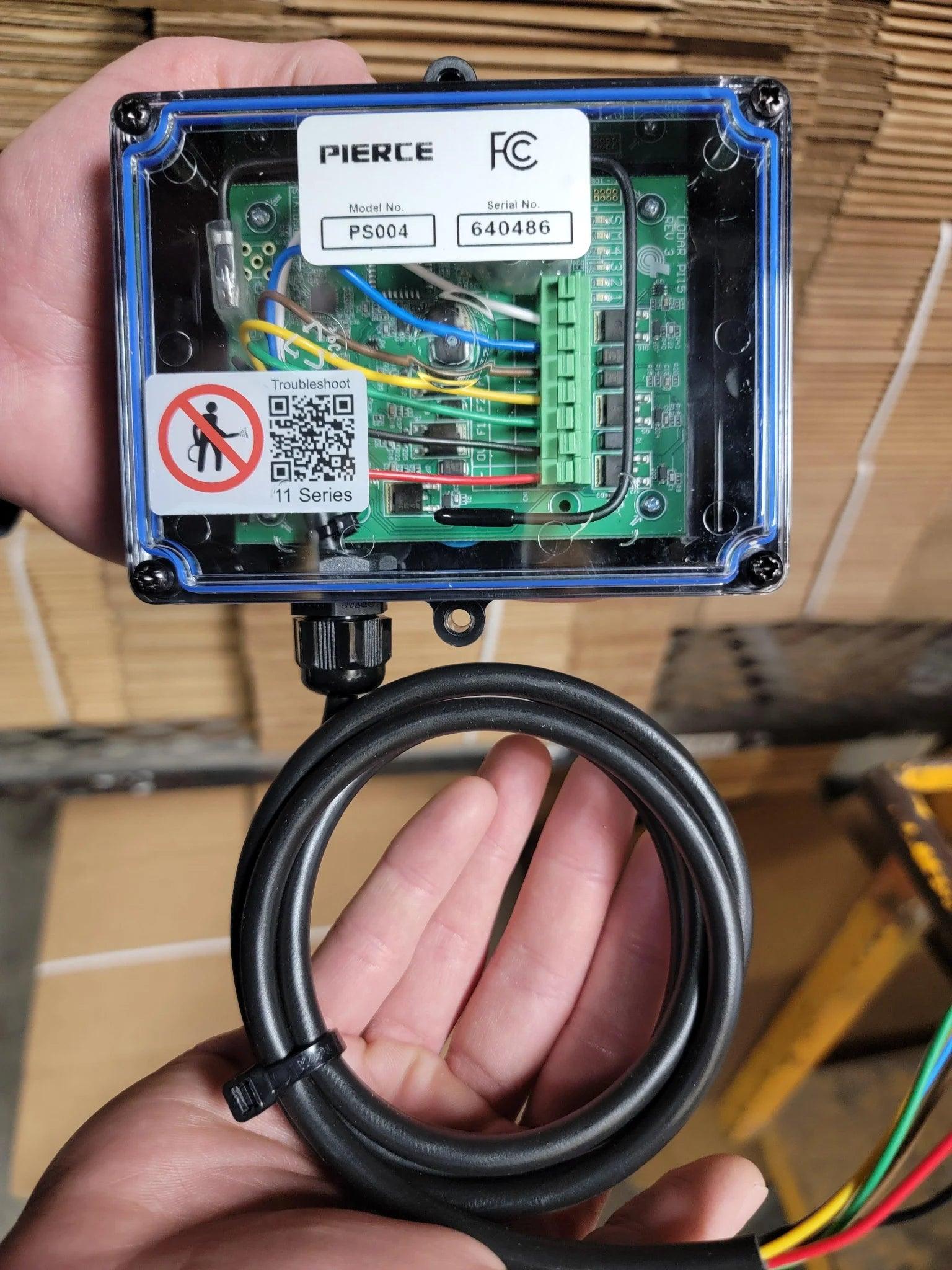

FET receiver - DC output switching, 3 A per output (5 A overload auto-shutdown), 12/24V DC, IP 67 rated
12/24V DC operating voltage
150 ft (45 m) operating range, 433 MHz band
Master output - active only on hydraulic pump functions F3 & F4 (roll-off firmware)
PIERCE SKU PS004B

Other PIERCE wireless systems: the PS004 4 Function Wireless System or PS002 2 Function Wireless System or PS002TS 2 Function Dump Trailer System. Replacement transmitters and receivers are sold separately.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

PS004 Series Controller Options:

The Lodar LTD 4 Function Wireless Remote Control System features a remote and wired controller with labeled buttons and exposed circuit board, ideal for use in trailer control systems or 12/24V work truck applications.

Standard (Master Output All Functions) PS004

Roll-off Edition (F3 & F4 Master Output Only) PS004B

Transmitter

Mini

Functions

Operating Voltage

12/24 Volts DC

Transmitter IP Rating

IP 67

Receiver IP Rating

IP 67

Operating Distance

150 ft. (45 m.)

Master Output

Yes

Max Amps

Transmitter Batteries

AAA x 2

Special Features

Master Output only on F3 & F4

Channel

Wide Band, Fixed

Frequency

433 MHz

Type

Full System

Operating Temperature Range

-22ºF to 149ºF (-30ºC to 65ºC)

Switch Type

Silicone Rubber Keypad with Carbon Pill

Warranty

Lodar 5 Year Pro-rated Warranty

4 Function Wireless Transmitter | PS SeriesSKU: PS004T

$164.00

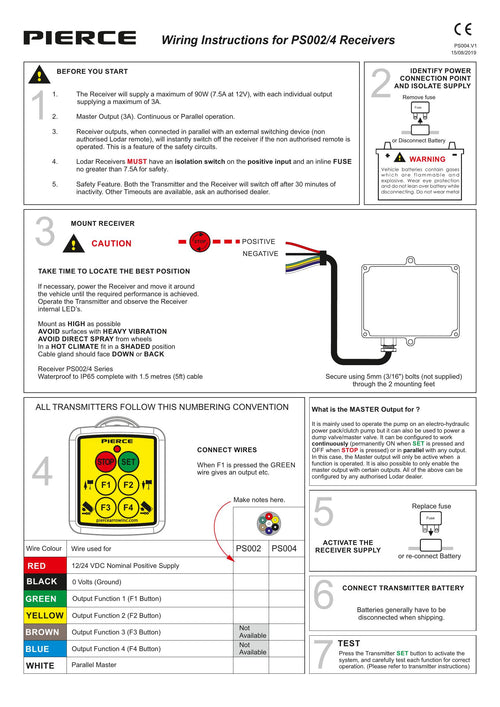

PS004 - Wiring Diagram Wiring Diagram

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
