4 Function Wireless Control System | PS Series

Complete plug-and-play wireless control system - includes the handheld transmitter and the receiver, coded together at the factory and ready to wire to your equipment. Operates 4 functions.

The 4 Function Wireless Control System (PS004) gives you 4-function wireless control with a 150 ft (45 m) range. DC FET output switching, 3 A per output, 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Running a winch that doesn't need the hydraulic pump? Choose the PS004B roll-off system instead — its master output stays off on the winch in/out functions, so the pump isn't activated when you're only winching.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 4 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 3 A, with the system rated to 5 A total — enough to switch most solenoids and valves — and the solid-state design trips its overload at 5 A to protect the board. The transmitter and receiver ship coded to each other, so the system works out of the box.

• 4 functions of wireless control

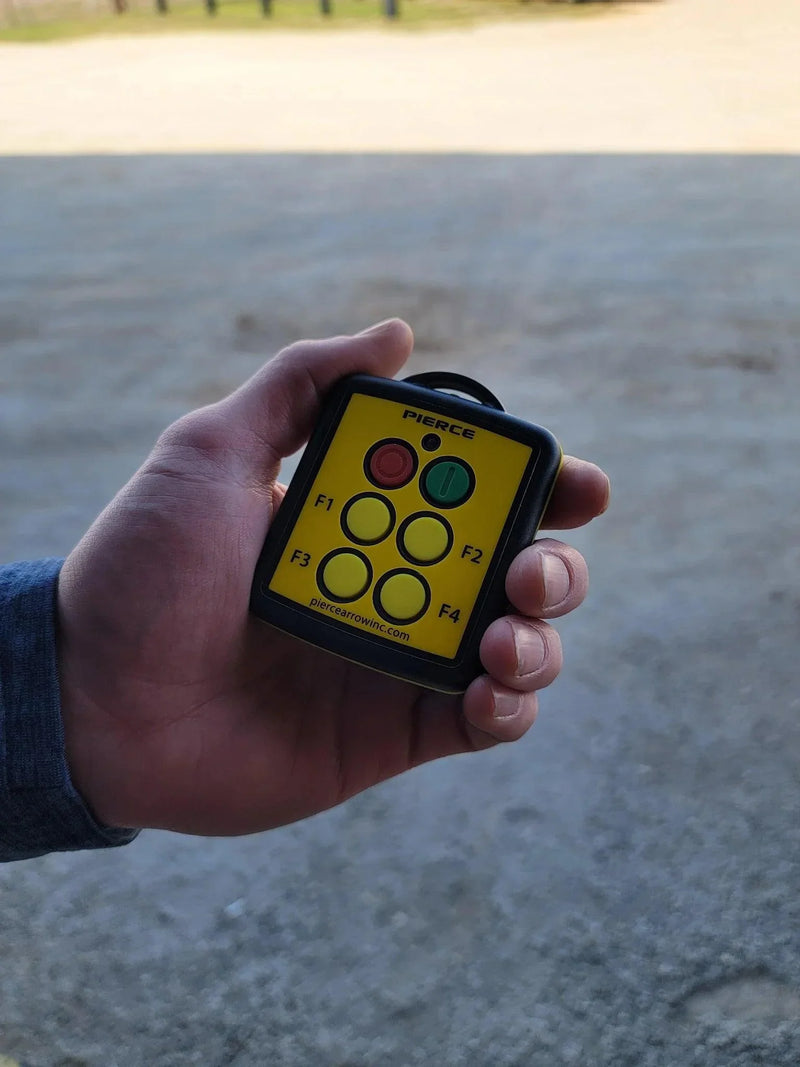

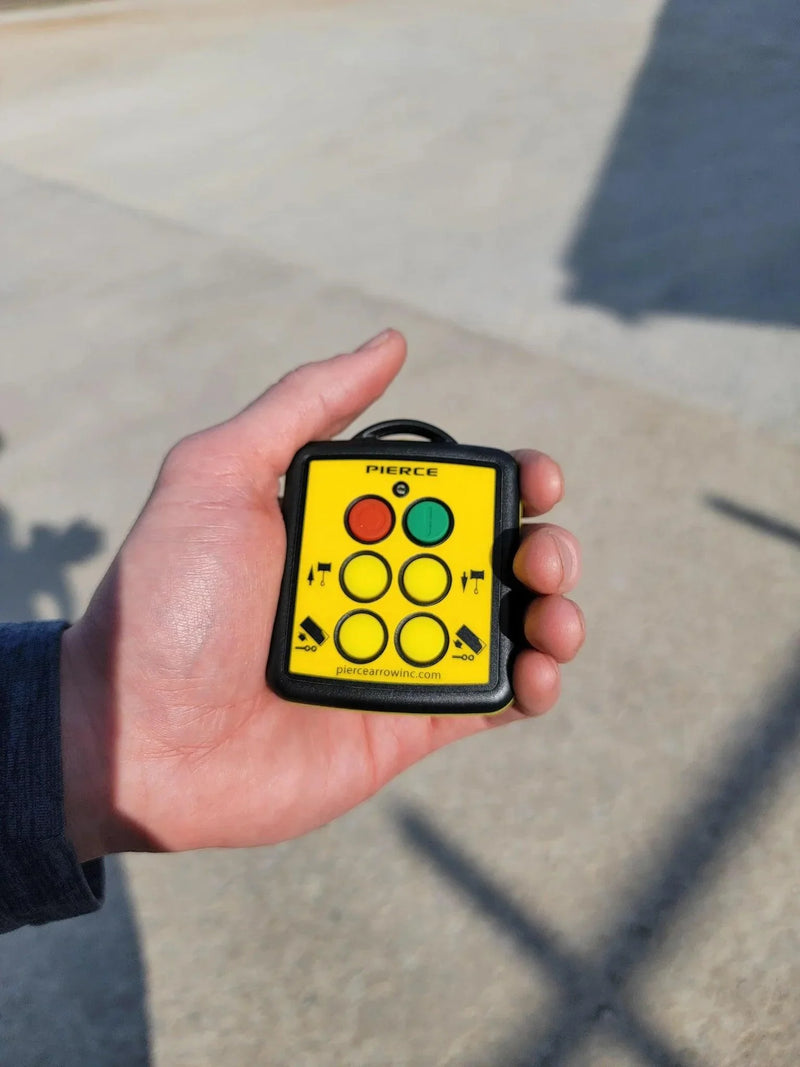

• Handheld transmitter - IP 67 rated

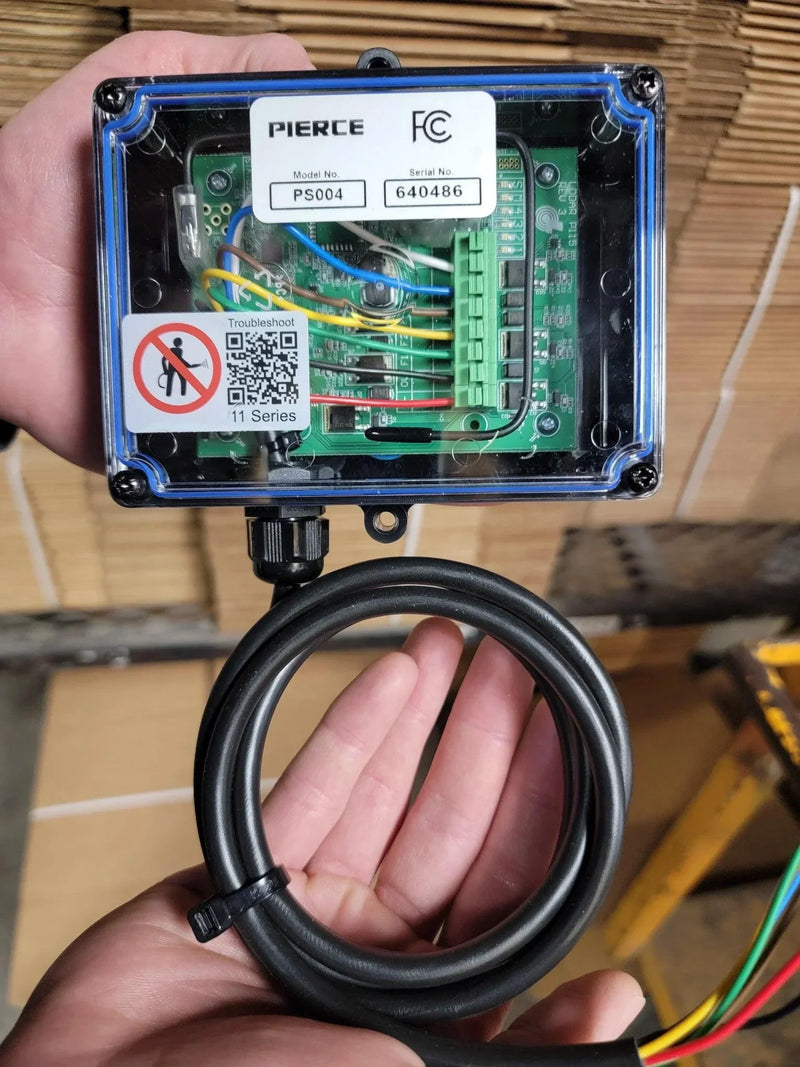

• FET receiver - DC output switching, 3 A per output (5 A overload auto-shutdown), 12/24V DC, IP 67 rated
• 12/24V DC operating voltage
• 150 ft (45 m) operating range
• Master output - fires on every function for run-along equipment
• PIERCE SKU PS004

Other PIERCE wireless systems: the PS004B 4 Function Roll-Off System or PS002 2 Function Wireless System or PS002TS 2 Function Dump Trailer System. Replacement transmitters and receivers are sold separately.
