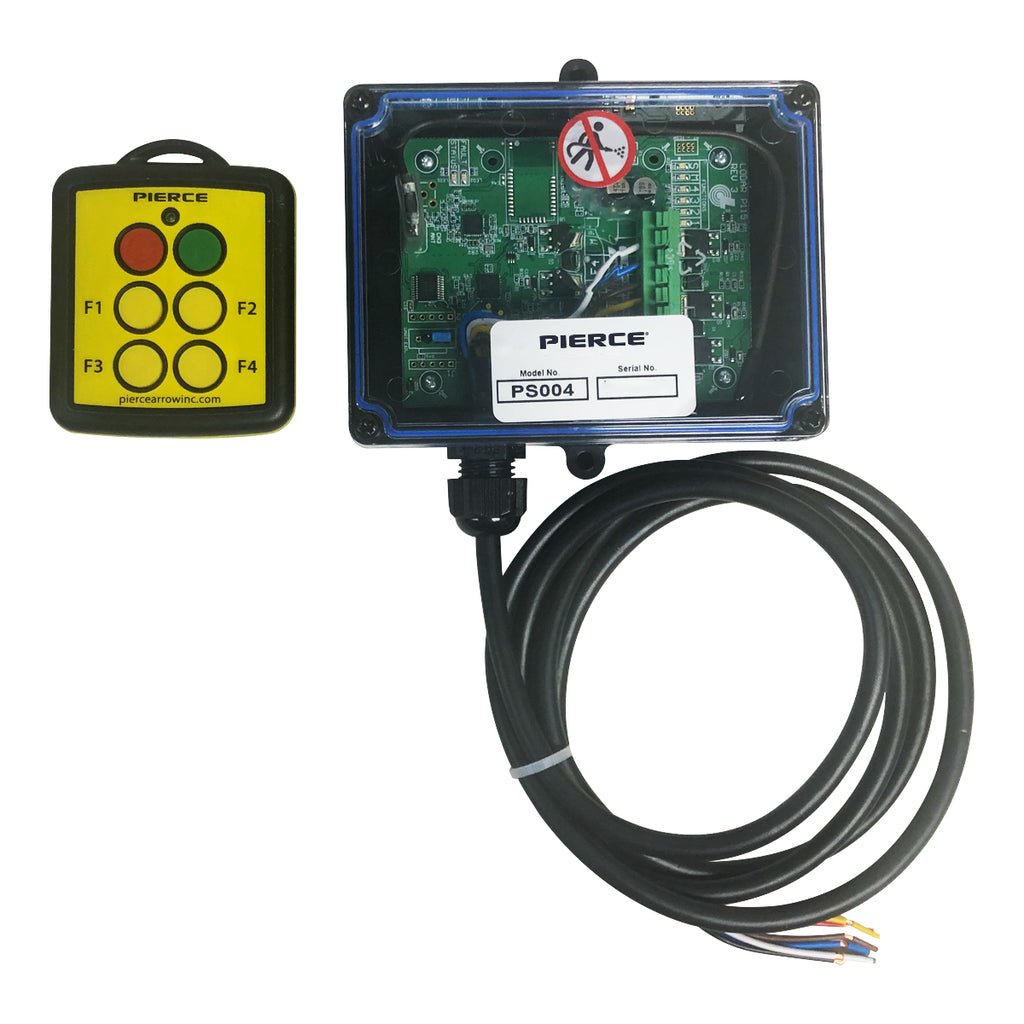

The PIERCE 4 Function Wireless Remote Control System includes a remote and circuit board with cables, seamlessly integrated for 12/24V equipment with a strong IP rating for durability.

An open box shows the PIERCE 4 Function Wireless Remote Control System with electronic components, a remote control, and a lanyard. The instruction manual on the table ensures easy setup for your 12/24V equipment with a strong IP rating.

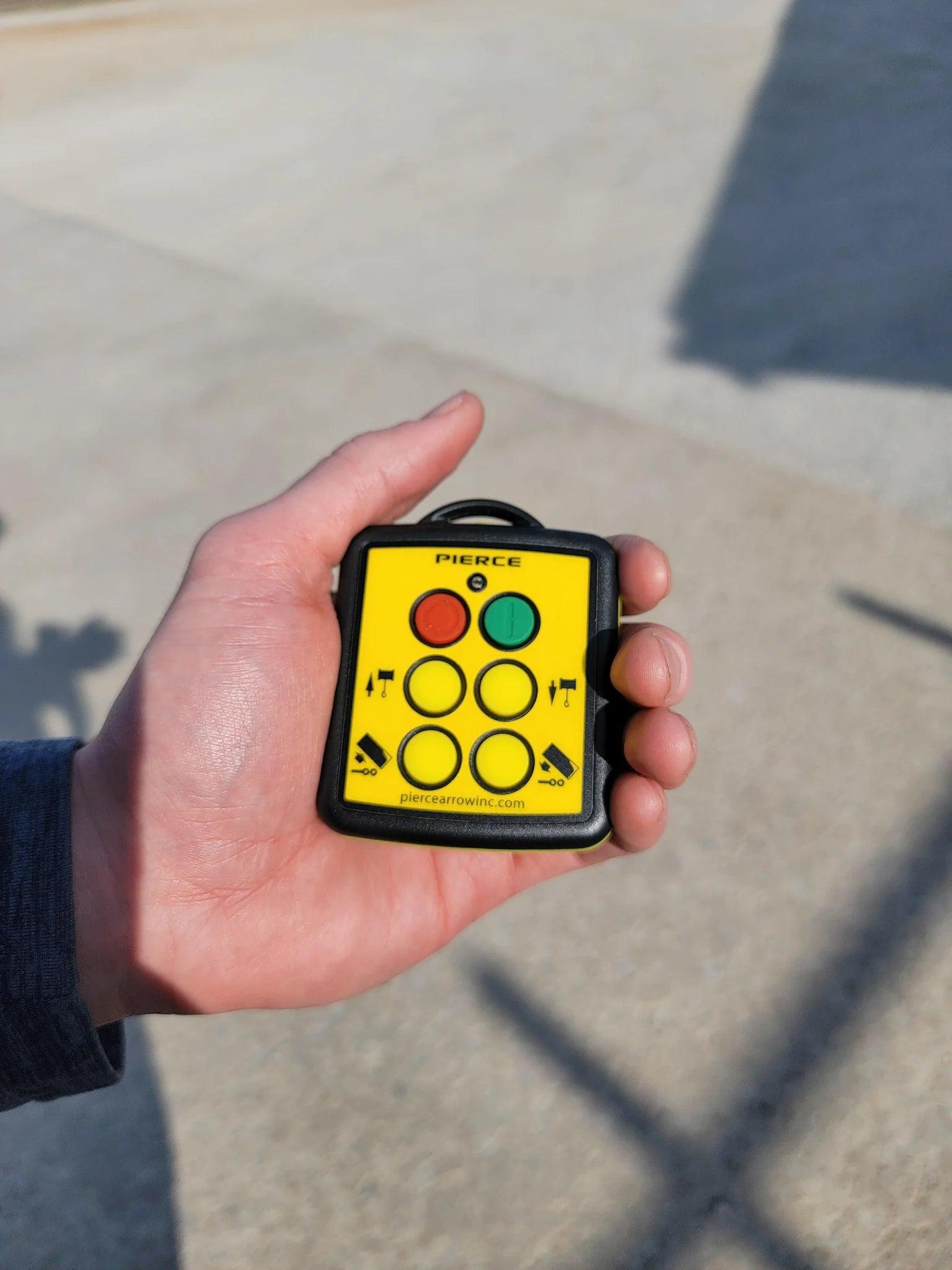

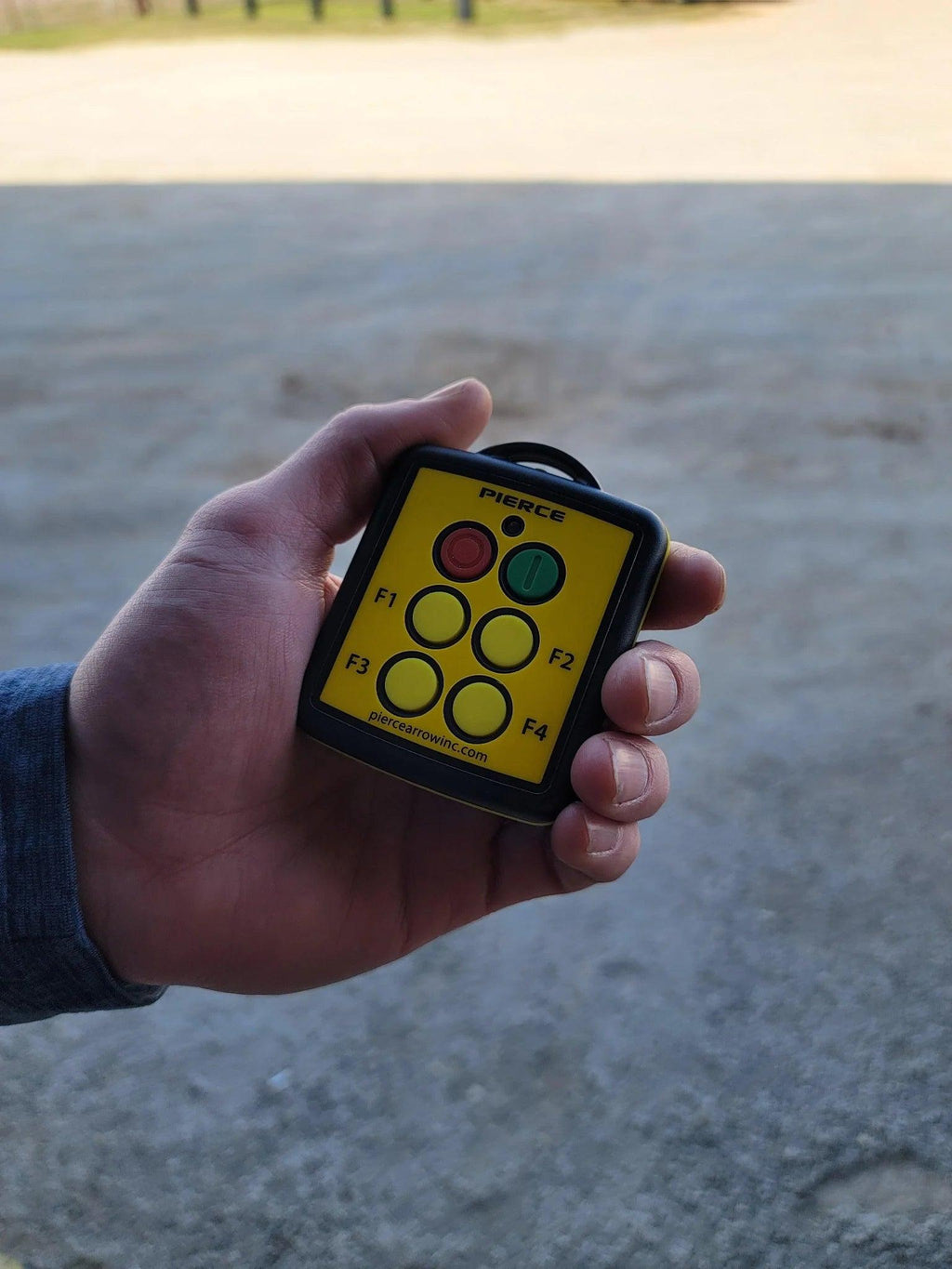

A hand holds the PIERCE 4 Function Wireless Remote Control System, a small device with colored buttons labeled F1 to F4, featuring start and stop controls for 12/24V equipment.

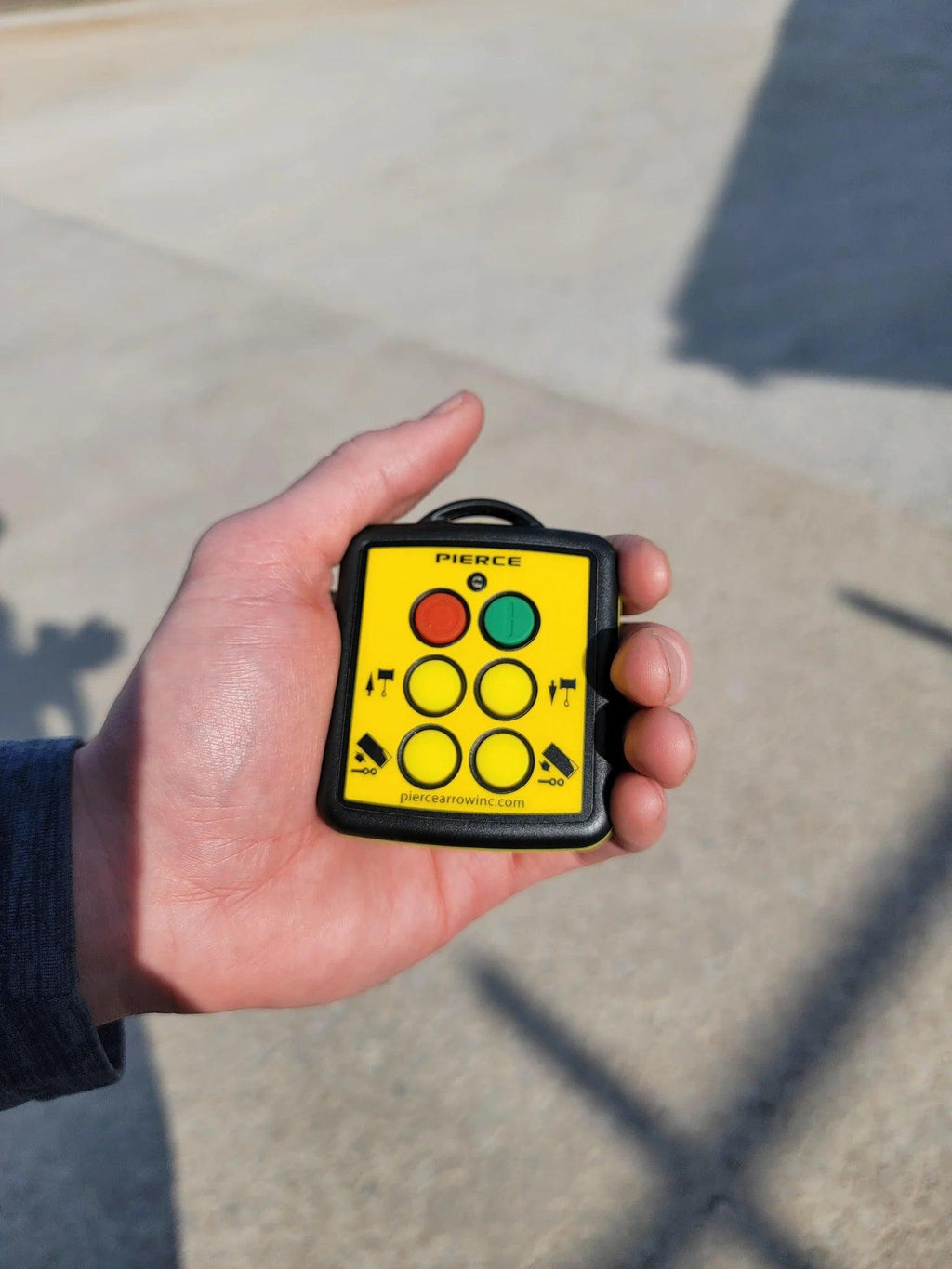

A hand holds a PIERCE 4 Function Wireless Remote Control System, featuring multiple buttons in red, green, and blue, ideal for managing 12/24V equipment.

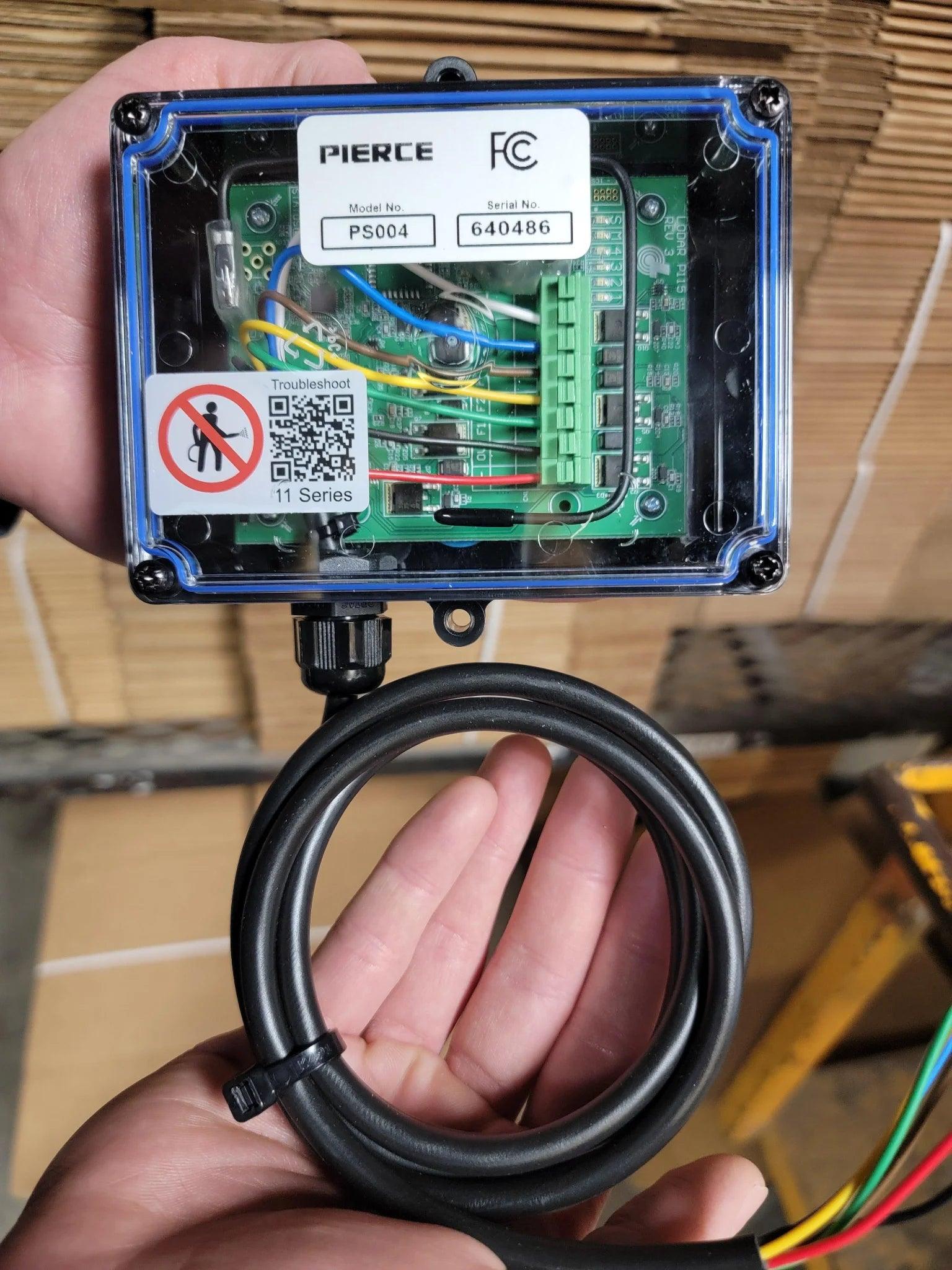

A person holds a PIERCE electronic device, showcasing its circuit board and wires. This advanced 4 Function Wireless Remote Control System integrates smoothly with 12/24V equipment for versatile use.

Product Information

The 4 Function Wireless Remote-Control System is the perfect choice for 12/24V equipment that requires four functions. It is easy to install and provides reliable control, with a range of 150 ft (45 m). The transmitter, with an IP rating of IP 65, operates on AAA batteries, while the receiver has an IP rating of IP 67. Choose this system for superior control and performance.

What is Included

1 x PS004R

1 x (PS004T) 4 Function Wireless Remote Transmitter ↗

1 x Instructions

1 x Lanyard

Specifications

CHANNEL: Wide Band, Fixed
FREQUENCY: 433 MHz
FUNCTIONS: 4
MASTER OUTPUT: Yes
MAX AMPS: 3
OPERATING DISTANCE: 150 ft. (45 m.)
OPERATING TEMPERATURE RANGE: -22ºF to 149ºF (-30ºC to 65ºC)
OPERATING VOLTAGE: 12/24 Volts DC
RECEIVER IP RATING: IP 67
SWITCH TYPE: Silicone Rubber Keypad with Carbon Pill
TRANSMITTER: Mini
TRANSMITTER BATTERIES: AAA x 2
TRANSMITTER IP RATING: IP 67
TYPE: Full System

Resources

Wiring Diagram

PS004 - Wiring Diagram

Great product

Very responsive remote. No lag and you can’t beat the price!!

Thank you for your feedback and time leaving your five star review on your 4 Function Wireless Remote Control System. We pride ourselves on providing a responsive and affordable product. Happy controlling!

Deckover tilt with winch

Allows me to run both from one remote making loading easier

Thanks for the feedback on your 4 Function Wireless Remote Control System. We are always glad to hear a product has made work easier! We appreciate your business.
