2 Function Wireless Control System | PS Series

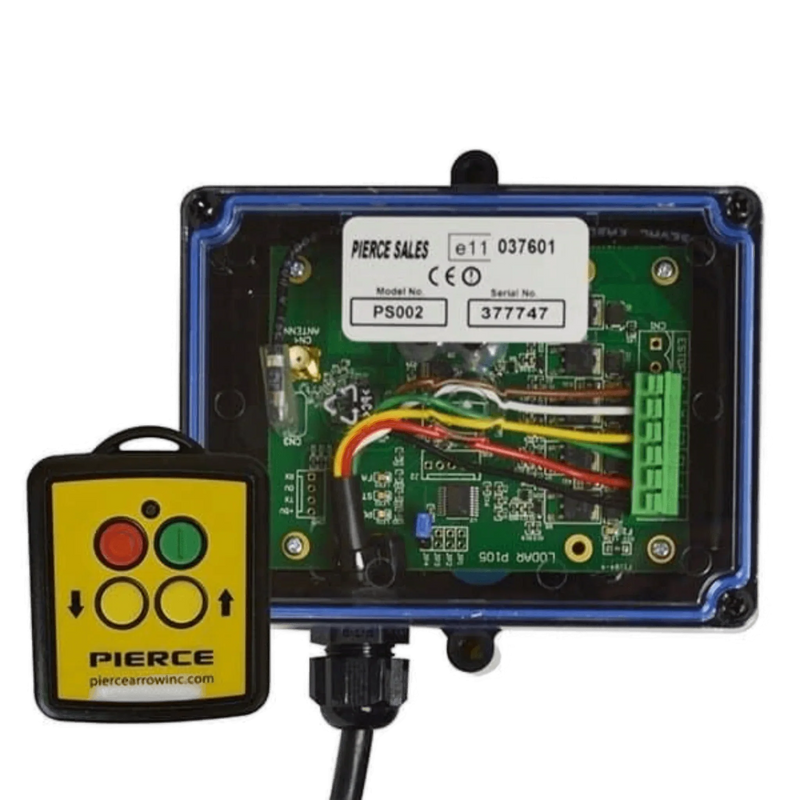

Complete plug-and-play wireless control system - includes the handheld transmitter and the receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions.

The 2 Function Wireless Control System (PS002) gives you 2-function wireless control with a 150 ft (45 m) range on the 433 MHz band. Dc fet output switching, 3 A per output, 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 3 A per output, with 5 A overload auto-shutdown to protect the circuit. The transmitter and receiver ship coded to each other, so the system works out of the box.

• 2 functions of wireless control

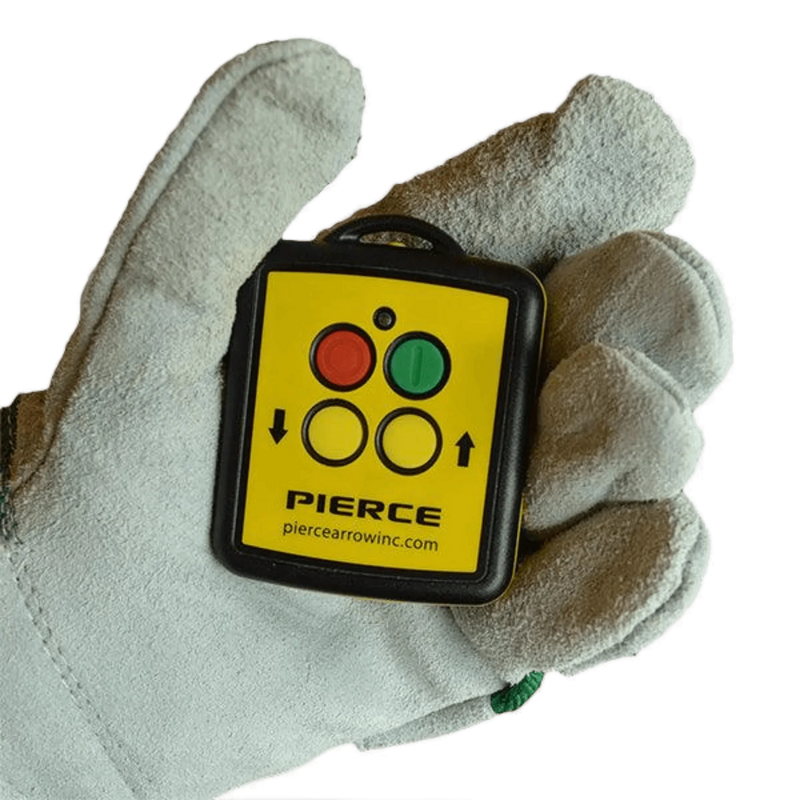

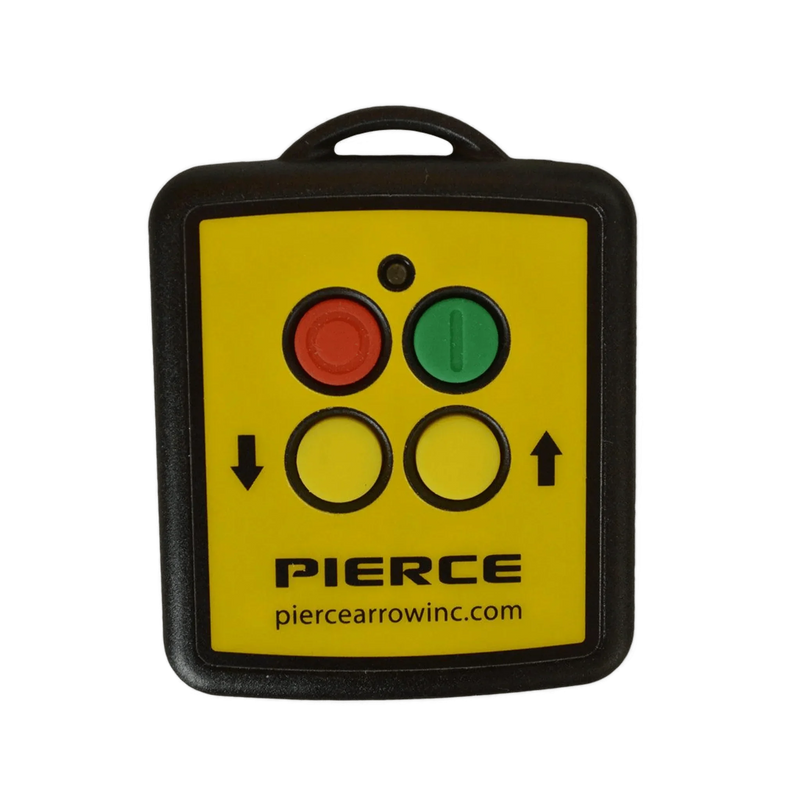

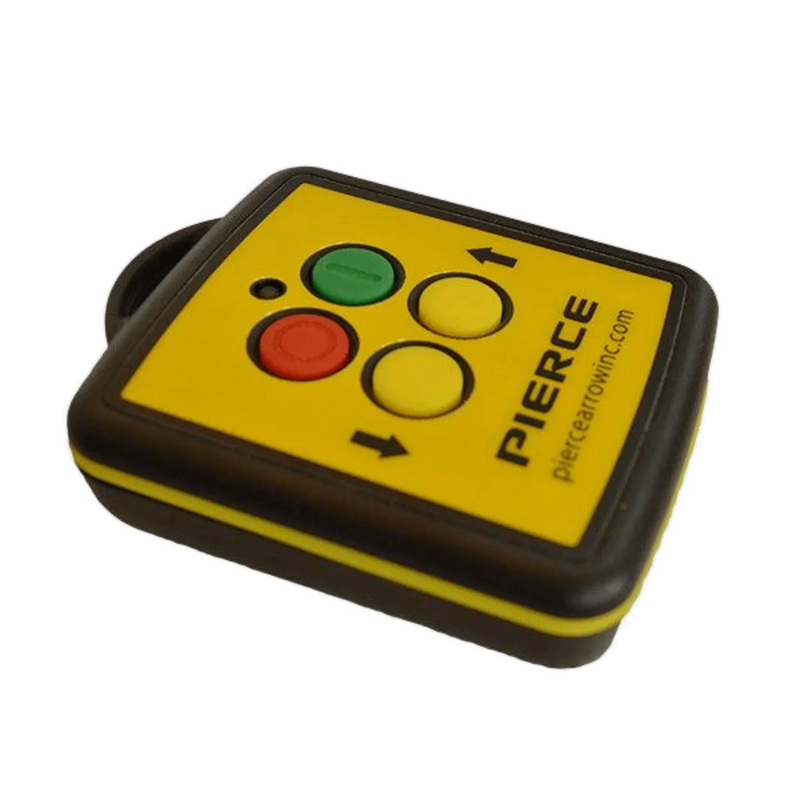

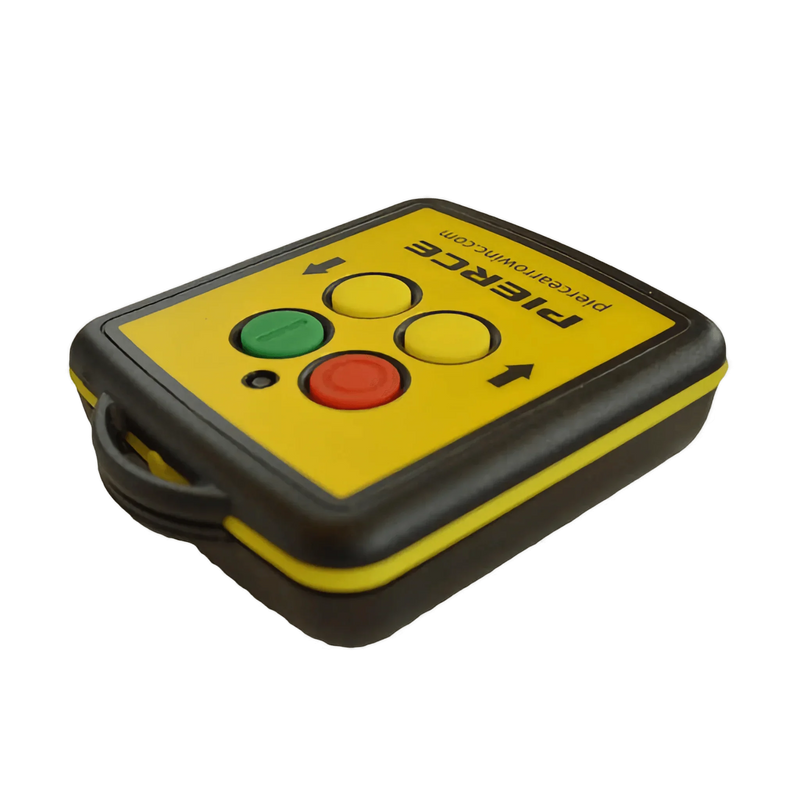

• Handheld transmitter - IP 65 rated

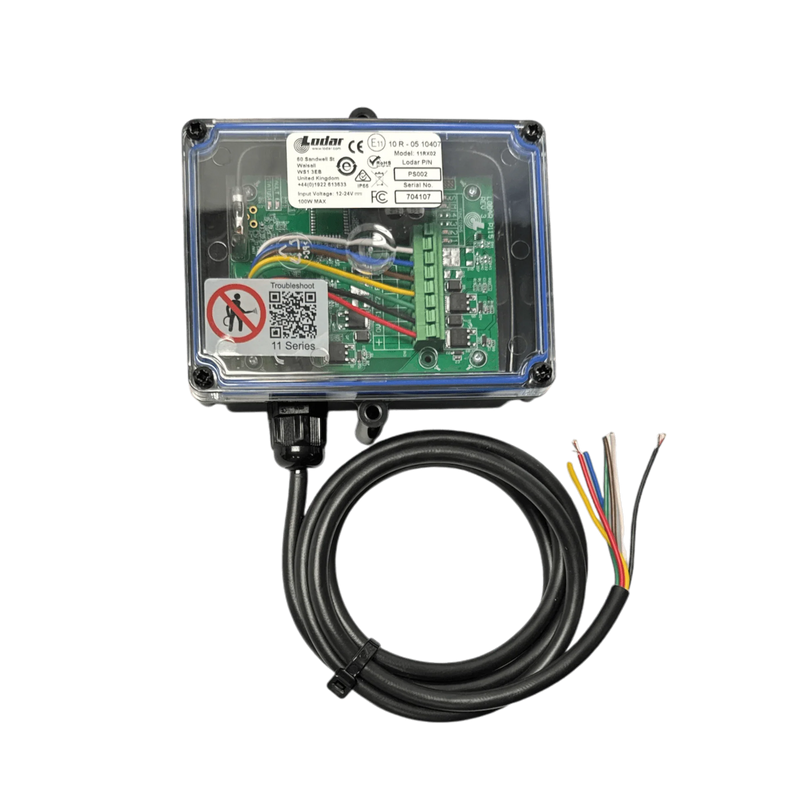

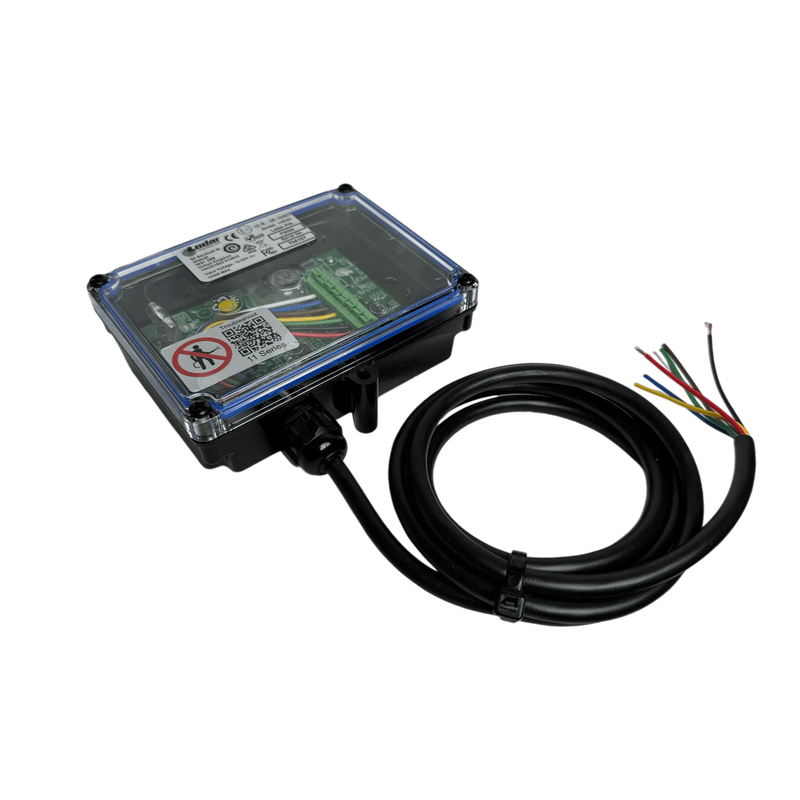

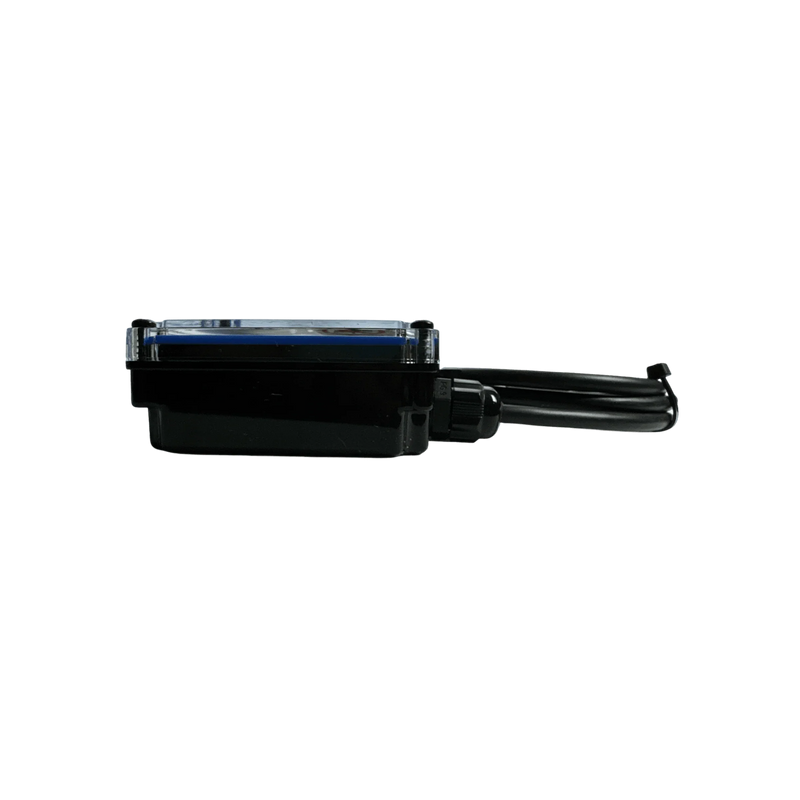

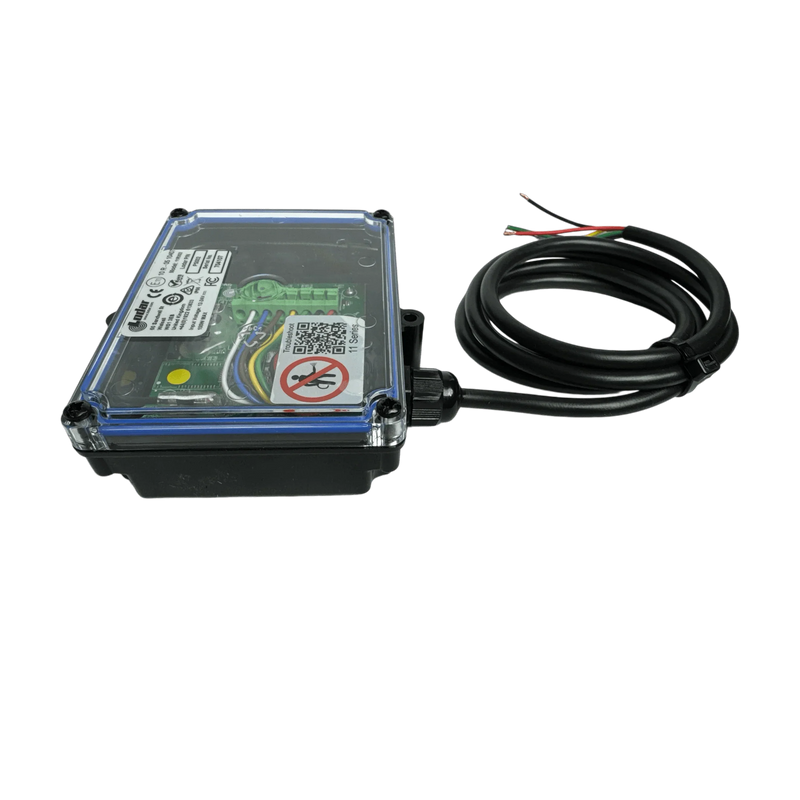

• FET receiver - DC output switching, 3 A per output (5 A overload auto-shutdown), 12/24V DC, IP 67 rated
• 12/24V DC operating voltage
• 150 ft (45 m) operating range, 433 MHz band
• Master output - fires on every function for run-along equipment
• PIERCE SKU PS002

Other PIERCE wireless systems: the 2 Function Dump Trailer Wireless System or PS004 4 Function Wireless System or PS004B 4 Function Roll-Off System. Replacement transmitters and receivers are sold separately.
