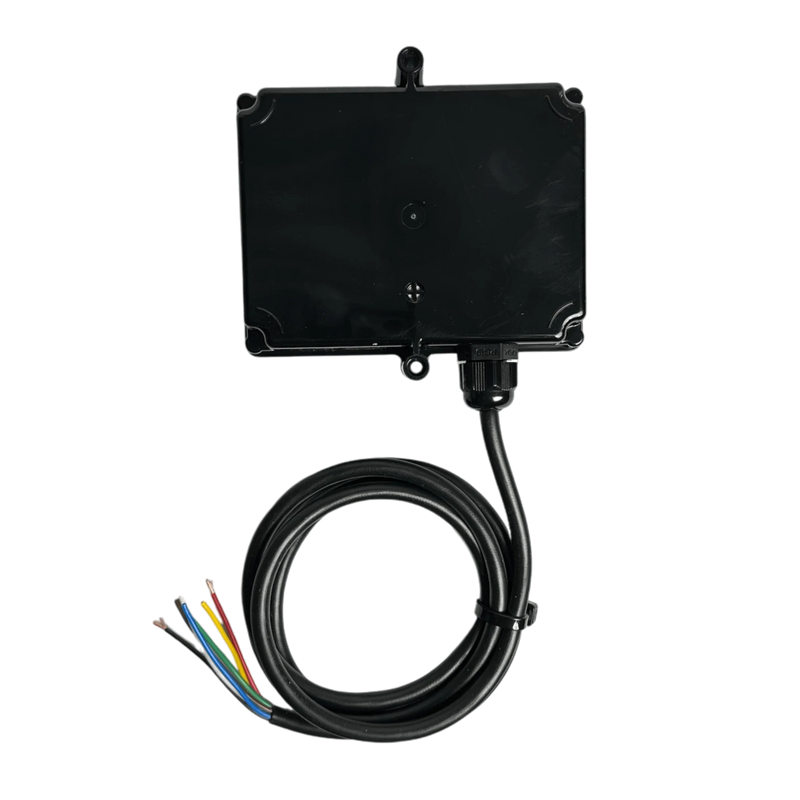

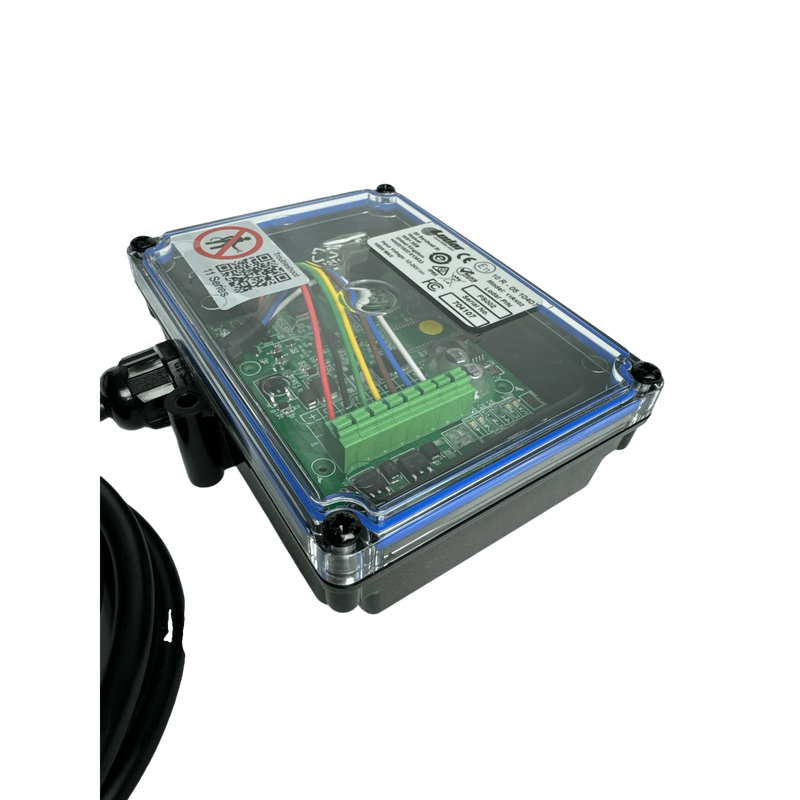

2 Function Replacement FET Receiver | PS Series

This is a replacement FET receiver for PIERCE PS Series wireless control systems — 2-function, FET (solid-state) output switching. The receiver mounts on the equipment, receives the signal from the transmitter, and switches the output functions. Includes a master output — an additional output that fires on every function: once wired in, it energizes whenever any function is operated, for equipment that must run in conjunction with the controls (a hydraulic power unit running while a lift function operates, a safety light while winching).

Replacement part for an existing PIERCE PS Series wireless system — a receiver is not a standalone product. It pairs with a matching transmitter on the same series and function count.

FET or Relay receiver — which do I need?

Match what your existing system uses. FET receivers switch outputs with solid-state transistors — no contacts to wear, well suited to high-cycle operation. Relay receivers switch with electromechanical relays. The two are not interchangeable in a system; replace a FET receiver with a FET receiver.

• 2-function FET receiver
• For PIERCE PS Series wireless control systems
• Master output — an additional output that fires on every function
• 12/24V DC compatible
• PIERCE SKU PS002R

This is a replacement part — it goes on the 2-function PS Series wireless system. See the complete 2 Function Wireless Control System for Dump Trailer or 2 Function Wireless Remote Control System. Pair it with the matching 2 Function transmitter on the same system.
