DUMP BED KIT FOR FLATBED TRUCKS

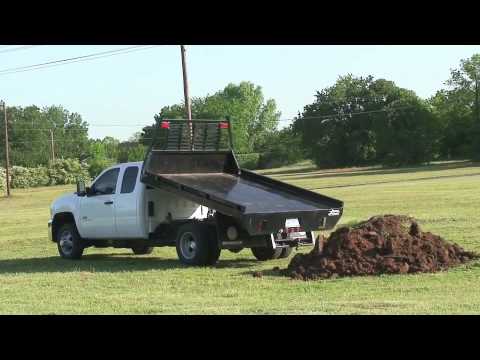

The PIERCE flatbed hoist is a complete dump bed kit designed primarily for installation on 1/2 - 1 ton trucks with an after-market dump or flatbed body. PIERCE flatbed kits can be used to convert a trailer into a dump trailer but require some modification. In addition PIERCE flat bed dump kits come partially assembled, for your convenience. All cross members, scissor mounting hardware, bed hinges, pump/valve assembly, wiring, controls, cylinder, and a 200 AMP breaker are all included.

Which dump kit, light, medium, or heavy-duty? The choice is based on two factors your bed length and what capacity limit you want to be able to lift, haul and dump. Scroll down to view the fit chart.

DUMP KIT SPECIFICATIONS

• Dump Kit Capacity:
• (DKLKPD) Light Duty (up to 10,000 LBS)
• (DKMKPD) Medium Duty (up to 15,000 LBS)
• (DKHKPD) Heavy Duty (up to 20,000 LBS)
• Maximum angle: 45 degrees
• Dumping time: 30-90 sec.
• Breaker: 200 amp, 12VDC
• Cylinder Measurements:
  • (DKLKPD Light Duty) 4" x 14" x 2"
  • (DKMKPD Medium Duty) 5" x 14" x 2"
  • (DKHKPD Heavy Duty) 5" x 16" x 2"

• The Cylinder Working pressure is 3,000 psi
• Replacement Cylinder:
• (DKLKPD Light Duty) P05314BW
• (DKMKPD Medium Duty) P046514W
• (DKHKPD Heavy Duty) P046516

DETERMINING THE CAPACITY OF YOUR DUMP KIT

Bed length and overhang length affect the capacity of your dump bed kit, therefore refer to the table below. For instance, if you require the maximum capacity for a medium-duty kit, you must have:

• 8’ bed with 12” overhang, or
• 10’ bed with 24” overhang, or
• 12’ bed with 36” overhang
