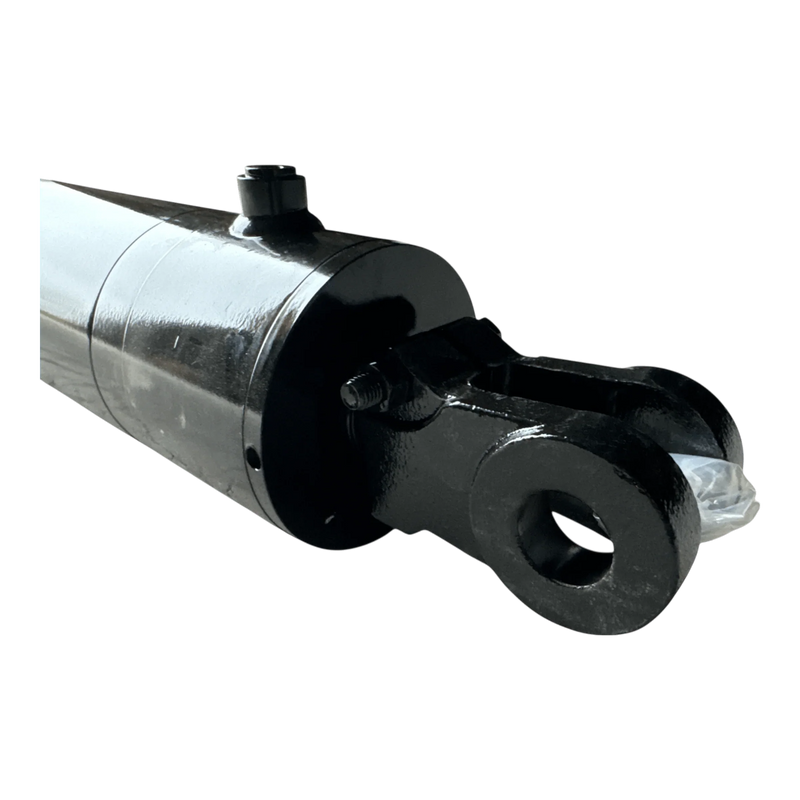

  • Close-up of a PIERCE welded hydraulic cylinder with a 5-inch bore and 14-inch stroke, designed for flatbed dump kits, shown against a white background.
  • PIERCE welded hydraulic cylinder with 5-inch bore and 14-inch stroke, featuring mounting points on both ends, ideal for flatbed dump kits, shown on a white background.

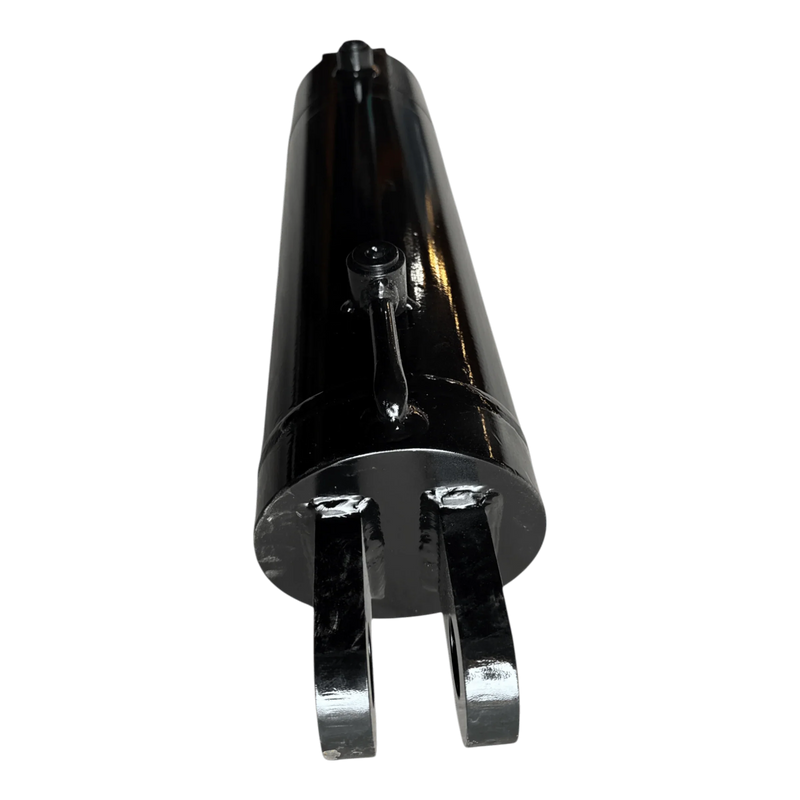

  • The PIERCE Welded Hydraulic Cylinder features a 5-inch bore, 14-inch stroke, and clevis mount. Shown in black from the mounting end on a white background—perfect for flatbed dump kit applications.
  • The PIERCE Hydraulic Cylinder features a 5-inch bore diameter, 14-inch stroke, and welded construction with mounting brackets at both ends, ideal for flatbed dump kits. Photographed on a white background.
  • The PIERCE Welded Hydraulic Cylinder features a 5-inch bore and 14-inch stroke with mounting holes on both ends, shown against a white background—perfect for flatbed dump kit applications.
  • Close-up of a PIERCE welded hydraulic cylinder with a 5-inch bore and 14-inch stroke, designed for flatbed dump kits, shown against a white background.
  • PIERCE welded hydraulic cylinder with 5-inch bore and 14-inch stroke, featuring mounting points on both ends, ideal for flatbed dump kits, shown on a white background.
  • The PIERCE Welded Hydraulic Cylinder features a 5-inch bore, 14-inch stroke, and clevis mount. Shown in black from the mounting end on a white background—perfect for flatbed dump kit applications.
  • The PIERCE Hydraulic Cylinder features a 5-inch bore diameter, 14-inch stroke, and welded construction with mounting brackets at both ends, ideal for flatbed dump kits. Photographed on a white background.
5 in Bore, 14 in Stroke Welded Cylinder

5 in Bore, 14 in Stroke Welded Cylinder

P046514W
$299.00 $491.00
In Stock

The P046514W is a welded hydraulic cylinder with a 5 in bore, 14 in stroke, and 2 in rod, rated to 3000 psi — the replacement ram for PIERCE medium-duty flat-bed dump kits and a welded upgrade from older tie-rod cylinders.

Where does it fit?

It replaces the cylinder on PIERCE medium-duty dump kits and suits construction, agriculture, and material-handling builds on work trucks, tractors, and trailers. The larger 5 in bore gives more lift force than the 4 in cylinder at the same pressure.

  • 5 in bore, 14 in stroke, 2 in rod
  • Extended 40.25 in / retracted 26.25 in
  • 3000 psi; 58,904 lb column load
  • SAE 8 ports; 1.25 in pins; 88 lb
  • Pierce SKU P046514W

Replacement cylinder for PIERCE medium-duty flat-bed dump kits; a welded upgrade from tie-rod cylinders.

Related: Medium Duty Flat Bed Dump Kit · 4 in Bore, 14 in Stroke Welded Cylinder

Dump Kit Cylinders Options:

PIERCE Hydraulic Cylinder, welded type with 4" bore and 14" stroke, features mounting eyelets at both ends—ideal for dump kits. Shown on a white background.
4 in Bore, 14 in Stroke Welded Cylinder P05314BW
-($100.00)
The PIERCE Welded Hydraulic Cylinder features a 5-inch bore and 14-inch stroke with mounting holes on both ends, shown against a white background—perfect for flatbed dump kit applications.
5 in Bore, 14 in Stroke Welded Cylinder P046514W
Specifications
Weight (lbs.)
88
Operational Pressure (psi)
3000
Cylinder Type
Welded
Cylinder Stroke
14 in.
Cylinder Bore Diameter
5 in.
Cylinder Rod Diameter
2 in.
Pin Diameter
1.25 in.
Length Retracted
26.25 in.
Length Extended
40.25 in.
Port Size
SAE 8
Column Load
58,904 lbs
