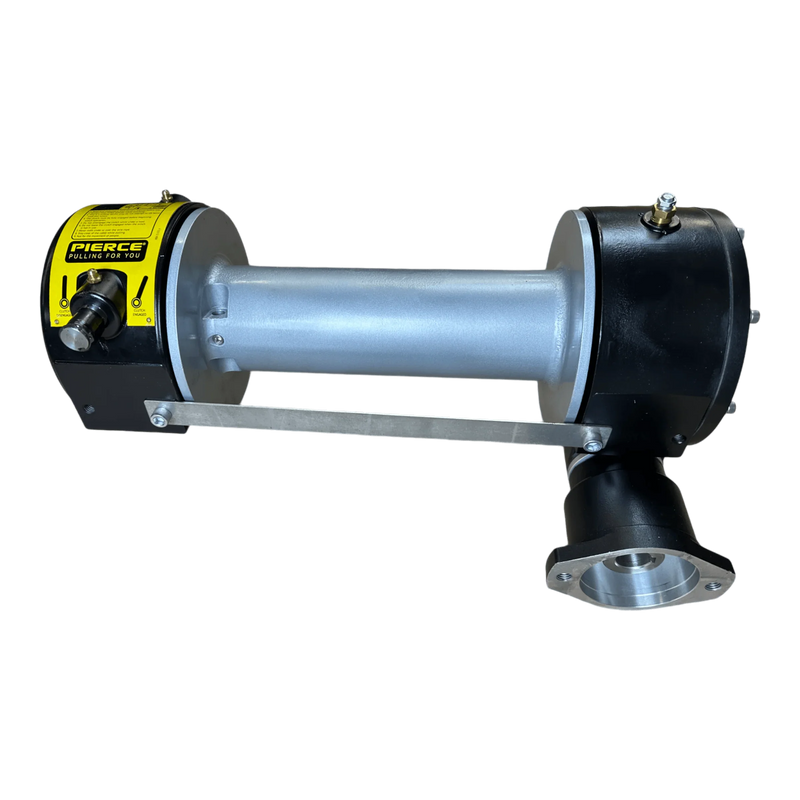

PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount features a silver cylindrical body, black ends, and yellow label, designed for hydraulic winch use on a white background with 8,000 lb pulling capacity.

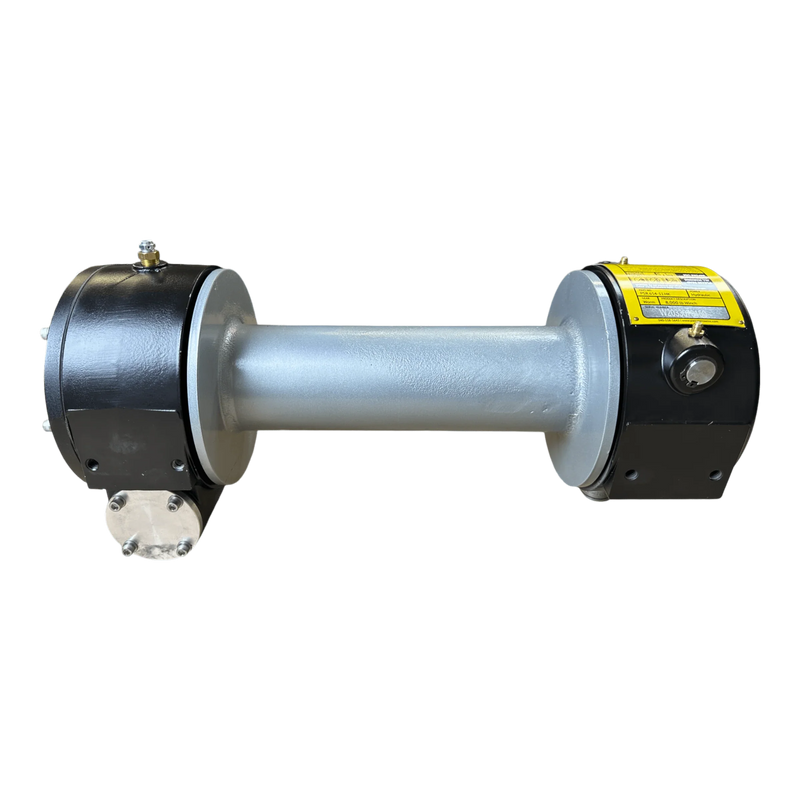

The PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount features a black and silver hydraulic actuator, designed for industrial winch systems with an 8,000 lb capacity, displayed against a white background.

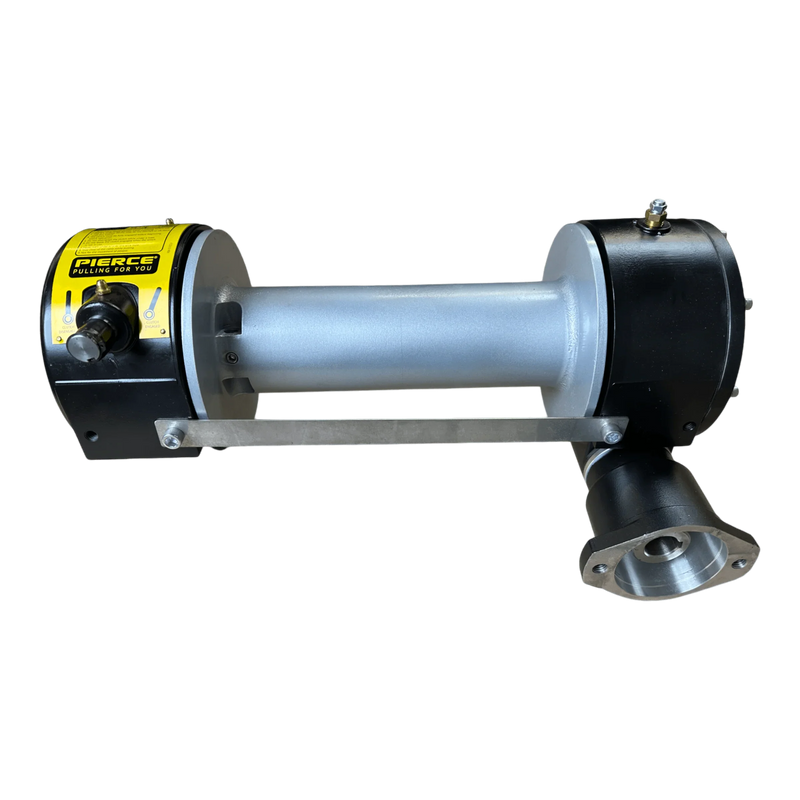

The PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount is ideal for use with industrial electric actuators requiring up to 8,000 lb pulling capacity. Features a durable design for demanding applications.

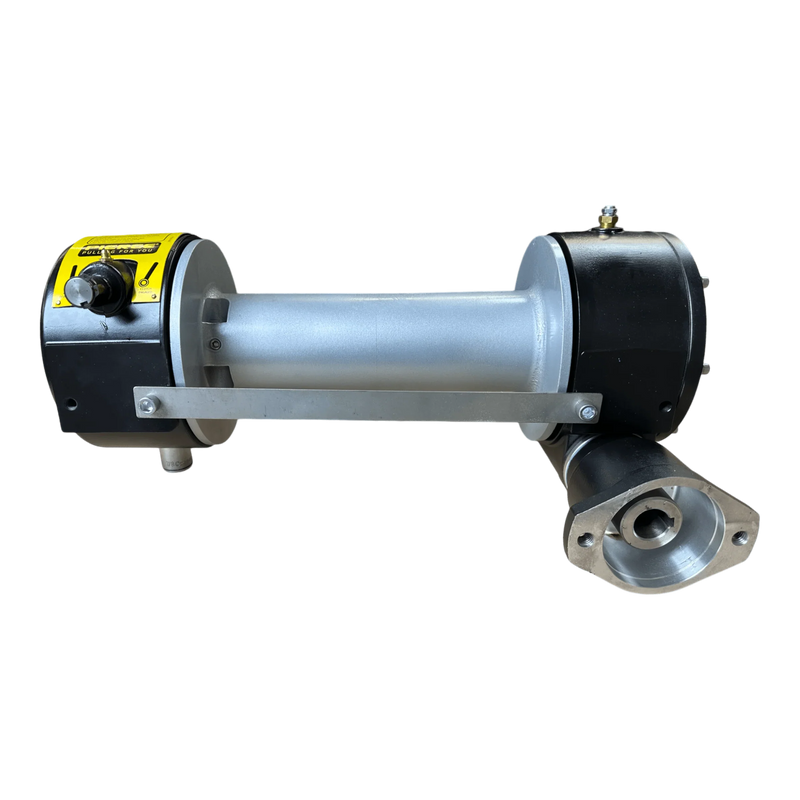

The PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount features black end caps, lever, and mounting bracket—ideal for industrial winching applications requiring up to 8,000 lbs. pulling capacity.

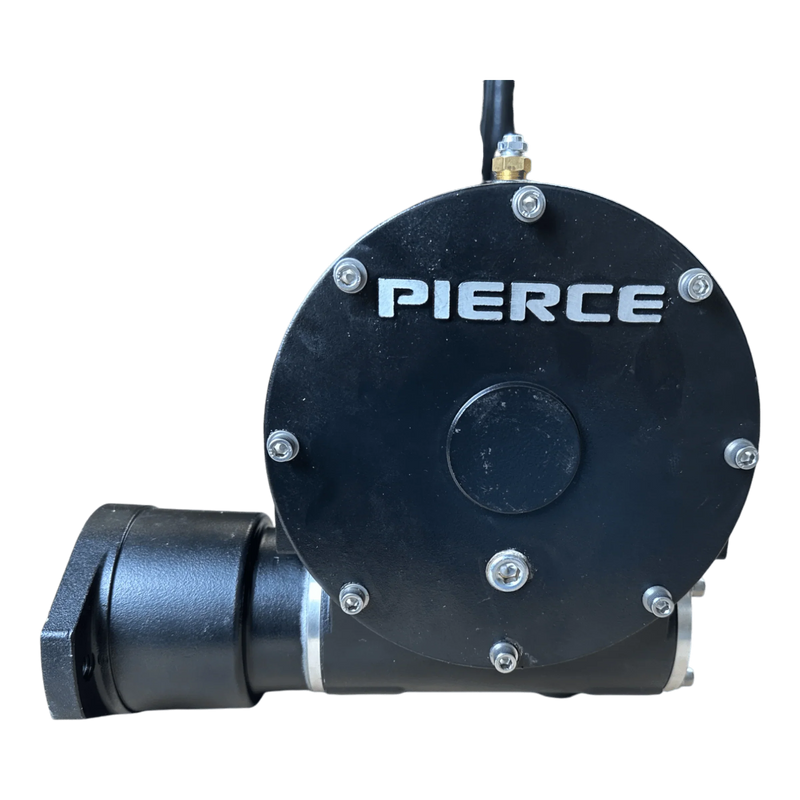

Black PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount features metallic bolts and a left-side cylindrical extension, built for demanding applications.

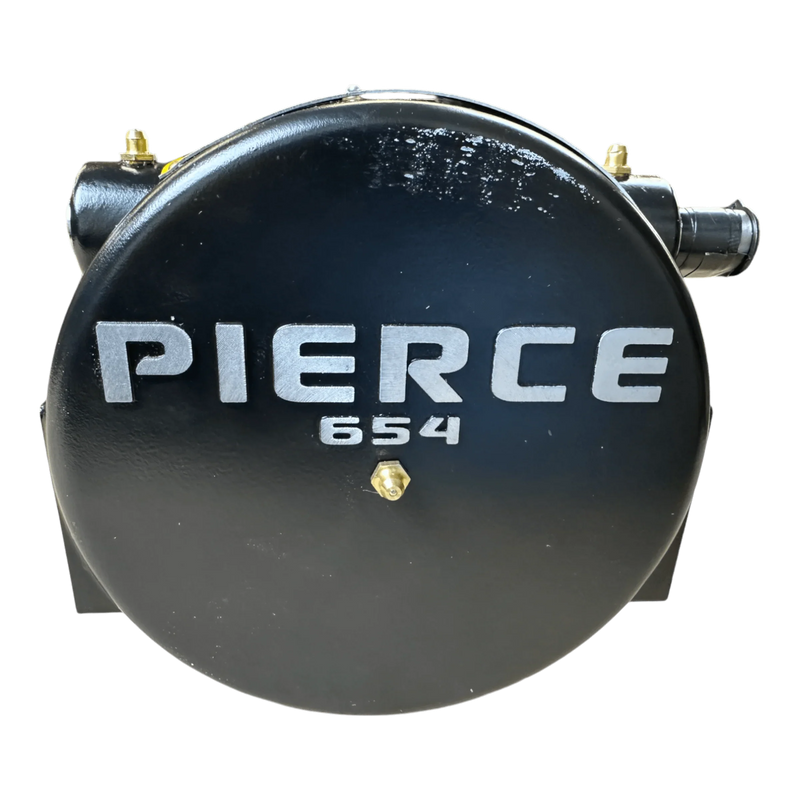

Front view of the PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount, black metal design with bold silver branding, built for heavy-duty 8,000 lb pulling capacity.

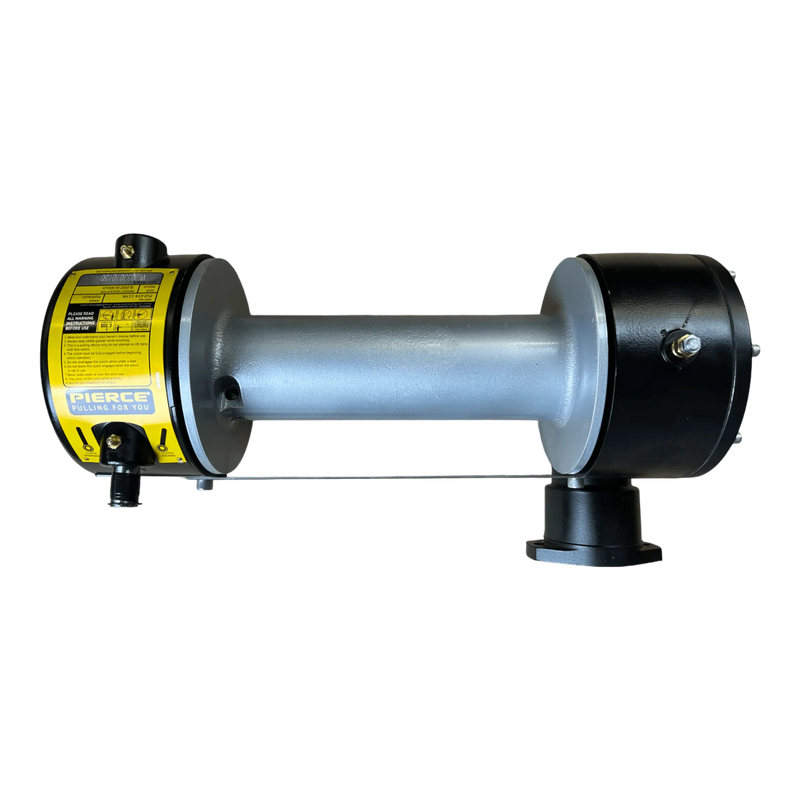

The PIERCE 8,000 lbs. 11" Drum Industrial Hydraulic Winch | Narrow Mount is shown in silver and black with a yellow label, featuring an 8,000 lb capacity and displayed on a white background.

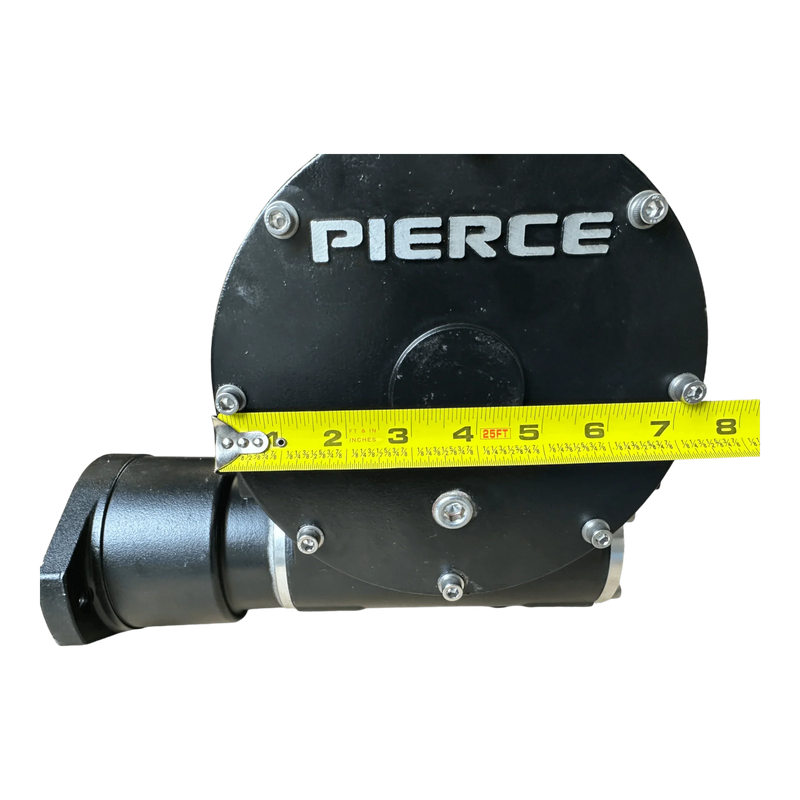

Black PIERCE industrial winch with an 11" drum, narrow mount design, and 8,000 lbs. capacity—ideal for heavy-duty tasks.
8,000 lb Hydraulic Worm Gear Winch | Narrow Mount
8,000 lb Hydraulic Worm Gear Winch | Narrow Mount

8,000 lb Hydraulic Worm Gear Winch | Narrow Mount

PSR654-11HK

$1,236.00

Out of Stock

The PSR654-11HK is an 8,000 lb hydraulic worm gear winch built around an industry-standard narrow mounting bolt pattern — the right answer when you need to drop a winch into a frame that's already been engineered for the narrow-mount footprint. 11 in drum, 4.8 in³ hydraulic motor, 2,000 psi.

What's the narrow mount pattern, and when do I need it?

Narrow mount uses a tighter bolt-pattern spacing than the standard PSW frame — fits installations where space between frame rails is limited. If your existing winch is already a narrow-mount unit, the PSR drops in without a custom mounting plate or frame modifications.

  • 8,000 lb rated pulling capacity
  • 4.8 in³ in/rev hydraulic motor
  • 2,000 psi operational pressure, 15 GPM max oil flow
  • Worm gear drive, 60:1 single-stage reduction
  • 12 fpm max line speed
  • Worm gear brake — mechanically self-locking, no clutch slip
  • Cast metal construction
  • 11 in drum (3.5 in × 11 in), holds 125 ft of ⅜ in wire rope
  • Narrow-mount bolt pattern (industry-standard)
  • Pierce SKU PSR654-11HK — built to order in 1–2 business days

For the standard-mount equivalent at higher 9,000 lb capacity, see the 9,000 lb Hydraulic Worm Gear Winch (11 in Drum). For tighter mounting space, see the 9,000 lb Hydraulic Worm Gear Winch (8 in Drum).

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE Limited Lifetime Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.
What's Included
Specifications
Max Capacity (lbs.)
8000
Power Source
Hydraulic
Series
Industrial
Max Line Speed
12 fpm
Max Oil Flow (gpm)
15.00
Operational Pressure (psi)
2000
Hydraulic Motor
4.8 in³ in/rev
Gear Type
Worm Gear
Gear Ratio
60:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅜ in. x 125 ft.
Clutch Type
Dog
Brake Type
Worm Gear Brake
Drum Size
3 ½ in. x 11 in.
Warranty
Videos (2)

8,000 lb Hydraulic Worm Gear Winch | Narrow Mount

8,000 lb Hydraulic Worm Gear Winch | Narrow Mount

Resources
FAQs (9)
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
Warranty
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
