Product Information

Characteristics

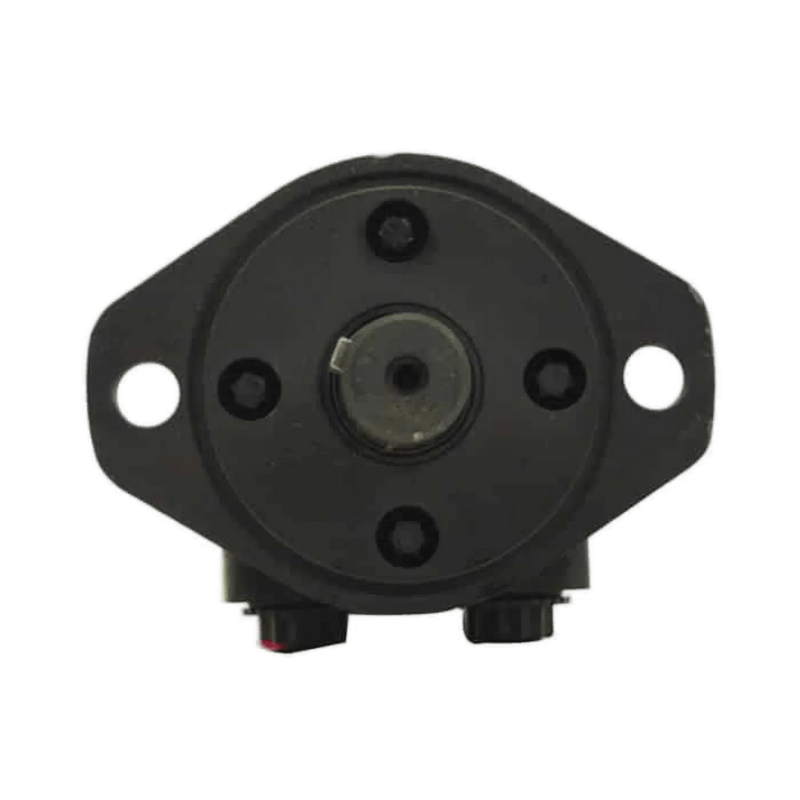

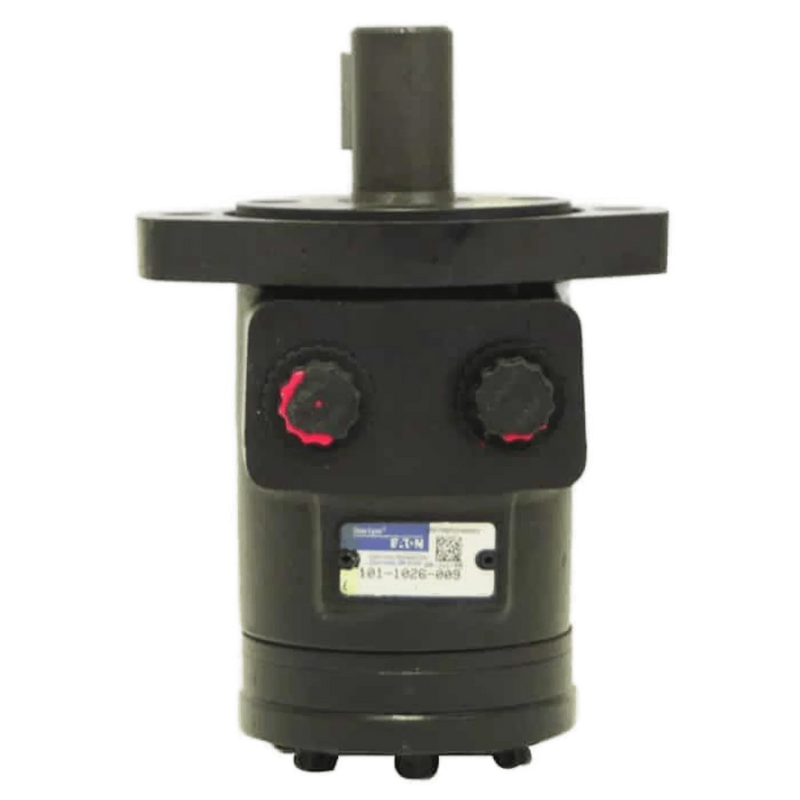

This 4.8 in. cubic hydraulic motor is used as a replacement hydraulic motor on PS654-HK winches.

PRODUCT SPECIFICATIONS:

  • Disp.4.8 in. / rev.
  • Motor Type: Gerotor
  • Pressure: 1,800 PSI (cont. )2,400 PSI (int.)
  • Torque: 1,044 in-lbs. (cont). 1,401 in-lbs. (int.)
  • Speed: 760 RPM (cont.) 904 RPM (int.)
  • Flow: 15 GPM (cont.) 18 GPM (int.)
  • Rotation: Reversible Mount
  • 2 bolt SAE A
  • Shaft: 1" dia. x 1-3/4" keyed
  • Ports:1/2" NPT
  • Size: 5-3/8" x 3-5/16" x 3-5/16"
  • Ship Weight: 13 lbs.

Resources

Characteristics

This 4.8 in. cubic hydraulic motor is used as a replacement hydraulic motor on PS654-HK winches.

PRODUCT SPECIFICATIONS:

  • Disp.4.8 in. / rev.
  • Motor Type: Gerotor
  • Pressure: 1,800 PSI (cont. )2,400 PSI (int.)
  • Torque: 1,044 in-lbs. (cont). 1,401 in-lbs. (int.)
  • Speed: 760 RPM (cont.) 904 RPM (int.)
  • Flow: 15 GPM (cont.) 18 GPM (int.)
  • Rotation: Reversible Mount
  • 2 bolt SAE A
  • Shaft: 1" dia. x 1-3/4" keyed
  • Ports:1/2" NPT
  • Size: 5-3/8" x 3-5/16" x 3-5/16"
  • Ship Weight: 13 lbs.

Hydraulic Motor | 4.8 Cubic Inches | Hydraulic Worm Gear Winches

Translation missing: en.products.product.sku:P004

Regular price
$400.00
Sale price
$400.00
Regular price
Shipping calculated at checkout.
