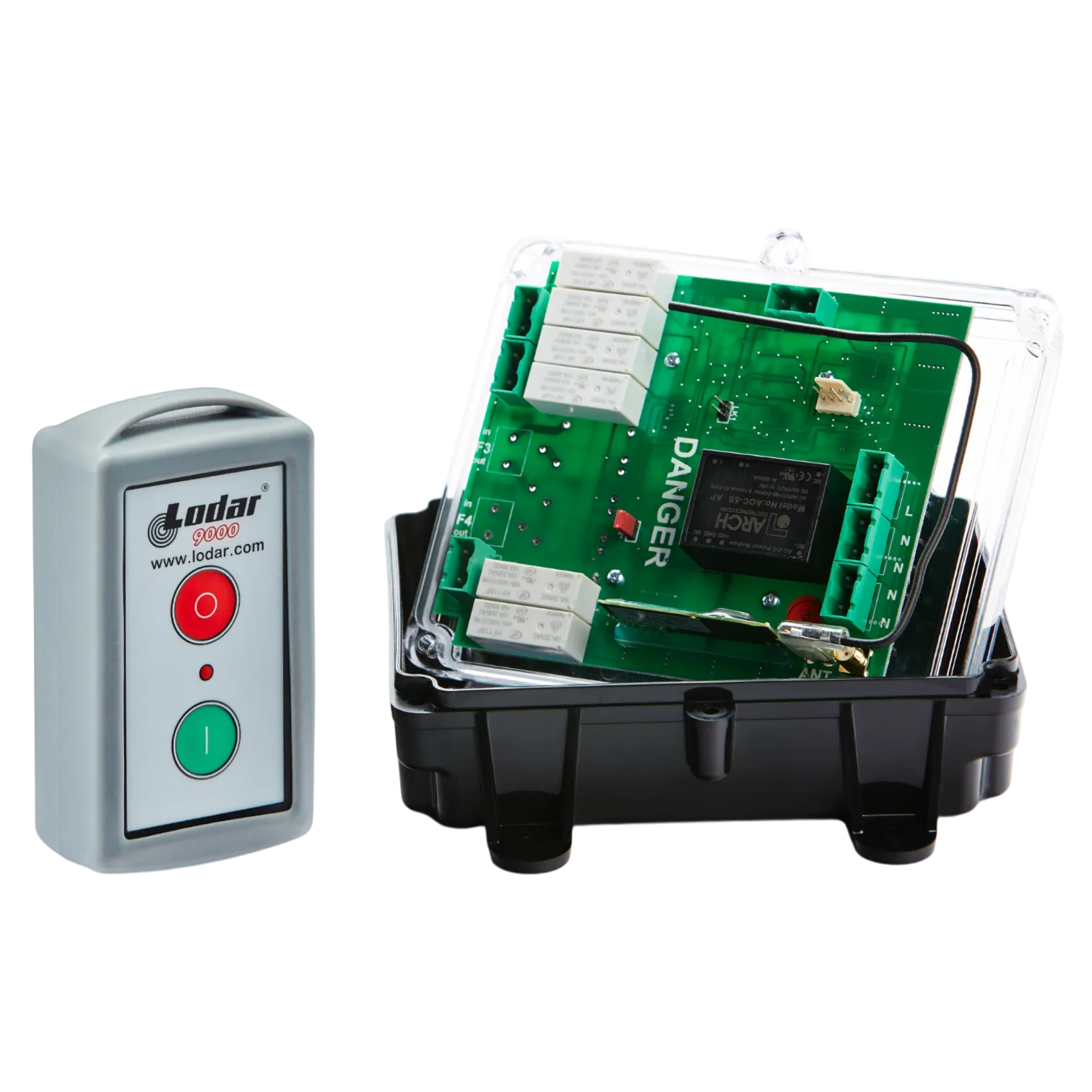

1 Function 110V Standard Wireless Control System | 96 Series | Relay Receiver
1 Function 110V Standard Wireless Control System | 96 Series | Relay Receiver
Description
Effortless One-Button AC Control
The 1 Function 110V Standard Wireless Control System (96 Series) delivers safe, simple on/off control for AC-powered equipment. Its rugged relay receiver and straightforward setup make daily operation smooth and predictable.
- Function: Single output for on/off control
- Receiver: 96 Series relay receiver for dependable switching
- Power: 110V AC
- Operation Modes: Wire as latched (toggle on/off) or momentary (only while pressed)
- Applications: Ideal where a basic wireless AC on/off is needed on jobsite or shop equipment
⚠️ Important: All 110V AC systems must be installed by a licensed electrician. Pierce Arrow cannot provide installation guidance for 110V AC systems.
Working with DC power instead? A comparable 1-Function DC system is available in the 92 Series.
Specifications
| Specification | Details |
|---|---|
| FUNCTIONS | 1 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 10 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Momentary or Latching |
| SWITCH TYPE | 12mm Dome Switch |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | 9V x 1 |
| TRANSMITTER IP RATING | IP 54 |
