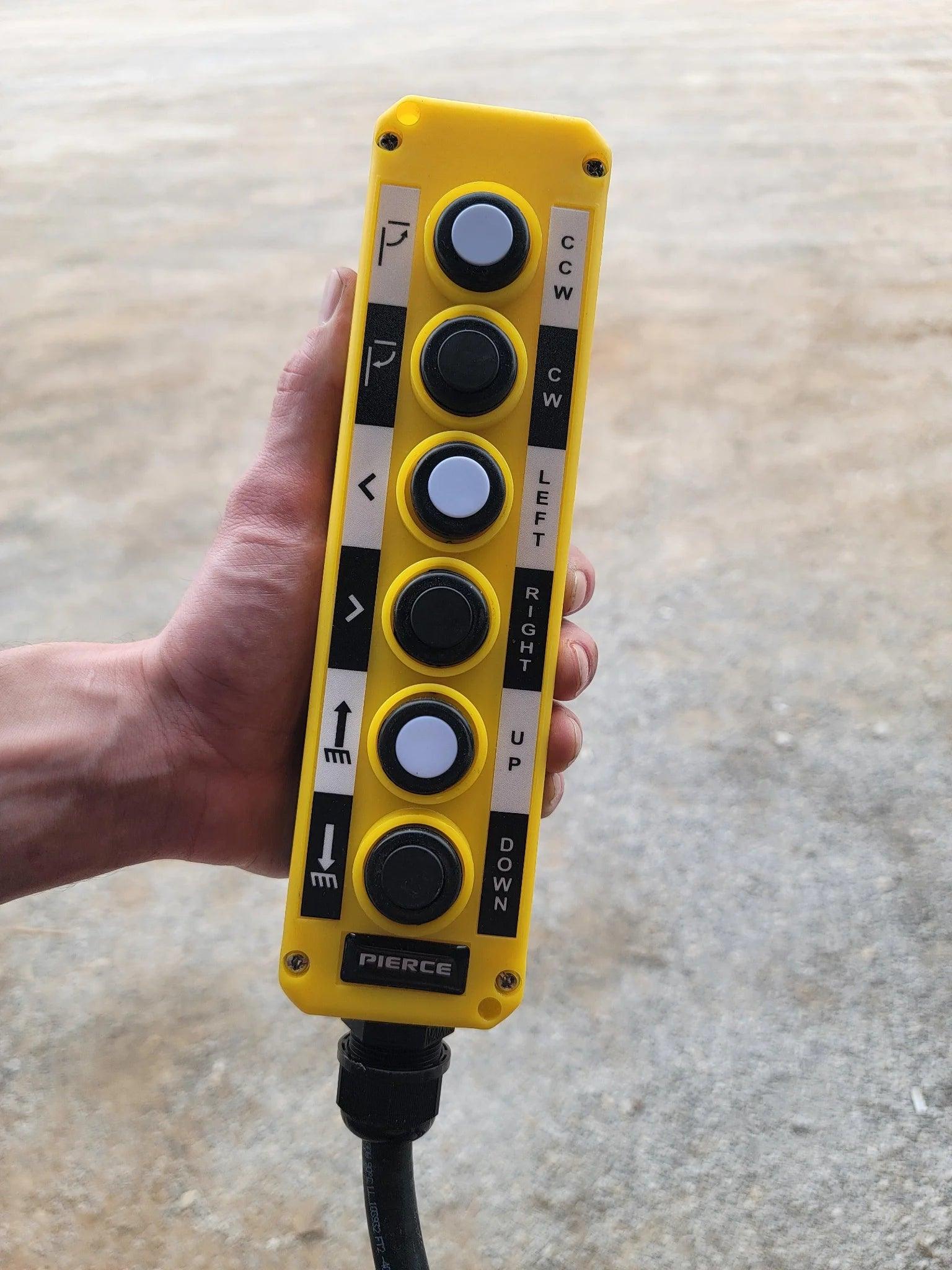

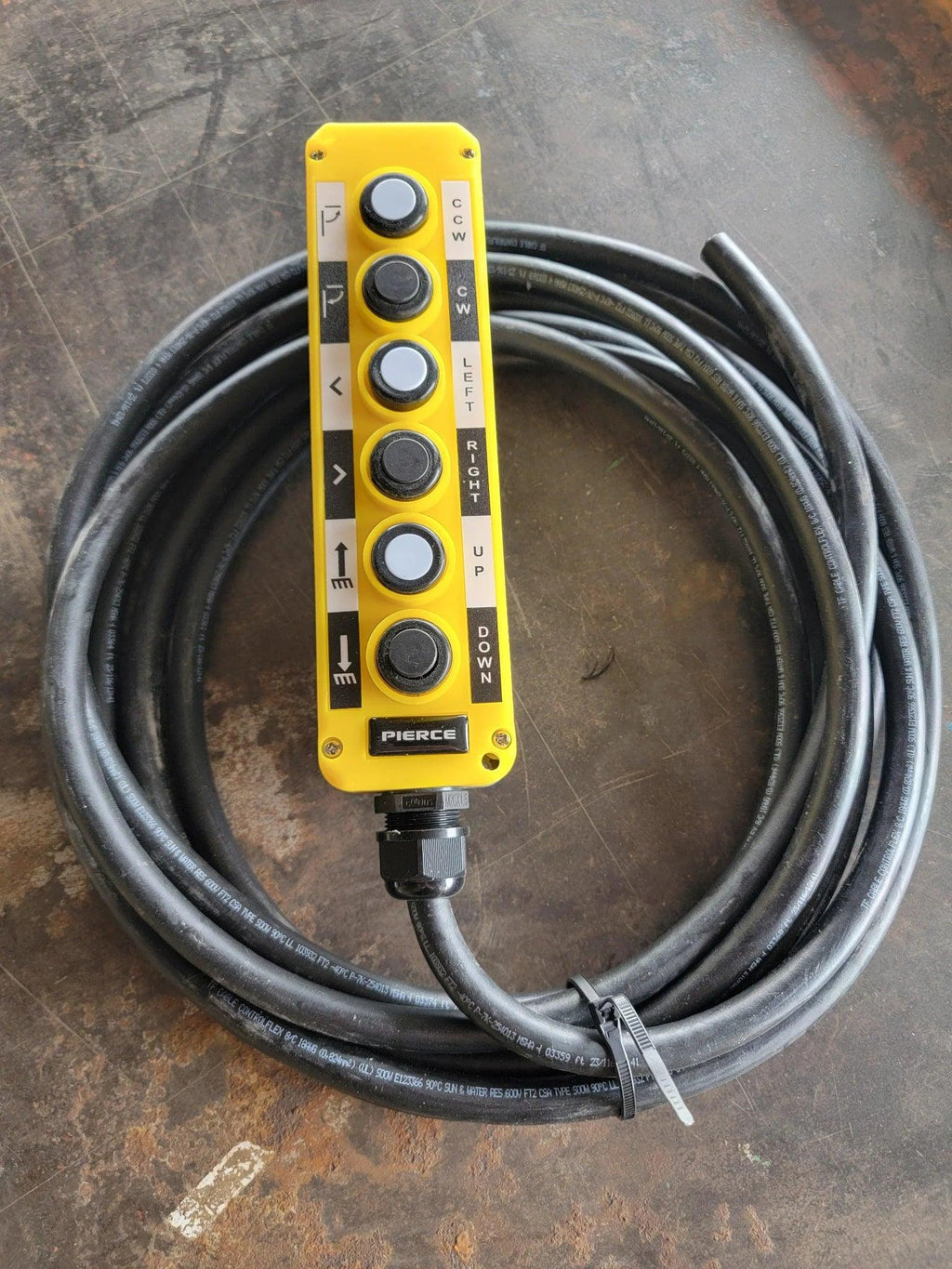

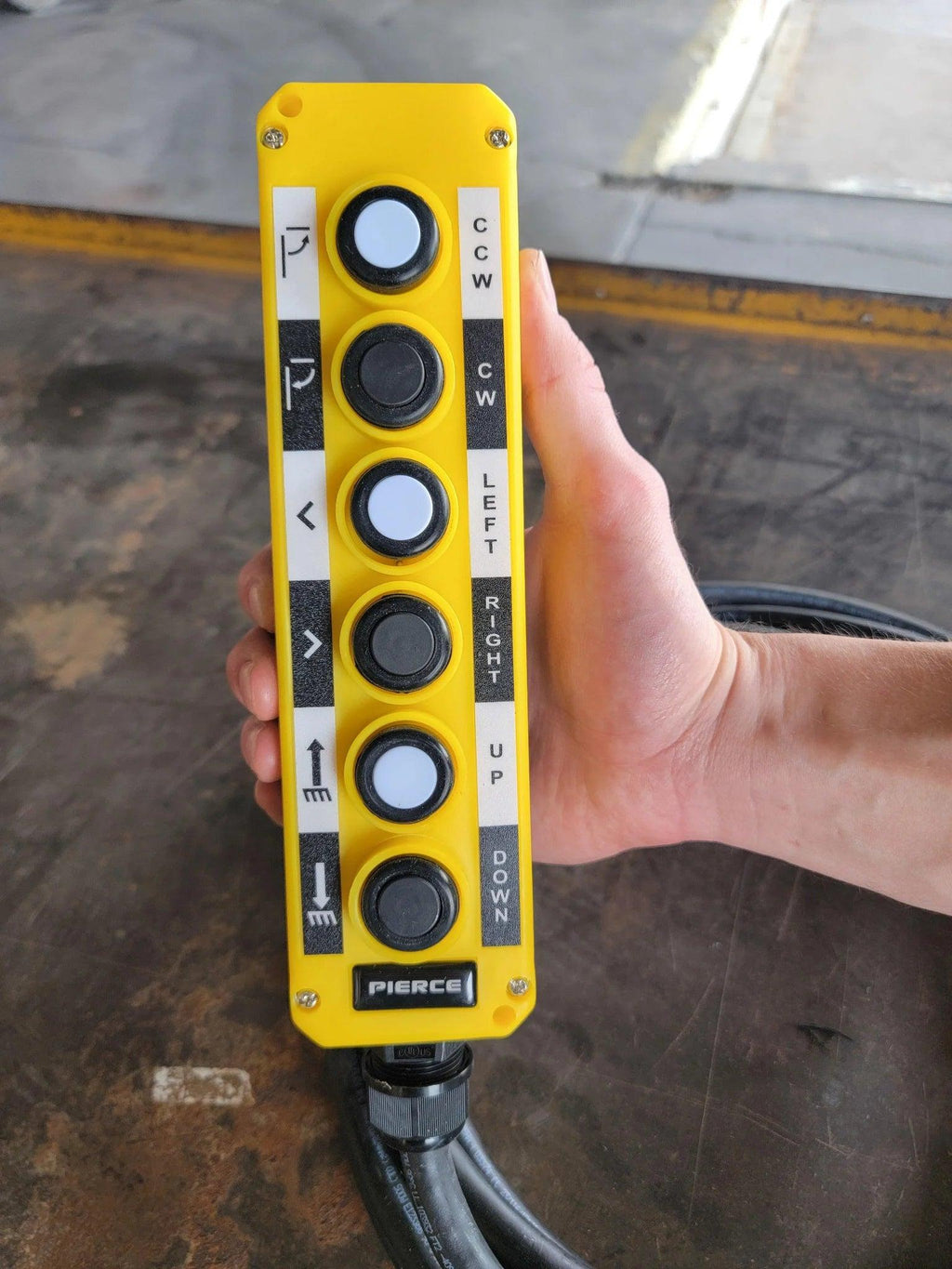

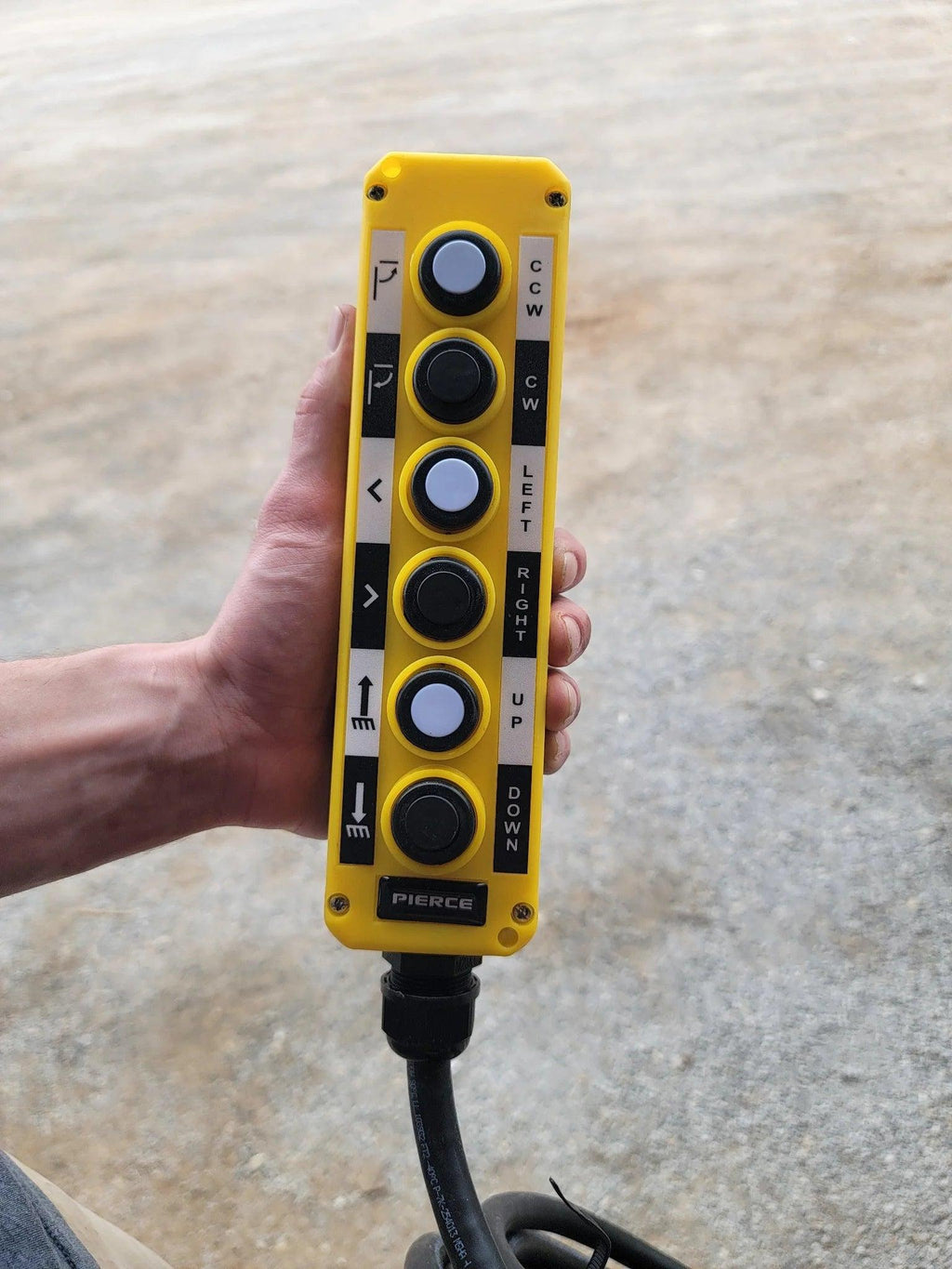

PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord

PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord

CP079K
$98.00
In Stock

Pendant Control Features

This pendant control system works with 6 function 12/24V solenoid operated equipment. This remote offers master function required for many hydraulic applications that utilize a motor start feature.

The PIERCE Universal momentary pendant control is water resistant and has the following features:

  • Momentary switching
  • Interlocking Buttons
  • Made of polypropylene
  • Double pole, double throw
  • Eliminates Need for Diodes
  • Master Output

Specifications

  • Use 16 -18 gauge wire for all connections
  • 12 or 24V
  • 15 amp max

Warranty

  • 1 Year Warranty

Momentary Pendant Control Customization

  • Customization is available upon request. (Call For Pricing) 800-658-6301

More Information
PIERCE 1 Year Warranty icon

PIERCE 1 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

Universal Momentary Controls Options:

The PIERCE Universal Momentary Controls provide an excellent way to control almost any 12-volt application. Each function can trigger the master output upon activation making these a favorite for anyone operating dump trailers, ag equipment, waste relocation, and more. Manufacturers and hobbyists alike have found this series to be reliable, affordable, and easy to fit into their applications.
PIERCEs Universal Momentary Pendant Control features two buttons labeled UP and DOWN, a side black connector cable, and is perfect for industrial use.
2 Button - Pendant Only CP077
-($81.00)
Asetek Enterprise Company LTD's Universal Momentary Pendant Control - 4 Button features a yellow panel with four labeled buttons (UP, DOWN, IN, OUT) and a black coiled connector. Perfect as a universal controller or for industrial hydraulic power packs.
4 Button - Pendant Only CP078
-($72.00)
The Asetek Enterprise Company LTD Universal Momentary Pendant Control - 6 Button features six clearly labeled black and white buttons for directional movement, making it ideal as a replacement pendant for hydraulic power units. Connector included.
6 Button - Pendant Only CP079
-($55.00)
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord - PIERCE
2 Button - 20 ft Wire CP077K
-($35.00)
The PIERCE Universal Momentary Pendant Control features four buttons and a 20ft cord with exposed color-coded wires and magnets, ideal for managing solenoid-operated equipment. Brand: PIERCE.
4 Button - 20 ft Wire CP078MK
-($12.00)
PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord - PIERCE
6 Button - 20 ft Wire CP079K
What's Included
Specifications
Functions
6
Operating Voltage
12/24 Volts DC
Master Output
Yes
Max Amps
15
Recommended Wire
16-18 gauge
Wiring Included

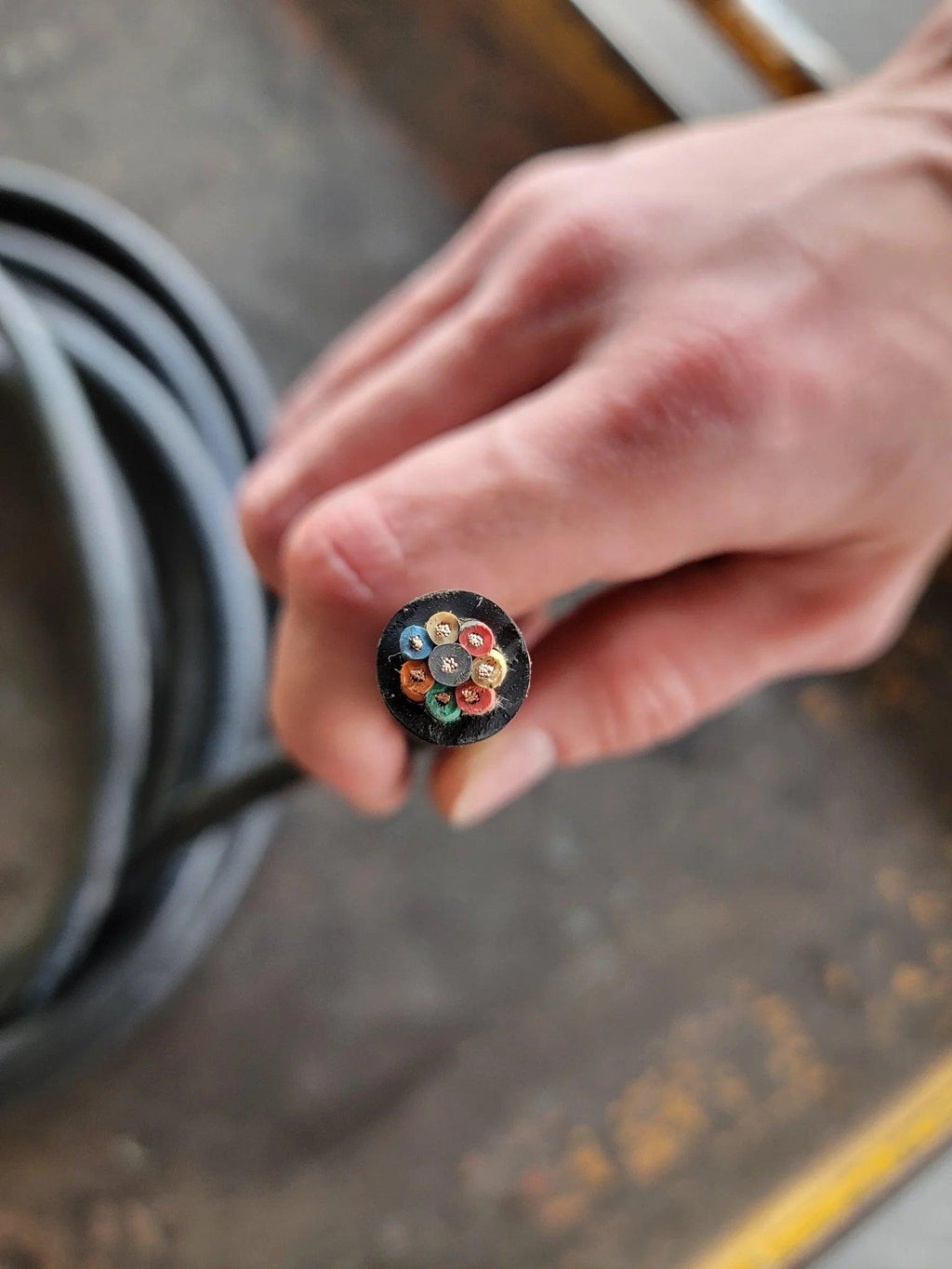

20 ft. 8 core cable with ring terminals
Switch Type
Momentary - Push Button - Double Pole / Double Throw
Warranty
PIERCE 1 Year Warranty
