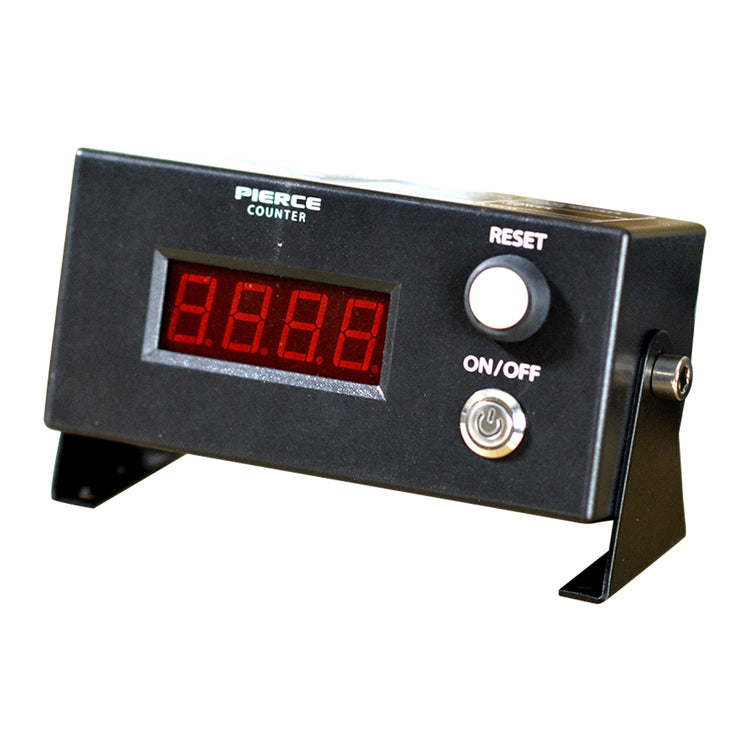

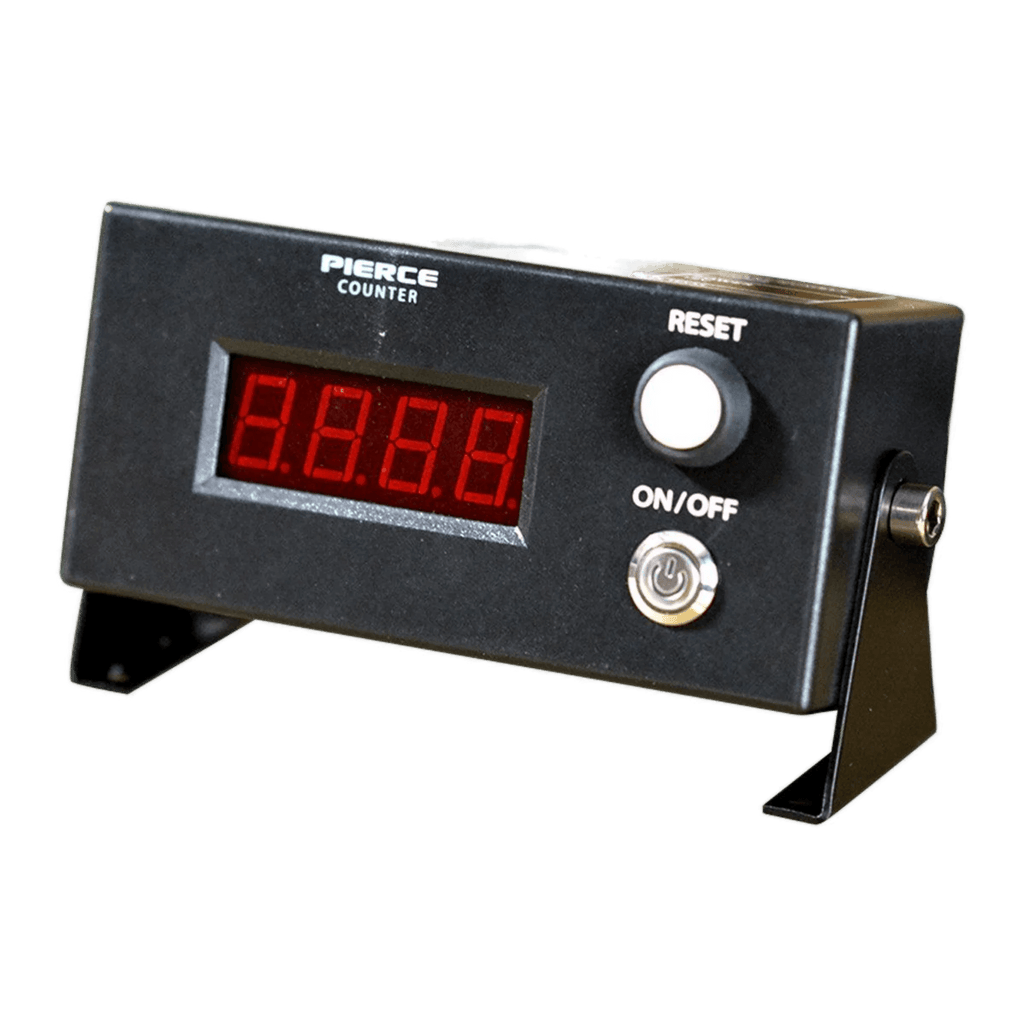

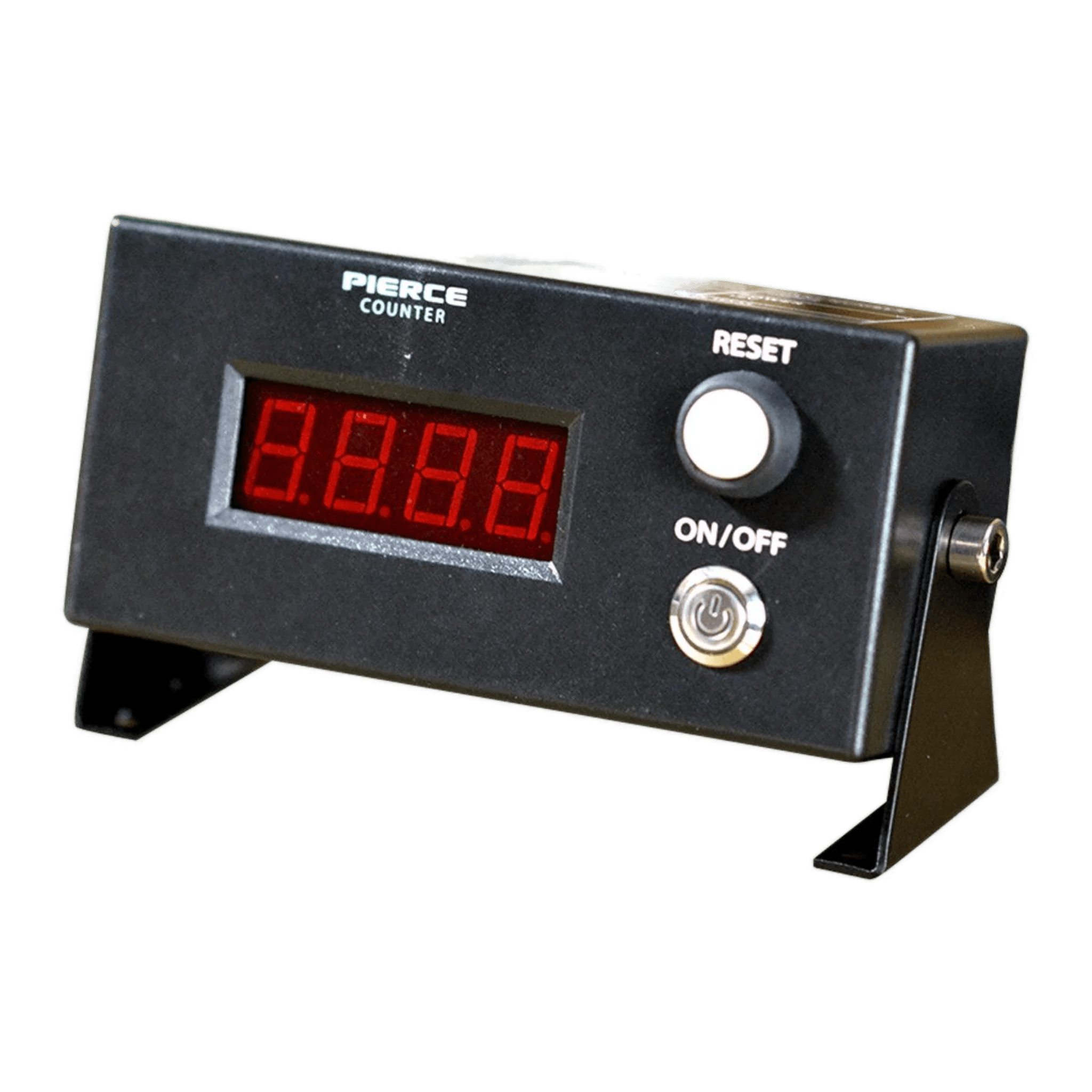

  • The Cattle Cube Counter by PIERCE includes a digital counter with a red LED screen, reset button, and on/off switch, designed to streamline operations and manage feeding costs efficiently.

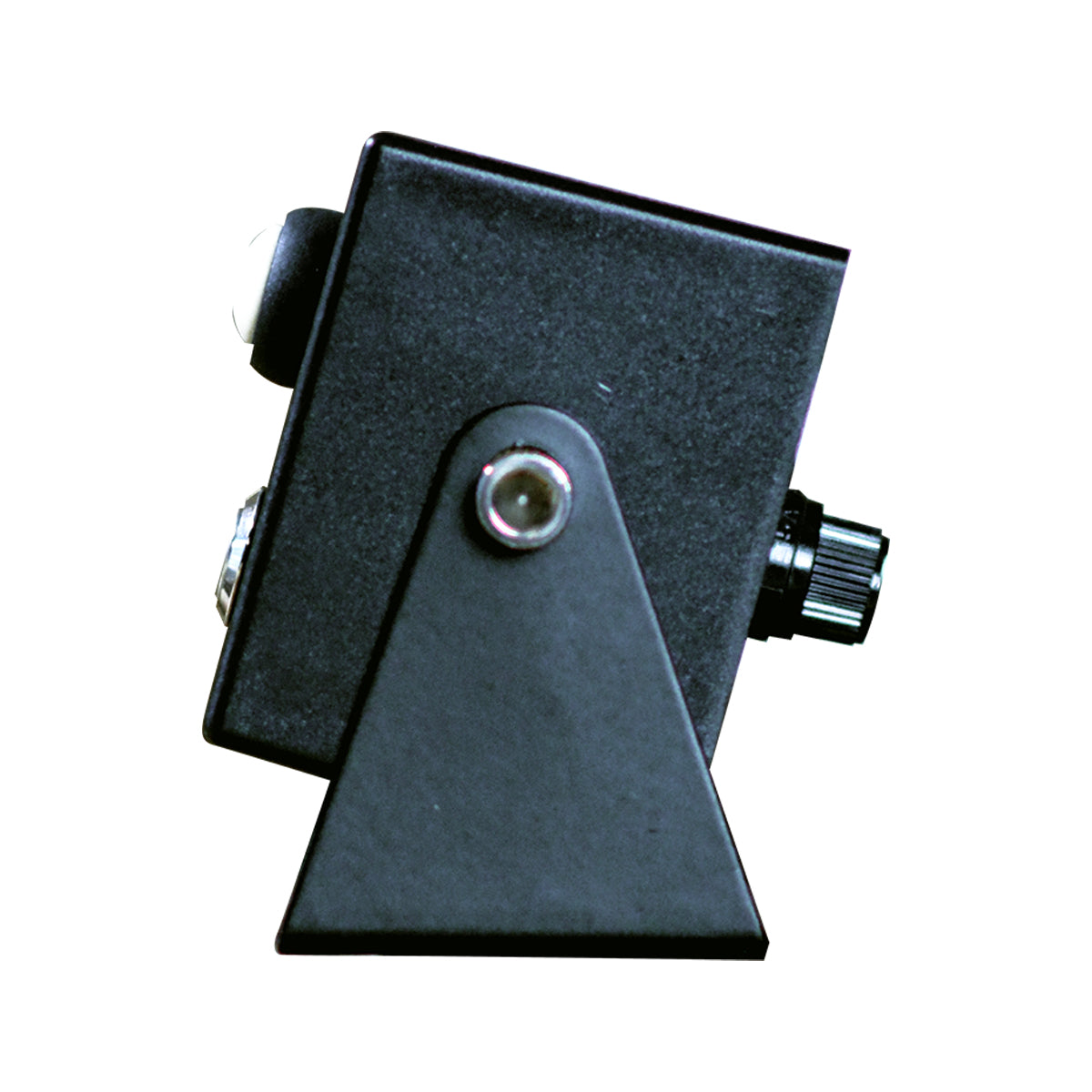

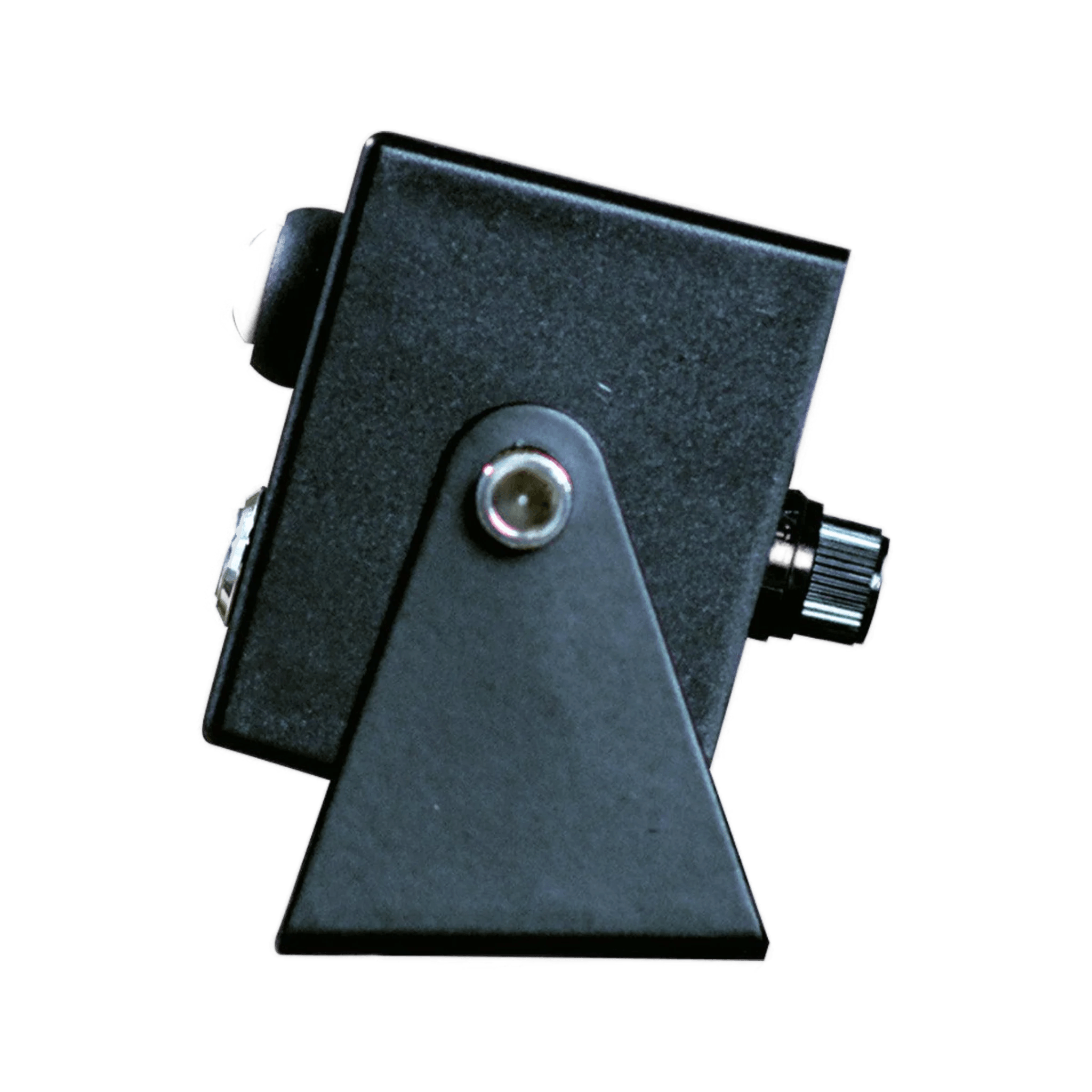

  • A Cattle Cube Counter by PIERCE, a compact black electronic device featuring knobs, an LED screen, and connectors mounted on a triangular metal bracket displayed against a white background.

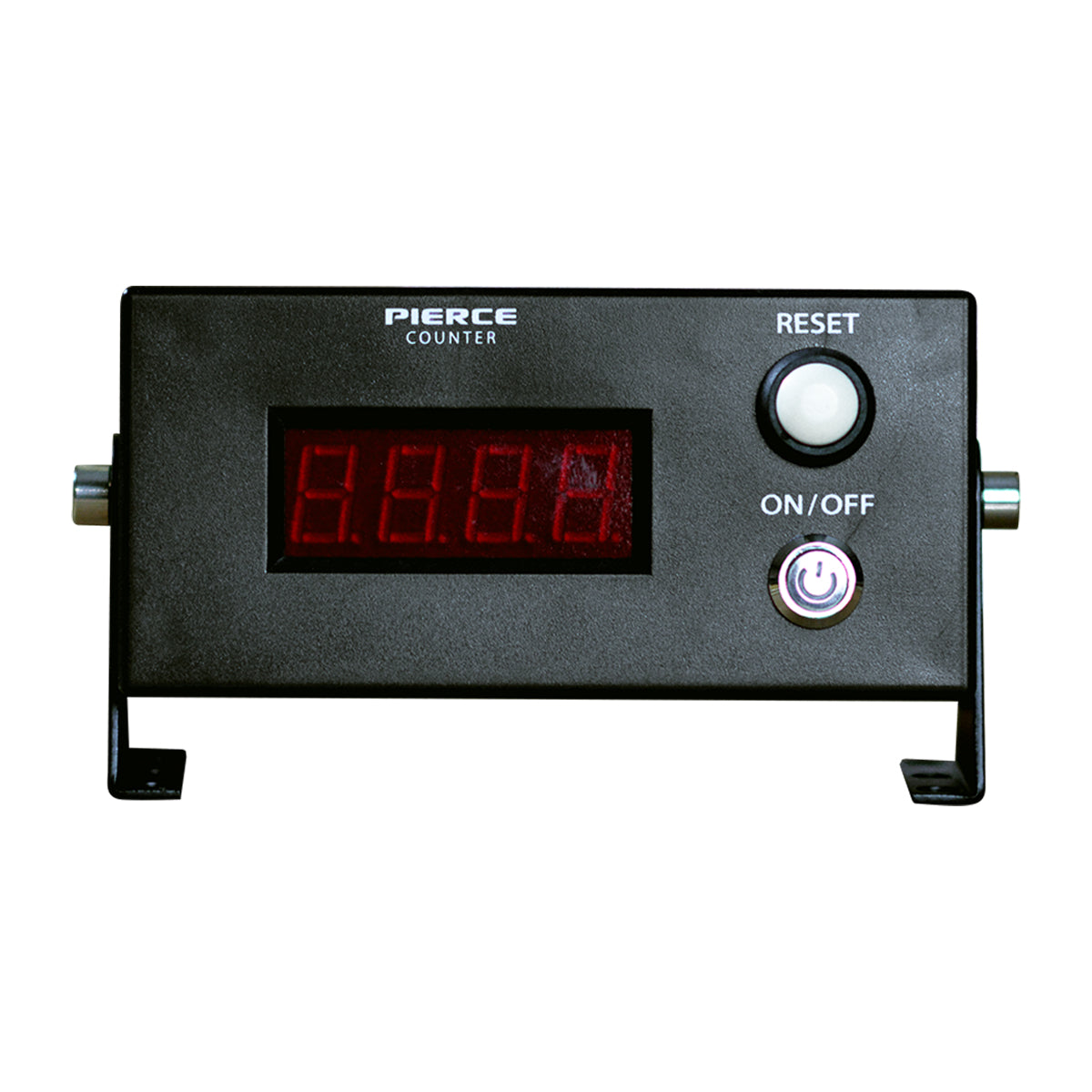

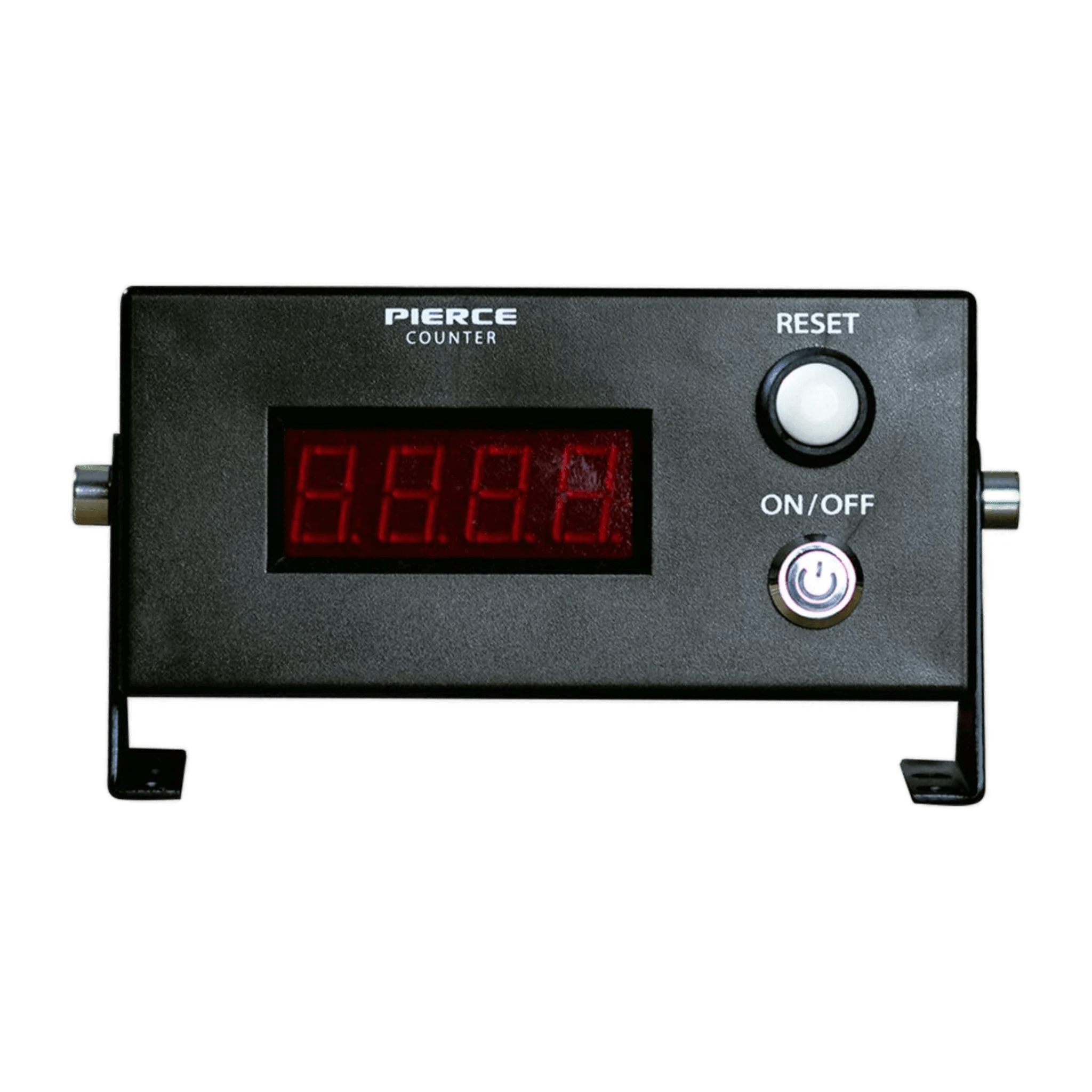

  • The Cattle Cube Counter by PIERCE features a digital interface with an LED display, clearly labeled as the Pierce Counter. It is equipped with user-friendly buttons for reset and on/off, offering effortless tracking of feeding costs.

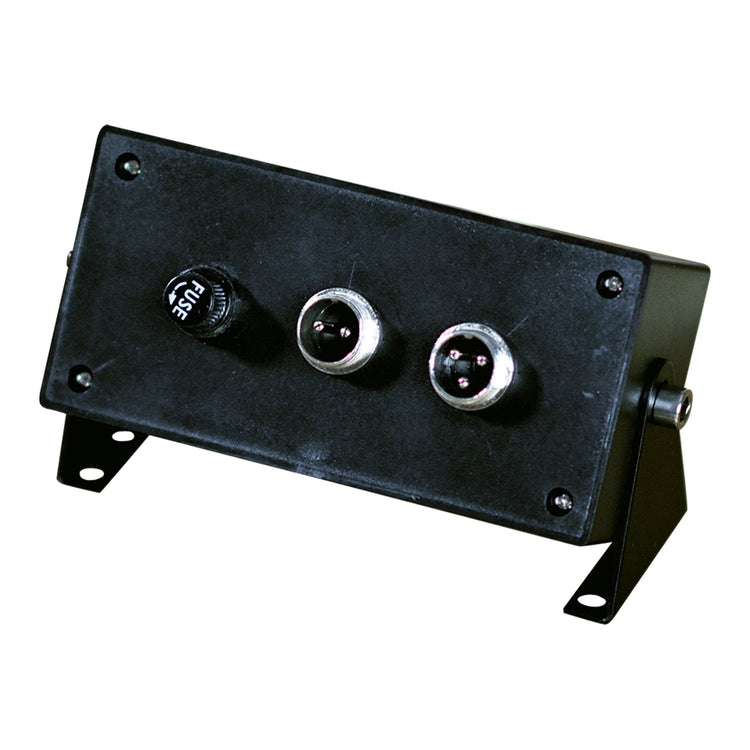

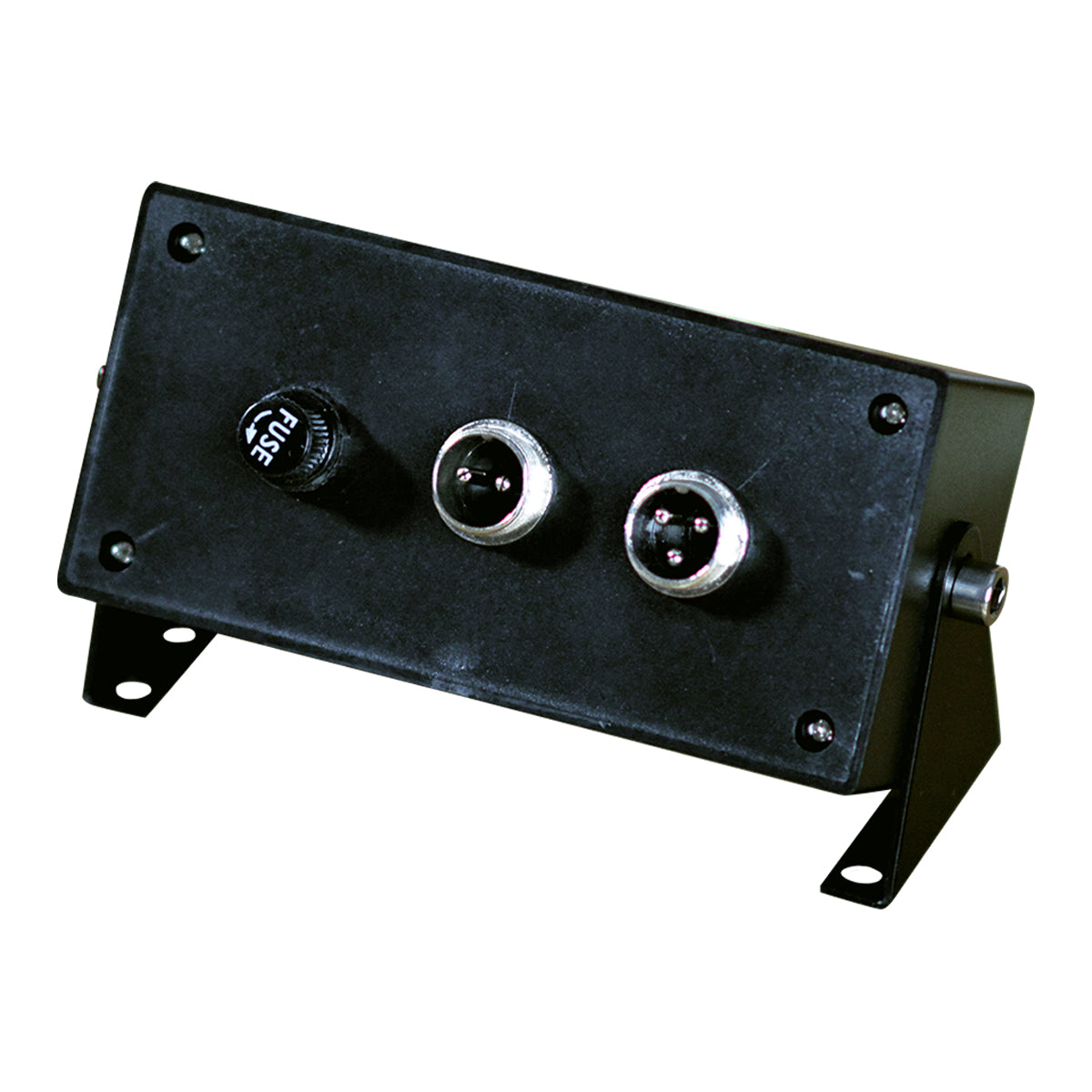

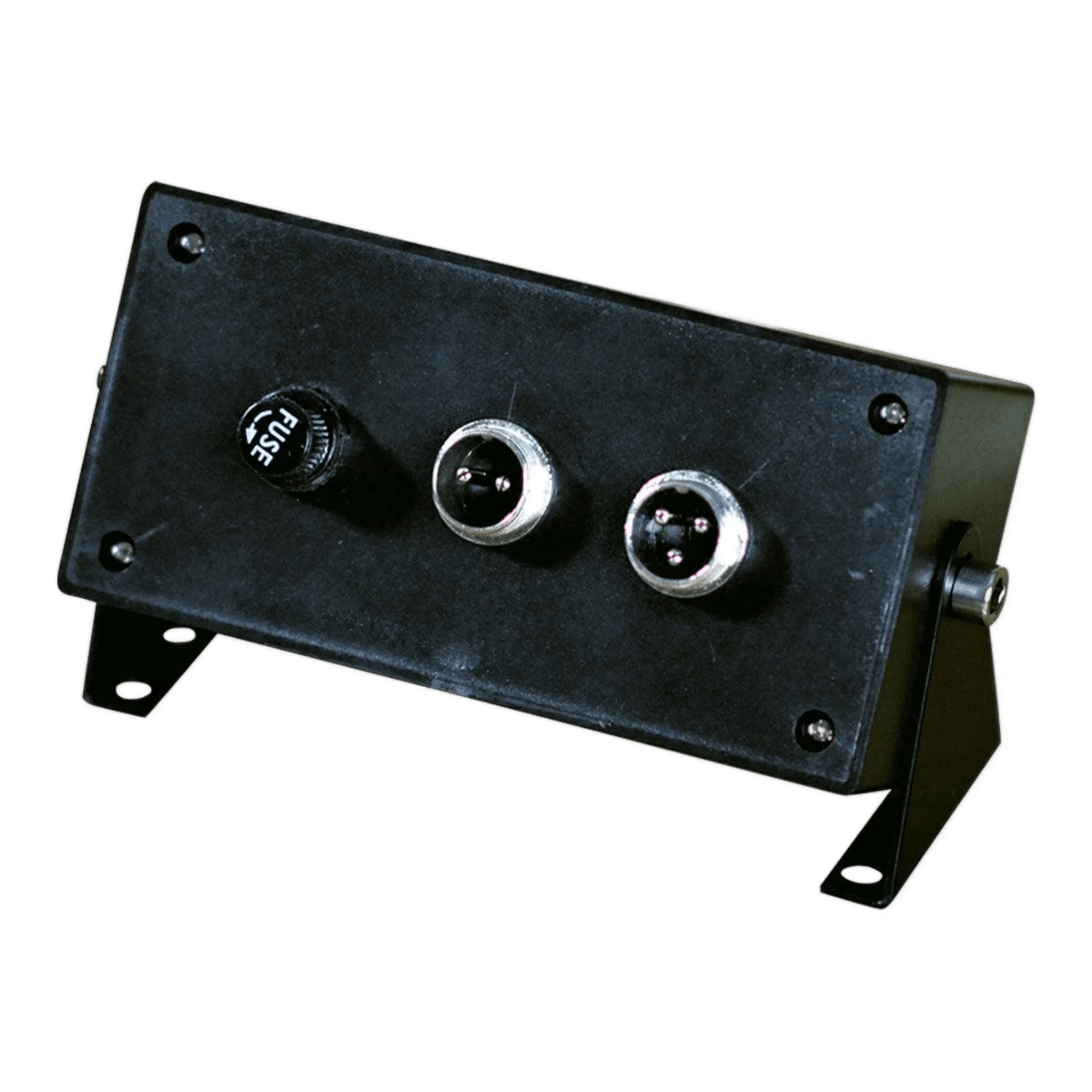

  • The Cattle Cube Counter by PIERCE, now featuring an LED screen, is a sleek black electronic box equipped with two circular connectors and a fuse for enhanced functionality.

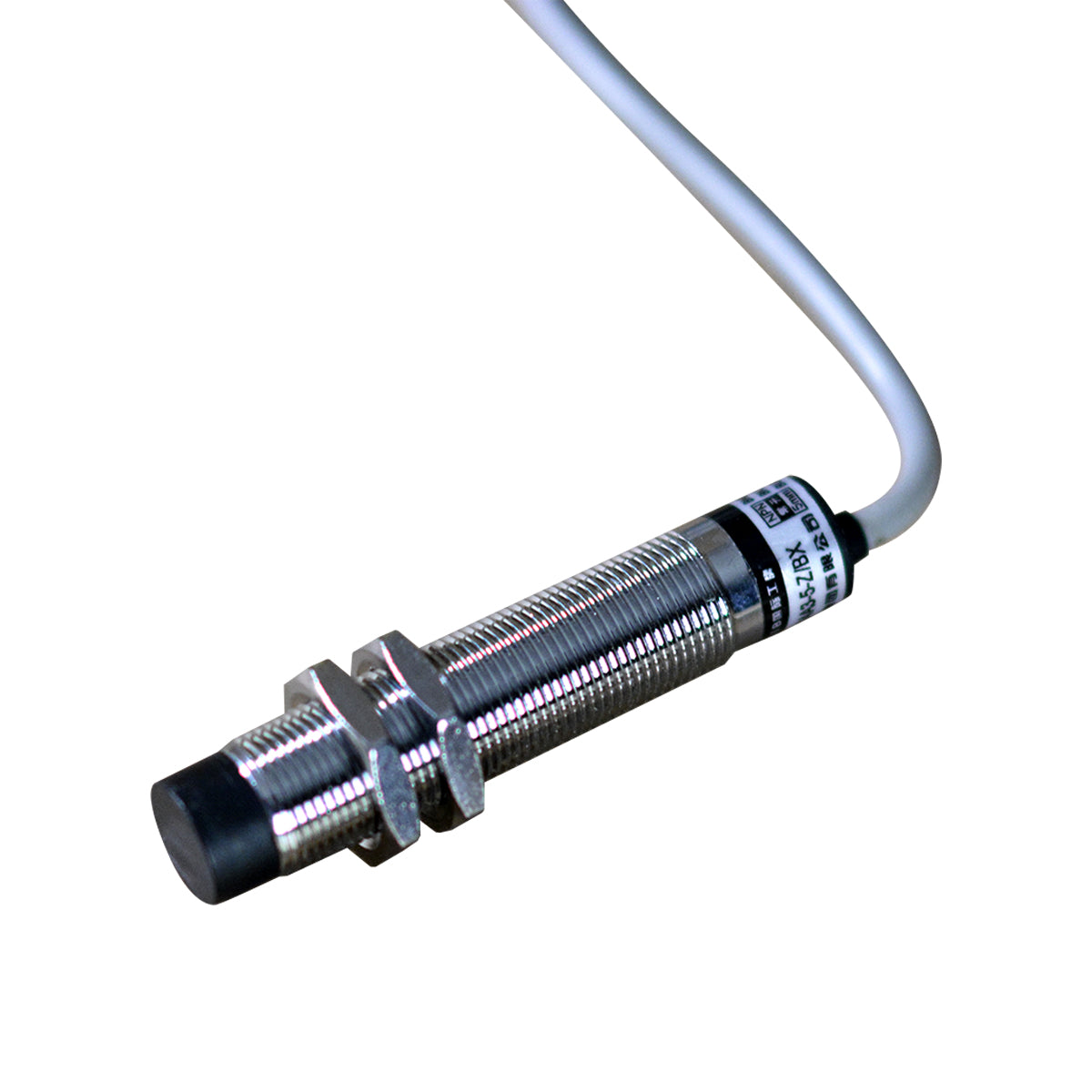

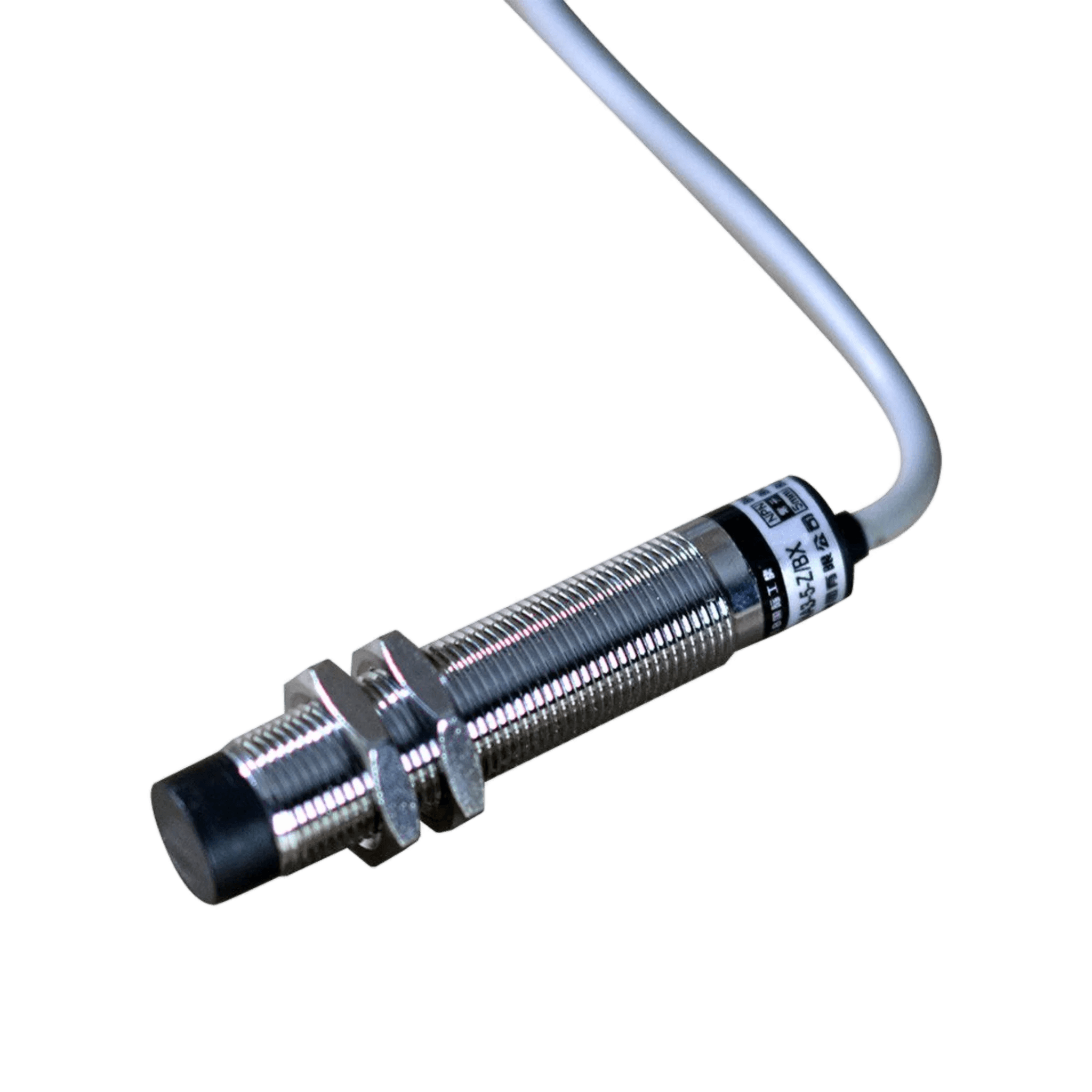

  • Close-up of a cylindrical metal proximity sensor with a cable attached, seamlessly integrated into the Cattle Cube Counter system by PIERCE to optimize feeding costs.
  • The Cattle Cube Counter by PIERCE includes a digital counter with a red LED screen, reset button, and on/off switch, designed to streamline operations and manage feeding costs efficiently.
  • A Cattle Cube Counter by PIERCE, a compact black electronic device featuring knobs, an LED screen, and connectors mounted on a triangular metal bracket displayed against a white background.
  • The Cattle Cube Counter by PIERCE features a digital interface with an LED display, clearly labeled as the Pierce Counter. It is equipped with user-friendly buttons for reset and on/off, offering effortless tracking of feeding costs.
  • The Cattle Cube Counter by PIERCE, now featuring an LED screen, is a sleek black electronic box equipped with two circular connectors and a fuse for enhanced functionality.
  • Close-up of a cylindrical metal proximity sensor with a cable attached, seamlessly integrated into the Cattle Cube Counter system by PIERCE to optimize feeding costs.
Cattle Cube Counter

Cattle Cube Counter

PSDCK
$201.00
Out of Stock

The PIERCE cattle cube counter is the perfect solution for eliminating wasteful feeding and monitoring feeding costs. With its LED screen and ability to count up to 9,999, this counter easily mounts to your feeder. It also features easy plug in connections and can be used with both trip and auger style counting methods. Please note, some modifications may be needed to fit your specific feeder model.
Specifications
Sensor Ampere
200 mA
Sensor Voltage
12-24V DC
Sensor Waterproofing
IP67 (water, oil, and vibration-proof)
Sensor Cord Length
20' (6.1 m)
Sensor Range
5 mm
Sensor Wire Type
3 wire (DC, NPN, output)
Sensor Temp Rating
-13ºF - 163ºF (-25ºC - 75ºC)
Digital Box Screen
LED Screen
6-15V DC
<30 mA
Counts up to 9,999
Digital Box Dimensions
4.9" x 2.38" x 2.75"
Digital Box Weight
2.5 lbs.
Digital Box Fuse
AGC Type
20 Amp
32V DC Max
Digital Box Reset Button
0.25" Push-on Terminal
UL listed and CSA certified
SPST Circuit Arrangement (Off - On)
Rated 3A/240V AC, 6A/120V AC
Resources

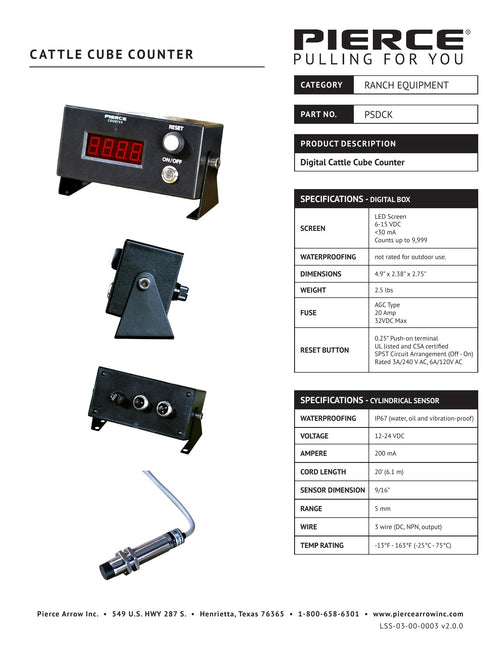

PSDCK Spec Sheet Spec Sheet
