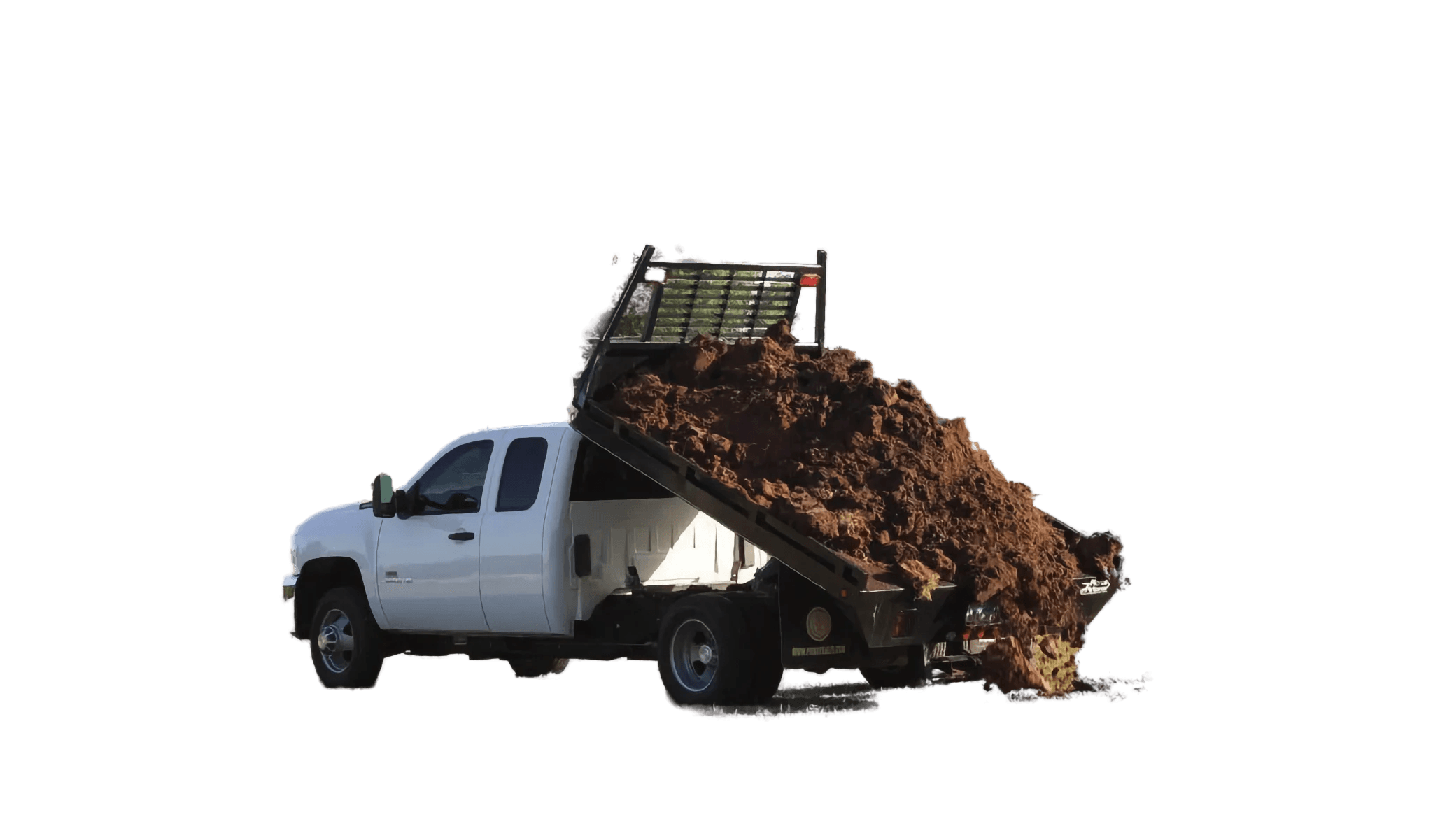

  • A white truck equipped with the PIERCE Light Duty Flat Bed Dump Kit unloads dirt onto a grassy field under a clear sky.

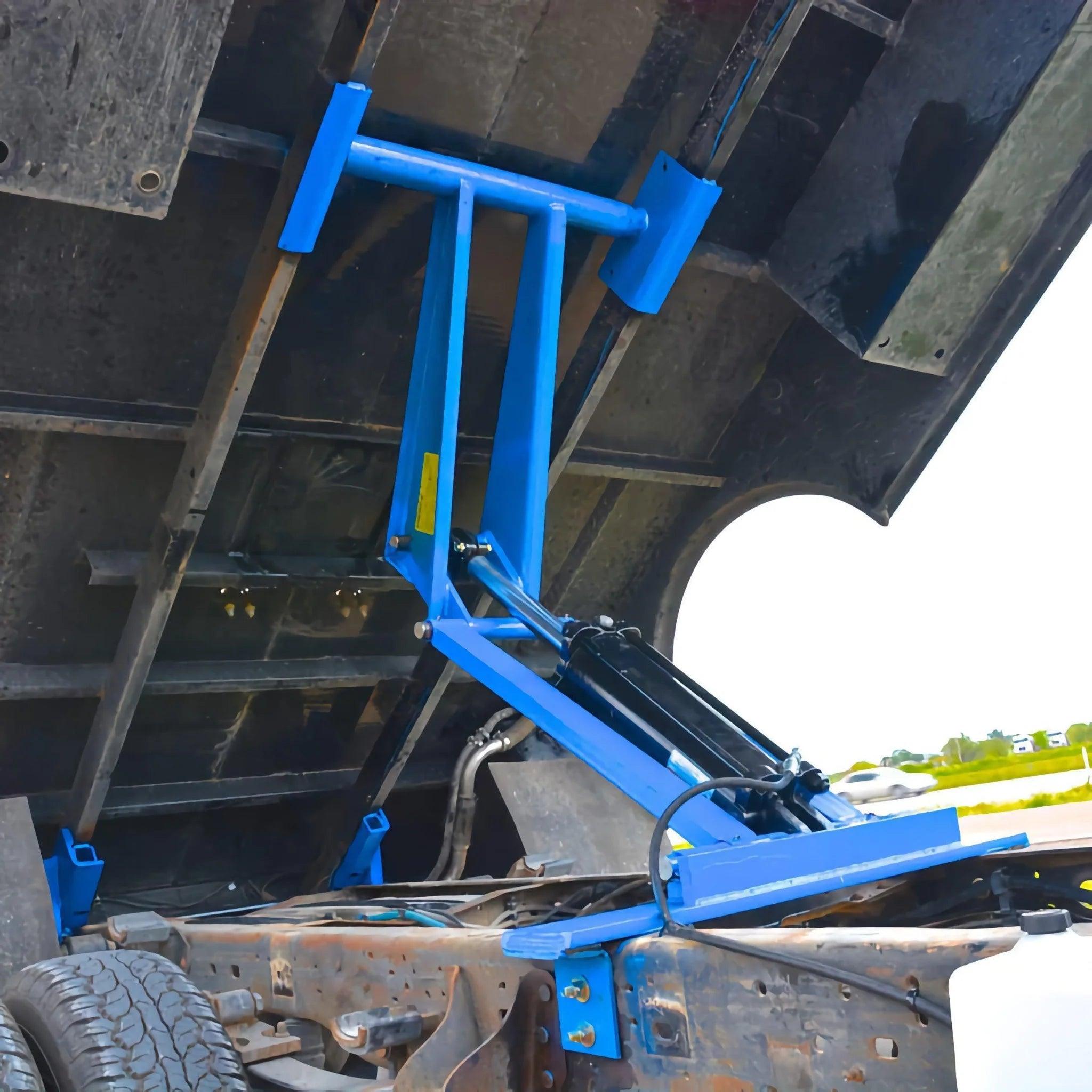

  • The PIERCE Light Duty Flat Bed Dump Kit lifts the bed of a dump truck, providing easy access to the truck’s undercarriage.
  • PIERCE Flat Bed Dump Kit 5T Customer Testimonial
  • A PIERCE Light Duty Flat Bed Dump Kit-equipped white dump truck uses its hydraulic system to unload a large pile of dirt onto the ground.

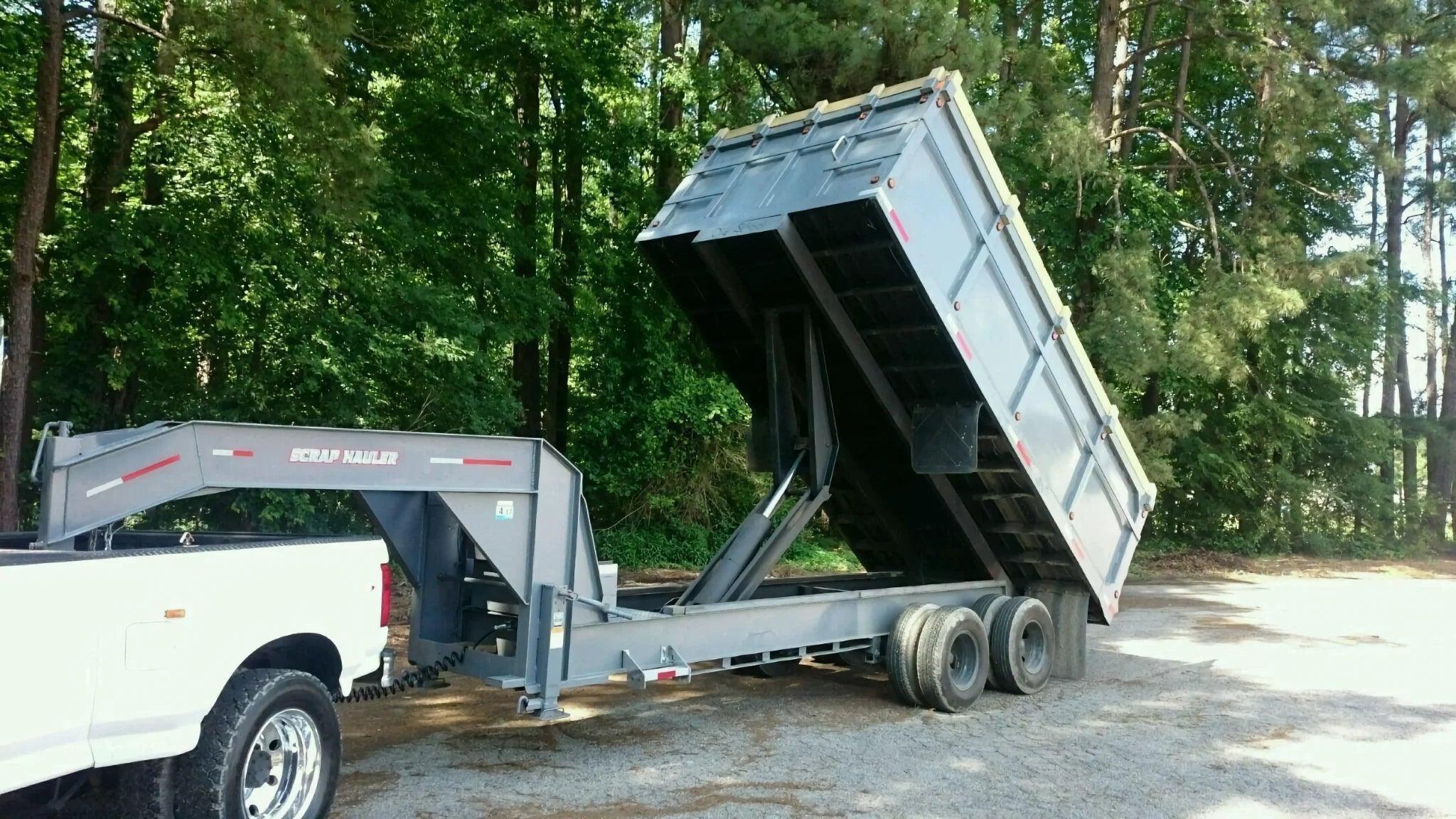

  • A white truck equipped with a PIERCE Light Duty Flat Bed Dump Kit is tilted up to unload materials and is parked near trees.

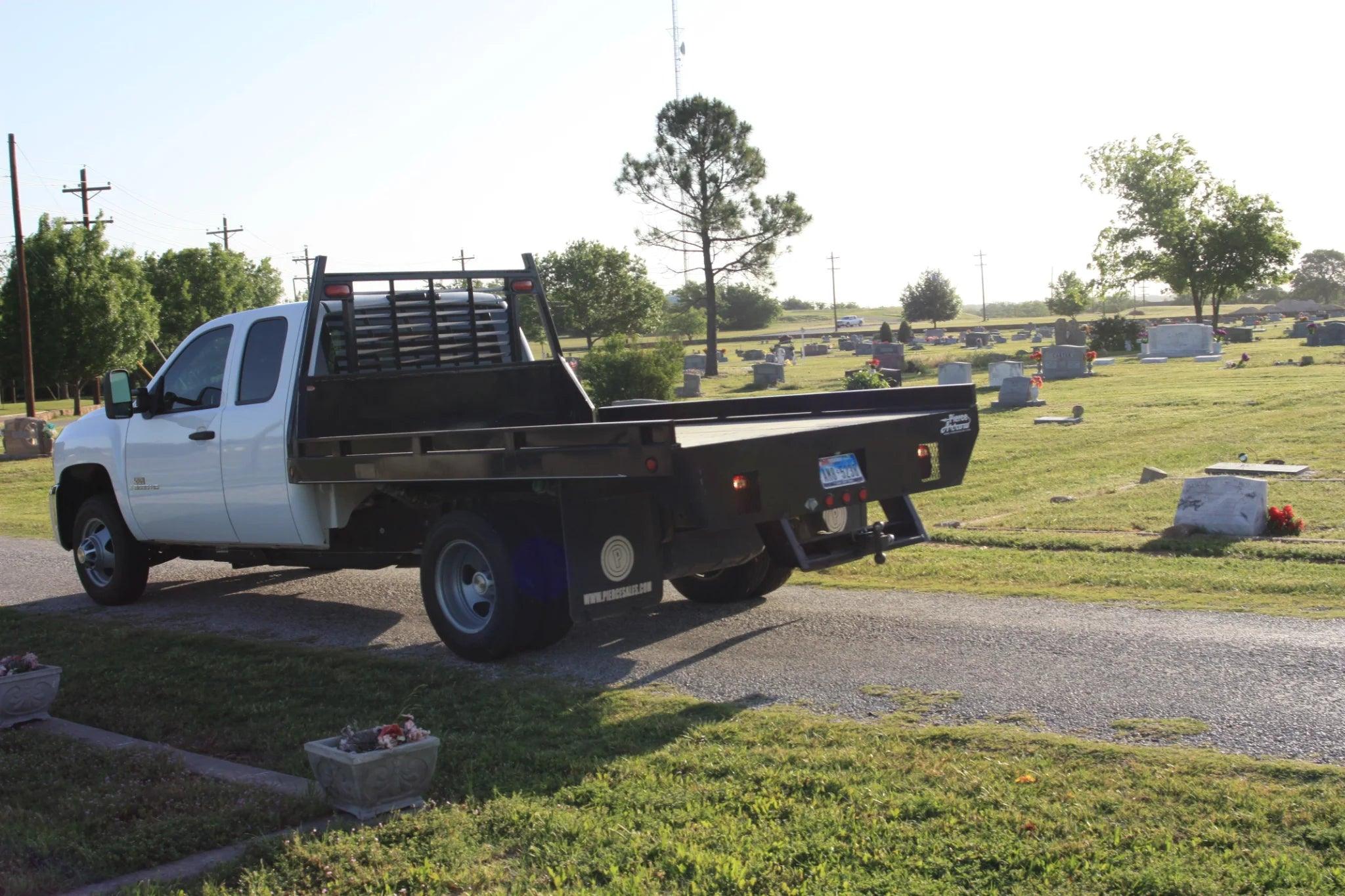

  • A white flatbed truck featuring the PIERCE Light Duty Flat Bed Dump Kit is parked on a road in a cemetery on a sunny day.

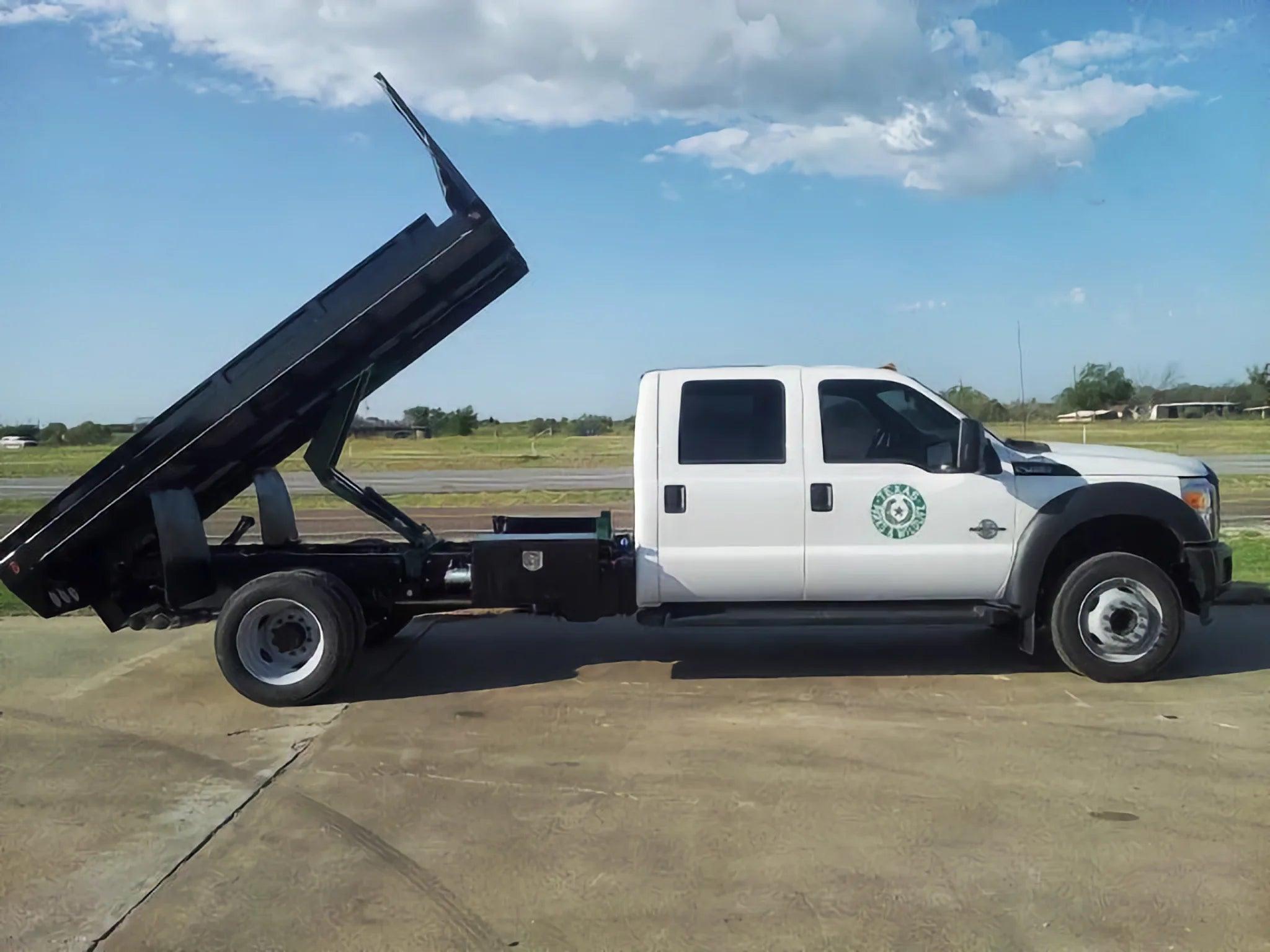

  • A white dump truck with a raised black bed using the PIERCE Light Duty Flat Bed Dump Kit is parked on pavement, featuring a green logo on the door and a grassy field in the background.

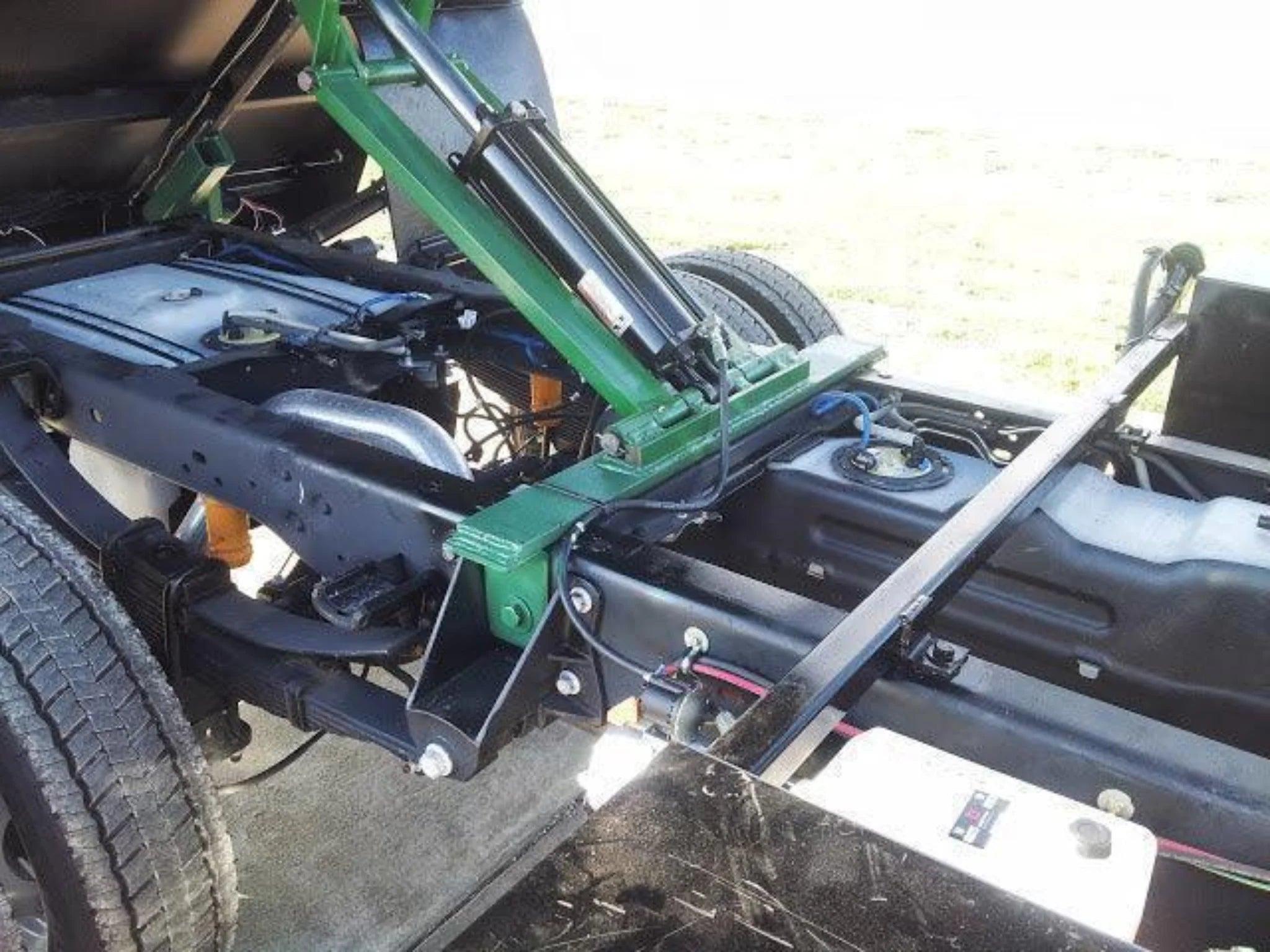

  • The PIERCE Light Duty Flat Bed Dump Kit features a hydraulic lift system with cylinders and a sturdy metal frame for truck chassis installation.
  • Light Duty Flat Bed Dump Kit
  • Light Duty Flat Bed Dump Kit
  • Light Duty Flat Bed Dump Kit
  • A white truck equipped with the PIERCE Light Duty Flat Bed Dump Kit unloads dirt onto a grassy field under a clear sky.
  • The PIERCE Light Duty Flat Bed Dump Kit lifts the bed of a dump truck, providing easy access to the truck’s undercarriage.
  • PIERCE Flat Bed Dump Kit 5T Customer Testimonial
  • A PIERCE Light Duty Flat Bed Dump Kit-equipped white dump truck uses its hydraulic system to unload a large pile of dirt onto the ground.
  • A white truck equipped with a PIERCE Light Duty Flat Bed Dump Kit is tilted up to unload materials and is parked near trees.
  • A white flatbed truck featuring the PIERCE Light Duty Flat Bed Dump Kit is parked on a road in a cemetery on a sunny day.
  • A white dump truck with a raised black bed using the PIERCE Light Duty Flat Bed Dump Kit is parked on pavement, featuring a green logo on the door and a grassy field in the background.
  • The PIERCE Light Duty Flat Bed Dump Kit features a hydraulic lift system with cylinders and a sturdy metal frame for truck chassis installation.
  • Light Duty Flat Bed Dump Kit
  • Light Duty Flat Bed Dump Kit
  • Light Duty Flat Bed Dump Kit
Light Duty Flat Bed Dump Kit

Light Duty Flat Bed Dump Kit

DKLKPD
$2,261.00
In Stock

Get your work truck or trailer ready for action with the PIERCE Light Duty Flat Bed Dump Kit, designed for working folks across the US who need solid, practical equipment. Built for after-market flatbeds or dump bodies, this universal kit lifts up to 10,000 lbs., making it a great fit for tasks like farming, property maintenance, or snow removal.

Dependable Power: Using a 12 Volt hydraulic pump (standard), this kit tilts your truck bed to a 45º angle in 30-90 seconds, letting you quickly offload materials like manure, firewood, or snow. Whether you’re clearing a driveway or spreading mulch on a farm, it saves time and keeps the job simple.  If you are needing more power, checkout the Medium Duty or Heavy Duty Kit.

Fits Many Setups: Made for bed lengths from 8’ to 12’, this kit works well for turning trailers into dump trailers or adding capability to flatbeds. Its strong scissor assembly and hydraulic system deliver steady lifting for everyday tasks.

Expert Installation Required: This kit calls for expert-level skills, including welding, mechanical, and electrical work. It includes a pre-assembled scissor assembly, hydraulic pump, and hardware, with our manual to walk you through. Reinforcing your truck bed is advised, and a professional’s help can make it smoother. Contact us at 940-538-5643 for support.

Tough and Trusted: Since 1976, PIERCE, a family-owned North Texas outfit, has made gear that stands up to hard work. Customers say the kit’s well-built and easy to use, cutting down effort with a quick button press.

Why PIERCE? Add the Light Duty Dump Kit to your rig to make light work of tough jobs.

Note: Stay under your truck or trailer’s max load rating. Tools and some hardware not included. Expert installation strongly recommended.
Lifting Capacity icon

Lifting Capacity

Which dump kit: light, medium, or heavy-duty? The choice is based on your bed length and your preferred capacity to lift, haul and dump. The fit chart is below.

Universal icon

Universal

These PIERCE dump bed kits are designed to be a universal fit to both trucks and trailers, not specific to any make, model, or year.

Flat Bed Kit Options:

A white truck equipped with the PIERCE Light Duty Flat Bed Dump Kit unloads dirt onto a grassy field under a clear sky.
Light Duty DKLKPD
PIERCE Medium Duty Flat Bed Dump Kit installed on a white crew cab dump truck with raised black bed, parked on concrete beside a grassy field under partly cloudy skies.
Medium Duty DKMKPD
+$515.00
A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.
Heavy Duty DKHKPD
+$1,339.00
What's Included
Scissor Assembly (Pre-Assembled)
Scissor Top
1
Scissor s
2
Crossmember
1
Shaft A 7.5 in.
1
Shaft B 13.5 in.
1
Shaft C 19.5 in.
1
Hydraulic Cylinder
1
7/32 in. x 2 in. Roll Pin
6
Chassis/Bed Parts
Driver Side Frame Hinge
1
Passenger Side Frame Hinge
1
Frame L Bracket
2
Guides
2
Shaft D 9.5 in.
2
Pump Bracket
1
Scissor Support Bar
1
Driver Side Sill Hinge
1
Passenger Side Sill Hinge
1
Sill Supports
2
Hardware
3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt
2
1/2 in. - 16 x 3 in. G8 Hex Head Bolt
8
1/2 in. Flat Washer
10
1/2 in. - 13 Locknut
12
3/8 in. Lock Washer
2
7/32 in. x 2 in. Roll Pin
4
1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt
2
1/2 in. - 13 x 1.25 in. G8 Hex Head Bolt
2
1/2 in. - 13 x 8 in. G8 Hex Head Bolt
2
3/8 in. x 1 in. G8 Hex Head Bolt
2
3/8 in. Locknut
2
3/8 in. Flat Washer
2
3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt
1
3/4 in. G8 Locknut
1
3/4 in. Flat Washer
2
Safety Prop Leg
1
Safety Prop Cup
1
8 in. Black UV Zip Ties
1
Instruction Manual
1
Electrical & Hydraulic Parts
200 Amp Breaker
1
20 ft. #4 Welding Cable - Black
1
20 ft. #4 Welding Cable - Red
1
5/16 in. Battery Eye
6
2 Button Universal Remote with 20 ft. Cord
1
3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting
1
3/8 in. Male x 1/4 in. Female 90º Swivel Fitting
1
#8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting
1
5 ft. Hydraulic Hose
1
7 ft. Hydraulic Hose
1
Bucher 12V Power Up/Power Down Hydraulic Pump
1
Specifications
Max Capacity (lbs.)
10000
Operating Voltage
12 Volts DC
Max Oil Flow (gpm)
1.50
Operational Pressure (psi)
3250
Reservoir Capacity
2.5 Gallons
Reservoir Material
High Density Polyethylene
Hose Connections
#6 SAE
Recommended Fluid
ATF (Automatic Transmission Fluid)
Pump Directions
2-Way (Power Up / Power Down)
Operating Temperature Range
-20ºF to 130ºF (-30ºC to 55ºC)
Maximum Angle (º)
45º
Dumping Time
30-90 seconds
Cylinder Measurements
4" x 14" x 2"
Replacement Parts (4)
Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly Reservoir
Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly ReservoirSKU: PM-3551
$641.00
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft CordSKU: CP077K
$63.00
Hydraulic Cylinders | Welded Cylinder | 4 Inch Bore Diameter | 14 Inch Stroke
Hydraulic Cylinders | Welded Cylinder | 4 Inch Bore Diameter | 14 Inch StrokeSKU: P05314BW
$199.00 $318.50
Universal Momentary Pendant Control - 2 Button
Universal Momentary Pendant Control - 2 ButtonSKU: CP077
$17.00
Videos (4)
PIERCE Flat Bed Dump Kit 5T Customer Testimonial video

PIERCE Flat Bed Dump Kit 5T Customer Testimonial

Light Duty Flat Bed Dump Kit video

Light Duty Flat Bed Dump Kit

Light Duty Flat Bed Dump Kit video

Light Duty Flat Bed Dump Kit

Light Duty Flat Bed Dump Kit video

Light Duty Flat Bed Dump Kit

Resources
DK - Flatbed Dump Kit Manual Manual DKLKPD - Spec Sheet Spec Sheet Pump Troubleshooting Guide Guide
DK - Flatbed Dump Kit Manual
Manual

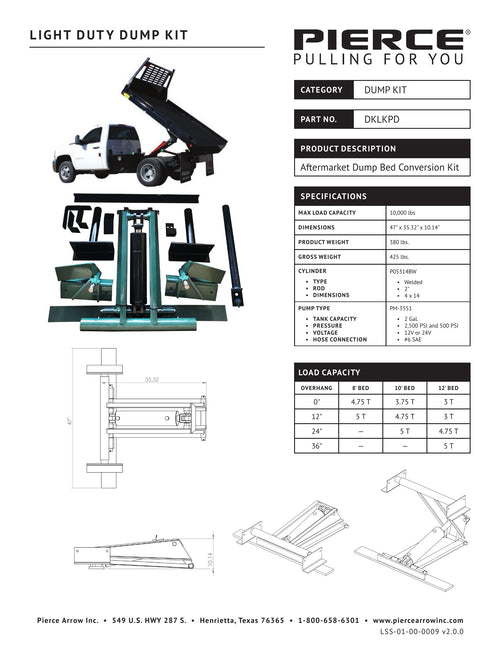

DKLKPD - Spec Sheet
Spec Sheet
Pump Troubleshooting Guide
Guide
Technical Data

DKLKPD Capacity vs. Bed Overhang

Bed length and overhang length affect the capacity of your dump bed kit, therefore refer to the table below.

Overhang8' Bed10' Bed12' Bed
None4.75 T 3.75 T3 T
12"5 T4.75 T 3T
24"5 T 4.75 T
36"5T
FAQs (3)
Will I be able to tow a trailer with this dump kit installed?
Towing is only permitted with frame-mounted receiver hitches. Gooseneck hitches are not compatible and will have to be removed before installing the dump kit.
How involved is the installation of the Flat Bed Dump Kit?
Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. For optimal performance, we recommend you reinforce your truck bed and consider professional assistance. Contact us for advice on your best options.
What is the maximum lift capacity of the Light Duty Flat Bed Kit?
The kit itself is rated for up to 10,000 lbs. However, there are several factors you need to consider. The first is the capacity of your truck or dump body. You do not want to exceed that under any circumstances. The second is the bed length vs the overhang. We provide charts for each kit so you can get an idea of your bed length vs how much overhang you will need to get the required lifting capacity.
