Bolt-in Hydraulic Truck Bed Hay Bale Spear
ABS2K
Save 20% by bundling together!
Upgrades

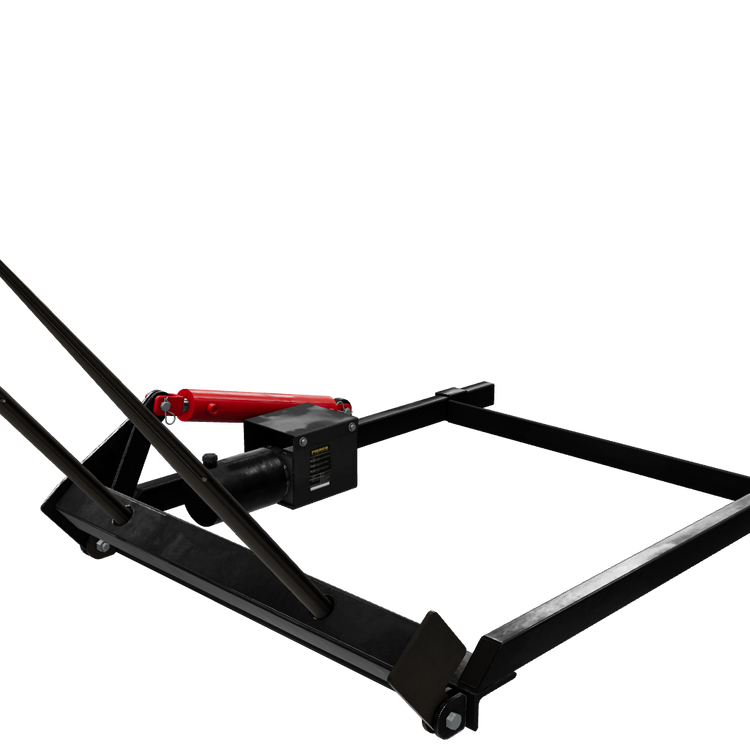

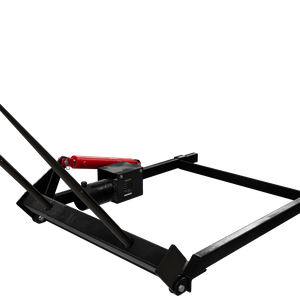

Bolt-in Hydraulic Truck Bed Hay Bale Spear
Description
The PIERCE Bolt-in Truck Bed Hay Bale Spear is a practical tool for moving hay bales without a tractor, built for ranchers needing a reliable solution. With a 2,500 lb. capacity and a bolt-in mount, this hay bale mover is ideal for handling large hay bales using your pickup truck, offering a cost-effective alternative to an expensive built-in bale bed.
Why Choose the PIERCE Bolt-in Truck Bed Hay Bale Spear?
This hydraulic bale spike features a strong metal frame with two solid tines, making it easy to lift and transport large hay bales. The included 12V hydraulic pump (power up/power down) ensures smooth operation, and the 20-foot water-resistant remote with magnetic mounting simplifies control from inside your truck. Unlike a tractor, this spike lets you feed cattle from inside your truck, keeping you warm in freezing weather. It also allows you to use your gooseneck hitch for towing, keeping your truck versatile.
Key Features:
-
High Capacity: Handles large hay bales with a 3,000 PSI hydraulic cylinder and 2,500 lb. capacity.
-
Simple Setup: Bolts directly to your factory or aftermarket flatbed for a secure, permanent fit, yet can be moved to another truck if you sell or replace your vehicle.
-
Easy Operation: Includes a self-contained hydraulic pump that connects to your vehicle’s battery, plus electrical quick disconnects and a 200-amp breaker for protection.
-
Practical Design: Retains access to your gooseneck hitch for towing trailers and supports feeding cattle without leaving the truck cab.
-
Built to Last: Backed by a two-year warranty covering mechanical, electrical, and hydraulic parts.
How It Saves Time:
The PIERCE Bolt-in Truck Bed Hay Bale Spike speeds up moving and feeding hay bales. Its hydraulic hay bale mover compatibility ensures fast, precise handling, whether you’re loading bales onto a trailer or feeding cattle in a field. The removable spears make switching tasks easy, and the durable design reduces equipment downtime. By eliminating the need for a tractor or costly built-in bale bed, it simplifies your workflow and keeps you comfortable in harsh weather. Take things a step further by adding the PIERCE Wireless Controller and do away with any wires running into the cab!
Perfect for Your Needs:
Whether you manage a small farm or a large ranch, this truck bed bale spear is built for daily use. Its size (64" x 62" x 30.5") and 385 lb. weight make it a practical addition to any pickup truck. The bolt-in design allows you to transfer it to a new truck, saving you money compared to a fixed bale bed.
Included
3D Model
Specifications
| Specification | Details |
|---|---|
| CYLINDER MEASUREMENTS | 3" x 16" |
| CYLINDER ROD | 1.5" |
| CYLINDER TYPE | Welded |
| HOSE CONNECTIONS | #6 SAE |
| MAX CAPACITY (LBS.) | 2500 |
| MOUNTING | Bolt to Bed Frame |
| OPERATING VOLTAGE | 12 Volts DC |
| OPERATIONAL PRESSURE (PSI) | 2500 |
| OVERALL DIMENSIONS | 64" x 62" x 30.5" |
| PUMP DIRECTIONS | 2-Way (Power Up / Power Down) |
| RESERVOIR CAPACITY | 3 qt, |
| WEIGHT (LBS.) | 385 |
FAQs
What is the weight limit of Pierce Hydarulic Hay Bale Spears?
What is the difference between the Gooseneck Bale Spear (ABS1K) and the Bolt-in Bale Spear (ABS2K)?
How long can I expect my PIERCE Hydraulic Bale Spear to last?
How long does the Hydraulic Bale Spear take to lift a bale typically?
Where are PIERCE bale spikes made?
Videos
Warranty
Replacement Parts
Bucher Dual Action (Power Up / Power Down) Hydraulic Pump
Power your hydraulic bale spears with the Bucher Hydraulics, Inc. Dual Action (Power Up / Power Down) Hydraulic Pump, model PM-3554-0131, a high-performance hydraulic power unit engineered for precision and durability in agricultural applications....
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
This versatile pendant control system is compatible with 12/24V solenoid operated equipment and features 2 buttons for maximum control. It also includes a master function, making it an essential tool for hydraulic applications that require motor s...
Bale Spike | Hose | 26 in | Goose Neck Attachment
26" Hydraulic Hose - This hydraulic hose for the ABS1K bale spike measures 26" and has a psi of 3,000. Single steel braided for extra strength and high quality. Chemical and abrasion resistant for years of long life. Includes 3/8" NPT male x 1/4"...
Connector | Wire | 2 Gauge
2 Gauge Wire Connector - Quick connects provide a safe power source for portable winches and booster cables. They allow convenient connection and disconnection to the battery power source. Power connections can be added to the front, rear or both...
Drop Hinge for Bolt-In Bale Spear
Ideal for trucks equipped with lifts, raised beds, or scenarios requiring 10 inches of lowered spear height. In wet seasons, when bales may sag, this drop hinge expertly positions spears to target the lower center. This model fits only the ABS2K ...
Forged Bale Spear
Forged Bale Spear: This PIERCE manufactured forged bale spear fits the ABS1K & ABS2K bale spikes and measures 1 and 5/8" x 47". The pin hole diameter measures 1/2." Bale spikes and spears, when used properly in pairs, with the hay bale fully ...
Pin for Bale Spear
Retaining pin for bale spear on a ABS1K and ABS2K bale spike.
Bale Spear Collar
The bale spear collar welds in to hold the spear for PIERCE bale spikes: ABS1K and ABS2K. Specifications: O/A Length (5.96") O/A diameter (2.36") ID 1.73 with 13MM pin hole located 1.30" from end.
