PROVEN WIRELESS CONTROLS THAT KEEP YOUR CREW & EQUIPMENT SAFE.

Affordable, Industrial Wireless Control

Lodar is an industry leader in the design and production of industrial wireless remotecontrols. Since 1984, the team at Lodar has reinvented and developed the radioremote system to suit the needs of working companies and individuals. With Lodar,quality and excellence come standard. Flexibility in the design allows us to easilymodify the range, to meet the many requirements that are requested.

Quality Comes Standard

Lodar offers several product lines for industrial use. All systems are created with the utmost quality. Standard, off-the-shelf, Lodar Transmitters and Receivers are set up with:

Matched Coding

Horizontal Interlocks

150 ft/45 m Range

Momentary Outputs

Internal Aerial

10 ft/3 m Wiring Harness**

30 Minute Timeout

Master Output*

*Some 2 function models ending part number 0 may not include a master output. **2/4/6 function systems include the wiring harness. 8 function and above require custom harnesses depending on the application.

Transmitter Styles

Mini

IP Rating

DUST + WATER IMMERSION

Functions

Standard

IP Rating

DUST + WATER PROTECTION

Functions

Infinity

IP Rating

DUST + HIGH PRESSURE WATER IMMERSION

FUNCTIONS

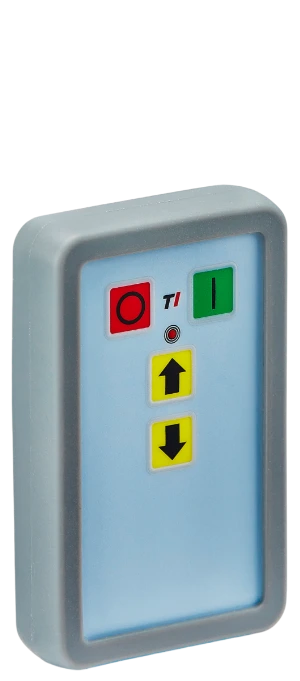

Slim

IP Rating

DUST + WATER PROTECTION

Functions

Pro

IP Rating

DUST + WATER IMMERSION

Functions

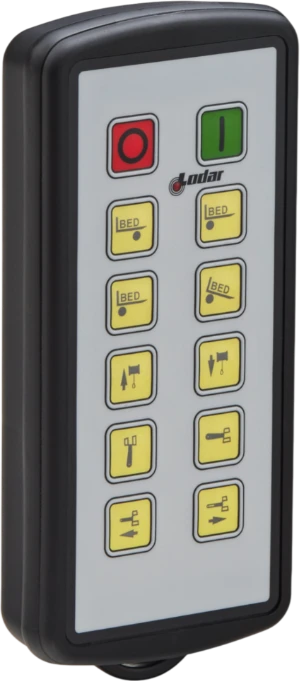

Max

IP Rating

DUST + HIGH PRESSURE WATER IMMERSION

Functions

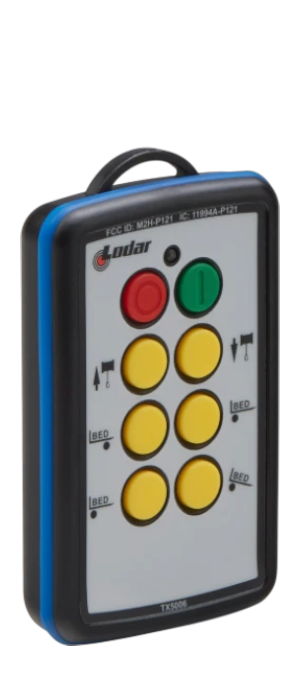

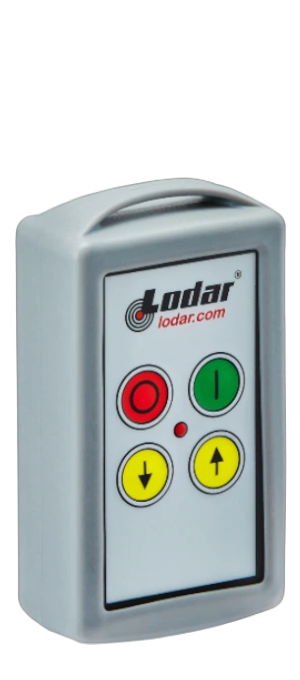

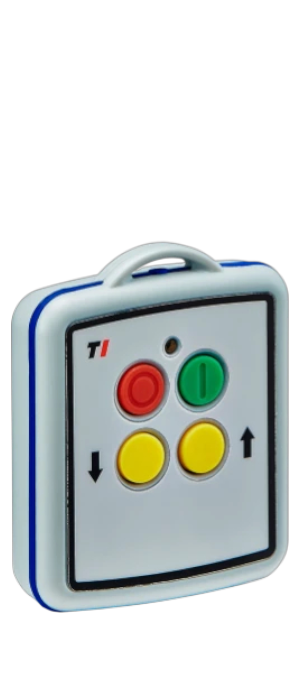

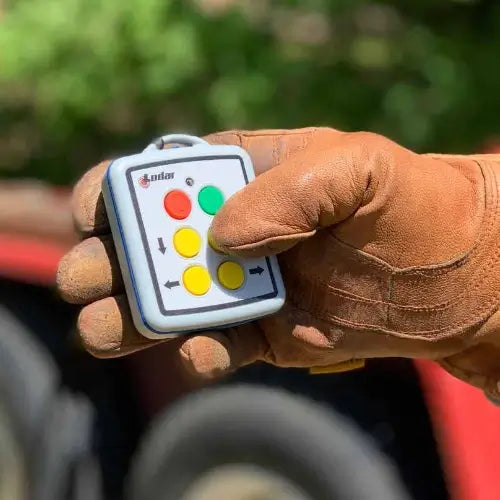

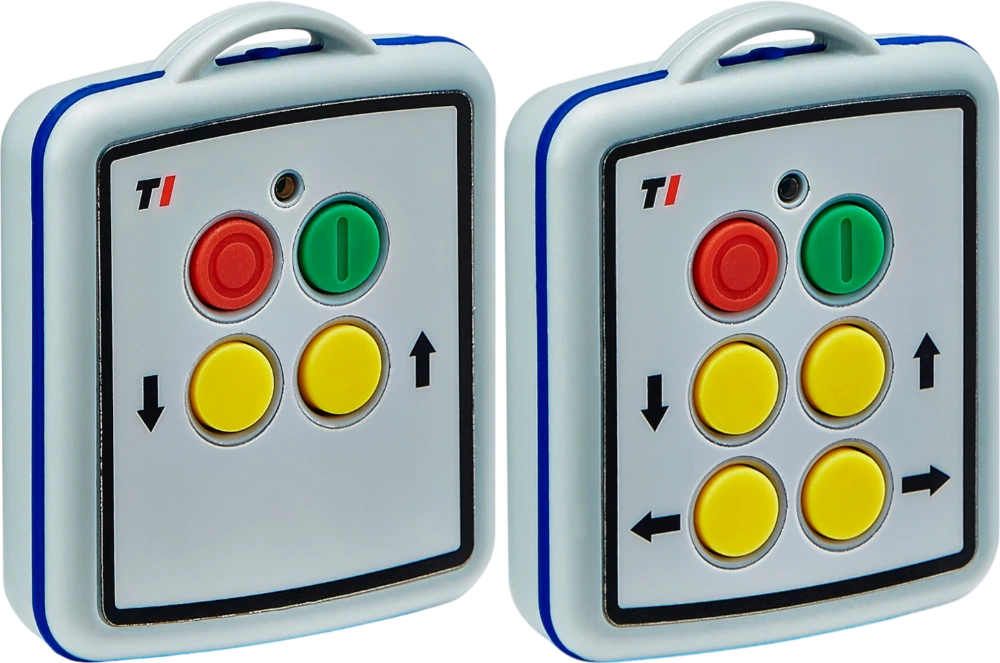

Mini Series

The smallest of our hand controls. Compact, yet ergonomic in design. Perfectly fits into the palm of your hand for both comfort and efficiency.

Mini Transmitter Systems

No products found in the 'wired-controls' collection.

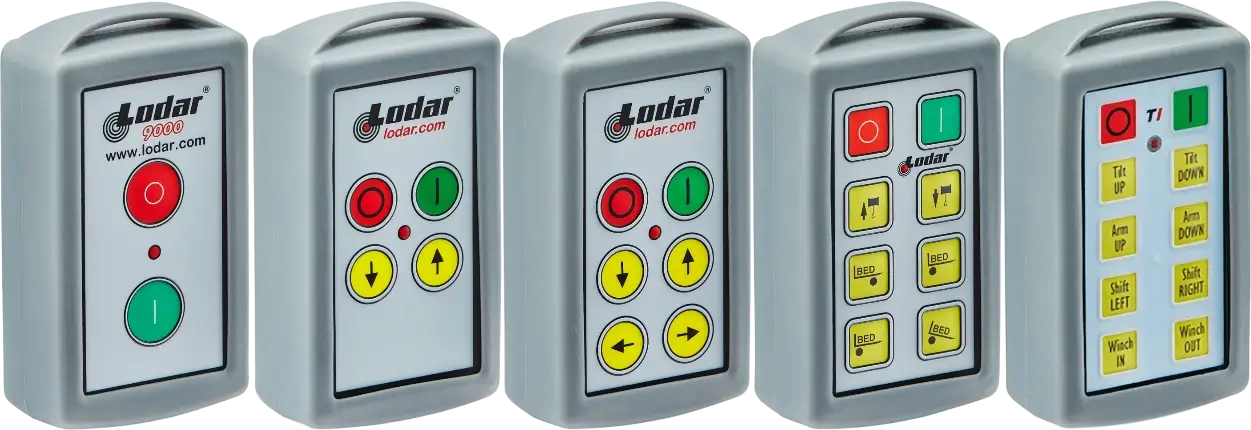

Standard Series

The most established and widely used hand control in the Lodar series, proving to be a timeless classic and a firm favorite in both price and performance.

Standard Transmitter Systems

SKU	Functions	Series	Operating Voltage	Master Output	Max Amps	Operating Distance	Receiver IP Rating	Wiring Included	Special Features
SKU: 92108-8	Functions: 8	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 67	Wiring Included: None	Special Features:

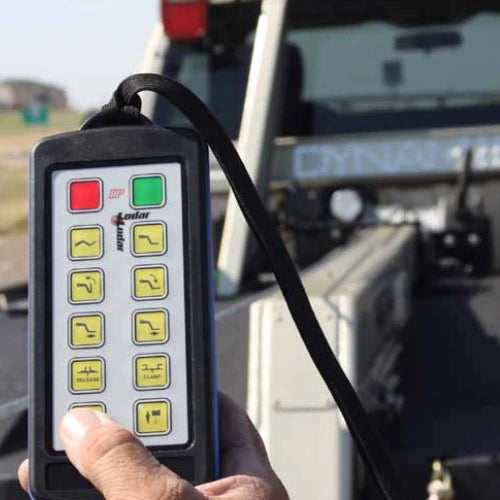

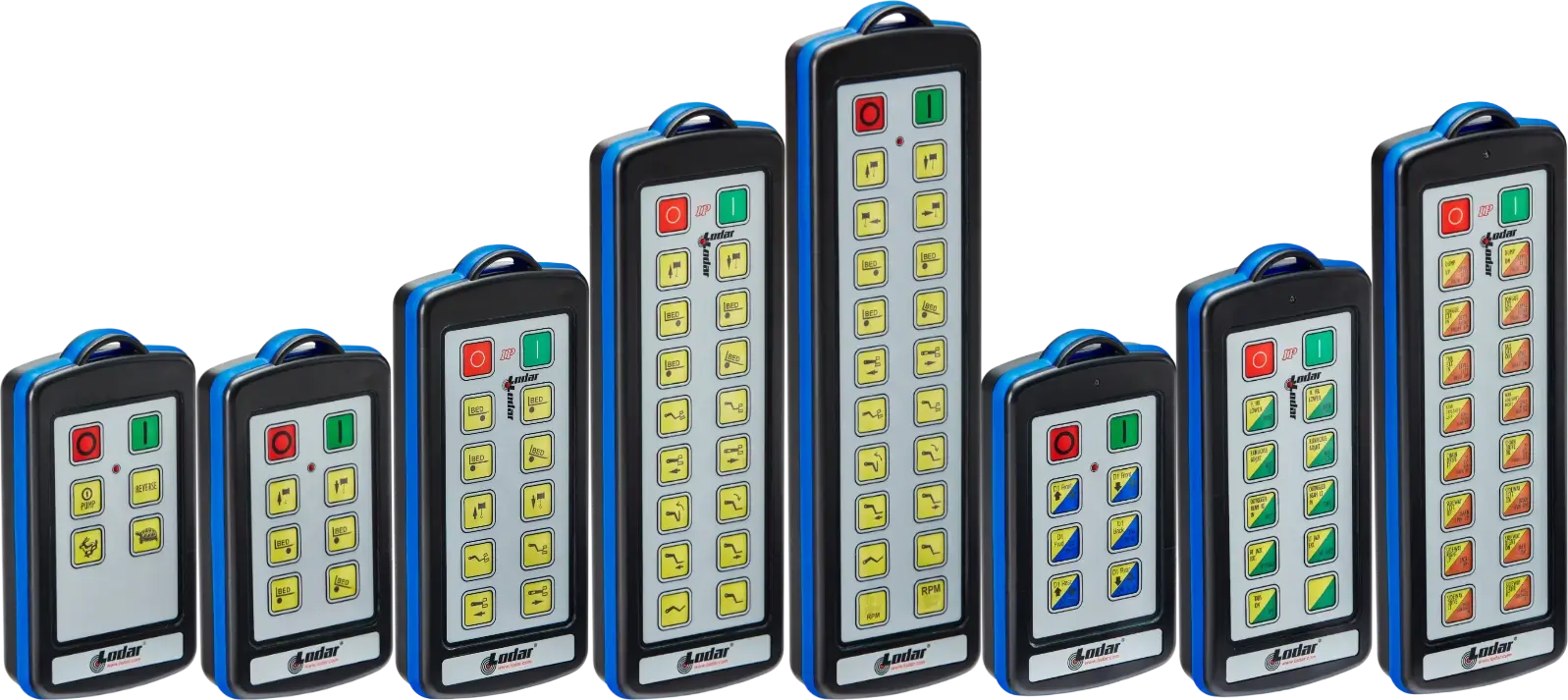

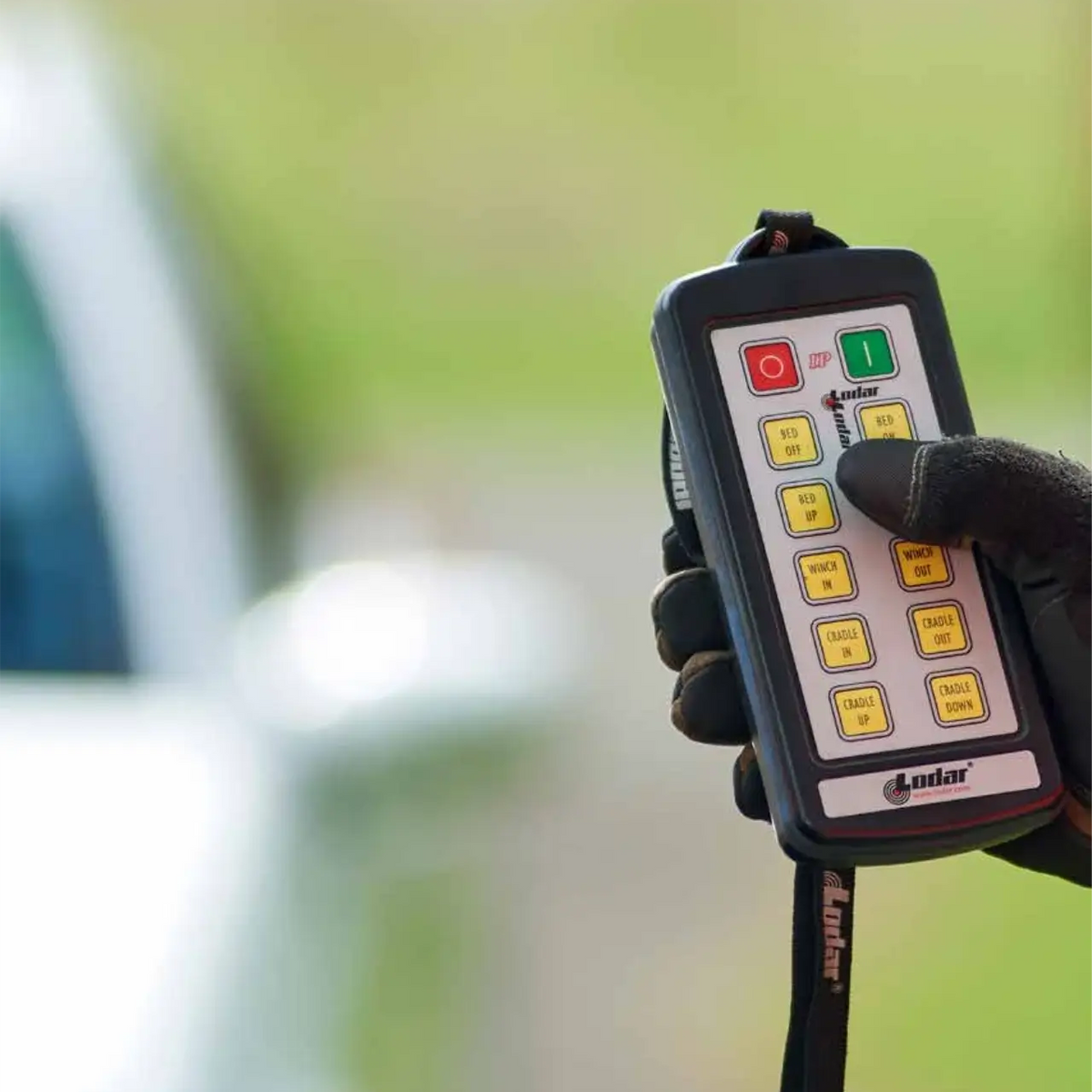

Industrial Pro Series

The IP series is aimed towards the user who requires a more robust and durable option. Due to the variance in size, it gives the operator the opportunity to control a wider variety of actions remotely.

Industrial Pro Transmitter Systems

SKU	Functions	Series	Operating Voltage	Master Output	Max Amps	Operating Distance	Receiver IP Rating	Wiring Included	Special Features
SKU: 92260DMM-8	Functions: 10	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92260DMJ-8	Functions: 10	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92262DMM-8	Functions: 12	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92262DMJ-8	Functions: 12	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92264DMM-8	Functions: 14	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92264DMJ-8	Functions: 14	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92266DMM-8	Functions: 16	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92266DMJ-8	Functions: 16	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92268DMM-8	Functions: 18	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92268DMJ-8	Functions: 18	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: Yes	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92270DMM-8	Functions: 20	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: No	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators
SKU: 92270DMJ-8	Functions: 20	Series: 9000 Series	Operating Voltage: 12/24 Volts DC	Master Output: No	Max Amps: 15	Operating Distance: 150 ft. (45 m.)	Receiver IP Rating: IP 65	Wiring Included: 8 ft. power / 5 ft. air input / 3½ ft. air outputs	Special Features: Receiver with Air I/O + Air Actuators

Receiver Customization

Lodar Receivers can be customized physically in a variety of ways. If you have an idea for your equipment, odds are we either already have a solution or can design one for you.

Extra Switches

Can be fitted to the enclosure and connected to a chosen function, to allow manual operation of said function(s). A useful backup option in the event of any radio failure.

Connectors

Standard
Include 10 ft/3 m Wiring Harness
(2/4/6 function systems)
Custom
10+ systems do not include wiring.
Custom pre-wiring available for quantity orders.

Multiple Receivers

Can be set with the same codes, allowing the Receivers to work simultaneously, at the press of a single button. Useful for the opening of multiple doors.

Potting

A silicone gel coating, coveringthe electronic components. Ideal for very tough conditions, dealing with heavy vibration and extreme condensation.

Aerials

Lodar is fitted with an internal aerial, to give a specified range. Sometimes, conditions or location of the Receiver reduces its performance so fitting an external aerial will restore the operating distance to the correct specification. The external aerial, of a specific length, will only restore the performance - it will not enhance it.

Built-in Keypad

A built in keypad is available with up to six functions plus the on and off controls. This provides an excellent backup for those times when the wireless controller is either misplaced or otherwise unavailable.
