Security
Hydraulic Power & Controls
Security operations — barrier deployment, bollard systems, gate control, and vehicle barricade systems — rely on hydraulic power to move heavy components quickly and reliably. The power up / gravity down unit runs basic gate and barrier lift operations. The 2-way power up / power down unit gives controlled, powered movement in both directions for applications like vehicle barricades and retractable bollards where controlled descent speed is a security requirement, not just a convenience. The wireless remote lets security personnel operate barrier and gate systems from a guard station or control point without hardwiring to the mechanism.
2 Function Wireless Remote Control System
Wireless remote for operating barrier systems, bollards, and gate mechanisms from a guard station or control point.
$275.00
PS002

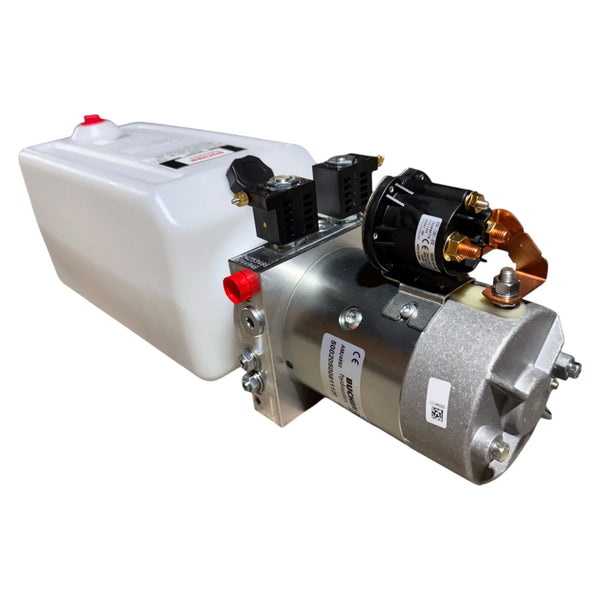

Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly Reservoir
Two-way power up / power down unit for vehicle barricades and retractable bollards where controlled descent speed is a security requirement.
$641.00
PM-3551
Bucher Power Up, Gravity Down Hydraulic Power Unit
Power up / gravity down unit for basic gate and barrier lift operations. Reliable hydraulic power for security access control equipment.
$530.00
PM-319-6P
Winches & Remotes
Recovery winches in security applications pull disabled or unauthorized vehicles from restricted areas, clear roadways after incidents, and support mobile barrier deployment. The 4-function wireless remote adds multi-circuit control for security vehicles equipped with multiple systems — winch, barrier deployment, spotlight positioning, or auxiliary equipment — all from a single handheld transmitter so the operator can work from a safe standoff position.

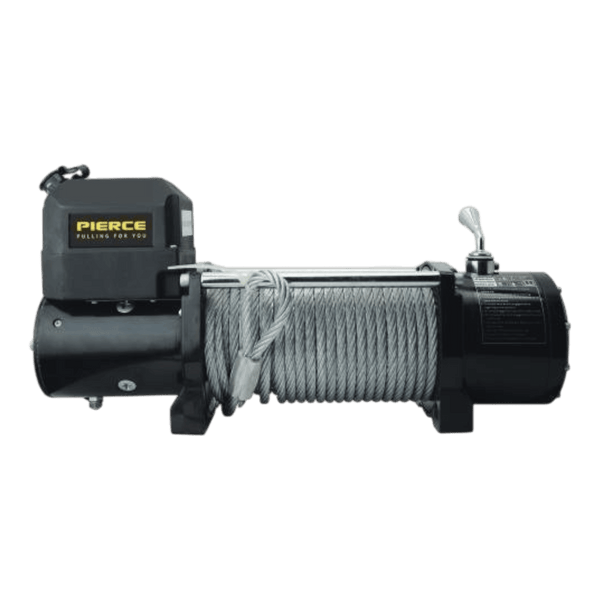

9,000 lb Recovery Winch
Recovery winch for clearing vehicles from controlled access points and general vehicle recovery in security operations.
$625.00
PS9000
12,000 lb Recovery Winch
Recovery winch for pulling disabled or unauthorized vehicles from restricted areas, clearing roadways after incidents, and supporting mobile barrier deployment.
$821.00
PS12000
4 Function Wireless Remote Control System
Four-function wireless remote for security vehicles with multiple systems — winch, barrier deployment, spotlight positioning, or auxiliary equipment.
$412.00
PS004
Frequently Asked Questions
Can't find the answer you're looking for? Contact our team and we'll get back to you.
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
