Bucher Power Up, Gravity Down Hydraulic Power Unit
Bucher Power Up, Gravity Down Hydraulic Power Unit
Description
Elevate your hydraulic systems with the Bucher Hydraulics, Inc. Power Up, Gravity Down Pump, model PM-319-6P, a reliable and efficient hydraulic power unit designed for a variety of mobile and industrial applications. Featuring a 6-quart high-density polyethylene reservoir, this pump delivers powered extension for single-acting cylinders, with gravity-assisted retraction, offering a cost-effective solution for tasks requiring controlled lifting and lowering.
Key Features
- Power Up, Gravity Down Operation: Actively powers cylinder extension while allowing gravity to facilitate retraction, ideal for single-acting hydraulic systems.
- 6-Quart Poly Reservoir: Constructed from durable, corrosion-resistant high-density polyethylene, providing ample fluid capacity for extended operation.
- 12V DC Electric Motor: Ensures dependable performance in mobile environments, compatible with vehicle-based hydraulic setups.
- Efficient Flow Rate: Delivers a maximum oil flow of 1.5 GPM at 1750 PSI, ensuring smooth and effective system performance.
- Standard Hose Connections: Equipped with 3/8" NPT ports for secure and industry-standard fluid connections.
- Horizontal Mount Design: Facilitates straightforward installation in compact equipment configurations.
Applications
This hydraulic power unit is well-suited for a range of user-installed applications, including:
- Dump Trailers: Provides reliable lifting power for custom or aftermarket dump trailer systems, with gravity-assisted lowering for efficient operation.
- Lift Platforms: Supports single-acting cylinders in scissor lifts, pallet trucks, or other lifting equipment requiring powered ascent and gravity descent.
- Agricultural Equipment: Powers hydraulic systems for tasks such as tilting or lifting implements, where gravity can assist retraction.
- Mobile Hydraulics: Ideal for vehicle-mounted applications on trucks, utility vehicles, or trailers, offering versatile hydraulic control.
- Custom Hydraulic Projects: Suitable for DIY or specialized hydraulic systems requiring a compact, power up, gravity down solution.

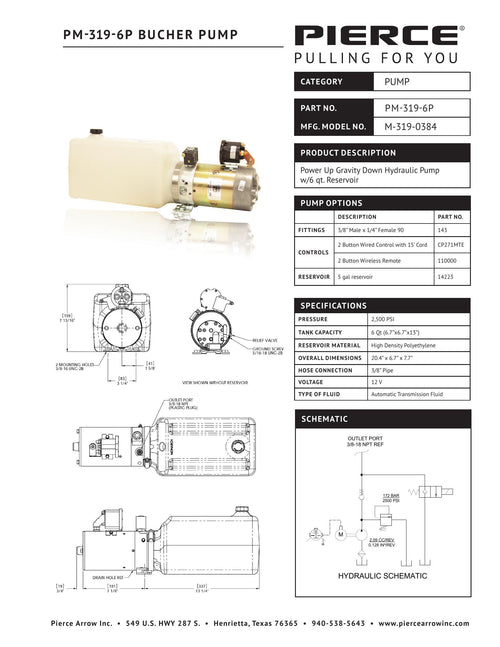

Specifications
| Specification | Details |
|---|---|
| HOSE CONNECTIONS | ⅜" Pipe |
| MAX OIL FLOW (GPM) | 1.5 |
| OPERATING TEMPERATURE RANGE | -20ºF to 130ºF (-30ºC to 55ºC) |
| OPERATING VOLTAGE | 12 Volts DC |
| OPERATIONAL PRESSURE (PSI) | 2500 |
| PUMP DIRECTIONS | 2-Way (Power Up / Gravity Down) |
| RECOMMENDED FLUID | ATF (Automatic Transmission Fluid) |
| RESERVOIR CAPACITY | 6 Quarts |
| RESERVOIR MATERIAL | High Density Polyethylene |
Resources
Replacement Parts
Hyd Pumps | Coil | Bucher | 12 Volt
This product is a Bucher 10V coil, a replacement coil for Bucher pumps. The coil is located on the valves.
Bucher Pump 12 Volt Solenoid Style 2
This product is a replacement 12V solenoid with black plastic cover for use on newer Bucher pumps.
Bucher Pump Valve
Replacement Bucher pump valve for the Bucher pump PM319.
