Product Information

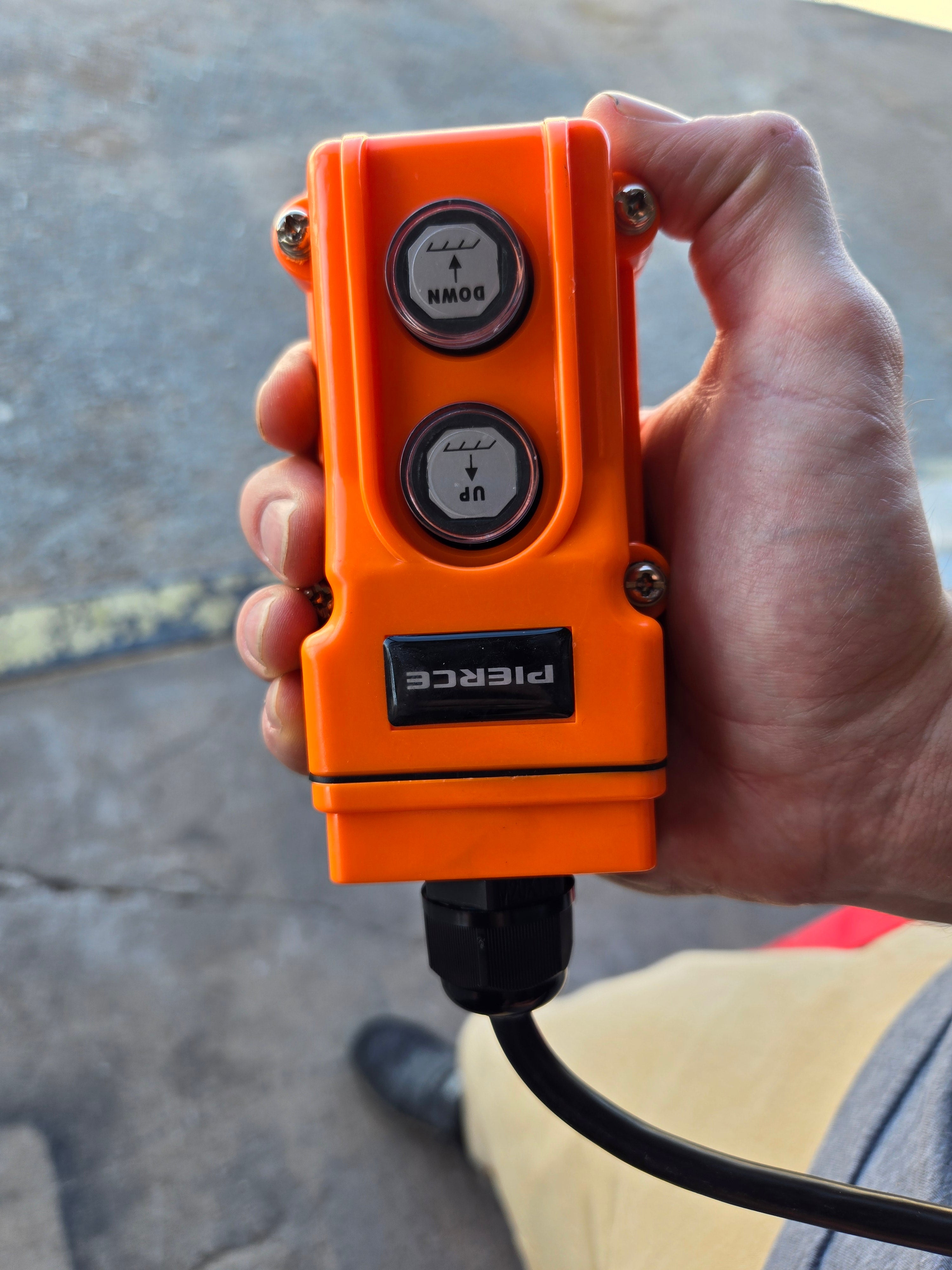

This hard-wired control pendant is designed for use with equipment that requires a 2 function hydraulic pump but does not utilize a master for motor start or have dual solenoid equipment. The Pierce 2 function momentary control is equipped with water-resistant and interlocking buttons, making it ideal for outdoor use. It operates on 12V or 24V with a maximum of 5 amps and has a recommended wire gauge of 16-18. The included wiring is a 20 ft. 4 core cable with ring terminals and the switch type is a momentary push button.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 2 |
OPERATING VOLTAGE | 12/24 Volts DC |
MASTER OUTPUT | No |
MAX AMPS | 5 |
RECOMMENDED WIRE | 16-18 gauge |

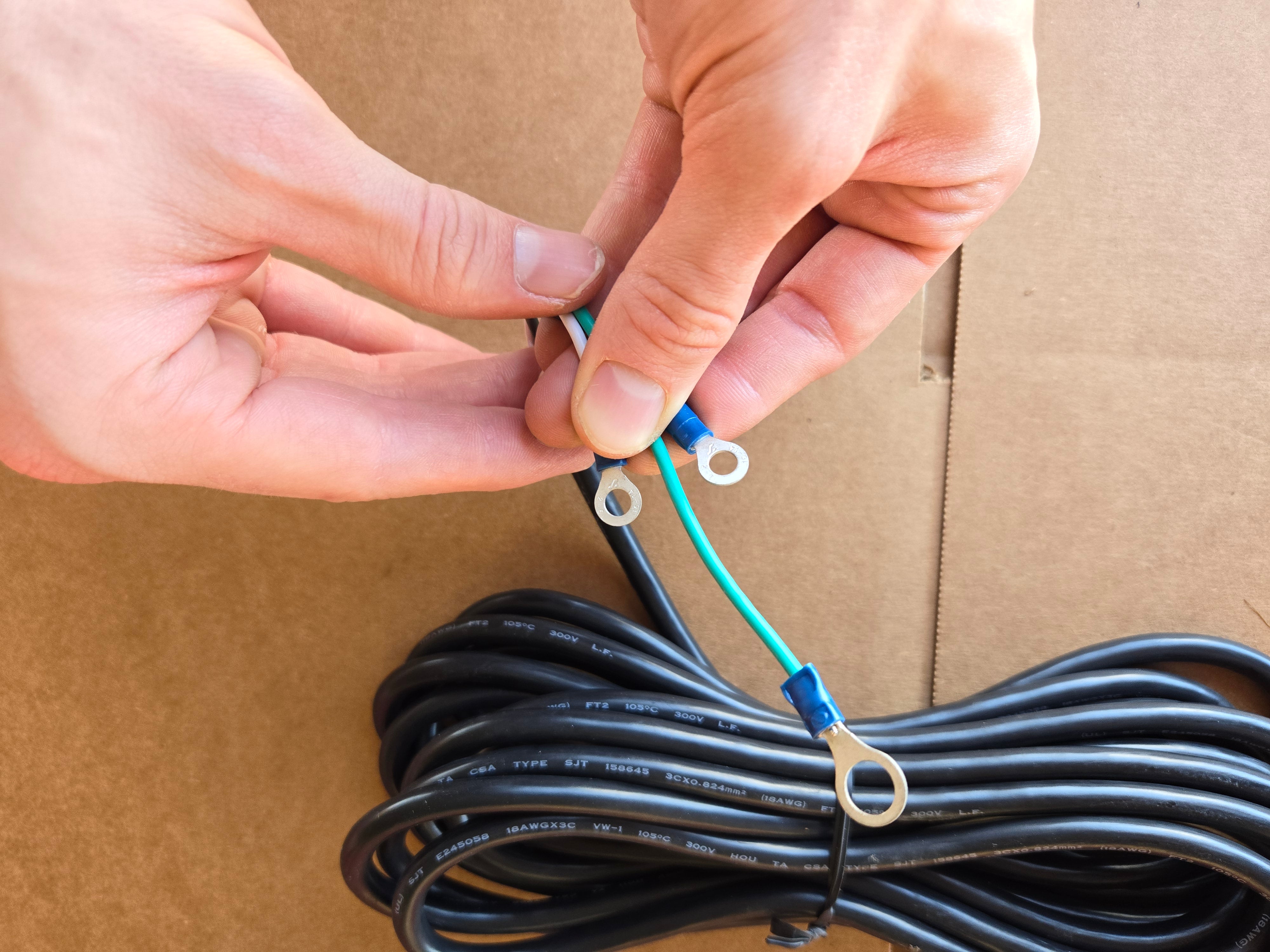

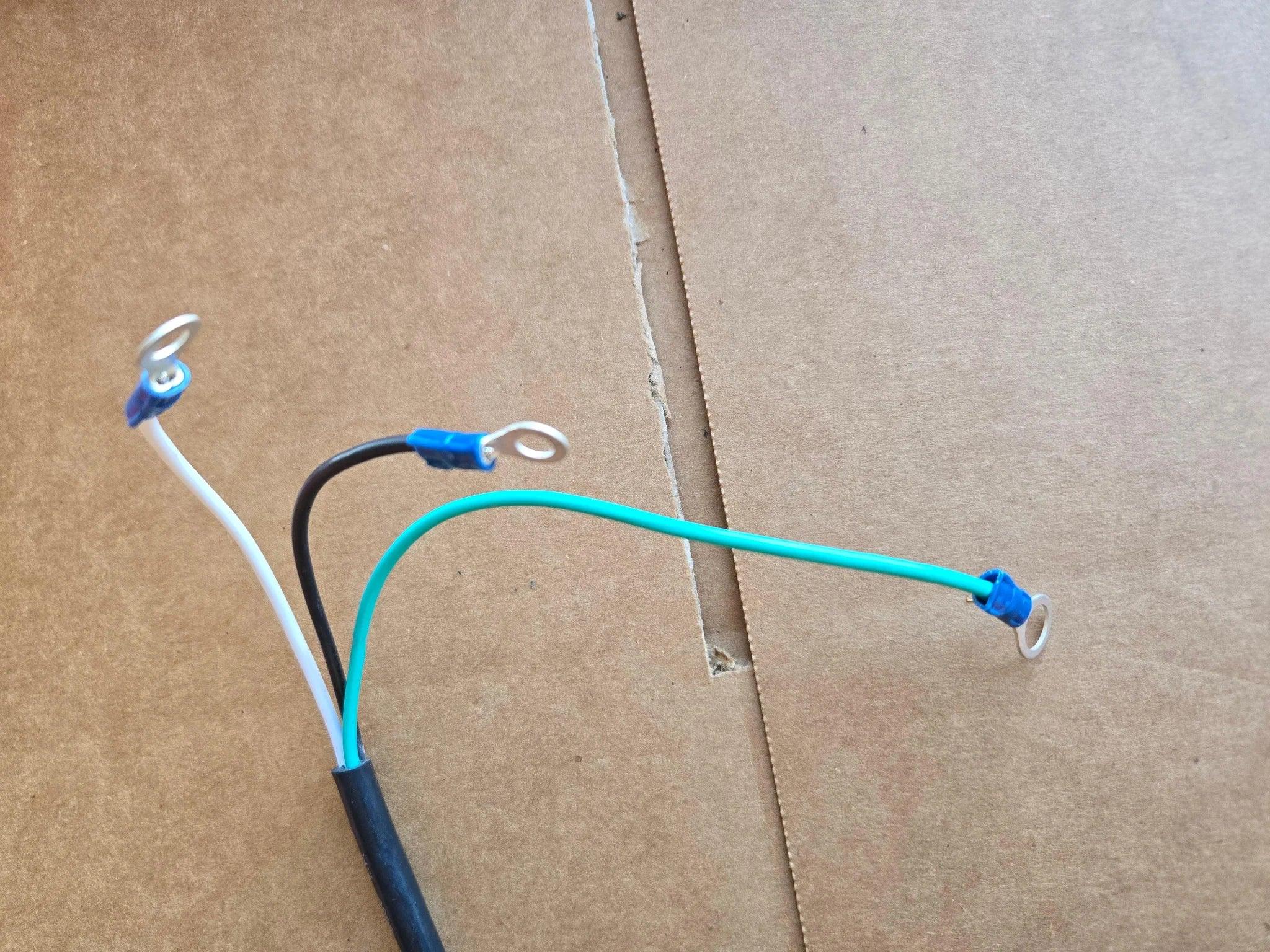

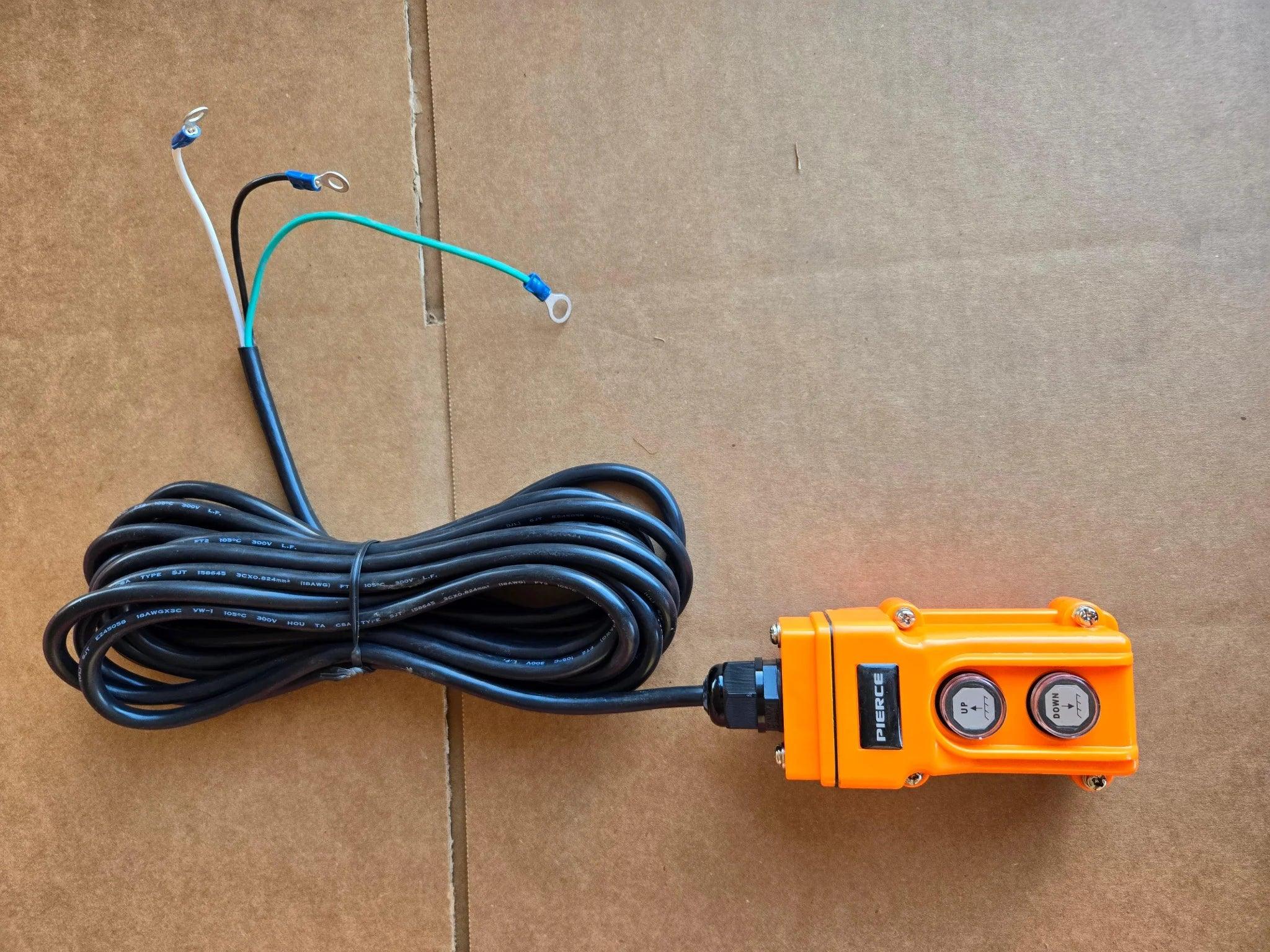

WIRING INCLUDED | 20 ft. 4 core cable with ring terminals |
SWITCH TYPE | Momentary - Push Button |
This hard-wired control pendant is designed for use with equipment that requires a 2 function hydraulic pump but does not utilize a master for motor start or have dual solenoid equipment. The Pierce 2 function momentary control is equipped with water-resistant and interlocking buttons, making it ideal for outdoor use. It operates on 12V or 24V with a maximum of 5 amps and has a recommended wire gauge of 16-18. The included wiring is a 20 ft. 4 core cable with ring terminals and the switch type is a momentary push button.

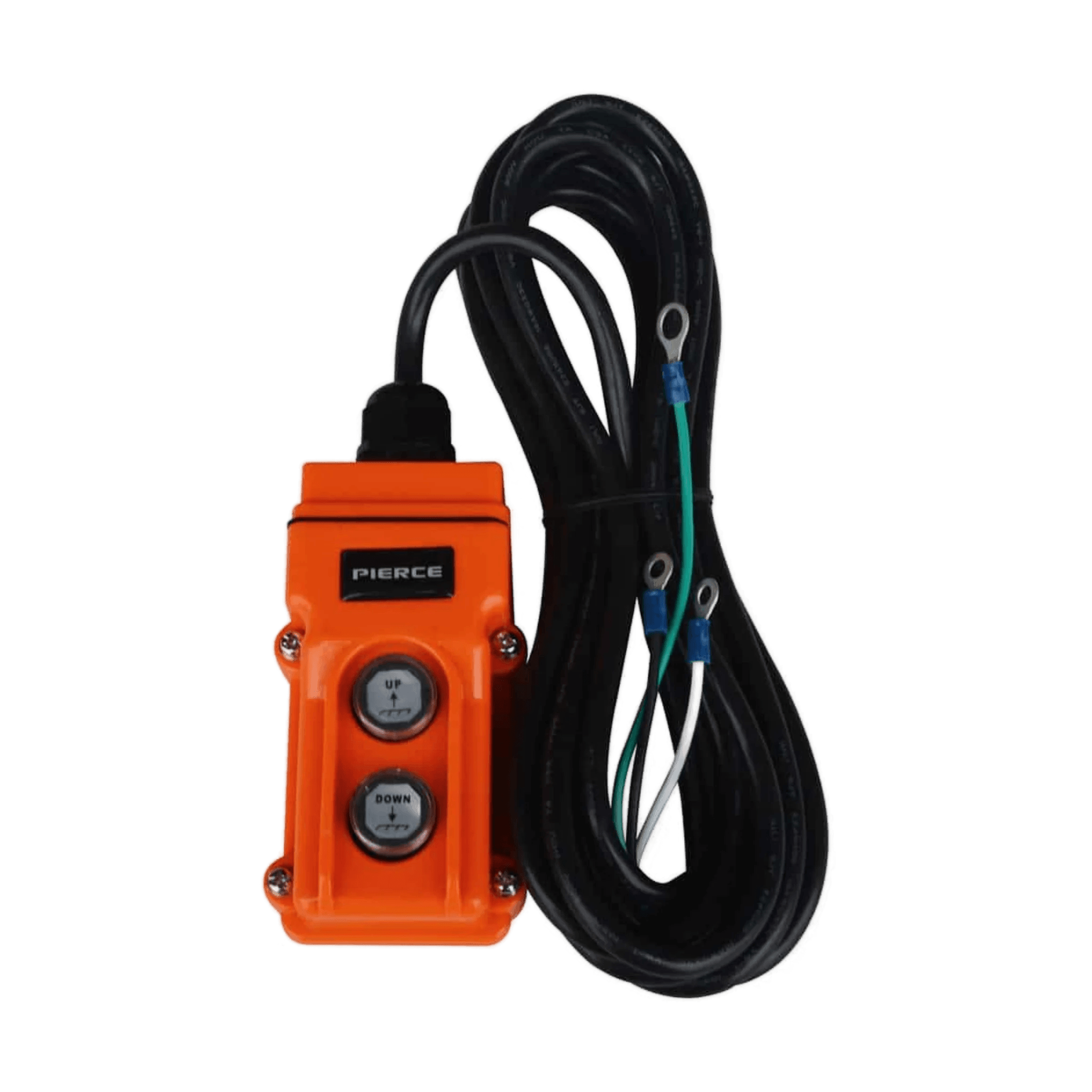

PIERCE 2 function Momentary Hard-Wired Control Pendant - 20 ft. Cord with Terminals
CP271MTE
