PIERCE 2 Function Momentary Control Pendant Only
Alternatives: PIERCE 2 Function Momentary Control Pendant Only
PIERCE 2 Function Momentary Control Pendant Only
PIERCE 2 function Momentary Hard-Wired Control Pendant - 15 ft. Cord
PIERCE 2 Function Momentary Hard-Wired Control Pendant - 20 ft. Cord with Ring Terminals
PIERCE 2 Function Momentary Hard-Wired Control Pendant - 15 ft. Cord with 4 Pin Vulcanized Plug
PIERCE 2 Function Momentary Removable Control Pendant - 20 ft. Cord with 4 Prong Steel Plug + Receptacle
PIERCE 2 Function Momentary Control Pendant Only
Description

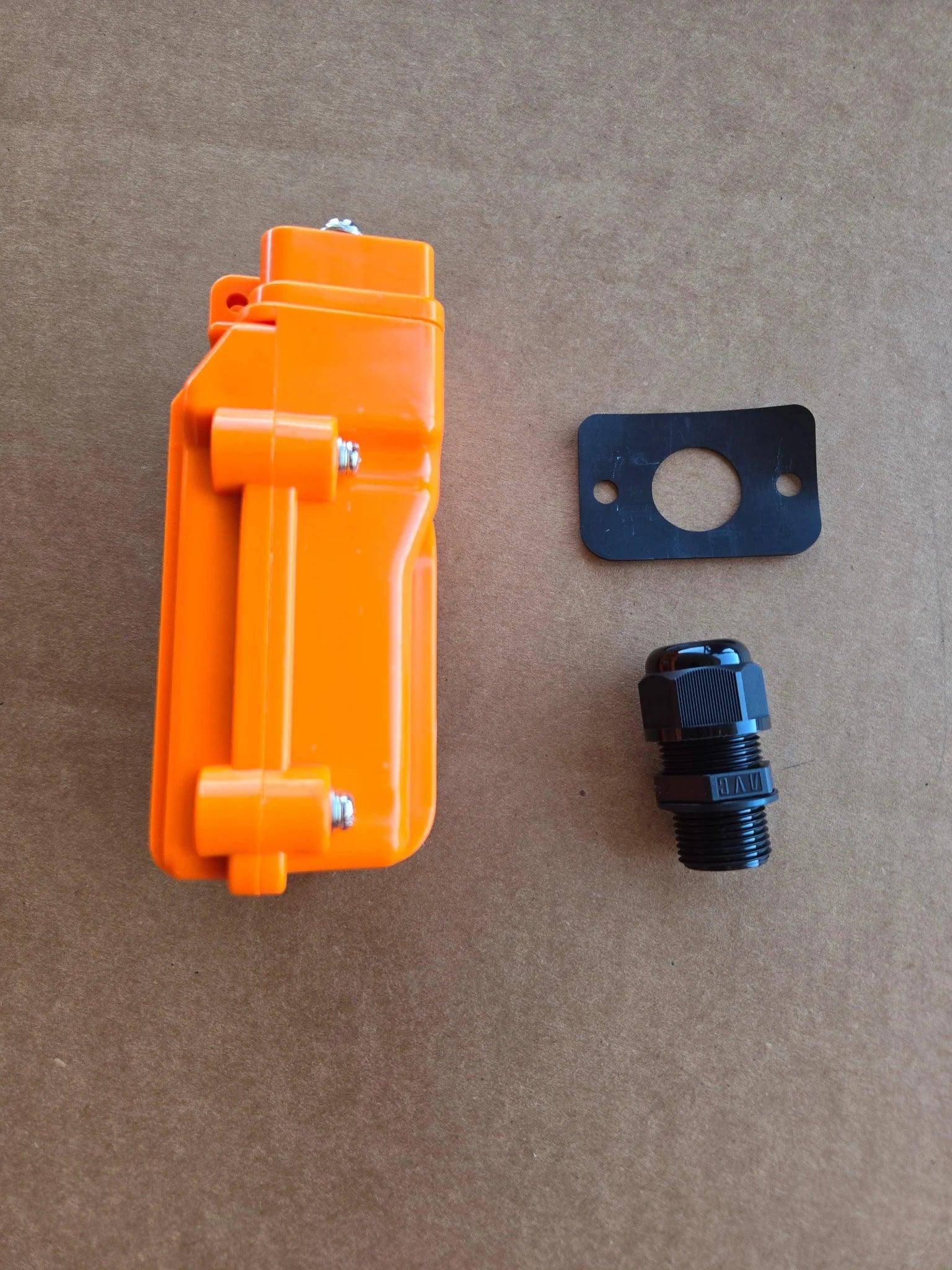

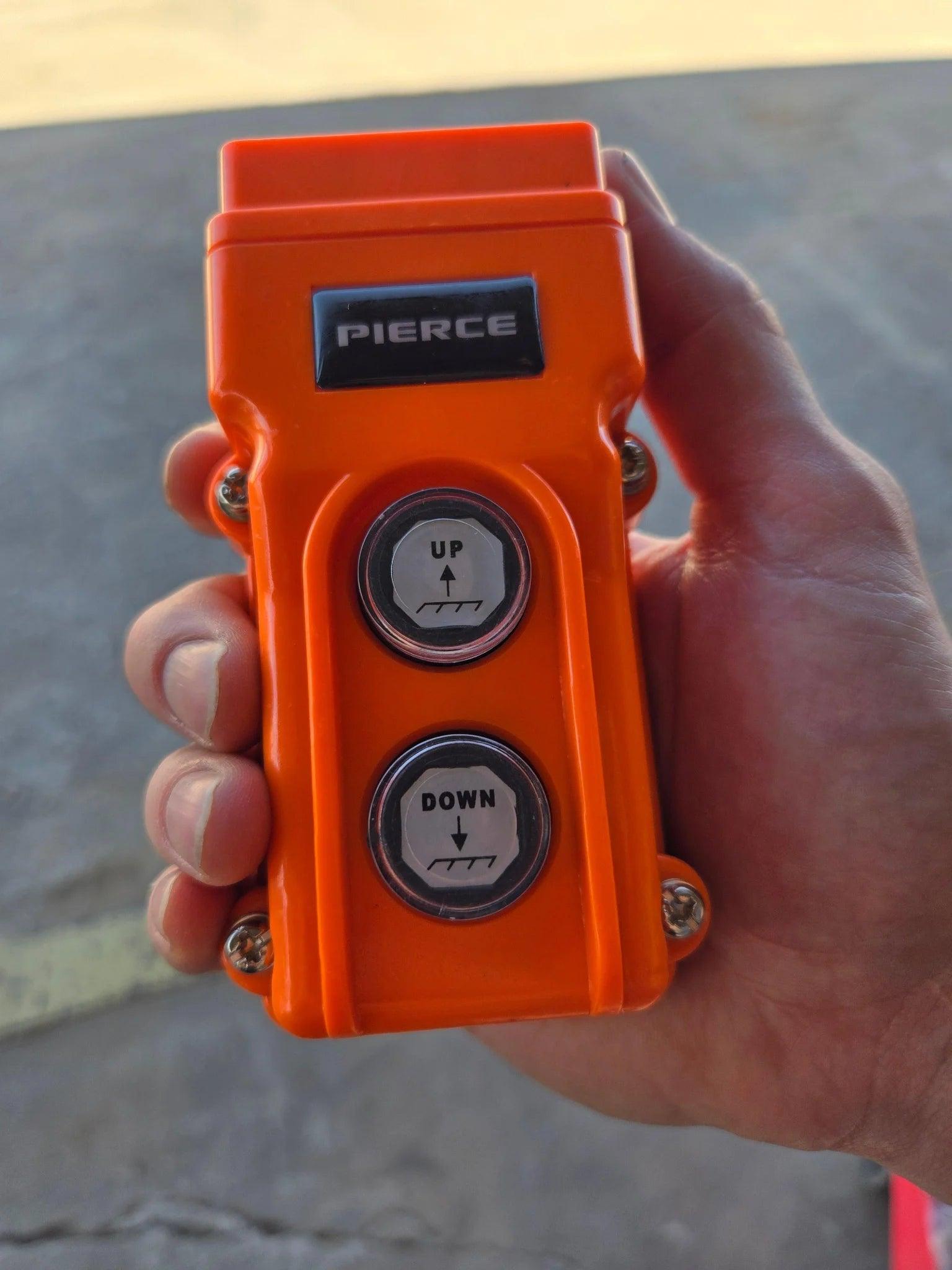

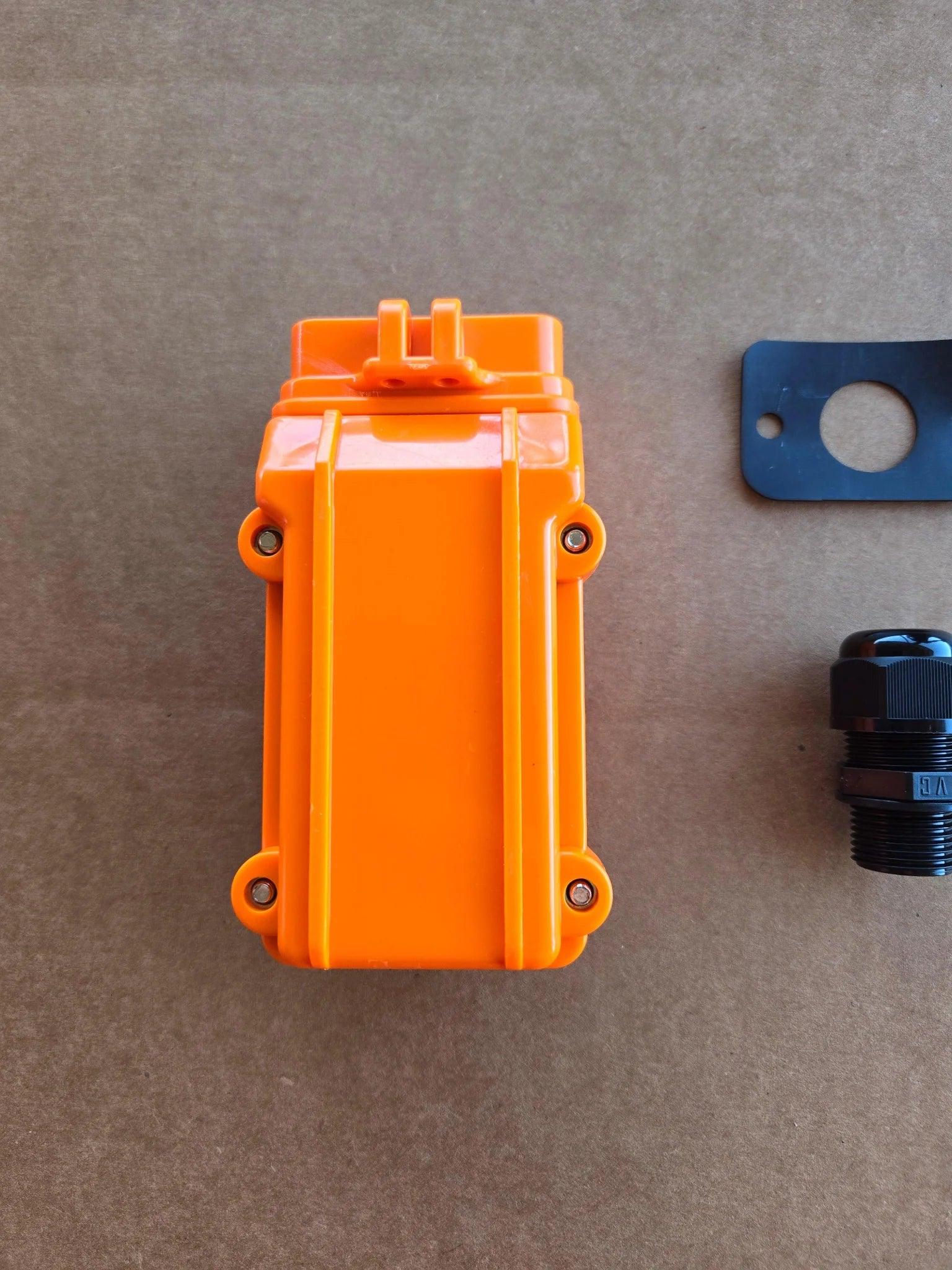

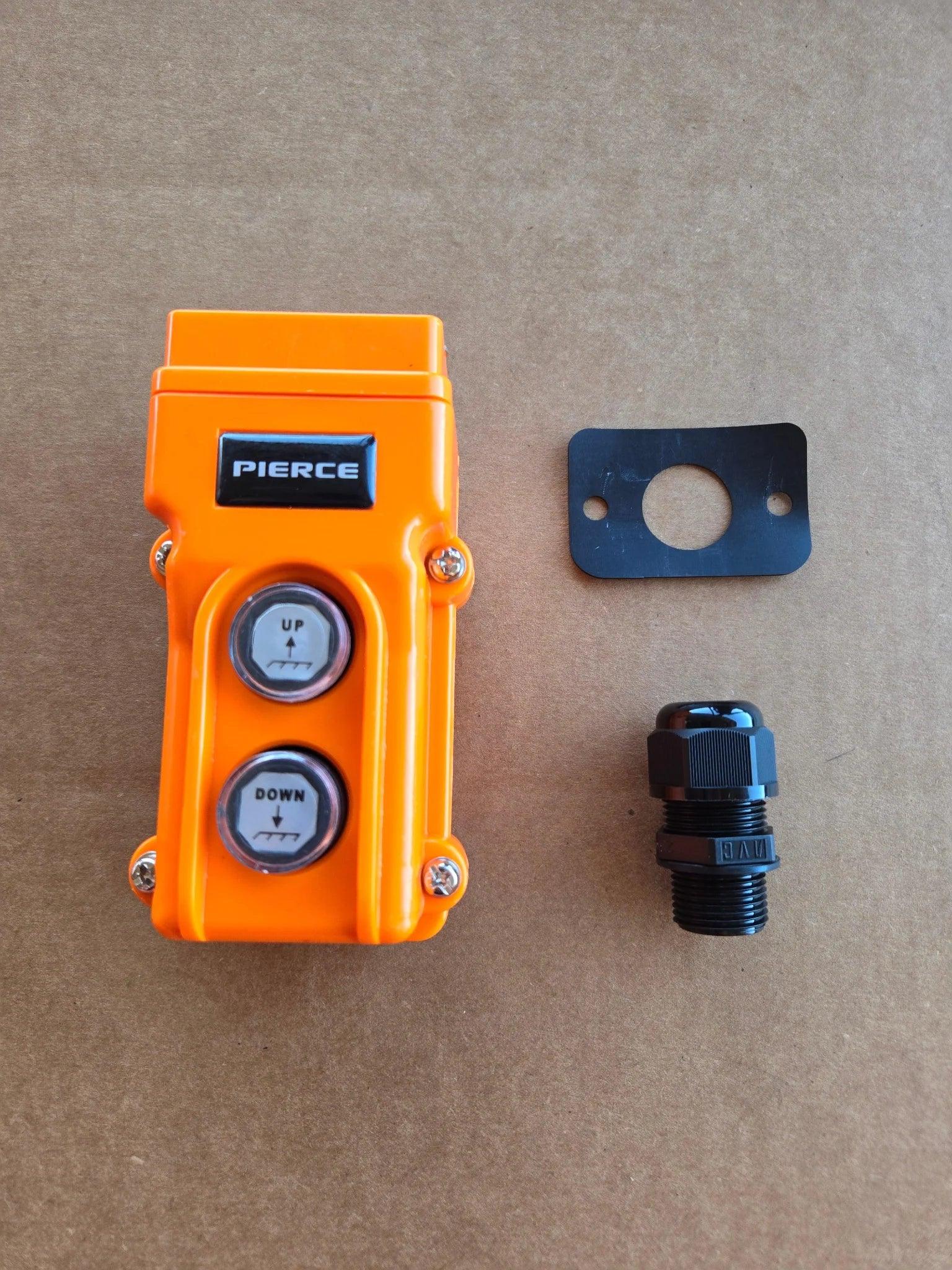

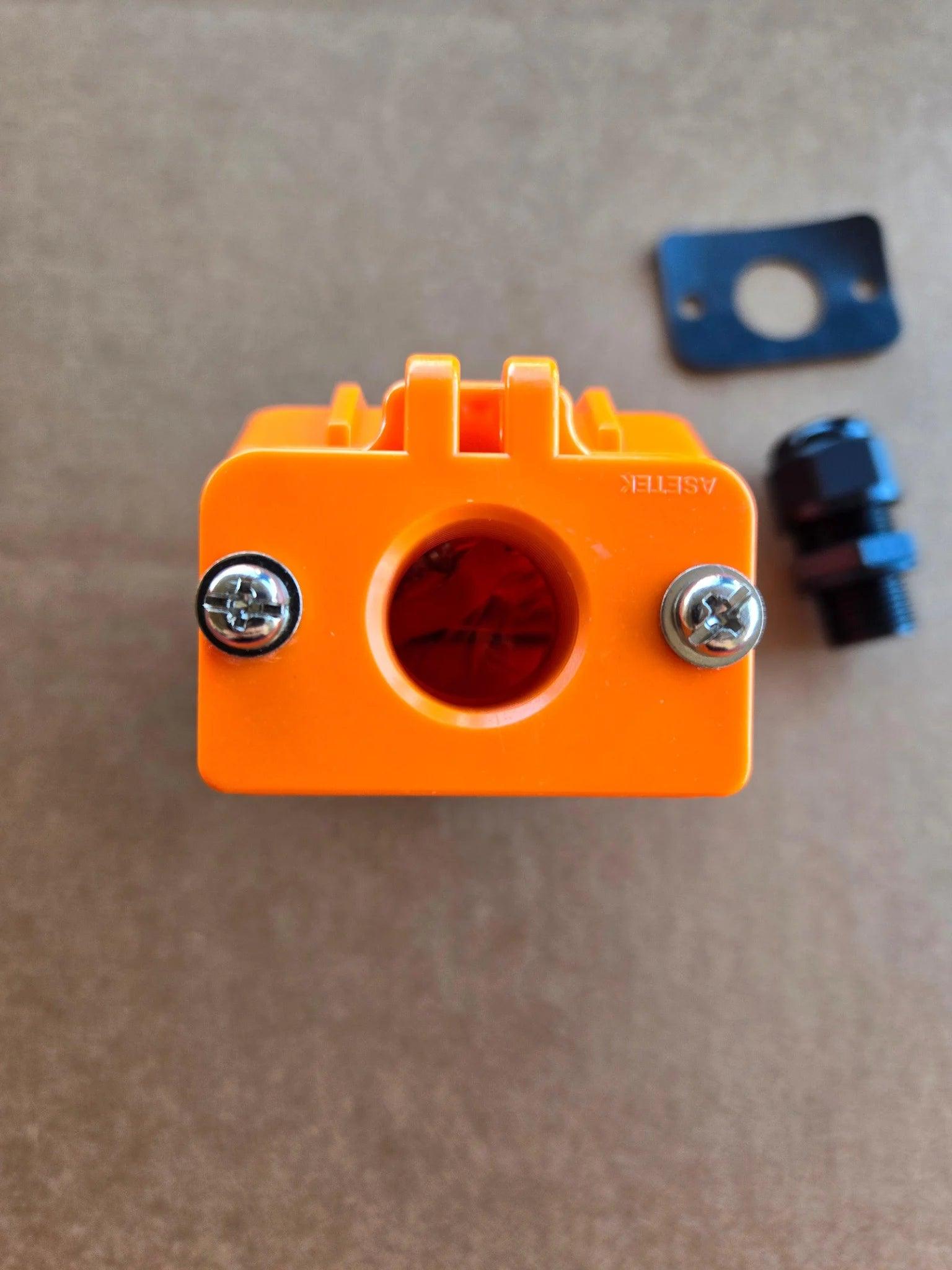

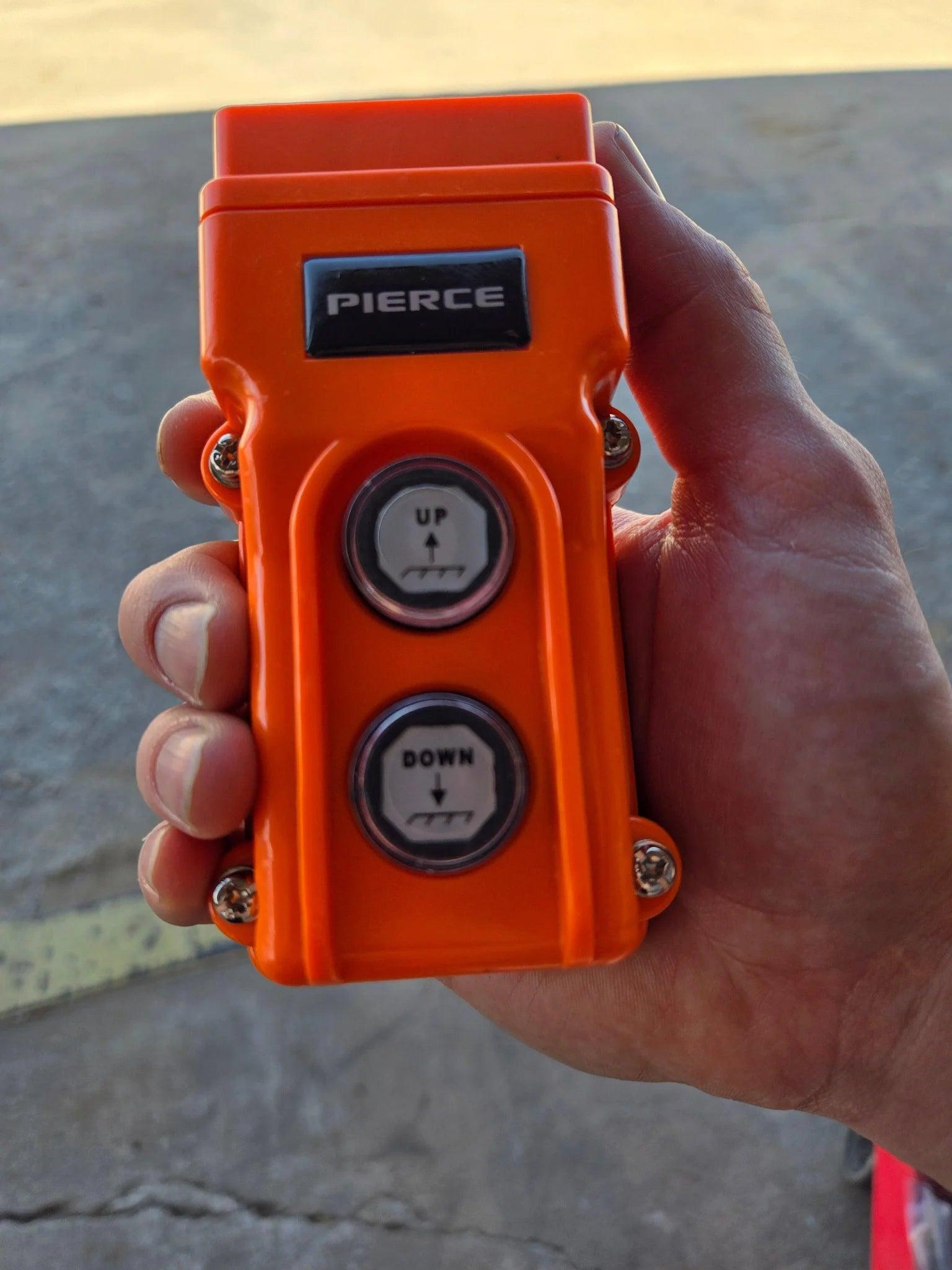

This PIERCE 2 function momentary control pendant is a replacement for the CP271 series and does not include a master function. Features water-resistant momentary switching and interlocking buttons. Operates on 12/24 Volts DC at a maximum of 5 amps. Recommended wire for all connections is 16-18 gauge. No wiring is included.
Specifications
| Specification | Details |
|---|---|
| FUNCTIONS | 2 |
| OPERATING VOLTAGE | 12/24 Volts DC |
| MASTER OUTPUT | No |
| MAX AMPS | 5 |
| RECOMMENDED WIRE | 16-18 gauge |
| WIRING INCLUDED | None |
| SWITCH TYPE | Momentary - Push Button |
| WARRANTY | PIERCE 1 Year Warranty |
