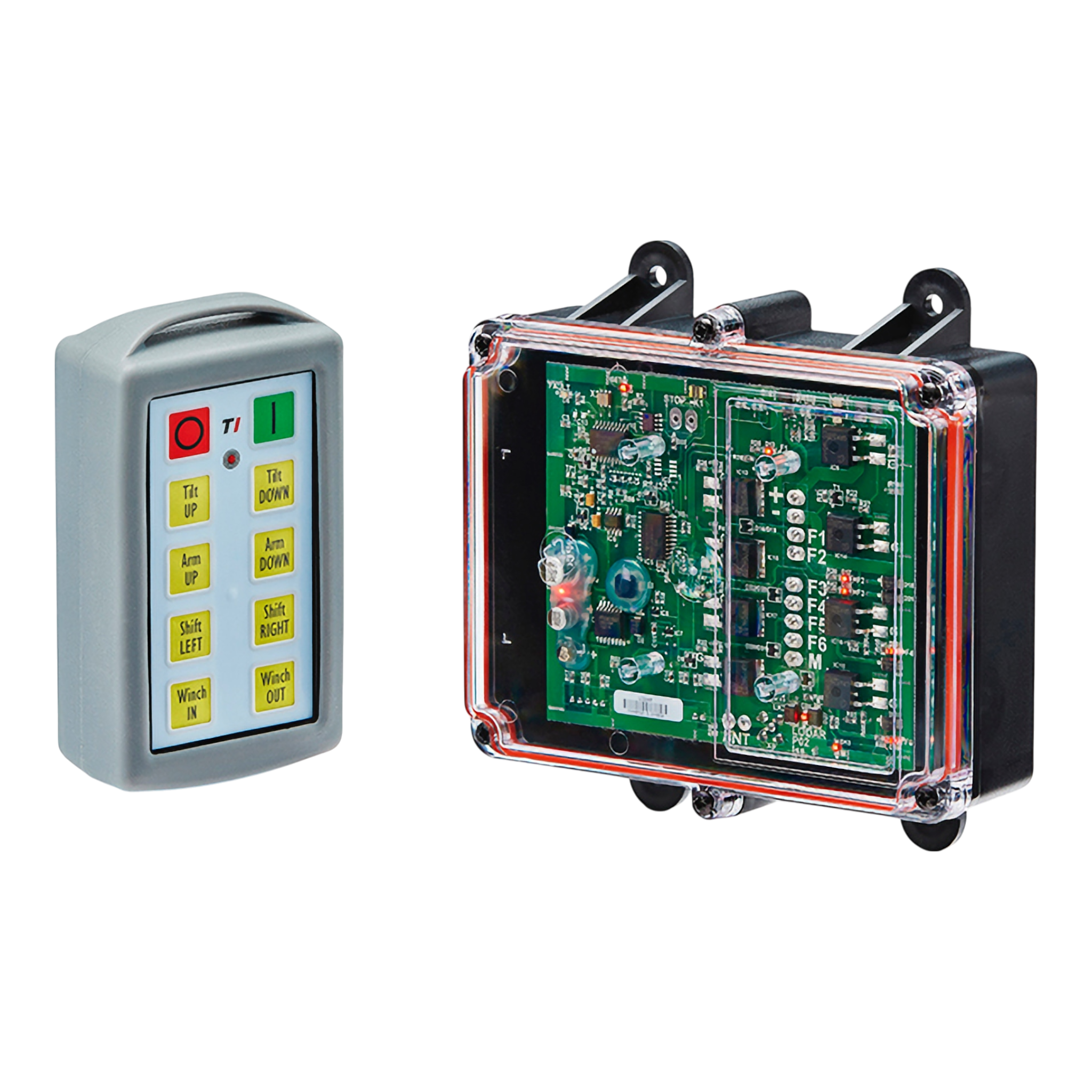

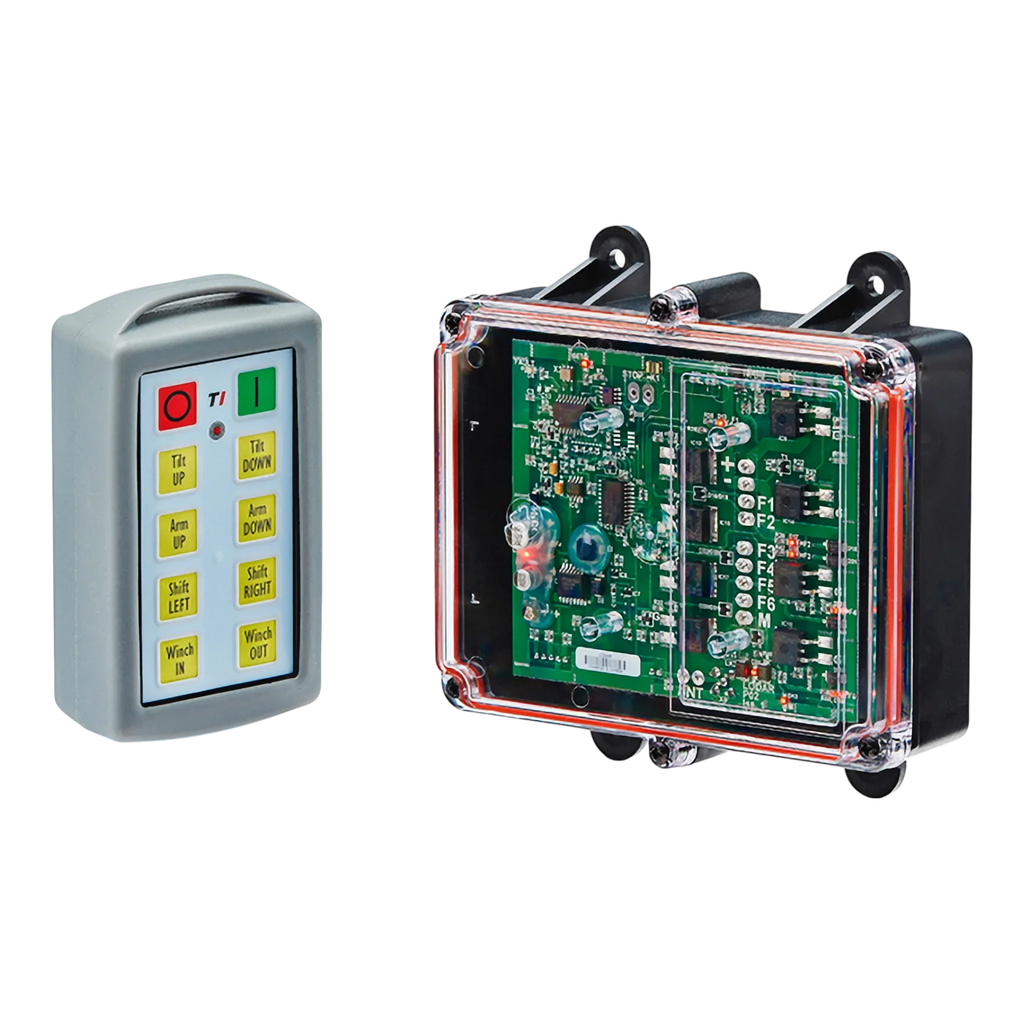

8 Function Standard Wireless Control System | 92 Series | FET Receiver
8 Function Standard Wireless Control System | 92 Series | FET Receiver
Description
The Lodar 8 Function Standard Wireless Control System (92 Series FET Receiver) provides reliable, efficient control for heavy-duty equipment. Built for industrial use, this system enables precise operation of up to eight functions, making it ideal for work trucks, tractors, and machinery across the US. With a 200-foot operating range and a rugged, weather-resistant design, it ensures consistent performance in challenging environments.
Operating at 12/24V DC with a maximum of 15 amps, the system includes a master output that activates a hydraulic pump or other systems, ensuring seamless coordination with the selected function. The IP65-rated receiver and IP54-rated transmitter offer robust protection against dust and water, ensuring durability in harsh conditions. Powered by a single 9V battery, the transmitter is simple to maintain.
This wireless control system enhances efficiency for tasks like operating hydraulic systems, winches, or other equipment functions. Backed by Lodar’s 5-year pro-rated warranty, it delivers safety, precision, and durability for professionals nationwide.
Included
1 x
92108TX
1 x
9208RX
1 x
Instructions
1 x
Lanyard
Specifications
| Specification | Details |
|---|---|
| CHANNEL | Wide Band, Fixed |
| FUNCTIONS | 8 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 200 ft. (61 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | 9V x 1 |
| TRANSMITTER IP RATING | IP 54 |
