Hydraulic Cylinders | Welded Cylinder | 4 Inch Bore Diameter | 14 Inch Stroke
P05314BW
Hydraulic Cylinders | Welded Cylinder | 4 Inch Bore Diameter | 14 Inch Stroke
Description

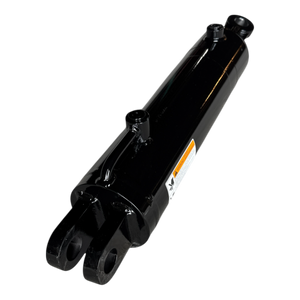

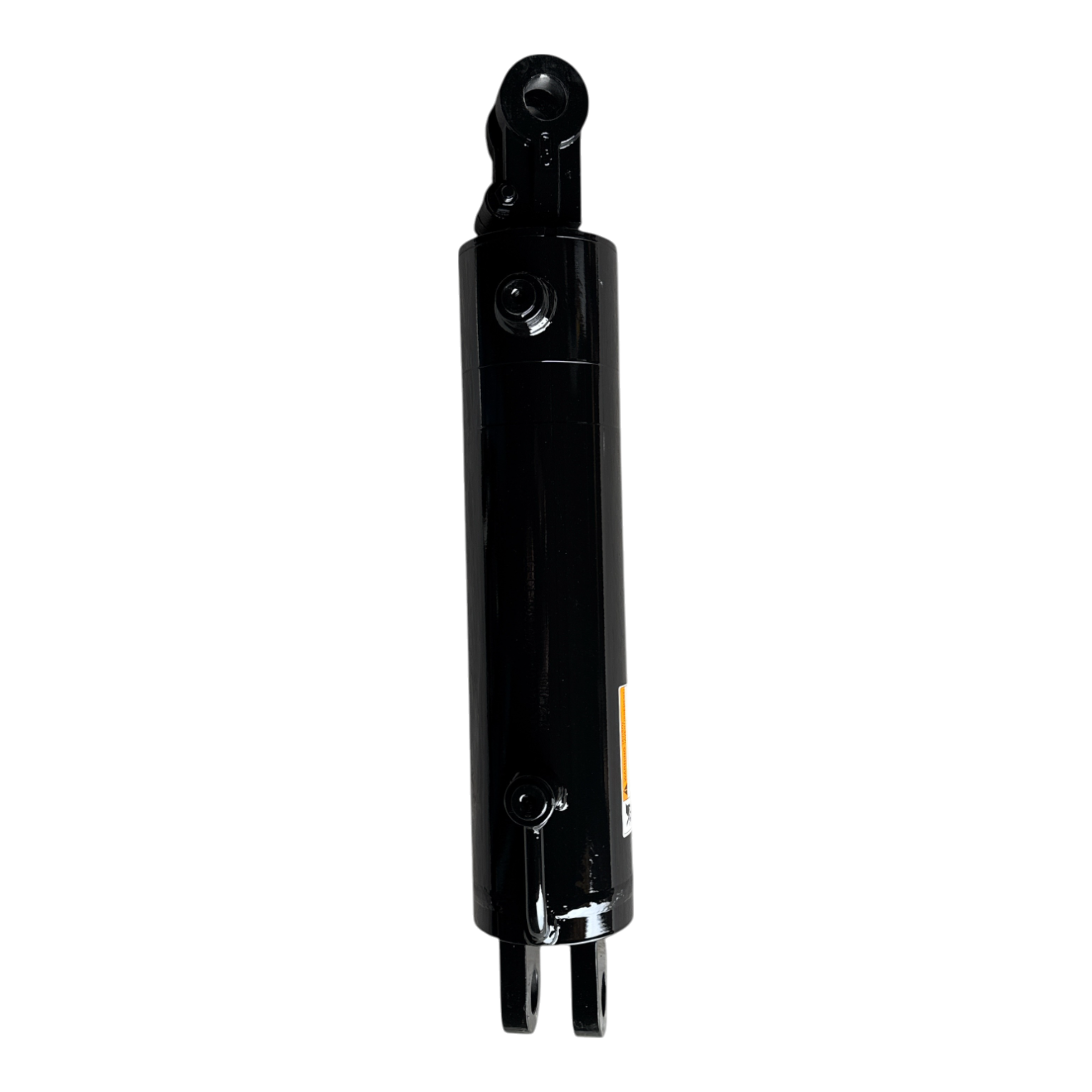

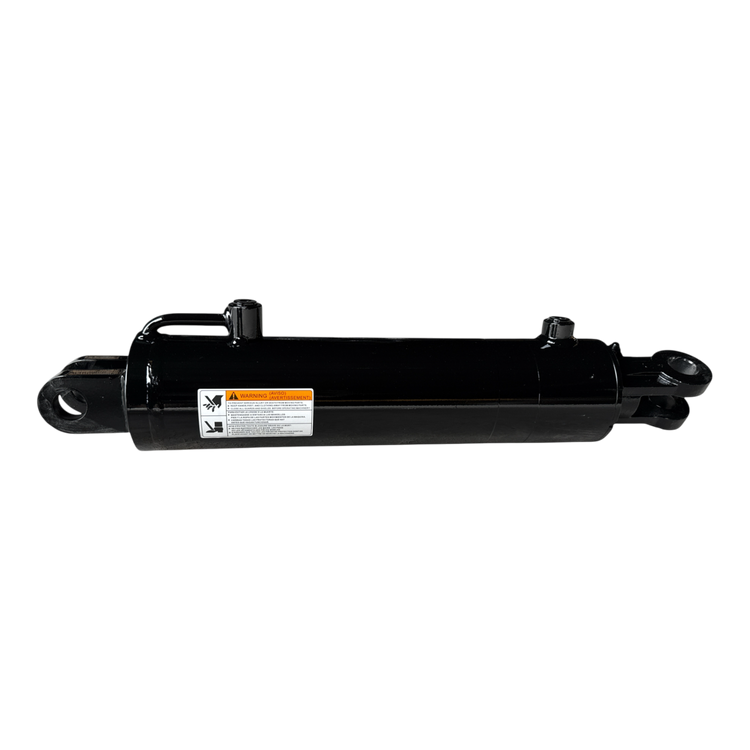

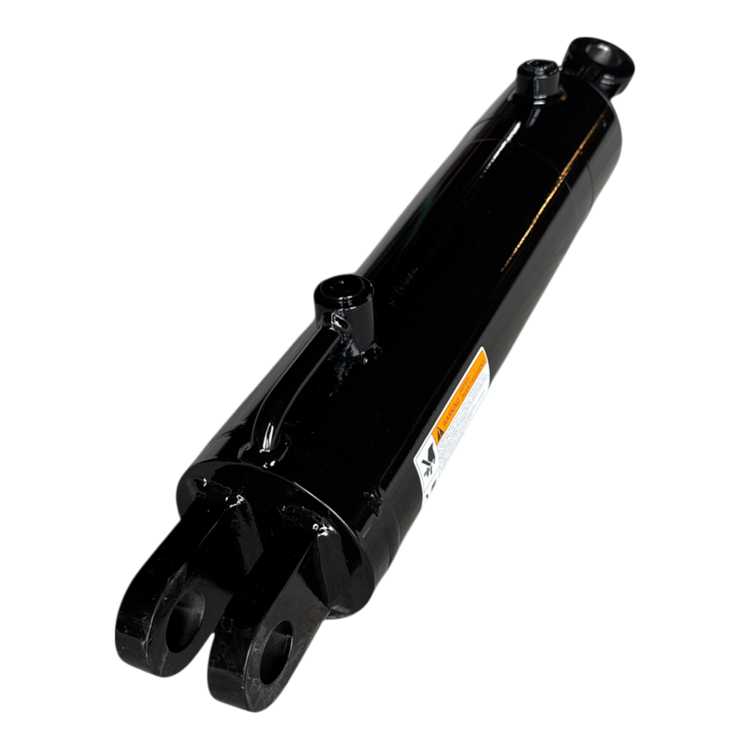

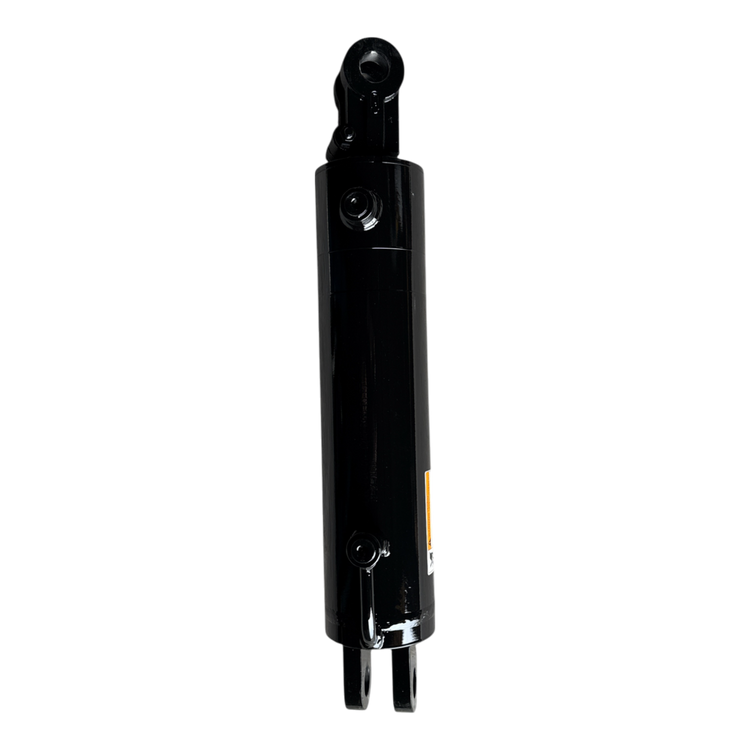

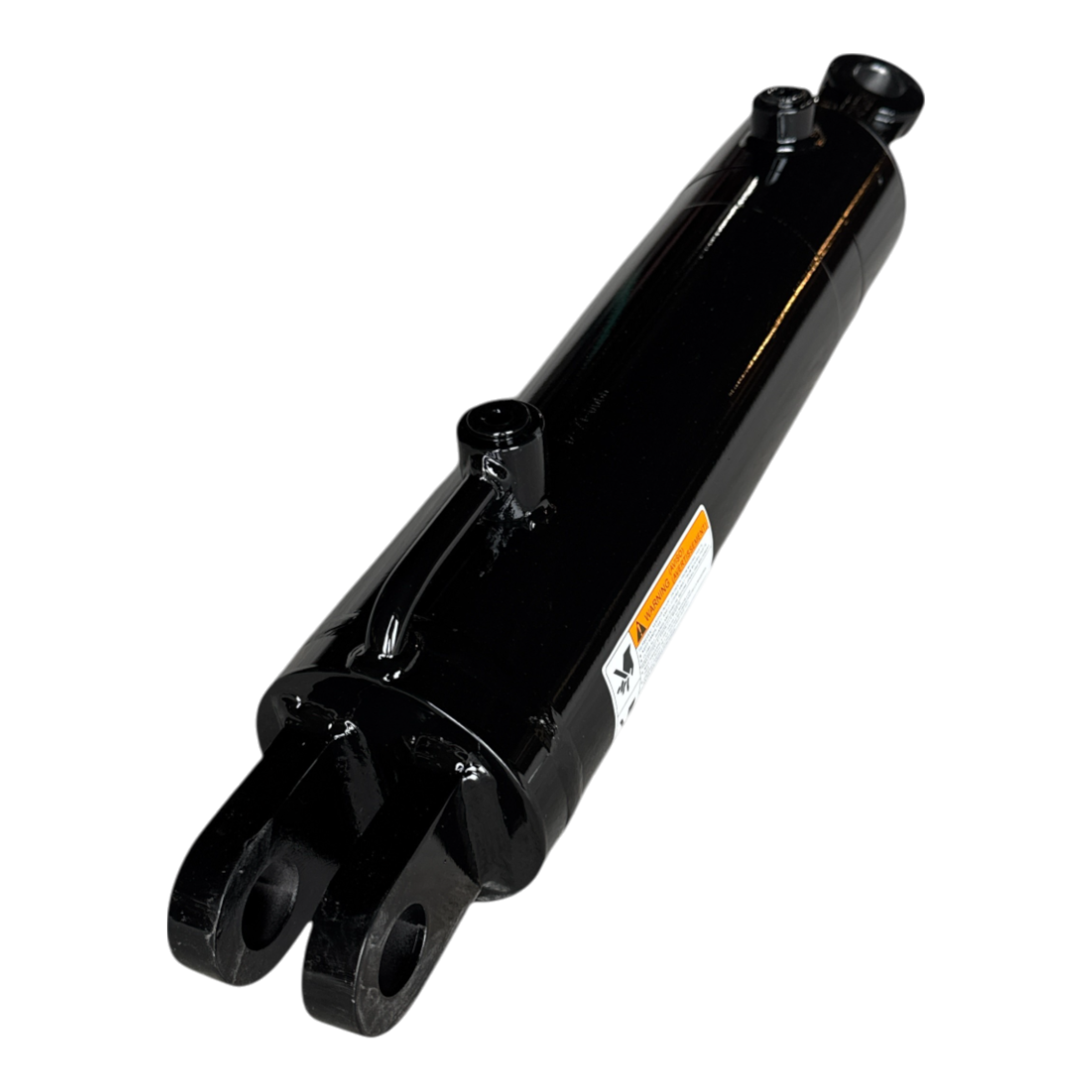

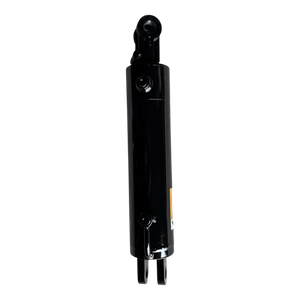

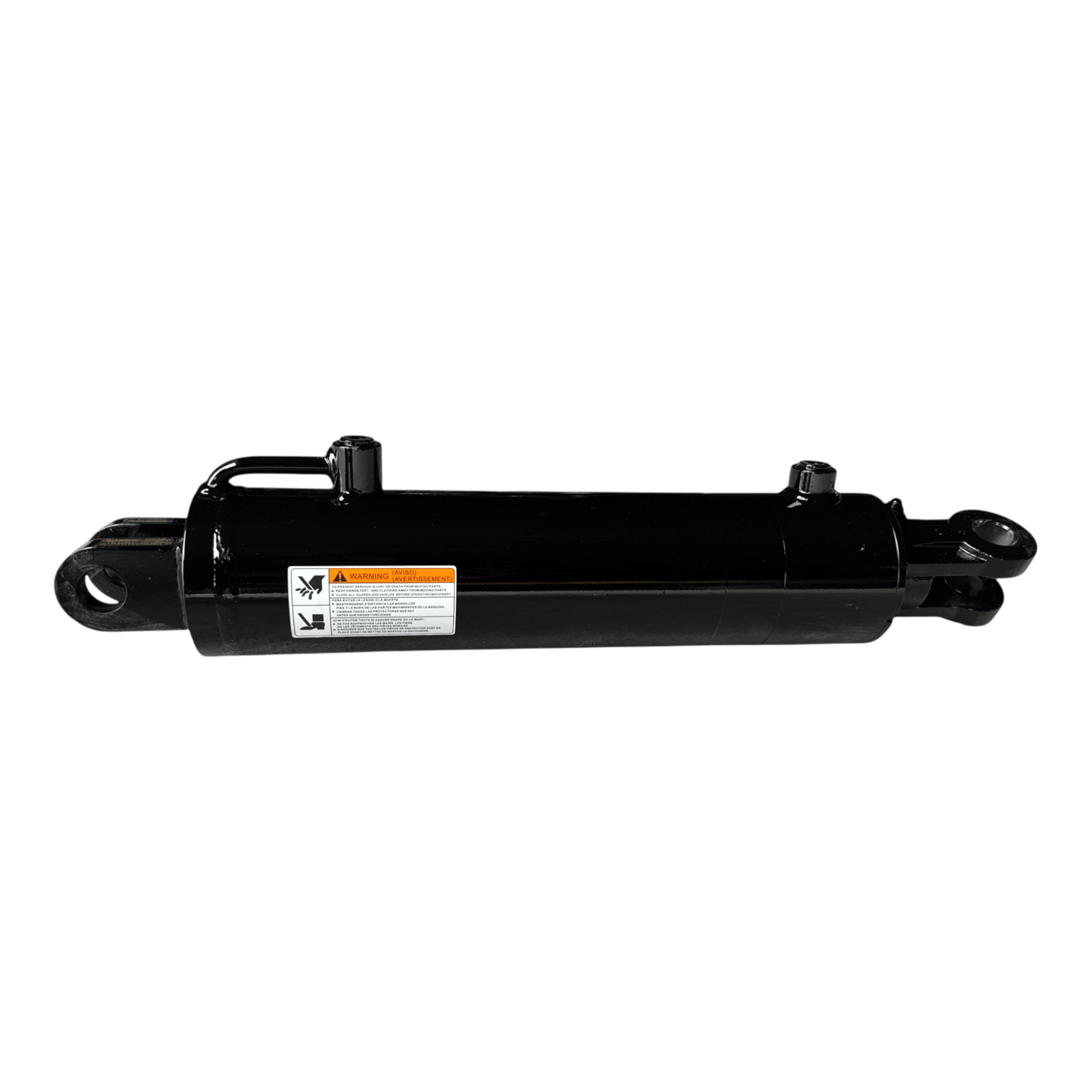

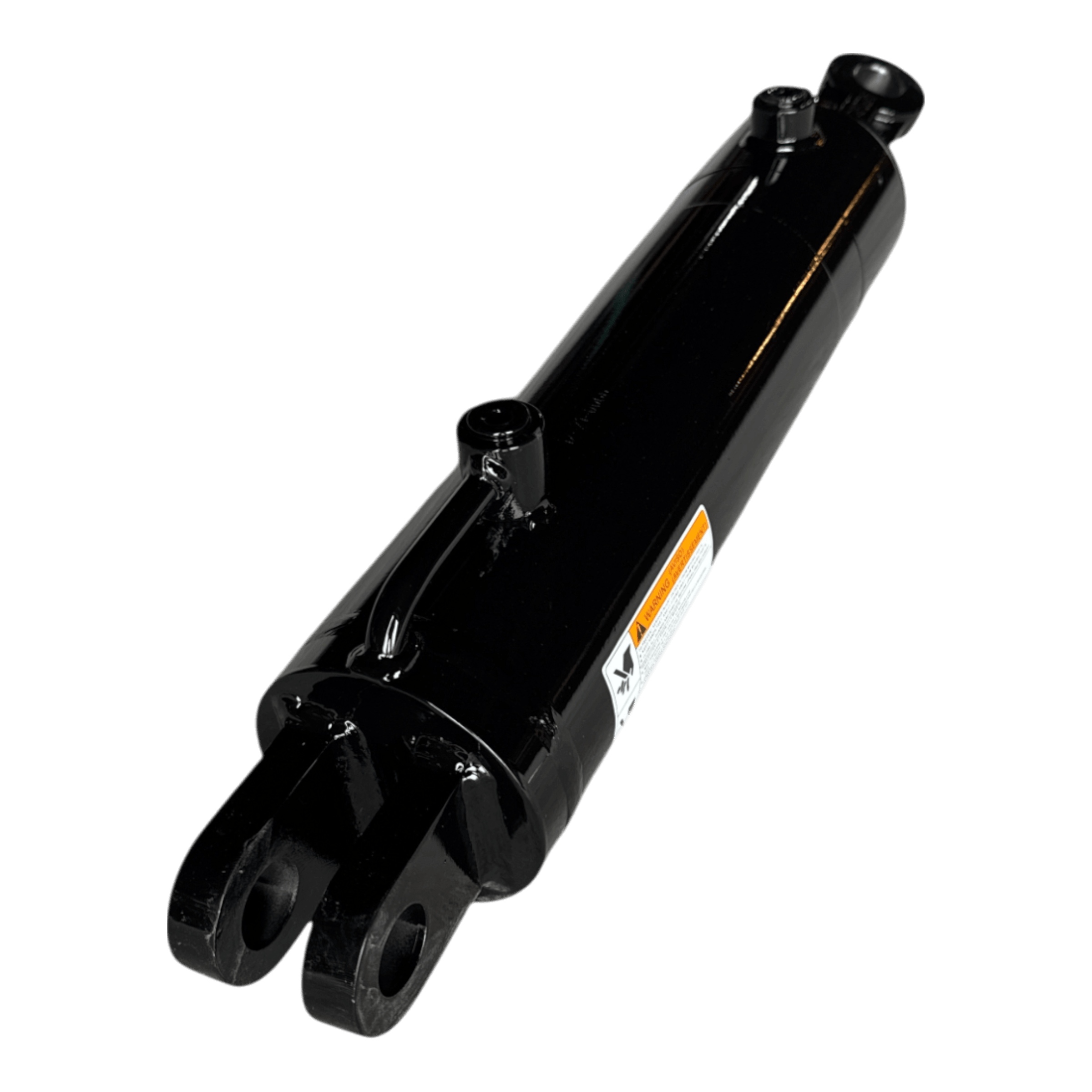

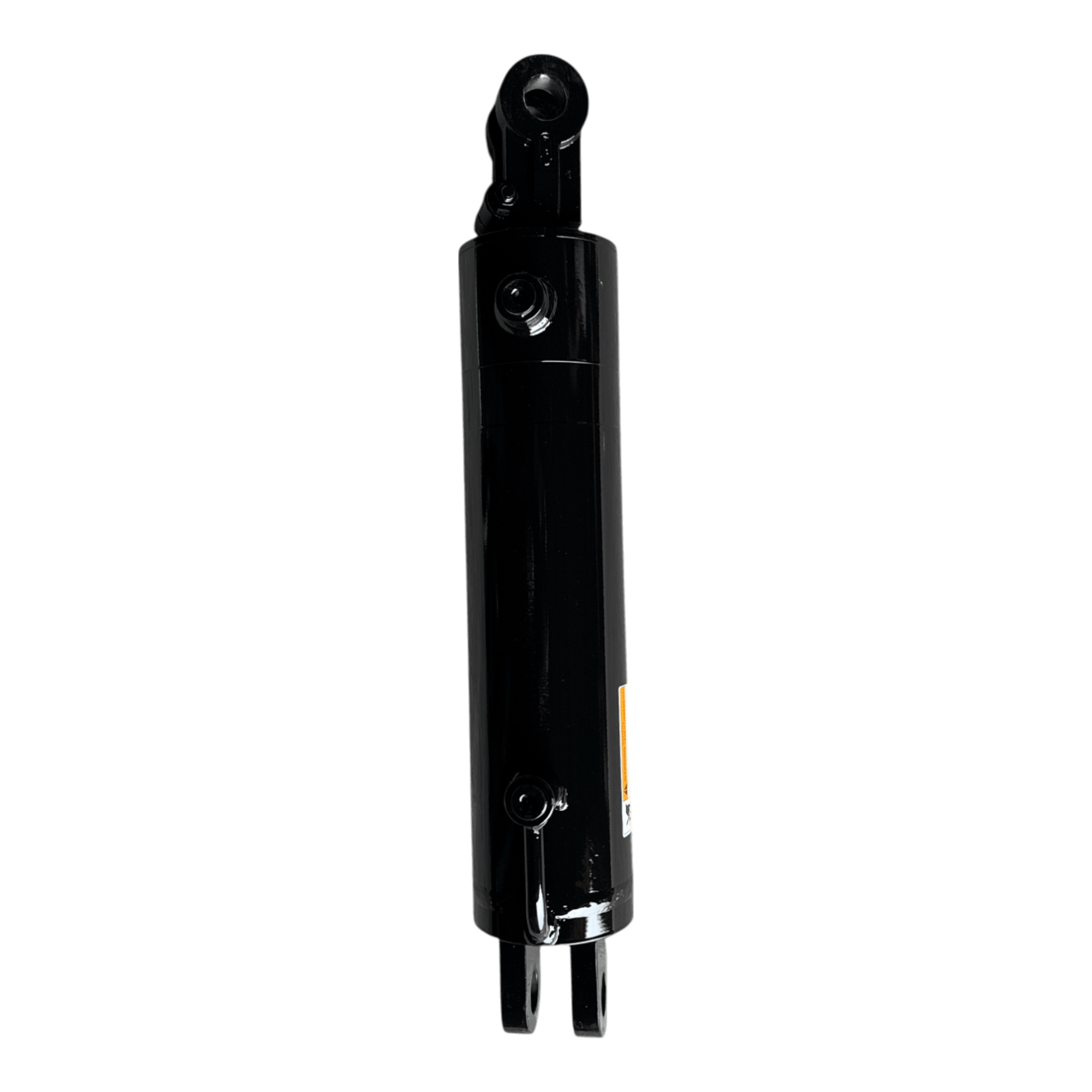

The PIERCE Welded Hydraulic Cylinder, with a 4-inch bore and 14-inch stroke, is a reliable upgrade from outdated tie-rod cylinders. Originally designed for our light-duty dump kits, it’s versatile enough to power your custom work truck, tractor, trailer, or other equipment. Its welded design ensures strength and durability, while the clevis mount and dual attachment points allow for quick, secure installation. The black glossy finish protects against corrosion, ensuring long-lasting performance on tough job sites.
Features:
-
Welded construction for superior strength and leak-free performance
-
4-inch bore diameter for robust power in demanding tasks
-
14-inch stroke length suited for dump kits and custom builds
-

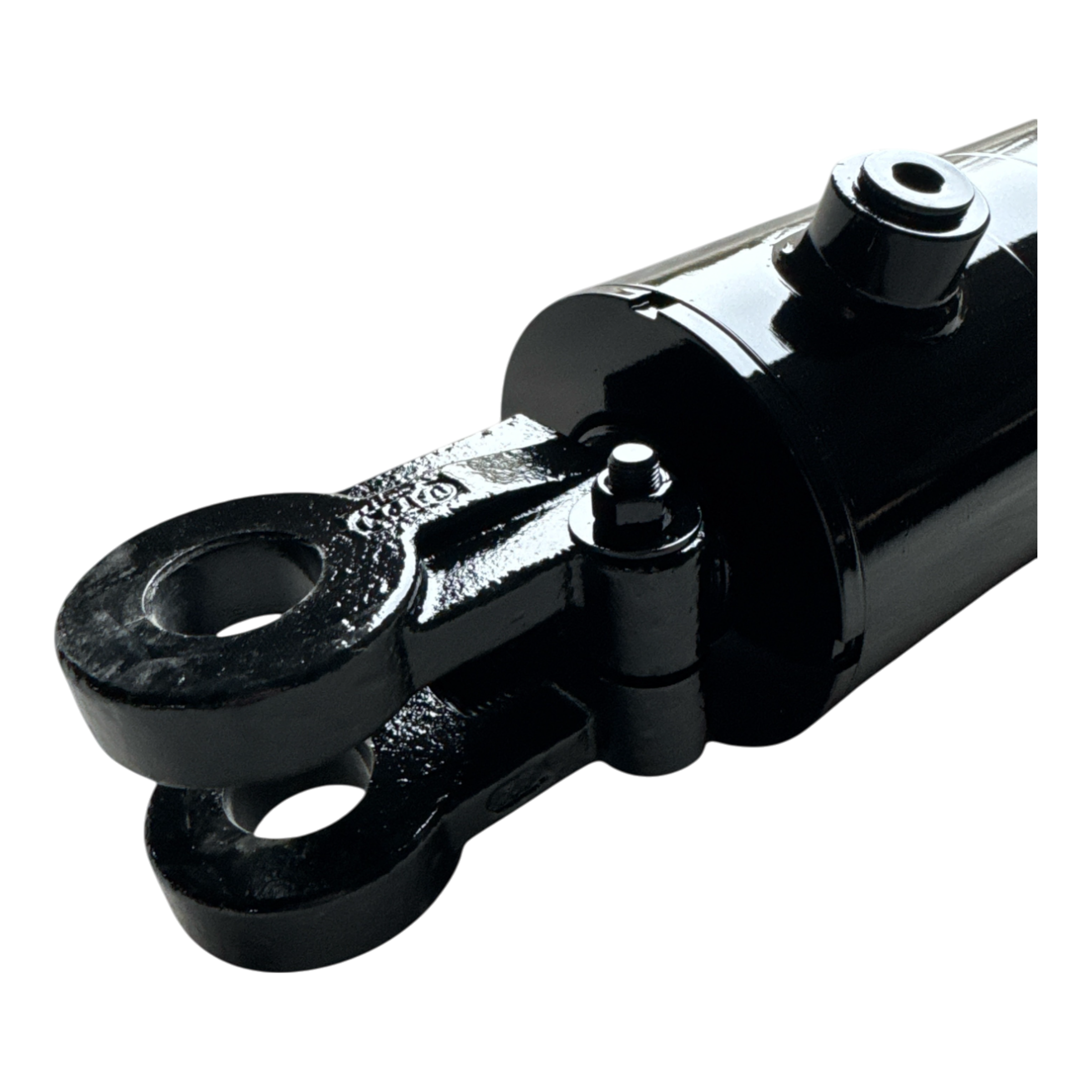

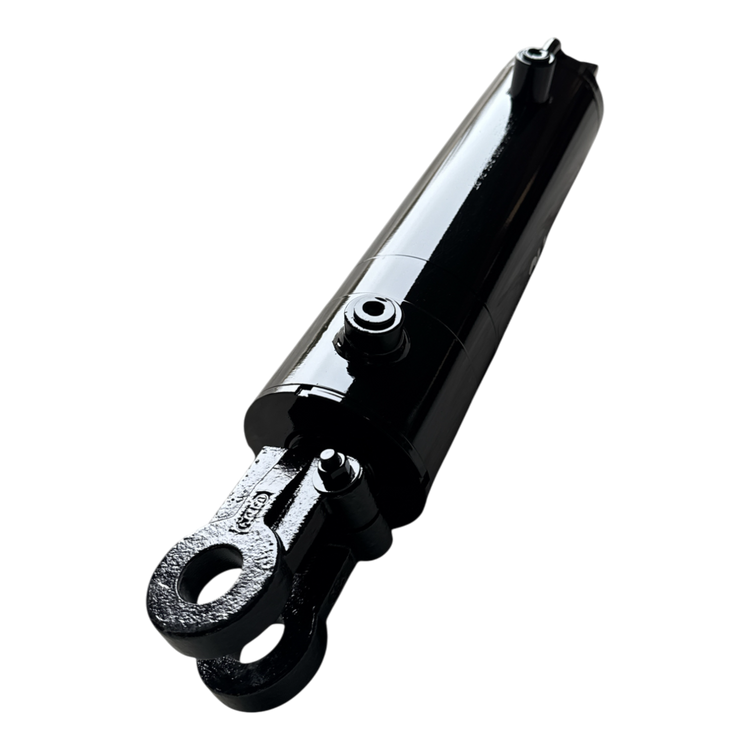

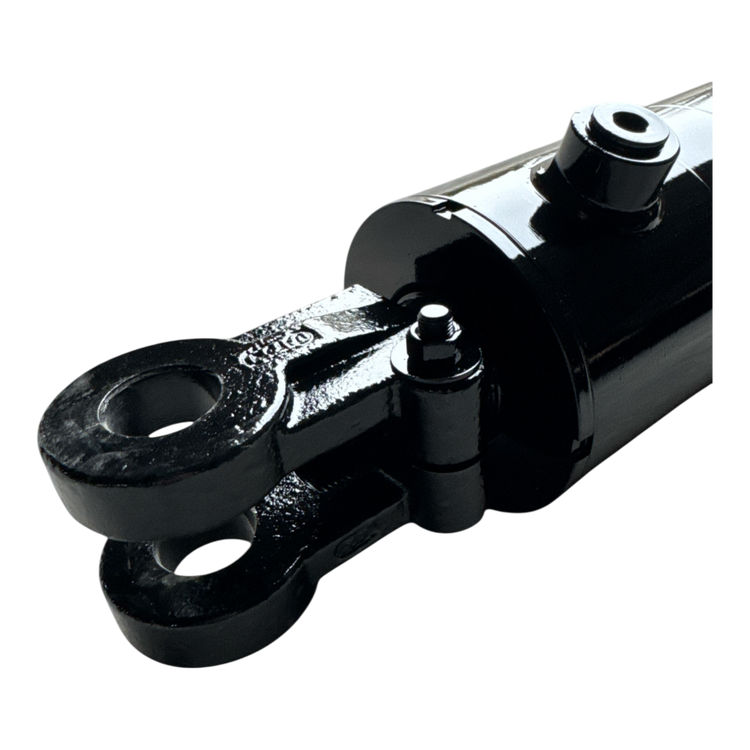

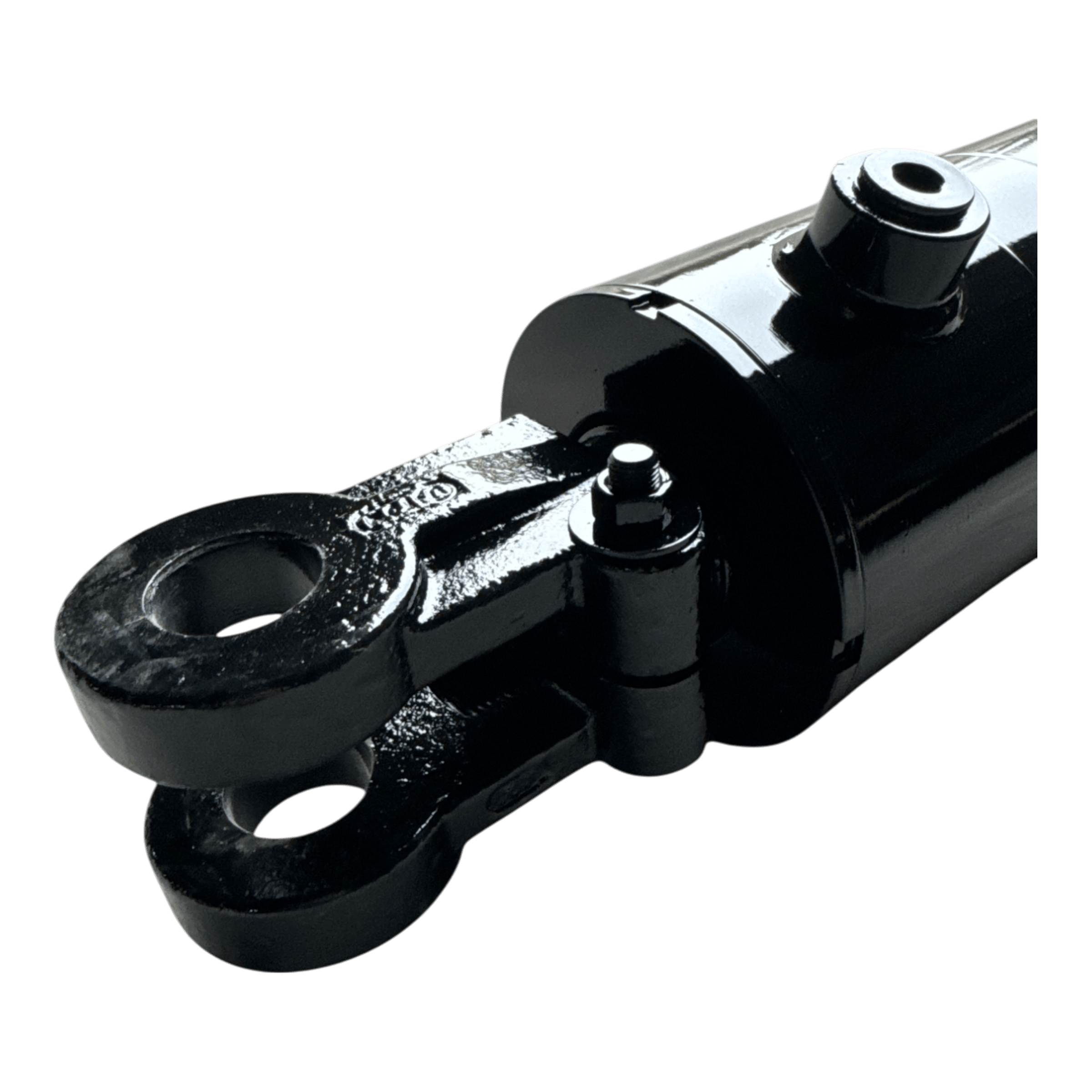

Clevis mount for quick, secure installation
-
Dual attachment points for flexible equipment compatibility
-
Black glossy finish for corrosion resistance and long-term durability
-
Replaces tie-rod cylinders for improved performance and reliability
Specifications
| Specification | Details |
|---|---|
| COLUMN LOAD | 37690 lbs |
| CYLINDER BORE DIAMETER | 4 in. |
| CYLINDER ROD DIAMETER | 2 in. |
| CYLINDER STROKE | 14 in. |
| LENGTH EXTENDED | 38.25 in. |
| LENGTH RETRACTED | 24.25 in. |
| OPERATIONAL PRESSURE (PSI) | 3000 |
| PORT SIZE | SAE 8 |
| WEIGHT (LBS.) | 47 |
