You know you need a winch. The next question is: which one? PIERCE makes winches from 6,000 to 20,000 lb — electric and hydraulic, planetary and worm gear. This guide breaks down how each type works, when to use it, and which PIERCE models fit your application.
Step 1: How Much Pulling Power Do You Need?
Start with the quick rule: choose a winch with a maximum line pull of at least 1.5 times your vehicle's Gross Vehicle Weight Rating (GVWR). Use GVWR (printed on the door sticker), not curb weight — that's the worst case your winch has to handle.
Quick example: Your truck's GVWR is 8,000 lb. Minimum winch capacity = 8,000 × 1.5 = 12,000 lb. A PS12000 or larger is the right starting point.
The Full Formula
The 1.5× rule works for most situations, but the real-world pull required depends on terrain, slope, and how stuck the vehicle is. Here's the formula our Winch Capacity Calculator uses:
Required Capacity = (Rolling Resistance + Gradient Resistance + Damage Resistance) × Safety Margin ÷ Snatch Block Reduction
Each piece accounts for a different real-world factor:
| Factor | What it means | Typical values |
|---|---|---|
| Rolling Resistance | Force needed to roll the vehicle across the ground surface. Varies with terrain. | Hard road: GVWR ÷ 25 Gravel: GVWR ÷ 5 Sand/dirt: GVWR ÷ 3 Mud/swamp: GVWR ÷ 2 |
| Gradient Resistance | Added pull from pulling uphill. Slope multiplies the load you're fighting against gravity. | Flat (0–15°): +0% Moderate (15–30°): +25% Steep (30–45°): +50% Extreme (45°+): +100% |
| Damage Resistance | Extra force needed for each locked or damaged wheel that has to be dragged instead of rolled. Count twin rear axles as one position. | +25% of vehicle weight per locked wheel |
| Safety Margin | A multiplier that builds in headroom for unknowns — wet rope, partial loads, line wear, and pulls beyond your initial estimate. | 1.5× standard 2.0× for heavy/critical pulls 2.5× absolute maximum |
| Snatch Block Reduction | A snatch block (pulley) doubles or triples your pulling force by adding line redirections — at the cost of half or two-thirds the line speed. | 2-line rig: 50% reduction 3-line rig: 67% reduction 4-line rig: 75% reduction |
Worked example: An 8,000 lb truck stuck in mud on a moderate slope, all four wheels free. Rolling resistance: 8,000 ÷ 2 = 4,000 lb. Gradient: +25% of 8,000 = 2,000 lb. Damage: 0 lb. Raw pull = 6,000 lb. With 1.5× safety margin: 9,000 lb minimum winch capacity — a PS9000 handles it. Same truck on hard road, no slope: rolling resistance is just 320 lb, and a much smaller winch would work — which is exactly why terrain matters.
Two important caveats: winch capacity drops 10–20% per additional rope layer on the drum (always size for the outer layer), and you should never exceed a winch's rated capacity. When in doubt, size up.
⚖️ Run the Numbers in Our Capacity Calculator
Step 2: Power Type — Electric vs. Hydraulic
This comes down to how often you'll use the winch and whether you have a hydraulic system on the vehicle.
| Electric | Hydraulic | |
|---|---|---|
| Power source | 12V or 24V DC battery (or 110/220V AC) | Pump or PTO (min. 2,000 PSI, 7 GPM) |
| Best for | Periodic use — recovery, car haulers, shops | Continuous use — wreckers, towing, oil field |
| Duty cycle | Requires rest between pulls to avoid overheating | Runs continuously without overheating |
| Cost | Lower up front ($515–$1,700) | Higher up front ($1,100–$1,628+) |
| Installation | Simpler — battery wiring only | Requires hydraulic plumbing |
If your vehicle already has a hydraulic system (PTO, pump, or power unit), hydraulic is almost always the better choice for industrial work. If it doesn't — or you're using the winch occasionally — electric is the practical move.
Step 3: Gear Type — Planetary vs. Worm Gear
This is the decision that most people get wrong. The difference isn't just speed — it's whether the winch holds a load on its own.

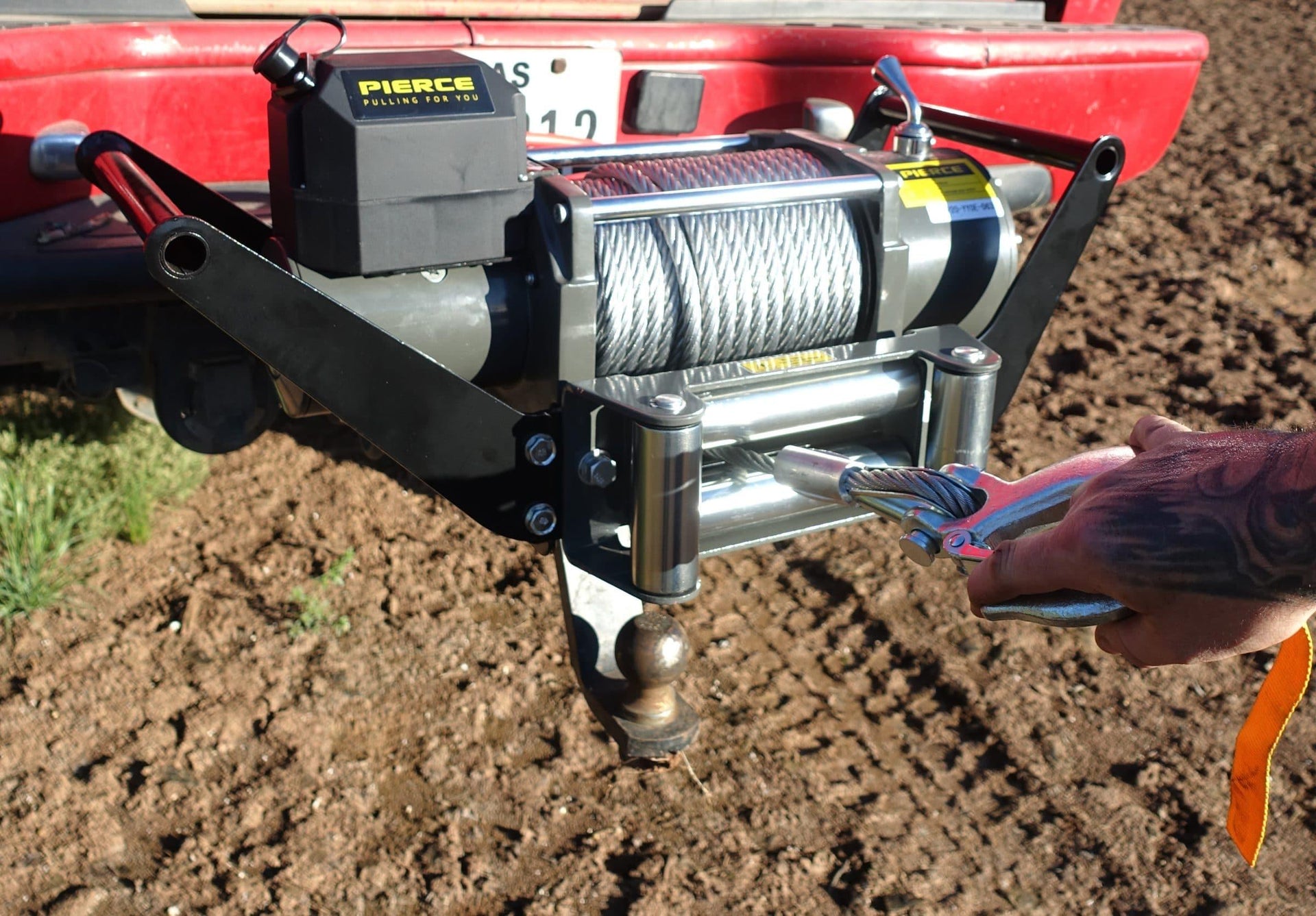

Planetary Gear Fast speed, no load holding
Worm Gear Slower speed, holds the load
| Planetary Gear | Worm Gear | |
|---|---|---|
| How it works | Orbiting gears multiply speed | Screw-like gear multiplies torque |
| Line speed | Fast (13–24 ft/min) | Slow (4–14 ft/min) |
| Load holding | No — will unspool under load if power is cut | Yes — self-braking even under heavy loads |
| Pulling strength | 6,000–20,000 lb | 9,000–12,500 lb |
| Best for | Recovery, loading vehicles onto trailers | Delicate pulls, wreckers, holding loads in position |
| PIERCE models | PS Series (PS6000–PS20000) | PSW654 Series (8K, 11K, 8MK, 11MK) |
Key takeaway: Planetary winches are faster and cheaper — great for loading vehicles and self-recovery. Worm gear winches are slower but hold the load even if power is interrupted — essential for wreckers and applications where the load must stay in place.
Quick-Match: Find Your Winch
Here's how the four combinations map to common applications:
| Application | Recommended Type | PIERCE Models |
|---|---|---|
| Self-recovery (trucks, Jeeps, UTVs) | Electric + Planetary | PS6000–PS20000 |
| Car hauler trailers | Electric + Planetary | PS6000, PS9000 |
| Wreckers and towing | Hydraulic + Worm Gear | PSW654-HK Series |
| Industrial (budget or no hydraulics) | Electric + Worm Gear | PSW654-K / MK Series |
| Oil field, continuous-duty pulling | Hydraulic + Planetary | PSHV10000–PSHV20000 |
| Shops, hangar doors (110V power) | Electric AC + Worm Gear | PS654-EK / EMK Series |
Mounting Basics
Mounting differs by gear type:
- Planetary (PS Series): Base mount on a plate or secure surface. Use a minimum 1/4 in thick plate with 4 bolts.
- Worm Gear (PSW654 Series): Angle mounts with a four-sided frame for full reinforcement. All 8 mounting bolts (G5 3/8 in with lock washers) must be used.
The frame or mounting plate must be rated to withstand the winch's full pulling capacity. Refer to the installation manual for exact bolt patterns.
Dig Deeper
For full specs on every PIERCE winch series — gear ratios, line speeds, motor specs, wire rope sizes, and pros and cons — see our Winch Buyer's Guide. It breaks down each series (Recovery, Hydraulic Industrial, Electric DC Industrial, Electric AC Industrial) with side-by-side spec tables and ideal applications for each.
