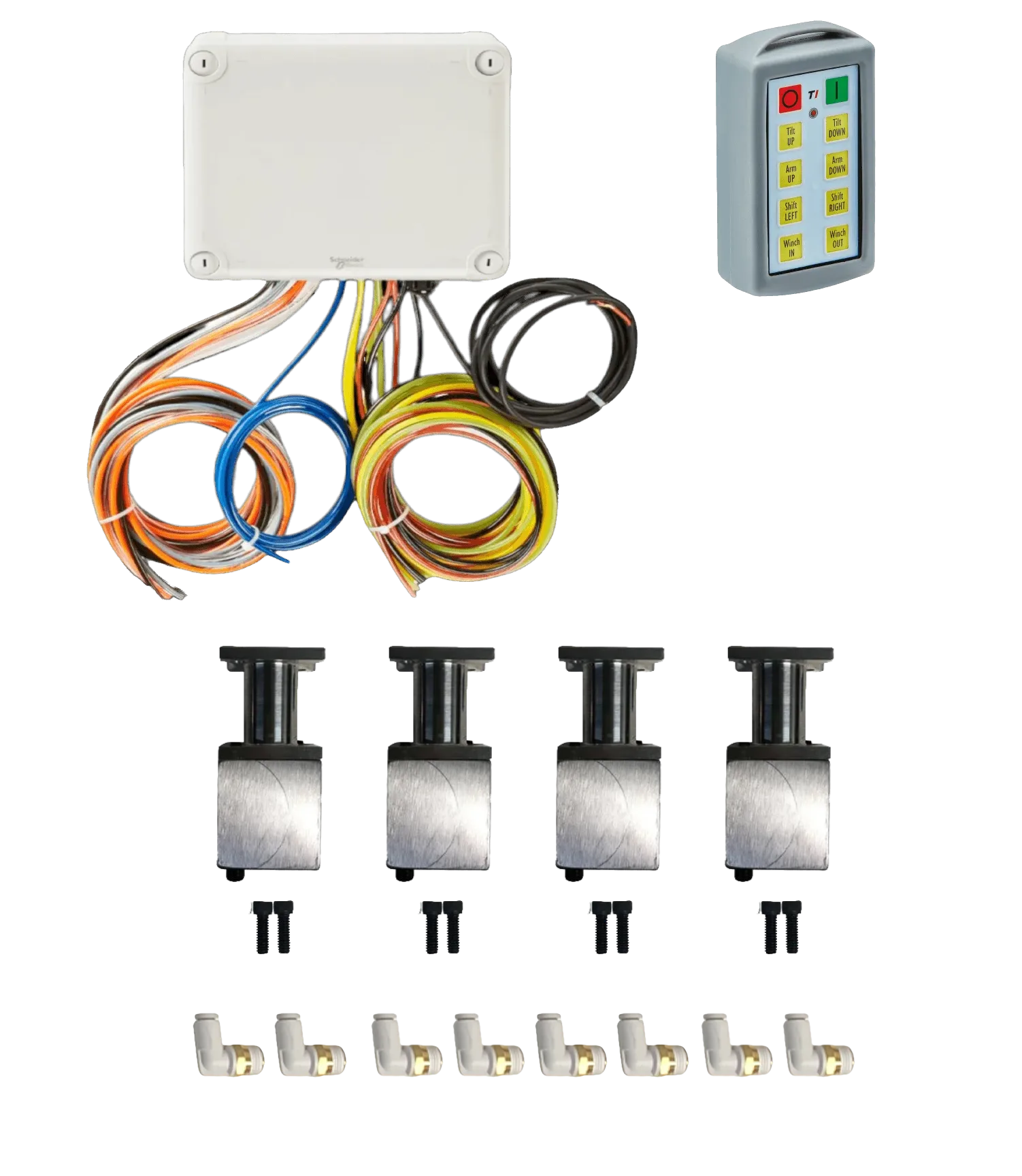

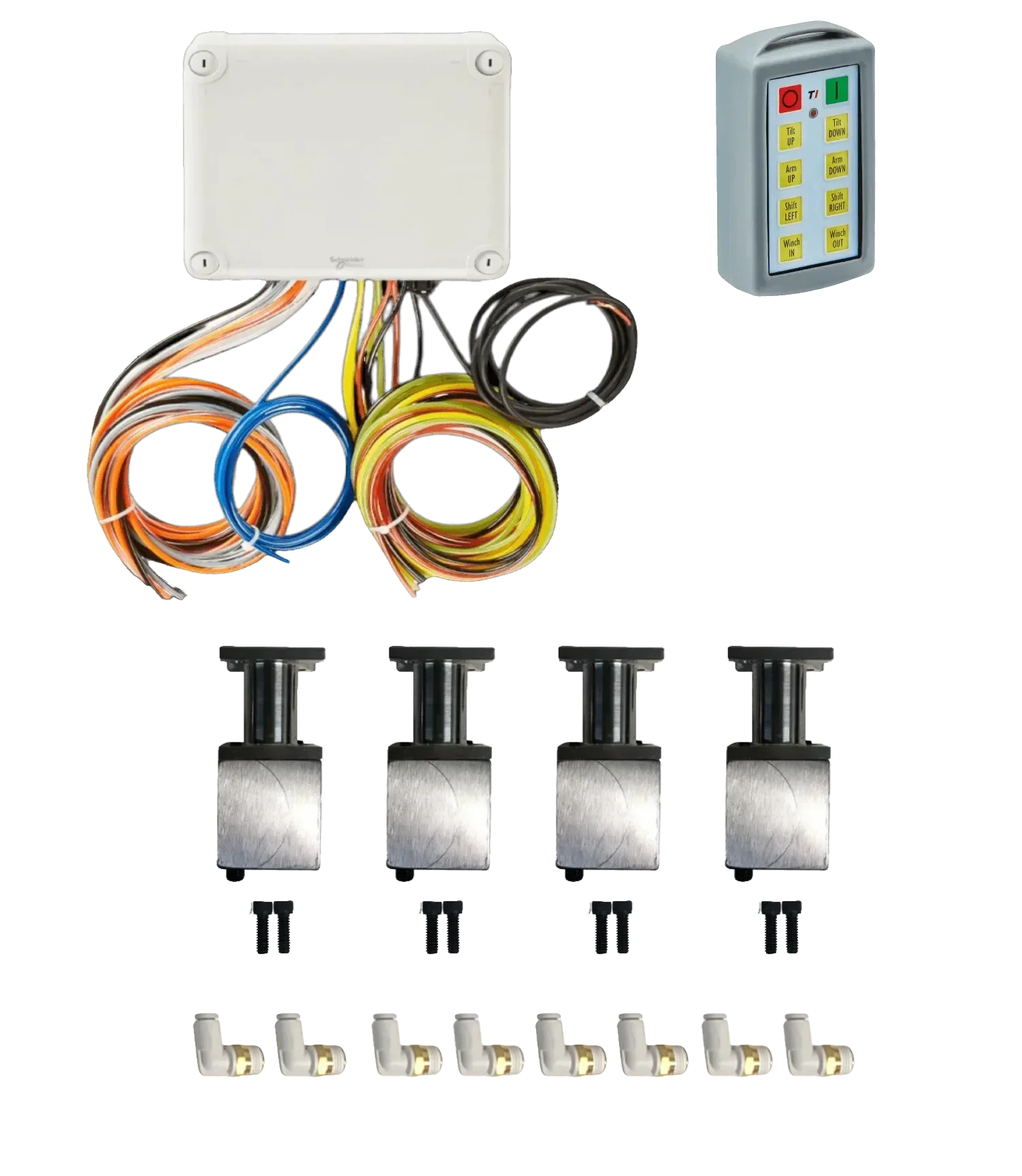

PIERCE 8 Function Direct Mount Wireless Control for Jerr-Dan, featuring Husco valves and connectors, with control panel and wiring—displayed neatly on a white background.

8 Function Direct Mount Wireless Control – Jerr-Dan (Husco Valves)

$4,391.00
Skip to product information
PIERCE 8 Function Direct Mount Wireless Control for Jerr-Dan, featuring Husco valves and connectors, with control panel and wiring—displayed neatly on a white background.
  • PIERCE 8 Function Direct Mount Wireless Control for Jerr-Dan, featuring Husco valves and connectors, with control panel and wiring—displayed neatly on a white background.
  • PIERCE 8 Function Direct Mount Wireless Control for Jerr-Dan, featuring Husco valves and connectors, with control panel and wiring—displayed neatly on a white background.
8 Function Direct Mount Wireless Control – Jerr-Dan (Husco Valves)

8 Function Direct Mount Wireless Control – Jerr-Dan (Husco Valves)

92158DMJ-8
$4,391.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
Out of Stock

Bring modern control to your Jerr-Dan. This 8-function wireless system bolts directly to Husco spool valves, replacing manual lever pulls with precise air-actuated control. Operate four hydraulic valves (two directions each) from a safer distance, out of roadside traffic.

  • 8 functions = 4 valves of wireless control
  • Direct-mount air actuators for Husco spools (no welding or special tools)
  • Fast install on newer Jerr-Dan wreckers
  • Standard Series handheld transmitter (IP54) with AAA x 2 batteries
  • Sealed receiver (IP67) for dependable operation
  • Requires onboard air supply (90–120 PSI) and 12V DC power

Related systems: Need a universal pneumatic setup? See the 8 Function Air Actuation System. No onboard air available? Consider the 8 Function Electric Actuation System. For Miller/Gresen spool compatibility, choose the 8-Function Direct-Mount Actuator (Miller/Gresen).

Applications: Jerr-Dan recovery trucks, wreckers, and service rigs equipped with Husco spool valves.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Specifications
Transmitter
Standard
Actuator
Husco Direct Mount Air
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Special Features
Receiver with Air I/O + Air Actuators
Frequency
433 MHz
Type
Full System
Wiring Included
8 ft. power / 5 ft. air input / 3½ ft. air outputs
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
8 Function Lodar Replacement Standard Transmitter | 9000 Series
8 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92108TX-8
$391.00
Bolt-on Actuator for Husco Spool
Bolt-on Actuator for Husco SpoolSKU: C-3845-DM
$309.00
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
