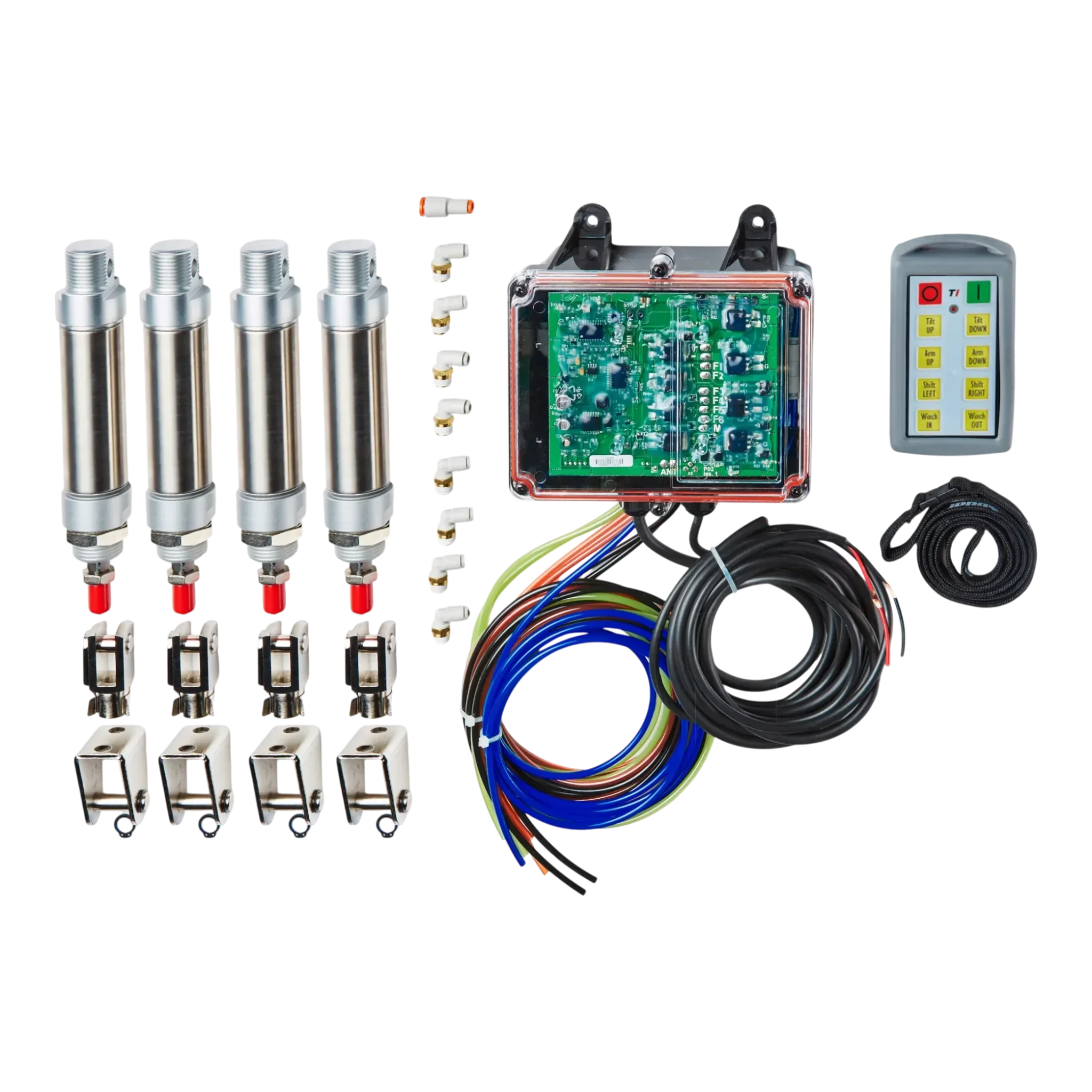

The Lodar Service 8 Function Wireless Air System with Bolt on Actuator includes sensors, circuit board, remote, cables, and hardware—perfect for integration with pneumatic actuators or air actuation systems.

8 Function Wireless Air System with Bolt on Actuator

$2,735.00
Skip to product information
The Lodar Service 8 Function Wireless Air System with Bolt on Actuator includes sensors, circuit board, remote, cables, and hardware—perfect for integration with pneumatic actuators or air actuation systems.
  • The Lodar Service 8 Function Wireless Air System with Bolt on Actuator includes sensors, circuit board, remote, cables, and hardware—perfect for integration with pneumatic actuators or air actuation systems.
  • The Lodar Service 8 Function Wireless Air System with Bolt on Actuator includes sensors, circuit board, remote, cables, and hardware—perfect for integration with pneumatic actuators or air actuation systems.
8 Function Wireless Air System with Bolt on Actuator

8 Function Wireless Air System with Bolt on Actuator

92158-8
$2,735.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
In Stock

Give your hydraulics a universal wireless upgrade. This 8-function air actuation system uses bolt-on pneumatic actuators to convert four valves (two directions each) to safe, precise wireless control.

  • 8 functions = 4 valves of wireless control
  • Bolt-on pneumatic actuators for straightforward integration
  • Standard Series handheld transmitter (IP54) with AAA x 2 batteries
  • Sealed receiver (IP67) for dependable operation
  • Works with common sectional valve banks (check spool compatibility)
  • Requires onboard air supply (90–120 PSI) and 12V DC power

Related options: Running Husco on Jerr-Dan? See the 8-Function Direct-Mount for Husco (Jerr-Dan). Prefer to source your own actuators? Choose the 8-Function Air System — No Actuators. Need higher sealing on the transmitter? See the 8-Function Air System (IP-rated transmitter).

Applications: Towing and recovery, rollbacks, agriculture equipment, and work trucks needing multi-function hydraulic control.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Specifications
Transmitter
Standard
Functions
8
Actuator
Air
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 67
Operating Distance
200 ft. (61 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Special Features
Receiver with Air I/O + Air Actuators
Frequency
433 MHz
Type
Full System
Wiring Included
8 ft. power / 5 ft. air input / 3½ ft. air outputs
Warranty
Lodar 5 Year Pro-rated Warranty
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
