Description

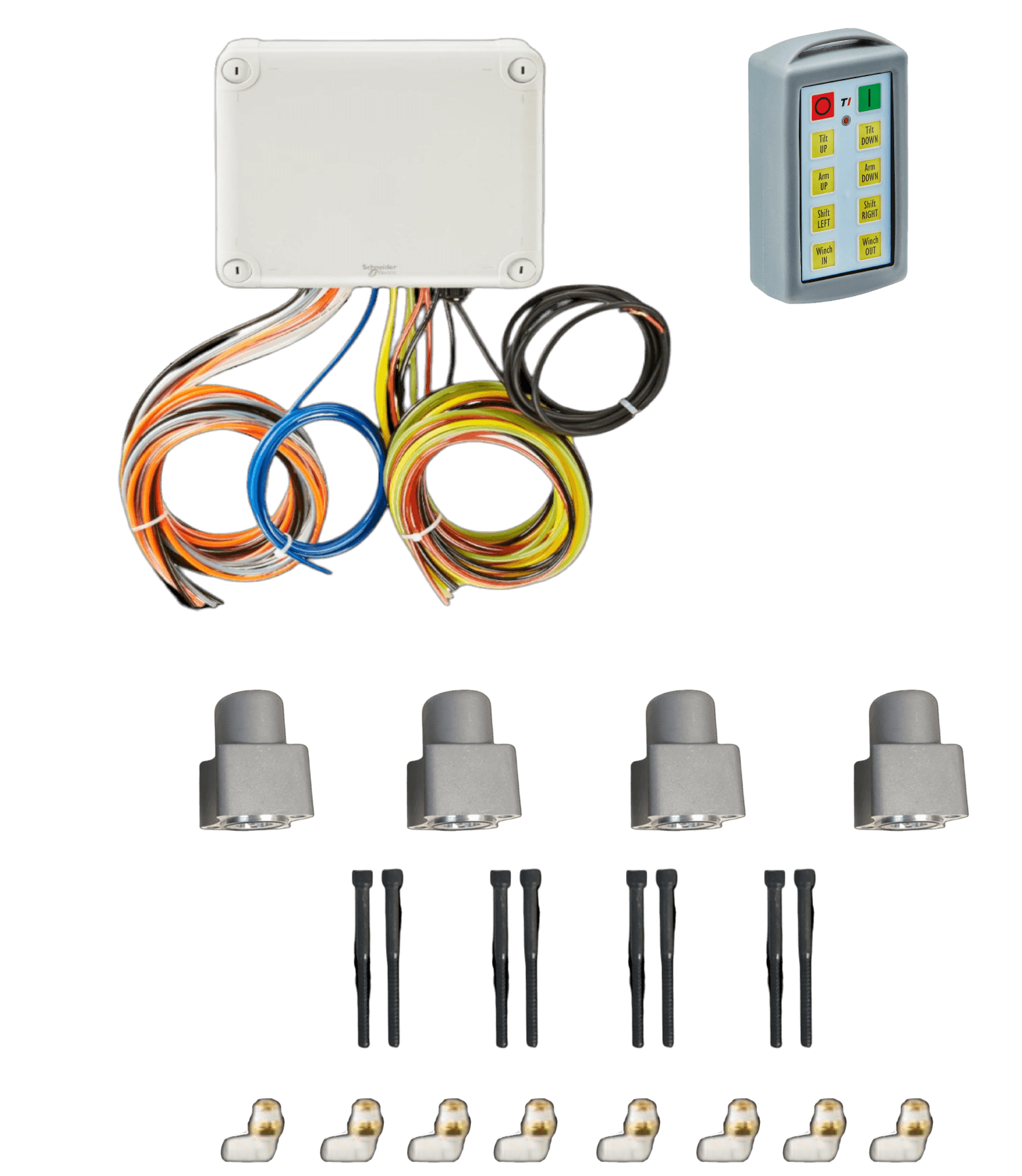

This 8-function Lodar system mounts actuators directly to Gresen spool valves on Miller equipment, replacing mechanical linkage with wireless control of four valves (two directions each).
- 8 functions = 4 valves of wireless control
- Direct-mount pneumatic actuators for Gresen spools
- Standard Series transmitter (IP54) with AAA batteries
- Receiver sealed to IP67
- Requires 90–120 PSI air and 12V DC
Applications: Miller wreckers and rollback units with Gresen valves.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Gressen Direct Mount Air |
| FREQUENCY | 433 MHz |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 200 ft. (61 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| TYPE | Full System |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
Warranty
Replacement Parts
8 Function Lodar Replacement Standard Transmitter | 9000 Series
With the Lodar 8 Function Standard Transmitter for the 9000 Series, you can rest assured knowing you have a backup for lost, damaged, or malfunctioning transmitters. Please be advised that although the casing is comparable to the 11 Series, the in...
Bolt-on Actuator for Gresen Spool
This Bolt-on Actuator is a direct replacement for the Wireless Control Air System, designed specifically for Gresen Spools found on Miller Towing Equipment. With a seamless installation process and reliable performance, this actuator ensures smoot...
