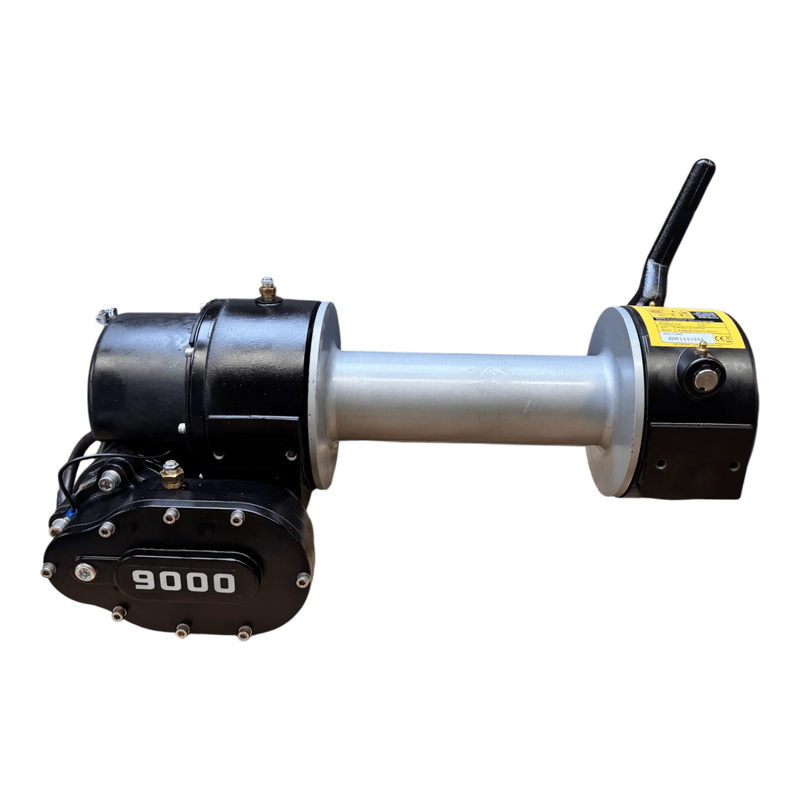

The PIERCE 9,000 lbs. 11" Drum Industrial Electric Winch in black and silver with a handle is perfect for recovery tasks, shown isolated on a white background.

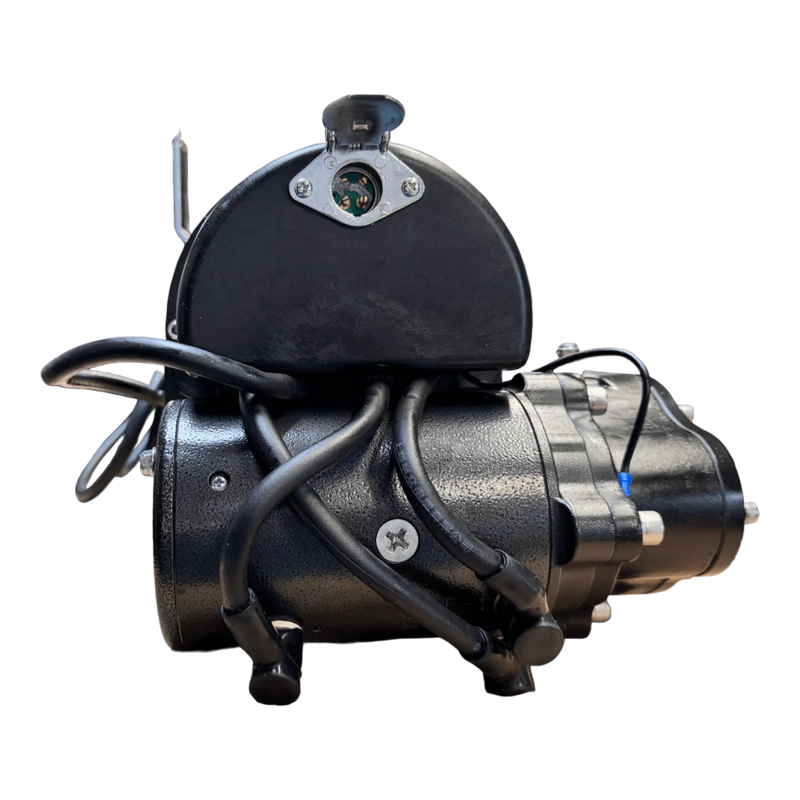

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch motor, shown front-facing with visible wiring and connectors, is engineered for dependable pulling power in worm gear winch applications.

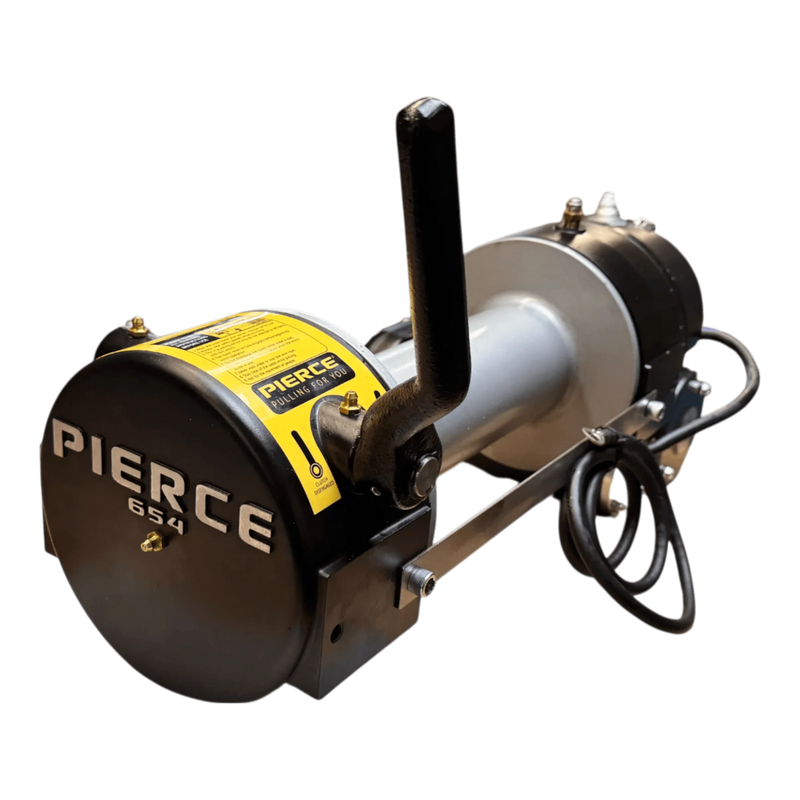

PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch with handle and power cord, offering strong pulling force, isolated on white background.

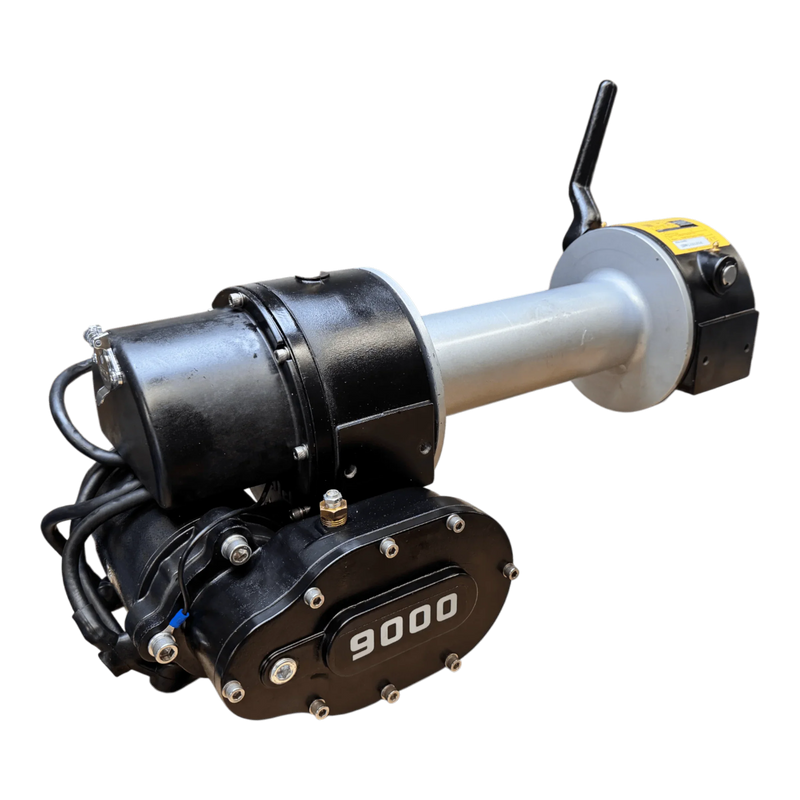

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features black and metallic elements and a handle, delivering 9,000 lbs of pulling force.

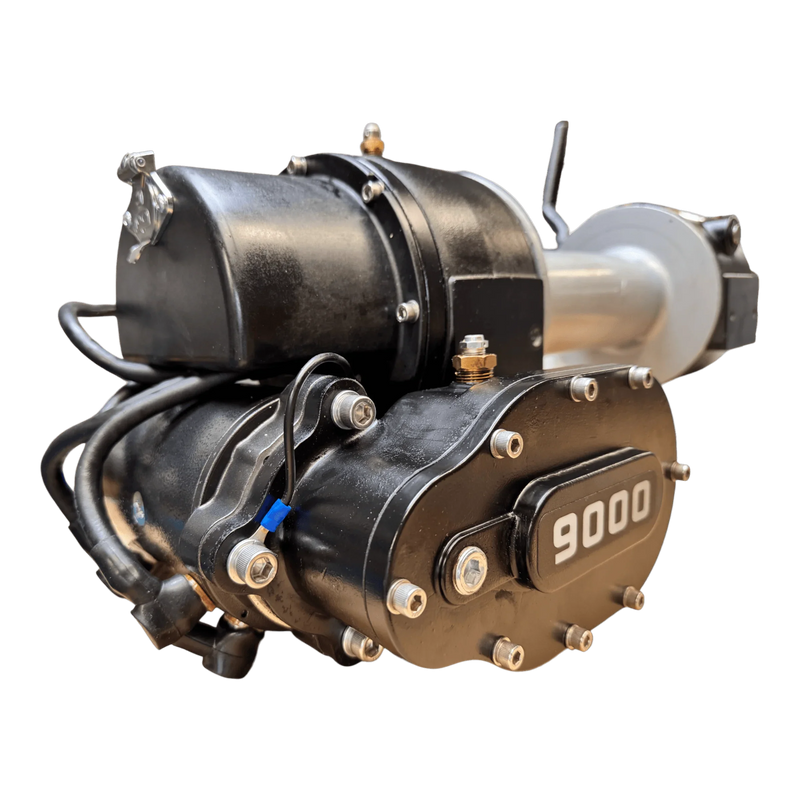

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features a black metal body with bolts and cables for powerful pulling, isolated on a white background.

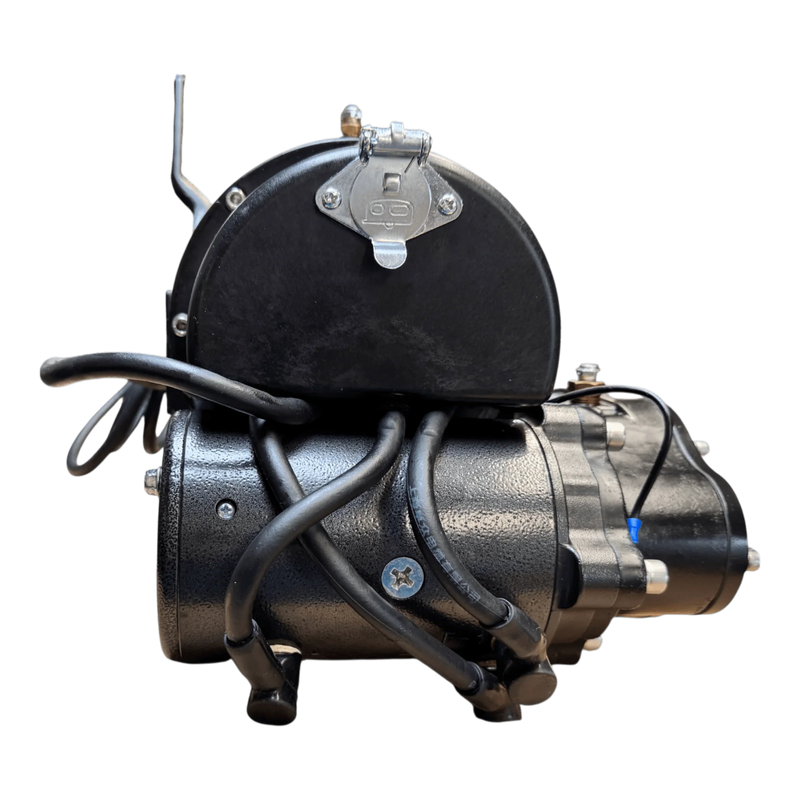

The PIERCE 9,000 lbs. 11" Drum Industrial Electric Winch, featuring multiple cables and bolts, is shown in a side view against a white background.
9,000 lb 12V Worm Gear Winch | 11 in Drum
9,000 lb 12V Worm Gear Winch | 11 in Drum
9,000 lb 12V Worm Gear Winch | 11 in Drum
9,000 lb 12V Worm Gear Winch | 11 in Drum

9,000 lb 12V Worm Gear Winch | 11 in Drum

PSW654-11K

$1,338.00

Built to Order

The PSW654-11K is a 9,000 lb 12V worm gear winch with the longer 11 in drum — same pulling capacity as the 8 in version, with 25% more line on the drum. Worm gear is mechanically self-locking, so the load stays exactly where you stopped it. 470:1 ratio, 14 fpm line speed, 1.5 HP DC motor.

When does the 11 in drum make sense?

Pick the 11 in drum when the job needs more reach — longer pulls across a yard, more rope to leave on the drum after the load is set, or when the recommended ⅜ in × 125 ft rope spec better fits your application. Frame footprint is bigger than the 8 in version, so confirm your mounting location has the room.

  • 9,000 lb rated pulling capacity
  • 12V DC, 1.5 HP motor — 400 amp peak draw
  • Worm gear drive, 470:1 single-stage reduction
  • 14 fpm max line speed
  • Worm gear brake — mechanically self-locking, no clutch slip
  • Cast metal construction
  • 11 in drum (3.5 in × 11 in), holds 125 ft of ⅜ in wire rope
  • Recommended battery: 650 CCA | Wire: 2 gauge
  • Pierce SKU PSW654-11K — built to order in 1–2 business days

For tighter mounting space at the same pulling power, see the 9,000 lb 12V Worm Gear Winch (8 in Drum). For higher pulling capacity on the same 11 in drum, see the 12,500 lb 12V Worm Gear Winch (11 in Drum). For tractor or truck-mounted hydraulic systems, see the 9,000 lb Hydraulic Worm Gear Winch (11 in Drum).

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

PIERCE Limited Lifetime Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

12V Industrial Winch Options:

The worm gear winch can be configured in a variety of ways. These are the base configurations based on the amount of wire rope they can hold and the pulling strength.

Internal - Pierce Assembly Team 9,000 lbs. 8" Drum Industrial Electric Winch featuring black and silver metal parts with a handle, shown isolated on a white background.
9,000 lb. Rating | Holds 100' of ⅜" Wire RopePSW654-8K-($103.00)
The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch is shown with a lever against a black background.
9,000 lb. Rating | Holds 125' of ⅜" Wire RopePSW654-11K
The PIERCE 12,500 lbs. 8" Drum Industrial Electric Winch features a black motor, silver drum, control handle, and attached cables, all set against a white background.
12,500 lb. Rating | Holds 100' of ⅜" Wire RopePSW654-8MK+$191.00
The PIERCE 12,500 lbs. 8" Drum Industrial Electric Winch features a black motor, silver drum, control handle, and attached cables, all set against a white background.
12,500 lb. Rating | Holds 125' of ⅜" Wire RopePSW654-11MK+$304.00
What's Included
Specifications
Max Capacity (lbs.)
9000
Operating Voltage
12 Volts DC
Power Source
Electric, DC
Max Amps
400
Series
Industrial
Max Line Speed
14 fpm
Gear Type
Worm Gear
Gear Ratio
470:1
Construction
Cast Metal
Drum Rotation
Counter-Clockwise (Underwound)
Recommended Wire Rope
⅜ in. x 125 ft.
Clutch Type
Dog
Brake Type
Worm Gear Brake
Recommended Battery
650 CCA
Recommended Wire
2 gauge
Motor (hp)
1.50
Drum Size
3 ½ in. x 11 in.
Warranty
Replacement Parts (11)
Videos (4)

9,000 lb 12V Worm Gear Winch | 11 in Drum

9,000 lb 12V Worm Gear Winch | 11 in Drum

9,000 lb 12V Worm Gear Winch | 11 in Drum

9,000 lb 12V Worm Gear Winch | 11 in Drum

Resources
FAQs (10)
Can I use a fuse to protect my winch and vehicle?
Yes, a fuse or circuit breaker is highly recommended to protect your winch and vehicle from electrical damage. A 400-amp circuit breaker is ideal, as it handles amperage spikes during winching and resets easily, unlike costly 400-amp fuses. Alternatively, a cut-off switch is a budget-friendly option to disconnect power during a short circuit, though it won’t prevent spikes. Always use properly rated devices for safety.
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
Can I increase the line speed of my worm gear winch?
Yes, but it reduces pulling power by about 50%. For electric winches, swapping gears can boost line speed up to 50%. For hydraulic winches, replacing the motor with one of different displacement can increase speed. Consult your winch manual or a professional for proper modifications to ensure safe operation and avoid damage during tasks like vehicle recovery.
Warranty
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
