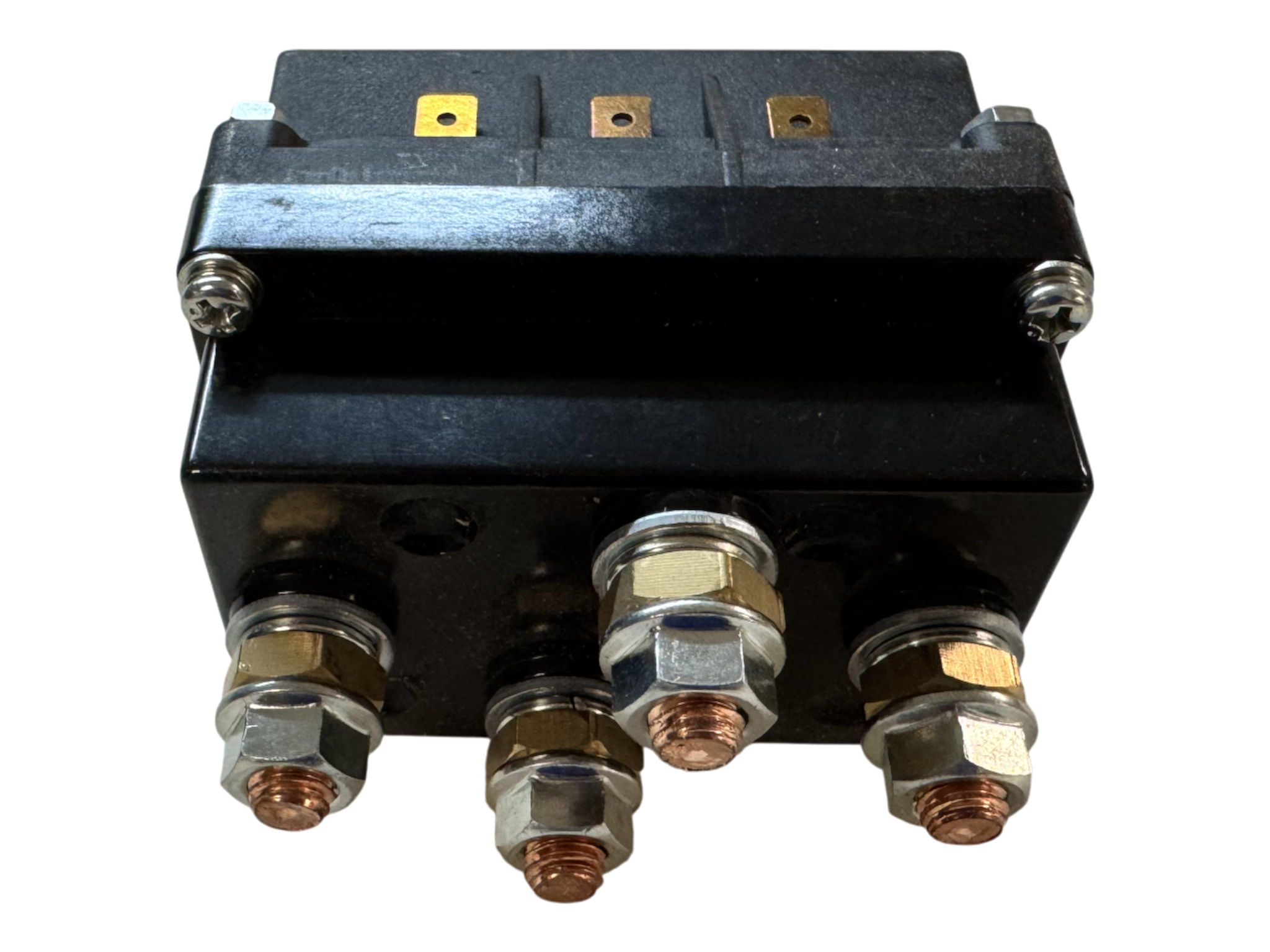

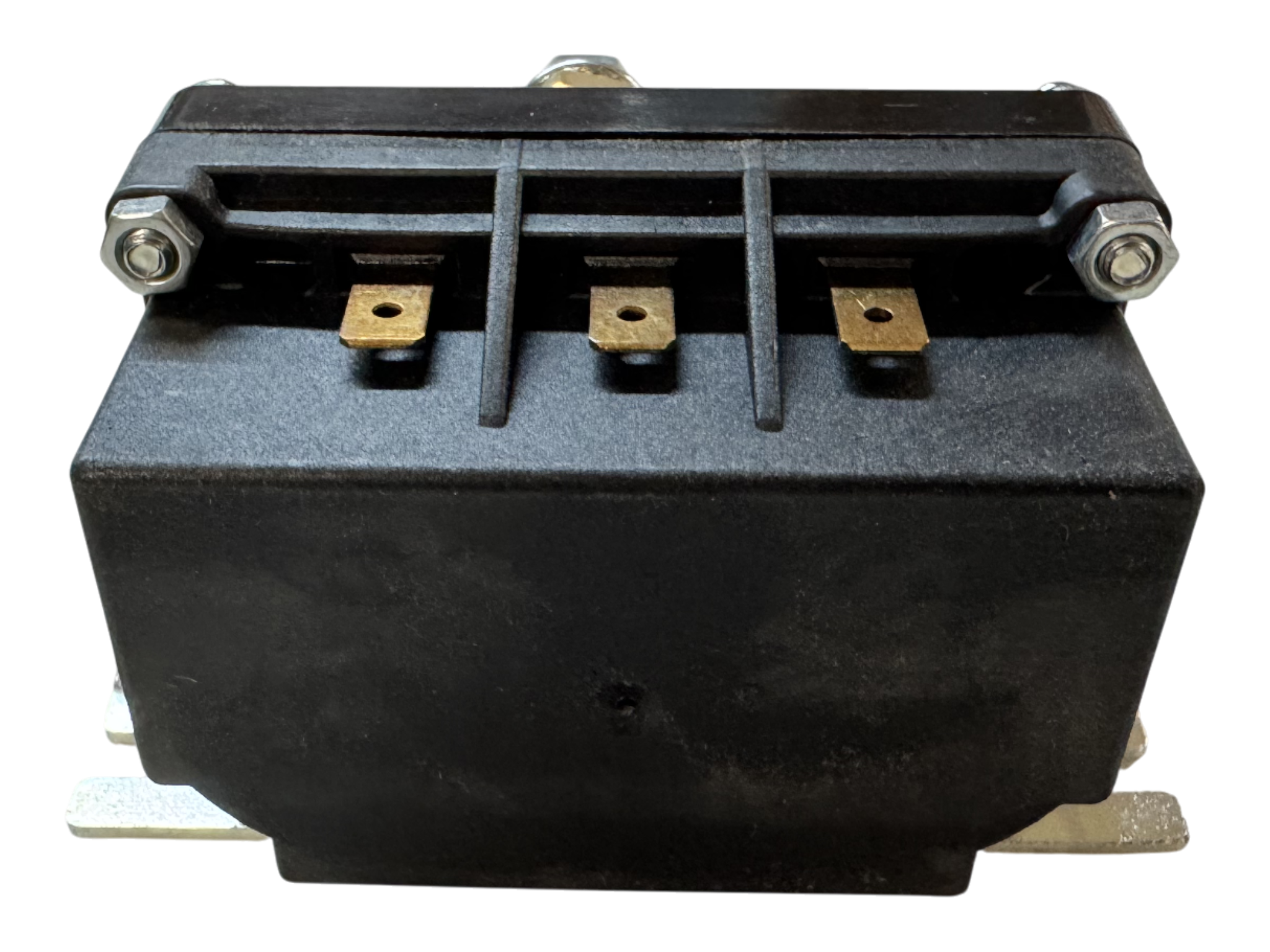

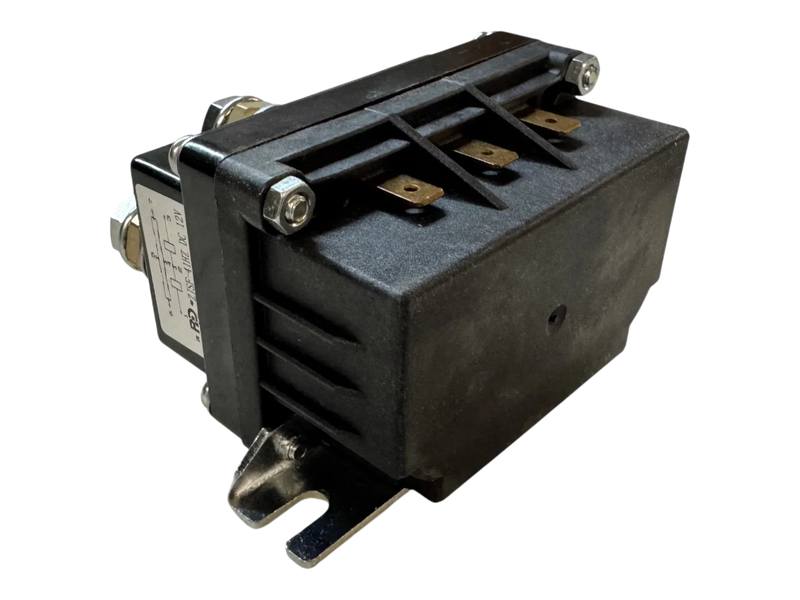

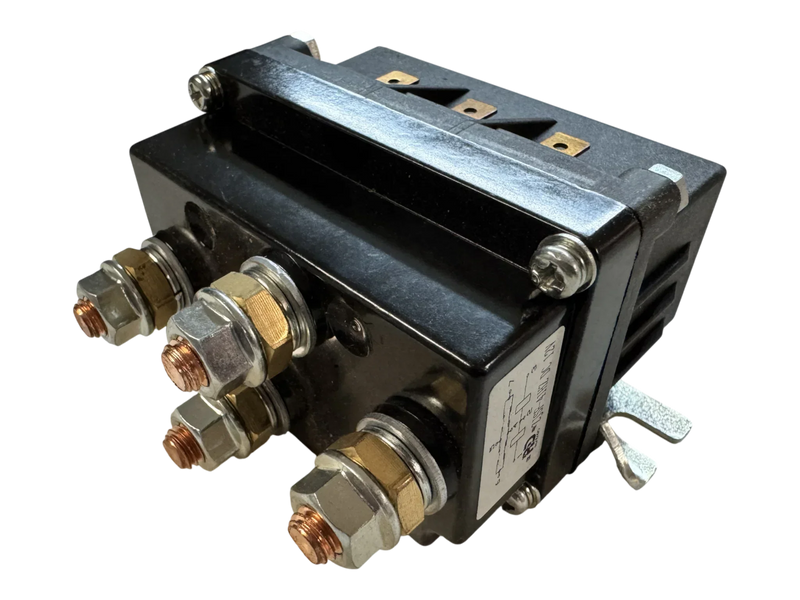

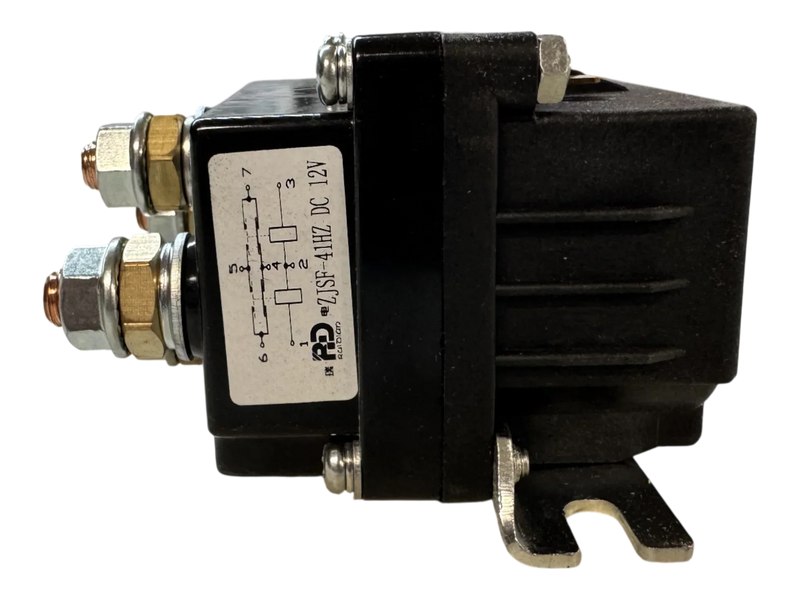

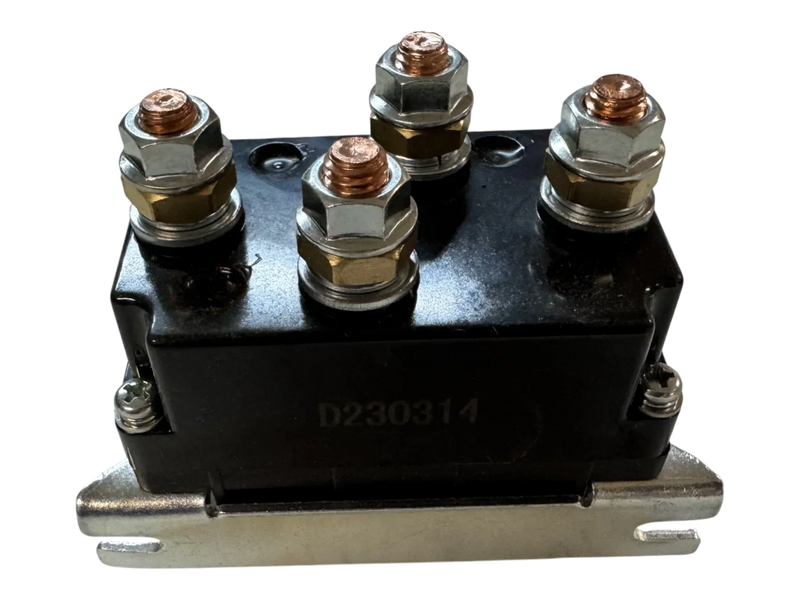

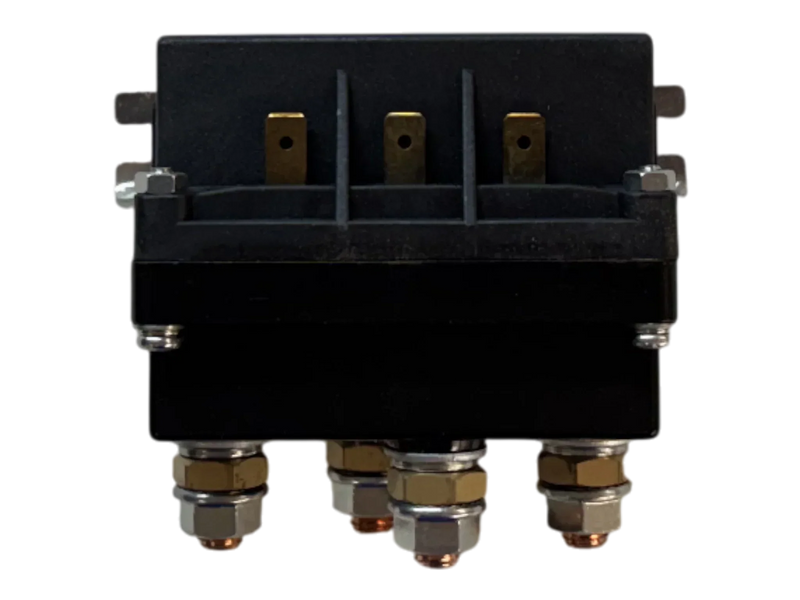

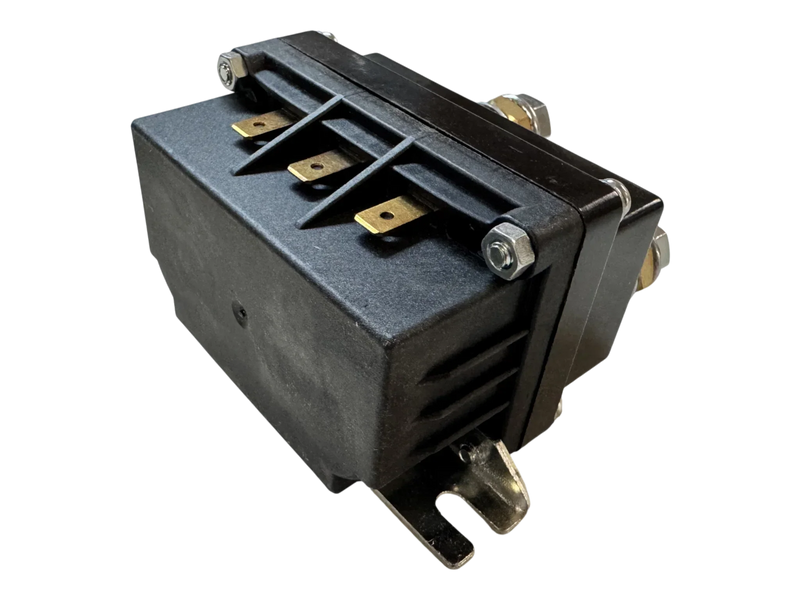

Sealed Electromechanical Contactor Solenoid Switch
Description
This sealed electromechanical contactor switch is a direct, high-reliability replacement for the motor-reversing solenoid in PIERCE PSW654-8K, PSW654-8MK, PSW654-11K, and PSW654-11MK winches (9,000–12,500 lb. capacity). Built for demanding recovery, industrial, and off-road use, it provides dependable forward/reverse polarity control with sealing against dust, water, and harsh environments.
Key benefits include:
- IP67-rated sealed construction for superior protection in wet, muddy, or dusty conditions
- High-current handling for winch inrush demands during intermittent pulls
- Weld-resistant silver-alloy contacts and magnetic arc suppression for long service life
- Easy mounting with pre-fitted bracket and large terminals for secure connections
Ideal for maintenance or upgrades—keeps your PIERCE winch performing reliably with minimal downtime. Professional installation recommended; refer to your PSW654 manual for wiring.
Specifications
| Specification | Details |
|---|---|
| OPERATING VOLTAGE | 12 Volts DC |
| OPERATING TEMPERATURE RANGE | -40°F to +140°F |
| SWITCH TYPE | Monoblock Single-Pole Double-Throw (SPDT) Motor-Reversing Contactor |
| MOUNTING | Pre-fitted steel bracket (hook-style); horizontal or vertical orientation |
| IP RATING | IP67 |
| COIL TYPE | Intermittent duty (recommended for winch use to prevent overheating) |
| COIL RESISTANCE | Approximately 5 Ω |
| PULL-IN VOLTAGE | ≤7.5 V maximum |
| DROP-OUT VOLTAGE | ≥3.5 V maximum |
| RATED CURRENT | 150 A |
| INTERMITTENT/PEAK CURRENT | 275 A at 30% duty (lowest intermittent high); peaks up to 400 A short bursts (conservative usage: limit to intermittent winch cycles) |
| CONTACT CONFIGURATION | Double-breaking main contacts, silver-alloy tips (weld-resistant) |
| MECHANICAL LIFE | >100,000 cycles (lowest conservative figure under load; higher possible unloaded) |
