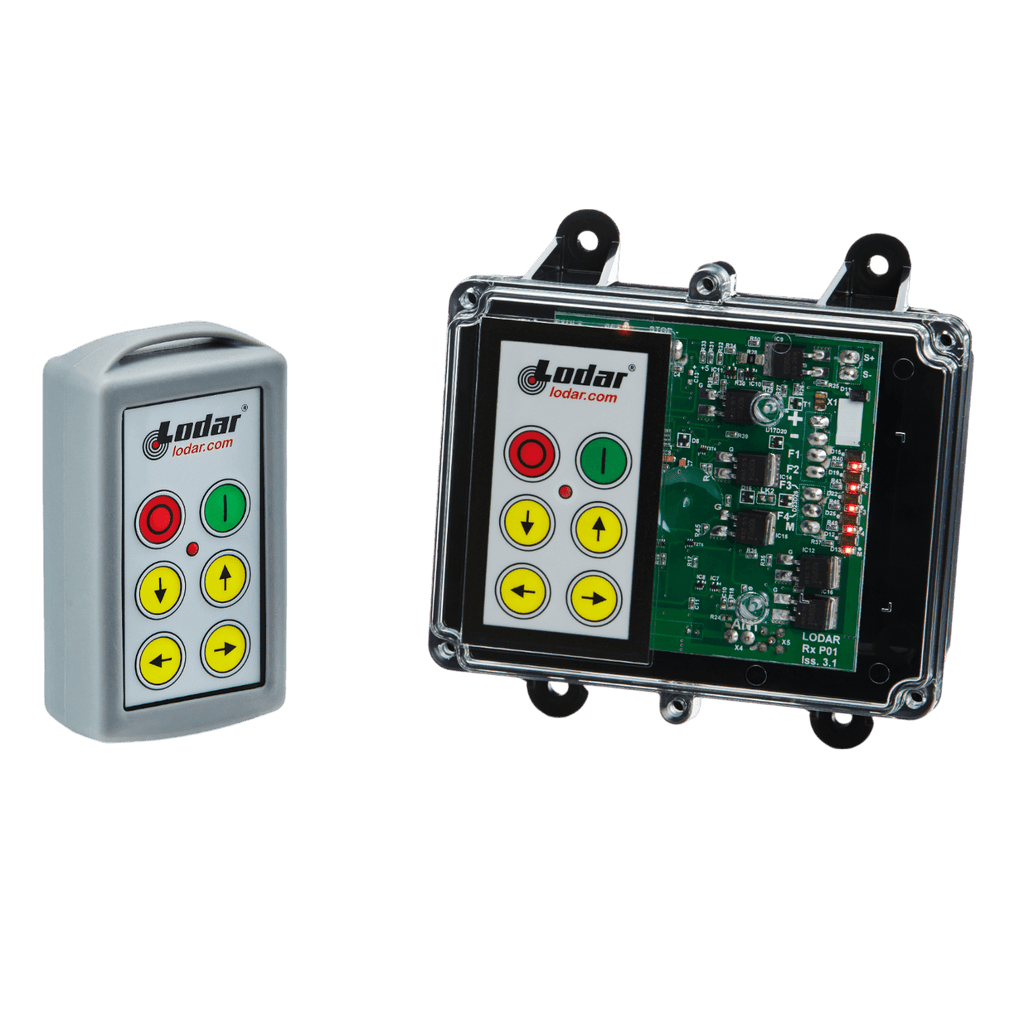

A 4 Function Standard Wireless Control System from the Lodar LTD 92 Series, featuring an FET Keypad Receiver with an IP 66 rating, rests beside an open electronic control unit, showcasing the intricate circuitry and buttons of the sophisticated design.

4 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

$1,063.00
Skip to product information
A 4 Function Standard Wireless Control System from the Lodar LTD 92 Series, featuring an FET Keypad Receiver with an IP 66 rating, rests beside an open electronic control unit, showcasing the intricate circuitry and buttons of the sophisticated design.
1/2
  • A 4 Function Standard Wireless Control System from the Lodar LTD 92 Series, featuring an FET Keypad Receiver with an IP 66 rating, rests beside an open electronic control unit, showcasing the intricate circuitry and buttons of the sophisticated design.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • A 4 Function Standard Wireless Control System from the Lodar LTD 92 Series, featuring an FET Keypad Receiver with an IP 66 rating, rests beside an open electronic control unit, showcasing the intricate circuitry and buttons of the sophisticated design.
  • Pairing the 92 Series Lodar Remote & Transmitter
4 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

4 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

92104K-8
$1,063.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
Out of Stock

Introducing the Lodar 4-function 9200 series wireless control system, featuring a 200-foot range and 10-amp outputs. This system works on any 12-24V solenoid operated equipment, with a master function for added convenience. The receiver is IP 66 rated for durability and includes a keypad for backup operation. A must-have for any industry professional.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92104 Series Options:

The clear casing of the 4 Function Standard Wireless Control System by Lodar LTD exposes the remote control and electronic circuit board, highlighting the buttons and internal components of their 92 Series FET Receiver, which is crafted for effortless remote operation.
Standard Receiver 92104-8
-($102.00)
A 4 Function Standard Wireless Control System from the Lodar LTD 92 Series, featuring an FET Keypad Receiver with an IP 66 rating, rests beside an open electronic control unit, showcasing the intricate circuitry and buttons of the sophisticated design.
Keypad Receiver 92104K-8
What's Included
Specifications
Transmitter
Standard
Functions
4
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 2
Special Features
Receiver Keypad
Channel
Wide Band, Fixed
Wiring Included
9 ft. (3m) wiring loom through gland
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (3)
4 Function Lodar Replacement Standard Transmitter | 9000 Series
4 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92104TX-8
$295.00
4 Function Lodar Replacement FET Keypad Receiver | 92 Series
4 Function Lodar Replacement FET Keypad Receiver | 92 SeriesSKU: 9204RXK-8
$770.00
4 Function Lodar Hard-Wired Remote | 9000 Series
4 Function Lodar Hard-Wired Remote | 9000 SeriesSKU: 9604
$307.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Resources
92104K - 4 Function with Standard Transmitter Spec Sheet 92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers Wiring Diagram 92-93 Series - Instructions Standard Transmitter Coding Instructions
92104K - 4 Function with Standard Transmitter
Spec Sheet
92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers
Wiring Diagram
92-93 Series - Instructions Standard Transmitter Coding
Instructions
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
