92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers

Download Wiring Diagram PDF

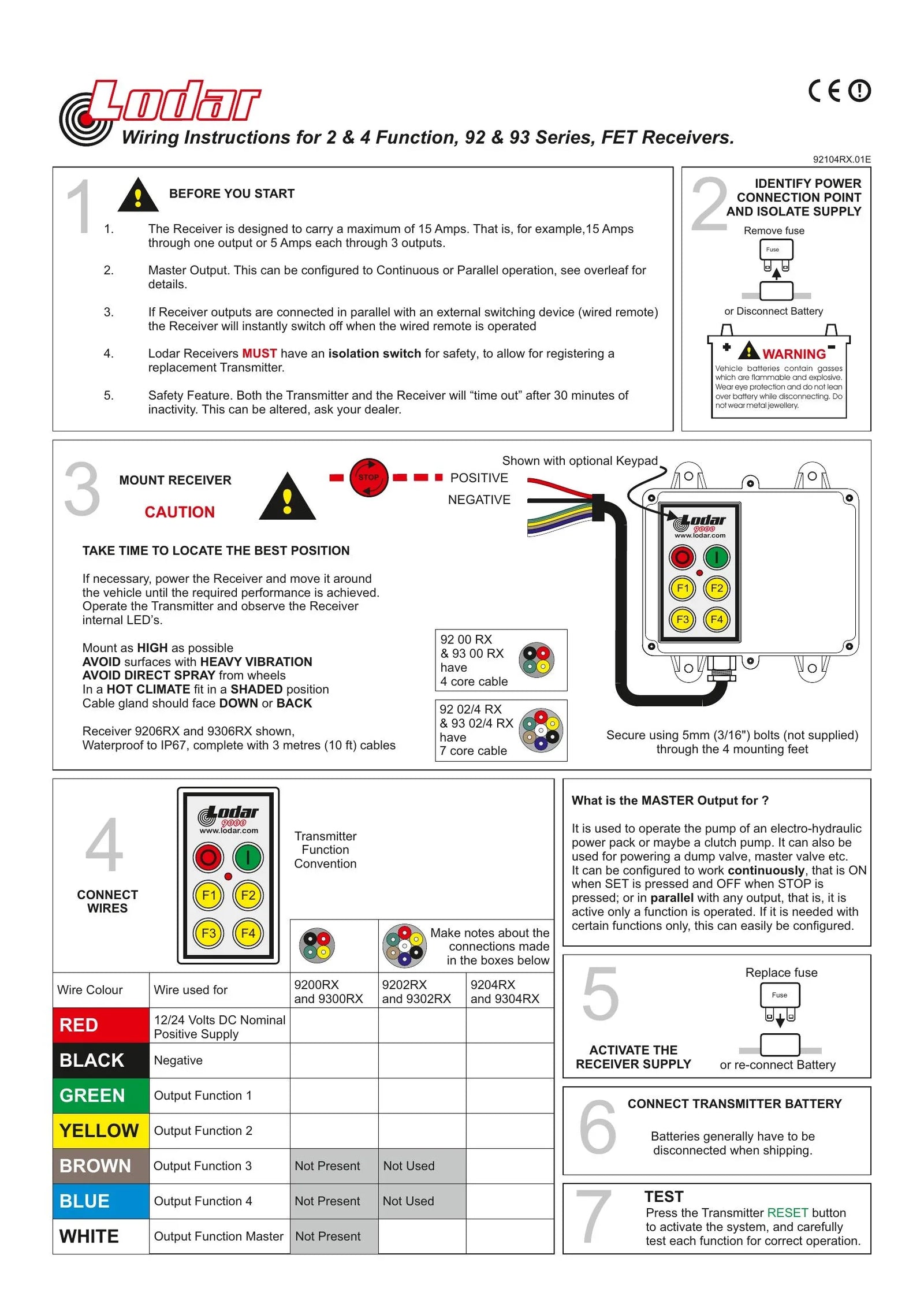

92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers - Page 1 — Page1

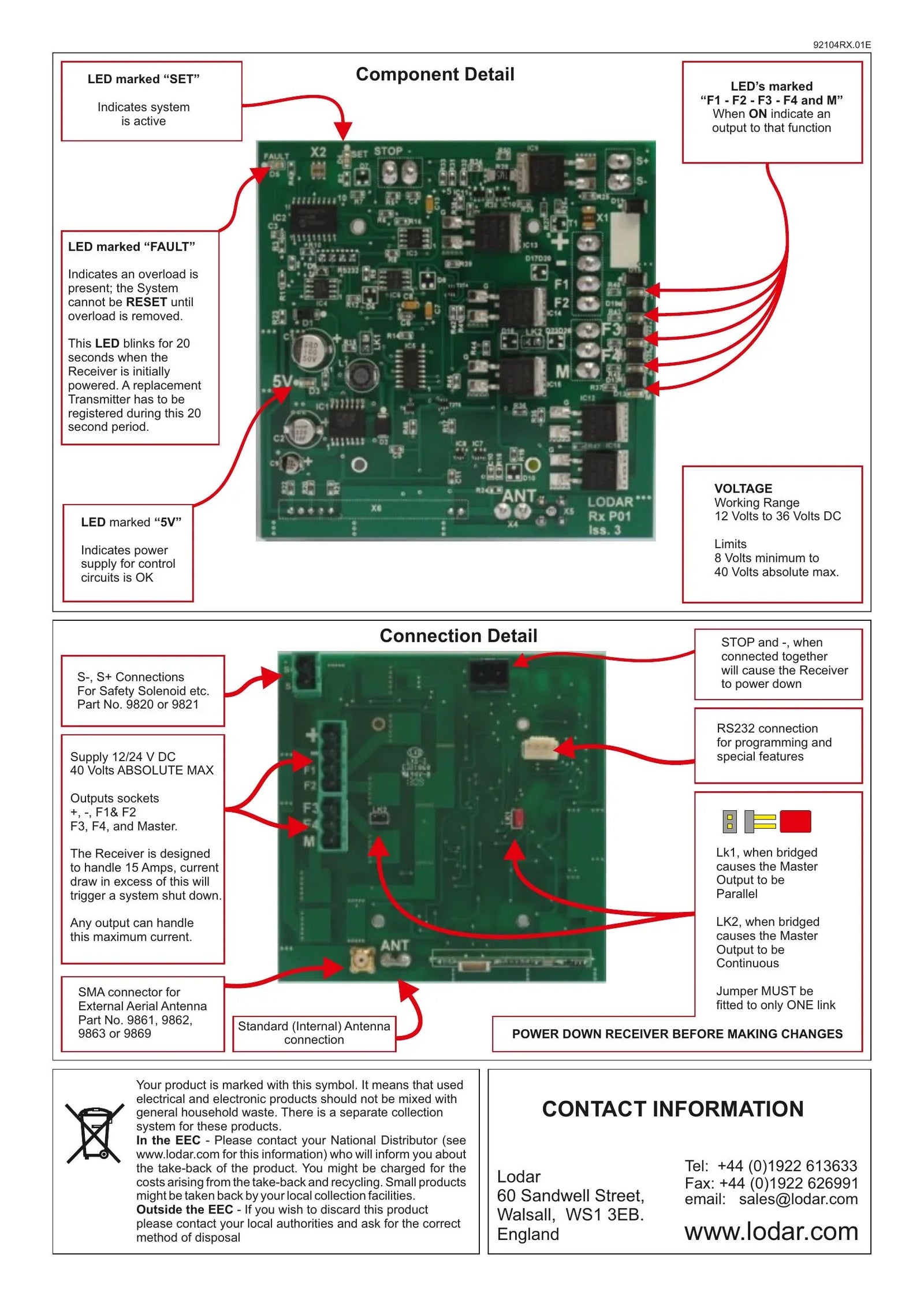

92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers - Page 2 — Page2
