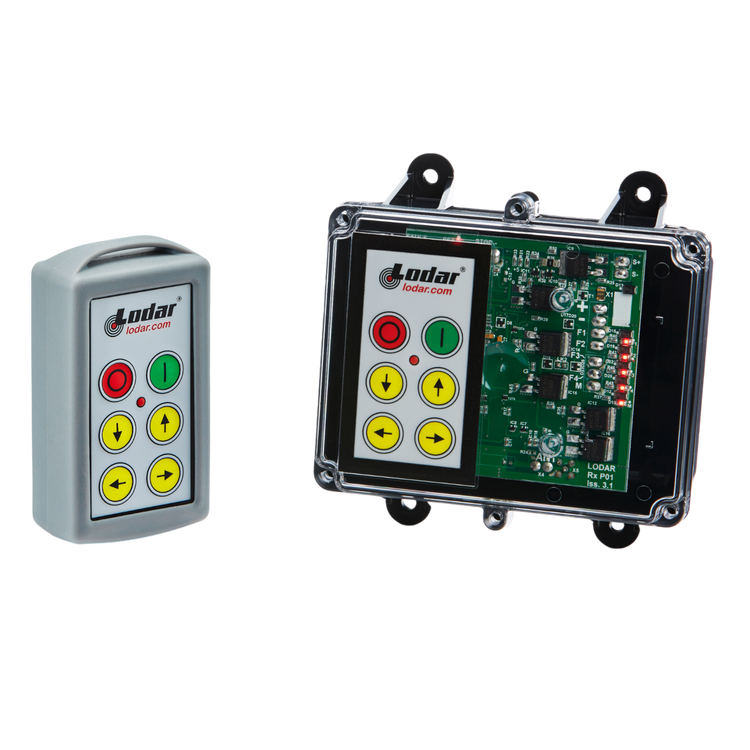

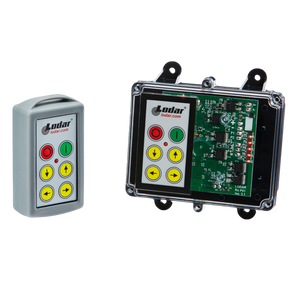

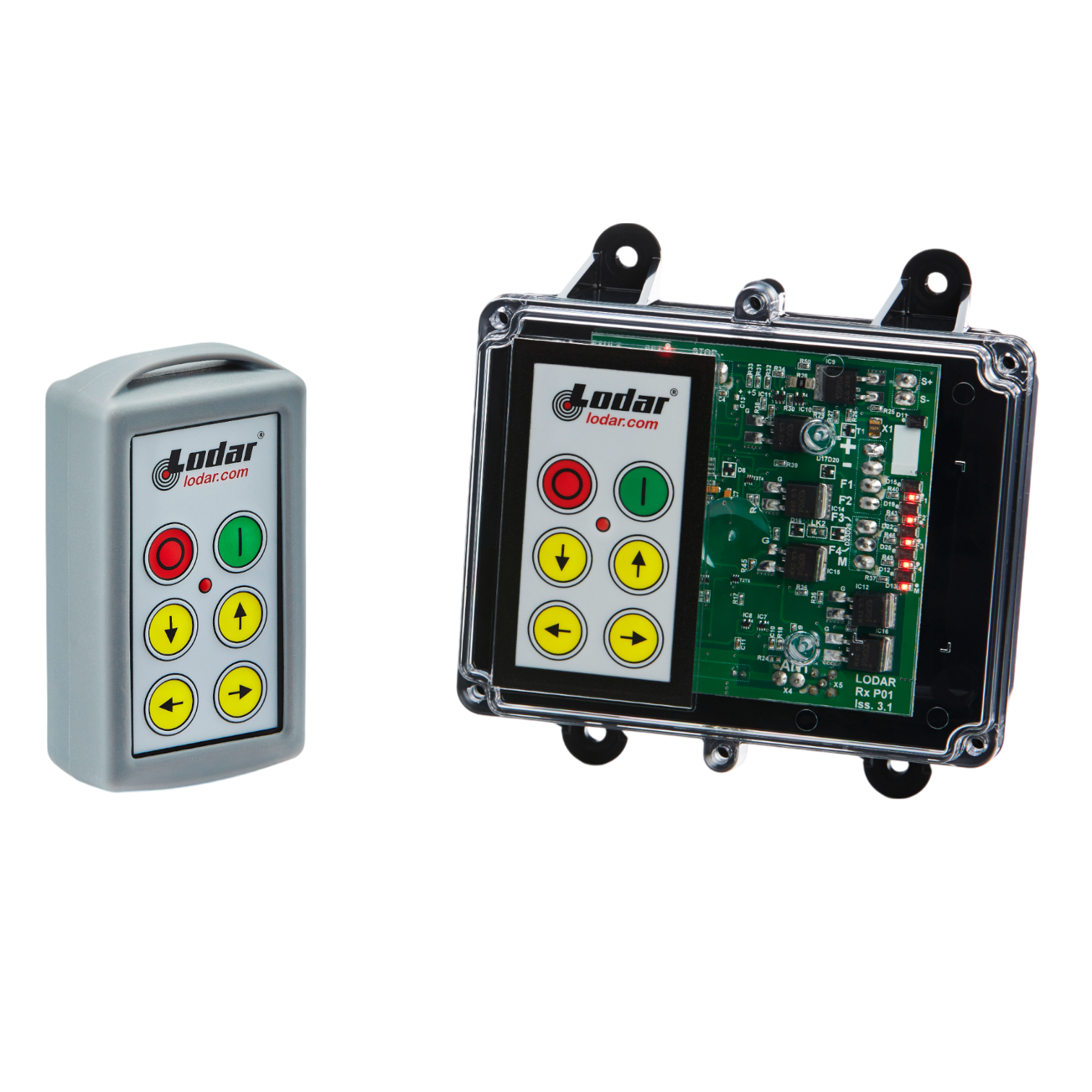

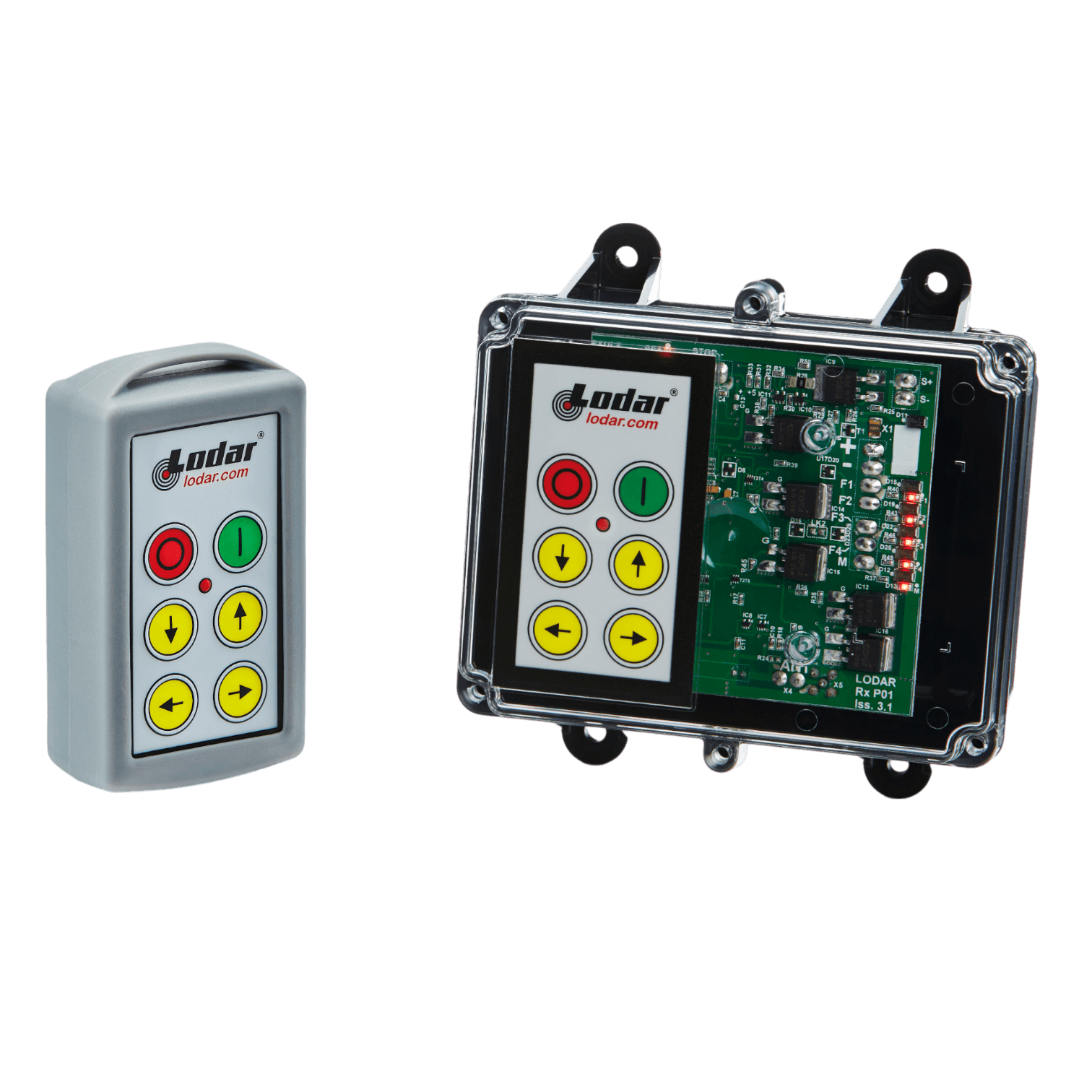

4 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver
4 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver
Description
Introducing the Lodar 4-function 9200 series wireless control system, featuring a 200-foot range and 10-amp outputs. This system works on any 12-24V solenoid operated equipment, with a master function for added convenience. The receiver is IP 66 rated for durability and includes a keypad for backup operation. A must-have for any industry professional.
Specifications
| Specification | Details |
|---|---|
| CHANNEL | Wide Band, Fixed |
| FUNCTIONS | 4 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver Keypad |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
Videos
Warranty
Replacement Parts
4 Function Lodar Replacement Standard Transmitter | 9000 Series
The 4 Function Lodar Standard Replacement Transmitter restores dependable wireless operation to your Lodar system. Designed with large, glove-friendly buttons and rated IP54, this OEM remote is built to last in commercial applications. 4-function...
4 Function Lodar Replacement FET Keypad Receiver | 92 Series
This 4 Function Lodar Replacement FET Keypad Receiver from the 92 Series is designed to handle a maximum of 10 amps per function, making it a reliable and efficient choice for your needs.
