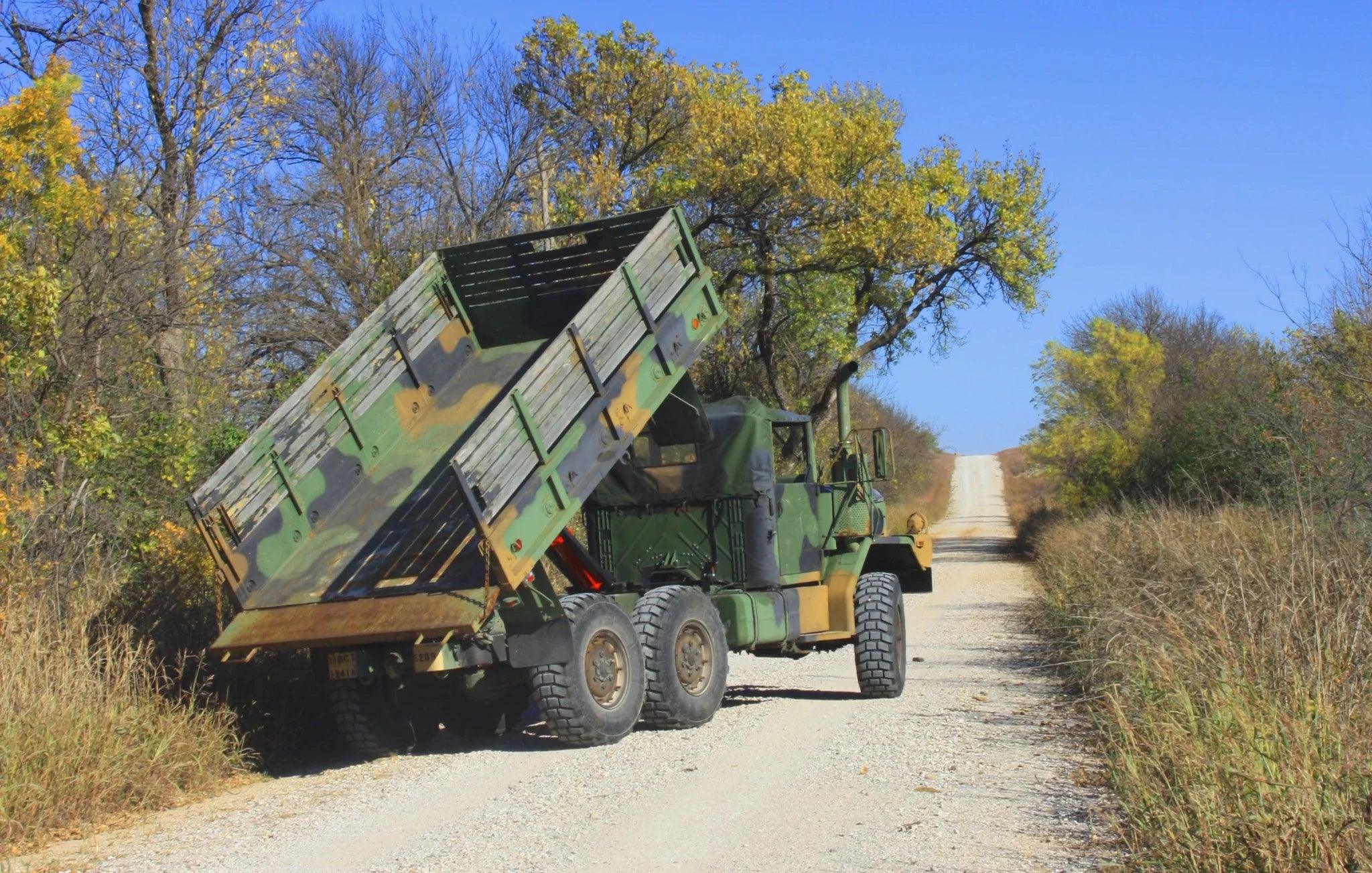

A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.

Heavy Duty Flat Bed Dump Kit

12 Volts
$3,600.00
Skip to product information
A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.
1/11

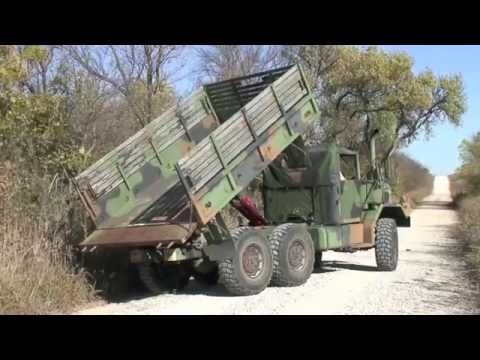

  • A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.
  • A military dump truck with its bed raised by a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a gravel road near trees.
  • PIERCE Flat Bed Dump Kit 5T Customer Testimonial

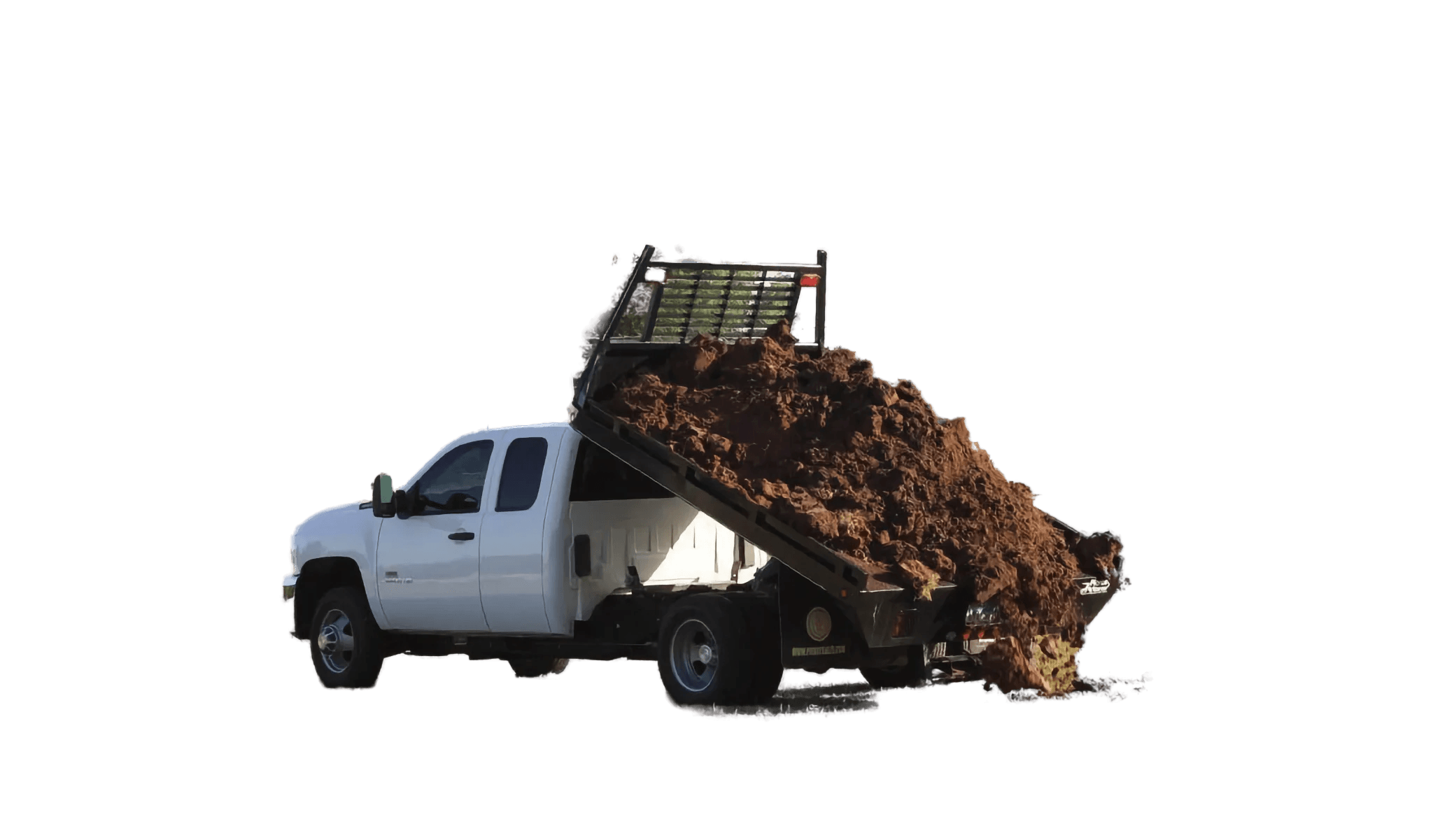

  • A PIERCE Heavy Duty Flat Bed Dump Kit lifts the bed of a white dump truck to unload a large pile of soil onto the ground, isolated on a white background.

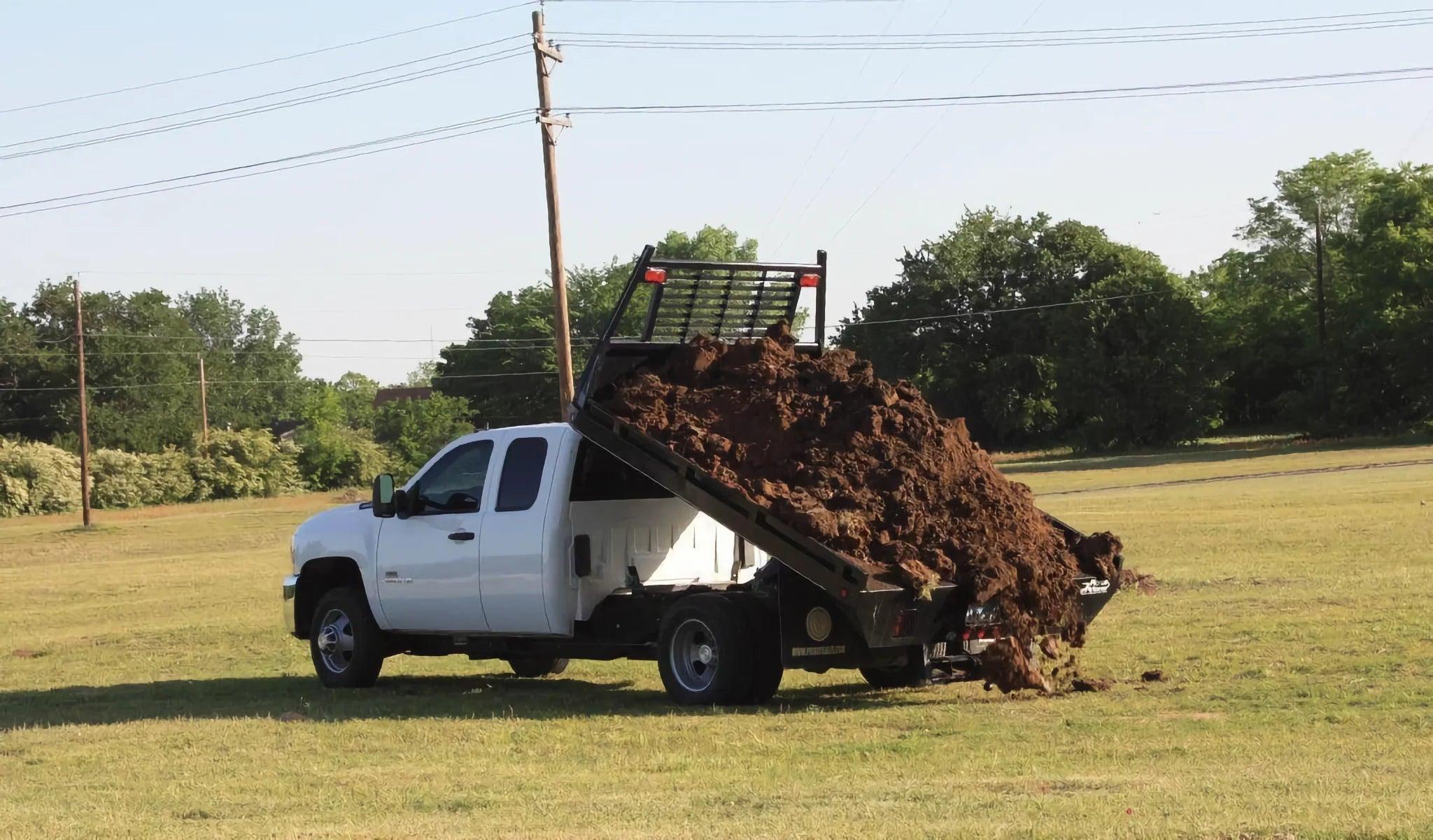

  • A PIERCE Heavy Duty Flat Bed Dump Kit-equipped white dump truck unloads dirt onto a grassy field under clear skies.

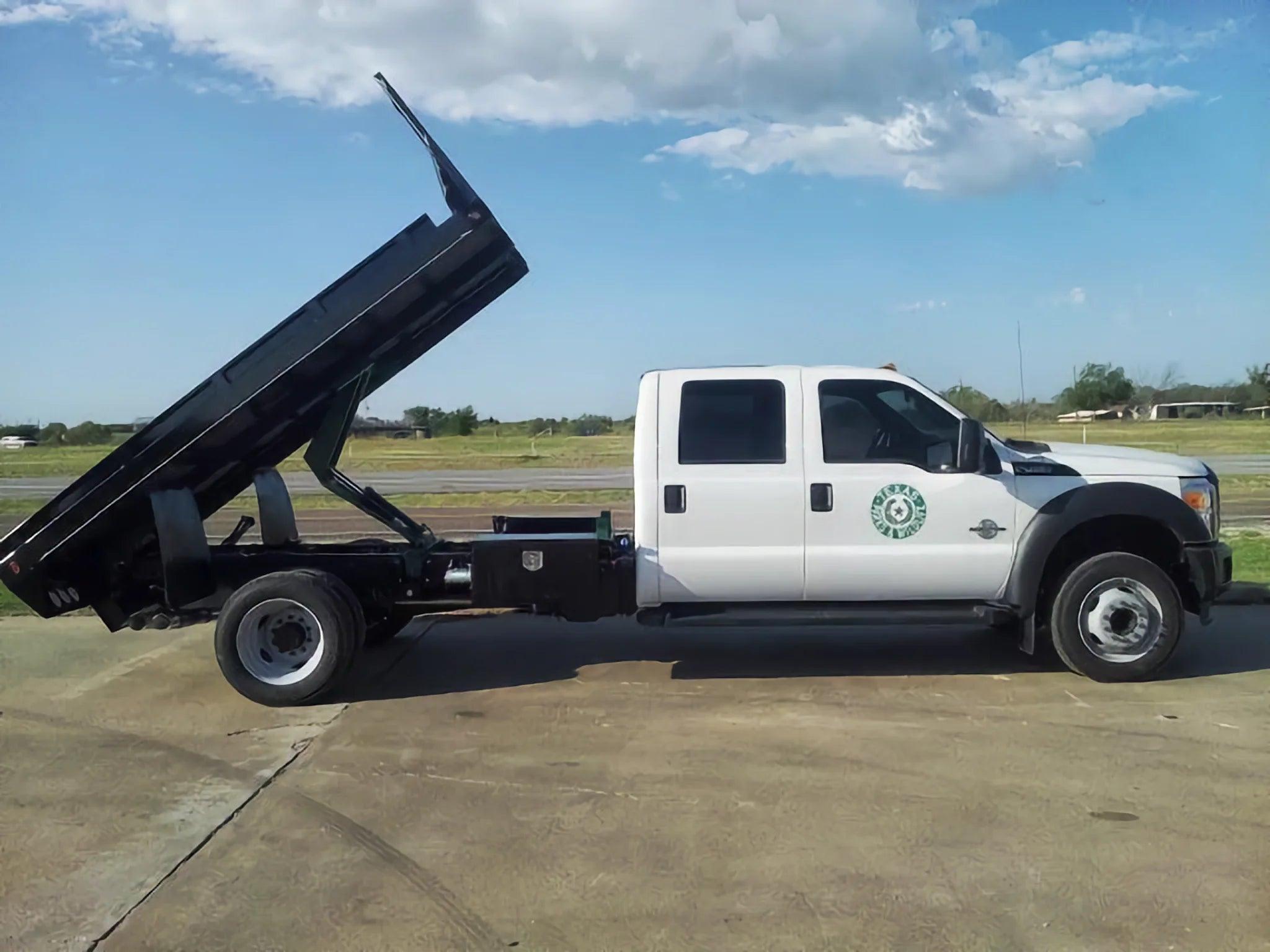

  • A white crew cab dump truck with a raised black bed featuring the PIERCE Heavy Duty Flat Bed Dump Kit is parked on concrete with a grassy field in the background.

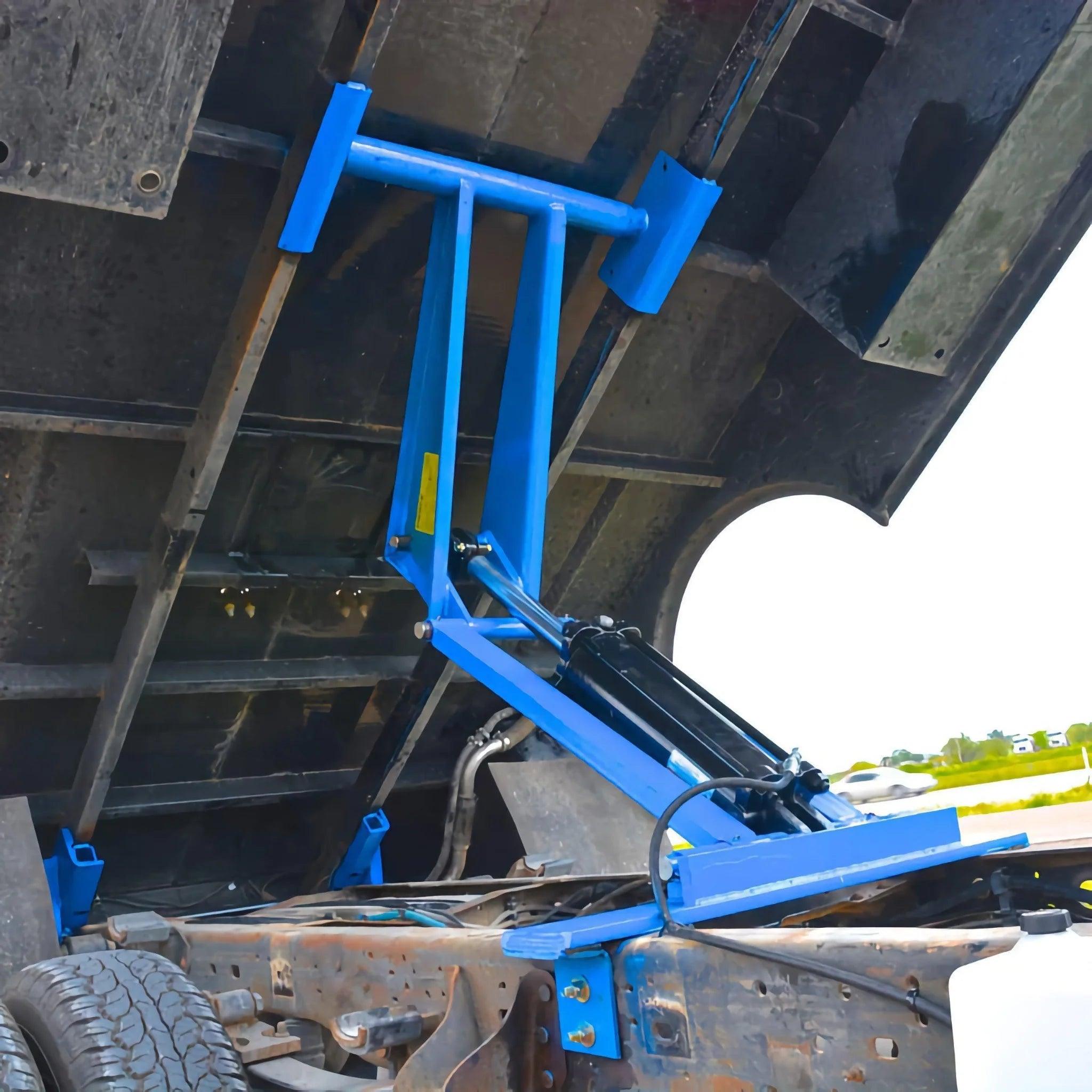

  • A close-up of the PIERCE Heavy Duty Flat Bed Dump Kit in blue, lifting the bed of a dump truck outdoors.

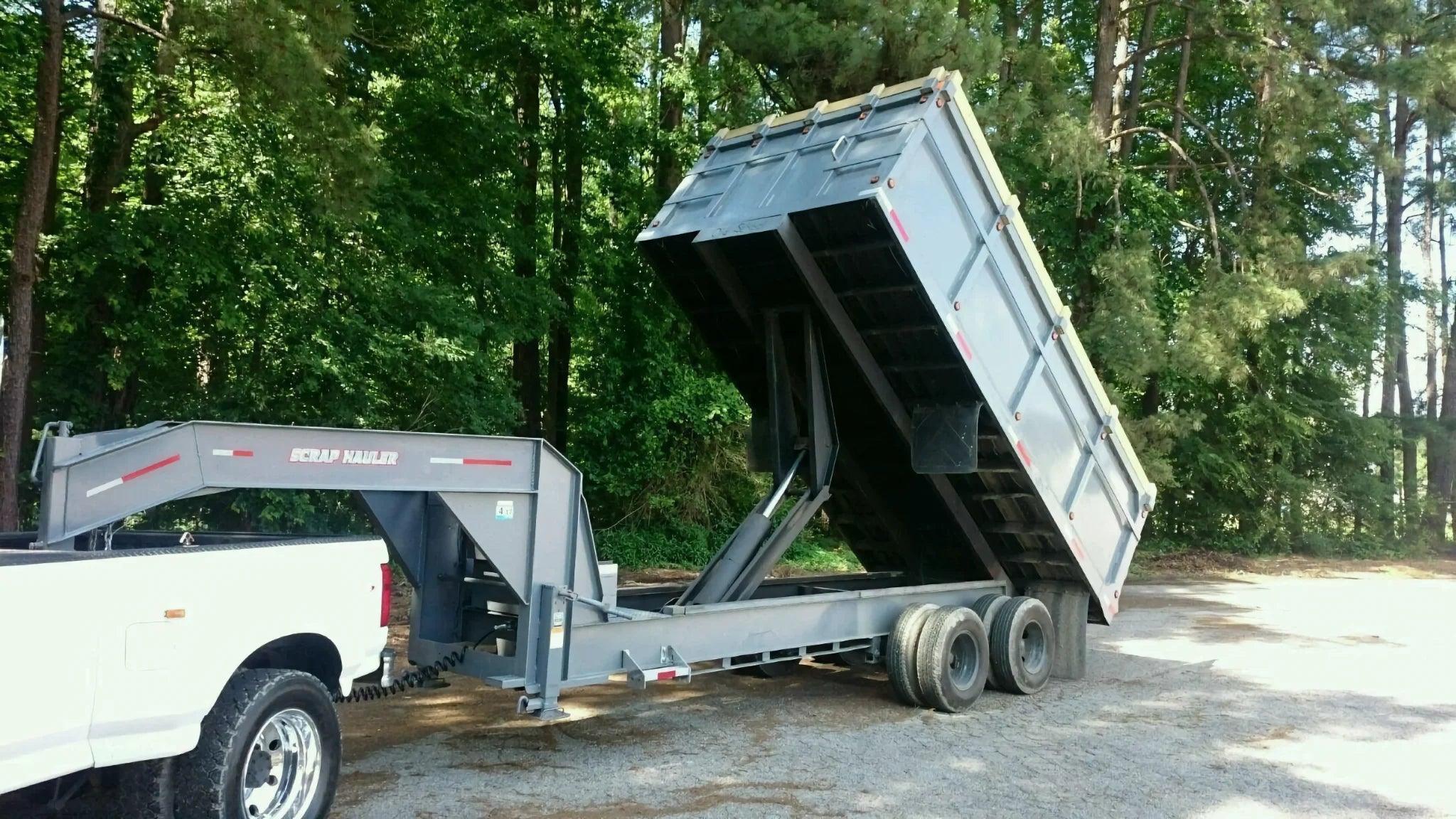

  • A gray dump trailer with its bed raised by the PIERCE Heavy Duty Flat Bed Dump Kit is hitched to a white truck, parked on gravel near trees and greenery.

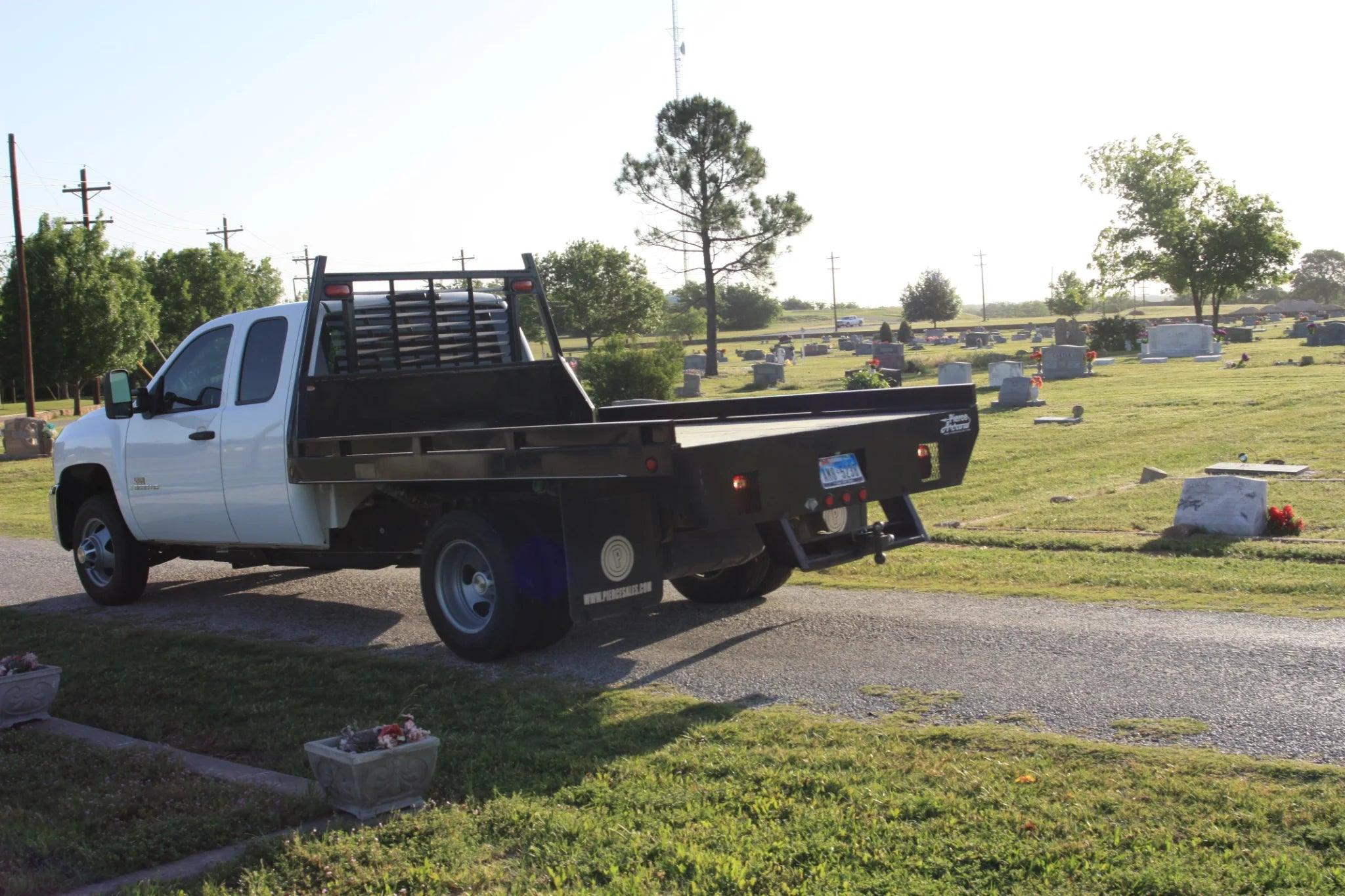

  • A PIERCE Heavy Duty Flat Bed Dump Kit is installed on a white flatbed truck parked on a cemetery road on a sunny day.

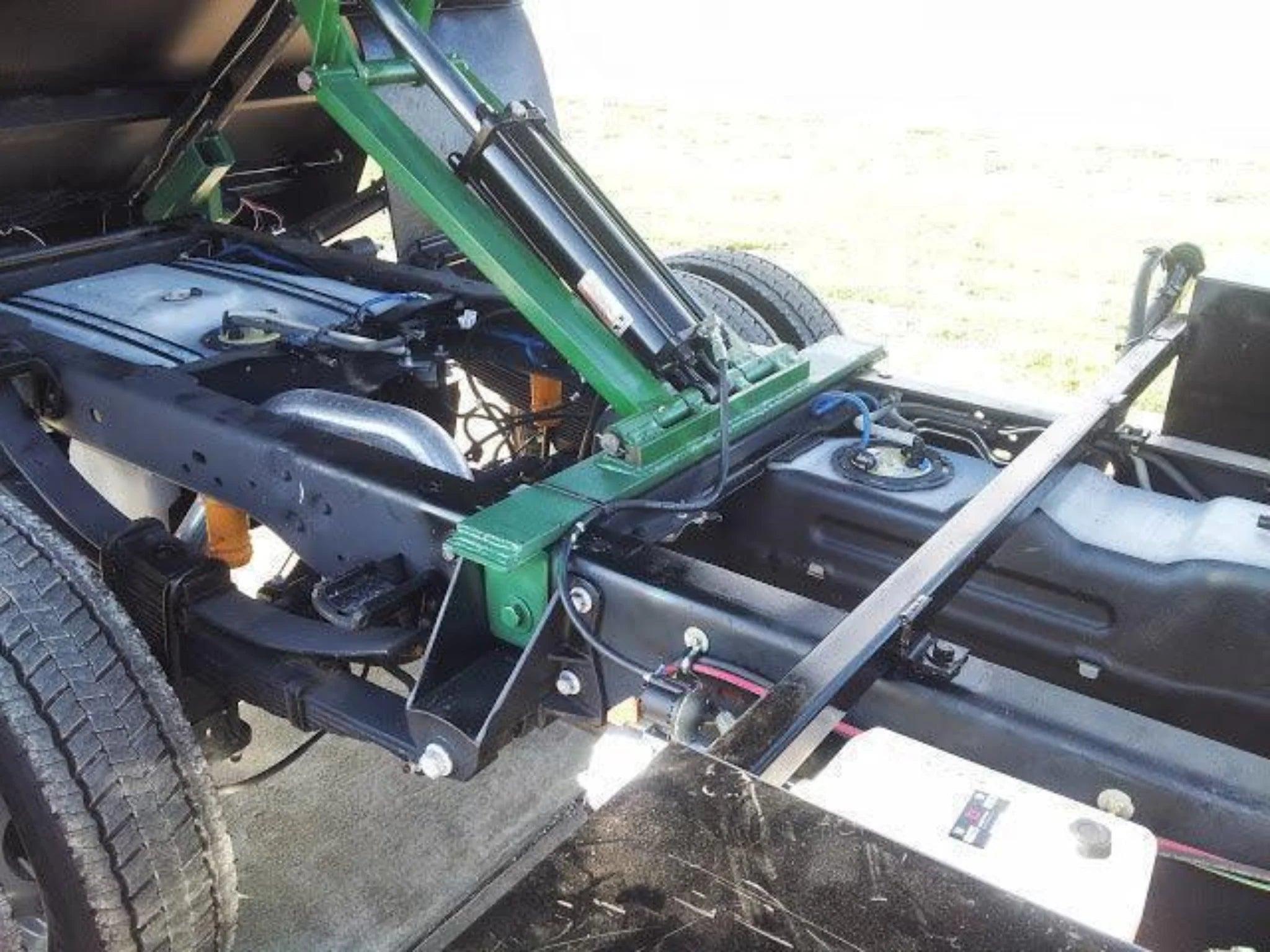

  • Close-up of a truck chassis featuring the PIERCE Heavy Duty Flat Bed Dump Kit with hydraulic lift mechanism attached to the frame.
  • Heavy Duty Flat Bed Dump Kit
  • A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.
  • A military dump truck with its bed raised by a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a gravel road near trees.
  • PIERCE Flat Bed Dump Kit 5T Customer Testimonial
  • A PIERCE Heavy Duty Flat Bed Dump Kit lifts the bed of a white dump truck to unload a large pile of soil onto the ground, isolated on a white background.
  • A PIERCE Heavy Duty Flat Bed Dump Kit-equipped white dump truck unloads dirt onto a grassy field under clear skies.
  • A white crew cab dump truck with a raised black bed featuring the PIERCE Heavy Duty Flat Bed Dump Kit is parked on concrete with a grassy field in the background.
  • A close-up of the PIERCE Heavy Duty Flat Bed Dump Kit in blue, lifting the bed of a dump truck outdoors.
  • A gray dump trailer with its bed raised by the PIERCE Heavy Duty Flat Bed Dump Kit is hitched to a white truck, parked on gravel near trees and greenery.
  • A PIERCE Heavy Duty Flat Bed Dump Kit is installed on a white flatbed truck parked on a cemetery road on a sunny day.
  • Close-up of a truck chassis featuring the PIERCE Heavy Duty Flat Bed Dump Kit with hydraulic lift mechanism attached to the frame.
  • Heavy Duty Flat Bed Dump Kit
Heavy Duty Flat Bed Dump Kit

Heavy Duty Flat Bed Dump Kit

DKHKPD
$3,600.00
In Stock

Elevate your work truck or trailer with the PIERCE Heavy Duty Flat Bed Dump Kit, engineered for working professionals across the US who demand strong, time-saving equipment. Designed for after-market flatbeds or dump bodies, this universal kit boasts a maximum 20,000-lb. lifting capacity, ideal for demanding tasks in landscaping, construction, or cemetery maintenance.

Powerful Performance: Equipped standard with a 12 Volt hydraulic pump, this kit lifts your truck bed to a 45º angle in 30-90 seconds, enabling fast, efficient unloading of soil, gravel, or other materials. From dumping dirt in open fields to handling loads in serene cemetery settings, it streamlines operations while minimizing physical effort.  If you find the Heavy Duty Kit to be more power than you need, checkout both the Medium Duty and Light Duty Kits for suitable options.

Universal Versatility: Compatible with bed lengths from 10’ to 16’, this kit excels in converting trailers into dump trailers or upgrading existing flatbeds. Its durable scissor assembly ensures reliable strength for heavy-duty applications.

Expert-Level Installation: Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. The comprehensive package includes a pre-assembled scissor assembly, hydraulic pump, and all necessary hardware, supported by our instruction manual. For optimal performance, reinforce your truck bed and consider professional assistance. Contact our team at 940-538-5643 for guidance.

Trusted Durability: As a family-owned North Texas business since 1976, PIERCE delivers equipment built to endure. Customers commend the kit’s high-quality construction and seamless functionality, making tough jobs more manageable with the push of a button.

Why PIERCE? Join thousands of professionals who rely on our Heavy Duty Dump Kit to save time and boost productivity. Order today at piercearrowinc.com and equip your vehicle for the toughest challenges.

Note: Do not exceed your truck or trailer’s maximum load rating. Tools and some hardware not included. Expert installation recommended.
Lifting Capacity icon

Lifting Capacity

Which dump kit: light, medium, or heavy-duty? The choice is based on your bed length and your preferred capacity to lift, haul and dump. The fit chart is below.

Universal icon

Universal

These PIERCE dump bed kits are designed to be a universal fit to both trucks and trailers, not specific to any make, model, or year.

Flat Bed Kit Options:

A white truck equipped with the PIERCE Light Duty Flat Bed Dump Kit unloads dirt onto a grassy field under a clear sky.
Light Duty DKLKPD
-($1,339.00)
PIERCE Medium Duty Flat Bed Dump Kit installed on a white crew cab dump truck with raised black bed, parked on concrete beside a grassy field under partly cloudy skies.
Medium Duty DKMKPD
-($824.00)
A military dump truck equipped with a PIERCE Heavy Duty Flat Bed Dump Kit is parked on a rural, tree-lined gravel road with its bed raised.
Heavy Duty DKHKPD
What's Included
Scissor Assembly (Pre-Assembled)
Scissor Top
1
Scissor s
2
Crossmember
1
Shaft A 22.25 in.
1
Shaft B 14 in.
1
Hydraulic Cylinder
1
7/32 in. x 2 in. Roll Pin
6
Chassis/Bed Parts
Driver Side Frame Hinge
1
Passenger Side Frame Hinge
1
Frame L Bracket
2
Guides
2
Shaft D 13.75 in.
2
Pump Bracket
1
Scissor Support Bar
1
Driver Side Sill Hinge
1
Passenger Side Sill Hinge
1
Sill Supports
2
Hardware
5/8 in. - 3 in. G8 Hex Head Bolt
16
5/8 in. - 11 G8 Locknut
16
3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt
2
1/2 in. - 13 Locknut
4
3/8 in. Lock Washer
2
7/32 in. x 2.5 in. Roll Pin
4
1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt
4
3/8 in. x 1 in. G8 Hex Head Bolt
2
3/8 in. Locknut
2
3/8 in. Flat Washer
2
3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt
1
3/4 in. G8 Locknut
1
3/4 in. Flat Washer
1
Safety Prop Leg
1
Safety Prop Cup
1
8 in. Black UV Zip Ties
1
Instruction Manual
1
Electrical & Hydraulic Parts
200 Amp Breaker
1
20 ft. #4 Welding Cable - Black
1
20 ft. #4 Welding Cable - Red
1
5/16 in. Battery Eye
6
2 Button Universal Remote with 20 ft. Cord
1
3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting
1
3/8 in. Male x 1/4 in. Female 90º Swivel Fitting
1
#8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting
1
5 ft. Hydraulic Hose
1
7 ft. Hydraulic Hose
1
Bucher 12V Power Up/Power Down Hydraulic Pump
1
Specifications
Max Capacity (lbs.)
20000
Operating Voltage
12 Volts DC
Max Oil Flow (gpm)
1.50
Operational Pressure (psi)
3250
Reservoir Capacity
2.5 Gallons
Reservoir Material
High Density Polyethylene
Hose Connections
#6 SAE
Recommended Fluid
ATF (Automatic Transmission Fluid)
Pump Directions
2-Way (Power Up / Power Down)
Operating Temperature Range
-20ºF to 130ºF (-30ºC to 55ºC)
Maximum Angle (º)
45º
Dumping Time
30-90 seconds
Cylinder Measurements
5" x 16" x 2"
Replacement Parts (3)
Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly Reservoir
Bucher Pump 2 Way (Power Up / Power Down) 2.5 gal. Poly ReservoirSKU: PM-3551
$641.00
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
PIERCE Universal Momentary Pendant Control - 2 Button - 20ft CordSKU: CP077K
$63.00
Universal Momentary Pendant Control - 2 Button
Universal Momentary Pendant Control - 2 ButtonSKU: CP077
$17.00
Videos (2)
PIERCE Flat Bed Dump Kit 5T Customer Testimonial video

PIERCE Flat Bed Dump Kit 5T Customer Testimonial

Heavy Duty Flat Bed Dump Kit video

Heavy Duty Flat Bed Dump Kit

Resources
DK - Flatbed Dump Kit Manual Manual DKHKPD - Spec Sheet Spec Sheet Pump Troubleshooting Guide Guide
DK - Flatbed Dump Kit Manual
Manual
DKHKPD - Spec Sheet
Spec Sheet
Pump Troubleshooting Guide
Guide
Technical Data

DKHKPD Capacity vs. Bed Overhang

Overhang10' Bed12' Bed14' Bed16' Bed
None10T9T8T7T
12"10T9T8T
24"10T9T
36"10T
FAQs (3)
How involved is the installation of the Flat Bed Dump Kit?
Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. For optimal performance, we recommend you reinforce your truck bed and consider professional assistance. Contact us for advice on your best options.
Will I be able to tow a trailer with this dump kit installed?
Towing is only permitted with frame-mounted receiver hitches. Gooseneck hitches are not compatible and will have to be removed before installing the dump kit.
What is the maximum lift capacity of the Heavy Duty Flat Bed Kit?
The kit itself is rated for up to 20,000 lbs. However, there are several factors you need to consider. The first is the capacity of your truck or dump body. You do not want to exceed that under any circumstances. The second is the bed length vs the overhang. We provide charts for each kit so you can get an idea of your bed length vs how much overhang you will need to get the required lifting capacity.
