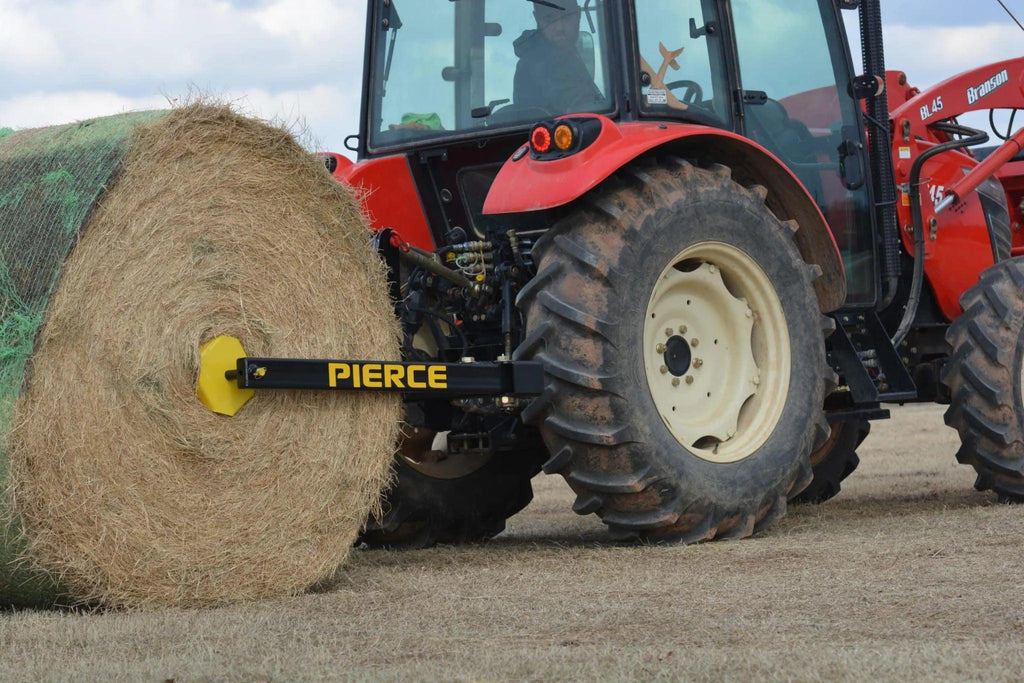

  • A red tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller moves a large round hay bale across the field.

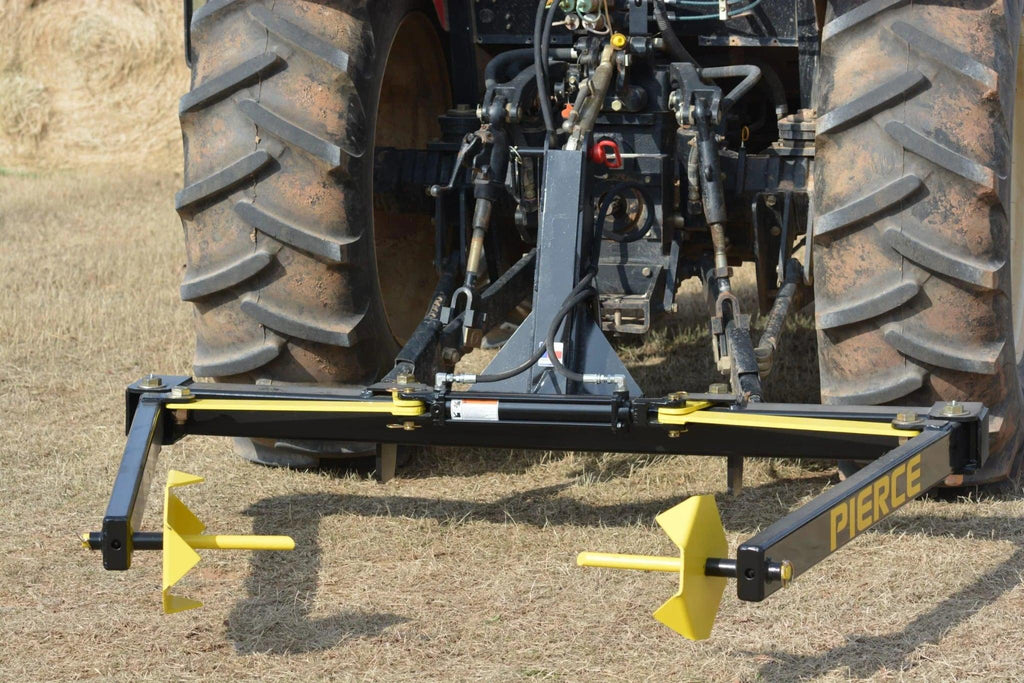

  • A tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller is used for rolling and laying irrigation pipes across a dry field.

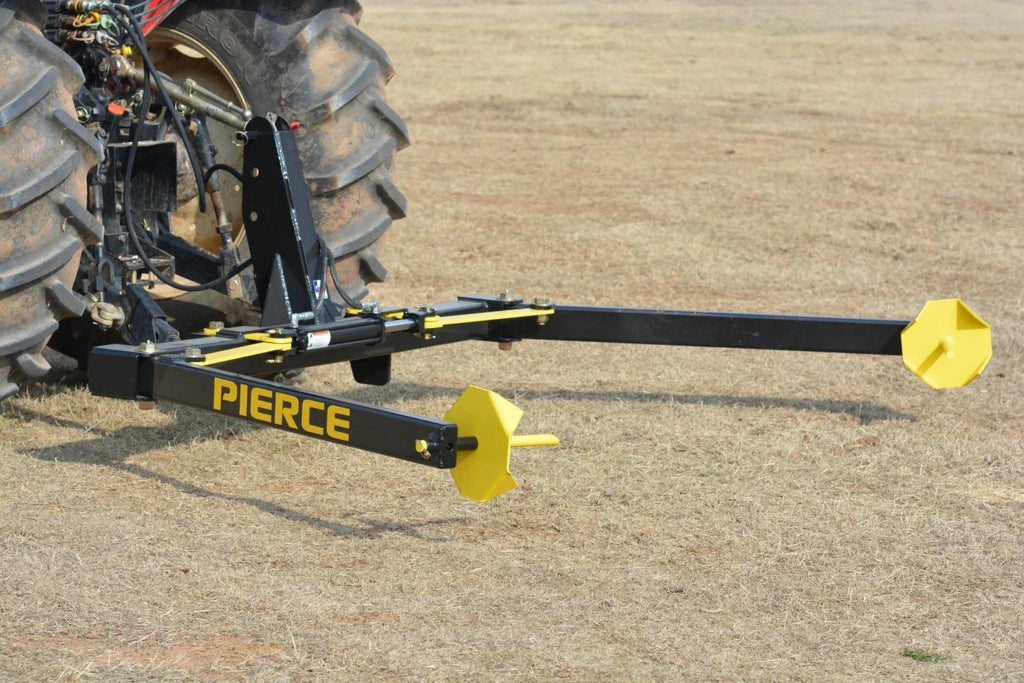

  • A black and yellow 3-Point Hay Bale Unroller by Internal - Pierce Assembly Team sits on dry grass, designed for efficient round bale handling.

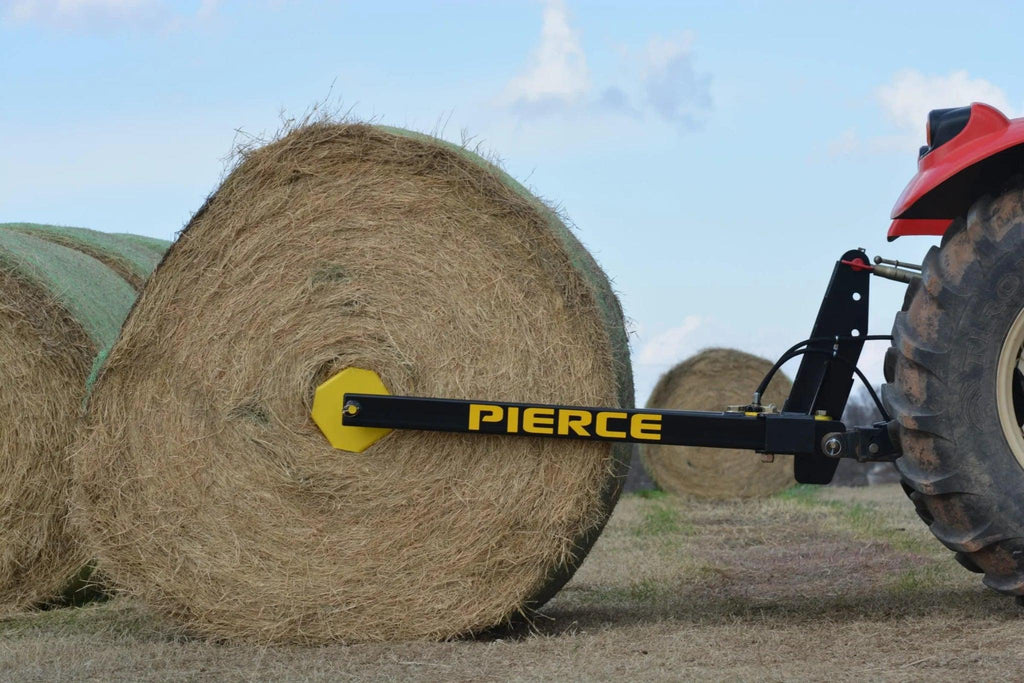

  • A tractor lifts a large hay bale in a field using an Internal - Pierce Assembly Team 3-Point Hay Bale Unroller attachment.
  • Wearing protective gear, a person welds metal beams in a workshop as sparks fly, fabricating parts for the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, an agricultural tractor attachment.
  • 3-Point Hay Bale Unroller

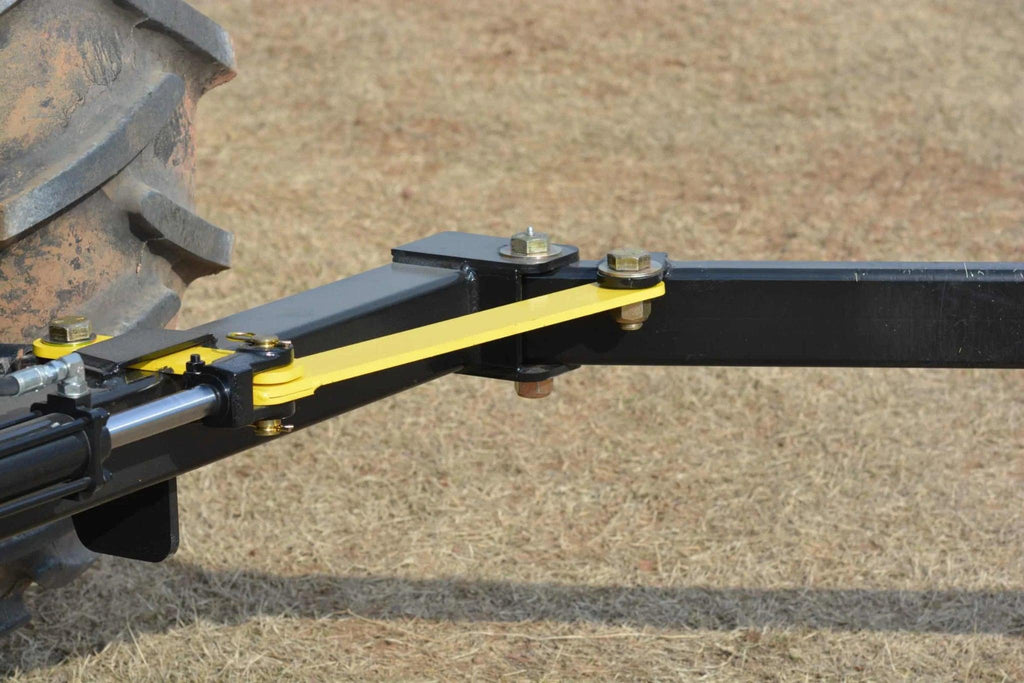

  • Close-up of a tractor hitch with a yellow stabilizer bar on dry grass, ideal for attaching the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller.

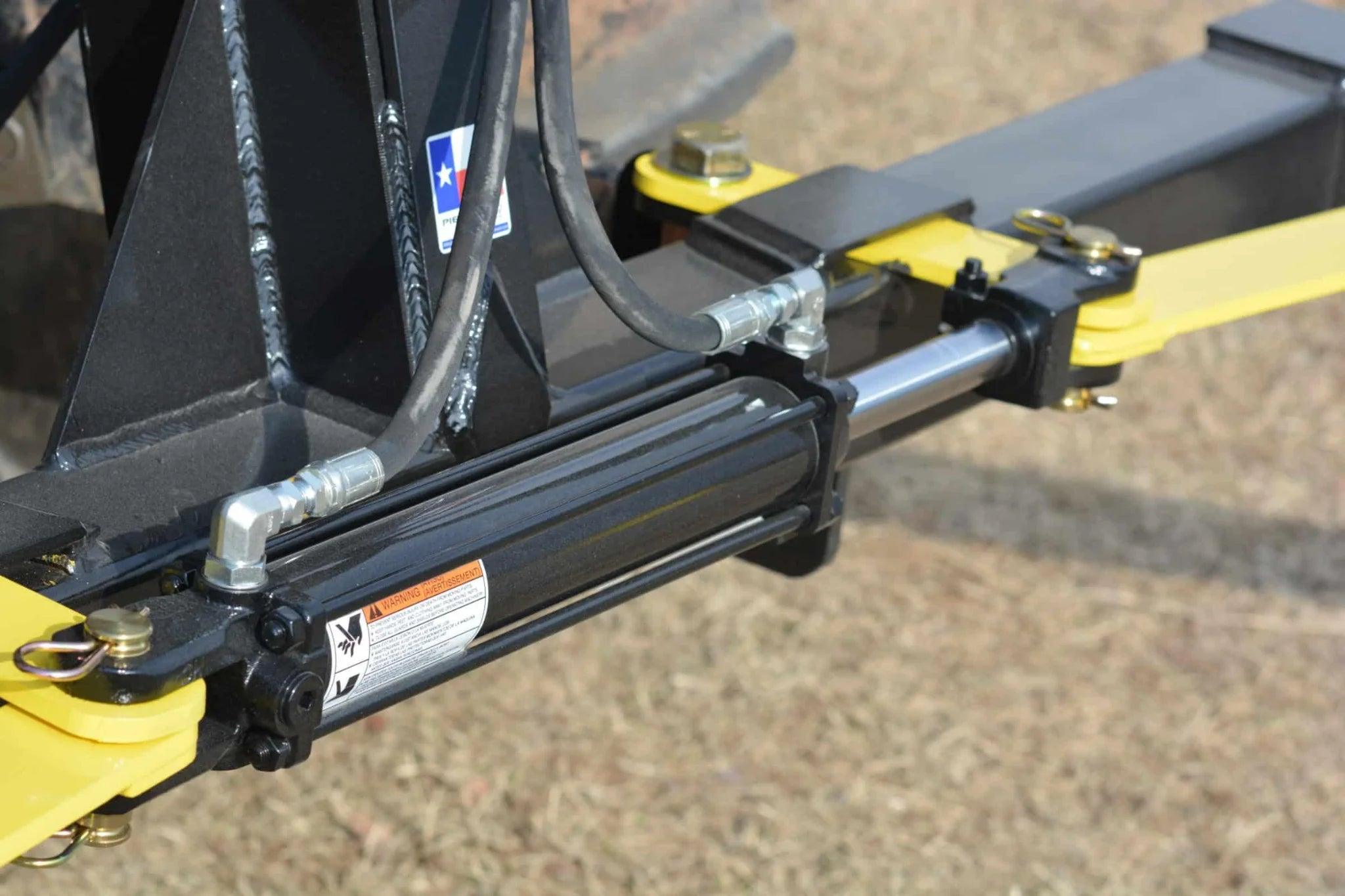

  • Close-up of a hydraulic cylinder on the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, a durable tractor attachment, shown outdoors on dry grass.

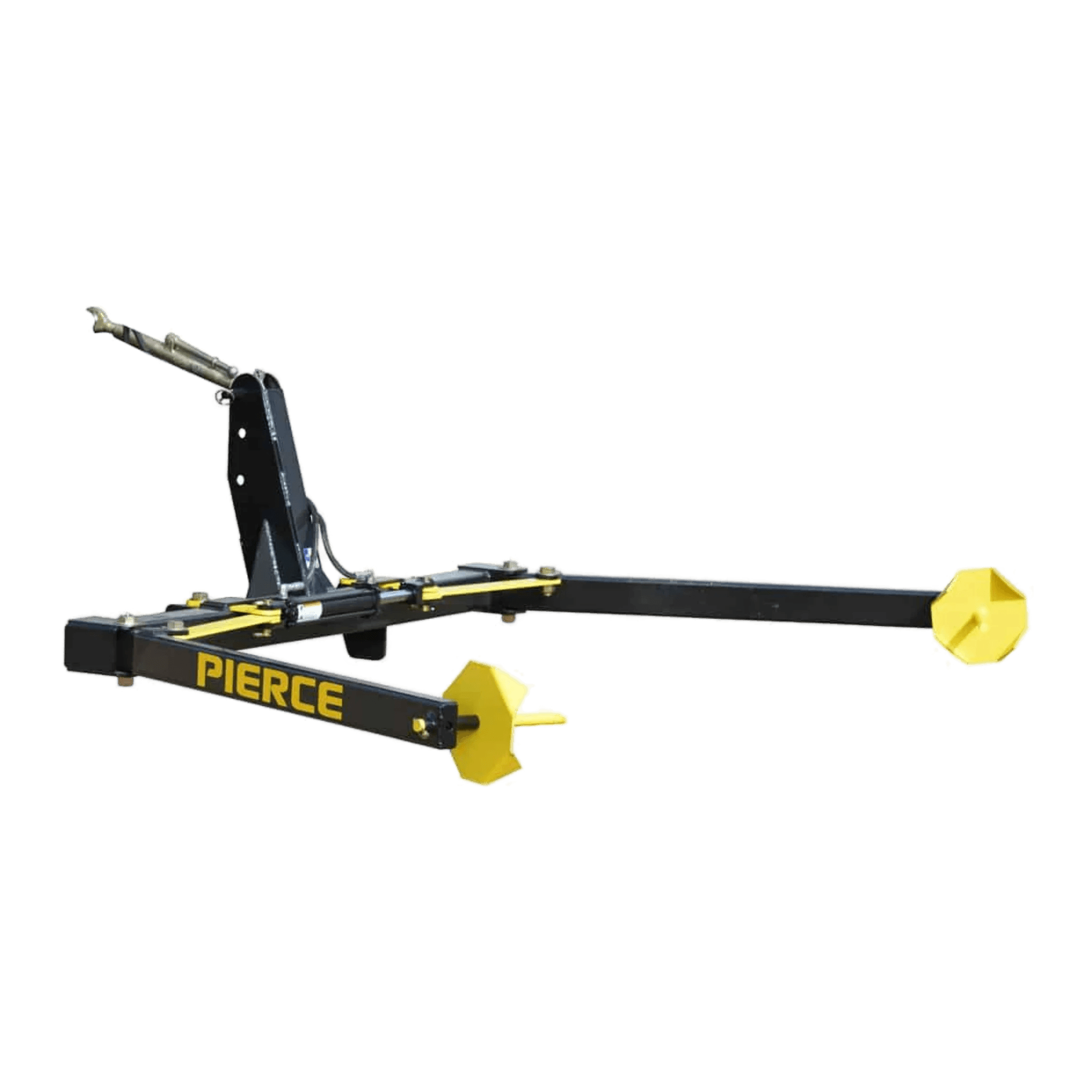

  • Black and yellow Internal - Pierce Assembly Team 3-Point Hay Bale Unroller hay spear attachment for tractors, shown on a white background.
  • 3-Point Hay Bale Unroller
  • 3-Point Hay Bale Unroller
  • A red tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller moves a large round hay bale across the field.
  • A tractor equipped with the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller is used for rolling and laying irrigation pipes across a dry field.
  • A black and yellow 3-Point Hay Bale Unroller by Internal - Pierce Assembly Team sits on dry grass, designed for efficient round bale handling.
  • A tractor lifts a large hay bale in a field using an Internal - Pierce Assembly Team 3-Point Hay Bale Unroller attachment.
  • Wearing protective gear, a person welds metal beams in a workshop as sparks fly, fabricating parts for the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, an agricultural tractor attachment.
  • 3-Point Hay Bale Unroller
  • Close-up of a tractor hitch with a yellow stabilizer bar on dry grass, ideal for attaching the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller.
  • Close-up of a hydraulic cylinder on the Internal - Pierce Assembly Team 3-Point Hay Bale Unroller, a durable tractor attachment, shown outdoors on dry grass.
  • Black and yellow Internal - Pierce Assembly Team 3-Point Hay Bale Unroller hay spear attachment for tractors, shown on a white background.
  • 3-Point Hay Bale Unroller
  • 3-Point Hay Bale Unroller
3-Point Hay Bale Unroller

3-Point Hay Bale Unroller

AHBR1
$1,266.00 $1,416.00
In Stock

Streamline your hay handling with the PIERCE 3-Point Hay Bale Unroller, a robust tractor attachment designed for working men and women across the U.S. Built in Henrietta, Texas, by our family-owned business since 1976, this unroller simplifies the task of managing large round bales, saving you time and effort in the field.

Why Choose the PIERCE 3-Point Hay Bale Unroller?

  • Efficient Bale Handling: Unroll 5’ to 6’ large round bales in just 15 minutes. Add optional extensions to handle 4’ bales with ease.
  • Heavy-Duty Design: With a maximum lift capacity of 2,500 lbs (1,000 lbs with 4’ extension), this hydraulic bale unroller is built to tackle tough jobs.
  • Easy Tractor Attachment: Securely bolts to Category 1 or 2 hitches, ensuring quick setup and reliable performance.
  • Low Maintenance: Features a durable 2” x 12” tie-rod hydraulic cylinder and sturdy arm guides for long-lasting use.
  • Versatile Application: Perfect for farmers and ranchers feeding livestock or managing erosion control by unrolling bales efficiently.

Key Features

  • Hydraulic Precision: The 3-point bale unroller uses a powerful hydraulic cylinder for grasping and then smooth, controlled bale unrolling.
  • Compact and Sturdy: Measures 72.75” x 52” x 30” and weighs 270 lbs, balancing portability with rugged construction.
  • Complete Kit: Includes base, arm guides, squeeze plates, driver and passenger side arms, hardware, and clear instructions for easy assembly.
  • 2-Year Warranty: All mechanical, electrical, and hydraulic parts are guaranteed free of defects, ensuring peace of mind.

How It Saves Time

The tractor bale unroller eliminates the hassle of manual bale handling. Attach it to your tractor, lift and unroll bales with precision, and cover more ground in less time. Whether you’re feeding cattle or preparing fields, this tool boosts productivity without unnecessary effort.
PIERCE 2 Year Warranty icon

PIERCE 2 Year Warranty

Warranty guarantees that all parts will be free of defects from the manufacturer. See details for terms and conditions.

What's Included
Specifications
Max Capacity (lbs.)
2500
Weight (lbs.)
270
Operational Pressure (psi)
3000
Overall Dimensions
72.75" x 52" x 30"
Cylinder Measurements
2" x 12"
Cylinder Type
Tie Rod
Max Capacity (lbs.) with 4 ft. Extension
1000
Hitch Type
Category 1 or 2
Bale Handling
5' - 6' Large Round Single Bale
Warranty
PIERCE 2 Year Warranty
Replacement Parts (1)
Bale Unroller Replacement Squeeze Spinner
Bale Unroller Replacement Squeeze SpinnerSKU: AHBR1SQPLATE
$77.00
Videos (2)

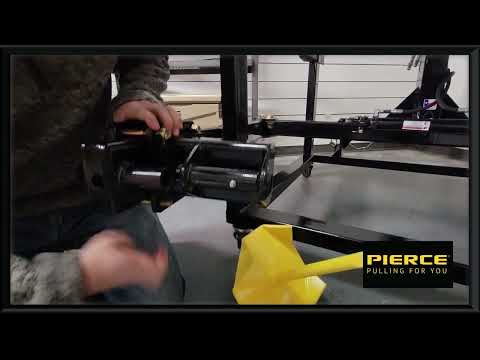

3-Point Hay Bale Unroller video

3-Point Hay Bale Unroller

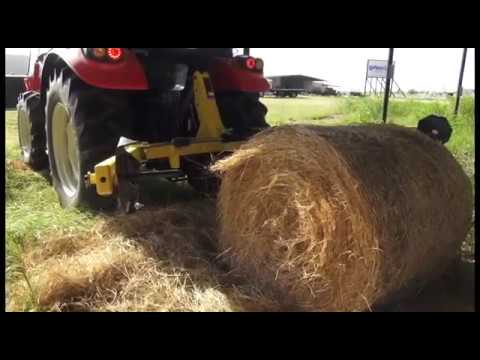

3-Point Hay Bale Unroller video

3-Point Hay Bale Unroller

Resources
AHBR1 - Bale Unroller Manual Manual
AHBR1 - Bale Unroller Manual
Manual
3D Model

Drag to rotate • Scroll to zoom

FAQs (7)
Does the PIERCE Bale Unroller have greased bolts and or grease fitting at all moving points?
Yes. Grease-zerks are found at all moving points.
Does the PIERCE Bale Unroller easily hookup to the quick tractor connects that are popular?
We are looking at utilizing the quick connect option on future revisions of this piece of equipment.
Will the Bale Unroller hook up to both Cat 1 / Cat 2?
Yes
What size bales can the PIERCE Bale Unroller pick up?
The unroller will pick up 5 and 6 foot bales, and will also pick up 4 ft. bales using the extensions.
Will the PIERCE Bale Unroller roll the whole bale out without waste?
The solid “core” will be left (most farmers/ranchers will find a way to feed this as well).
How often should I grease my PIERCE Bale Unroller and what type of grease should I use?
We recommend multipurpose grease (RED). Grease your PIERCE unroller before seasonal use, inspect it every three months, and grease as needed.
How do I hook up the hydraulic connections?
Plug the male into the ½” female breakaway coupler.
