Name: 2 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver
Price: 852.0 USD
Rating: 5.0 (3 reviews)

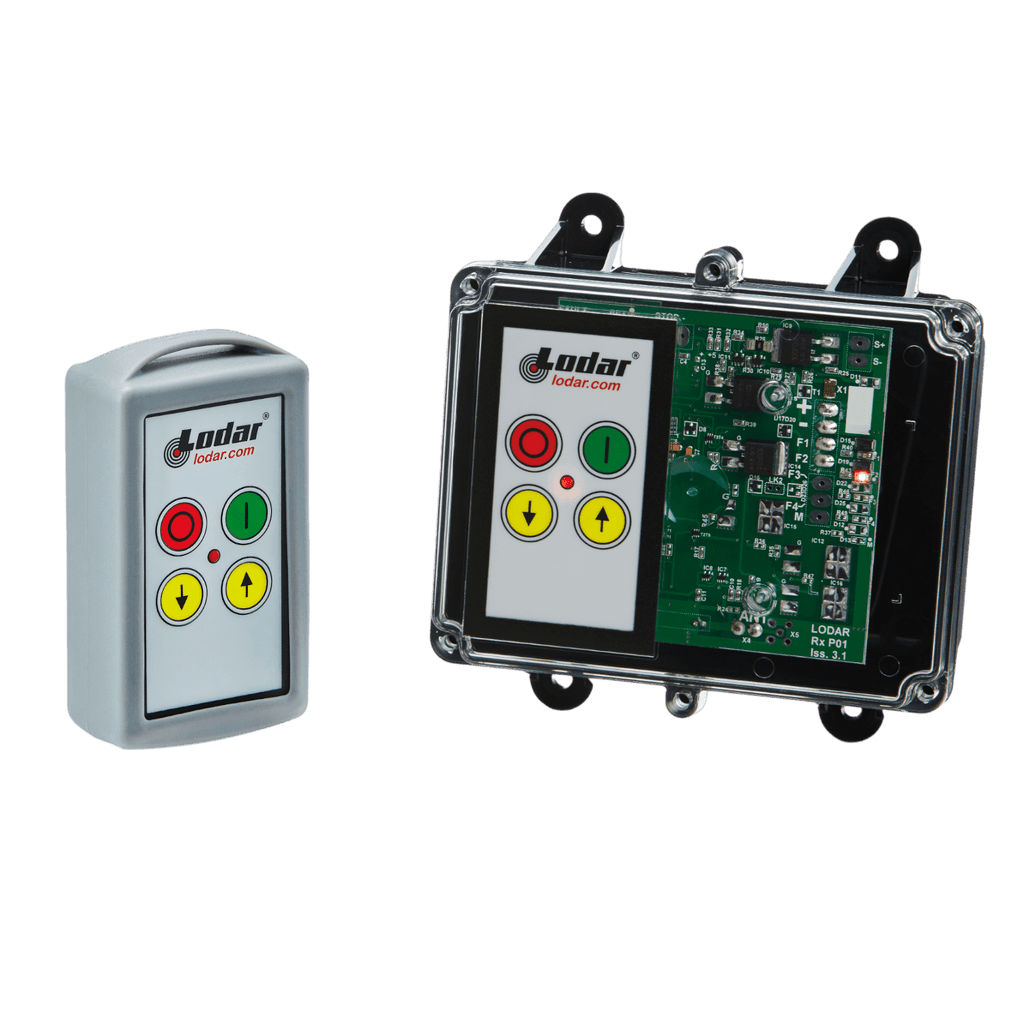

The 2 Function Standard Wireless Control System, part of the 92 Series by Lodar LTD, includes a remote control and an FET Keypad Receiver with an electronic circuit board featuring buttons for up, down, and stop. This setup is perfect for stabilization applications, offering precision and ease of use.

2 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

$852.00

1/2

2 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver

92102K-8

$852.00

Out of Stock

Expertly control your stabilization, construction, towing, pumping, automation, agriculture, and recreation applications with the 2 Function Standard Wireless Control System. Featuring a built-in backup keypad on the receiver, 5-year pro-rated warranty, this system includes a standard transmitter, 12/24 Volts DC operating voltage, IP 54 and IP 66 rated transmitter and receiver, and a 200 ft. operating distance. Master output and maximum 15 amps make this system a must-have for any professional.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92102 Series Options:

A Lodar LTD 92 Series 2 Function Standard Wireless Control System features a durable FET Receiver with buttons and an exposed electronic circuit board, all encased in a transparent plastic shell.

No Master Output 92100-8

-($211.00)

The Lodar LTD 92 Series 2 Function Standard Wireless Control System, featuring a FET Keypad Receiver without Master Output, includes arrow buttons for seamless operation and integrates smoothly into any wireless control system.

No Master Output + Keypad Receiver 92100K-8

-($113.00)

The 92 Series 2 Function Standard Wireless Control System by Lodar LTD features buttons and an electronic circuit board encased in a transparent shell, exemplifying a sleek wireless control solution.

Standard Receiver 92102-8

-($96.00)

Keypad Receiver 92102K-8

Transmitter

Standard

Functions

Operating Voltage

12/24 Volts DC

Transmitter IP Rating

IP 54

Receiver IP Rating

IP 65

Operating Distance

150 ft. (45 m.)

Master Output

Yes

Max Amps

Series

9000 Series

Transmitter Batteries

AAA x 2

Special Features

Receiver Keypad

Channel

Wide Band, Fixed

Wiring Included

9 ft. (3m) wiring loom through gland

Warranty

Lodar 5 Year Pro-rated Warranty

2 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92102TX-8

$247.00

2 Function Lodar Replacement FET Keypad Receiver | 92 SeriesSKU: 9202RXK-8

$605.00

Pairing the 92 Series Lodar Remote & Transmitter

92102K - 2 Function + Keypad with Standard Transmitter Spec Sheet 92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers Wiring Diagram 92-93 Series - Instructions Standard Transmitter Coding Instructions

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
