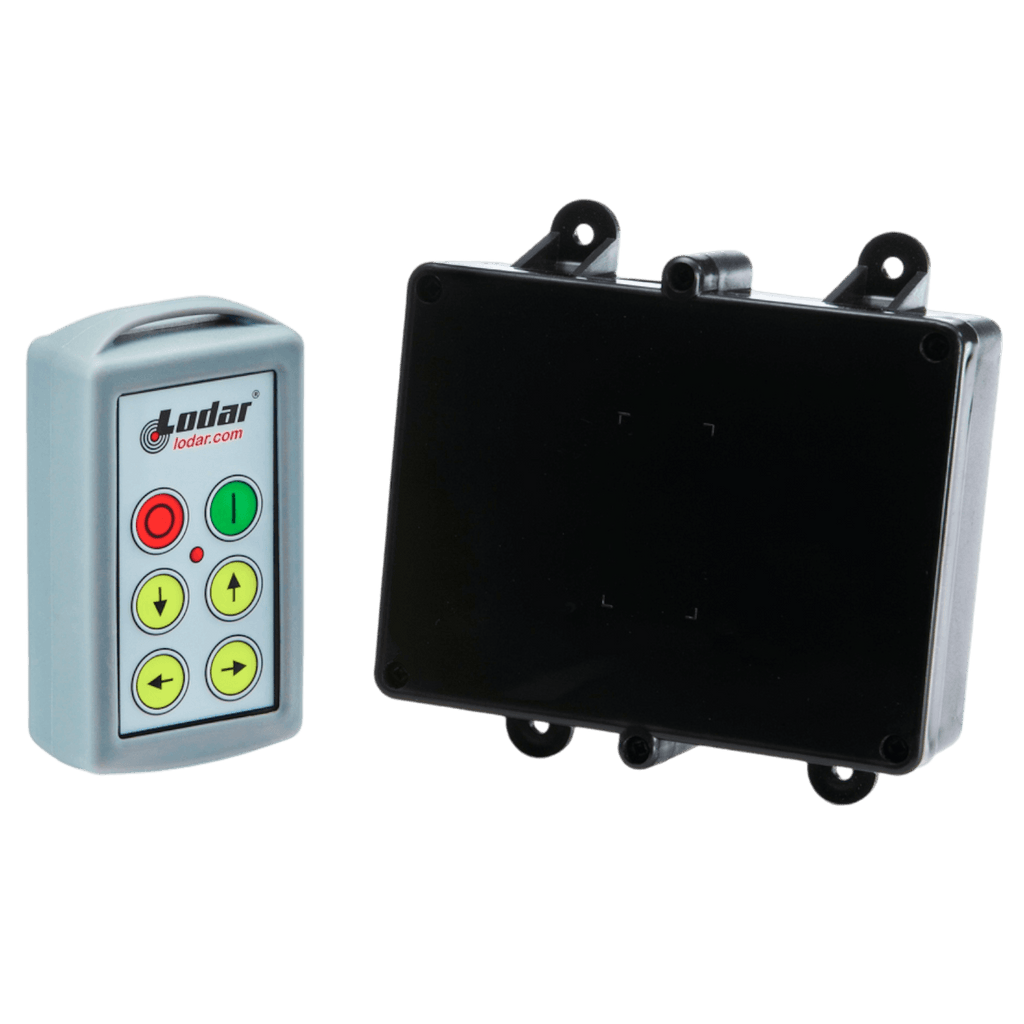

Introducing the 4 Function Standard Wireless Control System from Lodar LTD, part of the 90 Series. It includes a remote with buttons and a sleek black Relay Receiver, ideal for effortlessly and precisely controlling Solenoid Operated Equipment.

4 Function Standard Wireless Control System | 90 Series | Relay Receiver

$586.00
Skip to product information
Introducing the 4 Function Standard Wireless Control System from Lodar LTD, part of the 90 Series. It includes a remote with buttons and a sleek black Relay Receiver, ideal for effortlessly and precisely controlling Solenoid Operated Equipment.
1/2
  • Introducing the 4 Function Standard Wireless Control System from Lodar LTD, part of the 90 Series. It includes a remote with buttons and a sleek black Relay Receiver, ideal for effortlessly and precisely controlling Solenoid Operated Equipment.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Introducing the 4 Function Standard Wireless Control System from Lodar LTD, part of the 90 Series. It includes a remote with buttons and a sleek black Relay Receiver, ideal for effortlessly and precisely controlling Solenoid Operated Equipment.
  • Pairing the 92 Series Lodar Remote & Transmitter
4 Function Standard Wireless Control System | 90 Series | Relay Receiver

4 Function Standard Wireless Control System | 90 Series | Relay Receiver

90104
$586.00

Choose Your Labels

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
Estimated back in stock: 3 Weeks

The 4 Function Lodar 200ft Standard Wireless Control System offers long-range control of four outputs. Built with an IP54-rated Standard transmitter and an IP65 relay receiver, this system is engineered for everyday reliability at extended distances.

  • 4 functions of wireless control
  • Standard handheld transmitter (IP54)
  • Relay receiver sealed to IP65
  • 200ft range for safe operation

Applications: Recovery trucks, utility rigs, and light industrial setups needing long-range four-output control.

Need fewer functions? See the 2-function Standard version. For compact designs, check the Mini transmitter version.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Standard
Functions
4
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
5
Series
9000 Series
Transmitter Batteries
AAA x 2
Wiring Included
9 ft. (3m) wiring loom through gland
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
4 Function Lodar Replacement Standard Transmitter | 9000 Series
4 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92104TX-8
$295.00
4 Function Lodar Replacement Relay Receiver | 90 Series
4 Function Lodar Replacement Relay Receiver | 90 SeriesSKU: 9004RX
$275.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
