Name: 4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)
Price: 1738.0 USD
Rating: 5 (1 reviews)

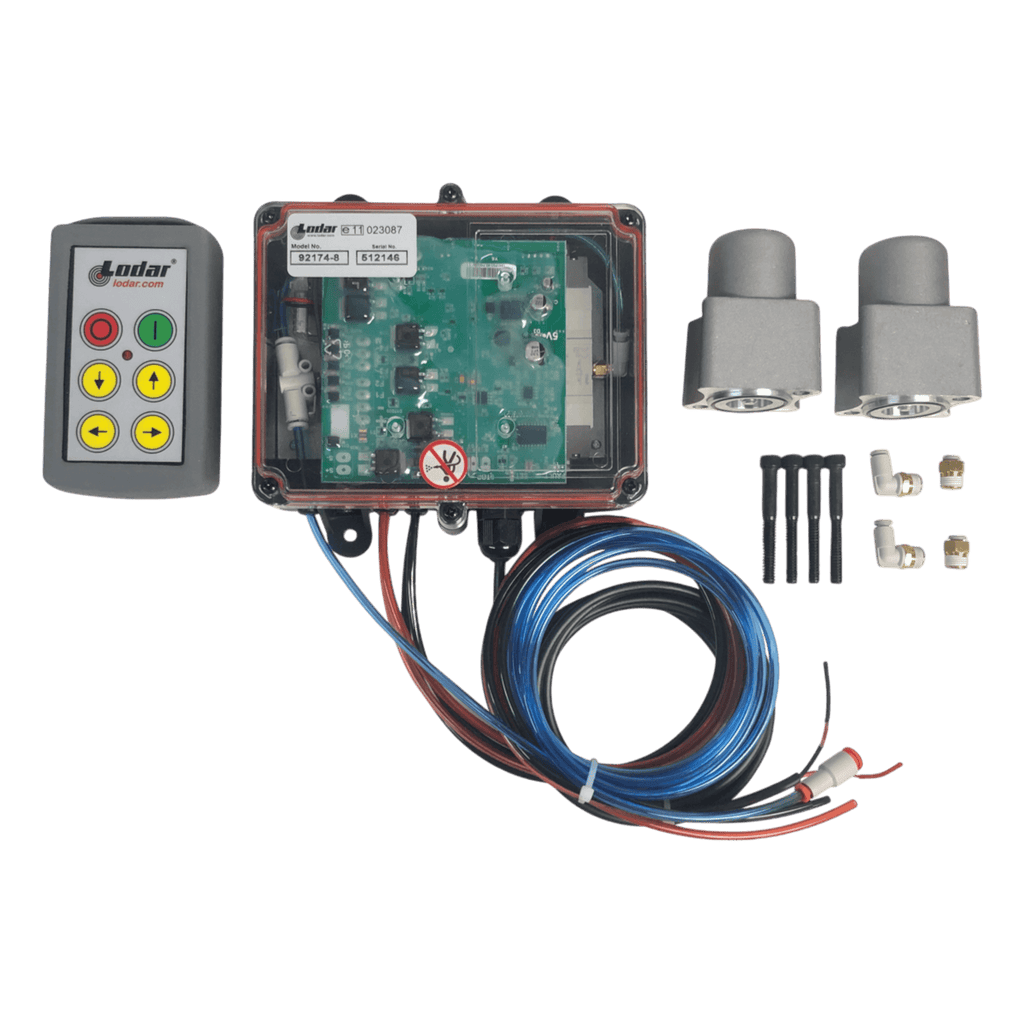

PIERCE 4 Function Direct Mount Wireless Air System for Miller (Gresen Valves) includes keypad, control box, wiring, and connectors—perfect for compact hydraulic circuits or integrating with Gresen valve actuators.

4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

$1,738.00

1/2

4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

92154DMM-8

$1,738.00

Choose Your Labels

1 Choose Your Legends *

Quick Select Choose a preset configuration or customize below

Your Configuration Click on a zone to select an icon

F1 Click to select

F2 Click to select

F3 Click to select

F4 Click to select

In Stock

Streamlined wireless control for smaller setups. This 4-function air system adds bolt-on pneumatic actuators to control two Gresen valves (two directions each) from a safe distance.

4 functions = 2 valves of wireless control
Bolt-on actuators for Gresen spools
Standard Series handheld transmitter (IP54) with AAA x 2 batteries
IP67 receiver for weather-sealed durability
Requires onboard air supply (90–120 PSI) and 12V DC power

Related systems: Need Husco compatibility? See the 4-Function Husco version. Want more functions? Jump to the 6-Function Gresen or 8-Function Air Actuation.

Applications: Compact hydraulic circuits on tow, utility, and ag equipment using Gresen valves.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Transmitter

Standard

Functions

Actuator

Gressen Direct Mount Air

Operating Voltage

12/24 Volts DC

Transmitter IP Rating

IP 54

Receiver IP Rating

IP 67

Operating Distance

200 ft. (61 m.)

Master Output

Yes

Max Amps

Series

9000 Series

Transmitter Batteries

AAA x 2

Special Features

Receiver with Air I/O + Air Actuators

Frequency

433 MHz

Type

Full System

Wiring Included

8 ft. power / 5 ft. air input / 3½ ft. air outputs

Warranty

Lodar 5 Year Pro-rated Warranty

4 Function Lodar Replacement Standard Transmitter | 9000 SeriesSKU: 92104TX-8

$295.00

Bolt-on Actuator for Gresen SpoolSKU: C-3526-DM

$155.00

4 Function Lodar Hard-Wired Remote | 9000 SeriesSKU: 9604

$307.00

4 Function Lodar Replacement FET Air Receiver | 92 SeriesSKU: 9274RX-8

$1,028.00

Pairing the 92 Series Lodar Remote & Transmitter

C-3526-DM Bolt-on Actuator Spec Sheet Spec Sheet

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
