Name: 4 Function Lodar Direct-Mount Air System | Jerr-Dan Husco
Brand: PIERCE
SKU: 92154DMJ-8
Price: 2721.00 USD
Availability: InStock

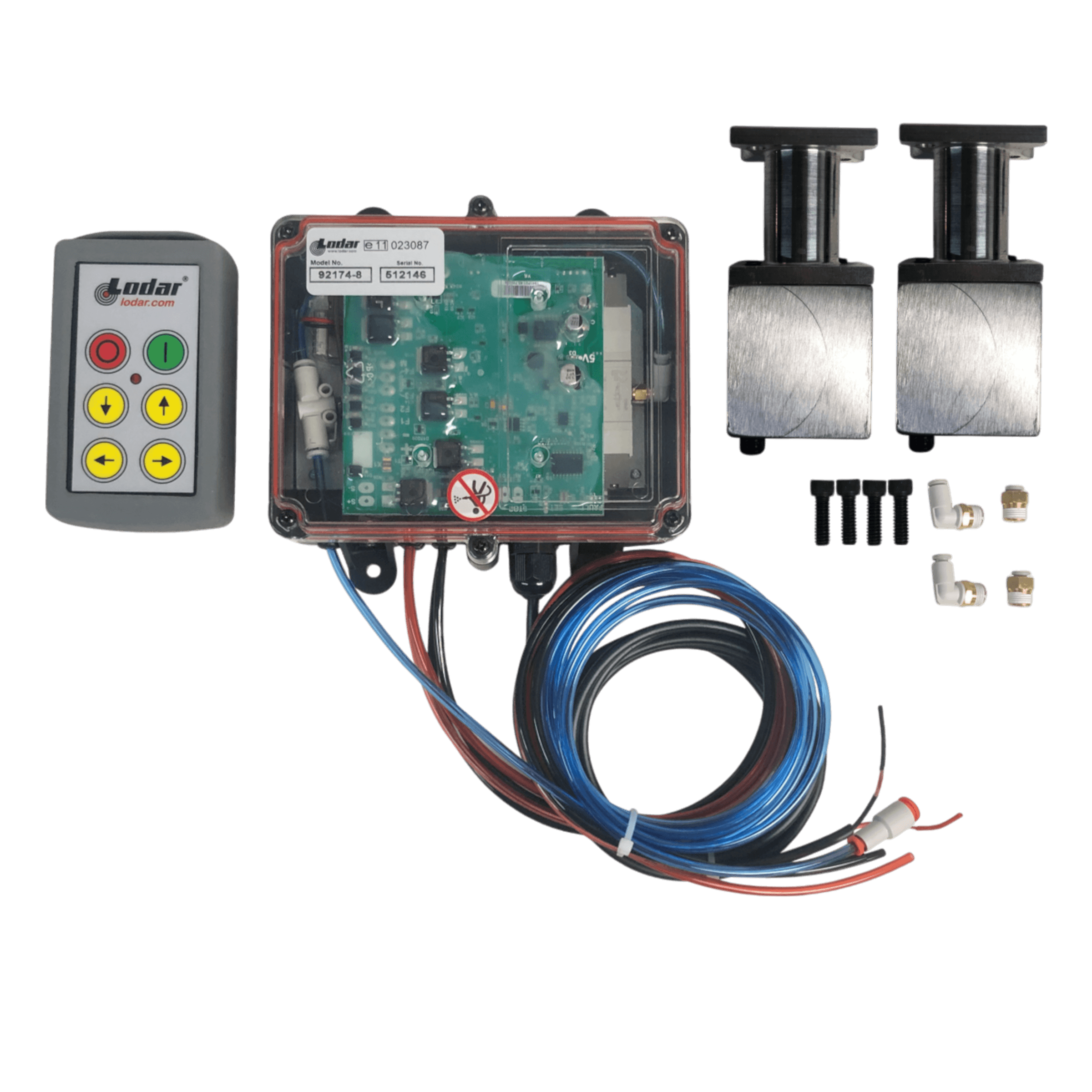

PIERCE 4 Function Direct Mount Wireless Air System for Jerr-Dan (Husco Valves) includes control box, wiring, remote, two metal actuators, screws, and connectors—ideal for wireless Husco valve setups. All items displayed on a white background.

4 Function Lodar Direct-Mount Air System | Jerr-Dan Husco

$2,721.00

1/2

4 Function Lodar Direct-Mount Air System | Jerr-Dan Husco

92154DMJ-8

$2,721.00

Choose Your Labels

1 Choose Your Legends *

Quick Select Choose a preset configuration or customize below

Your Configuration Click on a zone to select an icon

F1 Click to select

F2 Click to select

F3 Click to select

F4 Click to select

Out of Stock

Complete wireless air actuator control system - includes the Standard handheld transmitter and a receiver with the pneumatic solenoid valves built into the box, coded together and ready to wire to your equipment. Operates 4 functions on the Lodar 9 Series.

The 4 Function Lodar Direct-Mount Air System (92154DMJ-8) gives you 4-function wireless control with a 200 ft (61 m) range on the 433 MHz band. Compressed air is plumbed into the receiver box; the solenoid valves inside switch it to the output ports to drive your air cylinders directly - there is no separate external valve bank. The cylinders mount directly to your valve spools. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Mounts directly to your valves. This direct-mount system bolts onto the Husco spool valves on Jerr-Dan units - there are no separate actuators and no control-rod linkage. Confirm your valves are Husco before ordering.

Air supply. The air cylinders run on 21-120 psi (135 psi maximum); 80-100 psi is the ideal operating range. Plumb the system into a regulated air supply in that range.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 4 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

4 functions of wireless control
4 functions = 2 double-acting valves, two directions each
Standard transmitter - IP 54 rated
Air receiver - pneumatic solenoid valves built in, IP 67 rated
Direct-mount to Husco spool valves - no separate actuators
12/24V DC operating voltage
200 ft (61 m) operating range, 433 MHz band
Master output - fires on every function for run-along equipment
Lodar SKU 92154DMJ-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 4-function Lodar system? Compare the 4 Function Lodar IP Wireless Air System or 4 Function Lodar Mini Wireless System. Replacement handsets and receivers are sold separately.

Common uses: Jerr-Dan and other Husco-equipped wreckers, service trucks, and utility rigs.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

Transmitter

Standard

Functions

Actuator

Husco Direct Mount Air

Operating Voltage

12/24 Volts DC

Transmitter IP Rating

IP 54

Receiver IP Rating

IP 67

Operating Distance

200 ft. (61 m.)

Master Output

Yes

Max Amps

Series

9000 Series

Transmitter Batteries

AAA x 2

Special Features

Receiver with Air I/O + Air Actuators

Frequency

433 MHz

Type

Full System

Wiring Included

8 ft. power / 5 ft. air input / 3½ ft. air outputs

Warranty

Lodar 5 Year Pro-rated Warranty

4 Function Lodar Standard Transmitter | 9 SeriesSKU: 92104TX-8

$295.00

Bolt-on Actuator for Husco SpoolSKU: C-3845-DM

$309.00

4 Function Lodar Hard-Wired Remote | 9 SeriesSKU: 9604

$307.00

4 Function Replacement FET Air Receiver | 9 SeriesSKU: 9274RX-8

$1,028.00

Pairing the 92 Series Lodar Remote & Transmitter

C-3845-DM Bolt-on Actuator Spec Sheet Spec Sheet

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
