Description
Compact wireless control for Gresen valves. This 6-function air system adds bolt-on pneumatic actuators to convert three valves (two directions each) to wireless operation.
- 6 functions = 3 valves of wireless control
- Bolt-on actuators tailored for Gresen spools
- Standard Series handheld transmitter (IP54) with AAA x 2 batteries
- Sealed receiver (IP67) for dependable, all-weather use
- Requires onboard air supply (90–120 PSI) and 12V DC power
Related systems: Husco spools? See the 6-Function Husco version. Need more functions? Consider the 8-Function Air Actuation System. Prefer a direct-mount solution? See Direct-Mount for Gresen.
Applications: Tow & recovery, utility bodies, ag equipment, and municipal fleets using Gresen valve banks.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Gressen Direct Mount Air |
| FREQUENCY | 433 MHz |
| FUNCTIONS | 6 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 200 ft. (61 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| TYPE | Full System |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
Resources
Videos
Warranty
Replacement Parts
6 Function Lodar Replacement Standard Transmitter | 9000 Series
The 6 Function Lodar Standard Replacement Transmitter restores full control to your wireless system. Built with large, glove-friendly buttons and a wipe-clean surface, this OEM remote is rugged enough for daily commercial use. Pairing is quick and...

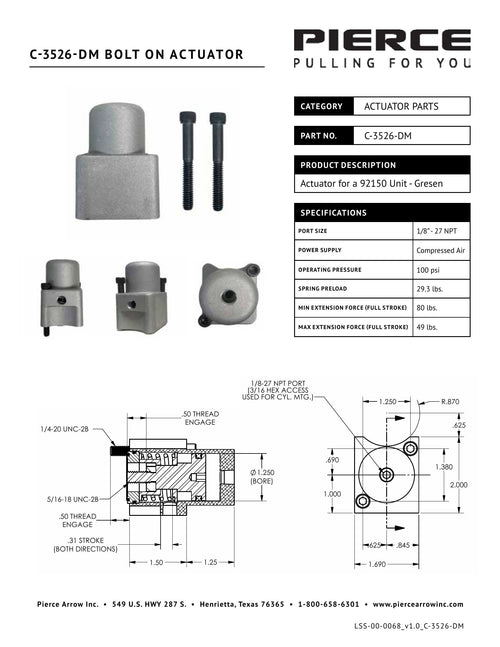

Bolt-on Actuator for Gresen Spool
This Bolt-on Actuator is a direct replacement for the Wireless Control Air System, designed specifically for Gresen Spools found on Miller Towing Equipment. With a seamless installation process and reliable performance, this actuator ensures smoot...
